GPX 1536-0810-10 User manual

USER’S GUIDE
V:1536-0810-10
For the most up-to-date version of this User’s Guide, go to www.gpx.com
AW160S

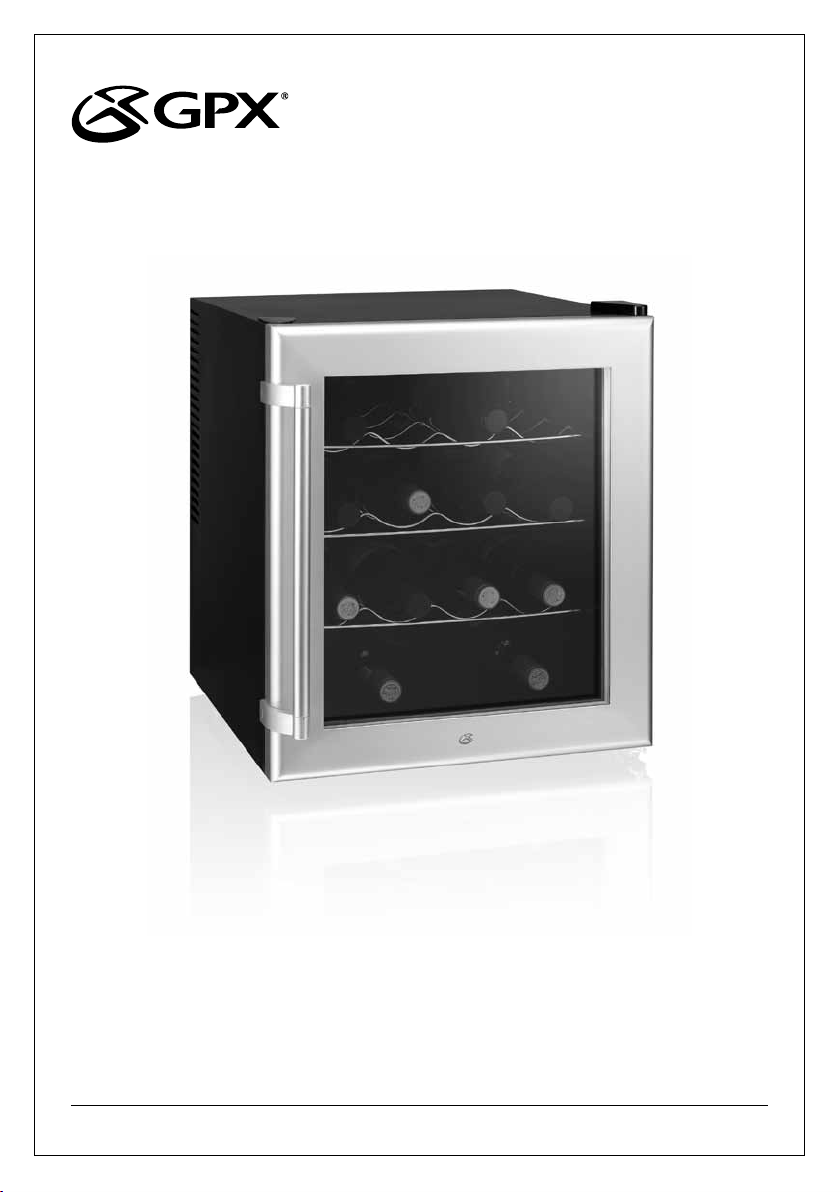

16 Bottle Wine Cooler

GPX2
General Safety Precautions
• After removing the wine cooler
from the package, make sure it
is in good condition. If the wine
cooler does not appear to be in
good condition, do not use it and
contact an authorized service
center.
• Plastic bags, nails, etc. Should be
kept out of the reach of children.
• Read the user’s guide carefully and
check that the rating data on the
rating nameplate corresponds to
your power supply.
• This wine cooler can only be
used in the way in which it was
designed. The manufacturer is not
responsible for any damage due to
improper use or repairs made by
unqualied personnel.
• Before cleaning the refrigerator,
make sure it is unplugged. Never
clean the unit with an acid
preparation, medical, dilution,
gasoline, oil or any other kind of
chemical substance that could
damage the refrigerator.
• Repair should only be made by
authorized service centers.
• To reduce the risk of re, replace
only with same type fuse.
• Free standing installation only.
• Do not use extension cords.
• DANGER: Risk of child entrapment.
Before discarding your old wine
cooler, you must do the following:
1. Remove the door.
2. Leave the shelves in place, so
that children may not easily
climb inside.
• Pour réduire les risques
d`incendie,utilisez un fusible de
rechange de mème type
• Installation non encastrée
seulement
• N`utilisez pas de prolongateur
• Avant de jeter votre réfrigérateur
hors d’usage, nous vous
conseillons de démonter la porte
et de laisser les clayettes en place.
Ces précautions éviteront qu’un
jeune enfant puisse sauter à
l’intérieur et qu’ensuite il ne puisse
pas s’en extraire.
General Caution
Attention

Customer Support: 1-888-999-4215 GPX 3
Technical Data
Volume 48 liters, 16 bottles
Power Consumption 1.0 KW•H/24H (15° C)
Ideal Ambient Temperature 11° C - 30° C
Temperature Range 11° C - 18° C
Rated Voltage AC 120V
Rated Frequency 60Hz
Current 0.95A
Input Power 70W

GPX4
• 16 bottle/48 liter capacity
• State-of-the-art thermoelectric
technology
• Glass door
• Soft interior lighting
• Temperature controller
• Adjustable feet for leveling
• Adjustable shelving
• No vibration keeps bottle sediment
undisturbed
• Ultra quiet
• Internal fan for air circulation
• Environmentally friendly
• Flush back design
• AW160S
• Door handle
• 2 screw caps
• Warranty card
• User’s guide
16 Bottle Wine Cooler
Features
Included

5
Customer Support: 1-888-999-4215 GPX 5
TABLE OF CONTENTS
General Safety Precautions . . . . . 2
• General
• Caution
• Attention
Technical Data . . . . . . . . 3
16 Bottle Wine Cooler . . . . . . 4
• Features
• Included
Introduction . . . . . . . . 6
Setup . . . . . . . . . . 8
• Powering the Wine Cooler
• Placement
• Attaching the Handle
Maintenance . . . . . . . . 10
• Cleaning the Wine Cooler
Troubleshooting . . . . . . . 11
Company Information . . . . . . 12
• International Support
• Contact Information

GPX6
Introduction
HANDLE
ADJUSTABLE FEET
(BOTTOM)
TEMPERATURE CONTROL
(INTERIOR)
REMOVABLE
SHELVING

7
Customer Support: 1-888-999-4215 GPX 7
1
2
3
4
5

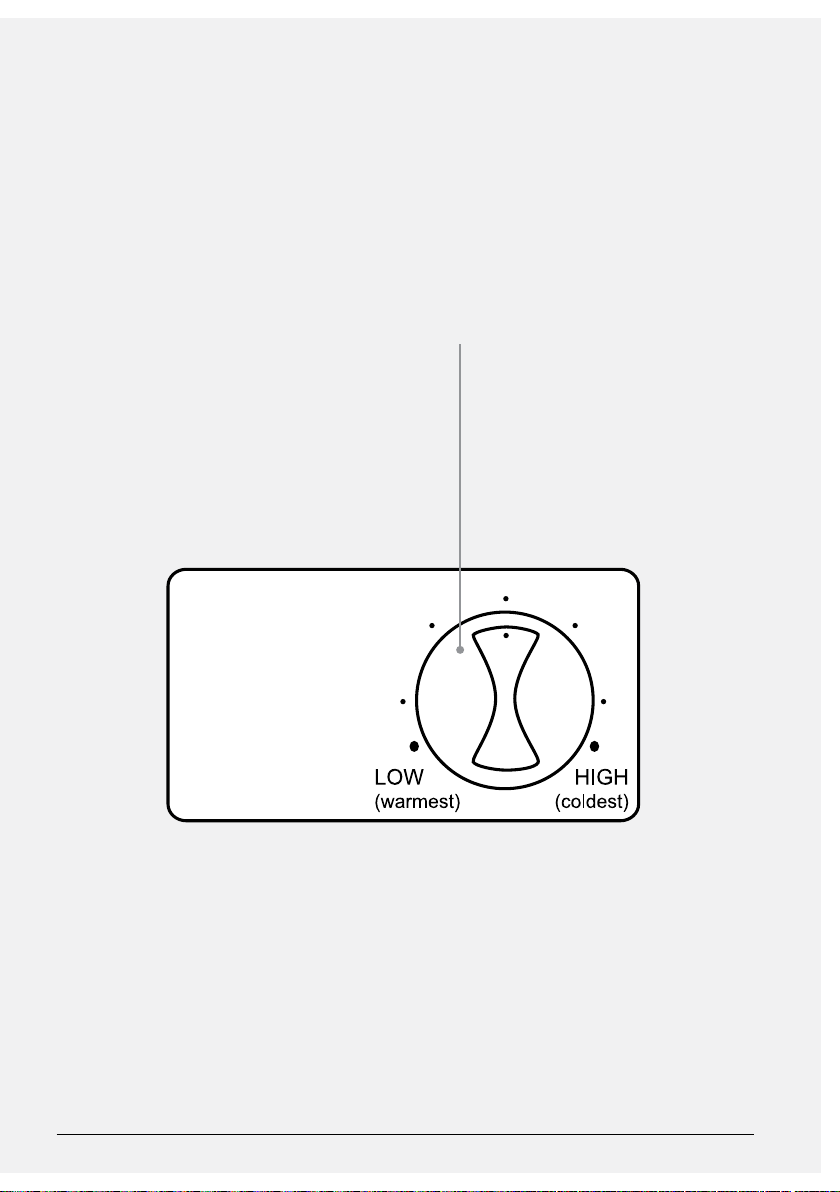

TEMPERATURE
CONTROL

GPX8
Plug the attached AC cord into a
standard AC power outlet to power the
wine cooler.
For optimal performance, place the
wine cooler in a dry (low humidity)
environment.
Powering the Wine Cooler
Placement
Setup

Customer Support: 1-888-999-4215 GPX 9
Requires a Phillip’s head screwdriver
(not included)
1. Remove the two screws on the side
of the door using the screwdriver.
2. Line the screw holes on the
HANDLE up with the screw holes
on the door.
3. Use the screws removed in step 1
to attach the HANDLE to the wine
cooler.
4. Use the included screw caps to
cover the screw holes on the
HANDLE.
Attaching the Handle

GPX10
Maintenance
1. Unplug the wine cooler from the
AC power outlet.
2. Ensure that the power has been
completely disconnected and that
the wine cooler is shut down.
3. Remove the contents of wine
cooler, then remove the shelving.
4. The shelving can be hand-washed
using soap and water.
The shelving must be dried
thoroughly before being placed back
into the wine cooler.
5. Wipe down the interior of the wine
cooler using a damp cloth.
6. Dry thoroughly and replace the
shelving.
Cleaning the Wine Cooler

Customer Support: 1-888-999-4215 GPX 11
Troubleshooting
Issue Possible Cause Solutions
My wine cooler is not
cooling.
• The wine cooler is
not plugged in
• Follow the instructions
for Powering the Wine
Cooler.
The wine cooler’s
temperature isn’t cold
enough.
• The wine cooler has
been placed near a
source of heat.
• Move the wine cooler
away from the heat
source.
• The fans aren’t
working properly.
• Follow the instructions
for Powering the Wine
Cooler.
• Replace the fan.
• The door isn’t
sealing all the way.
• Check the seal
around the door for
an obstructions and
remove them.

Copyright © 2010 Digital Products International (DPI, Inc.) | All other trademarks appearing herein are the property of their respective
owners. Specications are subject to change without notice
To download this User’s Guide in
English, Spanish, or French, visit the
support section at www.gpx.com.
Para transferir esta guía de usuario
en inglés, español, o francés, visite la
sección de la ayuda en www.gpx.com.
Pour télécharger ce guide de
l’utilisateur en anglais, espagnol, ou
français, visitez la section de soutien
chez www.gpx.com.
Phone: [phone]
Email: [e-mail]
Parts Email: partsinf[email protected]
Website: www.gpx.com
International Support
Contact Information
Company Information
