Grace Company A34 User manual

TABLE OF CONTENTS
CARE,FINISHING AND STORAGE................................................2
WARRANTY..................................................................2
PARTS LIST.................................................................3-4
ASSEMBLY STEPS
STEP 1: LAMPHOLDER TO POLE MOUNT END ASSEMBLY. . . . . . . . . . . . . . . . . . . . . . .5
STEP 2: HARDWARE TO LEG ASSEMBLY.....................................6
STEP 3: LEGS TO POLE MOUNT END ASSEMBLY..............................7
STEP 4: BRACE ASSEMBLY ................................................8
STEP 5: BRACE TO FRAME ASSEMBLY ......................................10
STEP 6: POLE ASSEMBLY ................................................11
STEP 7: POLE TO FRAME ASSEMBLY .......................................13
STEP 8: FINAL FRAME ADJUSTMENTS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
FOLDING AND STORING YOUR A34TM.............................................14
USE OF ACCESSORIES..........................................................15
QUILTING INSTRUCTIONS AND TIPS
MAKING AND USING CLOTH LEADERS......................................17
PREPARING THE FABRIC LAYERS FOR INSTALLATION..........................19
FABRIC INSTALLATION...................................................19
TROUBLE SHOOTING....................................................21
SPECIAL TIPS TYING QUILTING...........................................22
COPYRIGHT MAY 2003
REPRODUCTION PROHIBITED
JIM M. BAGLEY GRACEWOOD,INC.
PATENT PENDING

2
Caring for Your A34TM
Your A34TM Quilting Frame is a sturdy frame that can be used finished or unfinished. For extra
protection, or to give it a finished look, you may seal, stain and/or finish the frame using a number of different
applications. This is best done BEFORE YOU ASSEMBLE your frame.
To seal the wood, we recommend an application of tung oil that will help preserve the wood and will help
to prevent warping. To add a certain color to your frame, you may use a Danish Oil finish. We recommend the
DeftTM or WatcoTM brands. Some prefer to use a urethane coat to add a more glossy finish.
Test stain on an inconspicuous place. Many different finishes and/or stains may be suitable for sealing
and beautifying your frame. You may want to consult your local paint retailer for finishes that are easy to apply
and dry hard–not oily.
Use and Storage Tips
--Store frame in a dry place. If not assembled, store with poles and braces in vertical position. (This will prevent floor moisture from
seeping into the poles).
--Do not carry the assembled frame by the quilting poles. Hold the braces instead.
--Do not drop the frame or let it twist out of square.
Lifetime Limited Warranty
GraceWood, Inc. will replace or repair, at our choosing, any part of the Grace A34 TM Quilting Frame,
which may be shown to be defective. This Lifetime Warranty does not cover parts damaged through misuse,
improper storage, improper assembly, loss, natural events and willful or accidental destruction. Defective parts
may be returned only with a valid RMA# which may be obtained by calling GraceWood, Inc. at 1-800-264-0644.
Warranty card must be filled out, stamped and mailed to the address on the card within 30 days of purchase.
Contact Information
For Technical Support or any other correspondence concerning your A34 TM Quilting Frame, call 1-800-264-0644 ~
OR ~ E-mail: [email protected] ~ OR ~ Fax: [phone] ~
OR ~ Write to:
The Grace Company
P.O.Box27823
Salt Lake City, UT 84127
For details on accessories and other information, see us online at www.graceframe.com
For shipping of materials to the Grace Company address package (postage prepaid) to: The Grace Company,
2275 South 3200 West, SLC, UT 84119. Materials may be returned only with a valid RMA# or Returned
Merchandise Authorization Number which may be obtained by calling GraceWood, Inc. at
1-800-264-0664.
If you call after business hours (M-F 8:00 a.m. – 5 p.m., MST) be assured that your call will be returned
the next business day if you leave a message. Please report any errors in these instructions or make constructive
comments to the following: [email protected]
Grace Quilting Frames and Hoops: Innovation and Evolution
Grace Quilting Systems have been developed over the past two decades with several original design
innovations. Additionally, because feedback from many of the thousands of quilters who have purchased and use
the GraceFrameTM, we have been able to make a frame that will truly enhance the entire process of hand quilting
from beginning to end. If you have any suggestions that will help us to improve our product or service, please tell
The Grace Company by corresponding to us using one of the above methods.

3
1-Wing
Grip Tool
3-Ratchet
Stop 3-Pole
Cap 6-Guide
Dowel 3-Quick Release
Pole Hook
3-40 Tooth
Ratchet Wheel

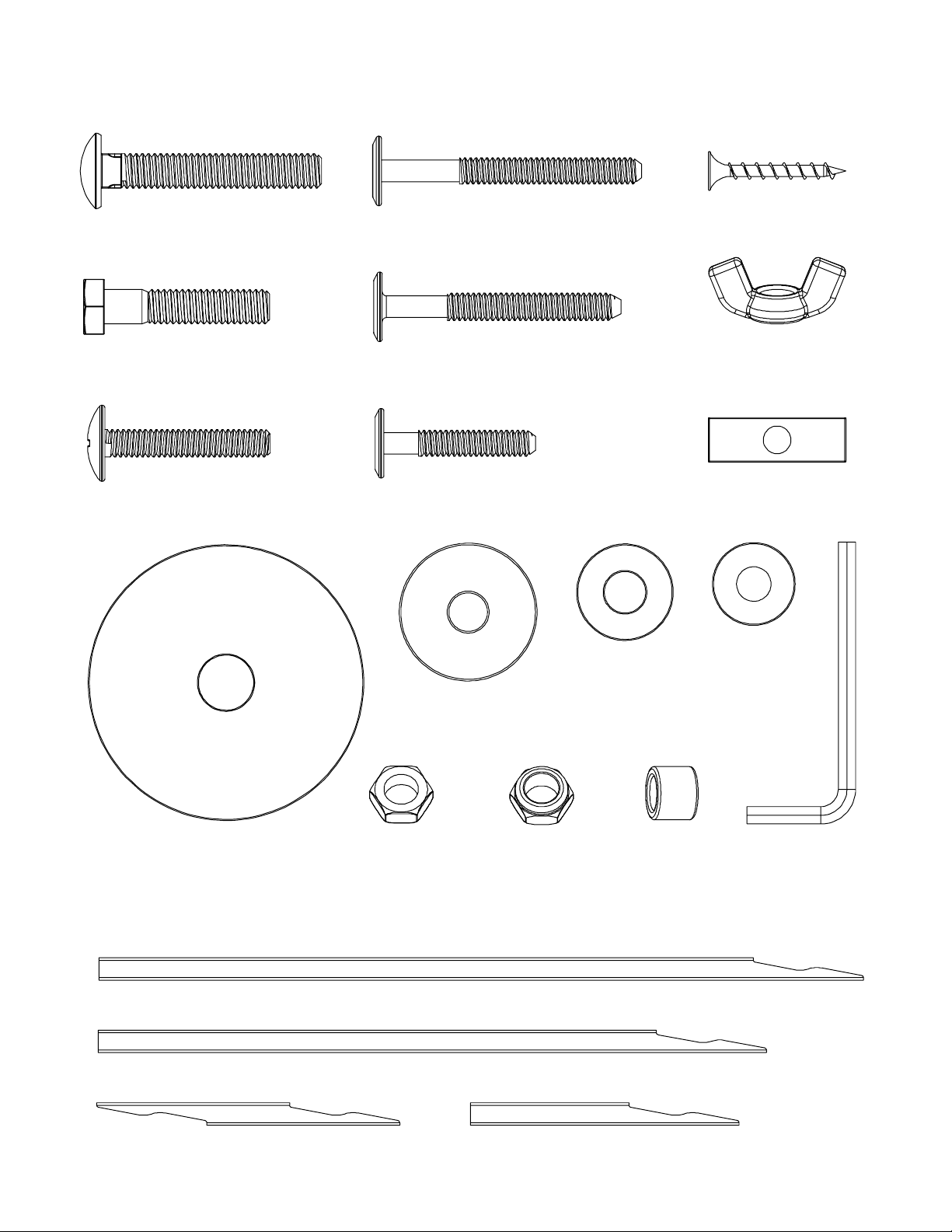

A34 Parts List
1-Right Pole mount End
1-Left Pole Mount End
1-Right Front Leg
1-Left Front Leg
1-Right Back Leg
4-Braces
1-Left Back Leg
Pole Parts
1-Left Accessory
Tray 1-Right Accessory
Tray
3-Springs

4
8-5/16 X 2"
Carriage Bolt 4-1/4" X 60mm
Connector Bolt
***Drawings display hardware in actual size***
12-1/4" X 35mm
Connector Bolt
4-5/16 X 1 1/2"
Hex Bolt
3-1/4 X 1 1/2"
Truss Bolt
6-1 1/4" Grabber
Screw
4-5/16" Wing
Nut
6-1/4" Rectangle
Nut
8-Plastic
Rollers
4-1 1/4" Fender
Washer
6-Nylon Washer
8-5/16" Flat
Washer
8-1/4" Flat
Washer
4-5/16"
Nylock Nut
8-5/16"
Jamb Nut
Pole List
3-55 1/2" Pole
3-48 1/2" Pole
3-22" Pole 3-19 1/2" Pole
2-1/4" X 55mm
Connector Bolt
1-4mm
Allen Wrench
Hardware Parts List

5
Assembly of the A34TM Quilting Frame
BEFORE YOU BEGIN
Using the preceding parts list as a reference, take the parts out of the box and make sure your package is
complete. (If there is something missing or damaged, do not call the store or dealer from whom you
purchased the product. Please contact The Grace Company directly at 1-800-264-0644).
TOOLS NEEDED
To assemble your frame, you will need the following common tools:
1. One ½" wrench
2. Phillips Head Screw Driver
3. Wing Grip Tool (to easily tighten and loosen wing nuts--provided)
4. Allen Wrench (provided)
 Note: To help you distinguish between wood parts, all Left Side parts are marked with an “L” grooved into the wood on
the inside of the part. Right side parts are also marked with an “R” on the inside. The first four steps will involve installing
hardware into parts and performing other sub-assemblies in preparation for further steps.
This is a new product! We welcome your feedback on this product or these instructions. If you
encounter a problem during assembly or use of the Grace A34TM, and you can’t seem to overcome it, call
us before frustration sets in! ☺1-800-264-0644.
NOTE! Read each step all the way through before actually assembling parts in that step.
STEP 1: LAMPHOLDER TO POLE MOUNT END ASSEMBLY
PARTS NEEDED: 1 –LEFT POLE MOUNT END
1–RIGHT POLE MOUNT END
2–ACCESSORY TRAY
2–LAMPHOLDER
2–¼” X 55MM CONNECTOR BOLT
2–RECTANGLE NUT
Attach the Lamp Holder to the Left Pole Mount End by placing a ¼” x 35mm connector bolt through
the hole at the front of the Pivot Section, with the head of the bolt on the outer side.
Place a ¼” rectangle nut in the cross slot of the Lamp Holder and thread the bolt through the nut (see
close-up below).
Left Pole Mount End
Inside View
Left Accessory
Tray
1/4" Rectangle
Nut
1/4" X 55mm
Connector Bolt
