Instructions/Parts
SaniForce® 2:1 Sanitary Piston
Pumps
3A2977K
EN
For use in sanitary applications to transfer low- to medium-viscosity fluids. Use with non-flammable
liquids only. For professional use only.
Important Safety Instructions
Read all warnings and instructions in this manual.
Save these instructions.
Maximum Fluid Working Pressure: 250
psi (1.7 MPa, 17.0 bar)
PROVEN QUALITY. LEADING TECHNOLOGY.

Contents
Models............................................................... 3
Warnings ........................................................... 4
Installation.......................................................... 6
Grounding ................................................... 6
Mounting ..................................................... 6
Setup .......................................................... 6
Operation........................................................... 8
Pressure Relief Procedure............................ 8
lush Before irst Use.................................. 8
Adjusting the Pump Speed and
Pressure ........................................ 8
Pump Shut Down......................................... 8
Maintenance ...................................................... 9
lushing Procedure...................................... 9
Cleaning...................................................... 9
Tighten Threaded Connections..................... 9
Troubleshooting.................................................. 10
Repair................................................................ 11
Disconnect the Air Motor .............................. 11

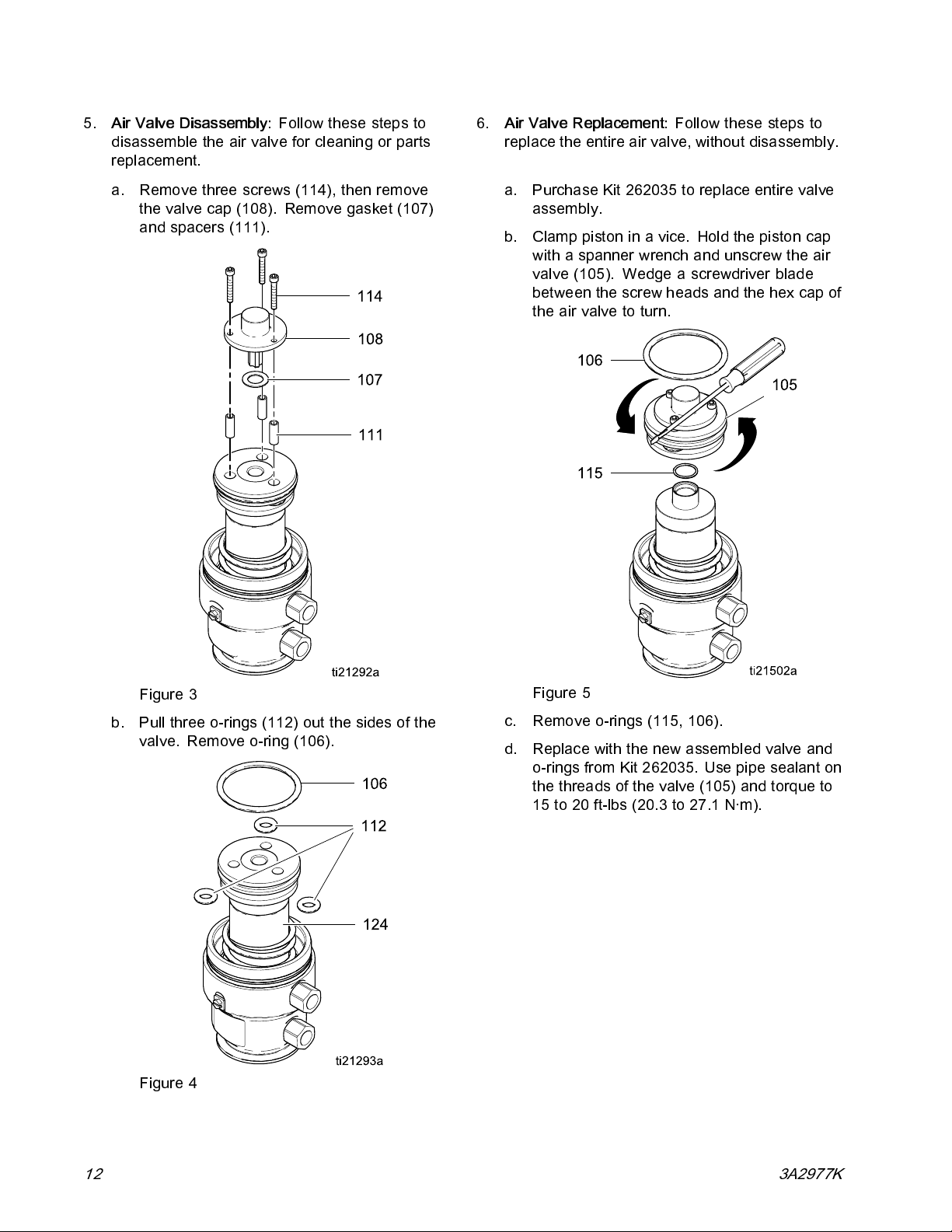

Air Motor Disassembly ................................. 11

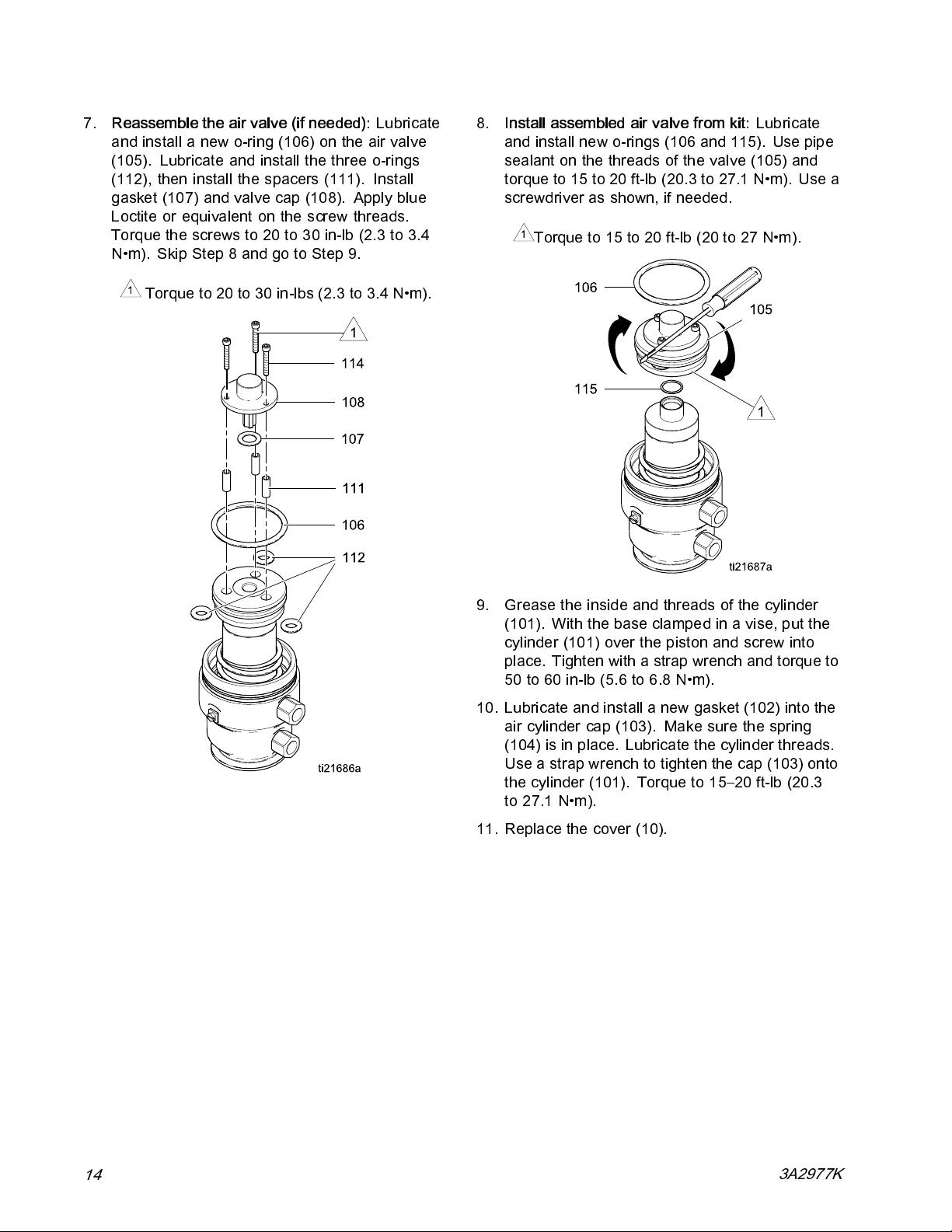

Air Motor Reassembly.................................. 13
Disassemble the Pump.................................15

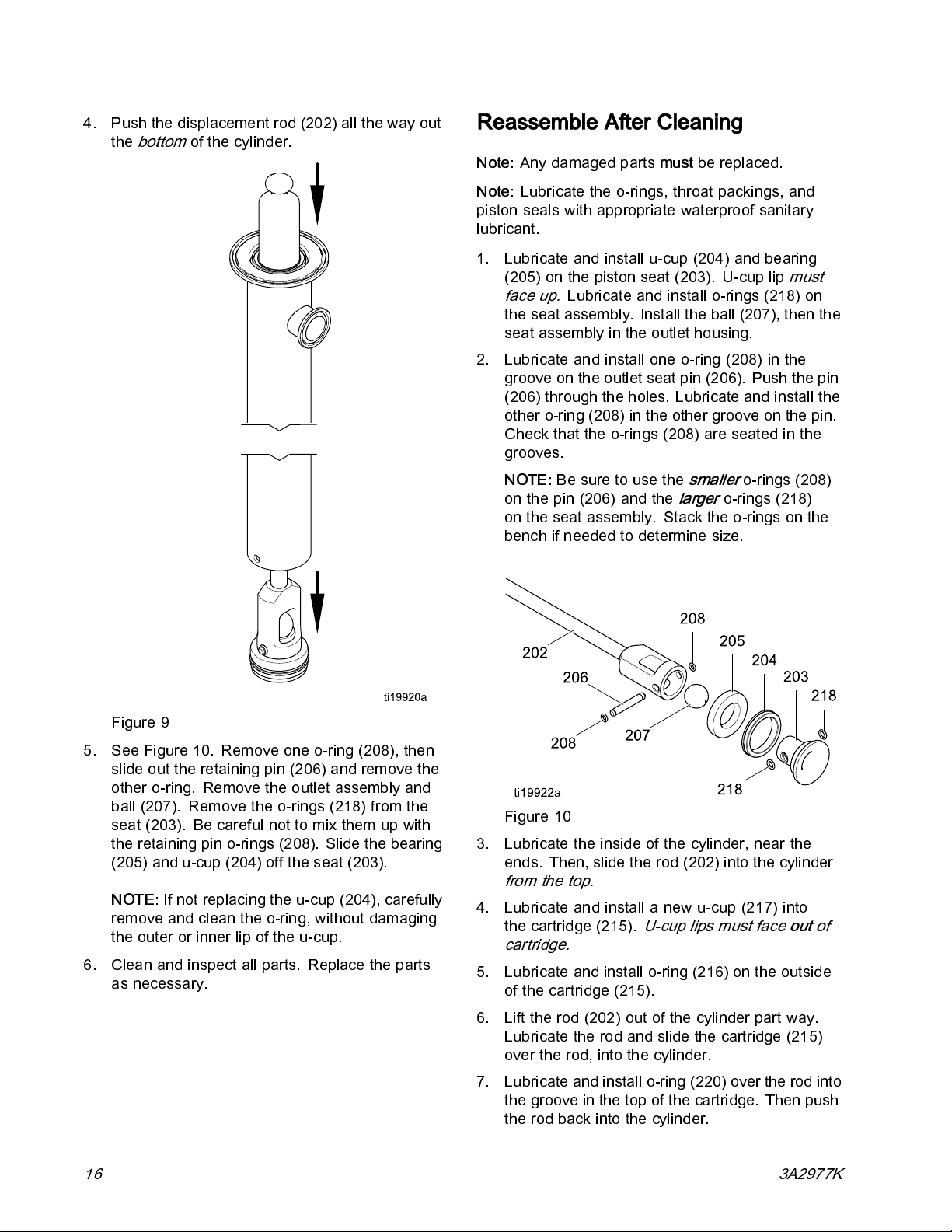

Reassemble After Cleaning .......................... 16

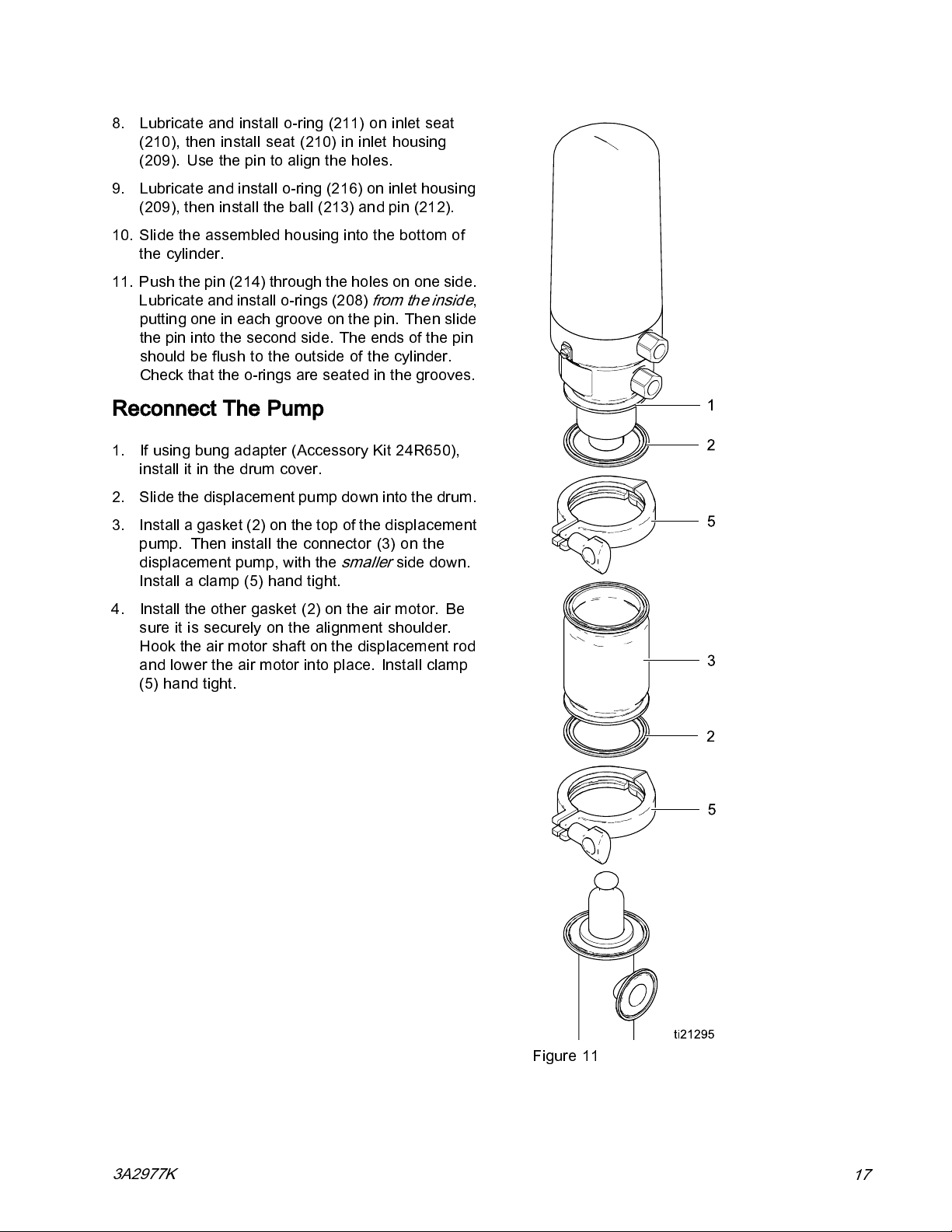

Reconnect The Pump...................................17
Parts.................................................................. 18
Kits and Accessories........................................... 24
Dimensions........................................................ 25
Performance Chart ............................................. 26
Technical Data ................................................... 27
Graco Standard Warranty.................................... 28
23 2977K

Models
Models
See ID tag on side of air motor
(located under the motor cover) for
model number.
Maximum Air Inlet Pressure: 100 psi (0.7 MPa, 6.9 bar)
Maximum Fluid Wor ing Pressure: 250 psi (1.7 MPa, 17.0 bar)
Pump Model Pump Type Pump Description Packings
24N300 Double Ball Tall Drum Length (42 in., 107 cm Drum) U-Cup, UHMWPE
24N344 Double Ball Tall Drum Length (42 in., 107 cm Drum) U-Cup, PT E
24R046 Double Ball Standard Drum Length (34 in., 86 cm Drum) U-Cup, UHMWPE
24R047,
24R047C31† Double Ball Standard Drum Length (34 in., 86 cm Drum) U-Cup, PT E
NOTE: See page 4 for DA
Material Certification.
II2GDcIIAT3
EC 1935/2004 compliant pumps may be subject to individual national provisions in addition to those
specified in the EC regulation. It is the users responsibility to know and follow local laws.
† Model 24R047C31 is the same as 24R047, except that it is type 3.1 certified per DS/EN 10204.
3 2977K 3

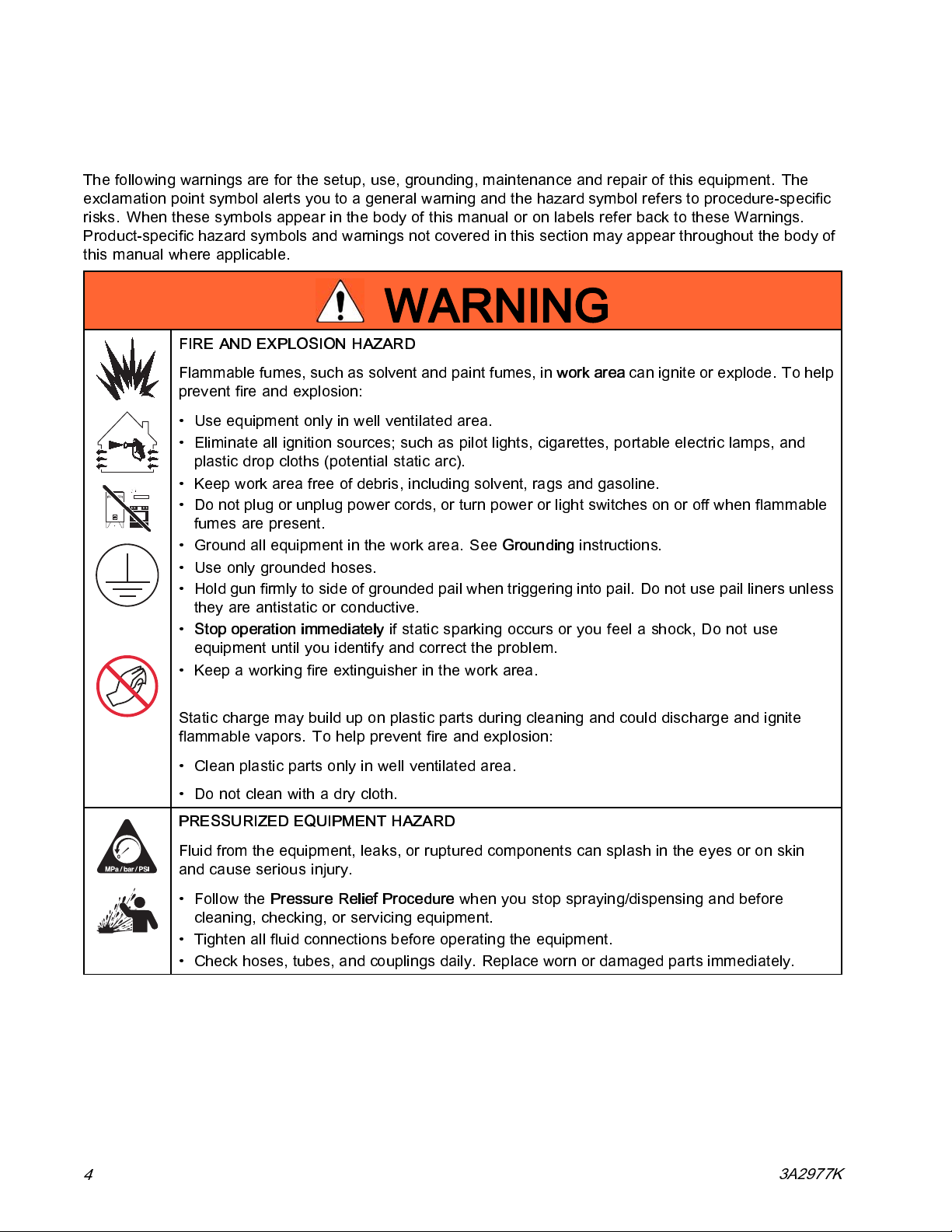

Warnings
Warnings
The following warnings are for the setup, use, grounding, maintenance and repair of this equipment. The
exclamation point symbol alerts you to a general warning and the hazard symbol refers to procedure-specific
risks. When these symbols appear in the body of this manual or on labels refer back to these Warnings.
Product-specific hazard symbols and warnings not covered in this section may appear throughout the body of
this manual where applicable.
WARNING
IRE AND EXPLOSION HAZARD
lammable fumes, such as solvent and paint fumes, in work area canigniteorexplode.Tohelp
prevent fire and explosion:
• Use equipment only in well ventilated area.
• Eliminate all ignition sources; such as pilot lights, cigarettes, portable electric lamps, and
plastic drop cloths (potential static arc).
• Keep work area free of debris, including solvent, rags and gasoline.
• Do not plug or unplug power cords, or turn power or light switches on or off when flammable
fumes are present.
• Ground all equipment in the work area. See Grounding instructions.
• Use only grounded hoses.
• Hold gun firmly to side of grounded pail when triggering into pail. Do not use pail liners unless
they are antistatic or conductive.
• Stop operation immediately if static sparking occurs or you feel a shock, Do not use
equipment until you identify and correct the problem.
• Keep a working fire extinguisher in the work area.
Static charge may build up on plastic parts during cleaning and could discharge and ignite
flammable vapors. To help prevent fire and explosion:
• Clean plastic parts only in well ventilated area.
• Donotcleanwithadrycloth.
PRESSURIZED EQUIPMENT HAZARD
luid from the equipment, leaks, or ruptured components can splash in the eyes or on skin
and cause serious injury.
• ollow the Pressure Relief Procedure when you stop spraying/dispensing and before
cleaning, checking, or servicing equipment.
• Tighten all fluid connections before operating the equipment.
• Check hoses, tubes, and couplings daily. Replace worn or damaged parts immediately.
43 2977K

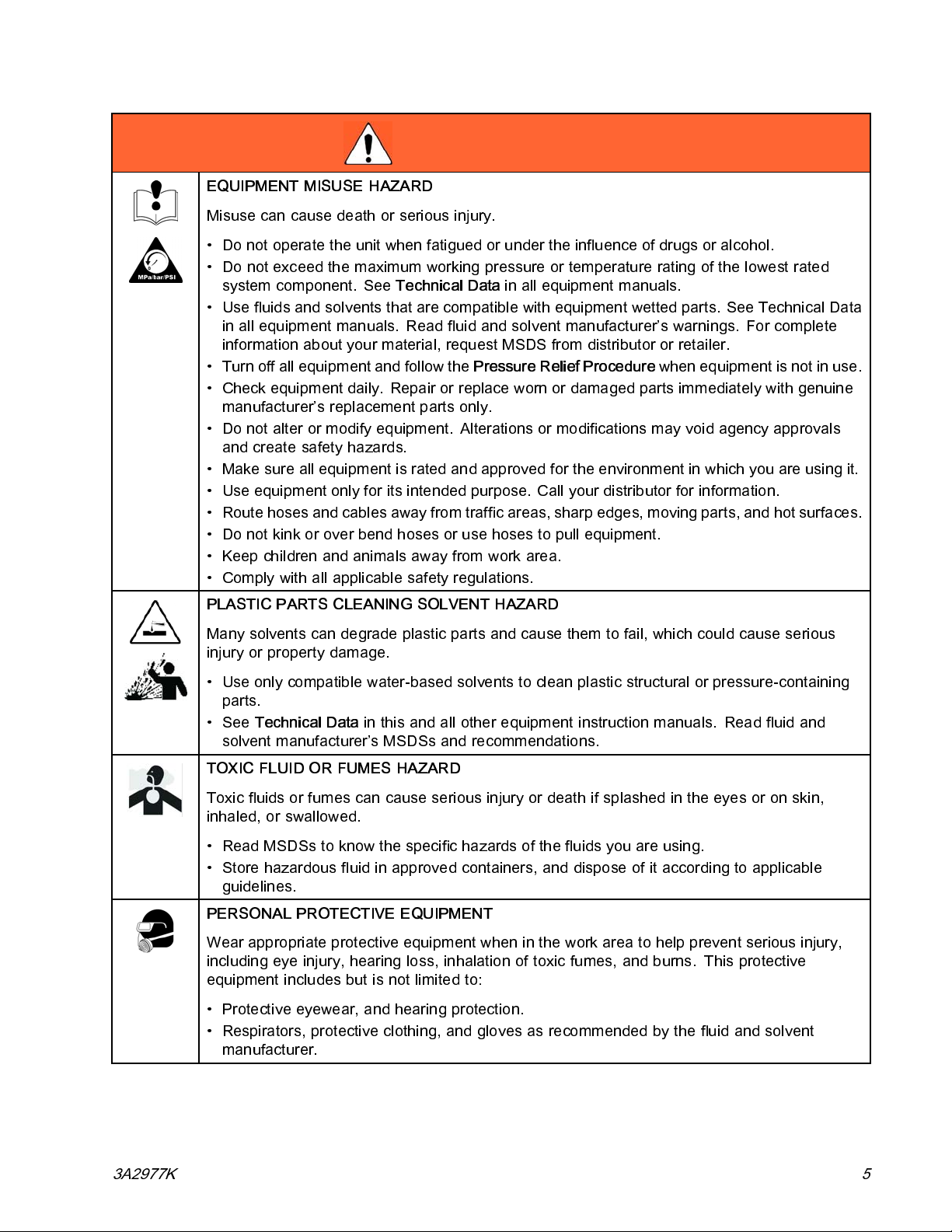

Warnings
WARNING
EQUIPMENT MISUSE HAZARD
Misuse can cause death or serious injury.
• Do not operate the unit when fatigued or under the influence of drugs or alcohol.
• Do not exceed the maximum working pressure or temperature rating of the lowest rated
system component. See Technical Data in all equipment manuals.
• Use fluids and solvents that are compatible with equipment wetted parts. See Technical Data
in all equipment manuals. Read fluid and solvent manufacturer’s warnings. or complete
information about your material, request MSDS from distributor or retailer.
• Turn off all equipment and follow the Pressure Relief Procedure when equipment is not in use.
• Check equipment daily. Repair or replace worn or damaged parts immediately with genuine
manufacturer’s replacement parts only.
• Do not alter or modify equipment. Alterations or modifications may void agency approvals
and create safety hazards.
• Make sure all equipment is rated and approved for the environment in which you are using it.
• Use equipment only for its intended purpose. Call your distributor for information.
• Route hoses and cables away from traffic areas, sharp edges, moving parts, and hot surfaces.
• Do not kink or over bend hoses or use hoses to pull equipment.
• Keep children and animals away from work area.
• Comply with all applicable safety regulations.
PLASTIC PARTS CLEANING SOLVENT HAZARD
Many solvents can degrade plastic parts and cause them to fail, which could cause serious
injury or property damage.
• Use only compatible water-based solvents to clean plastic structural or pressure-containing
parts.
•See Technical Data in this and all other equipment instruction manuals. Read fluid and
solvent manufacturer’s MSDSs and recommendations.
TOXIC LUID OR UMES HAZARD
Toxic fluids or fumes can cause serious injury or death if splashed in the eyes or on skin,
inhaled, or swallowed.
• Read MSDSs to know the specific hazards of the fluids you are using.
• Store hazardous fluid in approved containers, and dispose of it according to applicable
guidelines.
PERSONAL PROTECTIVE EQUIPMENT
Wear appropriate protective equipment when in the work area to help prevent serious injury,
including eye injury, hearing loss, inhalation of toxic fumes, and burns. This protective
equipment includes but is not limited to:
• Protective eyewear, and hearing protection.
• Respirators, protective clothing, and gloves as recommended by the fluid and solvent
manufacturer.
3 2977K 5

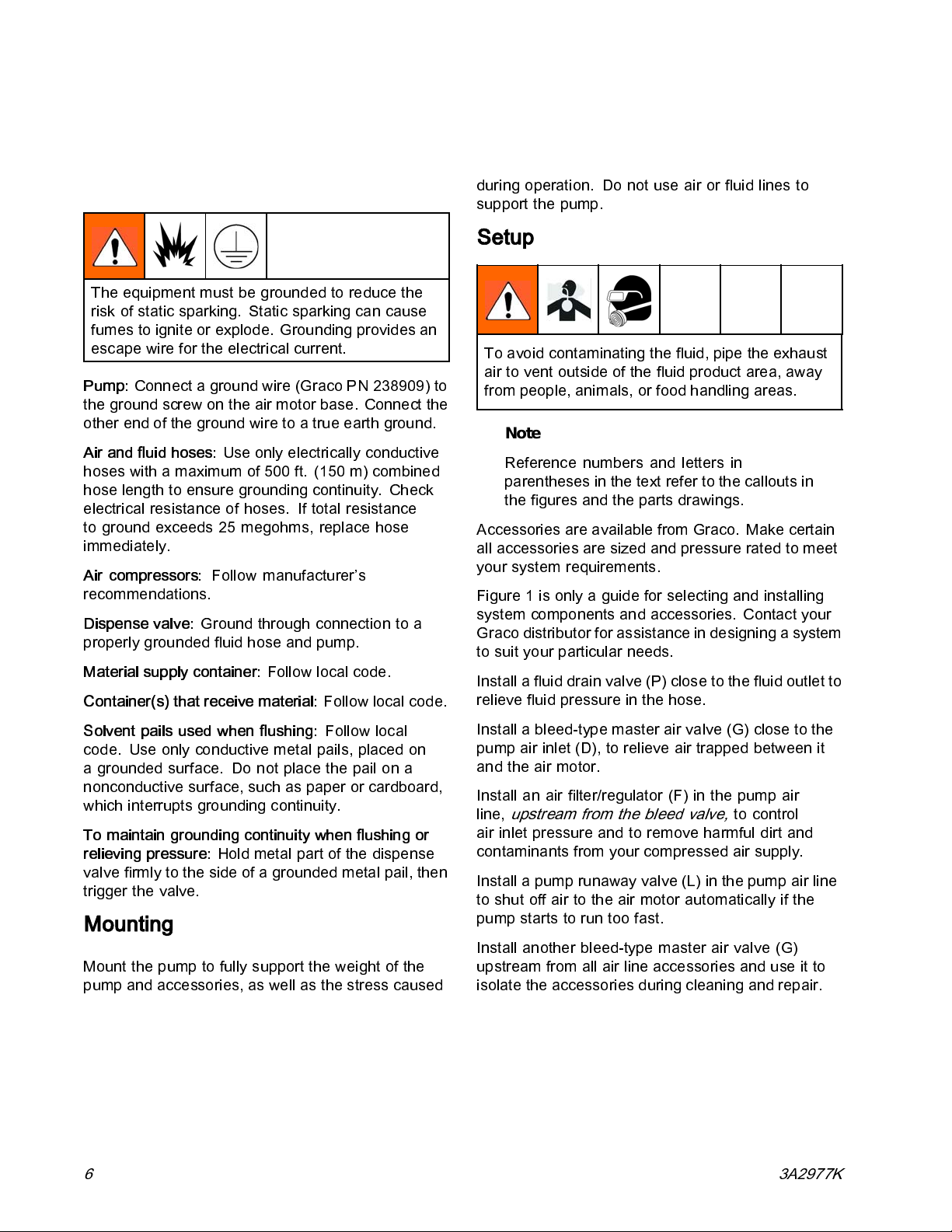

Installation
Installation
Grounding
The equipment must be grounded to reduce the
risk of static sparking. Static sparking can cause
fumes to ignite or explode. Grounding provides an
escape wire for the electrical current.
Pump: Connect a ground wire (Graco PN 238909) to
the ground screw on the air motor base. Connect the
other end of the ground wire to a true earth ground.
Air and fluid hoses: Use only electrically conductive
hoses with a maximum of 500 ft. (150 m) combined
hose length to ensure grounding continuity. Check
electrical resistance of hoses. If total resistance
to ground exceeds 25 megohms, replace hose
immediately.
Air compressors: ollow manufacturer’s
recommendations.
Dispense valve: Ground through connection to a
properly grounded fluid hose and pump.
Material supply container: ollow local code.
Container(s) that receive material: ollow local code.
Solvent pails used when flushing: ollow local
code. Use only conductive metal pails, placed on
a grounded surface. Do not place the pail on a
nonconductive surface, such as paper or cardboard,
which interrupts grounding continuity.
To maintain grounding continuity when flushing or
relieving pressure: Hold metal part of the dispense
valve firmly to the side of a grounded metal pail, then
trigger the valve.
Mounting
Mount the pump to fully support the weight of the
pump and accessories, as well as the stress caused
during operation. Do not use air or fluid lines to
support the pump.
Setup
To avoid contaminating the fluid, pipe the exhaust
air to vent outside of the fluid product area, away
from people, animals, or food handling areas.
Note
Reference numbers and letters in
parentheses in the text refer to the callouts in
the figures and the parts drawings.
Accessories are available from Graco. Make certain
all accessories are sized and pressure rated to meet
your system requirements.
igure 1 is only a guide for selecting and installing
system components and accessories. Contact your
Graco distributor for assistance in designing a system
to suit your particular needs.
Install a fluid drain valve (P) close to the fluid outlet to
relieve fluid pressure in the hose.
Install a bleed-type master air valve (G) close to the
pump air inlet (D), to relieve air trapped between it
and the air motor.
Install an air filter/regulator ( ) in the pump air
line, upstream from the bleed valve, to control
air inlet pressure and to remove harmful dirt and
contaminants from your compressed air supply.
Install a pump runaway valve (L) in the pump air line
to shut off air to the air motor automatically if the
pump starts to run too fast.
Install another bleed-type master air valve (G)
upstream from all air line accessories and use it to
isolate the accessories during cleaning and repair.
63 2977K

Installation

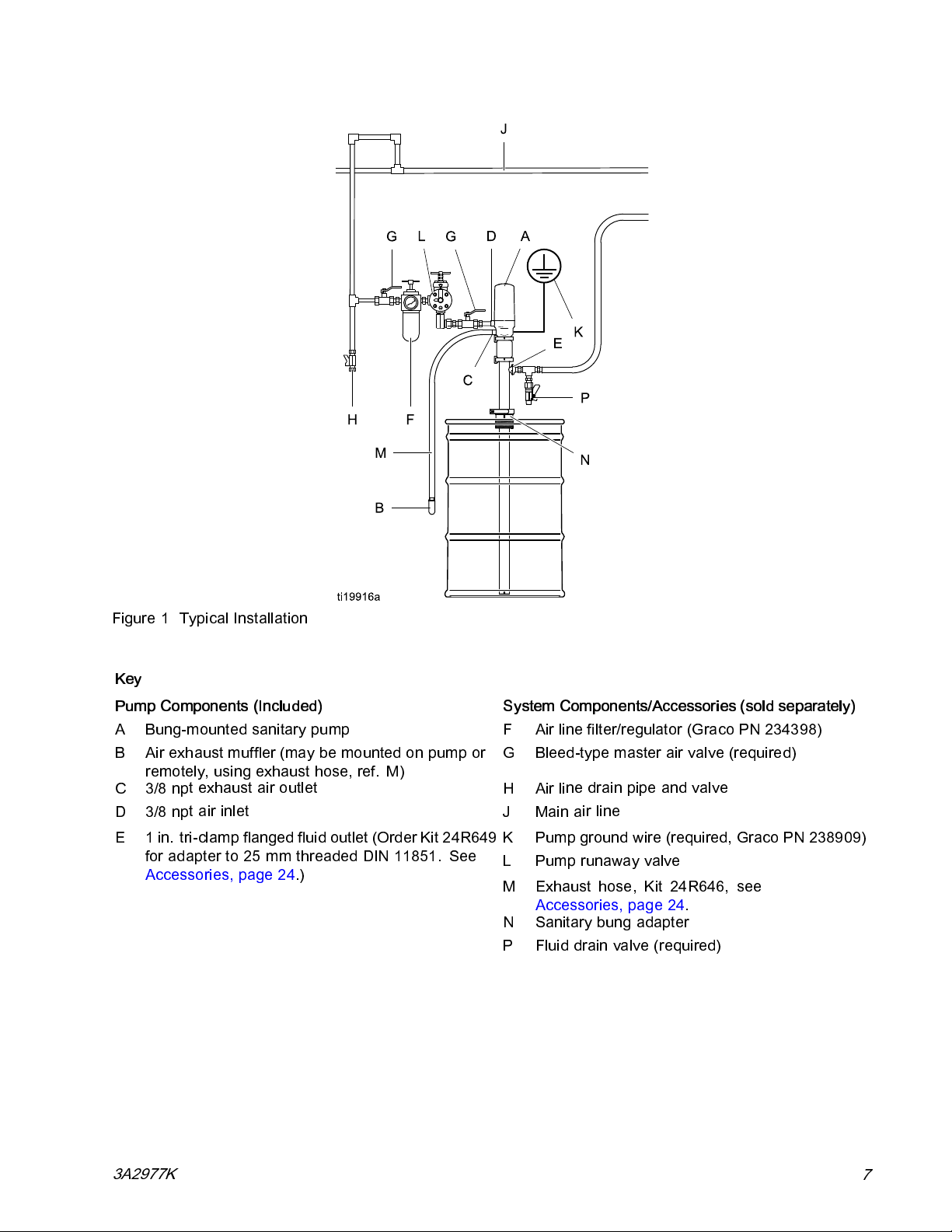

igure 1 Typical Installation
Key
Pump Components (Included) System Components/Accessories (sold separately)
A Bung-mounted sanitary pump Air line filter/regulator (Graco PN 234398)
BAir exhaust muffler (may be mounted on pump or
remotely, using exhaust hose, ref. M) GBleed
-type master air valve (required)
C3/8np
t exhaust air outlet HAirli ne drain pipe and valve
D3/8np
t air inlet JMaina ir line
KPump ground wire (required, Graco PN 238909)
L Pump runaway valve
E1 in. tri-clamp flanged fluid outlet (Order Kit 24R649
for adapter to 25 mm threaded DIN 11851. See
Accessories, page 24.) MExh
aust hose, Kit 24R646, see
Accessories, page 24.
N Sanitary bung adapter
P luid drain valve (required)
3 2977K 7

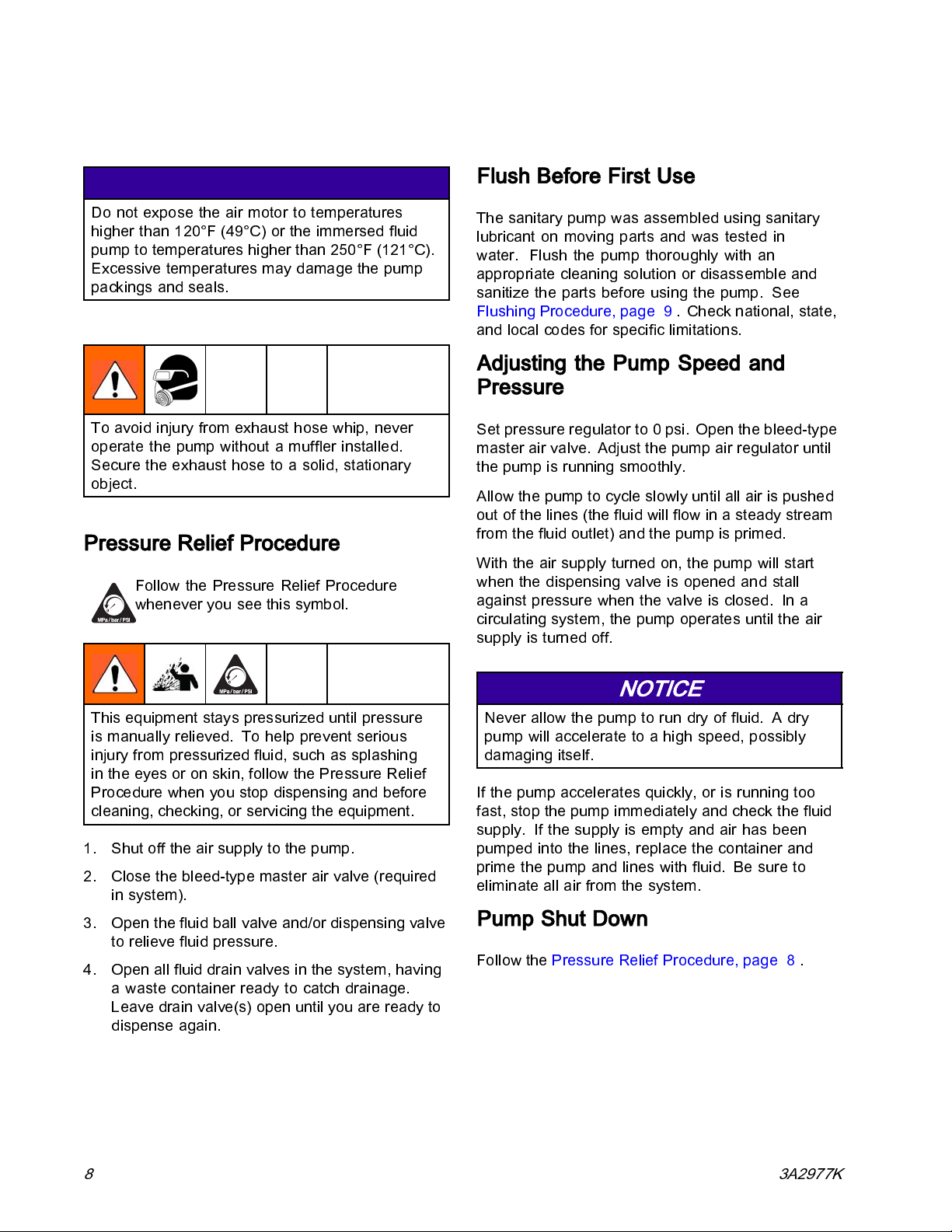

Operation
Operation
NOTICE
Do not expose the air motor to temperatures
higher than 120° (49°C) or the immersed fluid
pump to temperatures higher than 250° (121°C).
Excessive temperatures may damage the pump
packings and seals.
To avoid injury from exhaust hose whip, never
operate the pump without a muffler installed.
Secure the exhaust hose to a solid, stationary
object.
Pressure Relief Procedure
ollow the Pressure Relief Procedure
whenever you see this symbol.
This equipment stays pressurized until pressure
is manually relieved. To help prevent serious
injury from pressurized fluid, such as splashing
in the eyes or on skin, follow the Pressure Relief
Procedure when you stop dispensing and before
cleaning, checking, or servicing the equipment.
1. Shut off the air supply to the pump.
2. Close the bleed-type master air valve (required
in system).
3. Open the fluid ball valve and/or dispensing valve
to relieve fluid pressure.
4. Open all fluid drain valves in the system, having
a waste container ready to catch drainage.
Leave drain valve(s) open until you are ready to
dispense again.
Flush Before First Use
The sanitary pump was assembled using sanitary
lubricant on moving parts and was tested in
water. lush the pump thoroughly with an
appropriate cleaning solution or disassemble and
sanitize the parts before using the pump. See
lushing Procedure, page 9 . Check national, state,
and local codes for specific limitations.
Adjusting the Pump Speed and
Pressure
Set pressure regulator to 0 psi. Open the bleed-type
master air valve. Adjust the pump air regulator until
the pump is running smoothly.
Allow the pump to cycle slowly until all air is pushed
out of the lines (the fluid will flow in a steady stream
from the fluid outlet) and the pump is primed.
With the air supply turned on, the pump will start
when the dispensing valve is opened and stall
against pressure when the valve is closed. In a
circulatingsystem,thepumpoperatesuntiltheair
supply is turned off.
NOTICE
Neverallowthepumptorundryoffluid. Adry
pump will accelerate to a high speed, possibly
damaging itself.
If the pump accelerates quickly, or is running too
fast, stop the pump immediately and check the fluid
supply. If the supply is empty and air has been
pumped into the lines, replace the container and
prime the pump and lines with fluid. Be sure to
eliminate all air from the system.
Pump Shut Down
ollow the Pressure Relief Procedure, page 8 .
83 2977K

Maintenance
Maintenance

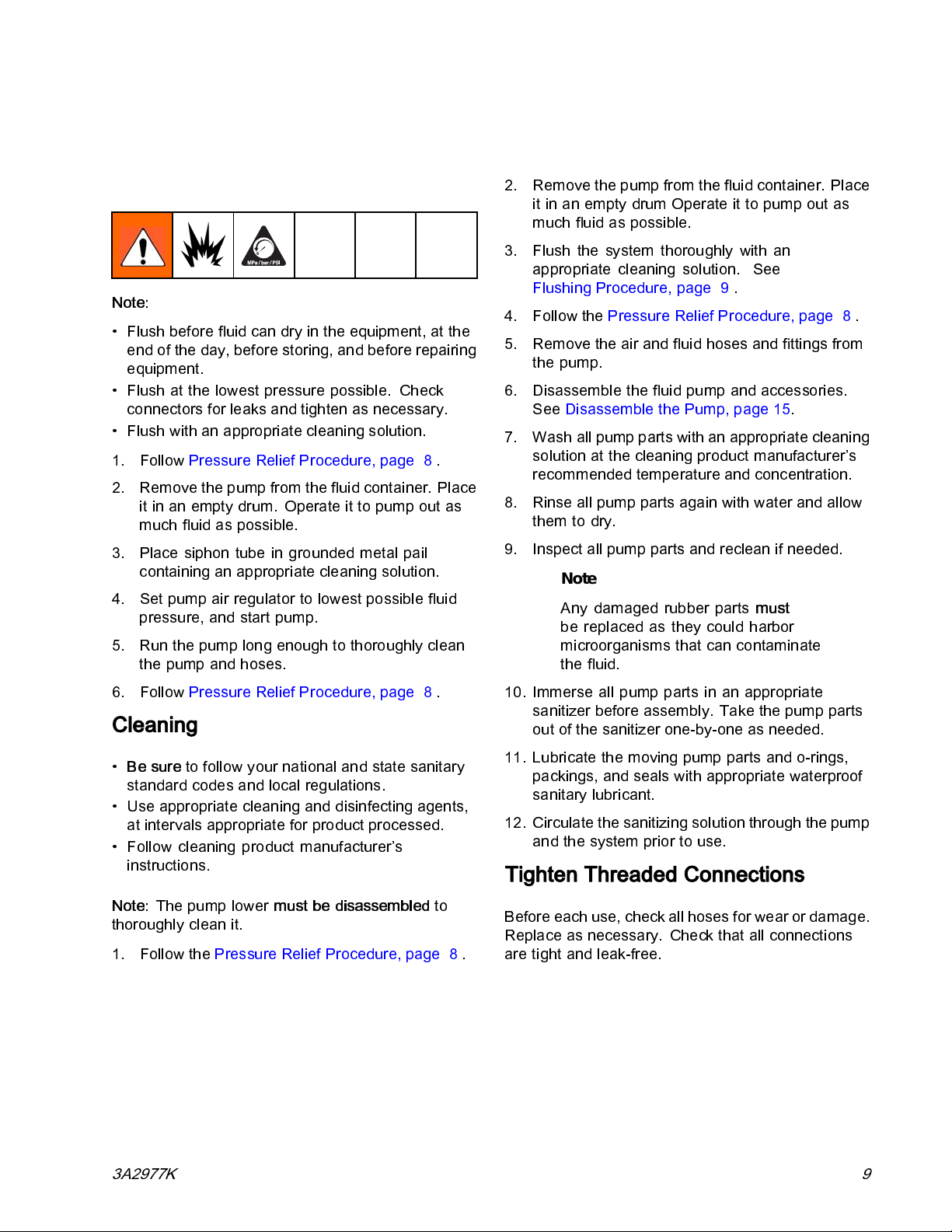

Flushing Procedure
Note:
• lush before fluid can dry in the equipment, at the
end of the day, before storing, and before repairing
equipment.
• lush at the lowest pressure possible. Check
connectors for leaks and tighten as necessary.
• lush with an appropriate cleaning solution.
1. ollow Pressure Relief Procedure, page 8 .
2. Remove the pump from the fluid container. Place
it in an empty drum. Operate it to pump out as
much fluid as possible.
3. Place siphon tube in grounded metal pail
containing an appropriate cleaning solution.
4. Set pump air regulator to lowest possible fluid
pressure, and start pump.
5. Run the pump long enough to thoroughly clean
the pump and hoses.
6. ollow Pressure Relief Procedure, page 8 .
Cleaning
• Be sure to follow your national and state sanitary
standard codes and local regulations.
• Use appropriate cleaning and disinfecting agents,
at intervals appropriate for product processed.
• ollow cleaning product manufacturer’s
instructions.
Note: Thepumplower must be disassembled to
thoroughly clean it.
1. ollow the Pressure Relief Procedure, page 8 .
2. Remove the pump from the fluid container. Place
it in an empty drum Operate it to pump out as
much fluid as possible.
3. lush the system thoroughly with an
appropriate cleaning solution. See
lushing Procedure, page 9 .
4. ollow the Pressure Relief Procedure, page 8 .
5. Remove the air and fluid hoses and fittings from
the pump.
6. Disassemble the fluid pump and accessories.
See Disassemble the Pump, page 15.
7. Wash all pump parts with an appropriate cleaning
solution at the cleaning product manufacturer’s
recommended temperature and concentration.
8. Rinse all pump parts again with water and allow
them to dry.
9. Inspect all pump parts and reclean if needed.
Note
Any damaged rubber parts must
be replaced as they could harbor
microorganisms that can contaminate
the fluid.
10. Immerse all pump parts in an appropriate
sanitizer before assembly. Take the pump parts
out of the sanitizer one-by-one as needed.
11. Lubricate the moving pump parts and o-rings,
packings, and seals with appropriate waterproof
sanitary lubricant.
12. Circulate the sanitizing solution through the pump
and the system prior to use.
ighten hreaded Connections
Before each use, check all hoses for wear or damage.
Replace as necessary. Check that all connections
are tight and leak-free.
3 2977K 9

Troubleshooting
Troubleshooting
1. ollow Pressure Relief Procedure, page 8 .
2. Check all possible remedies in the
Troubleshooting Chart before disassembling the
pump.
Problem Cause Solution
Pump cycles, but no fluid comes out. luid supply is empty. Replace fluid supply.
Air supply flow or pressure is
inadequate. Improve air supply flow, increase pressure, or increase air line size.
Air valves are closed or clogged. Open air line. Use dry air.
Air line is closed or clogged. Remove obstruction.
luid line is obstructed. Remove obstruction.
luid line is too small. Increase size of fluid line.
Pump cycles, but fluid flow is too
slow.
luid is too thick. Reduce viscosity of fluid by heat or
dilution.
Pump dives and/or does not pump
on upstroke. Pump rod check seat or seals are worn out or missing. Replace check seat or seals.
Inlet check seat or seals are worn
out or missing. Replace inlet check seat or seals.Pump dives and/or does not pump on downstroke.
luid inlet is obstructed. Clear obstructions away from inlet.
Raise pump off of drum bottom.
Pump cycles unevenly or erratically. Air motor is obstructed by ice chunks
or other material. Remove obstruction. Use dry air.
Pump dives at fast speeds only. luid is too thick, causing cavitation. Reduce viscosity of fluid by heat
or dilution or slow down the pump.
Raise pump off the bottom of the
drum.
Ice has built up in the air motor. Use dry air.
Air motor has a broken or missing
seal. Replace air motor seals.
Air motor stalls and hisses air.
Air motor has a broken part. Replace broken item.
Air motor hisses air while running. Air motor has a damaged o-ring or
upper gasket. Replace damaged item.
Throat seals are worn or missing. Replace throat seals.
luid comes out of exhaust port.
Air line contains too much water. Use dry air.
Pump rod locks up. Throat cartridge weep hole is
clogged. Clear.
Cover won’t stay on. Air motor cylinder has a leak. Tighten air motor cylinder or cover;
replace square cylinder seals.
10 3 2977K

Repair
Repair
Disconnect the Air Motor
1. ollow the Pressure Relief Procedure ,page8.
2. See igure 11, page 17.
3. Release the top clamp (5).
4. Tilt the air motor and unhook the shaft from the
displacement rod. Lift the air motor up and off
the rest of the pump.
5. Release the bottom clamp (5). Remove
connector (3) and gasket (2).
6. Remove the bung adapter clamp.
7. Pull the displacement pump straight up and out
of the container.
Air Motor Disassembly
1. Use flats on the base (118) to clamp the air motor
into a vise.
2. Remove the motor cover (10).
3. Remove cap (103). Use a large channel-lock or
strapwrenchonthecapandholdthecylinder
(101) with a strap wrench to prevent distortion to
the cylinder. Remove gasket (102) from inside of
the cap. Inspect the spring (104) under the cap.
NOTE: Use a screwdriver to pop out the spring
if it must be replaced.
4. Use a strap wrench to remove the cylinder (101).
Inspect for scoring or damage. igure 2
3 2977K 11

Repair
5. Air Valve Disassembly: ollow these steps to
disassemble the air valve for cleaning or parts
replacement.
a. Remove three screws (114), then remove
the valve cap (108). Remove gasket (107)
and spacers (111).
igure 3
b. Pull three o-rings (112) out the sides of the
valve. Remove o-ring (106).
igure 4
6. Air Valve Replacement: ollow these steps to
replace the entire air valve, without disassembly.
a. Purchase Kit 262035 to replace entire valve
assembly.
b. Clamppistoninavice.Holdthepistoncap
with a spanner wrench and unscrew the air
valve (105). Wedge a screwdriver blade
between the screw heads and the hex cap of
the air valve to turn.
igure 5
c. Remove o-rings (115, 106).
d. Replace with the new assembled valve and
o-rings from Kit 262035. Use pipe sealant on
the threads of the valve (105) and torque to
15 to 20 ft-lbs (20.3 to 27.1 N·m).
12 3 2977K

Repair
7. Slide the air piston (124) out of the top of the
air motor base (118). Remove o-ring (120) and
gasket (102) from inside the air motor base.
Remove o-ring (123) from groove on outside of
base. Inspect all parts, including the spring (122)
in the air motor base.
NOTE: Do not remove the spring (122) and
retainer (121) if you do not have to.
NOTE: If the white bushing (119) needs to
be replaced, use an arbor press to remove.
Alternate tapping on the edges with a hammer
and a nylon rod or metal punch also will work.
The spring (122) and retainer (121) must be
removed first.
igure 6
Air Motor Reassembly
Cylinder threads are sharp. Always wear protective
gloves to prevent cuts.
1. If the bushing (119) was removed, use an arbor
press and seat it all the way into the air motor
base (118). Alternate tapping using a hammer
andnylonrodormetalpunchalsoworks.
2. Install the retainer (121) into the air motor base.
Tap on the retainer as needed to ensure it seats
all the way.
3. If the spring (122) was removed, put it into the air
motor base (118), with the wider end down. Use
a screwdriver to pop it into the groove.
4. Lubricate and install o-ring (120) and gasket
(102) on the inside of the motor base. Lubricate
and install o-ring (123) on the outside.
5. Useflatstoclampthebase(118)intoavise.
6. Lubricate the shoulder and the bottom outside
portion of the piston (124). Then, lower it into the
air motor base (118).
3 2977K 13

Repair
7. Reassemble the air valve (if needed): Lubricate
and install a new o-ring (106) on the air valve
(105). Lubricate and install the three o-rings
(112), then install the spacers (111). Install
gasket (107) and valve cap (108). Apply blue
Loctite or equivalent on the screw threads.
Torquethescrewsto20to30in-lb(2.3to3.4
N•m).SkipStep8andgotoStep9.
Torque to 20 to30in-lbs(2.3to3.4N•m).
8. Install assembled air valve from kit: Lubricate
and install new o-rings (106 and 115). Use pipe
sealant on the threads of the valve (105) and
torque to 15 to 20 ft-lb (20.3 to 27.1 N•m). Use a
screwdriver as shown, if needed.
Torque to 15 to20ft-lb(20to27N•m).
9. Grease the inside and threads of the cylinder
(101). With the base clamped in a vise, put the
cylinder (101) over the piston and screw into
place. Tighten with a strap wrench and torque to
50 to 60 in-lb(5.6to6.8N•m).
10. Lubricate and install a new gasket (102) into the
air cylinder cap (103). Make sure the spring
(104) is in place. Lubricate the cylinder threads.
Useas
trap wrench to tighten the cap (103) onto
the cylinder (101). Torque to 15–20 ft-lb (20.3
to 27.1N•m).
11. Replace the cover (10).
14 3 2977K

Repair
Disassemble the Pump
If not yet done, follow steps in
Disconnect the Air Motor, page 11. Note: Be
careful not to scratch the displacement rod. Carry
to the bench for service.
1. Use a pick to move the o-rings (208) to the center
of the inlet seat pin (214). Slide the pin halfway
out, remove the o-rings (108), then slide the pin
the rest of the way out.
2. Use a screwdriver in the slot to remove the
inlet valve assembly. Remove the retaining pin
(212) and ball (213). Push the seat (210) out
the bottom of the inlet housing (209). Remove
o-rings (211 and 216). Clean and inspect the
parts.
igure 7
3. Pull the displacement rod (202) out of the top of
the cylinder (201) a few inches, but do not remove
all the way. Then, remove the cartridge (215).
Remove o-rings (216, 220). Use a screwdriver
to push the u-cup (217) out of the center of the
cartridge. Be careful not to damage the lips.
igure 8
3 2977K 15

Repair
4. Push the displacement rod (202) all the way out
the bottom of the cylinder.
igure 9
5. See igure 10. Remove one o-ring (208), then
slide out the retaining pin (206) and remove the
other o-ring. Remove the outlet assembly and
ball (207). Remove the o-rings (218) from the
seat (203). Be careful not to mix them up with
the retaining pin o-rings (208). Slide the bearing
(205) and u-cup (204) off the seat (203).
NOTE: If not replacing the u-cup (204), carefully
remove and clean the o-ring, without damaging
the outer or inner lip of the u-cup.
6. Clean and inspect all parts. Replace the parts
as necessary.
Reassemble After Cleaning
Note: Any damaged parts must be replaced.
Note: Lubricate the o-rings, throat packings, and
piston seals with appropriate waterproof sanitary
lubricant.
1. Lubricate and install u-cup (204) and bearing
(205) on the piston seat (203). U-cup lip must
face up. Lubricate and install o-rings (218) on
the seat assembly. Install the ball (207), then the
seat assembly in the outlet housing.
2. Lubricate and install one o-ring (208) in the
groove on the outlet seat pin (206). Push the pin
(206) through the holes. Lubricate and install the
other o-ring (208) in the other groove on the pin.
Check that the o-rings (208) are seated in the
grooves.
NOTE: Be sure to use the smaller o-rings (208)
on the pin (206) and the larger o-rings (218)
on the seat assembly. Stack the o-rings on the
benchifneededtodeterminesize.
igure 10
3. Lubricate the inside of the cylinder, near the
ends. Then, slide the rod (202) into the cylinder
from the top.
4. Lubricate and install a new u-cup (217) into
the cartridge (215). U-cup lips must face out of
cartridge.
5. Lubricate and install o-ring (216) on the outside
of the cartridge (215).
6. Lift the rod (202) out of the cylinder part way.
Lubricatetherodandslidethecartridge(215)
over the rod, into the cylinder.
7. Lubricate and install o-ring (220) over the rod into
the groove in the top of the cartridge. Then push
the rod back into the cylinder.
16 3 2977K

Repair
8. Lubricate and install o-ring (211) on inlet seat
(210), then install seat (210) in inlet housing
(209). Use the pin to align the holes.
9. Lubricate and install o-ring (216) on inlet housing
(209), then install the ball (213) and pin (212).
10. Slide the assembled housing into the bottom of
the cylinder.
11. Push the pin (214) through the holes on one side.
Lubricate and install o-rings (208) from the inside ,
putting one in each groove on the pin. Then slide
thepinintothesecondside.Theendsofthepin
should be flush to the outside of the cylinder.
Check that the o-rings are seated in the grooves.
Reconnect he Pump
1. If using bung adapter (Accessory Kit 24R650),
install it in the drum cover.
2. Slide the displacement pump down into the drum.
3. Install a gasket (2) on the top of the displacement
pump. Then install the connector (3) on the
displacement pump, with the smaller side down.
Install a clamp (5) hand tight.
4. Install the other gasket (2) on the air motor. Be
sure it is securely on the alignment shoulder.
Hook the air motor shaft on the displacement rod
and lower the air motor into place. Install clamp
(5) hand tight.
igure 11
3 2977K 17

Parts
Parts
Apply sanitary grease
before assembling cover.
18 3 2977K

Parts
Complete Pump Models 24N300, 24N344, 24R046, and 24R047
Ref. Part Description Qty.
124R180* MOTOR, Sani orce; 2:1,
see Air Motor Parts.* 1
2166117
GASKET, sanitary fitting 2
316U981
CONNECTOR 1
5620223
CLAMP, 2.5 in. Tri-clamp 2
DISPLACEMENT
PUMP; see
Displacement Pump Parts.
24R190 Used on Pump Model
24N300
24R189 Used on Pump Model
24N344
24R192 Used on Pump Model
24R046
6
24R191 Used on Pump Model
24R047
1
7 112933 MU LER 1
Ref. Part Description Qty.
10 24R178 COVER, motor; includes
o-ring (ref. 123) 1
14 16U653 TOOL, pick 1
17 ——— LABEL, compliance 1
18  16T148 LABEL, warning 1
19 24R650 KIT, bung adapter, includes
19a and 19b 1
19a ——— Clamp
19b ——— Bung adapter
 Replacement Danger and Warning labels, tags,
and cards are available at no cost.
* ir Motor 24R180 does not include cover (ref. 10).
Order Kit 24R179 for an air motor with cover.
3 2977K 19

Parts
Air Motor 24R180
Torque to 50 to 60 in-lb (5.6 to
6.8 N•m).
Apply sanitary lubricant.
Apply medium-strength thread
locker.
Torque to 15 to 20 ft-lb (20.3 to
27.1 N•m).
Torque to 20 to 30 in-lb (2.3 to
3.4 N•m).
Apply pipe sealant.
20 3 2977K
