Graco 218334 User manual

307714E
EN
Instructions
43:1 Bulldog
Hydraulic Supply
Pump
Supplies hydraulic oil to the accumulators in an oil rig blow-out prevention system.
Model 218334, Series A
4300 psi (301 bar, 30.1 MPa) Maximum Working Pressure
Important Safety Instructions
Read all warnings and instructions in this
manual. Save these instructions.

Warnings
2307714E
Warnings
The following warnings are for the setup, use, grounding, maintenance, and repair of this equipment. The
exclamation point symbol alerts you to a general warning and the hazard symbols refer to procedure-specific risks.
When these symbols appear in the body of this manual or on warning labels, refer back to these Warnings.
Product-specific hazard symbols and warnings not covered in this section may appear throughout the body of this
manual where applicable.
SKIN INJECTION HAZARD
High-pressure fluid from dispensing device, hose leaks, or ruptured components will pierce skin. This
may look like just a cut, but it is a serious injury that can result in amputation. Get immediate surgical
treatment.
• Do not point dispensing device at anyone or at any part of the body.
• Do not put your hand over the fluid outlet.
• Do not stop or deflect leaks with your hand, body, glove, or rag.
• Follow the Pressure Relief Procedure when you stop dispensing and before cleaning, checking, or
servicing equipment.
• Tighten all fluid connections before operating the equipment.
• Check hoses and couplings daily. Replace worn or damaged parts immediately.
FIRE AND EXPLOSION HAZARD
When flammable fluids are present in the work area, such as gasoline and windshield wiper fluid, be
aware that flammable fumes can ignite or explode. To help prevent fire and explosion:
• Use equipment only in well ventilated area.
• Eliminate all ignition sources, such as cigarettes and portable electric lamps.
• Keep work area free of debris, including rags and spilled or open containers of solvent and gasoline.
• Do not plug or unplug power cords or turn lights on or off when flammable fumes are present.
• Ground all equipment in the work area.
• Use only grounded hoses.
•Stop operation immediately if static sparking occurs or you feel a shock.Do not use equipment
until you identify and correct the problem.
• Keep a working fire extinguisher in the work area.
WARNINGWARNINGWARNING
WARNING

Warnings
307714E 3
EQUIPMENT MISUSE HAZARD
Misuse can cause death or serious injury.
• Do not operate the unit when fatigued or under the influence of drugs or alcohol.
• Do not exceed the maximum working pressure or temperature rating of the lowest rated system com-
ponent. See Technical Data in all equipment manuals.
• Use fluids and solvents that are compatible with equipment wetted parts. See Technical Data in all
equipment manuals. Read fluid and solvent manufacturer’s warnings. For complete information about
your material, request MSDS from distributor or retailer.
• Do not leave the work area while equipment is energized or under pressure.
• Turn off all equipment and follow the Pressure Relief Procedure when equipment is not in use.
• Check equipment daily. Repair or replace worn or damaged parts immediately with genuine manu-
facturer’s replacement parts only.
• Do not alter or modify equipment. Alterations or modifications may void agency approvals and create
safety hazards.
• Make sure all equipment is rated and approved for the environment in which you are using it.
• Use equipment only for its intended purpose. Call your distributor for information.
• Route hoses and cables away from traffic areas, sharp edges, moving parts, and hot surfaces.
• Do not kink or over bend hoses or use hoses to pull equipment.
• Keep children and animals away from work area.
• Comply with all applicable safety regulations.
MOVING PARTS HAZARD
Moving parts can pinch, cut or amputate fingers and other body parts.
• Keep clear of moving parts.
• Do not operate equipment with protective guards or covers removed.
• Pressurized equipment can start without warning. Before checking, moving, or servicing equipment,
follow the Pressure Relief Procedure and disconnect all power sources.
PERSONAL PROTECTIVE EQUIPMENT
Wear appropriate protective equipment when in the work area to help prevent serious injury, including
eye injury, hearing loss, inhalation of toxic fumes, and burns. This protective equipment includes but is not
limited to:
• Protective eyewear, and hearing protection.
• Respirators, protective clothing, and gloves as recommended by the fluid and solvent manufacturer
WARNINGWARNINGWARNING
WARNING

Typical Installation
4307714E
Typical Installation
A Grounded Air Supply Line
BAirFilter
C Air Line Oiler
D Bleed-Type Master Air Valve
E Air Regulator
FAirInlet
G Fluid Outlet
H Grounded Fluid Line
J Fluid Inlet
K Grounded Fluid Supply Line
L Fluid Reservoir
M Fluid Drain Valve
FIG. 1
A
BC
DEF
GH
M
J
K
L

Installation
307714E 5
Installation
The pump is designed to supply hydraulic oil to the
accumulators in an oil rig blow-out prevention system.
The Typical Installation shown in FIG. 1, page 4 is only a
guide. Contact your Graco representative for assistance
in designing a system to meet your needs.
Mount the pump to suit your type of installation. The
Dimension Drawing on page 18 gives measurements
needed for installing the pump.
Reference numbers and letter in the text refer to the call-
out on the drawings.
Grounding
The following instructions refer to FIG. 2.
To ground the pump:
1. Loosen the grounding lug locknut (N) and washer
(P).
2. Insert one end of a 12 gauge (1.5 mm2) minimum
ground wire (R) into the slot in lug (S) and tighten
the locknut securely.
3. Connect the other end of the wire to a true earth
ground such as a steel building column or water
pipe. Check local code.
The equipment must be grounded to reduce the risk
of static sparking. Static sparking can cause fumes to
ignite or explode. Grounding provides an escape wire
for the electric current.
• Proper hose and plumbing line grounding
continuity is essential to maintaining a grounded
system. Check the electrical resistance of your air
and fluid hoses or plumbing line at least once a
week.
• If you hose does not have a tag on it which
specifies the maximum electrical resistance,
contact the hose supplier or manufacturer for the
maximum resistance limits.
• Use a resistance meter in the appropriate range
for your hose to check the resistance. If the
resistance exceeds the recommended limits,
replace it immediately.
• An ungrounded or poorly grounded hose or
plumbing line can make your system hazardous.
FIG. 2
N
P
S
R

Installation
6307714E
System Accessories
The following instructions refer Typical Installation, FIG.
1, page 4.
Install the following accessories in the order shown in
Typical Installation (FIG. 1) using adapters as necessary.
To ensure maximum pump performance, be sure that
any accessory used is properly sized to meet your sys-
tem requirements.
•A bleed-type master air valve (C) and Fluid Drain
Valve (M) are required in your system to reduce the
risk of serious bodily injury from moving parts, injec-
tion or splashing in the eyes or on the skin when
shutting of the pump. The bleed-type master air
valve relieves air trapped between the air valve and
pump, after the pump is shut off. Trapped air can
cause the pump to cycle unexpectedly, which could
result in serious injury from splashing or moving
parts. Be sure the valve is easily accessible from the
pump and located downstream from the air regula-
tor.
• On the air line (A) install an air regulator (D) near
the pump air inlet (E) to control pump speed and
outlet pressure and an air line oiler (C) down-
stream from the regulator to provide automatic lubri-
cation to the air motor.
• Use an adequately sized air regulator to control
pump speed and fluid pressure.
• Upstream form the oiler, install an air filter (F) to
remove harmful dirt and moisture from the com-
pressed air supply.
Hose and Plumbing Lines
The following instructions refer to Typical Installation,
FIG. 1, page 4.
In this system, fluid and air lines may be either hoses or
hard plumbed. All lines must be grounded (see Ground-
ing, page 5).
•ALL FLUID HOSES MUST HAVE SPRING
GUARDS! The spring guards help protect the hose
from kinks or bends at or close to the coupling which
can result in hose rupture.
• Tighten all fluid connections securely before each
use. High pressure fluid can dislodge a loose cou-
pling or allow high pressure spray to be emitted from
the coupling.
• Never us a damaged hose or plumbing component.
Before each use, check the entire hose or plumbing
line for cuts, leaks, abrasion, bulging cover, damage
or movement of couplings. If any of these conditions
exist, replace the hose or defective components
immediately. DO NOT try to recouple high pressure
hoses or mend it with a tape or any other device. A
repaired hose cannot contain the high pressure
fluid.
Connecting Lines
1. Connect the air supply (A) to the 3/4 npsm(f) air
inlet (F).
2. Connect the fluid supply line (K) to the 1 inch
npt(f) fluid intake (J) and the fluid line (H) to the
3/4 npt(f) fluid outlet (G).
Flush Before Using Equipment
The equipment was tested with lightweight oil, which is
left in the fluid passages to protect parts. To avoid con-
taminating your fluid with oil, flush the equipment with a
compatible solvent before using the equipment.

Operation
307714E 7
Operation
Starting and Adjusting the Pump
1. Open the fluid supply shut off valve and the system
drain valve.
2. Open the bleed-type master air valve (C).
3. Slowly open the air regulator (D) until the pump
starts to cycle - about 40 psi (2.8 bar, 0.28 MPa).
4. Allow pump to cycle slowly until all air is purged
from the lines.
NOTE: The lines are purged when the fluid emitted
from the drain valve is flowing in a steady stream.
5. With the lines purged, close the system drain valve
(M).
NOTE: The pump will stall against pressure.
• With the pump and lines primed and with adequate
air pressure and volume supplied, the pump will
start and stop as supply demands or until the
bleed-type master air valve (C) is shut off.
• If your pump accelerates quickly, or is running too
fast, stop it immediately and check the fluid supply. If
the supply container is empty and air has been
pumped into the lines, prime the pump and lines
with fluid or flush and leave filled with compatible
solvent.
• Be sure to eliminate all air from fluid system to pre-
vent corrosion.
Pressure Relief Procedure
Follow the Pressure Relief Procedure whenever
you see this symbol.
1. Shut off air to the pump.
2. Close the bleed-type master air valve.
3. Open all fluid drain valves in the system, having a
waste container ready to catch drainage. Keep you
hands away from the end of any drain valve when
opening it.
4. Leave drain valve(s) open until you are ready to
pump again.
5. If you suspect the hose is clogged or plumbing line
is clogged or that pressure has not been fully
relieved after following the steps above, VERY
SLOWLY loosen the hose or line end coupling to
relieve pressure gradually, then loosen completely.
Clear the obstruction.
Never exceed 100 psi (7 bar, 0.7 MPa) air input
pressure to the pump, to reduce the risk of
component rupture which can cause serious bodily
injury, including injection or splashing of fluids in the
eyes or on the skin and to avoid damage to the pump.
NOTICE
Always use the lowest air pressure necessary to give
you the result you want. Higher pressure causes pre-
mature pump wear.
NOTICE
Never allow the pump to run dry of fluid being pumped.
A dry pump will quickly accelerate to a high speed, pos-
sibly damaging itself.
NOTICE
Water or even moist air can cause pump corrosion. To
prevent corrosion, NEVER leave the pump filled with
water or air. After normal flushing, flush the pump again
with water or mineral spirits or oil-based solvent,
relieve pressure (see Pressure Relief Procedure,
below) and leave the mineral spirits in the pump.
This equipment stays pressurized until pressure is
manually relieved. To help prevent serious injury from
pressurized fluid, such as skin injection, splashing
fluid and moving parts, follow the Pressure Relief
Procedure when you stop pumping and before
cleaning, checking, or servicing the equipment.

Maintenance and Repair
8307714E
Maintenance and Repair
Throat Packing Nut
1. Relieve pressure following pressure relief proce-
dure (page 7).
2. Check tightness of throat packing nut, weekly. The
nut should be tight enough to prevent leakage - no
tighter.
Locating Air Leaks
Air leaks can generally be detected by listening when
the pump is not running. To locate where the air is leak-
ing:
1. Turn off air supply.
2. Relieve pressure, page 7.
3. Disconnect the air hose.
4. Screw the inlet union (117) out of the manifold (87).
5. Remove the air motor shield (73) and screw the inlet
union (117) back into the manifold (87).
6. Connect the air hose and turn the air on. DO NOT
EXCEED 40 psi (2.8 bar, 0.28 MPa) inbound pres-
sure.
7. Use the checking methods listed in the Air Leak
Check Chart to find where the air is leaking.
Replace parts as necessary.

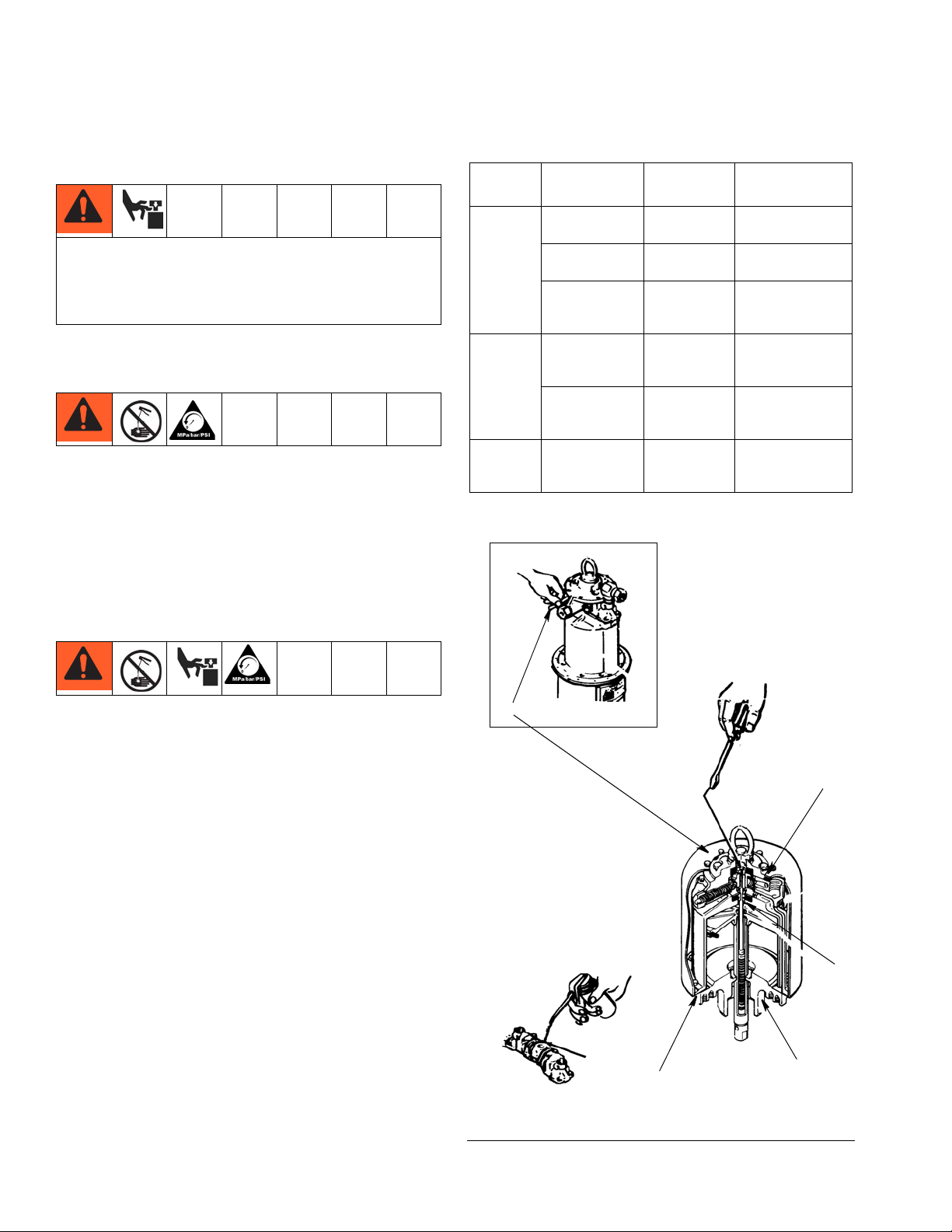

Air Leak Check Chart
Never operate the pump with the air motor shield
removed. The shield encloses the air valve housing,
which moves during operating and can pinch or
amputate your fingers.
Stroke
Position
Check Points
(FIG. 3)
Checking
Method Cause
Down
A - air manifold By feel Blown air manifold
gasket (91)
B - between
cylinder and base By feel Blown air cylinder
gasket (103)
C - weep hole By feel
Blown base bear-
ings, upper o-ring or
cup seal
Up
D - trip rod
Squirt oil
around bearing
(98)
Worn trip rod pack-
ing (71) or bearing
(98)
E - air director
valves
Squire oil
around air
valves (92)
Worn air valve (92)
or their packings
(93)
Both F - exhaust holes
Hold paper strip
over exhaust
holes
Worn air piston
o-ring (69)
FIG. 3
F
A
D
C
B
E

Maintenance and Repair
307714E 9
Fluid Leaks
If the pump continues to operate when the hydraulic out-
let valve is closed, the packings are worn or the ball
check valves are leaking.
If anything more than a light film of fluid is detected at
the weep hole, the base bearings gasket (100) or both
the gasket and the base bearing (98) need to be
replaced.
Air Motor Service
Stalled Air Motor
A stalled air motor may be caused by icing due to
unusual environmental conditions such as:
• operating at a high cycle rate under hot, high humid-
ity conditions
• long operation under cold, arctic conditions
If a motor stalling is not caused by environment condi-
tions, try filling the air lubricator with non-detergent, SAE
#10 oil to prevent stalling.
To start a stalled motor, either turn off the air and allow
the ice to melt (if stalling is due to icing) or follow this
procedure:
1. Turn off the air supply.
2. Remove the lift ring (74).
3. Push down the air valve housing (102) with a screw
driver. DO NOT use your fingers!
4. Screw the lift ring (74) back on.
5. Turn on the air supply.
Air Motor Disassembly
Reference numbers used in the following instructions
refer to FIG. 4 on page 10.
1. Turn off air supply
2. Relieve pressure, page 7.
3. Disconnect all hoses, tubes, controls, etc. from the
air motor to provide ease in servicing.
4. Remove lift ring (74).
5. Remove the swivel adapter (117). Remove the eight
cap screws (75). Then lift the air motor shield (73)
off the air motor.
6. Remove the air inlet spring cap (107) and the detent
spring retainers (77).
7. Take out the compression springs (78), spring
guides (79), and the plungers (80) . Inspect the
parts for wear or damage and replace them as nec-
essary.
8. Remove the four screws (82) and lock washers (83)
holding the detent housing (81). Lift the housing up,
off the air manifolds (87) while holding the detent
rollers (89) in the housing.
9. Remove the detent rollers (89), axles (90), thrust
washer (96) and dampening pad (97) from the
detent housing (81). Inspect the parts for ware and
damage. If either the roller or axle is worn or dam-
aged, replace both; that are a matched set.
10. Remove the caps crews (85) and lockwashers (86).
11. The air director valves (92) are spring compressed
between the air valve housing (102) and the mani-
fold valve plates (101). CAREFULLY remove both
air manifolds. Check the air director valves (92),
o-rings (93) and springs (94) for wear or damage.
Replace if necessary.
12. Remove the four screws (88) in each manifold plate
(101). Check the manifold plates and seals (42) for
Do not use your fingers to disengage the air valve
housing. Moving parts in the air motor can pinch or
amputate your fingers.
NOTICE
Handle springs carefully. Scratches or nicks will
cause early spring failure.

Maintenance and Repair
10 307714E
wear or damage. Remove the air manifold gaskets
(91). Replace any worn parts.
13. Remove the trip rod nut (106) and the lock washer
(86) from the trip rod (43a). Pull the air valve hous-
ing (102) up off the trip rod.
14. Pull the trip rod and piston assembly (43) up as far
as possible.
15. Grip the trip rod (43a) below the bushing (95) with a
padded pliers, and screw the bushing off the trip
rod.
NOTE: Special care to avoid damaging the plated
surface of the trip rod must be taken. A padded pli-
ers, part number 207579 is available from Graco.
16. Remove the thrust washer (96) and dampening pad
(97) from the air motor cylinder (104).
17. Remove the eight screws (105) and lockwashers
(68) holding the air motor cylinder to the base (46).
18. Carefully pull the air motor cylinder (104) straight
up off the air motor base (46) and trip rod and piston
assembly (43a).
NOTE: Be careful not to tilt the cylinder as this could
damage the smooth inner surface.
19. Check piston o-ring (69) for wear or damage and
replace if necessary. The diameter of the o-ring is
larger than that of the piston. Inspect the cylinder
gasket (103) and replace as necessary.

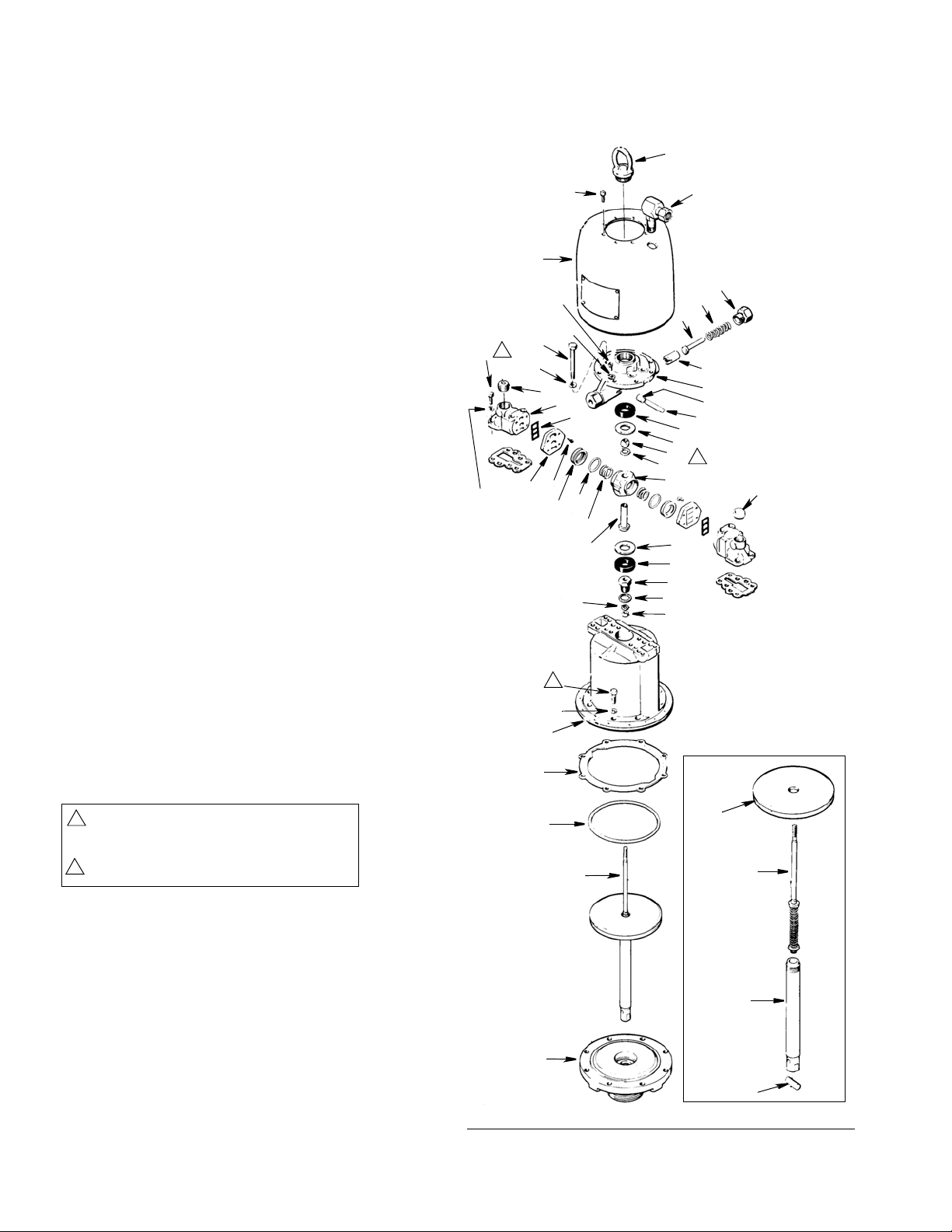

FIG. 4 Torque Key
1Torque to 25 ft. lbs (34 N.m)
2Torque to 20-25 ft. lbs (27-34 N.m)
FIG. 4
74
75
73
117
77
78
79
80
81
110
52
82
83
84
85 1
86
8742
101 88
89
90
97
96
106 2
86
92 93
94
102
95 96
97
98
100
71
99
107
105 1
68
104
103
69
43
46
44
43a
45
67

Maintenance and Repair
307714E 11
Air Motor Assembly
Reference numbers used in the following instructions
refer to FIG. 4 on page 10.
1. Install the piston o-ring (69) on the piston (44) using
heavy petroleum grease. Be sure the slots in the
gasket (103) align with the air passages in the motor
cylinder (104). Since the diameter of the o-ring is
greater than the piston, gather the excess o-ring to
one side of the piston and tuck it into one of the two
indented areas of the air motor cylinder.
2. Secure the cylinder (104) with the eight screws
(105) and washers (68). Torque to 25 ft-lbs (34
N.m).
3. Be sure the back-up washer (99) and v-packing (71)
are in place on the trip rod bearing (98).
4. Place the copper gasket (100) over the trip rod (43a)
and attach trip rod bearing (98) to the trip rod.
5. Reinstall the dampening pad (97) and thrust washer
(96).
6. Place the valve plate seals (42) between the air
manifold (87) and the valve plates (101) with the
rounded side of the valve plates out. Screw four
manifold plate screws (88) into both air manifolds.
7. Before installing the air manifolds (87) pull the trip
rod and piston assembly up as far as possible. Line
up the air manifolds with the gaskets (91) and
loosely screw the two rear manifold screws (85) with
lockwashers (86) into both air manifolds.
8. Position the alignment tool (see Accessories page
X) between the two air manifolds. Hold the two air
manifolds against the alignment tool and torque the
screw (85) in each manifold to 25 ft. lbs (34 N.m).
Screw another screw into each manifold. Remove
the alignment tool.
NOTE: If an alignment tool is not available, com-
plete the following steps 9 & 10. Then measure and
set the space at 1.8 inch (45.7 mm) between the two
air manifolds and the air valve housing (102).
9. Screw the trip rod bushing (95) onto the trip rod
(43a). Hold the trip rod with padded pliers.
NOTE: Special care to avoid damaging the plated
surface of the trip rod must be taken. A padded pli-
ers, part number 207579 is available from Graco.
10. Place the air valve housing (102) over the trip rod
bushing (95).
11. Secure the air valve house (102) with the trip rod nut
(106) and lockwasher (86). Torque the nut to 20-25
ft-lbs (27-34 N.m) until .031 in. (about the thickness
of a US dime) of the trip rod (43a) extends above
the nut.
12. Place the o-rings (93) around each director valve
(92).
13. Place the two compression springs (94) in each side
of the air valve housing (102).
14. With the air valve housing (102) pushed all the way
down against the air motor cylinder (104), place the
air director valves (92) against the springs (94) and
compress them into the air valve housing (102).
15. Install the dampening rod (97) and thrust washer
(96) in the detent housing (91). Use a heavy petro-
leum base grease to hold them in position.
16. Coat the plungers (80), spring guides (79), and
compression springs (78) with heavy petroleum
grease and install them in the detent housing.
17. Engage the threads of the detent spring retainers
(77) one turn into the detent housing (81).
18. Place the detent axle (90) and roller (89) into the
detent housing (81), using heave petroleum grease.
19. Place the detent housing (81) on the air manifolds
(87) while holding the detent axles (90) and rollers
(89) in position with your fingers from the top of the
housing.
20. Before install the four detent housing screws (82)
and lockwashers (83), be sure the detent axles (90)
and rollers (89) align correctly with the valve hous-
ing (102). Tighten the detent spring retainers (77) as
required to properly align the rollers (89).
21. Screw the four detent housing screws (82) with lock-
washers (83) into the housing (81).
22. Position the spring cap (107) on the air manifold.
23. Place the air motor shield (73) over the air motor
and secure it with the eight shield retaining screws
(75).
24. Reinstall the swivel adapter (117). Screw in the lift
ring (74).

Maintenance and Repair
12 307714E
Displacement Pump Service
Pump Disassembly
Reference numbers used in the following instructions
refer to FIG. 5 on page 13.
1. Turn off air supply
2. Relieve pressure, page 7.
3. Disconnect all hoses, tubes, controls, etc. from the
pump to provide ease in servicing.
4. Loosen, but do not remove, the intake valve housing
(62) while the displacement pump is still assembled
to the air motor base (46).
5. Remove the outlet adapter (56). Inspect the o-ring
(720 and replace if necessary.
6. Remove the cylinder coupling nut (57).
7. Insert a 3/4 npt pipe nipple or extension into the out-
let of the cylinder (55). Use this as a handle to turn
and remove the cylinder.
8. Remove the intake housing (62) from the cylinder
(55). Inspect the ball stop pin (58), guide (59), ball
(60), and o-ring (61) for wear or damage, and
replace as necessary.
9. Unscrew the piston and valve seat housing (54)
from the trip rod and piston assembly (43). Remove
the ball (48) from its seat and then remove the
washer (49), spring (50), male gland (51), v-pack-
ings (111, 112), and female gland (53). Inspect the
parts for wear or damage and replace as necessary.
10. Remove the packing housing (47) from the air motor
base (46). Take out the parts and clean all except
the seals with a compatible solvent. Clean the seals
with a soft cloth. Check the packing housing for
wear or damage and replace if necessary.
NOTE: As a preventive maintenance procedure,
replace all the seals every five years or sooner if
necessary.
11. Inspect the piston shaft (45) for scoring or wear. The
piston shaft is a part of the trip rod and piston
assembly (43) which must be replaced as one
piece. Do NOT break loose the epoxy fitting.
NOTE: Replacing this assembly requires disassem-
bly of the air motor, as described in the previous
section.
Scoring or irregular surfaces on the piston shaft or
polished inner wall of the cylinder (55) causes pre-
mature packing wear and leaking. Check these
parts by rubbing a finger over the surface or holding
the part up to the light at an angle. Replace worn or
damaged parts as needed.
Pump Assembly
Reference numbers used in the following instructions
refer to FIG. 5 on page 13.
1. Carefully slide the packing housing (47) onto the
piston shaft (45).
2. Insert the packing housing (47) into the air motor
base (46) by tapping lightly on the housing.
3. Insert the packings into the packing housing (47)
from the bottom and push them up toward the air
motor. Be sure the lips of the v-packings are facing
DOWN against the fluid pressure. The packings
should be inserted in the following order:
• female gland
• white v-packing
• black v-packing
• white v-packing
• black v-packing
• male gland
• compression spring
• washer
• retaining ring
4. Place the piston packing onto the piston and valve
seat housing (54) in the following order with the lips
of the v-packing facing UP against fluid pressure:
• female gland (53)
• white v-packing (112)
• black v-packing (111)
• white v-packing (112)
• black v-packing (111)
• male gland (51)
• spring (50)
• washer (49)
5. Apply Loctite®27 sealant or equivalent to the hous-
ing (54) threads.

Maintenance and Repair
307714E 13
6. Place the check ball (48) onto the seat of the piston
and valve seat housing (54) and screw the housing
into the piston shaft (45). Torque the housing to
137-143 ft-lbs (186-194 N.m).
7. Slide the pump cylinder (55) into the air motor base
(46).
8. Screw the cylinder coupling nut (57) onto the air
motor base (46), securing the pump cylinder (55).
9. With the o-ring (72) in place, screw the outlet
adapter (56) into the pump cylinder.
10. Place the ball stop pin (58) into the upper set of the
holes of the ball guide (59).
11. Place the check ball (60) into the intake housing
(62). Insert the ball guide (59) containing the stop
pin into the intake valve housing.
12. Put the o-ring (61) in place and screw the intake
valve housing (62) into the base of the pump cylin-
der (55). Tighten securely.
13. Reconnect all houses, plumbing, etc. to restore the
pump to operation. Reconnect the ground wire if it
was disconnected.
FIG. 5
69
43
46
48
49 50
51 111
112
111
112
113
lips of
v-packings
must face up
54
1
56
72 55
57
58
59
60
61 62
44
43a
45
67
o-ring
v-packing
housing
gland (female)
v-packing (white)
v-packing (black)
v-packing (white)
v-packing (black)
gland (male)
spring
washer
retaining ring
lips of v-packings must face down
1apply sealant and torque
to 137-143 ft lbs (186-194 N.m)
Packing Housing Kit

Parts
14 307714E
Parts
Torque to 20-25 ft-lbs (27-34 N.m)
1
74
75 117
73
77
78
79
80
81
82
83
89
90
97
96
52
110
106
86
1
84
87 42
85
86
2
88
101 92 93 94
102
95
96
97
98 100
99 71 91
107
103
68
105
2
104
44
43a
45
67
69
43
46
See detail,
page 13
48
49
50
51
111
112
111
112
53
lips of v-packings
must face up
54
56
3
72
55
57
59
58 60
61 62
Torque to 25 ft-lbs (34 N.m)
2
Apply sealant and toque to 137-143
ft-lbs (186-194 N.m)
3

Parts
307714E 15
Parts
▲Replacement Danger and Warning labels, tags, and
cards are available at no cost.
Ref. Part Description Qty.
42 168184 SEAL, valve plate 2
43 218596 ROD, trip and piston assembly 1
43a 218598 ROD, trip 1
44 177080 PISTON, air motor 1
45 215916 SHAFT, piston 1
46 177084 BASE, air motor 1
47 215674 HOUSING, packing 1
48 101822 BALL, stainless steel; 5/8” 1
49 177067 WASHER, backup 1
50 105757 SPRING, wave 1
51 177073 GLAND, male, brass 1
52 104029 ClAMP, grounding 1
53 178065 GLAND, female; brass 1
54 178188 HOUSING, piston and valve seat 1
55 177083 CYLINDER, pump 1
56 177065 ADAPTER, outlet; 3/4 npt(f) x
1-1/16-12 un
1
57 177071 NUT, coupling 1
58 172399 PIN, ball stop 1
59 176532 GUIDE, ball 1
60 102973 BALL, stainless steel 1
61 105756 O-RING, buna-n 1
62 215673 HOUSING, intake; 1” npt(f) 1
67 166701 PIN, ball stop 1
68 100018 LOCKWASHER, spring; 1/2” 1
69 161578 O-RING, piston; buna-n 1
71 176546 V-PACKING; polyurethane 1
72 105765 O-RING, buna-n 1
73 169588 SHIELD, air motor 1
74 180952 LIFT RING 1
75 113161 SCREW, flange, 1/4-20 x 1/2” 8
77 161587 RETAINER, detent spring 2
78 161589 SPRING, compression 2
79 161588 GUIDE, spring 2
80 169583 PLUNGER, detent 2
81 177664 HOUSING, detent 1
82 101713 CAPSCREW, hex-head; 7/15-14 x
3”
4
83 100052 LOCKWASHER, spring; 7/16” 4
84 102726 PLUG, pipe, socket-head; 3/4 npt 1
85 100101 CAPSCREW, hex head; 3/8-16 x 1” 4
86 100133 LOCKWASHER, spring; 3/8” 5
87 168187 MANIFOLD, air 2
88 101716 SCREW, flathead, machine;
No.10-24 x 1/2”
8
89 169585 ROLLER, detent 2
90 169586 AXLE, detent 2
91 168183 GASKET, air manifold; buna-n 2
92 168182 VALVE, air director 2
93 156698 O-RING, buna-n 2
94 161575 SPRING, compression 2
95 177134 BUSHING, trip rod 1
96 161576 WASHER, thrust 2
97 161577 PAD, dampening 1
98 161565 BEARING 1
99 161559 WASHER, backup; leather 1
100 150647 GASKET, brass 1
101 169584 PLATE, valve 2
102 161585 HOUSING, air valve 1
103 161556 GASKET 1
104 177486 CYLINDER, air motor 1
105 100424 CAPSCREW, hex head; 1/2-13 x 1” 8
106 177135 NUT, trip rod 1
107 168185 CAP, spring 1
108 15A610 SLEEVE 1
110 104582 WASHER, tab 1
111 178066 V-PACKING, rubber 2
112 178067 V-PACKING, UHMWPE 2
117 207648 UNION, adapter; 90° swivel; 3/4
npsm(f)
1
118▲290331 LABEL, warning 1
119▲189991 LABEL, warning, crush 1
Ref. Part Description Qty.

Kits and Accessories
16 307714E
Kits and Accessories
Air Pressure Regulator
300 psi (21 bar, 2.1 MPa) Maximum Working Pressure
Air Line Filter
250 psi (17.5 bar, 1.75 MPa) Maximum Working Pres-
sure
Bleed-Type Master Air Valve
Used to relieve air trapped in the air line between the
pump air inlet and this valve when closed.
300 psi (21 bar, 2.1 MPa) Maximum Working Pressure
Grounding Clamp and Wire
Air Line Lubricator
250 psi (17.5 bar, 1.75 MPa) Maximum Working Pres-
sure
Special Tools
Part No. Description
206197 1/2 npt inlet and outlet
207755 3/4 npt inlet and outlet
Part No. Description
106149 1/2 npt inlet and outlet
106150 3/4 npt inlet and outlet
Part No. Description
107142 1/2 npt inlet and outlet
Ref Part No. Description
a 103538 Grounding Clamp
b 222011 Ground Wire
Part No. Description
214848 1/2 npt inlet and outlet
214849 3/4 npt inlet and outlet
Part No. Description
207579 Padded Pliers
168513 Alignment Tool
a
b

Kits and Accessories
307714E 17
Dimensions
A Diameter 11 in. (279.4 mm)
B Air Inlet 3/4 npsm
C Weep Hole - NOTE: Fluid fitting is 90° from weep hole
D Fluid Outlet 3/4 npt
E 10.5 in. (266.7 mm)
F 29.5 in. (0.75 m)
G 14.7 in. (373.4 mm)
H Fluid Intake 1 in. npt
J Diameter Bolt Circle 7.25 in. (184 mm) 1/2 -13 UNC-2B
K Diameter Bolt Circle 8.4 in. (224 mm) 1/2 -13 UNC 2B
A
B
C
D
H
F
G
E
45°
K
J

Technical Data
18 307714E
Technical Data
43:1 Bulldog Hydraulic Supply Pump
US Metric
Maximum working pressure 4300 psi 30.1 MPa, 301 bar
Maximum air input pressure 100 psi 0.7 MPa, 7 bar
Air inlet 3/4 npsm(f)
Fluid inlet 1 in. npt(f)
Fluid outlet 3/4 npt(f)
Materials of Construction
Wetted materials on all models carbon steel, stainless steel, chrome plating, zinc plating,
nickel plating, brass, buna-n
Notes
Loctite®is a registered trademark of the Loctite Corporation.

Notes
307714E 19
Notes

All written and visual data contained in this document reflects the latest product information available at the time of publication.
Graco reserves the right to make changes at any time without notice.
For patent information, see www.graco.com/patents.
Original instructions. This manual contains English. MM 307714
Graco Headquarters: Minneapolis
International Offices: Belgium, China, Japan, Korea
GRACO INC. AND SUBSIDIARIES • P.O. BOX 1441 • MINNEAPOLIS MN 55440-1441 • USA
Copyright 1986, Graco Inc. All Graco manufacturing locations are registered to ISO 9001.
www.graco.com
Revised 3/2012
Graco Standard Warranty
Graco warrants all equipment referenced in this document which is manufactured by Graco and bearing its name to be free from defects in
material and workmanship on the date of sale to the original purchaser for use. With the exception of any special, extended, or limited warranty
published by Graco, Graco will, for a period of twelve months from the date of sale, repair or replace any part of the equipment determined by
Graco to be defective. This warranty applies only when the equipment is installed, operated and maintained in accordance with Graco’s written
recommendations.
This warranty does not cover, and Graco shall not be liable for general wear and tear, or any malfunction, damage or wear caused by faulty
installation, misapplication, abrasion, corrosion, inadequate or improper maintenance, negligence, accident, tampering, or substitution of
non-Graco component parts. Nor shall Graco be liable for malfunction, damage or wear caused by the incompatibility of Graco equipment with
structures, accessories, equipment or materials not supplied by Graco, or the improper design, manufacture, installation, operation or
maintenance of structures, accessories, equipment or materials not supplied by Graco.
This warranty is conditioned upon the prepaid return of the equipment claimed to be defective to an authorized Graco distributor for verification of
the claimed defect. If the claimed defect is verified, Graco will repair or replace free of charge any defective parts. The equipment will be returned
to the original purchaser transportation prepaid. If inspection of the equipment does not disclose any defect in material or workmanship, repairs will
be made at a reasonable charge, which charges may include the costs of parts, labor, and transportation.
THIS WARRANTY IS EXCLUSIVE, AND IS IN LIEU OF ANY OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED
TO WARRANTY OF MERCHANTABILITY OR WARRANTY OF FITNESS FOR A PARTICULAR PURPOSE.
Graco’s sole obligation and buyer’s sole remedy for any breach of warranty shall be as set forth above. The buyer agrees that no other remedy
(including, but not limited to, incidental or consequential damages for lost profits, lost sales, injury to person or property, or any other incidental or
consequential loss) shall be available. Any action for breach of warranty must be brought within two (2) years of the date of sale.
GRACO MAKES NO WARRANTY, AND DISCLAIMS ALL IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A
PARTICULAR PURPOSE, IN CONNECTION WITH ACCESSORIES, EQUIPMENT, MATERIALS OR COMPONENTS SOLD BUT NOT
MANUFACTURED BY GRACO. These items sold, but not manufactured by Graco (such as electric motors, switches, hose, etc.), are subject to
the warranty, if any, of their manufacturer. Graco will provide purchaser with reasonable assistance in making any claim for breach of these
warranties.
In no event will Graco be liable for indirect, incidental, special or consequential damages resulting from Graco supplying equipment hereunder, or
the furnishing, performance, or use of any products or other goods sold hereto, whether due to a breach of contract, breach of warranty, the
negligence of Graco, or otherwise.
FOR GRACO CANADA CUSTOMERS
The Parties acknowledge that they have required that the present document, as well as all documents, notices and legal proceedings entered into,
given or instituted pursuant hereto or relating directly or indirectly hereto, be drawn up in English. Les parties reconnaissent avoir convenu que la
rédaction du présente document sera en Anglais, ainsi que tous documents, avis et procédures judiciaires exécutés, donnés ou intentés, à la suite
de ou en rapport, directement ou indirectement, avec les procédures concernées.
Graco Information
For the latest information about Graco products, visit www.graco.com.
TO PLACE AN ORDER, contact your Graco distributor or call to identify the nearest distributor.
Phone: [phone] or Toll Free: 1-800-533-9655, Fax: [phone]
