Graco Check-Mate Elite Series User manual

3A8564C
EN
Instructions - Repair - Parts
Check-Mate® Elite
Series Displacement
Pumps
Pump with priming piston and Elite Series rod and cylinder. For professional use only.
Model L100CE and L200CE
See Models page 3 for model information,
4200 psi (28.96 MPa, 289.58bar) Maximum Working Pressure.
Important Safety Instructions
Read all warnings and instructions in this
manual before using the equipment.
Save these instructions.
Model L200CE
Model L100CE

2 3A8564C
Contents
Related Manuals . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Models . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Warnings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Important Isocyanate (ISO) Information. . . . . . . . . 7
Moisture Sensitivity of Isocyanates . . . . . . . . . . . 7
Changing Materials . . . . . . . . . . . . . . . . . . . . . . . 7
Component Identification . . . . . . . . . . . . . . . . . . . . 8
Operation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Pressure Relief Procedure . . . . . . . . . . . . . . . . . . 9
Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Pump Lubrication. . . . . . . . . . . . . . . . . . . . . . . . 10
Recycling and Disposal . . . . . . . . . . . . . . . . . . . . . 10
End of Product Life . . . . . . . . . . . . . . . . . . . . . . 10
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Repair. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Disassembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Reassembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
100 cc Displacement Pump L100CE . . . . . . . . . 22
200 cc Displacement Pump L200CE . . . . . . . . . 25
Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Technical Specifications . . . . . . . . . . . . . . . . . . . . 29
Graco Standard Warranty. . . . . . . . . . . . . . . . . . . . 30
Related Manuals
English
Manuals Description
312376 Check-Mate® Pump Packages Instruction-Parts
313526 Supply Units Operation
313527 Supply Units Repair-Parts
313528 Tandem Supply Units Operation
313529 Tandem Supply Units Repair-Parts
3A6331 E-Flo® SP Supply Systems
333586 E-Flo® IQ Dispense Systems

Models
3A8564C 3
Models
Check your displacement pump’s identification plate
(ID) for the 6-digit part number of your displacement
pump. Use the following matrix to define the
construction of your displacement pump, based on the
six digits. For example, displacement pump Part No.
L200CE represents the displacement pump (L), output
volume in cc per cycle (200), carbon steel construction
(C), and Elite series (E).
To order replacement parts, see Parts section starting
on page 22. The digits in the matrix do not correspond
to the Ref. Nos. in the Parts drawings and lists page
22.
FIG. 1
L 100/200 C E
First Digit
Second, Third, and
Fourth Digits Fifth Digit Sixth Digit
Displacement Pump
Volume per cycle (cc) Material
Coatings,
Packings
L
(Displacement
pump)
100
C Carbon Steel E Elite
200
ID
ID

Warnings
4 3A8564C
Warnings
The following warnings are for the setup, use, grounding, maintenance, and repair of this equipment. The
exclamation point symbol alerts you to a general warning and the hazard symbols refer to procedure-specific risks.
When these symbols appear in the body of this manual or on warning labels, refer back to these Warnings.
Product-specific hazard symbols and warnings not covered in this section may appear throughout the body of this
manual where applicable.
WARNING
SKIN INJECTION HAZARD
High-pressure fluid from dispensing device, hose leaks, or ruptured components will pierce skin. This
may look like just a cut, but it is a serious injury that can result in amputation. Get immediate surgical
treatment.
• Do not point dispensing device at anyone or at any part of the body.
• Do not put your hand over the spray tip.
• Do not stop or deflect leaks with your hand, body, glove, or rag.
• Engage trigger lock when not spraying.
• Follow the Pressure Relief Procedure when you stop dispensing and before cleaning, checking,
or servicing equipment.
• Tighten all fluid connections before operating the equipment.
• Check hoses and couplings daily. Replace worn or damaged parts immediately.
MOVING PARTS HAZARD
Moving parts can pinch, cut or amputate fingers and other body parts.
• Keep clear of moving parts.
• Do not operate equipment with protective guards or covers removed.
• Equipment can start without warning. Before checking, moving, or servicing equipment, follow the
Pressure Relief Procedure and disconnect all power sources.

Warnings
3A8564C 5
FIRE AND EXPLOSION HAZARD
Flammable fumes, such as solvent and paint fumes, in work area can ignite or explode. Paint or
solvent flowing through the equipment can cause static sparking. To help prevent fire and explosion:
• Use equipment only in well-ventilated area.
• Eliminate all ignition sources; such as pilot lights, cigarettes, portable electric lamps, and plastic
drop cloths (potential static sparking).
• Ground all equipment in the work area.
• Never spray or flush solvent at high pressure.
• Keep work area free of debris, including solvent, rags and gasoline.
• Do not plug or unplug power cords, or turn power or light switches on or off when flammable fumes
are present.
• Use only grounded hoses.
• Hold gun firmly to side of grounded pail when triggering into pail. Do not use pail liners unless they
are anti-static or conductive.
•Stop operation immediately if static sparking occurs or you feel a shock. Do not use equipment
until you identify and correct the problem.
• Keep a working fire extinguisher in the work area.
EQUIPMENT MISUSE HAZARD
Misuse can cause death or serious injury.
• Do not operate the unit when fatigued or under the influence of drugs or alcohol.
• Do not exceed the maximum working pressure or temperature rating of the lowest rated system
component. See Technical Specifications in all equipment manuals.
• Use fluids and solvents that are compatible with equipment wetted parts. See Technical
Specifications in all equipment manuals. Read fluid and solvent manufacturer’s warnings. For
complete information about your material, request Safety Data Sheets (SDSs) from distributor or
retailer.
• Do not leave the work area while equipment is energized or under pressure.
• Turn off all equipment and follow the Pressure Relief Procedure when equipment is not in use.
• Check equipment daily. Repair or replace worn or damaged parts immediately with genuine
manufacturer’s replacement parts only.
• Do not alter or modify equipment. Alterations or modifications may void agency approvals and
create safety hazards.
• Make sure all equipment is rated and approved for the environment in which you are using it.
• Use equipment only for its intended purpose. Call your distributor for information.
• Route hoses and cables away from traffic areas, sharp edges, moving parts, and hot surfaces.
• Do not kink or over bend hoses or use hoses to pull equipment.
• Keep children and animals away from work area.
• Comply with all applicable safety regulations.
WARNING

Warnings
6 3A8564C
TOXIC FLUID OR FUMES HAZARD
Toxic fluids or fumes can cause serious injury or death if splashed in the eyes or on skin, inhaled or
swallowed.
• Read Safety Data Sheets (SDSs) for handling instructions and to know the specific hazards of the
fluids you are using, including the effects of long-term exposure.
• When spraying, servicing equipment, or when in the work area, always keep work area
well-ventilated and always wear appropriate personal protective equipment. See Personal
Protective Equipment warnings in this manual.
• Store hazardous fluid in approved containers, and dispose of it according to applicable guidelines.
PERSONAL PROTECTIVE EQUIPMENT
Always wear appropriate personal protective equipment and cover all skin when spraying, servicing
equipment, or when in the work area. Protective equipment helps prevent serious injury, including
long-term exposure; inhalation of toxic fumes, mists or vapors; allergic reaction; burns; eye injury and
hearing loss. This protective equipment includes but is not limited to:
• A properly fitting respirator, which may include a supplied-air respirator, chemically impermeable
gloves, protective clothing and foot coverings as recommended by the fluid manufacturer and local
regulatory authority.
• Protective eyewear and hearing protection.
WARNING

Important Isocyanate (ISO) Information
3A8564C 7
Important Isocyanate (ISO) Information
Isocyanates (ISO) are catalysts used in two component materials.
Isocyanate Conditions
Moisture Sensitivity of
Isocyanates
Exposure to moisture (such as humidity) will cause ISO
to partially cure, forming small, hard, abrasive crystal
that become suspended in the fluid. Eventually a film
will form on the surface and the ISO will begin to gel,
increasing in viscosity.
NOTE: The amount of film formation and rate of
crystallization varies depending on the blend of ISO, the
humidity, and the temperature.
Changing Materials
Spraying or dispensing fluids that contain
isocyanates creates potentially harmful mists,
vapors, and atomized particulates.
• Read and understand the fluid manufacturer’s
warnings and Safety Data Sheets (SDSs) to know
specific hazards and precautions related to
isocyanates.
• Use of isocyanates involves potentially hazardous
procedures. Do not spray with this equipment
unless you are trained, qualified, and have read
and understood the information in this manual
and in the fluid manufacturer’s application
instructions and SDSs.
• Use of incorrectly maintained or mis-adjusted
equipment may result in improperly cured
material. Equipment must be carefully maintained
and adjusted according to instructions in the
manual.
• To prevent inhalation of isocyanate mists, vapors,
and atomized particulates, everyone in the work
area must wear appropriate respiratory
protection. Always wear a properly fitting
respirator, which may include a supplied-air
respirator. Ventilate the work area according to
instructions in the fluid manufacturer’s SDSs.
• Avoid all skin contact with isocyanates. Everyone
in the work area must wear chemically
impermeable gloves, protective clothing and foot
coverings as recommended by the fluid
manufacturer and local regulatory authority.
Follow all fluid manufacturer recommendations,
including those regarding handling of
contaminated clothing. After spraying, wash
hands and face before eating or drinking.
NOTICE
Partially cured ISO will reduce performance and the life
of all wetted parts.
• Always use a sealed container with a desiccant
dryer in the vent, or a nitrogen atmosphere. Never
store ISO in an open container.
• Keep the ISO pump wet cup or reservoir (if
installed) filled with appropriate lubricant. The
lubricant creates a barrier between the ISO and
the atmosphere.
• Use only moisture-proof hoses compatible with
ISO.
• Never use reclaimed solvents, which may contain
moisture. Always keep solvent containers closed
when not in use.
• Always lubricate threaded parts with an
appropriate lubricant when reassembling.
NOTICE
Changing the material types used in your equipment
requires special attention to avoid equipment damage
and downtime.
• When changing materials, flush the equipment
multiple times to ensure it is thoroughly clean.
• Always clean the fluid inlet strainers after flushing.
• Check with your material manufacturer for
chemical compatibility.
• When changing between epoxies and urethanes or
polyureas, disassemble and clean all fluid
components and change hoses. Epoxies often
have amines on the B (hardener) side. Polyureas
often have amines on the B (resin) side.

Component Identification
8 3A8564C
Component Identification
Key:
A Displacement Rod
B Seal Retainer
C Throat Packing Cartridge
D Outlet Housing
E Fluid Outlet
F Pump Bleed Valve
G Pump Cylinder
H Intake valve Housing
J Intake Cylinder
K Priming Piston Assembly
L Grease Fitting
M Grease fitting vent
FIG. 2:
Model L100CE Model L200CE
A
M
L
B
D
F
G
H
J
K
C
E
L
C
E
A
M
B
D
F
G
H
J
K

Operation
3A8564C 9
Operation
Pressure Relief Procedure
Follow the Pressure Relief Procedure
whenever you see this symbol.
1. Engage the gun/valve trigger.
2. For D200s, D200, D60 and S20 Air Controls: See
FIG. 3.
a. Close the air motor slider valve and the main air
slider valve.
b. Set the ram director valve to DOWN. The ram
will slowly drop.
c. Jog the director valve up and down to bleed air
from ram cylinders. See FIG. 3.
3. For L20c Air Controls: See FIG. 4.
a. Close the bleed type air motor valve and the
elevator director valve. The ram will slowly
drop. See FIG. 4.
4. Engage the gun/valve trigger lock.
5. Hold a metal part of the gun/valve firmly to the side
of a grounded metal pail, and trigger the gun/valve
to relieve pressure.
6. Engage the gun/valve trigger.
7. Open the fluid line drain valve and the pump bleed
valve (P). Have a container ready to catch the drain-
age.
8. Leave the pump bleed valve open until ready to
spray again. See FIG. 5.
If you suspect that the spray tip/nozzle or hose is
completely clogged, or that pressure has not been fully
relieved after following the steps above, very slowly
loosen the tip guard retaining nut, nozzle, or hose end
coupling and relieve pressure gradually, then loosen
completely. Now clear the tip/nozzle or hose.
This equipment stays pressurized until pressure is
manually relieved. To help prevent serious injury from
pressurized fluid, such as skin injection, splashing
fluid and moving parts, follow the Pressure Relief
Procedure when you stop spraying and before
cleaning, checking, or servicing the equipment.
FIG. 3
Main Air Valve
Ram Director
Valve
ti10438a
Air Motor Valve
FIG. 4
FIG. 5
Elevator
Director Valve
Air Motor Valve
P

Maintenance
10 3A8564C
Maintenance
Pump Lubrication
Frequency of greasing intervals is dependent on
material being pumped. As a basic schedule lubricate
pump with grease after 250 gallons of product (five
drums or fifty, five gallon pails) has been passed
through pump.
If the grease has become hardened, remove the seal
retainer (B) and remove the hardened materials or
grease. Shorten the intervals between greasing the
pump.
If the grease remains a clear and clean liquid the
intervals between greasing the pump can be extended.
Use Graco 0553-6 grease (138) or equivalent to
lubricate pump.
To grease the pump
1. Loosen M5 SHS EXT screw (102) two turns to
permit grease to circulate through pump correctly.
2. Attach grease gun to grease fitting (101) until fresh
grease is observed to come out grease relief hole
below the M5 SHS EXT screw (102). See FIG. 6.
Recycling and Disposal
End of Product Life
At the end of the product’s useful life, dismantle and
recycle it in a responsible manner.
• Perform the Pressure Relief Procedure page 9.
• Drain and dispose of fluids according to applicable
regulations. Refer to the material manufacturer’s
Safety Data Sheet.
• Deliver remaining product to a recycling facility.

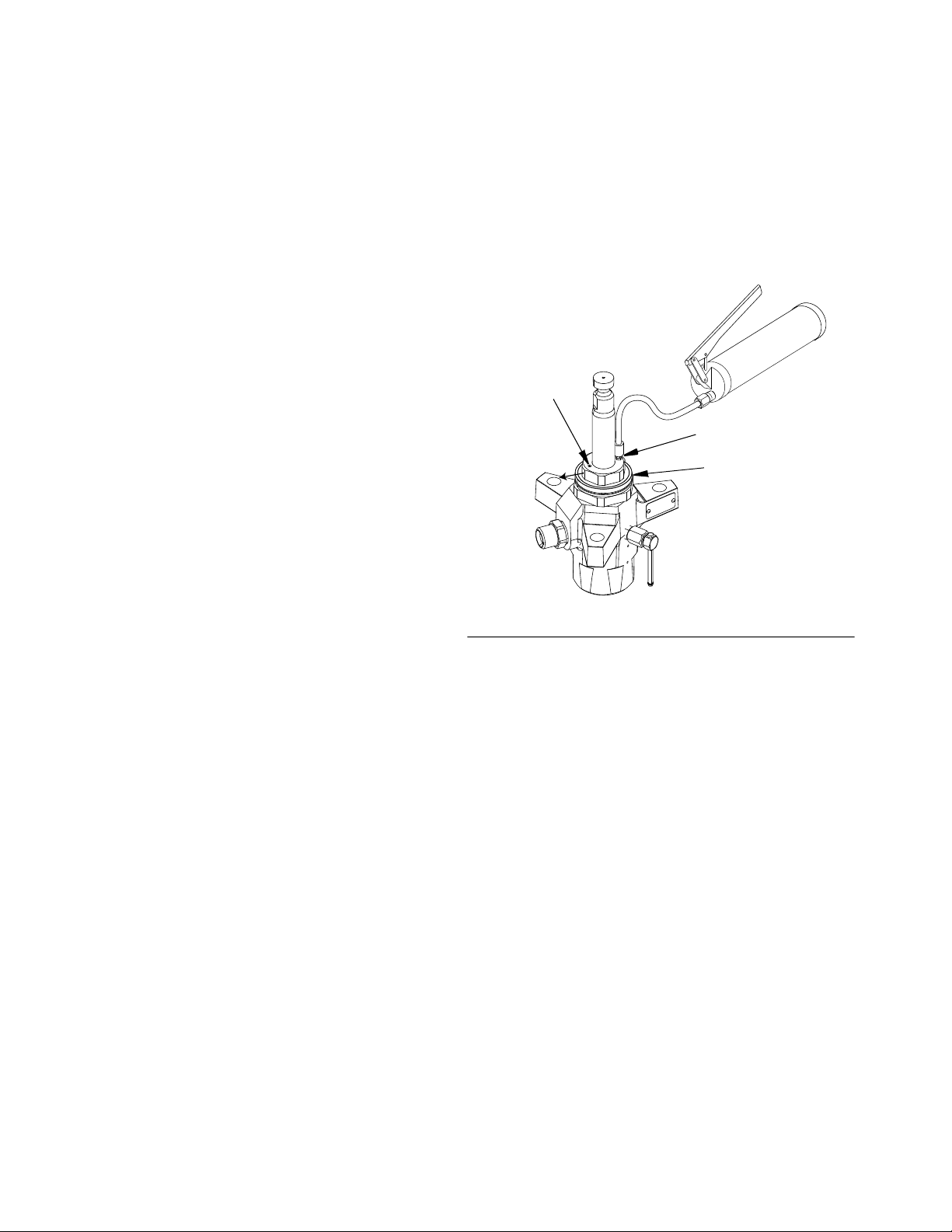

FIG. 6
B
101
102

Troubleshooting
3A8564C 11
Troubleshooting
1. Follow Pressure Relief Procedure, page 9.
2. Check all possible problems and causes before
disassembling pump.
Problem Cause Solution
Pump fails to operate. Restricted line or inadequate air
supply; closed or clogged valves.
Clear; increase air supply. Ensure
that all valves are open.
Obstructed fluid hose or gun/valve;
fluid hose ID is too small.
Open, clear*; use a hose with a
larger ID.
Fluid dried on displacement rod. Clean. Always stop pump at bottom
of stroke. Keep enclosed grease
cup filled with a compatible grease.
Dirty, worn, or damaged motor
parts.
Clean or repair; see separate motor
manual.
Runaway occurred. See runaway section of Supply
Units Operation manual 313526.
Pump operates but output is low on
both strokes.
Restricted line or inadequate air
supply; closed or clogged valves.
Clear; increase air supply.
Ensure all valves are open.
Increase air pressure to ram for bet-
ter loading.
Obstructed fluid hose or gun/valve;
fluid hose ID is too small.
Open, clear*; use a hose with a
larger ID.
Bleed-type air valve is partially
open.
Close bleed-type air valve.
Air is leaking into supply container. Check ram plate seal.
Fluid is too heavy for pump priming. Use drain/purge valve. Use a ram.
See Supply Units Operation manual
313526.
Held open or worn intake valve or
seals.
Clear valve; replace seals.
Worn packings in displacement
pump.
Replace packings.
Pump operates, but output is low on
downstroke.
Fluid is too heavy for pump priming. Use drain/purge valve. Use a ram.
See Supply Units Operation manual
313526.
Held open or worn intake valve or
seals.
Clear valve. Replace seals.
Pump operates, but output is low on
upstroke.
Held open or worn intake valve or
seals.
Clear valve. Replace seals.

Troubleshooting
12 3A8564C
* To determine if fluid hose or gun is obstructed, follow Pressure Relief Procedure, page 9. Disconnect fluid hose
and place a container at pump fluid outlet to catch any fluid. Turn on air just enough to start pump. If pump starts
when air is turned on, the obstruction is in the fluid hose or gun.
Erratic or accelerated pump speed. Exhausted fluid supply. Refill and prime.
Fluid is too heavy for pump priming. Use drain/purge valve. Use a ram.
See Supply Units Operation manual
313526.
Increase ram air pressure.
Held open or worn intake valve or
seals.
Clear valve. Replace seals.
Held open or worn priming piston. Clear; service.
Worn packings in displacement
pump.
Replace packings.
Problem Cause Solution

Repair
3A8564C 13
Repair
Required Tools
• Torque wrench
• Bench vise, with soft jaws
• Rubber mallet
• Hammer
• 400 mm (15.8 in.) adjustable wrench
• O-ring pick
• Flat head screwdriver
• 13 mm (1/2 in.) Dia. brass rod
• Set of socket wrenches
• Set of adjustable wrenches
• 24 in. (610 mm) adjustable wrench
• M4 hex key wrench
• Thread lubricant
• Thread sealant
• Loctite® 2760™ or equivalent
Disassembly
NOTE: When disassembling displacement pump, lay
out all removed parts in sequence to ease reassembly.
Clean all parts with a compatible solvent and inspect
them for wear or damage.
1. Relieve pressure see Pressure Relief Procedure,
page 9.
2. Disconnect displacement pump from air motor as
illustrated in your Check-Mate Pump Package
manual 312376, 3A6331 or 333586.
NOTE: 100 cc Displacement Pump L100CE, shown in
the disassembly illustrations. Both 100 cc
Displacement Pump L100CE and 200 cc Displacement
Pump L200CE procedures are the same.
3. Place displacement pump in a vise, with jaws
placed on the section that is needed to be secure
while removing other parts in each step.
4. Push on the upper displacement rod (118) to
expose flats of the lower shaft assembly (125). Hold
flats of the lower shaft assembly (125) with an
adjustable wrench, and use a second wrench to
unscrew shovel nut (133) from lower shaft
assembly. Slide shovel piston (132) off rod. Inspect
surfaces of shovel nut and lower shaft assembly for
scoring, wear, or other damage. See FIG. 7.
5. Use an adjustable wrench on the hex of the intake
cylinder (131) and unscrew it from the valve
housing (117). See FIG. 8.

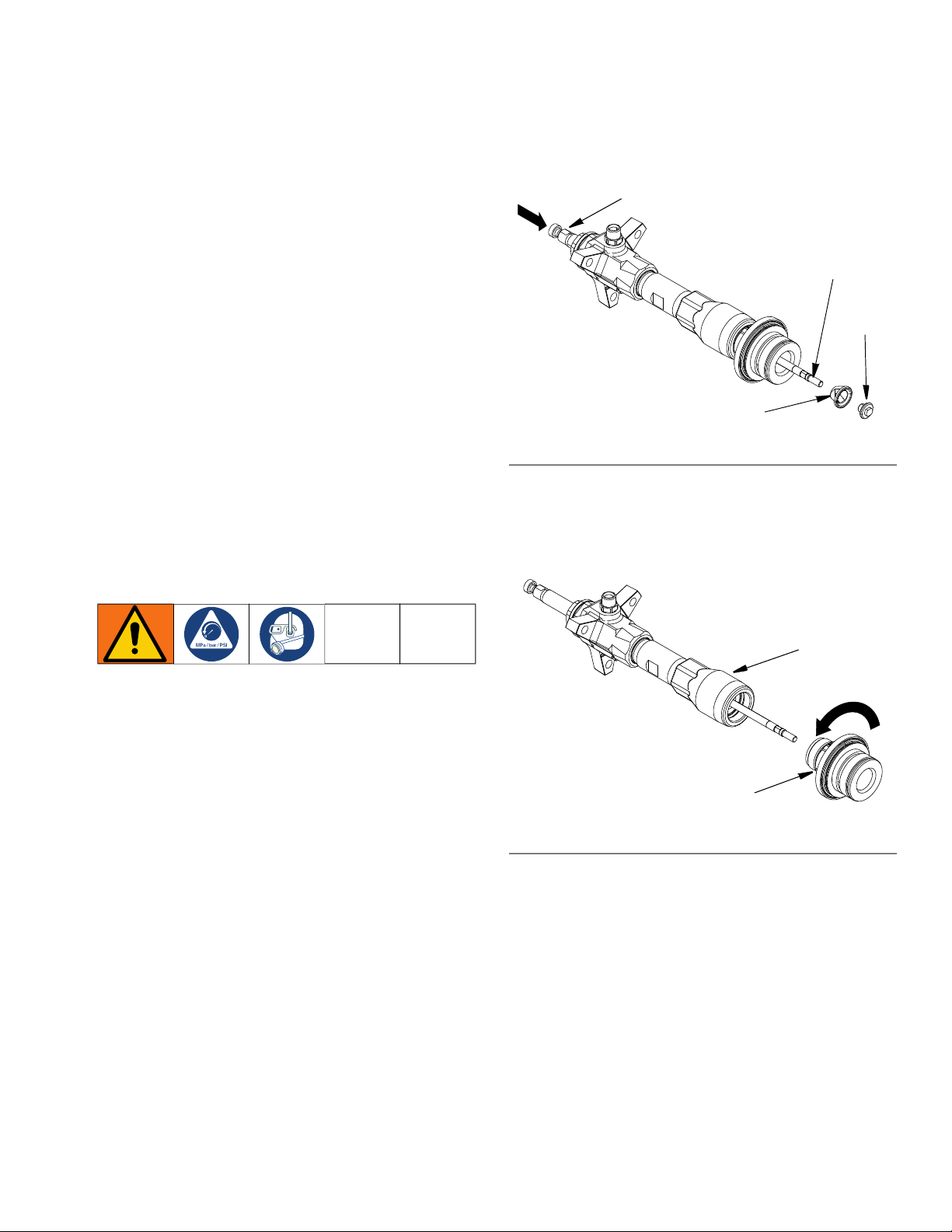

FIG. 7
FIG. 8
125
118
132
133
131
117

Repair
14 3A8564C
6. Remove remaining assembly using an adjustable
wrench to unscrew valve housing (117) from
cylinder (116). While the bench vice is secured on
the cylinder, pull the valve housing off of the
cylinder. Poppet inlet check valve (128), and inlet
seat check valve (129) should slide down the lower
shaft assembly (125) inside the valve housing as
you remove the valve housing.
7. Use an O-ring pick to remove seal (130) from valve
housing (117). Discard seal and use a new one for
reassembly.
8. Pull the inlet seat check valve (129) out of the
bottom of the valve housing (117). Remove the
poppet inlet check valve (128) carefully making sure
that it does not get damaged as it can freely fall out
after the inlet seat check valve is removed. See FIG.
9. For seal removal from poppet inlet check valve
see step 14 page15.
NOTE: If seat check in valve (129) is difficult to remove,
insert a hammer and brass rod through the hex side of
the valve housing (117) and drive seat out. Do not strike
the seating surface at the center of the seat inlet check
valve (129). See FIG. 9. .
9. Use an adjustable wrench on the flats of the
cylinder (116) while the bench vice is secured to the
outlet housing (109). Unscrew the cylinder from the
outlet housing. Remove O-rings (105) from the
cylinder. Inspect inside surface of cylinder for wear,
scoring, or other damage by holding it up to a light
at an angle or running a finger over the surface. See
FIG. 10.
NOTE: Model L200CE does not have flats on the
CM200 cylinder (208). .
10. Use a rubber mallet to drive the upper
displacement rod (118) and lower shaft assembly
(125) out of the outlet housing (109). Inspect shaft
surfaces by running a finger over the surface of the
shafts and checking for wear or scoring. See FIG.
11.

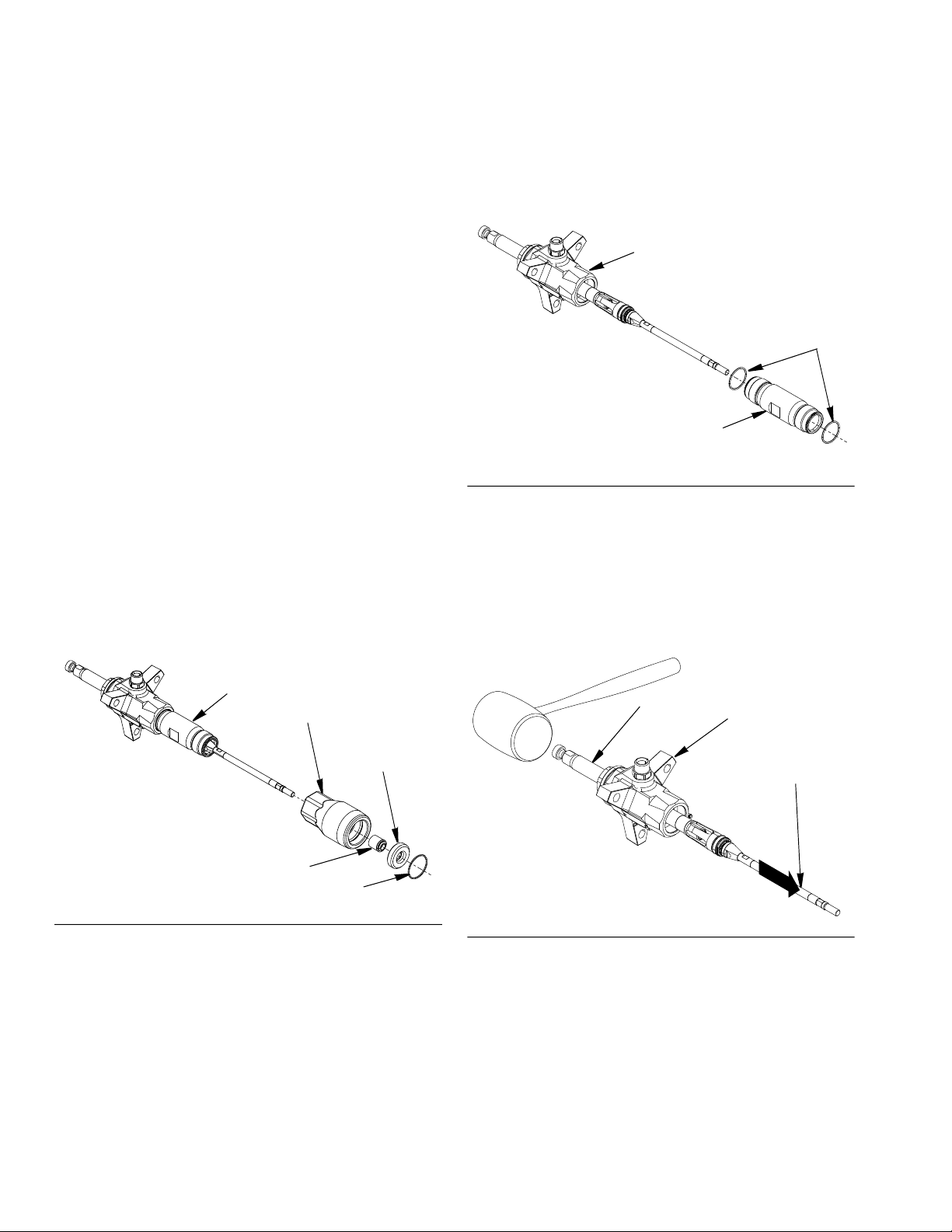

FIG. 9
128
117
129
130
116
FIG. 10
FIG. 11
116
105
109
109
125
118

Repair
3A8564C 15
11. Place flats of the upper displacement rod (118) in a
bench vice. Unscrew the lower shaft assembly
(125) from the outlet check valve seat (124).
Unscrew the outlet check valve seat from the upper
displacement rod. Remove the piston guide and
seal assembly (121, 122, 123, and 124) and the
pump rod spacer (119).
12. Inspect the outer surfaces of the upper
displacement rod (118) and the lower shaft
assembly (125) for wear, scoring or any other
damage by holding them up to the light at an angle
or running a finger across the surface. See FIG. 12.
13. Place the flats of the poppet outlet check valve
(123) and the piston guide (121) in a bench vice.
Slide a 0.5 In. (12.7 mm) brass rod through the
openings of the piston guide and unscrew it from
the poppet outlet check valve. Remove the piston
seal (122) and the piston guide bearing (120).
NOTE: Piston guide bearing (120) is press fit into the
piston guide (121), and may require cutting to ease
removal. See FIG. 13.
14. To disassemble the intake check valve assembly,
remove the internal retaining ring (126) from the
poppet inlet check valve (128). Using a small
screwdriver or O-ring pick remove the lower shaft
seals (127). Inspect the poppet inlet check valve for
wear or damage. See FIG. 14.

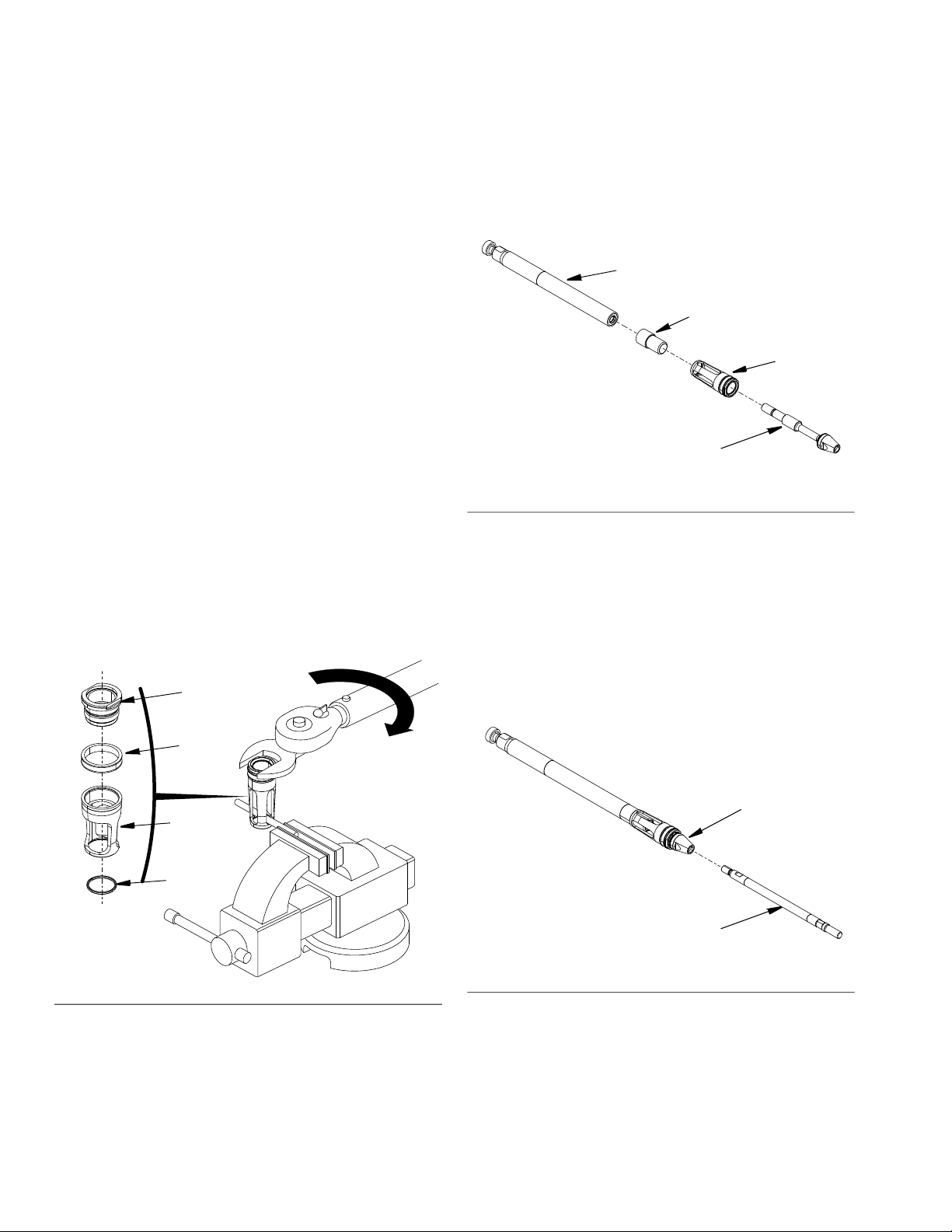

FIG. 12
120, 121, 122, 123
125
118
119
124
FIG. 13
FIG. 14
120
121
122
123
126
127
128

Repair
16 3A8564C
15. Unscrew plug (113) completely from valve housing
(112). Clean valve threads and bleed hole. it is not
necessary to remove the valve housing from the
outlet housing (109). See FIG. 15.
16. Secure the outlet housing (109) in a bench vise and
remove the shaft seals retainer (103). Remove
packing O-ring (104) from the inside of the shaft
seals retainer and packing O-ring (105) from the
bottom of the shaft seals retainer. Note: packing
O-ring (105) is not used in L200CE pumps. Using a
small screw driver or O-ring pick remove both
upper shaft seals (106). Use caution to avoid
scoring the inside diameter of the seal cartridge
(107). Remove the seal cartridge and packing
O-ring (108) from the outlet housing. See FIG. 16.
Reassembly
NOTE: All individual parts being reused from any
disassembly must be thoroughly cleaned in a
compatible solvent and inspected for damage.
L100CE Pump Inlet Check Assembly
1. Lubricate the inside diameter of the poppet inlet
check valve (128) body, the seal guide tool (135)
and if used the seal insertion tool (134). Also
lubricate the outside diameter of the lower shaft
seals (127).
2. Place the seal guide tool (135) on top of the poppet
inlet check valve (128). Place the first lower shaft
seal (127) with the seal face (spring side), face
down into the seal guide tool.
3. Using the smaller heal side of the seal insertion tool
(134), or a suitable size socket or dowel, press the
seal to the bottom of the poppet inlet check valve
(128). See FIG. 17.
4. Place the second lower shaft seal (127) face up into
the seal guide tool (135). Insert the lower shaft seal
FIG. 15
FIG. 16
109
112
113
103
107
109
104
105
106
108
NOTICE
Failure to use the seal guide tool (135) on the L100CE
pump will result in damage to the seal.
FIG. 17
134
127
135
128

Repair
3A8564C 17
using the larger face side of the seal insertion tool
(134), or a suitable size socket or dowel.
5. Press the seal into the poppet inlet check valve
(128) against the first lower shaft seal (127). See
FIG. 18.
6. Place the internal retaining ring (126) into the
groove at the top of the poppet inlet check valve
(128). See FIG. 19.
L200CE Pump Inlet Check Assembly
1. Lubricate the inside diameter of the poppet inlet
check valve (221) body and the outside diameter of
the lower shaft seals (220). Also lubricate a suitable
size socket or dowel that will be used to insert the
seals.
2. Using a suitable size socket or dowel, insert the
lower shaft seals (220) with the seal face (spring
side) facing down press the seal to the bottom of
the poppet inlet check valve (221).
3. Place the second lower shaft seal (220) face up into
the poppet inlet check valve (221). Insert using a
suitable size socket or dowel. See FIG. 20.
4. Place the lower steel spacer (219) on top of the
second lower shaft seal (220). Next snap the
internal retaining ring (218) into the groove at the
top of the poppet inlet check valve (221). See FIG.
21.
FIG. 18
FIG. 19
134
127
135
128
126
128
Ring
Groove
FIG. 20
FIG. 21
Socket or Dowel
220
221
219
218
221

Repair
18 3A8564C
Outlet Check Assembly L100CE and
L200CE
NOTE: Model shown in the following steps is for model
L100CE. Model L200CE has similar parts and the
assembly steps are identical. For model L200CE, see
200 cc Displacement Pump L200CE on page 25 for
correct find numbers.
1. Place poppet outlet check valve (123) in a vice.
Install a new piston seal (122) and apply a bead of
thread locker to the threads on the poppet outlet
check valve. Thread the piston guide (121) into the
poppet outlet check valve. Remove assembly from
vice.
2. Insert an 0.5 In. (12.7 mm) brass rod through the
openings of the piston guide. Clamp the rod into a
bench vice making sure the assembly is not in the
vice. Use a torque wrench and a crows foot end,
1.25 In. for L100 CE, and 1.62 In. for L200CE
placed on the flats of the poppet outlet check valve
(123). Torque to 30 Ft-lb (40.67 N•m).
3. Install the piston guide bearing (120) into the
groove in the top of the piston guide (121). See FIG.
22.
4. Place the flats of the upper displacement rod (118)
into a bench vice. Clean any residual thread locker
from the threads of the outlet check valve seat (124)
and reapply a bead of thread locker to the threads.
Place the pump rod spacer (119) into the outlet
check assembly (120,121,122, and 123). Insert the
upper check valve seat through the outlet check
assembly and thread into the upper displacement
rod (118). Torque to 50 Ft-lb (67.79 N•m). See FIG.
23.
Lower Displacement Rod Assembly
L100CE and L200CE
1. Clean any residual thread locker from the lower
shaft assembly (125) and reapply thread locker to
threads. Thread the lower shaft assembly into the
outlet check valve seat (124). Torque to 36 Ft-lb
(48.81 N•m). See FIG. 24.
Cylinder installation L100CE and L200CE
1. Lubricate the O-ring packing (105) and install them
onto both ends of the cylinder (116).
2. Mount the outlet housing (109) into a bench vice.
FIG. 22
120
121
122
123
FIG. 23
FIG. 24
124
119
121
118
125
124

Repair
3A8564C 19
3. Apply anti-seize to the threads on both ends of the
cylinder (116) and screw the cylinder into the outlet
housing (109). Note the cylinder is symmetrical so
either end can be used. See FIG. 25. Torque to the
following specifications:
Throat Seal Installation L100CE and
L200CE
1. Lubricate the O-ring (108), install onto the seal
cartridge (107) and apply anti-seize to the seal
cartridge threads. Install the seal cartridge into the
outlet housing (109). See FIG. 26. Torque to the
following specifications:
2. Lubricate the upper shaft seals (106) and inside
diameter of the seal cartridge (107). Install the first
upper shaft seal with the spring side facing the seal
cartridge. Using a suitable size socket or dowel
press the upper shaft seal down into the seal
cartridge until it seats into the bottom of the seal
cartridge.
3. Place the second upper shaft seal (106) into the
seal cartridge (107) with the spring side facing
outwards. Press the shaft seal into the seal
cartridge until it seats against the first upper shaft
seal. See FIG. 27.
4. Install the O-Ring packing (104) into the upper
groove of the shaft seal retainer (103).
NOTE: For L100CE pump, install the packing O-ring
(105) into the groove on the bottom of the retainer.
Displacement Pump Torque
100 cc 250 Ft-lbs (339 N•m)
200 cc 390 Ft-lbs (529 N•m)
FIG. 25
Displacement Pump Torque
100 cc 250 Ft-lbs (339 N•m)
200 cc 390 Ft-lbs (529 N•m)
116
119
109
FIG. 26
FIG. 27
107
108
109
106
107

Repair
20 3A8564C
5. Apply anti-seize to threads and screw the seal
retainer (103) into the outlet housing (109). See FIG.
28. Torque to the following specifications:
Upper Displacement Rod Installation
L100CE and L200CE
1. To protect the threads of the lower shaft assembly
(125) install the shovel nut (133) onto the lower
shaft assembly. Lubricate the upper displacement
rod (118) and piston seal (122). Carefully insert the
lower shaft assembly into the cylinder (116) until the
upper displacement rod contacts the upper shaft
seals (106). To fully assemble upper displacement
rod use a soft face hammer and tap on the shovel
nut end to drive the upper displacement rod
through the piston seals. Stop when the outlet
check assembly is completely inside of the
cylinder. See FIG. 29.
Inlet Check Valve Installation L100CE and
L200CE
1. Remove the shovel nut (133) from the lower shaft
assembly (125). Install the valve housing (117) onto
the cylinder (116). Torque to the following
specifications:
2. Lubricate the lower shaft assembly (125) and the
inside diameters of the lower shaft seals (127)
inside the poppet inlet check valve (128). Orient the
poppet inlet check valve with bevel side away from
the valve housing (117). Carefully press the poppet
inlet check valve poppet onto the lower shaft
assembly to prevent damage to the seals from the
threads. Press the poppet inlet check valve up to
the stop in the valve housing.
3. Orient the bevel side of the check valve inlet seat
(129) towards the intake cylinder(131) and place it
onto the shoulder in the cylinder intake. Place the
seal (130) onto the cylinder intake.
4. Apply anti-seize to the threads of the intake
cylinder(131) and thread it into the valve housing
Displacement Pump Torque
100 cc 53 Ft-lbs (72 N•m)
200 cc 60 Ft-lbs (81 N•m)
FIG. 28
103
105
104
105 Groove
104 Groove FIG. 29
Displacement Pump Torque
100 cc 250 Ft-lbs (339 N•m)
200 cc 390 Ft-lbs (529 N•m)
116
118
122
133
125
