Graco Dura-Flo 1200 Bulldog 237-516 Operation manual

308–360
Rev. A
04143
04140
Model 237–517
Model 237–516
INSTRUCTIONS-PARTS LIST
INSTRUCTIONS
This manual contains important
warnings and information.
READ AND KEEP FOR REFERENCE.
STAINLESS STEEL
Dura-Flo 1200 Pumps
With Severe-Duty Rod and Cylinder
Part No. 237–516 Pump, Series A,
21:1 Ratio, with BulldogAir Motor
145 bar (2100 psi) Maximum Fluid Working Pressure
7 bar (100 psi) Maximum Air Input Pressure
Part No. 237–517 Pump, Series A,
13:1 Ratio, with SenatorAir Motor
90 bar (1300 psi) Maximum Fluid Working Pressure
7 bar (100 psi) Maximum Air Input Pressure
Refer to page 2 for T able of Contents.
GRACO INC. P.O. BOX 1441 MINNEAPOLIS, MN 55440–1441
COPYRIGHT 1995, GRACO INC.
All manuals and user guides at all-guides.com

 
Table of Contents
Warnings 2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 5 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Operation/Maintenance 8 . . . . . . . . . . . . . . . . . . . . . . . . .

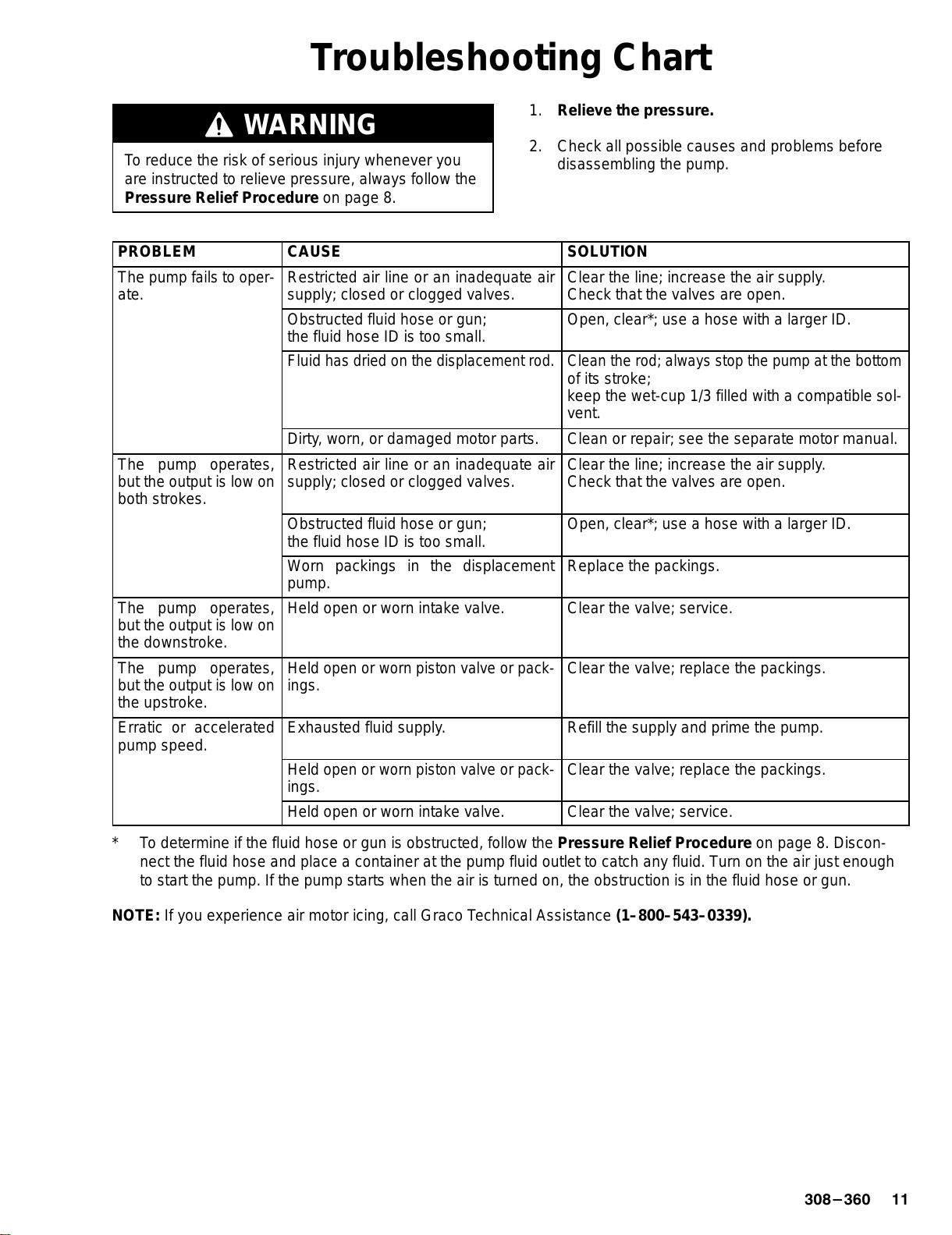

Troubleshooting Chart 11. . . . . . . . . . . . . . . . . . . . . . . . .
Service 12 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Required Tools 12. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Disconnecting the Displacement Pump 12. . . . . . .
Reconnecting the Displacement Pump 12. . . . . . .

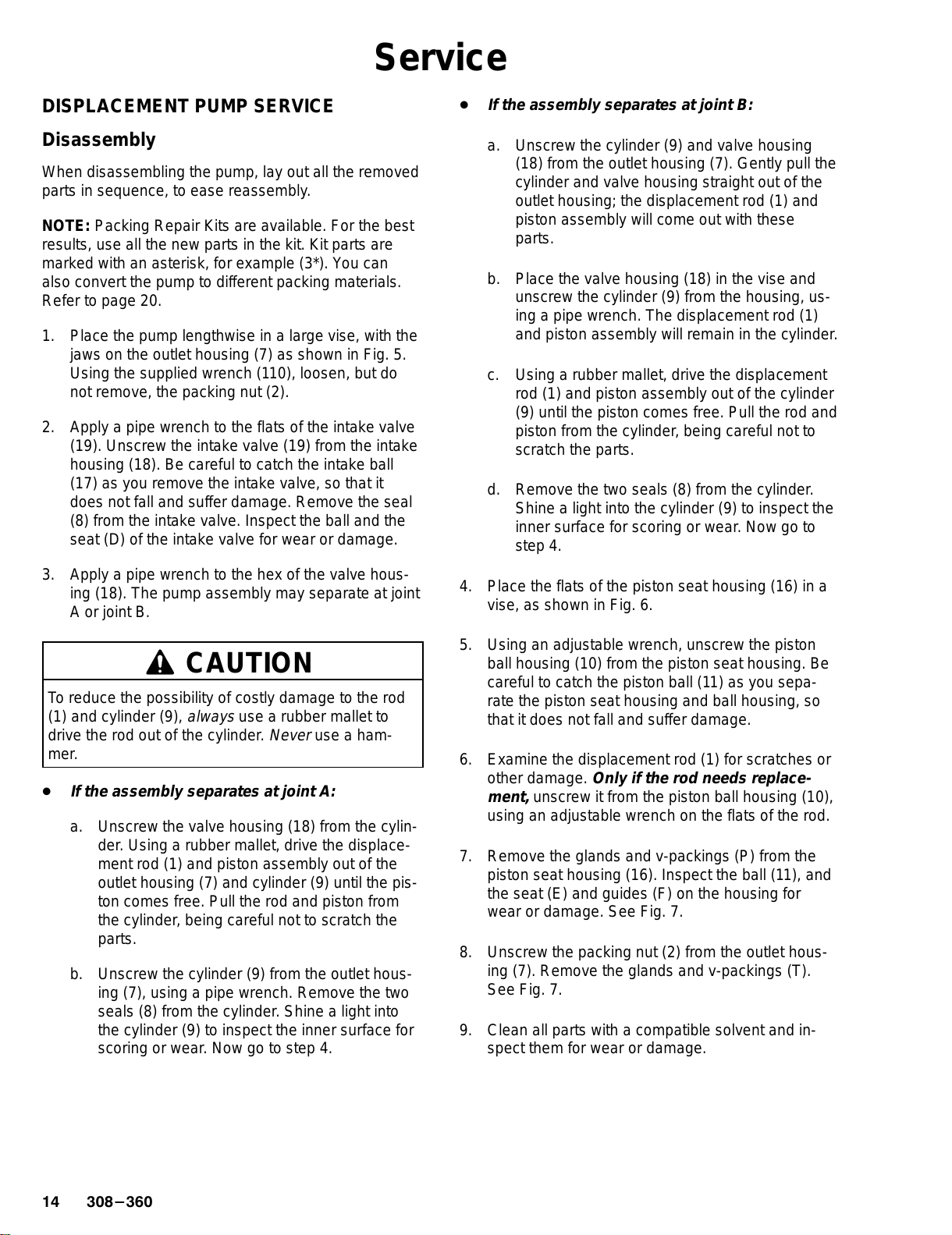

Displacement Pump Service 14. . . . . . . . . . . . . . . .
Parts Drawings and Parts Lists 18. . . . . . . . . . . . . . . . . .

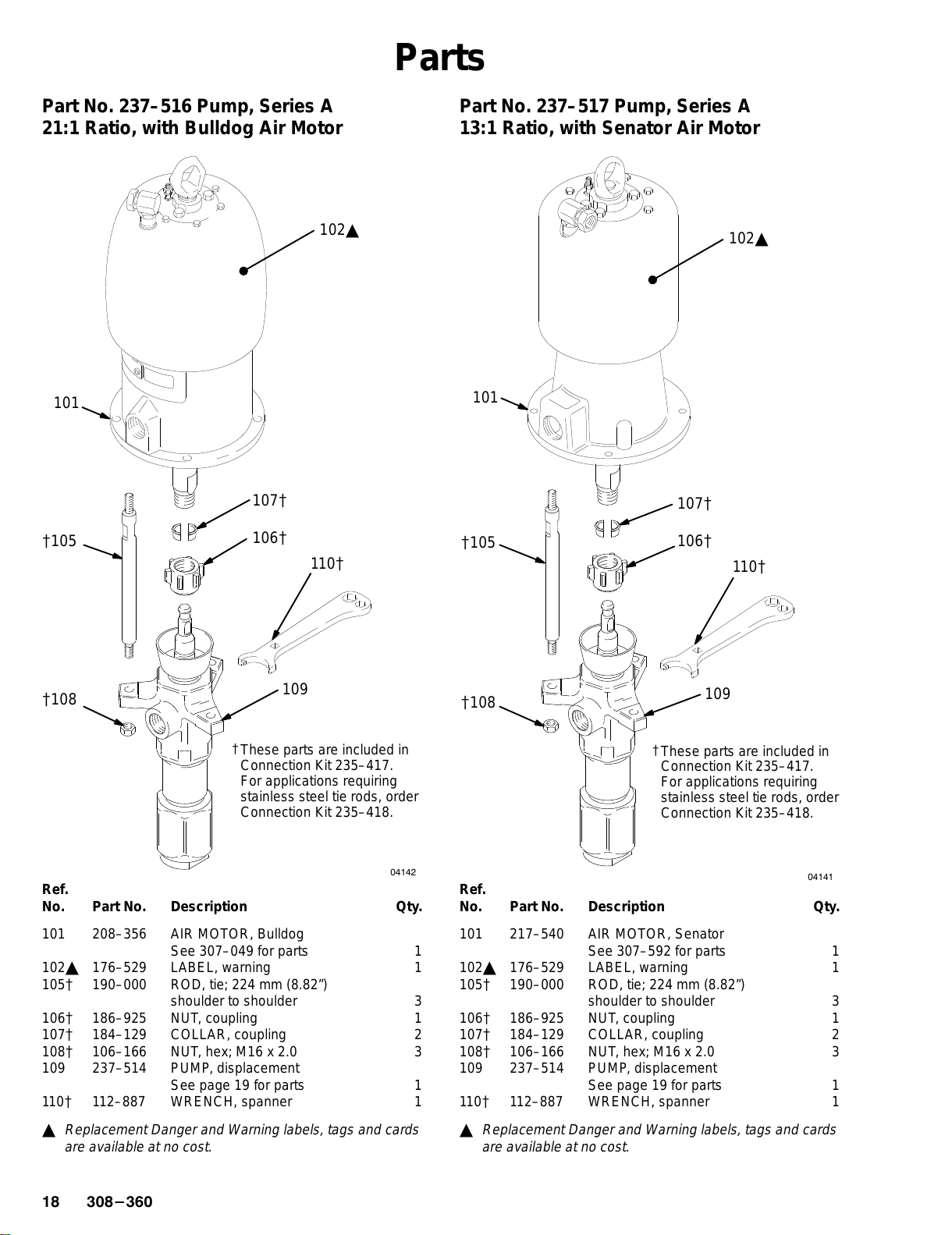

Pump Assemblies 18. . . . . . . . . . . . . . . . . . . . . . . . .
Displacement Pump 19. . . . . . . . . . . . . . . . . . . . . . .
Technical Data 21. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Dimensions 23 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Mounting Hole Layout 23. . . . . . . . . . . . . . . . . . . . . . . . . .
Warranty 24 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Graco Phone Numbers 24. . . . . . . . . . . . . . . . . . . . . . . . .
Symbols
Warning Symbol
WARNING
his symbol alerts you to the possibility of serious
injury or death if you do not follow the instructions.
Caution Symbol
CAUTION
This symbol alerts you to the possibility of damage to
or destruction of equipment if you do not follow the
instructions.
WARNING
INSTRUCTIONS
EQUIPMENT MISUSE HAZARD
Equipment misuse can cause the equipment to rupture or malfunction and result in serious injury .

This equipment is for professional use only .

Read all instruction manuals, tags, and labels before operating the equipment.
 Use the equipment only for its intended purpose. If you are not sure, call Graco T echnical Assis -
tance at 1–800–543–0339.
 Do not alter or modify this equipment.
 Check equipment daily . Repair or replace worn or damaged parts immediately .
 Do not exceed the maximum working pressure of the lowest rated system component. Refer to the
T echnical Data on pages 21–22 for the maximum working pressure of this equipment.
 Use fluids and solvents which are compatible with the equipment wetted parts. Refer to the Tech-
nical Data section of all equipment manuals. Read the fluid and solvent manufacturer ’ s warnings.
 Do not use hoses to pull equipment.
 Route hoses away from traffic areas, sharp edges, moving parts, and hot surfaces. Do not expose
Graco hoses to temperatures above 82  C (180  F) or below –40  C (–40 F).
W
ear hearing protection when operating this equipment.
 Do not lift pressurized equipment.
 Comply with all applicable local, state, and national fire, electrical, and safety regulations.
All manuals and user guides at all-guides.com

 
WARNING
INJECTION HAZARD
Spray from the gun, leaks or ruptured components can inject fluid into your body and cause extremely
serious injury, including the need for amputation. Fluid splashed in the eyes or on the skin can also
cause serious injury .

Fluid injected into the skin might look like just a cut, but it is a serious injury . Get immediate medi -
cal attention.

Do not point the gun at anyone or at any part of the body .

Do not put your hand or fingers over the spray tip.
 Do not stop or deflect leaks with your hand, body , glove or rag.
 Do not “blow back” fluid; this is not an air spray system.
 Always have the tip guard and the trigger guard on the gun when spraying.
 Check the gun dif fuser operation weekly . Refer to the gun manual.
 Be sure the gun trigger safety operates before spraying.
 Lock the gun trigger safety when you stop spraying.

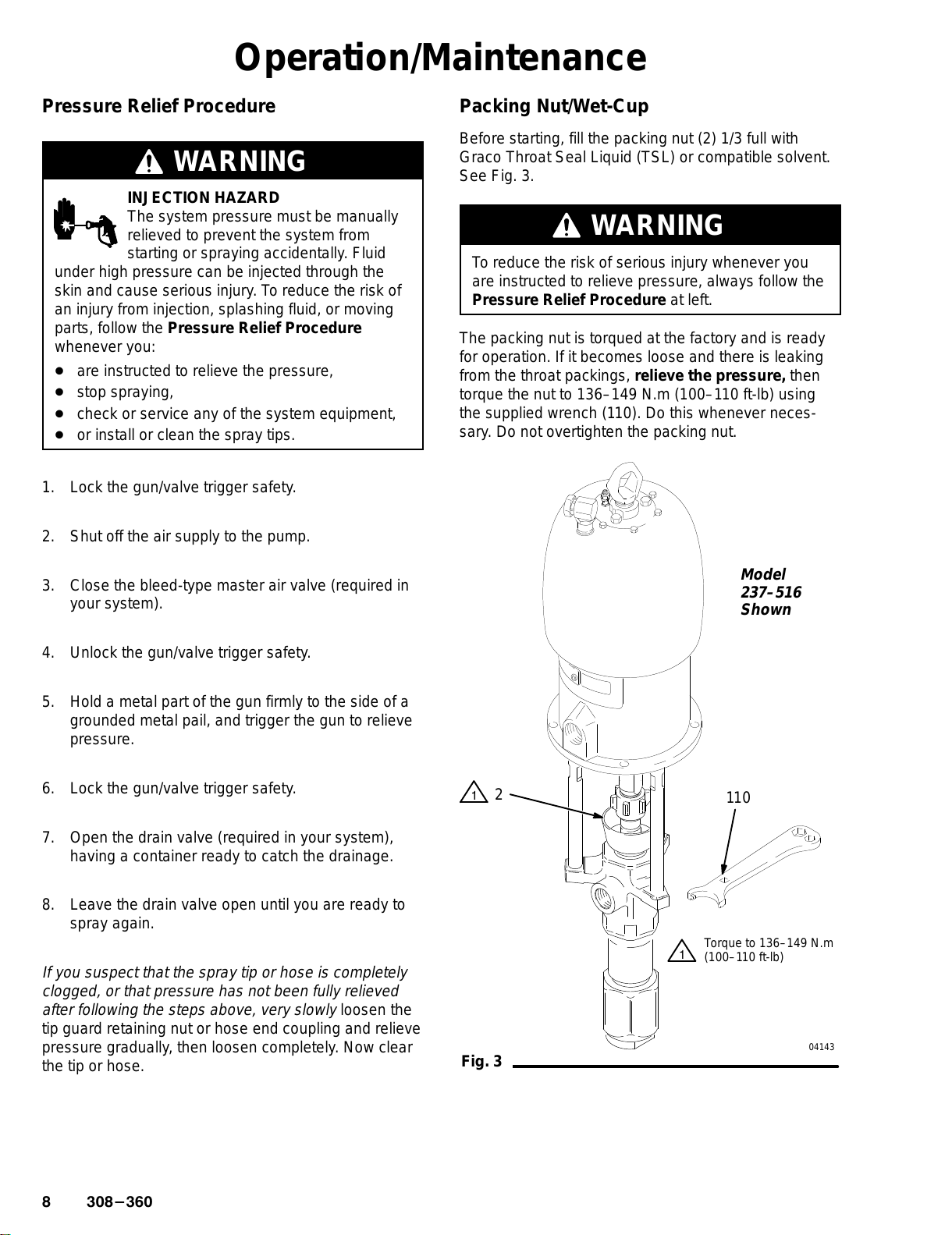

 Follow the Pressure Relief Procedure on page 8 if the spray tip clogs and before cleaning,
checking or servicing the equipment.
T ighten all fluid connections before operating the equipment.
 Check the hoses, tubes, and couplings daily . Replace worn or damaged parts immediately.
Do not repair high pressure couplings; you must replace the entire hose.
 Fluid hoses must have spring guards on both ends, to help protect them from rupture caused by
kinks or bends near the couplings.
MOVING P ARTS HAZARD
Moving parts, such as the air motor piston, can pinch or amputate your fingers.
 Keep clear of all moving parts when starting or operating the pump.
 Before servicing the equipment, follow the Pressure Relief Procedure on page 8 to prevent the
equipment from starting unexpectedly .
All manuals and user guides at all-guides.com

4 308-360
WARNING
FIRE AND EXPLOSION HAZARD
Improper grounding, poor ventilation, open flames or sparks can cause a hazardous condition and re -
sult in a fire or explosion and serious injury .

Ground the equipment and the object being sprayed. Refer to Grounding on page 5.
 If there is any static sparking or you feel an electric shock while using this equipment, stop spray-
ing immediately . Do not use the equipment until you identify and correct the problem.
 Provide fresh air ventilation to avoid the buildup of flammable fumes from solvents or the fluid be -
ing sprayed.
 Keep the spray area free of debris, including solvent, rags, and gasoline.
 Electrically disconnect all equipment in the spray area.
 Extinguish all open flames or pilot lights in the spray area.
 Do not smoke in the spray area.
 Do not turn on or of f any light switch in the spray area while operating or if fumes are present.
 Do not operate a gasoline engine in the spray area.
TOXIC FLUID HAZARD
Hazardous fluid or toxic fumes can cause serious injury or death if splashed in the eyes or on the skin,
inhaled, or swallowed.
 Know the specific hazards of the fluid you are using.
 Store hazardous fluid in an approved container . Dispose of hazardous fluid according to all local,
state and national guidelines.
 Always wear protective eyewear , gloves, clothing and respirator as recommended by the fluid and
solvent manufacturer .
All manuals and user guides at all-guides.com

308-360 5

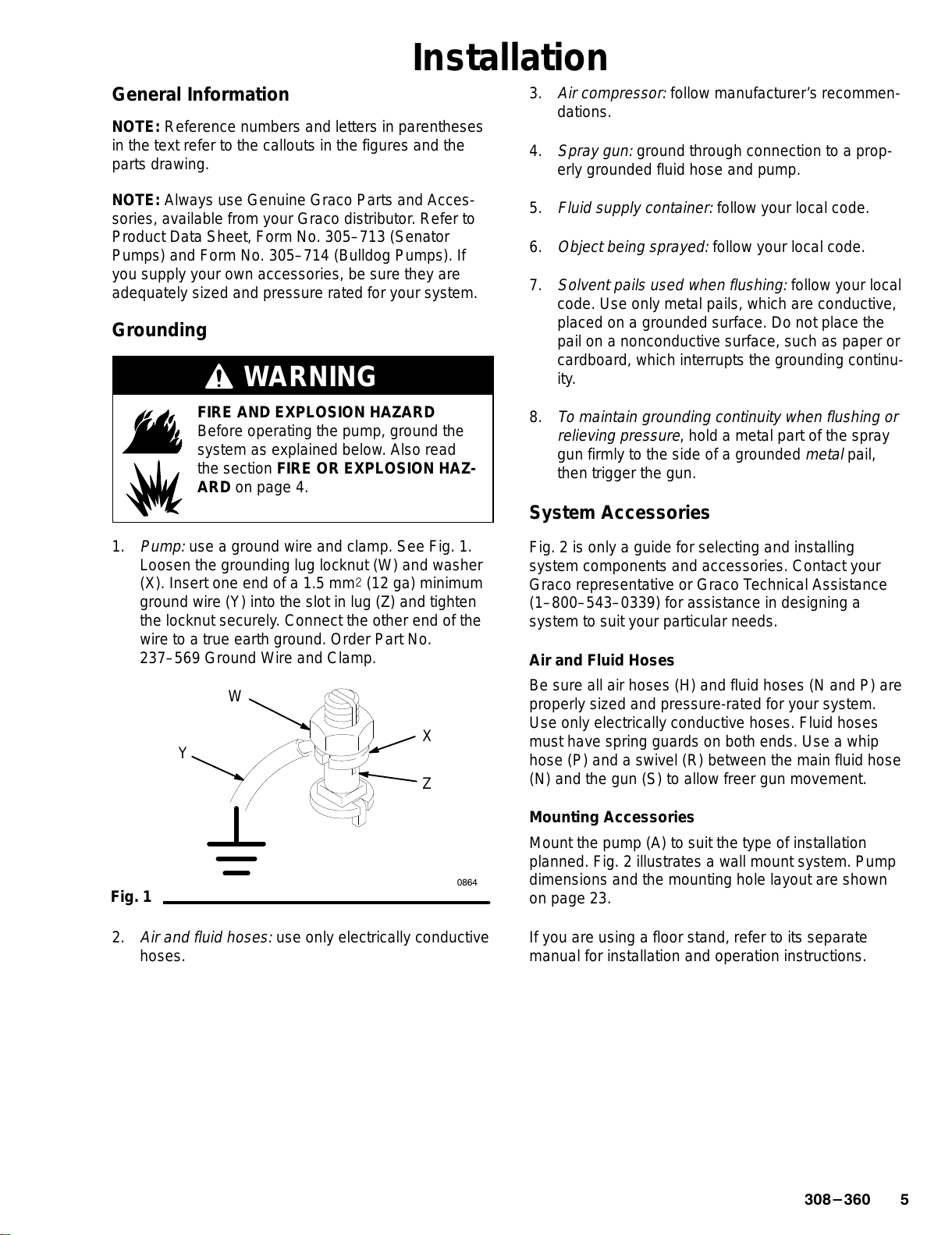

Installation
General Information
NOTE: Reference numbers and letters in parentheses
in the text refer to the callouts in the figures and the
parts drawing.
NOTE: Always use Genuine Graco Parts and Acces -
sories, available from your Graco distributor . Refer to
Product Data Sheet, Form No. 305–713 (Senator
Pumps) and Form No. 305–714 (Bulldog Pumps). If
you supply your own accessories, be sure they are
adequately sized and pressure rated for your system.
Grounding
WARNING
FIRE AND EXPLOSION HAZARD
Before operating the pump, ground the
system as explained below . Also read
the section FIRE OR EXPLOSION HAZ -
ARD
on page 4.
1. Pump: use a ground wire and clamp. See Fig. 1.
Loosen the grounding lug locknut (W) and washer
(X). Insert one end of a 1.5 mm  (12 ga) minimum
ground wire (Y) into the slot in lug (Z) and tighten
the locknut securely . Connect the other end of the
wire to a true earth ground. Order Part No.
237–569 Ground Wire and Clamp.
Fig. 1
W
X
Y
Z
0864
2. Air and fluid hoses: use only electrically conductive
hoses.
3.
Air compressor: follow manufacturer ’ s recommen -
dations.
4.
Spray gun: ground through connection to a prop -
erly grounded fluid hose and pump.
5. Fluid supply container: follow your local code.
6. Object being sprayed: follow your local code.
7. Solvent pails used when flushing: follow your local
code. Use only metal pails, which are conductive,
placed on a grounded surface. Do not place the
pail on a nonconductive surface, such as paper or
cardboard, which interrupts the grounding continu -
ity.
8.
T o maintain grounding continuity when flushing or
relieving pressure , hold a metal part of the spray
gun firmly to the side of a grounded metal pail,
then trigger the gun.
System Accessories
Fig. 2 is only a guide for selecting and installing
system components and accessories. Contact your
Graco representative or Graco T echnical Assistance
(1–800–543–0339) for assistance in designing a
system to suit your particular needs.
Air and Fluid Hoses
Be sure all air hoses (H) and fluid hoses (N and P) are
properly sized and pressure-rated for your system.
Use only electrically conductive hoses. Fluid hoses
must have spring guards on both ends. Use a whip
hose (P) and a swivel (R) between the main fluid hose
(N) and the gun (S) to allow freer gun movement.
Mounting Accessories
Mount the pump (A) to suit the type of installation
planned. Fig. 2 illustrates a wall mount system. Pump
dimensions and the mounting hole layout are shown
on page 23.
If you are using a floor stand, refer to its separate
manual for installation and operation instructions.
All manuals and user guides at all-guides.com

 
Installation
System Accessories (continued)
WARNING
A bleed-type master air valve (E) and a fluid drain
valve (M) are required in your system. These ac -
cessories help reduce the risk of serious injury , in -
cluding fluid injection and splashing of fluid in the
eyes or on the skin, and injury from moving parts if
you are adjusting or repairing the pump.
The bleed-type master air valve relieves air trapped
between this valve and the pump after the air is
shut of f. T rapped air can cause the pump to cycle
unexpectedly . Locate the valve close to the pump.
Order Part No. 107–141.
The fluid drain valve assists in relieving fluid pres -
sure in the displacement pump, hose, and gun.
T riggering the gun to relieve pressure may not be
suf ficient. Order Part No. 235–992.
Air Line Accessories
Install the following accessories in the locations shown
in Fig. 2, using adapters as necessary:
An air line lubricator (D) provides automatic air
motor lubrication.
A bleed-type master air valve (E) is required in
your system to relieve air trapped between it and
the air motor when the valve is closed (see the
WARNING above). Be sure the bleed valve is eas -
ily accessible from the pump, and is located
downstream from the air regulator .
An
air regulator (F) controls pump speed and out -
let pressure by adjusting the air pressure to the
pump. Locate the regulator close to the pump, but
upstream from the bleed-type master air valve.
A pump runaway valve (C ) senses when the
pump is running too fast and automatically shuts
of f the air to the motor . A pump which runs too fast
can be seriously damaged.
 An air manifold (G) has a 3/4 npsm(f) swivel air
inlet. It mounts to the pump support bracket, and
provides ports for connecting lines to air-powered
accessories.
An
air line filter (J) removes harmful dirt and
moisture from the compressed air supply . Also,
install a drain valve (W) at the bottom of each air
line drop, to drain of f moisture.
A second bleed-type air valve (K) isolates the air
line accessories for servicing. Locate upstream
from all other air line accessories.
Fluid Line Accessories
Install the following accessories in the locations shown
in Fig. 2, using adapters as necessary:
A fluid filter (L) with a 60 mesh (250 micron)
stainless steel element, to filter particles from the
fluid as it leaves the pump.
A fluid drain valve (M), which is required in your
system, helps relieve fluid pressure in the hose
and gun (see the WARNING at left).
A gun (S) dispenses the fluid. The gun shown in
Fig. 2 is an airless spray gun for light to medium
viscosity fluids.
 A gun swivel (R) allows freer gun movement.
A suction kit (T) allows the pump to draw fluid
from a supply container .
CAUTION
T o prevent intake valve damage, always apply T eflon
tape to the female threads of the intake valve before
connecting a suction hose or fitting to the intake.
All manuals and user guides at all-guides.com

308-360 7
Installation
04177
Fig. 2
KEY
APump
BWall
Bracket
C Pump Runaway V alve
D
Air Line Lubricator
EBleed-T ype Master Air V alve
(required, for pump)
F Pump Air Regulator
G Air Manifold
H Electrically Conductive Air Supply Hose
J Air Line Filter
KBleed-T ype Master Air V alve
(for accessories)
L Fluid Filter
M Fluid Drain V alve (required)
N Electrically Conductive
Fluid Supply Hose
P Fluid Whip Hose
R Gun Swivel
S Airless Spray Gun
T Suction Kit
Y Ground Wire and Clamp
(required; see page 5
for installation instructions)
W Air Line Drain V alve
TYPICAL INSTALLATION
A
B
C
D
E
F
G
H
JK
M
N
P
Y
MAIN
AIR LINE
L
R
S
T
W
All manuals and user guides at all-guides.com

 
Operation/Maintenance
Pressure Relief Procedure
WARNING
INJECTION HAZARD
The system pressure must be manually
relieved to prevent the system from
starting or spraying accidentally . Fluid
under high pressure can be injected through the
skin and cause serious injury . T o reduce the risk of
an injury from injection, splashing fluid, or moving
parts, follow the Pressure Relief Procedure
whenever you:
 are instructed to relieve the pressure,
 stop spraying,
 check or service any of the system equipment,
 or install or clean the spray tips.
1. Lock the gun/valve trigger safety .
2.
Shut of f the air supply to the pump.
3. Close the bleed-type master air valve (required in
your system).
4. Unlock the gun/valve trigger safety .
5.
Hold a metal part of the gun firmly to the side of a
grounded metal pail, and trigger the gun to relieve
pressure.
6.
Lock the gun/valve trigger safety .
7.
Open the drain valve (required in your system),
having a container ready to catch the drainage.
8. Leave the drain valve open until you are ready to
spray again.
If you suspect that the spray tip or hose is completely
clogged, or that pressure has not been fully relieved
after following the steps above, very slowly loosen the
tip guard retaining nut or hose end coupling and relieve
pressure gradually , then loosen completely . Now clear
the tip or hose.
Packing Nut/Wet-Cup
Before starting, fill the packing nut (2) 1/3 full with
Graco Throat Seal Liquid (TSL) or compatible solvent.
See Fig. 3.
WARNING
T o reduce the risk of serious injury whenever you
are instructed to relieve pressure, always follow the
Pressure Relief Procedure at left.
The packing nut is torqued at the factory and is ready
for operation. If it becomes loose and there is leaking
from the throat packings, relieve the pressure, then
torque the nut to 136–149 N.m (100–1 10 ft-lb) using
the supplied wrench (1 10). Do this whenever neces -
sary
. Do not overtighten the packing nut.
04143
Fig. 3
110
2
1
Model
237–516
Shown
1Torque
to 136–149 N.m
(100–1 10 ft-lb)
All manuals and user guides at all-guides.com

308-360 9
Operation/Maintenance
Flush the Pump Before First Use
The pump is tested with lightweight oil, which is left in
to protect the pump parts. If the fluid you are using
may be contaminated by the oil, flush it out with a
compatible solvent. See Flushing on page 10.
Starting and Adjusting the Pump
1. See Fig. 2. Connect the suction kit (T) to the
pump’ s fluid inlet. Place the tube into the fluid sup -
ply.
CAUTION
T o prevent intake valve damage, always apply T eflon
tape to the female threads of the intake valve before
connecting a suction hose or fitting to the intake.
2. Close the air regulator (F).
3. Open the pump’ s bleed-type master air valve (E).
4. Hold a metal part of the gun (S) firmly to the side
of a grounded metal pail and hold the trigger open.
5. Slowly open the regulator until the pump starts.
6. Cycle the pump slowly until all air is pushed out
and the pump and hoses are fully primed.
7. Release the gun trigger and lock the trigger safety .
The pump should stall against pressure.
8. If the pump fails to prime properly , open the drain
valve (M). Use the drain valve as a priming valve
until the fluid flows from the valve. Close the valve.
NOTE: When changing fluid containers with the hose
and gun already primed, open the drain valve (M) to
help prime the pump and vent air before it enters the
hose. Close the drain valve when all air is eliminated.
CAUTION
Do not allow the pump to run dry . It will quickly accel -
erate to a high speed, causing damage. If your pump
is running too fast, stop it immediately and check the
fluid supply . If the container is empty and air has
been pumped into the lines, refill the container and
prime the pump and the lines, or flush and leave it
filled with a compatible solvent. Eliminate all air from
the fluid system.
9. With the pump and lines primed, and with ade -
quate air pressure and volume supplied, the pump
will start and stop as you open and close the gun.
In a circulating system, the pump will speed up or
slow down on demand, until the air supply is shut
off.
WARNING
COMPONENT RUPTURE HAZARD
T o reduce the risk of overpressurizing
your system, which could cause compo -
nent rupture and serious injury , never
exceed the specified Maximum Incoming Air Pres -
sure to the pump (see the T echnical Data, on
pages 21 and 22).
10. Use the air regulator (F) to control pump speed
and fluid pressure. Always use the lowest air pres -
sure necessary to get the desired results. Higher
pressures cause premature tip and pump wear .
All manuals and user guides at all-guides.com

10 308-360
Operation/Maintenance

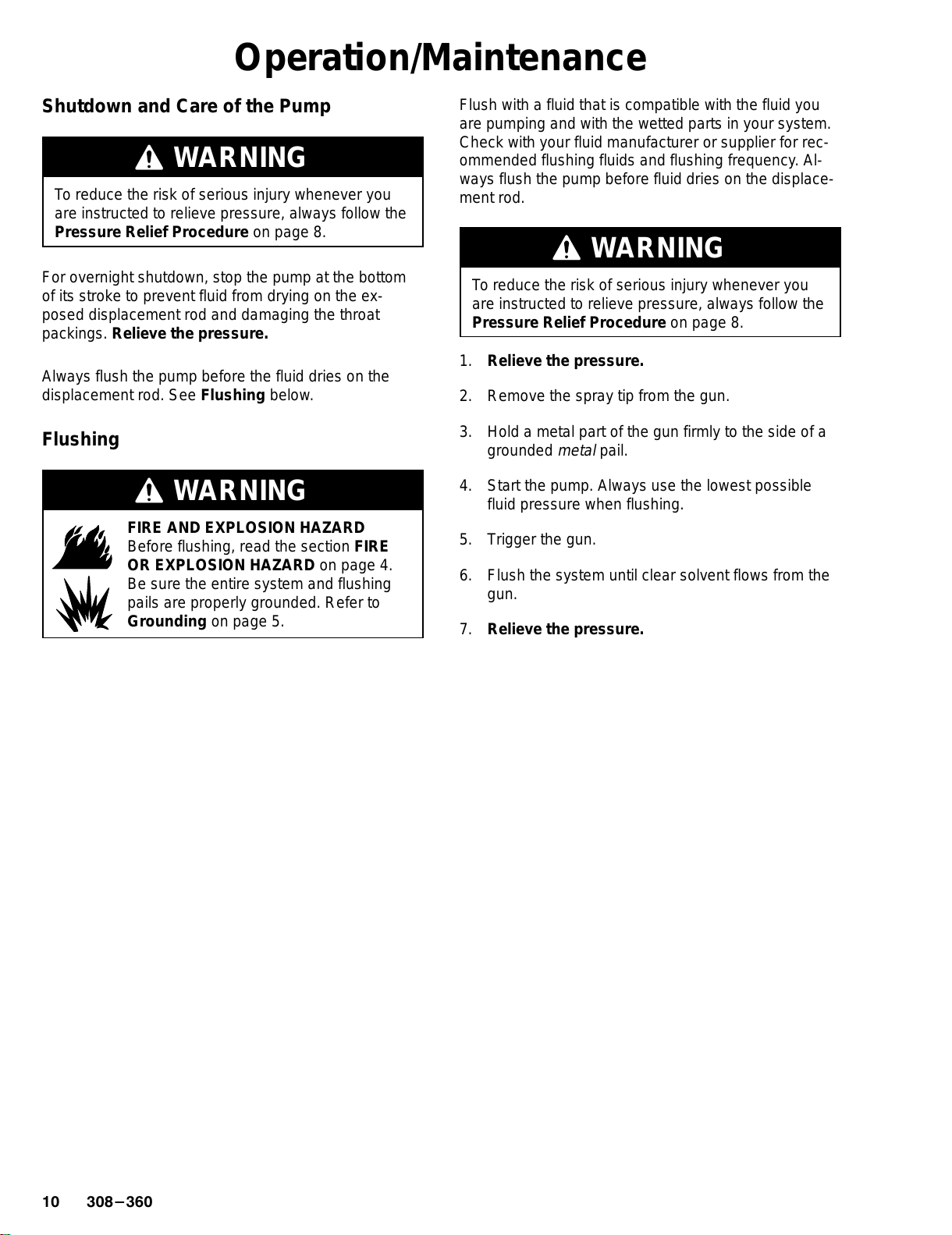

Shutdown and Care of the Pump
WARNING
To reduce the risk of serious injury whenever you
are instructed to relieve pressure, always follow the
Pressure Relief Procedure on page 8.
For overnight shutdown, stop the pump at the bottom
of its stroke to prevent fluid from drying on the ex -
posed displacement rod and damaging the throat
packings. Relieve the pressure.
Always flush the pump before the fluid dries on the
displacement rod. See Flushing below .
Flushing
WARNING
FIRE AND EXPLOSION HAZARD
Before flushing, read the section FIRE
OR EXPLOSION HAZARD on page 4.
Be sure the entire system and flushing
pails are properly grounded. Refer to
Grounding on page 5.
Flush with a fluid that is compatible with the fluid you
are pumping and with the wetted parts in your system.
Check with your fluid manufacturer or supplier for rec -
ommended flushing fluids and flushing frequency . Al -
ways flush the pump before fluid dries on the displace -
ment rod.
WARNING
T o reduce the risk of serious injury whenever you
are instructed to relieve pressure, always follow the
Pressure Relief Procedure on page 8.
1. Relieve the pressure.
2. Remove the spray tip from the gun.
3. Hold a metal part of the gun firmly to the side of a
grounded metal pail.
4. Start the pump. Always use the lowest possible
fluid pressure when flushing.
5. T rigger the gun.
6. Flush the system until clear solvent flows from the
gun.
7.
Relieve the pressure.
All manuals and user guides at all-guides.com

308-360 11
Troubleshooting Chart
WARNING
To reduce the risk of serious injury whenever you
are instructed to relieve pressure, always follow the
Pressure Relief Procedure on page 8.
1. Relieve the pressure.
2. Check all possible causes and problems before
disassembling the pump.
PROBLEM CAUSE SOLUTION
The pump fails to oper -
ate. Restricted air line or an inadequate air supply;
closed or clogged valves.
Clear the line; increase the air supply .
Check that the valves are open.
Obstructed fluid hose or gun;
the fluid hose ID is too small.
Open, clear*; use a hose with a larger ID.
Fluid has dried on the displacement rod. Clean the rod; always stop the pump at the bottom
of its stroke;
keep the wet-cup 1/3 filled with a compatible sol-
vent.
Dirty , worn, or damaged motor parts. Clean or repair; see the separate motor manual.
The pump operates,
but
the output is low on
both strokes.
Restricted air line or an inadequate air
supply;
closed or clogged valves.
Clear the line; increase the air supply .
Check that the valves are open.
Obstructed fluid hose or gun;
the fluid hose ID is too small.
Open, clear*; use a hose with a larger ID.
Worn packings in the displacement
pump. Replace
the packings.
The pump operates,
but
the output is low on
the downstroke.
Held open or worn intake valve. Clear the valve; service.
The pump operates,
but
the output is low on
the upstroke.
Held open or worn piston valve or pack -
ings. Clear
the valve; replace the packings.
Erratic or accelerated
pump
speed.
Exhausted fluid supply . Refill the supply and prime the pump.
Held open or worn piston valve or pack -
ings. Clear
the valve; replace the packings.
Held open or worn intake valve. Clear the valve; service.
*T o determine if the fluid hose or gun is obstructed, follow the Pressure Relief Procedure on page 8. Discon -
nect the fluid hose and place a container at the pump fluid outlet to catch any fluid. T urn on the air just enough
to start the pump. If the pump starts when the air is turned on, the obstruction is in the fluid hose or gun.
NOTE: If you experience air motor icing, call Graco T echnical Assistance (1–800–543–0339).
All manuals and user guides at all-guides.com

12 308-360
Service
Required Tools
Set of adjustable wrenches
 Large pipe wrench
T orque wrench
 Rubber mallet
 O-ring pick
 Large vise
 Thread lubricant
 Thread sealant
Disconnecting the Displacement Pump
1. Flush the pump, if possible. Stop the pump at the
bottom of its stroke.
WARNING
T o reduce the risk of serious injury whenever you
are instructed to relieve pressure, always follow the
Pressure Relief Procedure on page 8.
2. Relieve the pressure.
3. Disconnect the air hose and the fluid hose.
4. Disconnect the displacement pump (109) from the
motor (101) as follows. Note the relative position of
the pump’ s fluid outlet (U) to the air inlet (V) of the
motor . If the motor does not require servicing,
leave it attached to its mounting.
CAUTION
Be sure to use at least two people when lifting, mov -
ing, or disconnecting the pump. This pump is too
heavy for one person. If you are disconnecting the
displacement pump from a motor which is still
mounted (for example, on a wall bracket), be sure to
support the displacement pump while it is being dis -
connected, to prevent it from falling and causing inju -
ry or property damage. Do this by securely bracing
the pump, or by having at least two people hold it
while another disconnects it.
If the pump is mounted on a cart, slowly tip the cart
backward until the handle rests on the ground, then
disconnect the displacement pump.
5. Using an adjustable wrench (or hammer and
punch), unscrew the coupling nut (106) from the
motor shaft (W). Do not lose or drop the coupling
collars (107). See Fig. 4.
6. Hold the tie rod flats with a wrench to keep the
rods from turning. Unscrew the nuts (108) from the
tie rods (105). Carefully remove the displacement
pump (109) from the motor (101).
7.
Refer to page 14 for displacement pump service.
T o service the air motor , refer to the separate mo -
tor manual, supplied.
Reconnecting the Displacement Pump
1. Make sure the coupling nut (106) and the coupling
collars (107) are in place on the displacement rod
(1). See Fig. 4.
2. Use at least two people to hold the displacement
pump while another reconnects it to the motor (see
the CAUTION at left). Orient the pump’ s fluid out -
let (U) to the air inlet (V) as was noted in step 4
under Disconnecting the Displacement Pump.
Position the displacement pump (109) on the tie
rods (105).
3.
Screw the nuts (108) onto the tie rods (105) and
torque to 81–89 N.m (60–66 ft-lb).
4. Screw the coupling nut onto the motor shaft (W)
loosely . Hold the motor shaft flats with a wrench to
keep it from turning. Use an adjustable wrench to
tighten the coupling nut. T orque to 196–210 N.m
(145–155 ft-lb).
5. Reconnect all hoses. Reconnect the ground wire if
it was disconnected. Fill the packing nut (2) 1/3 full
of Graco Throat Seal Liquid or compatible solvent.
6. T urn on the air supply . Run the pump slowly to en -
sure proper operation.
WARNING
T o reduce the risk of serious injury whenever you
are instructed to relieve pressure, always follow the
Pressure Relief Procedure on page 8.
7. Before returning the pump to production, relieve
the pressure and retorque the packing nut (2) to
136–149 N.m (100–1 10 ft-lb).
All manuals and user guides at all-guides.com

308-360 13
Service
04142
Fig. 4
1
2
Torque
to 136–149 N.m (100–1 10 ft-lb)
T orque to 196–210 N.m (145–155 ft-lb)
101
109
108
107
105
106
110
2
1
2
1
V
U
W
3T
orque to 81–89 N.m (60–66 ft-lb)
3
3
Model 237–516 Shown
All manuals and user guides at all-guides.com

14 308-360
Service
DISPLACEMENT PUMP SERVICE
Disassembly
When disassembling the pump, lay out all the removed
parts in sequence, to ease reassembly .
NOTE:
Packing Repair Kits are available. For the best
results, use all the new parts in the kit. Kit parts are
marked with an asterisk, for example (3*). Y ou can
also convert the pump to dif ferent packing materials.
Refer to page 20.
1. Place the pump lengthwise in a large vise, with the
jaws on the outlet housing (7) as shown in Fig. 5.
Using the supplied wrench (1 10), loosen, but do
not remove, the packing nut (2).
2. Apply a pipe wrench to the flats of the intake valve
(19). Unscrew the intake valve (19) from the intake
housing (18). Be careful to catch the intake ball
(17) as you remove the intake valve, so that it
does not fall and suf fer damage. Remove the seal
(8) from the intake valve. Inspect the ball and the
seat (D) of the intake valve for wear or damage.
3. Apply a pipe wrench to the hex of the valve hous -
ing (18). The pump assembly may separate at joint
A or joint B.
CAUTION
T o reduce the possibility of costly damage to the rod
(1) and cylinder (9), always use a rubber mallet to
drive the rod out of the cylinder. Never use a ham -
mer.
 If the assembly separates at joint A:
a. Unscrew the valve housing (18) from the cylin -
der
. Using a rubber mallet, drive the displace -
ment rod (1) and piston assembly out of the
outlet housing (7) and cylinder (9) until the pis -
ton comes free. Pull the rod and piston from
the cylinder , being careful not to scratch the
parts.
b.
Unscrew the cylinder (9) from the outlet hous -
ing (7), using a pipe wrench. Remove the two
seals (8) from the cylinder . Shine a light into
the cylinder (9) to inspect the inner surface for
scoring or wear . Now go to step 4.
 If the assembly separates at joint B:
a. Unscrew the cylinder (9) and valve housing
(18) from the outlet housing (7). Gently pull the
cylinder and valve housing straight out of the
outlet housing; the displacement rod (1) and
piston assembly will come out with these
parts.
b.
Place the valve housing (18) in the vise and
unscrew the cylinder (9) from the housing, us -
ing a pipe wrench. The displacement rod (1)
and piston assembly will remain in the cylinder .
c.
Using a rubber mallet, drive the displacement
rod (1) and piston assembly out of the cylinder
(9) until the piston comes free. Pull the rod and
piston from the cylinder , being careful not to
scratch the parts.
d. Remove the two seals (8) from the cylinder .
Shine a light into the cylinder (9) to inspect the
inner surface for scoring or wear . Now go to
step 4.
4. Place the flats of the piston seat housing (16) in a
vise, as shown in Fig. 6.
5. Using an adjustable wrench, unscrew the piston
ball housing (10) from the piston seat housing. Be
careful to catch the piston ball (1
1) as you sepa -
rate the piston seat housing and ball housing, so
that it does not fall and suf fer damage.
6. Examine the displacement rod (1) for scratches or
other damage. Only if the rod needs replace -
ment,
unscrew it from the piston ball housing (10),
using an adjustable wrench on the flats of the rod.
7. Remove the glands and v-packings (P) from the
piston seat housing (16). Inspect the ball (1
1), and
the seat (E) and guides (F) on the housing for
wear or damage. See Fig. 7.
8. Unscrew the packing nut (2) from the outlet hous -
ing (7). Remove the glands and v-packings (T).
See Fig. 7.
9. Clean all parts with a compatible solvent and in -
spect them for wear or damage.
All manuals and user guides at all-guides.com

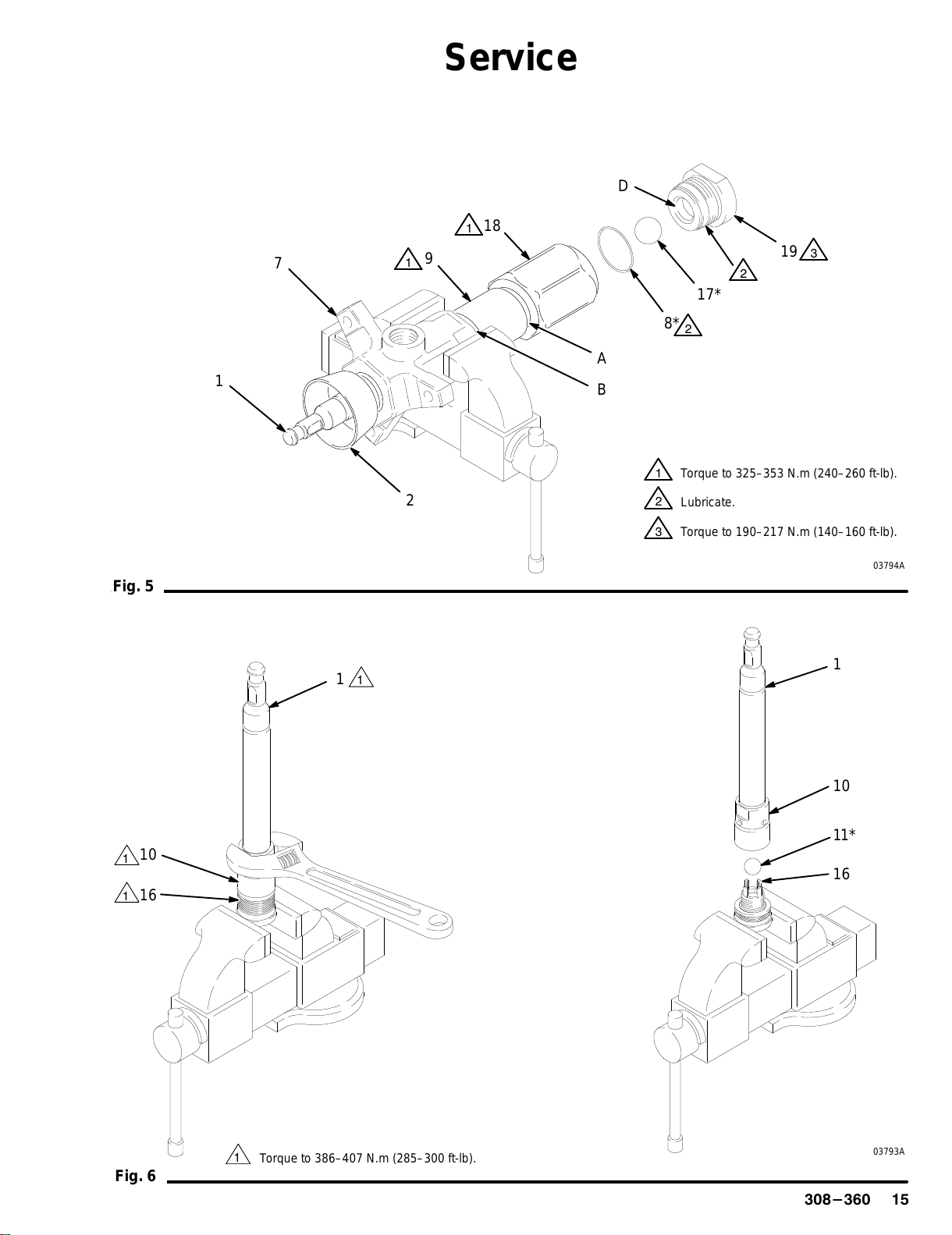

308-360 15
Service
Fig. 5
1
2
79
18 19
A
B
1
1
D
17*
8* 2
2
1Torque
to 325–353 N.m (240–260 ft-lb).
2Lubricate.
3T
orque to 190–217 N.m (140–160 ft-lb).
03794A
3
03793A
Fig. 6
1
16
10
1
Torque to 386–407 N.m (285–300 ft-lb).
1
1
1
10
1
11*
16
All manuals and user guides at all-guides.com

16 308-360
Service
Reassembly
1. If it was necessary to remove the piston ball hous -
ing (10) from the displacement rod (1), clean the
threads of the rod and the ball housing. Screw the
ball housing onto the rod, hand tight. Place the
flats of the piston ball housing in a vise and torque
the rod to 386–407 N.m (285–300 ft-lb). See Fig.
7.
2.
For standard displacement pump 237–514, place
the piston packings on the piston seat housing (16)
in the following order , with the lips of the v-pack-
ings facing up:
the female gland (15*), one T eflon
v-packing (14*), four leather
v-packings (12*), and the male gland (13*). See
the Piston Packing Stack Detail in Fig. 7.
NOTE: If your pump uses an optional packing configu -
ration, or you want to convert the pump to a dif ferent
packing material, see page 20.
3. Place the flats of the piston seat housing (16) in a
vise. Place the ball (1 1*) on the housing. Screw the
piston ball housing (10) onto the piston seat hous -
ing hand tight, then torque to 386–407 N.m
(285–300 ft-lb). See Fig. 6.
4. For standard displacement pump 237–514, lubri -
cate the throat packings and place them in the out -
let housing (7) in the following order, with the lips
of the v-packings facing down:
the male gland
(6*), four leather v-packings (3*), one T eflon v-
packing (5*), and the female gland (4*). See the
Throat Packing Stack Detail in Fig. 7.
NOTE: If your pump uses an optional packing configu -
ration, or you want to convert the pump to a dif ferent
packing material, see page 20.
5. Install the packing nut (2) loosely into the outlet
housing (7).
6. Lubricate the piston packings. Slide the displace -
ment rod (1) and piston assembly down into the
cylinder (9). The cylinder is symmetrical, so either
end may face up. Use a rubber mallet to drive the
rod into the cylinder , until the piston seat housing
(16) is near the bottom of the cylinder .
7. Install the seal (8*) on the top of the cylinder (9).
Lubricate the seal and the top threads of the cylin -
der.
8.
Place the outlet housing (7) in a vise, as shown in
Fig. 5. Slide the displacement rod (1) up into the
outlet housing, then screw the cylinder (9) into the
outlet housing handtight. The threads will engage
easily until the seal (8*) contacts the sealing sur -
face of the outlet housing. The top of the rod will
protrude from the packing nut (2).
9. Install the seal (8*) on the bottom of the cylinder
(9). Lubricate the seal and the threads of the cylin -
der
. With the beveled ball stop surfaces (S) fac-
ing down (see Fig. 7),
screw the intake housing
(18) onto the cylinder handtight. The threads will
engage easily until the seal contacts the sealing
surface of the intake housing.
10. Install the seal (8*) on the intake valve (19). Lubri -
cate the seal and the threads of the intake valve.
Place the intake ball (17*) in the intake housing
(18), then screw the intake valve into the intake
housing handtight. The threads will engage easily
until the seal contacts the sealing surface of the
intake housing.
11. Using a pipe wrench, torque the intake housing
(18) to 325–353 N.m (240–260 ft-lb). This will
torque both cylinder joints (A and B). See Fig. 5.
12. Using a pipe wrench, torque the intake valve (19)
to 190–217 N.m (140–150 ft-lb). See Fig. 5.
13. T orque the packing nut (2) to 136–149 N.m
(100–110 ft-lb).
14.
Reconnect the displacement pump to the air motor
as explained on page 12.
All manuals and user guides at all-guides.com

 

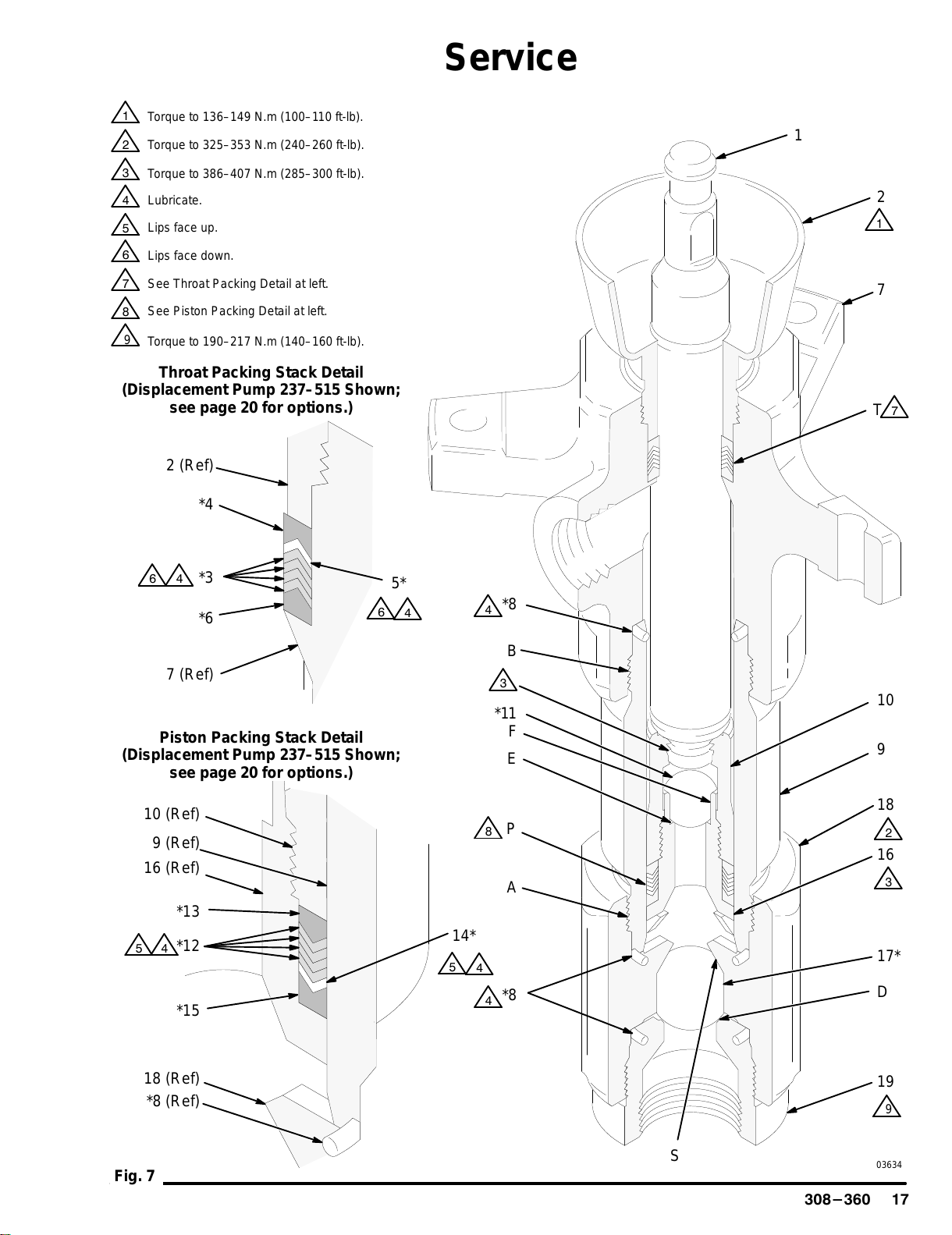

Service
03634
Fig. 7
1
2
3
4
Torque
to 136–149 N.m (100–1 10 ft-lb).
T orque to 325–353 N.m (240–260 ft-lb).
T orque to 386–407 N.m (285–300 ft-lb).
Lubricate.
5
6
7
8
1
*8
19
17*
16
10
D
E
T
P
2
7
9
*8
*11
18
Lips face up.
Lips face down.
2 (Ref)
*4
*3
*6
7 (Ref)
10 (Ref)
9 (Ref)
16 (Ref)
*13
*12
*15
18 (Ref)
*8 (Ref)
4
4
4
4
4
4
5
3
3
2
1
See
Throat Packing Detail at left.
See Piston Packing Detail at left.
8
Throat Packing Stack Detail
(Displacement Pump 237–515 Shown;
see page 20 for options.)
A
B
S
7
6
6
F
Piston Packing Stack Detail
(Displacement Pump 237–515 Shown;
see page 20 for options.)
5*
14*
Torque to 190–217 N.m (140–160 ft-lb).
5
9
9
All manuals and user guides at all-guides.com

18 308-360
Parts
Part No. 237–516 Pump, Series A
21:1 Ratio, with Bulldog Air Motor
Ref.
No. Part No. Description Qty.
101 208–356 AIR MOT
OR, Bulldog
See 307–049 for parts 1
102176–529
LABEL, warning 1
105190–000
ROD, tie; 224 mm (8.82”)
shoulder to shoulder 3
106186–925 NUT
, coupling 1
107184–129
COLLAR, coupling 2
108106–166 NUT
, hex; M16 x 2.0 3
109 237–514 PUMP
, displacement
See page 19 for parts 1
110112–887 WRENCH, spanner 1

Replacement Danger and W arning labels, tags and cards
are available at no cost.
Part No. 237–517 Pump, Series A
13:1 Ratio, with Senator Air Motor
Ref.
No. Part No. Description Qty.
101 217–540 AIR MOT
OR, Senator
See 307–592 for parts 1
102176–529
LABEL, warning 1
105190–000
ROD, tie; 224 mm (8.82”)
shoulder to shoulder 3
106186–925 NUT
, coupling 1
107184–129
COLLAR, coupling 2
108106–166 NUT
, hex; M16 x 2.0 3
109 237–514 PUMP
, displacement
See page 19 for parts 1
110112–887 WRENCH, spanner 1

Replacement Danger and W arning labels, tags and cards
are available at no cost.
04142
101
109
108
105
107
106
110
102
These parts are included in
Connection Kit 235–417.
For applications requiring
stainless steel tie rods, order
Connection Kit 235–418.

04141
101
109
102
These parts are included in
Connection Kit 235–417.
For applications requiring
stainless steel tie rods, order
Connection Kit 235–418.

108
105
107
106
110
All manuals and user guides at all-guides.com

03630
7
1
19
18
17*
16
8*
22
9
11*
10
8*
*8
2
Throat
Packing
Stack
(see
page 20)
Piston
Packing
Stack
(see page 20)
 
Parts
NOTE: The parts listed on this page are common to all dis -
placement pumps covered in this manual. Refer to page 20
for the dif ferent packing configurations available.
* These parts are included in Repair Kit 237–178, which
may be purchased separately for standard Displacement
Pump 237–514. See page 20. They are also included in
Optional Kits 237–179, 237–180, and 237–713.
 Replacement Danger and W arning labels, tags and cards
are available at no cost.
Ref Part
No. No. Description Qty
1 184–487
ROD, displacement; stainless steel 1
2 236–582 PACKING NUT
; stainless steel 1
7 237–186 HOUSING, outlet; stainless steel 1
8* 109–499
SEAL; T eflon3
9 184–540 CYLINDER; stainless steel 1
10 189–409
HOUSING, ball, piston; stainless steel 1
11* 102–972
BALL, piston; stainless steel;
0.875” (22.2 mm) dia. 1
16 222–951 HOUSING, seat, piston valve;
stainless steel w/tungsten carbide seat 1
17* 108–001
BALL, intake; stainless steel;
1.5” (38.1 mm) dia. 1
18 189–396 HOUSING, intake; stainless steel 1
19 236–588 VAL
VE, intake; stainless steel
w/tungsten carbide seat 1
22 101–748
PLUG, pipe, socket hd; 3/8 npt 1
24172–477 T
AG, warning (not shown) 1
25172–479 T
AG, warning (not shown) 1
All manuals and user guides at all-guides.com

 
Packing Kits
Leather Packing Kit 237–178, for Standard Displacement Pump 237–514, Series A
Ref Part
No. No. Description Qty
3* 184–309 V-PACKING,
throat; leather 4
4* 184–179
GLAND, throat, female; stainless steel 1
5* 109–309 V-P ACKING, throat; T eflon1
6* 184–229
GLAND, throat, male; stainless steel 1
12* 184–310 V-P
ACKING, piston; leather 4
13* 184–230
GLAND, piston, male; stainless steel 1
14* 109–310 V-PACKING, piston; Teflon1
15* 184–180
GLAND, piston, female; stainless steel 1
* Kit also includes items 8, 1 1, and 17 (see page 19).
THROAT P ACKINGS:
LIPS F ACE DOWN PISTON PACKINGS: LIPS F ACE UP
0805
0806
*12
*15
14*
*4
*3
5*
*6
*13
LUBRICA TE P ACKINGS
UHMWPE and Leather Packing Kit 237–180, for Optional Displacement Pump 237–515,
Series A
Ref Part
No. No. Description Qty
3* 184–309 V-PACKING,
throat; leather 2
4* 184–179
GLAND, throat, female; stainless steel 1
5* 109–259 V-PACKING, throat; UHMWPE 3
6* 184–229
GLAND, throat, male; stainless steel 1
12* 184–310 V-P
ACKING, piston; leather 2
13* 184–230
GLAND, piston, male; stainless steel 1
14* 109–260 V-PACKING, piston; UHMWPE 3
15* 184–180
GLAND, piston, female; stainless steel 1
* Kit also includes items 8, 1 1, and 17 (see page 19).
THROAT P ACKINGS:
LIPS F ACE DOWN PISTON PACKINGS: LIPS F ACE UP
0805
0806
*15
*4
*5 3*
*6
*13
LUBRICA TE P ACKINGS
*14 12*
TeflonPacking Kit 237–179, for Optional Displacement Pump 236–490, Series A
Ref Part
No. No. Description Qty
4* 184–179 GLAND,
throat, female; stainless steel 1
5* 109–309 V-P ACKING, throat; T eflon5
6* 184–229
GLAND, throat, male; stainless steel 1
13* 184–230
GLAND, piston, male; stainless steel 1
14* 109–310 V-PACKING, piston; Teflon5
15* 184–180
GLAND, piston, female; stainless steel 1
* Kit also includes items 8, 1 1, and 17 (see page 19).
THROAT P ACKINGS:
LIPS F ACE DOWN PISTON PACKINGS: LIPS F ACE UP
0805
0806
*14
*15
*4
*5
*6
*13
LUBRICA TE P ACKINGS
UHMWPE and TeflonPacking Kit 237–713 (Optional)
Ref Part
No. No. Description Qty
3* 109–309 V-PACKING,
throat; T eflon2
4* 184–179
GLAND, throat, female; stainless steel 1
5* 109–259 V-PACKING, throat; UHMWPE 3
6* 184–229
GLAND, throat, male; stainless steel 1
12* 109–310 V-PACKING, piston; Teflon2
13* 184–230
GLAND, piston, male; stainless steel 1
14* 109–260 V-PACKING, piston; UHMWPE 3
15* 184–180
GLAND, piston, female; stainless steel 1
* Kit also includes items 8, 1 1, and 17 (see page 19).
THROAT P ACKINGS:
LIPS F ACE DOWN PISTON PACKINGS: LIPS F ACE UP
0805
0806
*15
*4
*5 3*
*6
*13
LUBRICA TE P ACKINGS
*14 12*
All manuals and user guides at all-guides.com
