Graco L20c Instruction Manual

313526E rev.a
Operation
Supply Systems
For use with non-heated bulk supply of medium to high viscosity sealants and adhesive
materials. Not for use in hazardous locations.
L20c 2 inch single post elevator
20 liter (5 gallon) size
100 psi (0.7 MPa, 7 bar) Maximum Air Inlet Pressure
S20 3 inch single post
20 liter (5 gallon) size
125 psi (0.9 MPa, 9 bar) Maximum Air Inlet Pressure
D60 3 inch dual post
60 liter (16 gallon) size, 30 liter (8 gallon),
20 liter (5 gallon) sizes
150 psi (1.0 MPa, 10bar) Maximum Air Inlet Pressure
D200 3 inch dual post
200 liter (55 gallon), 115 liter (30 gallon),
60 liter (16 gallon) size, 30 liter (8 gallon),
20 liter (5 gallon) sizes
150 psi (1.0 MPa, 10 bar) Maximum Air Inlet Pressure
D200S 6.5 inch dual post
55 gallon (200 liter), 30 gallon (115 liter) sizes
125 psi (0.9 MPa, 9 bar) Maximum Air Inlet Pressure
See page 6 for model information and approvals.
U.S. Patent Pending
The Graco Control Architecture Electric Components are Listed in
Intertek’s Directory of Listed Products.
Important Safety Instructions
Read all warnings and instructions in this manual.
Save these instructions.
D200
ti10429a
Model CM14BA

2
Contents
Related Manuals . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Warnings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Models . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Component Identification . . . . . . . . . . . . . . . . . . . 10
D200 3 in. and D200s 6.5 in. Dual Post . . . . . . 10
S20 3 in. Single Post and D60 3 in. Dual Post . 11
L20c 2in. Elevator . . . . . . . . . . . . . . . . . . . . . . . 13
L20c 2 in. Air Controls . . . . . . . . . . . . . . . . . . . . 14
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
General Information . . . . . . . . . . . . . . . . . . . . . 15
Location . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Grounding . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Mechanical Setup . . . . . . . . . . . . . . . . . . . . . . . 16
Connect Remote DataTrak to Power . . . . . . . . . 16
Attach and Adjust Drum Low/Empty Sensor . . . 17
Light Tower Accessory . . . . . . . . . . . . . . . . . . . 17
Attach Drum Stops . . . . . . . . . . . . . . . . . . . . . . 18
Supply System Operation . . . . . . . . . . . . . . . . . . . 19
Pressure Relief Procedure . . . . . . . . . . . . . . . . 19
Flush Before Using Equipment . . . . . . . . . . . . . 19
Start and Adjust Ram . . . . . . . . . . . . . . . . . . . . 19
Start and Adjust Pump . . . . . . . . . . . . . . . . . . . 21
Change Drums . . . . . . . . . . . . . . . . . . . . . . . . . 21
Shutdown and Care of the Pump . . . . . . . . . . . 22
Replace Throat Seals . . . . . . . . . . . . . . . . . . . . 22
Remote DataTrak Setup . . . . . . . . . . . . . . . . . . 23
Remote DataTrak Controls and Indicators . . . . . 24
Remote DataTrak Operation . . . . . . . . . . . . . . . . . 25
Startup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Run Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Prime Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Setup Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Diagnostic Mode . . . . . . . . . . . . . . . . . . . . . . . . 29
Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Schematic . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Remote DataTrak, Light Tower, Drum Low/Empty
Sensor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
D200S, D200, S20, and D60 Supply Systems . . . 37
Start and Adjust Ram . . . . . . . . . . . . . . . . . . . . 37
Start and Adjust Pump . . . . . . . . . . . . . . . . . . . 38
Change Drums . . . . . . . . . . . . . . . . . . . . . . . . . 38
Remote DataTrak Operation . . . . . . . . . . . . . . . 38
L20c Supply Systems . . . . . . . . . . . . . . . . . . . . . . 39
Start and Adjust Ram . . . . . . . . . . . . . . . . . . . . 39
Start and Adjust Pump . . . . . . . . . . . . . . . . . . . 40
Change Drums . . . . . . . . . . . . . . . . . . . . . . . . . 40
Technical Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
Graco Standard Warranty . . . . . . . . . . . . . . . . . . . 42
Graco Information . . . . . . . . . . . . . . . . . . . . . . . . . 42
Note: The D200s, D200, D60, S20, and L20c Operation
Quick Guides on page 37- 40 can be removed.

Related Manuals
3
Related Manuals
Component Manuals in U.S. English:
Manual Description
313527 Supply Systems Repair-Parts Manual
313528 Tandem Supply Systems Operation
Manual
313529 Tandem Supply Systems Repair-Parts
Manual
312375 Check-Mate®Displacement Pumps
Instructions-Parts Manual
312376 Check-Mate Pump Packages Instruc-
tion-Parts Manual
311827 Dura-Flo™Displacement Pumps
(145cc, 180cc, 220cc, 290cc) Instruc-
tions-Parts Manual
311825 Dura-Flo Displacement Pumps (430cc,
580cc) Instructions-Parts Manual
311717 Carbon Steel Displacement Pump
(1000cc) Instructions-Parts Manual
311828 Dura-Flo Pump Packages (145cc, 180cc, 220cc, 290cc) Instruc-
tions-Parts Manual
311826 Dura-Flo Pump Packages (430cc,
580cc) Instructions-Parts Manual
311833 Two-Ball NXT™Pump Packages
(1000cc) Instructions-Parts Manual
311238 NXT Air Motor (NXT2200-NXT6500)
Instructions-Parts Manual
312796 NXT Air Motor (NXT200-NXT1800)
Instructions-Parts
308213 Premier®Air Motor Instructions-Parts
Manual
312374 Integrated Air Controls Instruc-
tions-Parts Manual
312491 Pump Fluid Purge Kit Instruction-Parts
Manual
312492 Drum Roller Kit Instruction Manual
312493 Light Tower Kit Instruction Manual
406681 Platen Cover Kits

Warnings
4
Warnings
The following warnings are for the setup, use, grounding, maintenance, and repair of this equipment. The exclama-
tion point symbol alerts you to a general warning and the hazard symbol refers to procedure-specific risk. Refer back
to these warnings. Additional, product-specific warnings may be found throughout the body of this manual where
applicable.
WARNING
SKIN INJECTION HAZARD
High-pressure fluid from gun, hose leaks, or ruptured components will pierce skin. This may look like just
a cut, but it is a serious injury that can result in amputation. Get immediate surgical treatment.
• Do not point gun at anyone or at any part of the body.
• Do not put your hand over the dispense outlet.
• Do not stop or deflect leaks with your hand, body, glove, or rag.
•FollowPressure Relief Procedure in this manual, when you stop dispensing and before cleaning,
checking, or servicing equipment.
MOVING PARTS HAZARD
Moving parts can pinch or amputate fingers and other body parts.
• Keep clear of moving parts.
• Do not operate equipment with protective guards or covers removed.
• Pressurized equipment can start without warning. Before checking, moving, or servicing equipment,
follow the Pressure Relief Procedure in this manual. Disconnect power or air supply.
FIRE AND EXPLOSION HAZARD
Flammable fumes, such as solvent and paint fumes, in work area can ignite or explode. To help prevent
fire and explosion:
• Use equipment only in well ventilated area.
• Eliminate all ignition sources; such as pilot lights, cigarettes, portable electric lamps, and plastic drop
cloths (potential static arc).
• Keep work area free of debris, including solvent, rags and gasoline.
• Do not plug or unplug power cords, or turn power or light switches on or off when flammable fumes
are present.
• Ground all equipment in the work area. See Grounding instructions.
• Use only grounded hoses.
• Hold gun firmly to side of grounded pail when triggering into pail.
• If there is static sparking or you feel a shock, stop operation immediately. Do not use equipment
until you identify and correct the problem.
• Keep a working fire extinguisher in the work area.

Warnings
5
EQUIPMENT MISUSE HAZARD
Misuse can cause death or serious injury.
• Do not operate the unit when fatigued or under the influence of drugs or alcohol.
• Do not exceed the maximum working pressure or temperature rating of the lowest rated system
component. See Technical Data in all equipment manuals.
• Do not leave the work area while equipment is energized or under pressure. Turn off all equipment
and follow the Pressure Relief Procedure in this manual when equipment is not in use.
• Check equipment daily. Repair or replace worn or damaged parts immediately with genuine manu-
facturer’s replacement parts only.
• Do not alter or modify equipment.
• Use equipment only for its intended purpose. Call your distributor for information.
• Route hoses and cables away from traffic areas, sharp edges, moving parts, and hot surfaces.
• Do not kink or over bend hoses or use hoses to pull equipment.
• Keep children and animals away from work area.
• Comply with all applicable safety regulations.
ELECTRIC SHOCK HAZARD
This equipment must be grounded. Improper grounding, setup, or usage of the system can cause elec-
tric shock.
• Turn off and disconnect power cord before servicing equipment.
• Use only grounded electrical outlets.
• Use only 3-wire extension cords.
• Ensure ground prongs are intact on power and extension cords.
• Do not expose to rain. Store indoors.
SPLATTER HAZARD
Hot or toxic fluid can cause serious injury if splashed in the eyes or on skin. During blow off of platen,
splatter may occur.
• Use minimum air pressure when removing platen from drum.
TOXIC FLUID OR FUMES HAZARD
Toxic fluids or fumes can cause serious injury or death if splashed in the eyes or on skin, inhaled, or
swallowed.
• Read MSDS’s to know the specific hazards of the fluids you are using.
• Store hazardous fluid in approved containers, and dispose of it according to applicable guidelines.
• Always wear impervious gloves when spraying or cleaning equipment.
• If this equipment is used with isocyanate material, see additional information on isocyanites in Isocy-
anate Conditions Section of this manual.
PERSONAL PROTECTIVE EQUIPMENT
You must wear appropriate protective equipment when operating, servicing, or when in the operating
area of the equipment to help protect you from serious injury, including eye injury, inhalation of toxic
fumes, burns, and hearing loss. This equipment includes but is not limited to:
• Protective eyewear
• Clothing and respirator as recommended by the fluid and solvent manufacturer
•Gloves
• Hearing protection
WARNING

Models
6
Models

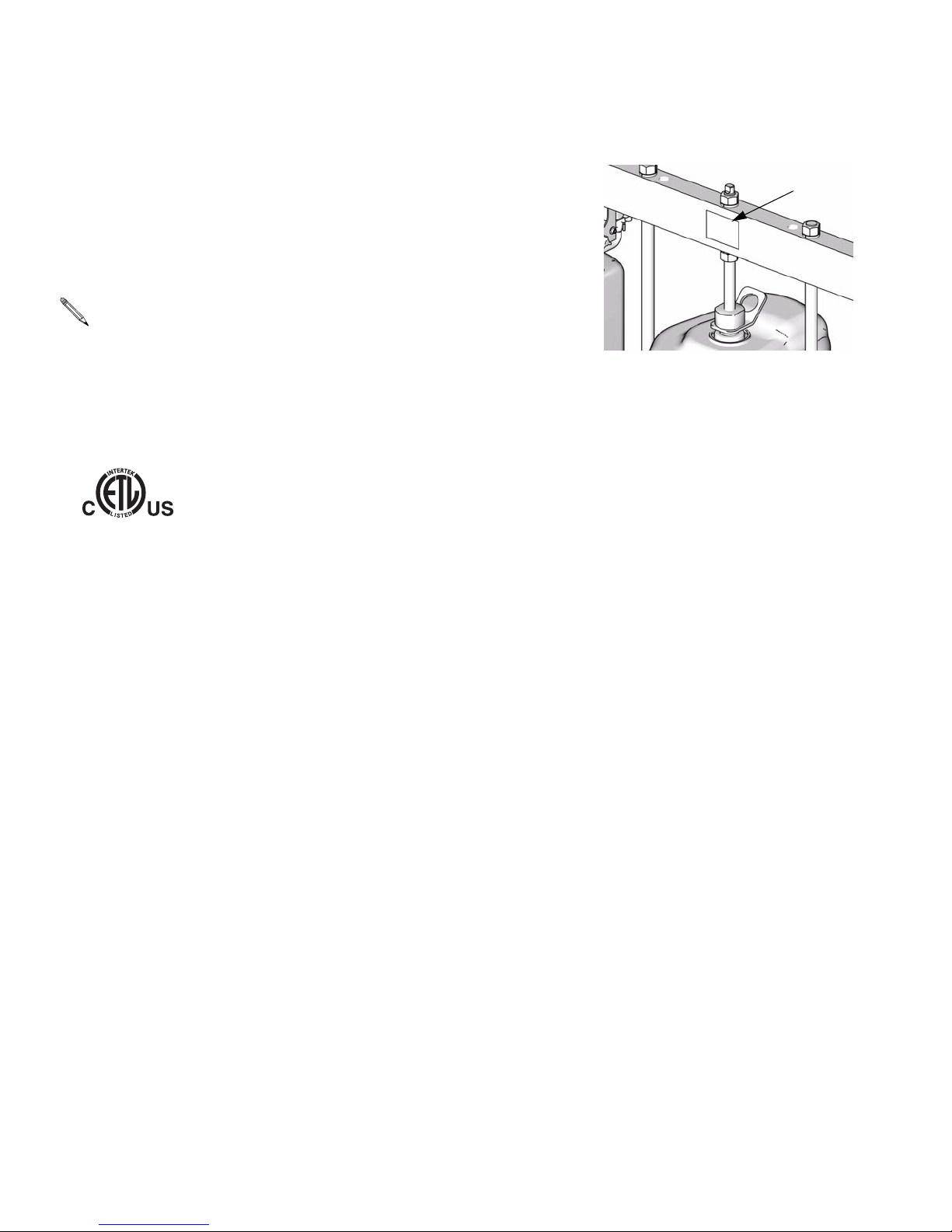

Check the identification plate (ID) for the 6-digit part number of the supply sys-
tem. Use the following matrix to define the construction of the supply system,
based on the six digits. For example, Part No. CM14BA represents a
Check-Mate supply system (CM), a carbon steel Check-Mate 100 MaxLife®
displacement pump with an NXT 2200 air motor with remote DataTrak (pump
code 14), a 3 in. dual post ram with integrated air controls (B) and a 55-gallon,
uncoated platen with a neoprene seal (A).
To order replacement parts, see Parts section in manual 313527. The digits in the matrix on the next page do not
correspond to the Ref. Nos. in the Parts drawings and lists.
All supply systems with DataTrak and 24 Vdc or 100-240 Vac power supplies are ETL approved.
Systems with the GD as the first and second digits are Dura-Flo supply
systems.
Some configurations in the following matrix cannot be built. See the
Product Selection guide for available systems.
ID
2ECOGNIZED#OMPONENT

#ERTIFIEDTO#!.#3!#3!#.O
#ONFORMSTO5,
#-
ti11157a

Models
7
KEY:
CM 14 B A
First and
Second Digit Third and Fourth Digit Fifth Digit Sixth Digit
Pump Code
Ram Options Platen and Seal Options
Size Style DataTrak Voltage Air Controls
Platen
Size Platen Style
Platen
Materi
al Seal Material
CM
(Supply
System with
Check-Mate
displacement
pump)
GD
(Supply
System with
Dura-Flo
displacement
pump)
(See Table 1
for 2-digit
Check-Mate
Pump Code)
(See Table 2
for 2-digit
Dura-Flo
Pump Code)
12 in. L20c no volt Air Control Panel B20 L
(5 Gal) F, SW CS Nitrile
23 in. S20c no volt INT C20 L
(5 Gal) F, SW CS Polyure- thane
33 in. S20 no volt INT F20 L
(5 Gal) F, SW SST PTFE coated
43 in. D60 no volt INT G20 L
(5 Gal) F, DW CS Nitrile
53 in. D200 no volt INT H20 L
(5 Gal) F, DW CS Polyure- thane
63 in D200i no volt 2-Button Interlock J30 L
(8 Gal) F, SW CS Nitrile
76.5 in. D200s no volt INT K30 L
(8 Gal) F, SW CS Polyure- thane
86.5 in. D200si no volt 2-Button Interlock L30 L
(8 Gal) F, SW SST PTFE coated
93 in. D200 24 Vdc INT M30 L
(8 Gal) F, DW CS Nitrile
A3 in. D200i 24 Vdc 2-Button Interlock R30 L
(8 Gal) F, DW CS Polyure- thane
B3 in. D200 100-240 Vac INT S60 L
(16 Gal) F, SW CS Nitrile
C3 in. D200i 100-240 Vac 2-Button Interlock T60 L
(16 Gal) F, SW CS Polyure- thane
F6.5 in. D200s 24 Vdc INT U60 L
(16 Gal) F, SW SST PTFE coated
G6.5 in. D200si 24 Vdc 2-Button Interlock W60 L
(16 Gal) F, DW CS Nitrile
H6.5 in. D200s 100-240 Vac INT Y60 L
(16 Gal) F, DW CS Polyure- thane
J6.5 in. D200si 100-240 Vac 2-Button Interlock 7115 L
30 Gal D CS EPDM
L3 in. S20 100-240 Vac INT 8200 L
(55 Gal) DR
PTFE
coated
AL EPDM
M3 in. S20 24 Vdc INT 9200 L
(55 Gal) DR AL EPDM
R3 in. D60 100-240 Vac INT A200 L
(55 Gal) DR AL Neoprene
T3 in. D60i 100-240 Vac 2-Button Interlock
U3 in. D60 24 Vdc INT
W3 in. D60i 24 Vdc 2-Button Interlock
Y3 in. D60i no volt 2-Button Interlock
S = Single post ram i = 2-Button Interlock F = Flat SW = Single wiper
c = Cart mounted s = 6.5 inch D = D Style DW = Double wiper
D = Dual post ram INT = Integrated air controls DR = Dual o-ring

Models
8
See manual 312376 or the ID plate on the pump to determine pump part number.
Pump
Code
Pump Part No.
(see manual
312376)
NXT 200/CM 60
4A P05LCS
4B P05LCM
4C P05LSS
4F P05LSM
NXT 400/CM 60
6A P11LCS
6B P11LCM
6C P11LSS
6F P11LSM
6G P11RCS
6H P11RCM
6J P05RSS
6K P11RSM
61 P11SCS
62 P11SCM
63 P11SSS
64 P11SSM
NXT 700/CM 60
7A P20LCS
7B P20LCM
7C P20LSS
7F P20LSM
7G P20RCS
7H P20RCM
7J P20RSS
7K P20RSM
71 P20SCS
72 P20SCM
73 P20SSS
74 P20SSM
NXT 1200/CM 60
8A P38LCS
8B P38LCM
8C P38LSS
8F P38LSM
8G P38RCS
8H P38RCM
8J P38RSS
8K P38RSM
81 P38SCS
82 P38SCM
83 P38SSS
84 P38SSM
NXT 1800/CM 60
9A P61LCS
9B P61LCM
9C P61LSS
9F P61LSM
9G P61RCS
9H P61RCM
9J P61RSS
9K P61RSM
91 P61SCS
92 P61SCM
93 P61SSS
94 P61SSM
NXT 2200/CM 100
11 P40LCS
12 P40LCM
1F P40LSS
1G P40LSM
13 P40RCS
14 P40RCM
1H P40RSS
1J P40RSM
10 P40SSS
1A P40SSM
19 P40SCS
NXT 3400/CM 100
15 P63LCS
16 P63LCM
1T P63LSS
1U P63LSM
17 P63RCS
18 P63RCM
1W P63RSS
1Y P63RSM
1B P63SSS
1C P63SSM
Pump
Code
Pump Part No.
(see manual
312376)
NXT 2200/CM 200
21 P23LCS
22 P23LCM
23 P23RCS
24 P23RCM
25 P23LSS
26 P23LSM
27 P23RSS
28 P23RSM
NXT 3400/CM 200
29 P36LCS
2A P36LCM
2B P36RCS
2C P36RCM
2F P36LSS
2G P36LSM
2H P36RSS
2J P36RSM
NXT 6500/CM 200
2L P68LCS
2M P68LCM
2R P68RCS
2S P68RCM
2T P68LSS
2U P68LSM
2W P68RSS
2Y P68RSM
20 P68SCS
NXT 3400/CM 250
31 P29LCS
32 P29LCM
33 P29RCS
34 P29RCM
35 P29LSS
36 P29LSM
37 P29RSS
38 P29RSM
Pump
Code
Pump Part No.
(see manual
312376)
NXT 6500/CM 250
39 P55LCS
3A P55LCM
3B P55RCS
3C P55RCM
3F P55LSS
3G P55LSM
3H P55RSS
3J P55RSM
Premier/CM 250
3L P82LCS
3M P82LCM
3R P82LSS
3S P82LSM
NXT 3400/CM 500
51 P14LCS
52 P14LCM
53 P14RCS
54 P14RCM
55 P14LSS
56 P14LSM
57 P14RSS
58 P14RSM
NXT 6500/CM 500
59 P26LCS
5A P26LCM
5B P26RCS
5C P26RCM
5F P26LSS
5G P26LSM
5H P26RSS
5J P26RSM
Premier/CM 500
5L P39LCS
5M P39LCM
5R P39LSS
5S P39LSM
No Pump
NN
Pump
Code
Pump Part No.
(see manual
312376)
Table 1: Check-Mate Pump Identification Code/Part No. Index

Models
9
NR = Not released
Pump
Code
Pump Part No.
(see manual
311828)
NXT 2200/DF 145SS
A1 P31LSS
A2 P31LSM
A3 P31HSS
A4 P31HSM
NXT 3400/DF 145SS
B1 P46LSS
B2 P46LSM
B3 P46HSS
B4 P46HSM
NXT 3400/DF 180SS
B5 P41LSS
B6 P41LSM
B7 P41HSS
B8 P41HSM
NXT 3400/DF 220SS
C1 P30LSS
C2 P30LSM
C3 P30HSS
C4 P30HSM
NXT 6500/DF 220SS
CA P57LSS
CB P57LSM
CC P57HSS
CD P57HSM
NXT 6500/DF 290SS
D1 P45LSS
D2 P45LSM
D3 P45HSS
D4 P45HSM
Premier/DF 290SS
DL P67LSS
DM P67LSM
DR P67HSS
DS P67HSM
Pump
Code
Pump Part No.
(see manual
311826)
NXT 3400/DF 430CS
E1 P15LCS
E2 P15LCM
E3 P15HCS
E4 P15HCM
NXT 3400/DF 430SS
E5 P15LSS
E6 P15LSM
E7 P15HSS
E8 P15HSM
NXT 6500/DF 430CS
E9 P32LCS
EA P32LCM
EB P32HCS
EC P32HCM
NXT 6500/DF 430SS
EF P32LSS
EG P32LSM
EH P32HSS
EJ P32HSM
Premier/DF 430
EL P44LSS
EM P44LSM
ER P44LCS
ES P44LCM
NXT 3400/DF 580CS
F1 P12LCS
F2 P12LCM
F3 P12HCS
F4 P12HCM
NXT 3400/DF 580SS
F5 P12LSS
F6 P12LSM
F7 P12HSS
F8 P12HSM
Pump
Code
Pump Part No.
(see manual
311826)
NXT 6500/DF 580CS
F9 P22LCS
FA P22LCM
FB P22HCS
FC P22HCM
NXT 6500/DF 580SS
FF P22LSS
FG P22LSM
FH P22HSS
FJ P22HSM
Premier/DF 580CS
FL P34LSS
FM P34LSM
FR P34LCS
FS P34LCM
Pump
Code
Pump Part No.
(see manual
311833)
NXT 3400/DF 1000CS
G1 P06LCS
G2 P06LCM
G3 P06HCS
G4 P06HCM
NXT 3400/DF 1000SS
G5 P06LSS
G6 P06LSM
G7 P06HSS
G8 P06HSM
NXT 6500/DF 1000CS
G9 P10LCS
GA P10LCM
GB P10HCS
GC P10HCM
NXT 6500/DF 1000SS
GF P10LSS
GG P10LSM
GH P10HSS
GJ P10HSM
Premier/DF 1000
GL NR
GM NR
GR NR
GS NR
Table 2: Dura-Flo Pump Identification Code/Part No. Index

Component Identification
10
Component Identification
D200 3 in. and D200s 6.5 in. Dual Post
Key:
A Ram Assembly
B Air Motor
C Displacement Pump
DPlaten
E Remote DataTrak (single ram systems) or
Display Module (tandem systems)
G Integrated Air Controls (see FIG. 3)
H Air Motor Lift Ring
J Platen Bleed Port
K Power Supply Box
M Blowoff Air Supply Line
N Platen Lift Rod
P Pump Bleeder Valve
R Enclosed Wet Cup
S Fluid Line (not supplied)
T Main Air Line (not supplied)
U Air Line Drain Valve (not supplied)
V Air Filter (not supplied)
W Bleed Type Air Shutoff Valve (not supplied)
X Air Motor Solenoid
FIG. 1
T
D
W
V
J
G
K
E
U
M
N
S
CM14BA Model
Shown
A
B
R
C
P
X
TI10430a
H
(Note: Do not use motor
lift ring to lift entire
system.)
Lift Locations

Component Identification
11
S20 3 in. Single Post and D60 3 in. Dual Post
Key:
ARamAssembly
BAirMotor
C Displacement Pump
DPlaten
F Remote DataTrak (single ram systems) or
Display Module (tandem systems)
G Integrated Air Controls (see FIG. 3)
HLiftRing
J Platen Bleed Port
K Power Supply Box (under shrouding)
P Pump Bleed Valve
R Enclosed Wet Cup
S Fluid Line (not supplied, see FIG. 1)
T Air Line (not supplied, see FIG. 1)
U Air Line Drain Valve (not supplied, see FIG. 1)
V Air Filter (not supplied, see FIG. 1)
W Bleed Type Air Shutoff Valve (not supplied, see FIG. 1)
X Air Motor Solenoid
FIG. 2
B
AF
G
K
D
J
R
C
X
(Note: Do not use motor
lift ring to lift entire
system.)
Lift Location
Lift Location
r_255648_313527_6a
Model CM9HLB Shown Model CM2MRY Shown
r_255648_313527_5a
G
F
B
J
D
K
RC
X
A
Lift
Location
H
P

Component Identification
12
Integrated Air Controls
D200, D200s, D60, and S20 Models
The integrated air controls include:
• Main air slider valve (BA): turns air on and off to
the system. When closed, the valve relieves pres-
sure downstream.
•Ram air regulator (BB): controls ram up and down
pressure and blowoff pressure.
•Ram director valve (BC): controls ram direction.
•Exhaust port with muffler (BD)
• Air motor regulator (BE): Controls air pressure to
motor.
•Air motor slider valve (BF): turns air on and off to
the air motor. When closed, the valve relieves air
trapped between it and the air motor. Push the valve
in to shutoff. Remote DataTrak: The air solenoid
(X, FIG. 1), the air motor slider valve (BF), and the
main air slider valve (BA) must be open for air to
flow. (See Remote DataTrak Setup, page 23.)
•Blowoff button (BG): turns air on and off to push
the platen out of an empty drum.
Air Line Accessories
See FIG. 1.
• Air line drain valve (U)
•Air line filter (V): removes harmful dirt and mois-
ture from compressed air supply.
•Second bleed-type air valve (W): isolates air line
accessories and supply system for servicing. Locate
upstream from all other air line accessories.
•Air relief valve (attached to ram air regulator, not
visible): automatically relieves excessive pressure.
2-Button Interlock Air Controls
D60i, D200i, and D200si Models
Units that have 2-Button Interlock controls have the fol-
lowing additional components:
•2-Button Module: See manual 312374 for
information.
•Roller switch (CA): shuts off air supply when it con-
tacts the bracket actuator. Operator must push and
hold the activation buttons simultaneously to
resume ram movement.
•Bracket actuator (CB): attaches to the platen lift
rod. When platen is outside of drum, actuator makes
contact with the roller switch.

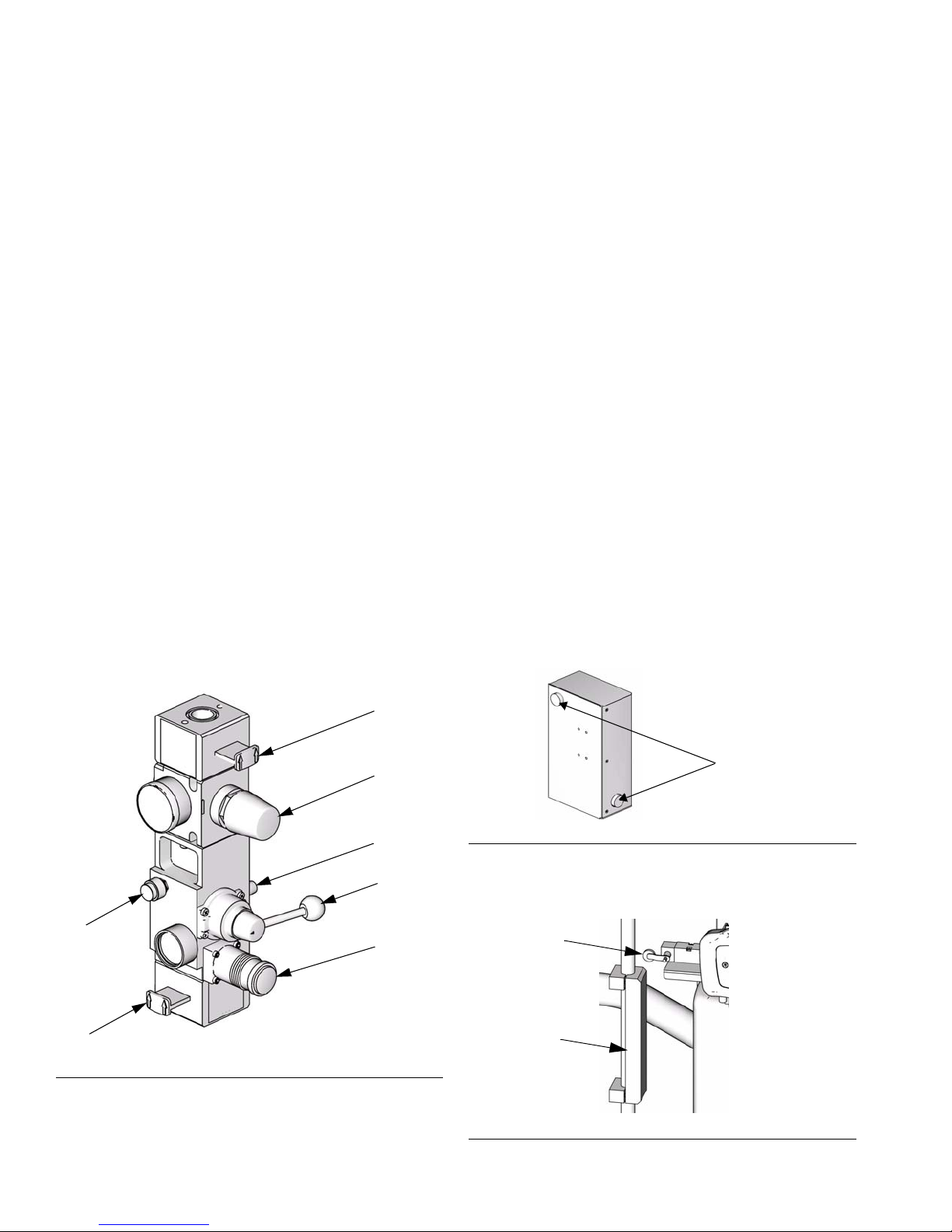

FIG. 3. Integrated Air Controls
BA
BB
BC
BG
BE
BF
BD
ti10438a
FIG. 4
FIG. 5
Activation
Buttons
ti10843a1
CA
CB
ti10846a

Component Identification
13
L20c 2in. Elevator
Key:
CA Elevator Cart
CB Air Motor
CC Displacement Pump
CD Platen
CE Enclosed Wet Cup (behind air controls)
CF Elevator and Pump Air Controls
J Platen Bleed Port
P Pump Bleed Valve
FIG. 6
CF
CB
CA
CC
CD
CE
r_257032_312376_1e
CM7B1G Model Shown
P
J
Lift Location

Component Identification
14
L20c 2 in. Air Controls
•Air motor regulator (DA): Controls air pressure to
motor.
•Blowoff button (DB): turns air on and off to push
the platen out of an empty drum.
•Air motor shutoff valve (DC): turns air on and off
to the air motor.
•Elevator director valve (DD): controls elevator
direction.
Air and Fluid Hoses
Be sure all air hoses (T) and fluid hoses (S) are properly
sized and pressure-rated for your system. Use only
electrically conductive hoses. Fluid hoses must have
spring guards on both ends. Use of a short whip hose
and a swivel between the main fluid hose and the
gun/valve allows freer gun/valve movement.
FIG. 7: Elevator Air Controls
r_257302_312376_2e
DD
DC
DB
DA

Installation
15
Installation
General Information
Accessories are available from Graco. Make certain all
accessories are adequately sized and pressure-rated to
meet the system’s requirements.
FIG. 1, FIG. 2, and FIG. 6 are only guides for selecting
and installing system components and accessories.
Contact your Graco distributor for assistance in design-
ing a system to suit your particular needs.
Location
Attach a lifting sling at the proper lift spots. Lift off the
pallet using a crane or a forklift.
Position the ram so the air controls are easily accessi-
ble. Ensure that there is enough space overhead for the
ram to raise fully. (See Dimensions, page 34.)
Using the holes in the ram base as a guide, drill holes
for 1/2 in. (13 mm) anchors.
Ensure that the ram base is level in all directions. If nec-
essary, level the base using metal shims. Secure the
base to the floor using 1/2 in. (13 mm) anchors that are
long enough to prevent the ram from tipping.
Grounding
Pump: use a ground wire and clamp. Loosen grounding
lug locknut and washer. Insert one end of supplied
ground wire into slot in lug and tighten locknut securely.
Connect other end of wire to a true earth ground. See
FIG. 8.
Air and fluid hoses: use only electrically conductive
hoses with a maximum of 500 ft. (150 m) combined
hose length to ensure grounding continuity. Check elec-
trical resistance of hoses. If total resistance to ground
exceeds 29 megohms, replace hose immediately.
Air compressor: follow manufacturer’s recommenda-
tions.
Spray gun/dispense valve: ground through connection
to a properly grounded fluid hose and pump.
Fluid supply container: follow local code.
Object being sprayed: follow local code.
Solvent pails used when flushing: follow local code.
Use only conductive metal pails, placed on a grounded
surface. Do not place the pail on a nonconductive sur-
face, such as paper or cardboard, which interrupts
grounding continuity.
To maintain grounding continuity when flushing or
relieving pressure: hold metal part of the dispense
valve firmly to the side of a grounded metal pail, then
trigger the valve.
Reference numbers and letters in parentheses in
the text refer to the callouts in the figures.
NOTICE
Always lift supply system at proper lift locations (see
FIG. 1, FIG. 2, and FIG. 6). Do not lift in any other way.
NOTICE
The equipment must be grounded. Grounding
reduces the risk of static and electric shock by provid-
ing an escape wire for the electrical current due to
static build up or in the event of a short circuit.
FIG. 8
ti8250a

Installation
16
Mechanical Setup
1. Fill displacement pump wet cup 2/3 full with Graco
Throat Seal Liquid (TSL).
2. Back-off air regulators to their full counterclockwise
position and close all shutoff valves.
3. Connect air line from an air source to the system air
inlet. See FIG. 1 or FIG. 2. Refer to the pump perfor-
mance curves in manual 312376 to determine your
air supply flow requirements. Use a supply hose
capable of meeting the required flow.

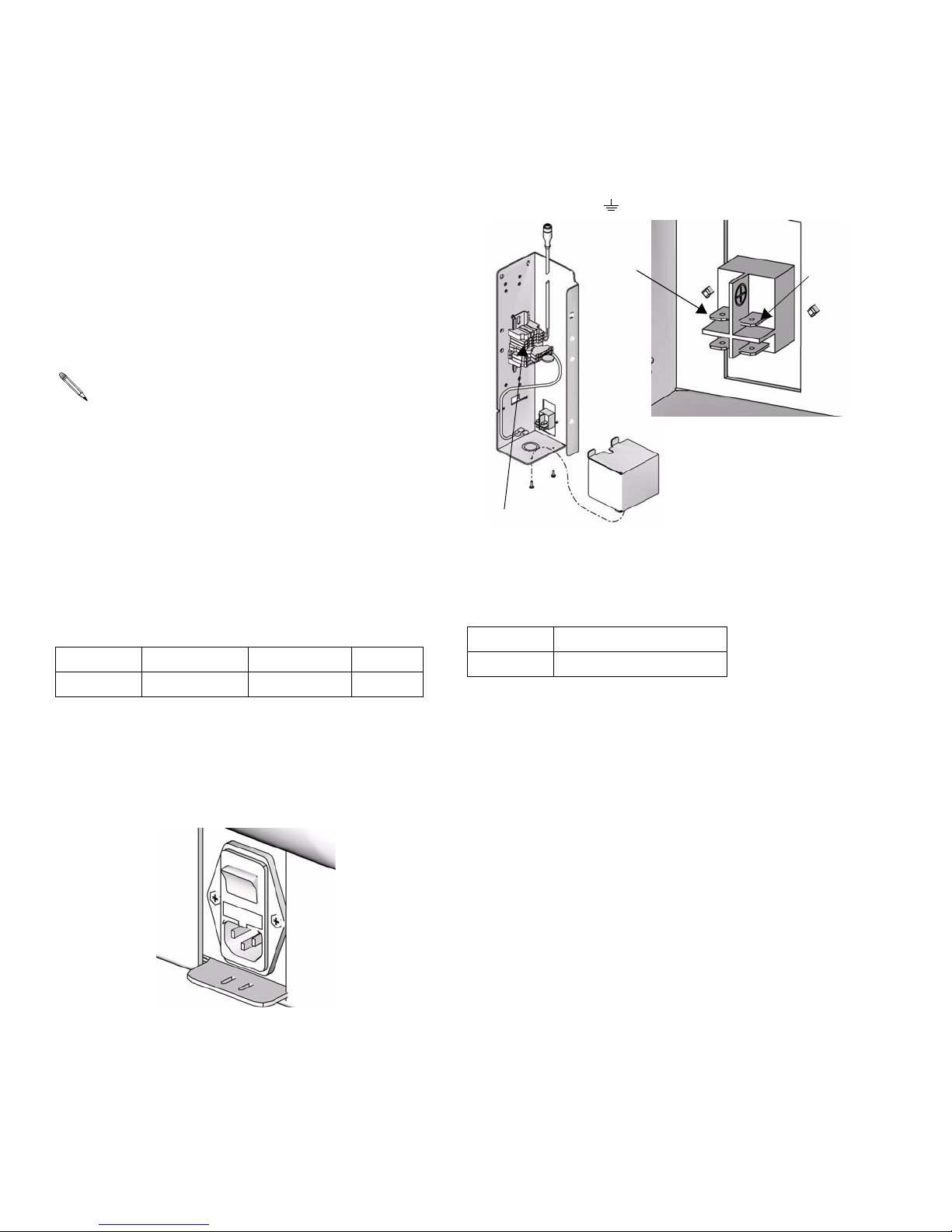

Connect Remote DataTrak to Power
100-240 Vac
The system has an IEC-C14 power input connection
located on the back of the power supply box. The user
must supply an appropriate adapter. The 100-240 Vac
supply must be capable of sourcing at least 1.2 Amps
and have supply current protection rated in accordance
with the supply wire gauge provided.
Have a trained electrician install and inspect power con-
nection per local code. Plug power supply cord into the
outlet on the back of the power supply box and into a
properly grounded electrical outlet. Use a zip tie, if
needed, to secure power cord in place.
24 Vdc
Attach 24V Class 2 power supply to terminals on the
24V assembly: +24 Vdc to terminal 2 (+) and -24 Vdc to
terminal 5 (-). Attach protective earthing (PE) conductor
to terminal marked .
The 24 Vdc supply must be capable of supplying at least
1.2 Amps and have supply current protection rated at no
more than 2.5 Amps.
Have a trained electrician install and inspect power con-
nection per local code.
Quick disconnects restrict flow for large air motors.
Frequency Voltage Max. Current Phase
50-60 Hz 100-240 Vac 1.2 Amps 1
ti10433a
Voltage Max. Current
24 Vdc 1.2 Amps
PE ti10853a
ti10985a
5 (-) 2 (+)

Installation
17
Attach and Adjust Drum
Low/Empty Sensor
For supply systems with remote DataTrak, an optional
kit can be purchased to indicate either when the drum is
low or when it is empty. Order kit 255469 for a D60 or
D200 3 in. ram, 255689 for a D200s 6.5 in. ram, or
257634 for a S20 3 in. ram.
1. Position ram at desired level (low or empty).
2. Attach low/empty sensor bracket (EA) to mounting
bracket (EB).
3. To measure either drum low or drum empty, attach
one sensor (EE) to the sensor bracket (EA).
4. For D60, D200, and D200s supply systems: Attach
the actuator (ED) to the ram piston rod, near the top,
so it passes in front of the sensor (EE) at the correct
level for drum low or drum empty. See FIG. 9.
5. For S20 supply systems: Attach the actuator (ED) to
the ram cylinder endcap, so the sensor (EE) passes
in front of the bracket (ED) at the correct level for
drum low or drum empty. See FIG. 10.
6. Make precise adjustments by moving the sensor
within the slot on the sensor bracket.
7. Attach the sensor to the corresponding connector
on the D-Sub harness of the remote DataTrak.
Light Tower Accessory
Order the 255467 Light Tower Accessory as a diagnos-
tic indicator for D200s, D200, D60, and S20 supply sys-
tems. See TABLE 3 for a description of light tower
signals.

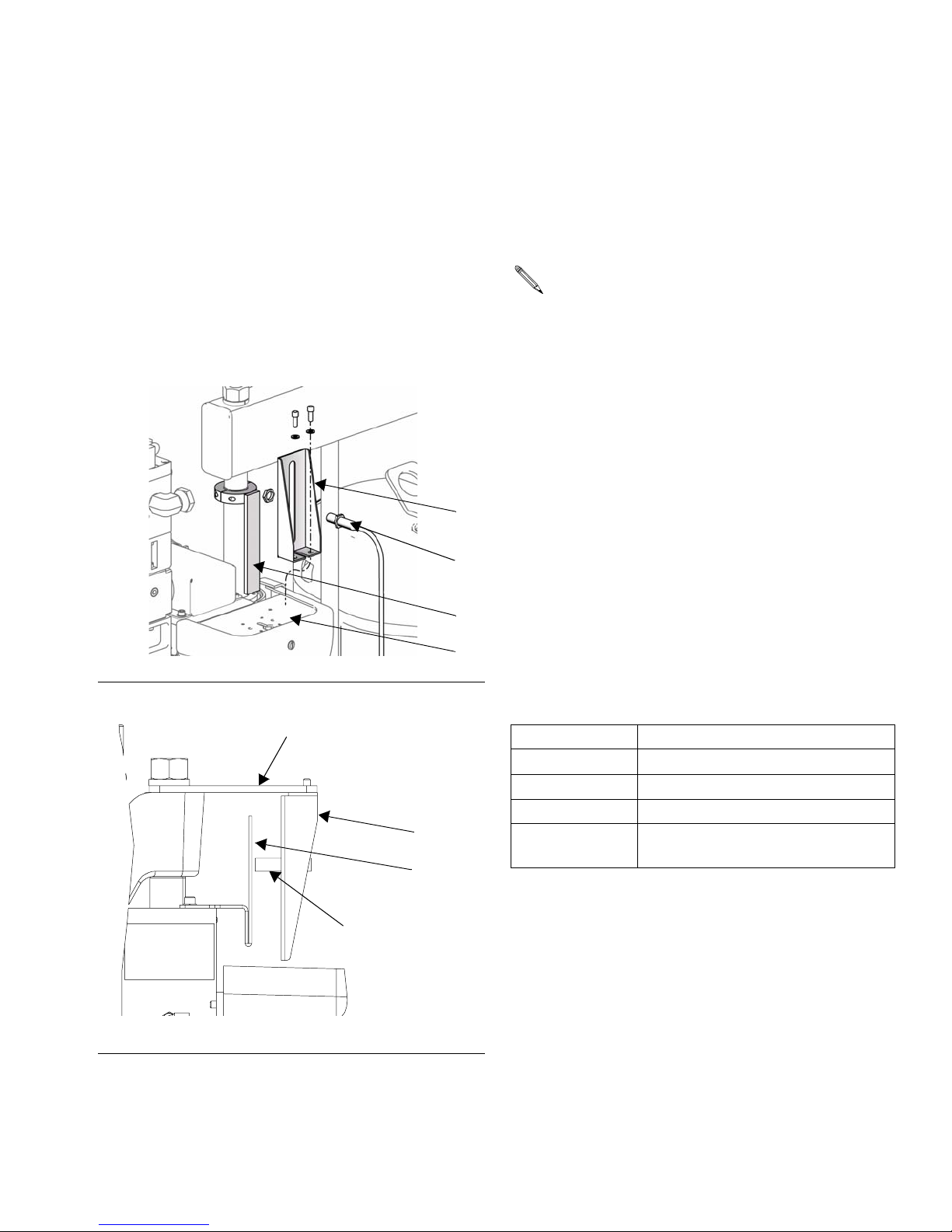

FIG. 9: D200 and D200s supply systems
FIG. 10: S20 supply systems
EA
EB
EE
ED
EA
EB
EE
ED
r_cm9hlb_313526_3a
For D60 supply systems: Flip actuator bracket (ED)
so that it points upwards instead of downwards to
allow it to pass the sensor (EE).
Table 3: Light Tower Signals
Signal Description
Yellow flashing A low priority error exists.
Yellow on A medium priority error exists.
Red flashing A high priority error exists.
Red on The system is shut down due to
error conditions.

Installation
18
Attach Drum Stops
Only D200s, D200, and D60 Supply systems are
shipped with drum stops in place to help position the
drum on the ram. For replacement parts, order Kit
255477. The kit includes 2 each of capscrews (FA), lock
washers (not shown), and drum stops (FB).
1. Locate the correct set of mounting holes on the ram
base.
2. Using the capscrews (FA) and lock washers (not
shown), attach the drum stops (FB) to the ram base.
FIG. 11
FA
FB
ti10917a
FIG. 12: Ram Base
55 gal (200 L) 30 gal (115 L)
8 gal (30 L)
5 gal (20 L)
D200 and D200s Base D60 Base
8 gal (30 L)
5 gal (20 L)
60 gal (16 L)
16 gal (60 L)

Supply System Operation
19
Supply System Operation
Pressure Relief Procedure
1. Lock the gun/valve trigger.
2. For D200s, D200, S20, and D60 Air Controls: See
FIG. 3, page 12.
a. Close the air motor slider valve (BF) and the
main air slider valve (BA).
b. Set the ram director valve (BC) to DOWN. The
ram will slowly drop.
c. Jog the director valve up and down to bleed air
from ram cylinders.
3. For L20c Air Controls: See FIG. 7, page 14.
a. Close the air motor valve (DC) and the elevator
director valve (DD). The ram will slowly drop.
4. Unlock the gun/valve trigger.
5. Hold a metal part of the gun/valve firmly to the side
of a grounded metal pail, and trigger the gun/valve
to relieve pressure.
6. Lock the gun/valve trigger.
7. Open the fluid line drain valve and the pump bleeder
valve (P). Have a container ready to catch the drain-
age.
8. Leave the pump bleeder valve (P) open until ready
to spray again.
If you suspect that the spray tip/nozzle or hose is com-
pletely clogged, or that pressure has not been fully
relieved after following the steps above, very slowly
loosen the tip guard retaining nut or hose end coupling
and relieve pressure gradually, then loosen completely.
Now clear the tip/nozzle or hose.
Flush Before Using Equipment
The pump was tested with lightweight oil, which is left in
the fluid passages to protect parts. To avoid contaminat-
ing fluid with oil, flush the pump with a compatible sol-
vent before use. See pump manual for flushing
directions.
Start and Adjust Ram
D200 3 in. and D200s 6.5 in. Dual Post
1. Refer to FIG. 1 and FIG. 3. Close all air regulators
and air valves.
2. Open main air slider valve (BA) and set ram air reg-
ulator (BB) to 40 psi (0.28 MPa, 2.8 bar). Set direc-
tor valve handle (BC) to UP and let the ram rise to
its full height. 2-Button Interlock: If the system has
this feature, ram will stop as it nears the top. Press
and hold both buttons to raise ram completely. See
FIG. 3 on page 12.
3. Lubricate the platen seals (D) with grease or other
lubricant compatible with the fluid you will pump.
4. Remove the drum cover and smooth the surface of
the fluid with a straightedge.
5. Put a full drum of fluid on the ram base, slide it back
against the drum stops, and center it under the
platen (D). An optional drum roller kit is available for
D200 and D200s supply systems to make it easier
to load the drum on the base. Order Kit 255627.
Moving parts can pinch or amputate fingers. When the
pump is operating and when raising or lowering the
ram, keep fingers and hands away from the pump
intake, platen, and lip of the drum.
To avoid damage to the platen seals, do not use a
drum that is dented or damaged.

Supply System Operation
20

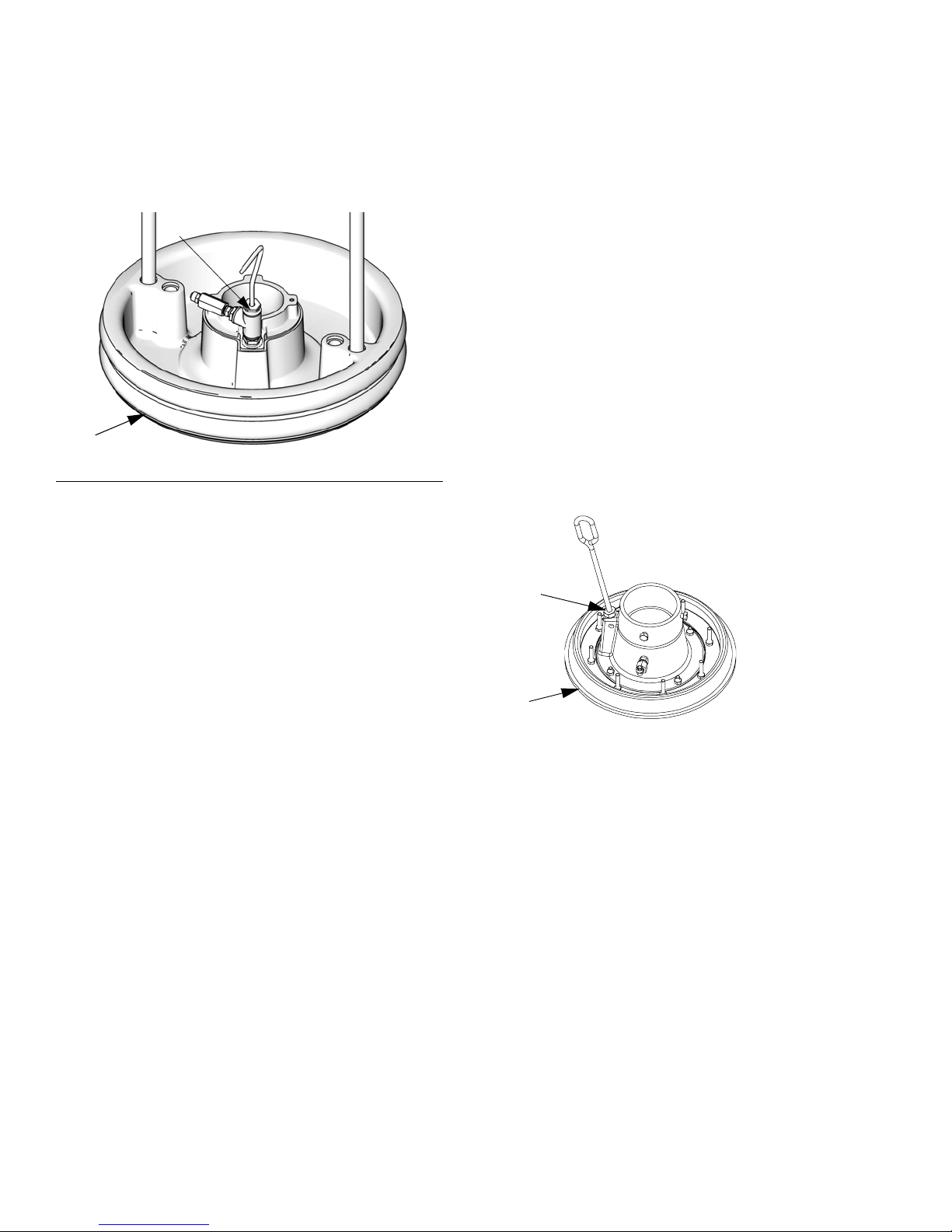

6. Remove bleed stick from platen bleed port (J).
7. If drum has a plastic liner, pull it over edge of drum.
Secure liner with tape wrapped around circumfer-
ence of drum.
8. Set the director valve (BC) to DOWN and lower the
ram until fluid appears at the top of the platen bleed
port (J). Adjust ram air regulator (BB) as needed.
Set the director valve (BC) to neutral and close the
platen bleed port (J). 2-Button Interlock: If system
has this feature, press and hold both buttons to start
lowering the ram. See FIG. 3, page 12.
L20c 2 in. Elevator, S20 3 in. Single Post,
and D60 3 in. Single Post
1. Raise ram:
a. For S20 and D60: Open the main air slider
valve (BA) and set the ram air regulator (BB) to
40 psi (0.28 MPa, 2.8 bar). Set director valve
handle (BC) to UP and let the ram rise to its full
height. 2-Button Interlock: If the system has
this feature, ram will stop as it nears the top.
Press and hold both buttons to raise ram com-
pletely. See FIG. 3 on page 12.
b. For L20c: Set elevator director valve (DD) to
UP and let the ram rise to its full height.
2. Lubricate the platen seals (D) with grease or other
lubricant compatible with the fluid you will pump.
3. Put a full drum on the ram base and center it under
the platen (D).
4. Remove the drum cover and smooth the surface of
the fluid with a straightedge. To prevent air from
being trapped under the platen, scoop fluid from the
center of the pail to the sides, to make the surface
concave.
5. Adjust the pail to be sure it is aligned with the
platen, and remove the bleed stick to open the
platen bleed port (J).
6. With hands away from the pail and the platen, push
down on the director valve (BC) handle, and lower
the ram until the platen rests on the lip of the pail.
For S20 and D60 only: Move the director valve
handle to the horizontal position (neutral).
7. Lower ram:
a. For S20 and D60: Set the director valve (BC) to
DOWN and continue to lower the ram until fluid
appears at the platen bleed port (J) and close
the platen bleed port. Set the director valve to
neutral, reinstall the vent handle, and tighten
securely.
b. For L20c: Turn elevator director valve (DD) to
DOWN and continue to lower the ram until fluid
appears at the platen bleed port (J). Close the
platen bleed port (J).
FIG. 13
J
Dti10543a
J
Dr_255648_313527_7a
