Graco Series A Operation manual

309277TINSTRUCTIONS-PARTS LIST
INSTRUCTIONS
This manual contains important
warnings and information.
READ AND KEEP FOR REFERENCE.
Displacement Pump
3600 psi (250 bar, 24.8 MPa) Maximum Working Pressure
Model 244197, Series A
UltraMax and Ultimate Mx795 and 1095
GMax3900
Model 244224, Series A
Ultra Max and Ultimate Mx 1595
GMax 5900 and 5900 Convertible
Model 244201, Series A
245044, 245046, 245049 Mark V
GMax 5900HD
Model 244409, 245904 Series A
245045, 245047 Mark V International (ceramic balls)
Model 244954, Series A
HydraMax225
Model 244957, Series A
HydraMax 300/350
Model 245889, Series B
Mark V SpackMax
Model 245902, Series A
245048 Ultra Max 1595, International
Model 246257, Series A
GMax 7900, GH200; Models 233940 – 233943
Model 248971, Series A
GH 200; Models 248559 – 248567, 248561 – 248564
EH200
Model 248736, Series A
GH 230, GH 300
Model 277068, Series A
LineLazer IV 200 HS
GRACO INC. P.O. BOX 1441 MINNEAPOLIS, MN 55440–1441
COPYRIGHT 2000, GRACO INC.
Graco Inc. is registered to I.S. EN ISO 9001
8016A
Parts

2 309277
Table of Contents
Warnings 2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Service 3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Technical Data 15. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Parts, Pump
244197 16. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
244224 17. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
244201 17. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
244409 17. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
245902 17. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
245904 17. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
244954 18. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
244957 19. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
245889 20. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
246257 21. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Warranty 24. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Symbols
Warning Symbol
WARNING
This symbol alerts you to the possibility of serious
injury or death if you do not follow the instructions.
Caution Symbol
CAUTION
This symbol alerts you to the possibility of damage to
or destruction of equipment if you do not follow the
instructions.
WARNING
INSTRUCTIONS
EQUIPMENT MISUSE HAZARD
Equipment misuse can cause the equipment to rupture or malfunction and result in serious injury.
This equipment is for professional use only.
Read all instruction manuals, tags, and labels before operating the equipment.
Use the equipment only for its intended purpose. If you are uncertain about usage, call your Graco
distributor.
Do not alter or modify this equipment. Use only genuine Graco parts and accessories.
Do not exceed the maximum working pressure of the lowest rated system component. Refer to the
Technical Data on page 15 for the maximum working pressure of this equipment.
Use fluids and solvents compatible with the equipment wetted parts. Refer to the Technical Data
section of all equipment manuals. Read the fluid and solvent manufacturer’s warnings.
Do not use 1,1,1–trichloroethane, methylene chloride, other halogenated hydrocarbon solvents or
fluids containing such solvents in pressurized aluminum equipment. Such use could result in a
chemical reaction, with the possibility of explosion.
Comply with all applicable local, state, and national fire, electrical, and safety regulations.
MOVING PARTS HAZARD
Moving parts can pinch or amputate your fingers.
Keep clear of all moving parts when starting or operating the pump.
Before servicing the equipment, follow the Pressure Relief Procedure on page 3 to prevent the
equipment from starting unexpectedly.

3309277
Service
Pressure Relief Procedure
WARNING
PRESSURIZED EQUIPMENT HAZARD
The system pressure must be manually
relieved to prevent the system from
starting or spraying accidentally. To
reduce the risk of an injury from accidental spray
from the gun, splashing fluid, or moving parts,
follow the Pressure Relief Procedure whenever
you:
are instructed to relieve the pressure,
stop spraying,
check or service any of the system equipment,
or install or clean the spray nozzle.
1. Engage gun safety latch.
2. Turn ON/OFF switch to OFF.
3. Unplug power cord.
4. Disengage gun safety latch. Hold metal part of gun
against grounded metal pail and trigger gun into
pail to relieve pressure.
5. Engage gun safety latch.
6. Open any fluid drain valves in system. Leave drain
valve open until ready to dispense again.
Pump Repair Kits
Pump Repair Kit
244197 244196
244224 244198
244201 244198
244409 244200
244954 246341
244957 244958
245889 245819
245902 244198
245904 244200
246257 246341
248736 246341
248971 246341
Tools Needed
Vise
12 in. adjustable, open end wrench (2)
Hammer, 20 oz maximum
Small screwdriver
Throat Seal Liquid
Pick or long small screwdriver
Cleaning and Inspecting Parts
1. Clean and inspect parts. Pay particular attention to
the ball seats in the intake valve and piston, which
must have no nicks or wear, and to the inside of
the sleeve and the outside of the piston rod, which
must not be worn or scratched. Replace worn or
damaged parts.
WARNING
COMPONENT RUPTURE HAZARD
Never use sharp or pointed tools to
remove sleeve or other components
which could result in pump rupture and
cause serious bodily injury. If the sleeve cannot be
removed easily, return the sleeve and cylinder to
your Graco distributor for removal.
2. Remove and clean the sleeve when you are
repacking the pump.

4 309277
Service
Repair When Pump Is Off The Sprayer
Disassembling the pump

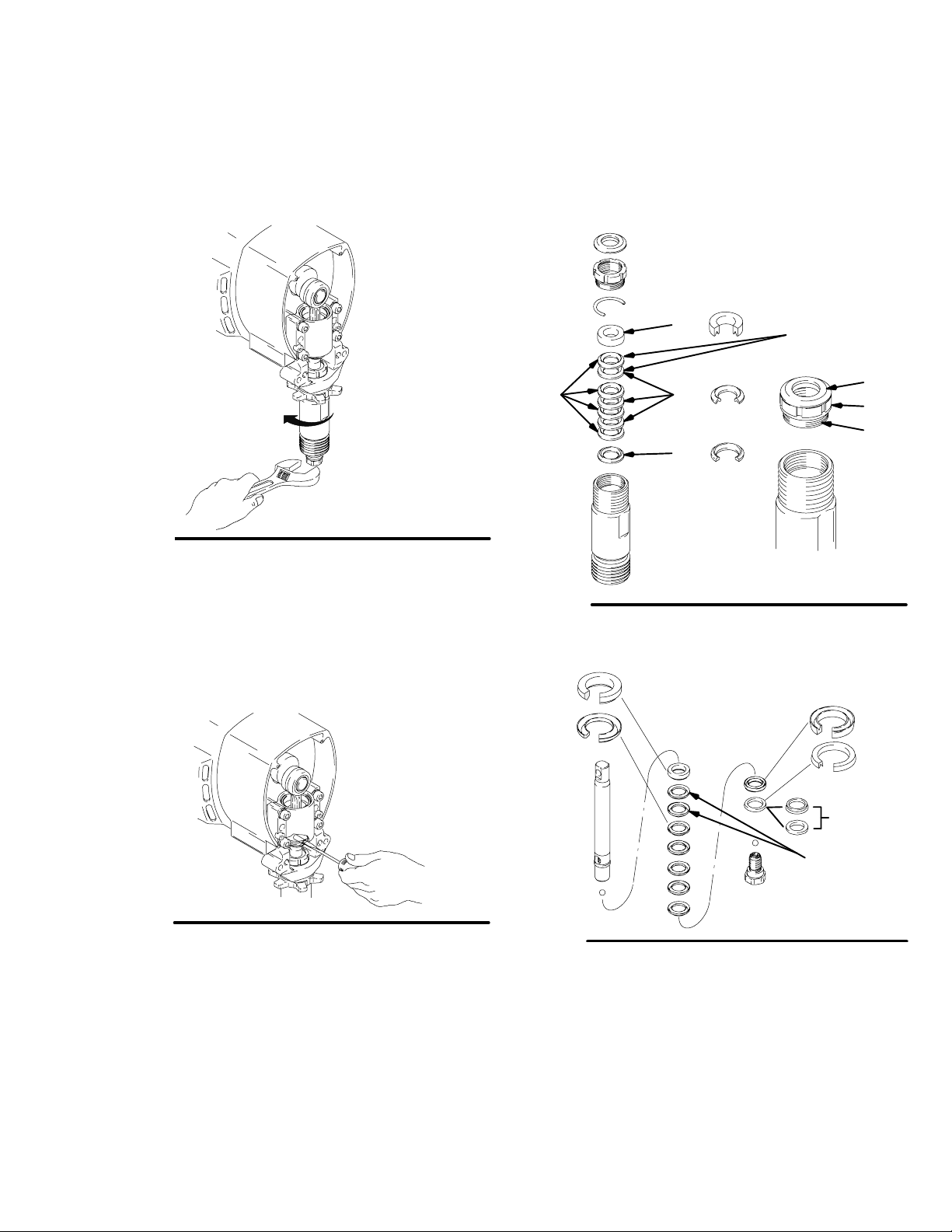

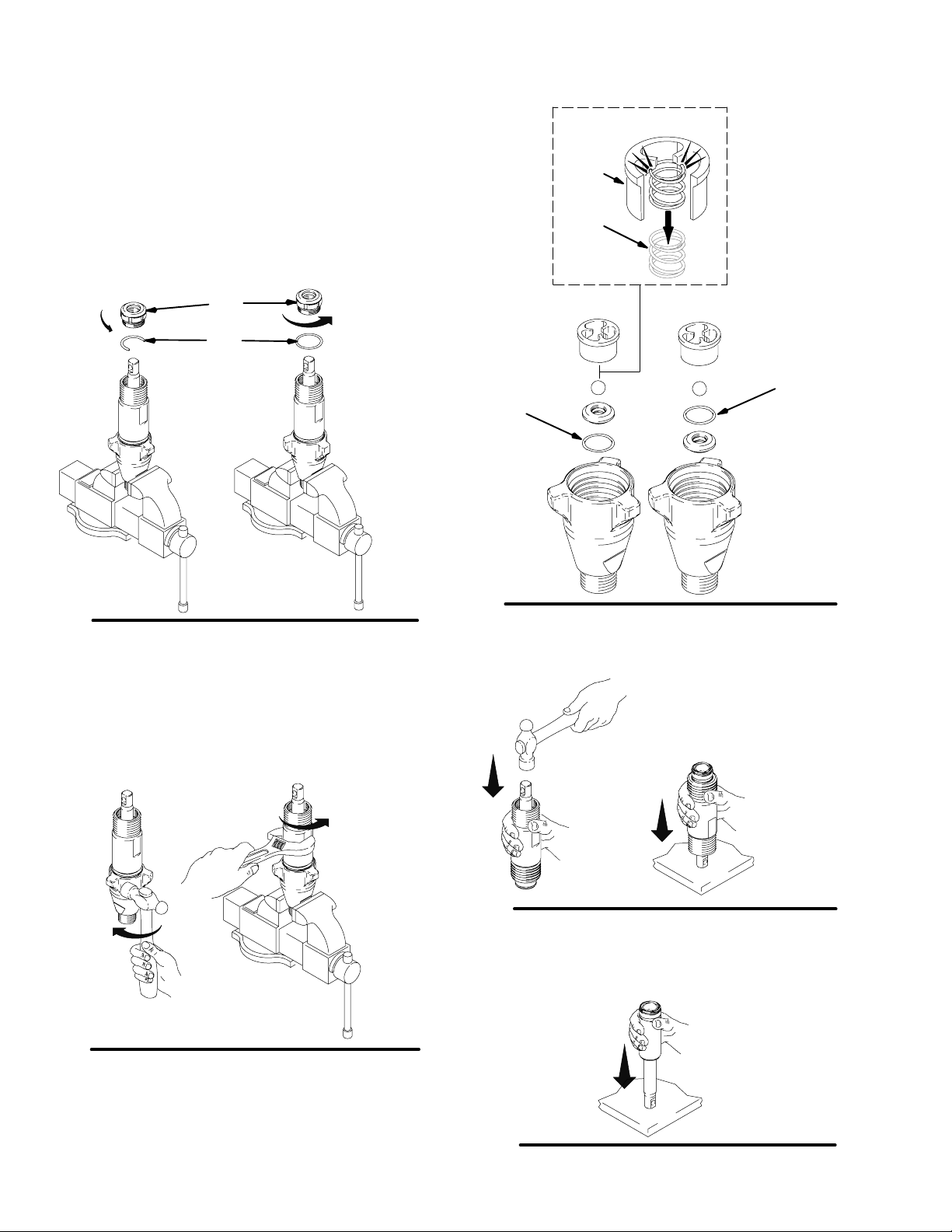

Fig. 1. Remove packing nut (202) and throat adjust-
ment spacer (228).
Fig. 1 7568A
228 (228, o-ring
on 246257)
ti2332a
202
Fig. 2. Unscrew intake valve from cylinder.
Fig. 2 7569A
Fig. 3. Disassemble intake valve. Clean and inspect.
O-ring (227) may require a pick for removal.
Fig. 3
227
227
(o-ring on top
244957 only)
(o-ring on
bottom
all except
244957)
7570e
236
215
245889 only

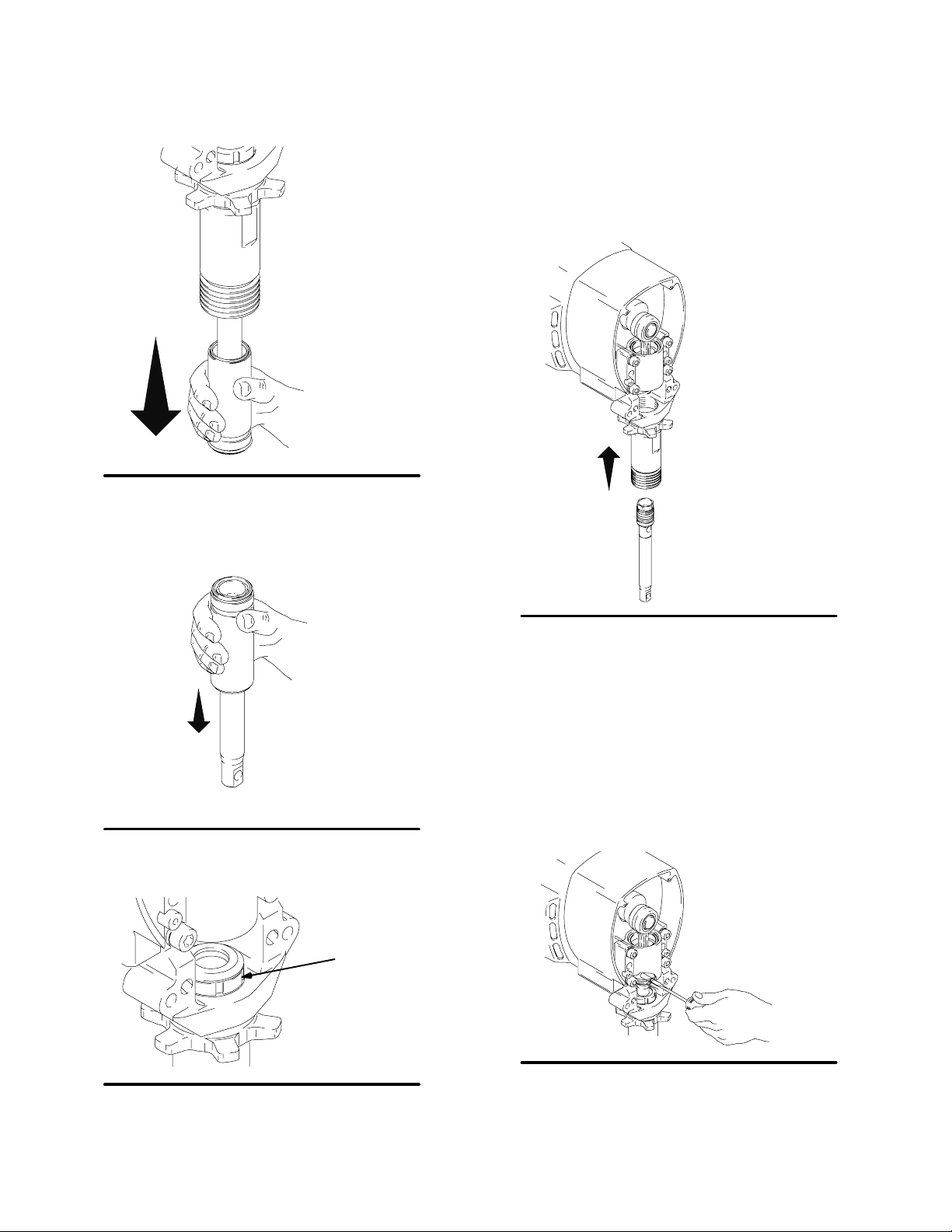

Fig. 4. Tap piston rod out of cylinder with a hammer or
flip over and tap piston rod out against a bench.
Fig. 4 7571a
Note: Sleeve may come out
of cylinder with piston rod.
Fig. 5. Remove piston rod from sleeve, or remove
sleeve from cylinder.
Fig. 5 7572A

5309277
Service
WARNING
COMPONENT RUPTURE HAZARD
Do not clean or wipe the piston valve
threads. Cleaning the piston valve
threads could destroy the special sealing
patch and cause the piston valve to come loose
during operation, causing pump bursting and
possible serious bodily injury.
Fig. 6. Unscrew piston valve from piston rod. Clean
and inspect parts. The piston has a special thread
locking/sealing patch. Do not remove the patch. The
patch allows four disassembly/assembly procedures
before it is necessary to apply Loctiteto the threads.
Fig. 6 7576A
Fig. 7. Remove packings and glands from piston rod.
Fig. 7
Not
used on
244197
used on
245889
ti3940a
Fig. 8. Remove throat packings and glands from cylin-
der. Discard throat packings and glands.
Fig. 8 7573B
Not
used on
244197
Assembling the pump
Fig. 9. Soak all leather packings in SAE 30W oil for 1
hour minimum prior to assembly. Stack male gland
(204) on piston rod. Alternately stack UHMWPE (208)
and leather (218) packings (note orientation) on piston
rod. Install female gland (217). Install piston guide
(216) (note orientation) on piston valve (210). The spe-
cial sealing patch on piston valve threads is good for
four repackings. Use Loctiteon piston valve threads
after four repackings.
Fig. 9
216
218 208204
217
210
Not
used on
244197
244954, 246257, 245889; 208 and 218 are 203
and 223, respectively
1 1
1
7574c
used on
245889

6 309277
Service

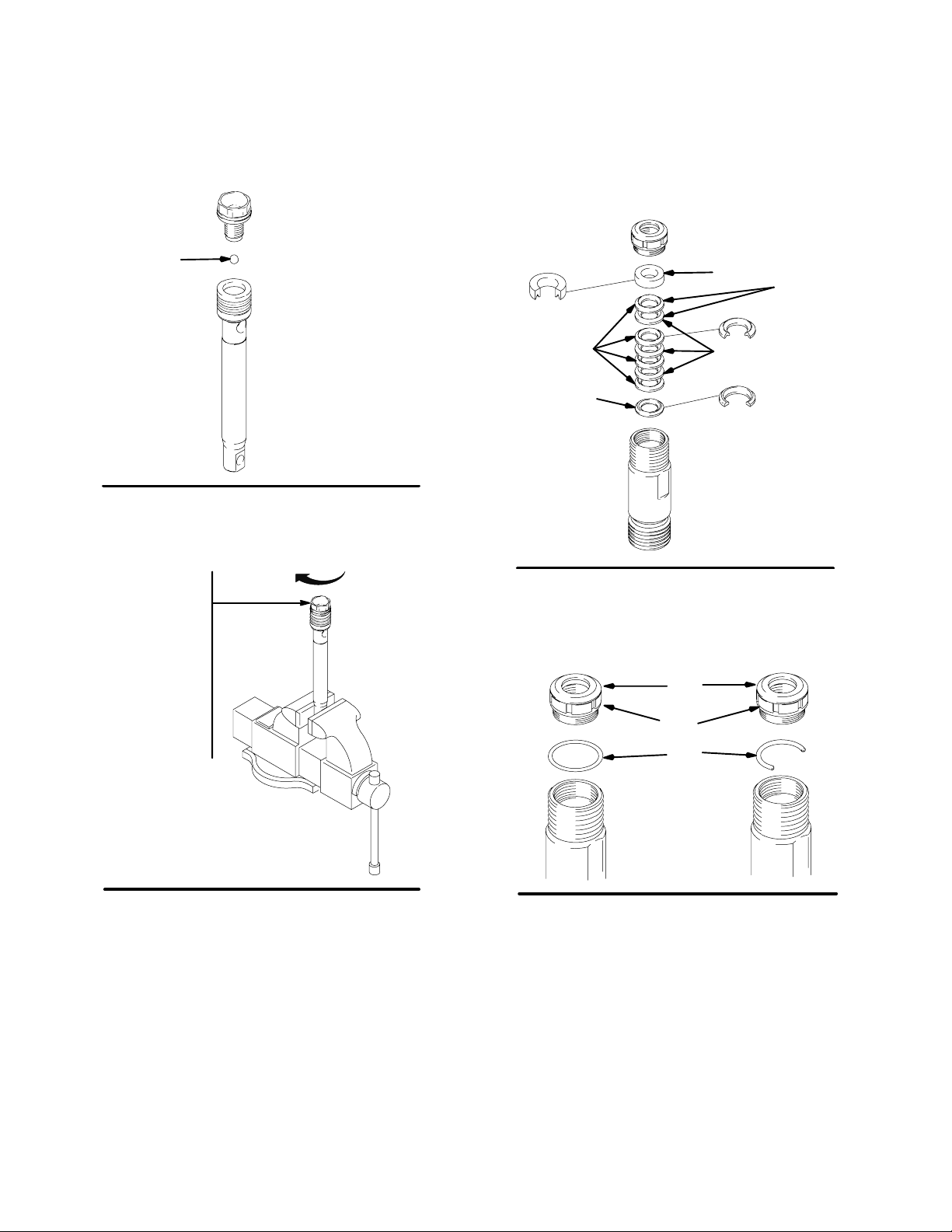

Fig. 10. Install ball (206) in piston rod. If Loctiteis ap-
plied to piston valve threads, ensure that none gets on
ball.
Fig. 10
206
7575A
Fig. 11. Tighten piston valve to piston rod as specified:
Fig. 11
Torque to 27 +/–3 ft-lb
(244197)
Torque to 55 +/–3 ft-lb
(244224, 244201,
244409, 245902, 245904)
Torque to 55 +/–3 ft-lb
(244954)
Torque to 55 +/–3 ft-lb
(244957, 246257, 245889)
7576A
Fig. 12. Soak all leather packings in SAE 30W oil for 1
hour minimum prior to assembly. Place male gland
(204) in cylinder. Alternately stack UHMWPE (203) and
leather packings (223) (note orientation). Place female
gland (224) in top of cylinder. Seat packings.
7573B
Fig. 12
223
224
203
204
Not
used on
244197
Fig. 13. Install seal (201) into packing nut (202). Install
throat adjustment spacer (228) onto packing nut.
Loosely install packing nut into cylinder.
Fig. 13
201
202
7581A
(228 o-ring
on 246257) 228
ti2333a

7309277
Service
Fig. 14. Grease piston packings and sleeve top edge.
Fig. 14 7578A
Fig. 15. Carefully slide piston assembly into top of
sleeve.
Fig. 15 7577A
Fig. 16. Grease top inch or two of piston rod that will
go through the cylinder throat packings.
7579A
Fig. 16
Fig. 17. Grease o-ring (221) and place on sleeve. Slide
sleeve/piston rod assembly into bottom of cylinder. Re-
place o-ring (207) if desired.
Note: O-ring (207) is not required for safe pump opera-
tion.
Fig. 17 7582A
221
207

8 309277
Service
Fig. 18. Reassemble intake valve with new o-ring
(227), seat (212) and ball (214). Seat may be flipped
over and used on other side. Clean seat thoroughly.
Snap intake spring (236) into place inside ball guide
(215).
Fig. 18
212
214
212
227
214
227 (o-ring
on to
p
244957
only
)
(o-ring on
bottom
all except
244957)
7570c
236
215
245889 only
215
215
Fig. 19. Install intake valve on cylinder. If a wrench is
used torque as follows:
67 +/–5 ft-lb (model 244197)
80 +/–5 ft–lb (models 244201, 244224, 244409,
245902, 245904)
175 +/–8 ft–lb (models 244954, 246257, 245889)
175 +/–8 ft–lb (model 244957)
If a wrench is not used, be sure intake valve is bot-
tomed out against cylinder.
Fig. 19 7569A
Fig. 20. Torque seal and packing nut (202) down onto
throat adjustment spacer (228) to 100 +/–10 in-lb (75
+/–5 in-lb for 246257).
Remove throat adjustment spacer (228) when pump
packings begin to leak after much use. Then tighten
packing nut down until leakage stops or lessens. This
allows approximately 100 gallons of additional opera-
tion before a repacking is required.
7568A
Fig. 20
202
228
(228 o-ring
on 246257)
ti2332a

9309277
Service
Repair When Pump Is On The Sprayer
WARNING
INJECTION HAZARD
To reduce the risk of serious injury,
whenever you are instructed to relieve
pressure, follow the Pressure Relief
Procedure on page 3.

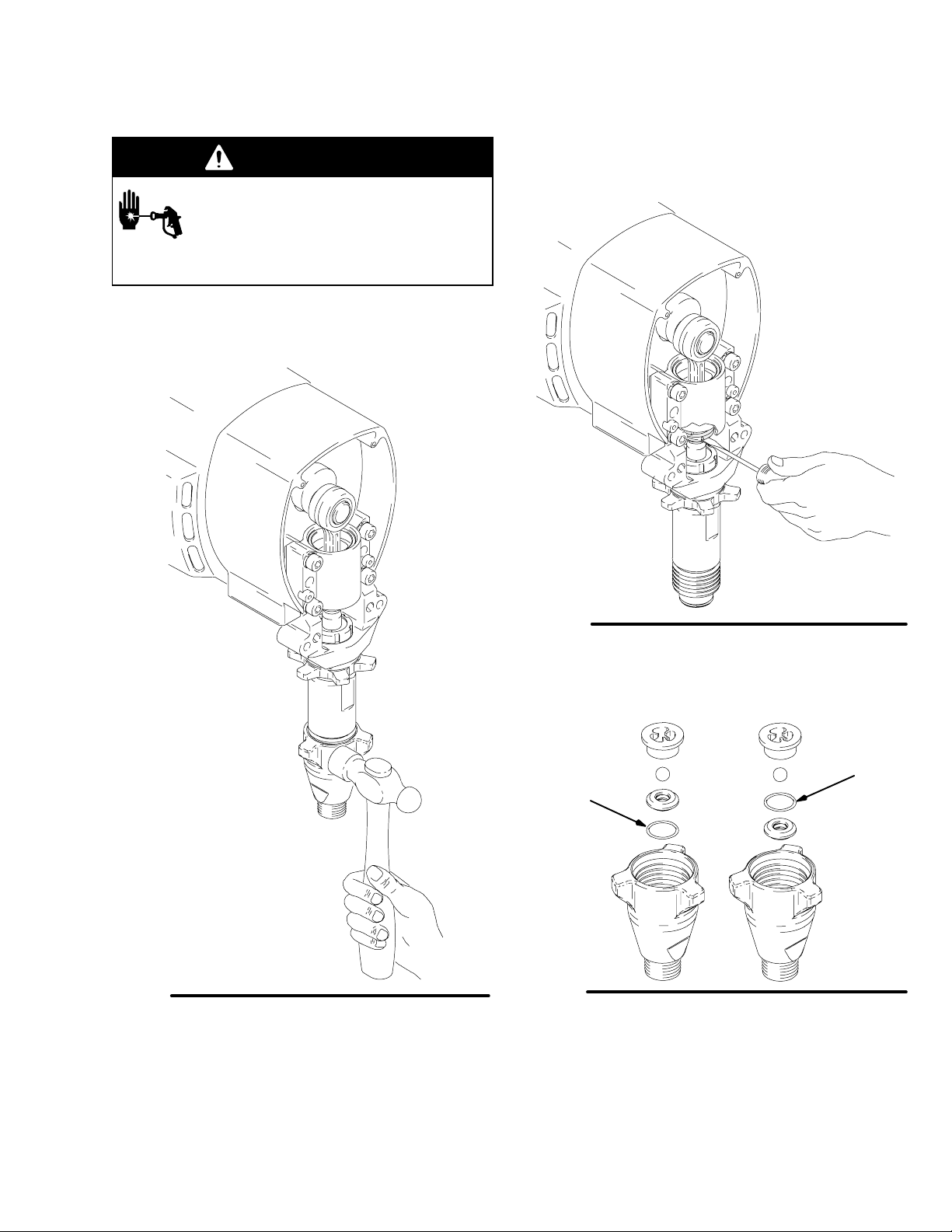

Fig. 1. Remove intake valve.
Fig. 1 7673A
Fig. 2. Use screwdriver to push retaining spring up and
push pin out.
Fig. 2
7674A
Fig. 3. Disassemble intake valve. Clean and inspect.
O-ring (227) may require a pick for removal.
Fig. 3 7570
A
227
227
(o-ring on top
244957
only)
(o-ring on
bottom
all except
244957)

10 309277
Service
Fig. 4. Remove piston rod and sleeve.
7746A
Fig. 4
Fig. 4. Invert piston rod and sleeve and pound on hard
surface until piston rod comes out of sleeve.
Fig. 5 7572A
Fig. 6. Remove packing nut (202)
7726A
Fig. 6
202
Fig. 7. Invert piston rod and insert into cylinder to force
out throat packings.
Fig. 7 7747A
Fig. 8. Insert piston rod into cylinder with pin hole up
and piston valve down. Insert pin into piston rod and
crank shaft.
Fig. 8
7675A

11309277
Service
Fig. 9. Remove piston valve from piston rod with a
wrench.
Fig. 9
7748A
Fig. 10. Remove pin and piston rod from cylinder.
Fig. 10 7675A
Fig. 11. Soak all leather packings in SAE 30W oil for 1
hour minimum prior to assembly. Stack male gland
(204). Alternately stack UHMWPE (203) and leather
(223) packings (note orientation). Install female gland
(224). Install seal (201) and packing nut (202) and
throat adjustment spacer (228).
7573B
Fig. 11
201
228
7581A
203
224
223
204
202
Not
used on
244197
Fig. 12. Remove packings and glands from piston rod.
Fig. 12
Not
used on
244197
used on
245889
ti3939a

12 309277
Service
Fig. 13. Soak all leather packings in SAE 30W oil for 1
hour minimum prior to assembly. Stack male gland
(219) on piston rod. Alternately stack UHMWPE (208)
and leather (218) packings (note orientation) on piston
rod. Install female gland (217). Install piston guide
(216) (note orientation) on piston valve (210). The spe-
cial sealing patch on piston valve threads is good for
four repackings. Use Loctiteon piston valve threads
after four repackings.
Fig. 13
210
218
216
208
219 217
Not
used on
244197
used on
245889
ti3941a
Fig. 10. Install ball (206) in piston rod. If Loctiteis ap-
plied to piston valve threads, ensure that none gets on
ball. Install piston valve on piston rod.
Torque as follows:
27 +/–3 ft-lb (for model 244197)
55 +/–3 ft-lb (for models 244224, 244201, 244409,
245902, 245904)
55 +/–3 ft-lb (for model 244954)
55 +/–3 ft-lb (for models 244957, 246257, 245889)
Fig. 14
206
7575A
Fig. 15. Grease piston packings and sleeve top edge.
Fig. 15 7578A
Fig. 16. Carefully slide piston assembly into top of
sleeve. Assure u-cup is not rolled over or damaged.
Fig. 16 7577A
Fig. 17. Grease top inch or two of piston rod that will
go through the cylinder throat packings.
7579A
Fig. 17

13309277
Service
Fig. 18. Grease o-ring (221) and place on sleeve. Slide
sleeve/piston rod assembly into bottom of cylinder. Re-
place o-ring (207) if desired.
Note: O-ring (207) is not required for safe pump opera-
tion.
Fig. 18
7750A221
207
Fig. 20. Torque seal and packing nut (202) down onto
throat adjustment spacer (228) to 100 +/–10 in-lb (75
+/–5 in-lb for 246257).
Remove throat adjustment spacer (228) when pump
packings begin to leak after much use. Then tighten
packing nut down until leakage stops or lessens. This
allows approximately 100 gallons of additional opera-
tion before a repacking is required.
7726A
Fig. 19
202
Fig. 20. Use screwdriver to push retaining spring up.
Fig. 20 Note: Make sure retaining ring falls into slot.
7674B
Fig. 21. Push in pin.
Fig. 21 7675A

14 309277
Service

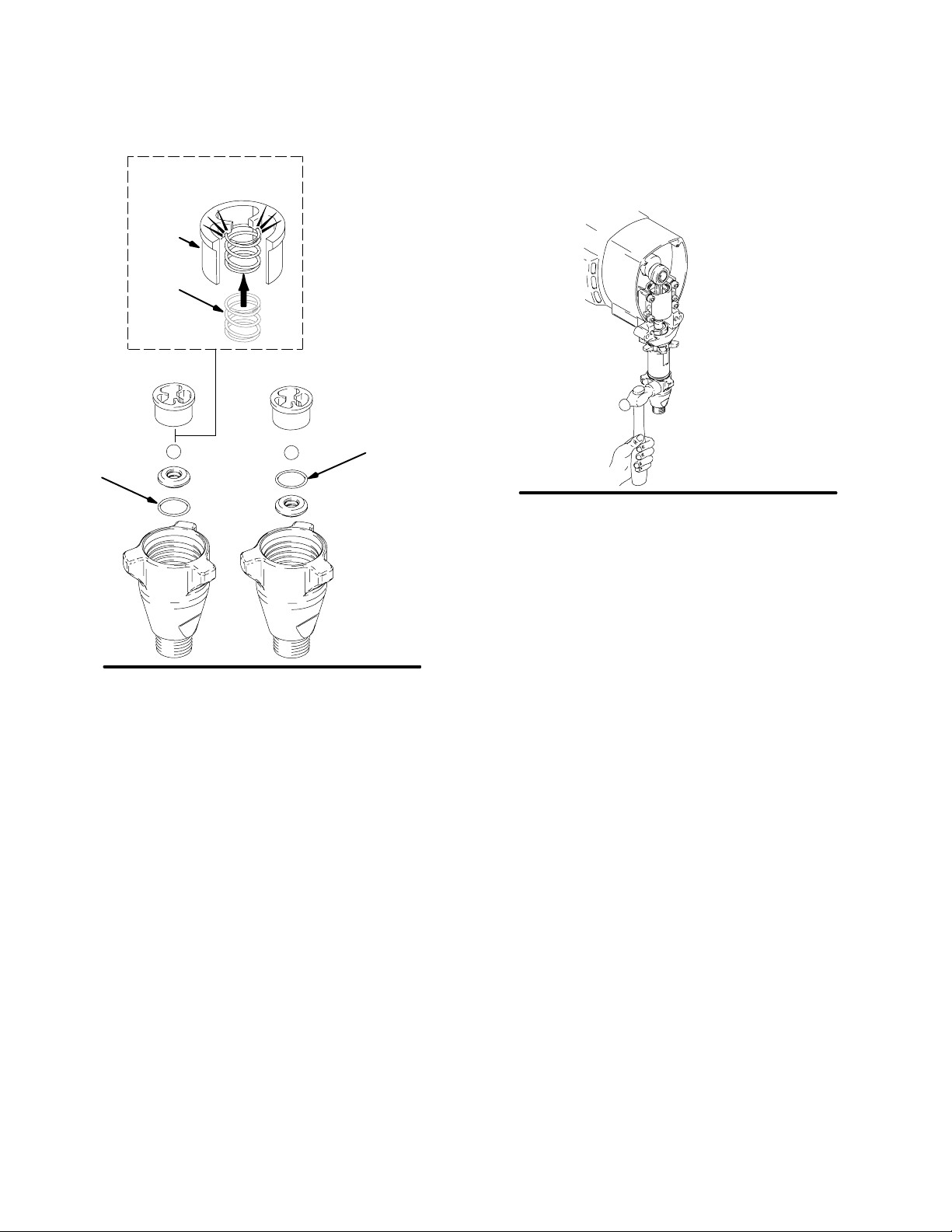

Fig. 22. Reassemble intake valve with new o-ring
(227), seat (212) and ball (214). Seat may be flipped
over and used on other side. Clean seat thoroughly.
Fig. 22
227
227
(o-ring on top
244957 only)
(o-ring on
bottom
all except
244957)
7570d
236
215
245889 only
Fig. 23. Install intake valve on cylinder. Torque:
67 +/–5 ft-lb (model 244197)
80 +/–5 ft-lb (model 244224, 244201, 244409,
245902, 245904)
175+/–8 ft-lb (model 244954, 246257, 245889,
244957)
Fig. 23 7678A

15309277
Service
Fig 24
223
203
218
V-Max UHWMPE, blue
208
217
213
214
204
221
224
205
219
215
212
227
222
202
221 216
206
210
Leather
Leather
201
Cross Sectional Reference
220
228
207
V-Max UHWMPE, blue
Pump 245889
Pump 244197
(227 on top of 212 on 244957)
1
1
3
2
(203 on 244954, 246257, 245889)2
(223 on 244954, 246257, 245889)3
See Parts
112589, 189587
Pump 245889
See Parts
15D158, 118600
7683C
Technical Data
Maximum working pressure
All except 244957 3600 psi (250 bar, 24.8 MPa). . . .
244957 4000 psi (276 bar, 27.6 MPa). . . . . . . . . . . . .
Fluid inlet size
244224, 244197, 245902 3/4 npt(m). . . . . . . . . . . . . . .
244201, 244954, 244409,
246257, 245889, 245904,
248736, 248971 1 npsm(m). . . . . . . . . . . . . . . . . . . . .
244957 1-1/4 npt(m). . . . . . . . . . . . . . . . . . . . . . . . . . . .
Fluid outlet size
244197 1/4 npt(f). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
244224, 244201, 244409,
244954, 246257,245902, 245904 3/8 npt(f). . . . . . . .
244957, 245889 (manifold) 1/2 npt(f). . . . . . . . . . . . . .
Wetted parts stainless steel, PTFE,. . . . . . . . . . . . . . . . .
leather, nylon, zinc-plated carbon steel,
tungsten carbide, chrome plating,
Delrin, polyethylene
NOTE: Delrin
Loctiteis a registered trademark of the
Loctite Company.

16 309277

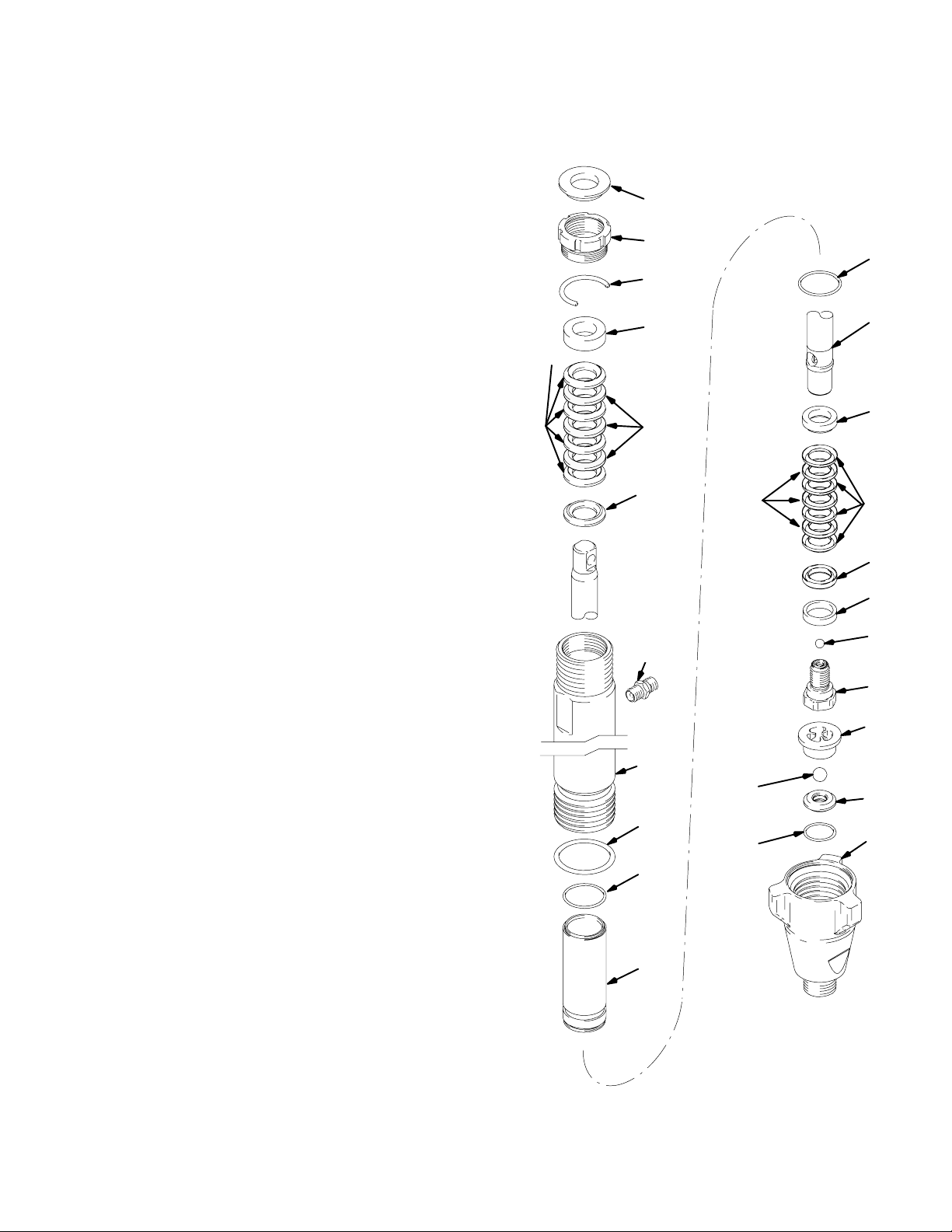

Parts – Pump 244197
Model 244197, Series A
Ref
No. Part No. Description Qty.
201 179810 SEAL, throat 1
202 193046 NUT, packing 1
203* 192692 V-PACKING, throat, 3
V-MaxUHMWPE, blue
204* 178942 GLAND, male, throat 1
205 243346 CYLINDER, pump
206* 105444 BALL, sst, 0.3125 in. 1
207* 114054 PACKING, o-ring 1
208* 192693 V-PACKING, piston 3
V-MaxUHMWPE, blue
210 239932 VALVE, piston 1
212† 239922 KIT, seat, carbide 1
includes 214 and 227
213 195892 VALVE, intake (foot)
214*† 105445 BALL, sst, 0.5000 in. 1
215 192624 GUIDE, ball 1
216* 196758 Guide, piston 1
217* 178969 GLAND, female, piston 1
218* 178939 V-PACKING, leather, piston 2
219* 196880 GLAND, male 1
220 240521 SLEEVE, cylinder 1
221* 108526 O-RING, PTFE 2
222** 244216 ROD, piston 1
223* 178940 V–PACKING, leather, throat 2
224* 178943 GLAND, female 1
225 196176 ADAPTER, nipple, 1
227*† 107079 PACKING, o-ring 1
228 192714 SPACER, throat, nut 1
* These parts are also included in Repair Kit 244196,
which may be purchased separately.
†These parts are also included in Carbide Seat Kit
239922, which may be purchased separately.
*223
216*
201
202
224*
203*
204*
205
221*
220
222*
*
206
*
219*
218*
217*
210
215
212†
213
†*214
*208
221*
207* †*227
228
TI0716c
225

17309277

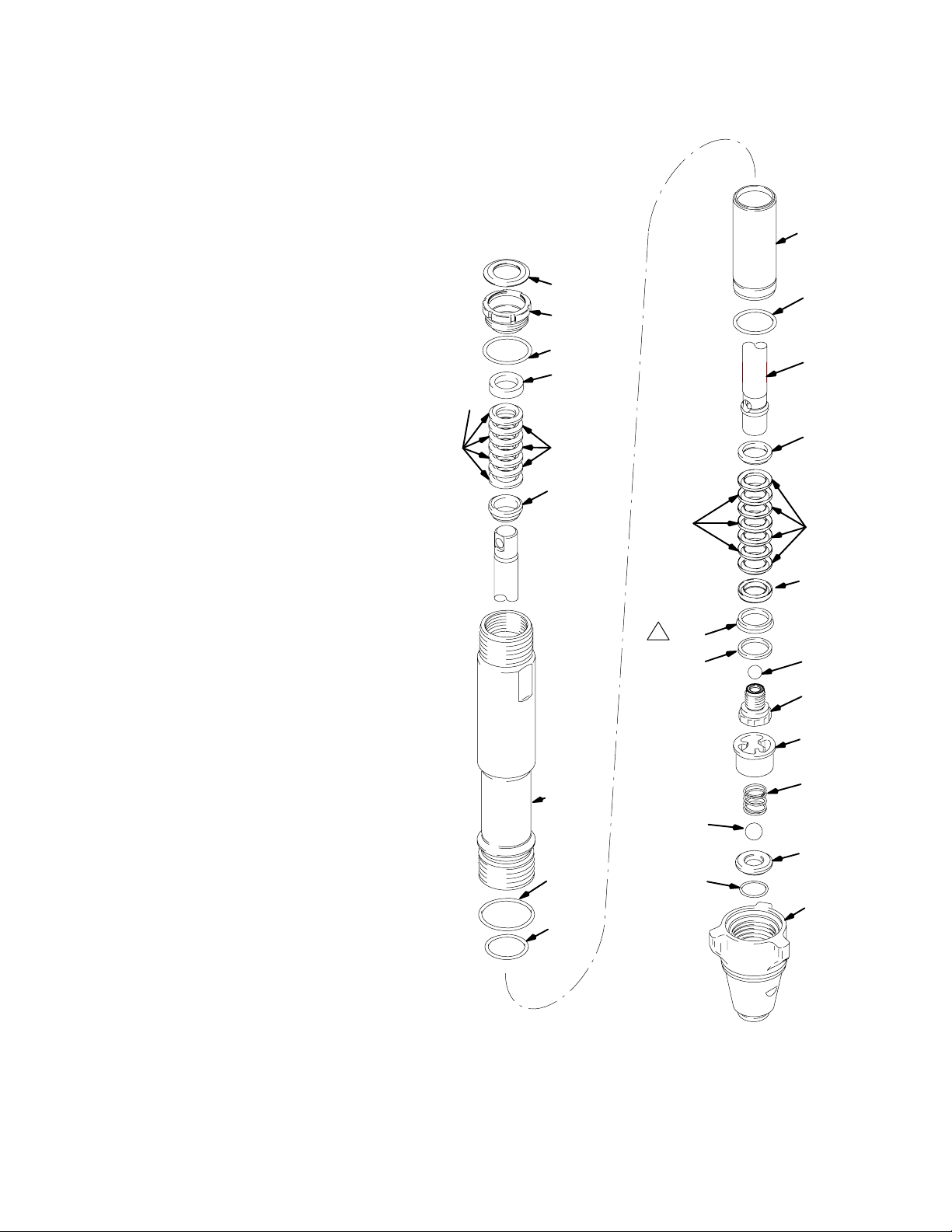

Parts – Pumps 244224, 244201, 244409,
245902, 245904
Models 244224, Series A; 244201, Series A; 244409, Series A; 245902, Series A; 245904, Series A
Ref
No. Part No. Description Qty.
201 183171 PLUG 1
202 193032 NUT, packing 1
203* 193124 V-PACKING 4
V-MaxUHMWPE, blue
204* 183176 GLAND, packing, male, throat 1
205 CYLINDER, pump
196754 Pump 244201, 244409, 245904 1
243347 Pump 244224 1
206* 101947 BALL, sst, 0.375 in. 1
Pump 244224, 244201
116327 BALL, ceramic, 0.375 in. 1
Pump 244409, 245904
207* 106556 PACKING, o-ring 1
208* 193125 V-PACKING, piston 4
V-MaxUHMWPE, blue
210 240150 VALVE, piston 1
212† 244199 SEAT, carbide (196866) 1
Pump 244224, 244201
includes 214 and 227
244571 SEAT, carbide (197470) 1
Pump 244409, 245904
includes 214 and 227
213 HOUSING, intake (foot)
196753 Pump 244201, 244409, 245904 1
195894 Pump 244224 1
214*† 102972 BALL, sst, 0.875 in. 1
Pump 244224, 244201
111453 BALL, ceramic, 0.75 in. 1
Pump 244409, 245904
215 GUIDE, ball
196967 Pump 244224 1
193027 Pump 244201, 244409, 245904 1
216* 196757 GUIDE, piston 1
217* 183185 GLAND, female, piston 1
218* 183174 V-PACKING, leather, piston 3
219* 183178 GLAND, packing, male 1
220 240525 SLEEVE, cylinder 1
221* 107098 PACKING, o–ring 2
222 ROD, piston
240517 Pump 245902 1
241285 Pump 245904 1
244217 Pump 244224 1
244218 Pump 244201, 244409 1
223* 183175 V-PACKING, leather, throat 3
224* 183177 GLAND, packing, female 1
225 162485 NIPPLE, adapter, 3/8 npt x 3/8 npsm 1
227*† 108526 PACKING, o-ring 1
228 193127 SPACER, nut 1
* These parts are also included in Repair Kit 244198 (pump
244224, 244201, 245902) or Repair Kit 244200 (pump
244409, 245904), which may be purchased separately.
†These parts are also included in Carbide Seat Kit 244199
(pump 244224, 244201, 245902) or Carbide Seat Kit
244571 (pump 244409, 245904), which may be
purchased separately.
*203
216*
201
202
224*
223*
204*
205
221*
220
222‡
206*
219*
208*
217*
210
215
212†
213
†*214
*218
221*
207*
†*227
228
TI0717d
225

203*
216*
201
202
224*
223*
204*
205
206*
236
212
†
213
†*214
221*
†*227
228
221*
220
207
*
203*
223*
219*
222‡
210
217*
TI1308d
215
225
TI1308c
18 309277

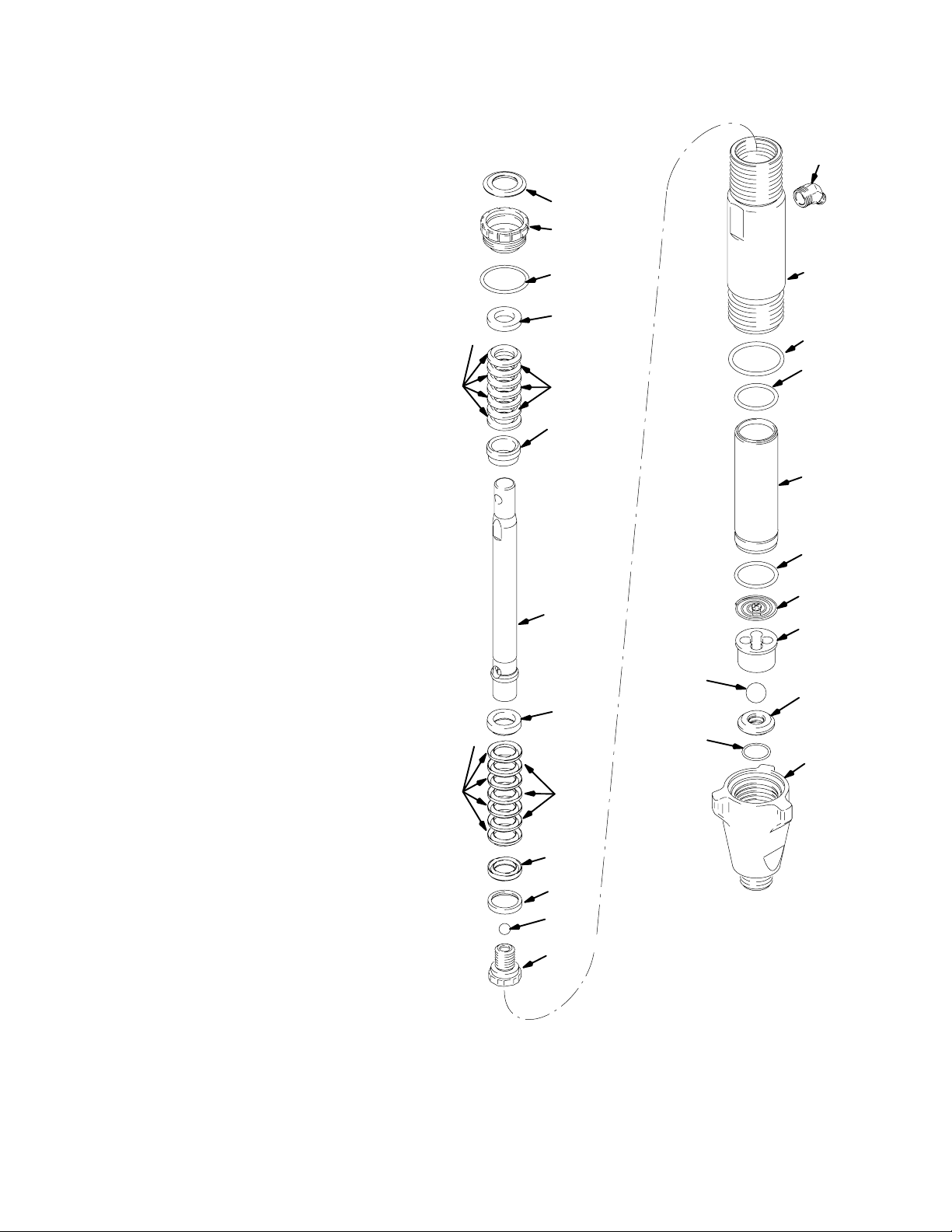

Parts – Pump 244954
Model 244954, Series A
Ref
No. Part No. Description Qty.
201 112590 PLUG 1
202 189589 NUT, packing 1
203* 198701 V-PACKING 8
V-MaxUHMWPE, blue
204* 198768 GLAND, packing, male, brass 1
205 244974 CYLINDER, pump 1
206* 107203 BALL, sst, 0.5625 in. 1
207* 107306 PACKING, o-ring 1
210 240580 VALVE, piston 1
212† 240918 SEAT, carbide 1
includes 214 and 227
213 198121 HOUSING, intake (foot) 1
214*† 107167 BALL, sst, 1.000 in. 1
215 198505 GUIDE, ball 1
216* 198303 GUIDE, piston, plastic 1
217* 198765 GLAND, female, piston, steel 1
219 189585 GLAND, packing, male, steel 1
220 244975 SLEEVE, cylinder 1
221* 108822 PACKING, o-ring 2
222 287141 ROD, piston 1
223* 198718 V-PACKING, leather 6
224* 194175 GLAND, packing, female, brass 1
225 116756 NIPPLE, elbow, 451
227*† 107098 PACKING, o-ring 1
228 108832 SPACER, throat adjustment o-ring 1
236 233698 SPRING, intake 1
* These parts are also included in Repair Kit 246341,
which may be purchased separately.
†These parts are also included in Carbide Seat Kit
240918, which may be purchased separately.

*203
*216
201
202
224*
223*
204*
205
221*
220
222‡
206*
219*
218*
217*
210
215
212†
213
†*214
*208
207*
†*227
228
TI1317b
221*
225
19309277

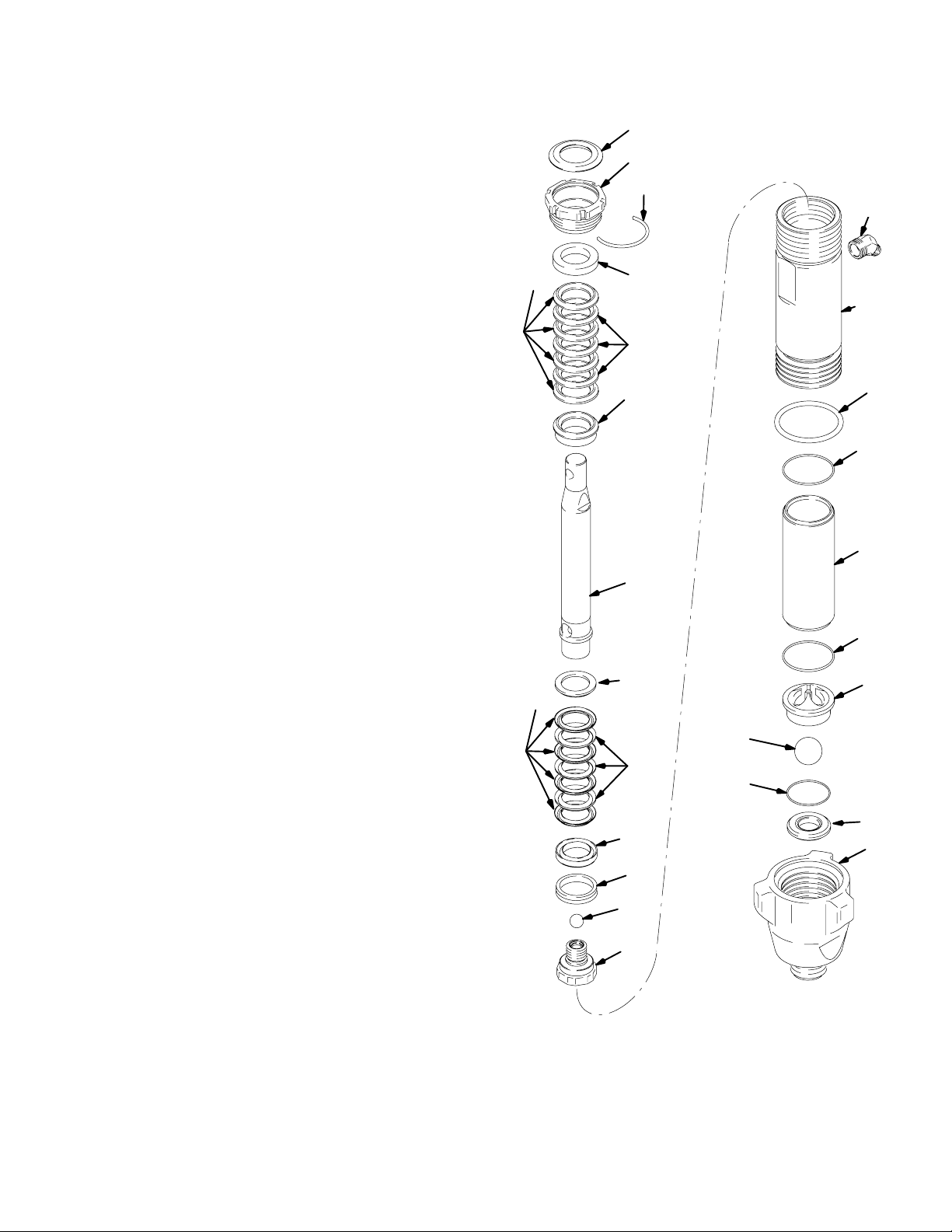

Parts – Pump 244957
Model 244957, Series A
Ref
No. Part No. Description Qty.
201 196362 PLUG 1
202 196361 NUT, packing 1
203* 197468 V-PACKING (Throat) 4
V-MaxUHMWPE, blue
204 * 196372 GLAND, packing, male 2
205 244977 CYLINDER, pump 1
206* 101822 BALL, sst, 0.625 in. 1
207* 116612 PACKING, o-ring 1
208* 197469 V-PACKING (Piston) 4
V-MaxUHMWPE, blue
210 244454 VALVE, piston 1
212† 244960 SEAT, carbide 1
includes 214 and 227
213 196357 HOUSING, intake (foot) 1
214*† 102973 BALL, sst, 1.25 in. 1
215 196363 GUIDE, ball 1
216* 196928 GUIDE, piston 1
217* 197354 GLAND, female, piston 1
218* 184305 V-PACKING, leather, piston 3
219* 196925 GLAND, packing, male 1
220 287557 SLEEVE, cylinder 1
221* 106259 PACKING, o–ring 2
222 287558 ROD, piston 1
223* 184304 V-PACKING, leather, throat 3
224* 197368 GLAND, packing, female 1
225 116755 NIPPLE, elbow, 451
227*† 104537 PACKING, o-ring 1
228 197864 SPACER, nut 1
* These parts are also included in Repair Kit 244958,
which may be purchased separately.
†These parts are also included in Carbide Seat Kit
244960, which may be purchased separately.

*216
201
202
224*
223*
204*
205
221*
220
222
206
219*
203*
217*
210
215
212†
213
†214
*223
221*
207* †*227
228
1
*203
ti2086c
236
237
20 309277
Parts – Pump 245889
Model 245889, Series B
Ref
No. Part No. Description Qty.
201 112590 PLUG 1
202 189589 NUT, packing 1
203* 198701 V-PACKING 8
V-MaxUHMWPE, blue
204* 198768 GLAND, male, throat, brass 1
205 245888 CYLINDER, pump 1
206 118601 BALL, ceramic, 0.5625 in. 1
207* 107306 PACKING, o-ring 1
210 240580 VALVE, piston 1
212† 245885 SEAT, carbide 1
includes 214 and 227
213 15A303 HOUSING, intake (foot) 1
214† 118602 BALL, ceramic, 0.875 in. 1
215 15D158 GUIDE, ball 1
216* 112589 SEAL, U-cup 1
217* 198765 GLAND, female, piston, steel 1
219 189585 GLAND, packing, male, steel 1
220 240921 SLEEVE, cylinder 1
221* 108822 PACKING, o-ring 2
222 245886 ROD, piston 1
223* 198718 V-PACKING, leather, piston 6
224* 194175 GLAND, packing, female, brass 1
227*† 107098 PACKING, o-ring 1
228 108832 SPACER, throat adjustment o-ring 1
236 118600 SPRING, compression 1
237 189587 WASHER, back-up 1
* These parts are also included in Repair Kit 245819,
which may be purchased separately.
†These parts are also included in Carbide Seat Kit
245885, which may be purchased separately.
