Gram 16KE 662-1 User manual

EN INSTRUCTION MANUAL
Type
16KE 662-1
16KE 662-1 B

2
DEAR CUSTOMER,
The cooker is exceptionally easy to use and extremely ecient. After reading the instruction
manual, operating the cooker will be easy.
Before being packaged and leaving the manufacturer, the cooker was thoroughly checked
with regard to safety and functionality.
Before using the appliance, please read the instruction manual carefully.
By following these instructions carefully you will be able to avoid any problems in using the
appliance.
It is important to keep the instruction manual and store it in a safe place so that it can be
consulted at any time.
It is necessary to follow the instructions in the manual carefully in order to avoid possible
accidents.
Caution!
Do not use the cooker until you have read this instruction manual.
The cooker is intended for household use only.
The manufacturer reserves the right to introduce changes which do not aect the
operation of the appliance.

3
TABLE OF CONTENTS
Safety instructions ............................................................................................................. 4
Description of the appliance ............................................................................................. 9
Installation..........................................................................................................................11
Operation........................................................................................................................... 13
Baking in the oven – practical hints ............................................................................... 23
Test dishes............................................................................................................................26
Cleaning and maintenance.............................................................................................. 28
Technical data................................................................................................................... 33

4
SAFETY INSTRUCTIONS
Warning: The appliance and its accessible parts become hot
during use. Care should be taken to avoid touching heating
elements. Children less than 8 years of age shall be kept
away unless continuously supervised.
This appliance can be used by children aged from 8 years
and above and persons with reduced physical, sensory or
mental capabilities or lack of experience and knowledge if
they have been given supervision or instruction concerning
use of the appliance in a safe way and understand the ha-
zards involved. Children shall not play with the appliance.
Cleaning and user maintenance shall not be made by chil-
dren without supervision.
Warning: Unattended cooking on a hob with fat or oil can
be dangerous and may result in re.
NEVER try to extinguish a re with water, but switch o󰀨
the appliance and then cover ame e.g. with a lid or a re
blanket.
Warning: Danger of re: do not store items on the cooking
surfaces.
Warning: If the surface is cracked, switch o󰀨 the appliance
to avoid the possibillity of electric shock.
During use the appliance becomes hot. Care should be taken
to avoid touching heating elements inside the oven.
Accessible parts may become hot during use. Young children
should be kept away.

5
SAFETY INSTRUCTIONS
Warning: Do not use harsh abrasive cleaners or sharp metal
scrapers to clean the oven door glass since they can scratch
the surface, which may result in shattering of the glass.
Warning: Ensure that the appliance is switched o󰀨 before re-
placing the lamp to avoid the possibillity of electric shock.
You should not use steam cleaning devices to clean the
appliance.
Danger of burns! Hot steam may escape when you open the
oven door. Be careful when you open the oven door during
or after cooking. Do NOT lean over the door when you open
it. Please note that depending on the temperature the steam
can be invisible.
Use only original temperature probe supplied with the ap-
pliance
Caution: The cooking process has to be supervised. A short
term cooking process has to be supervised continuously.
Warning: Use only hob guards designed by manufacturer of
the cooking appliance or indicated by the manufacturer of
the appliance in the instructions for use as suitable or hob
guards incorporated in the appliance. The use of inappro-
priate guards can cause accidents.

6
SAFETY INSTRUCTIONS
Always keep children away from the cooker.
While in operation direct contact with the cooker may cause burns!
Ensure that small items of household equipment, including connection leads, do not touch
the hot oven or the hob as the insulation material of this equipment is usually not resistant
to high temperatures.
 Do not leave the cooker unattended when frying. Oils and fats may catch re due to
overheating or boiling over.
Do not allow the hob to get soiled and prevent liquids from boiling over onto the surface
of the hob. This refers in particular to sugar which can react with the ceramic hob and
cause irreversible damage. Any spillages should be cleaned up as they happen.
Do not place pans with a wet bottom on the warmed up heating zones as this can cause
irreversible changes to the hob (irremovable stains).
 Use pans that are specied by the manufacturer as designed for use with a ceramic
hob.
If any defects, deep scratches, cracks or chips appear on the ceramic hob, stop using the
cooker immediately and contact the service centre.
Do not switch on the hob until a pan has been placed on it.
Do not use pans with sharp edges that may cause damage to the ceramic hob.
Do not look directly at the halogen heating zones (not covered by a pan) when they are
warming up.
Do not put pans weighing over 15 kg on the opened door of the oven and pans over 25
kg on the hob.
Do not use harsh cleaning agents or sharp metal objects to clean the door as they can
scratch the surface, which could then result in the glass cracking.
 Do not use the cooker in the event of a technical fault. Any faults must be xed by an
appropriately qualied and authorised person.
In the event of any incident caused by a technical fault, disconnect the power and report
the fault to the service centre to be repaired.
The rules and provisions contained in this instruction manual should be strictly observed.
Do not allow anybody who is not familiar with the contents of this instruction manual to
operate the cooker.
The appliance has been designed only for cooking. Any other use (for example for heat-
ing) does not comply with its operating prole and may cause danger.

7
Using energy in a respon-
sible way not only saves
money but also helps the
environment. So let’s save
energy! And this is how you
can do it:
Use proper pans for cooking.
Pans with thick, at bases can save up to 1/3
on electric energy. Remember to cover pans
if possible otherwise you will use four times
as much energy!
Match the size of the saucepan to the
surface of the heating zone.
A saucepan should never be smaller than a
heating zone.
Ensure heating zones and pan bases
are clean.
Soils can prevent heat transfer – and repeat-
edly burnt–on spillages can often only be
removed by products which cause damage
to the environment.
Do not uncover the pan too often
(a watched pot never boils!).
Do not open the oven door unnecessarily
often.
Switch o󰀨 the oven in good time and make
use of residual heat.
For long cooking times, switch o󰀨 heating
zones 5 to 10 minutes before nishing cook-
ing. This saves up to 20% on energy.
Only use the oven when cooking larger
dishes.
Meat of up to 1 kg can be prepared more
economically in a pan on the cooker hob.
HOW TO SAVE ENERGY
Make use of residual heat from the
oven.
If the cooking time is greater than 40 minutes
switch o󰀨 the oven 10 minutes before the
end time.
Important! When using the timer,
set appropriately shorter cooking
times according to the dish being
prepared.
Only grill with the ultrafan after closing
the oven door.
Make sure the oven door is properly
closed.
Heat can leak through spillages on the door
seals. Clean up any spillages immediately.
Do not install the cooker in the direct
vicinity of refrigerators/freezers.
Otherwise energy consumption increases
unnecessarily.

8
During transportation, protec-
tive packaging was used to
protect the appliance against
any damage. After unpack-
ing, please dispose of all
elements of packaging in a
way that will not cause dam-
age to the environment.
All materials used for packaging the appli-
ance are environmentally friendly; they are
100% recyclable and are marked with the
appropriate symbol.
Caution! During unpacking, the packag-
ing materials (polythene bags, polystyrene
pieces, etc.) should be kept out of reach of
children.
UNPACKING DISPOSAL OF THE APPLIANCE
Old appliances should not sim-
ply be disposed of with normal
household waste, but should
be delivered to a collection and
recycling centre for electric and
electronic equipment. A symbol
shown on the product, the in-
struction manual or the packag-
ing shows that it is suitable for recycling.
Materials used inside the appliance are
recyclable and are labelled with information
concerning this. By recycling materials or
other parts from used devices you are making
a signicant contribution to the protection of
our environment.
Information on appropriate disposal centres
for used devices can be provided by your
local authority.

9
DESCRIPTION OF THE APPLIANCE
1Temperature control knob
2Oven function selection knob
3, 4, 5, 6 Heating zone control knobs
7Temperatureregulatorsignal light
8Oven operation signal light
9 Electronic programmer
10 Oven door handle
11 Drawer
12
8
7
10
11
5, 6
3, 4
9

10
Temperature probe

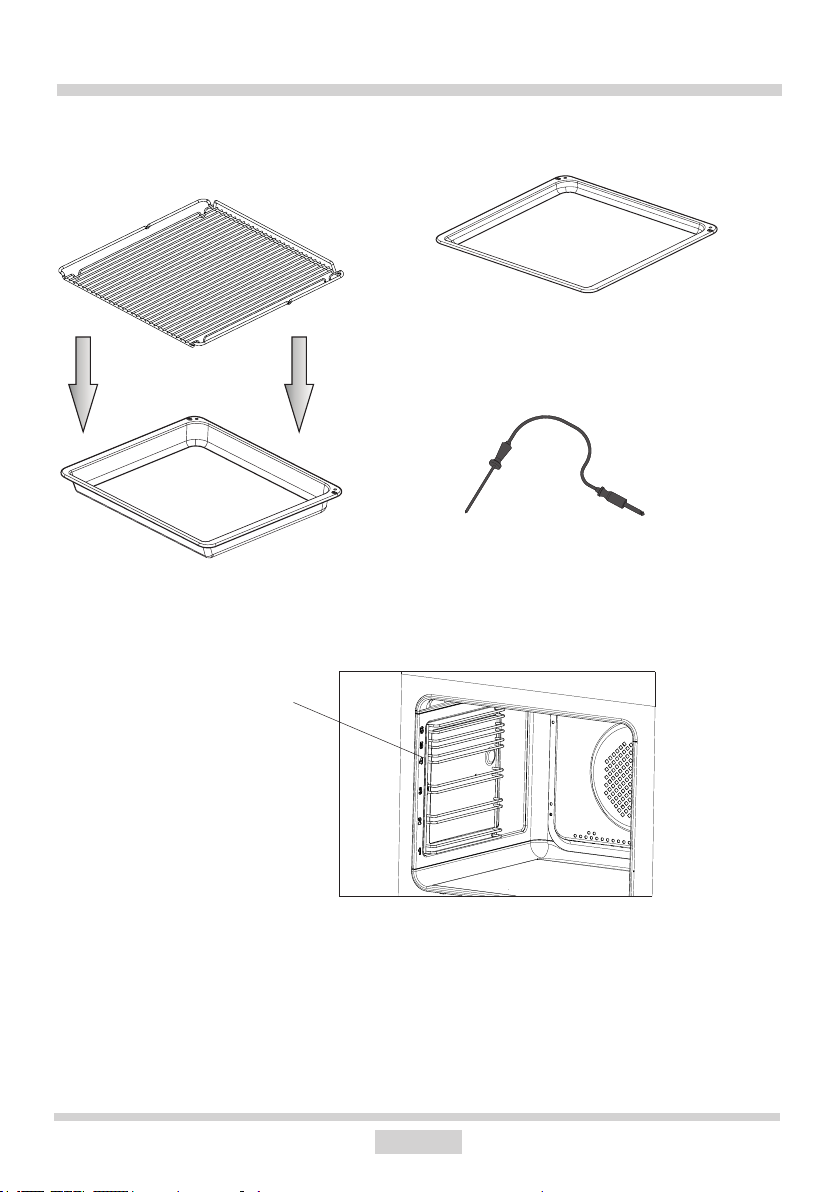

SPECIFICATIONS OF THE APPLIANCE
Cooker ttings:
Grill grate
(drying rack)
Roasting tray
Baking tray
Sideracks

11
INSTALLATION
Installing the cooker
The kitchen should be dry and airy and
have e󰀨ective ventilation according to the
existing technical provisions.
The room should be equipped with a ven-
tilation system that pipes away exhaust
fumes created during combustion. This
system should consist of a ventilation
grid or hood. Hoods should be installed
according to the manufacturer’s instruc-
tions. The cooker should be placed so
as to ensure free access to all control
elements.
 Coating or veneer used on tted furniture
must be applied with a heat resistant
adhesive (100°C). This prevents surface
deformation or detachment of the coat-
ing. If you are unsure of your furniture’s
heat resistance, you should leave ap-
proximately 2 cm of free space around
the cooker. The wall behind the cooker
should be resistant to high temperatures.
During operation, its back side can warm
up to around 50°C above the ambient
temperature.
The cooker should stand on a hard, even
oor (do not put it on a base).
Before you start using the cooker it should
be leveled, which is particularly important
for fat distribution in a frying pan. To this
purpose, adjustable feet are accessible
after removal of the drawer. The adjust-
ment range is +/- 5 mm.
Mounting the overturning prevention
bracket.
The bracket is mounted to prevent overtur-
ning of the cooker. When the overturning
prevention bracket is installed, a child who
climbs on the oven door will not overturn the
appliance.
A
B
Cooker, height 900 mm
A=104 mm
B=147 mm

12
INSTALLATION
2
1
Installation must only be carried out by an authorised electrician. This will ensure that the
applicable regulations in the “Heavy Current Regulation” are complied with.
The installation must comply with any special requirements issued by the local electricity
supply company.
The cooker must be connected to a separate power supply circuit.
The connection must only be established in accordance with the circuit diagrams which
can be found on the cover to the screw terminals on the rear plate.
NB: This product uses 16A.
When connecting or replacing the power cable, at least one HO5 VVF-5G2.5 conduit or
equivalent must be used.
NB: To ensure compliance with the applicable safety requirements, a switch must be tted
which isolates all terminals and has a contact distance of at least 3 mm. (Can be a master
switch).
1
2
3
5
4
L1 L2
PE N
1
2
3
5
4
PE
L1
N
1
2
3
5
4
L1 L2
PE N
L3
400V 3N~ 50Hz400V 2N~ 50Hz230V 1N~ 50Hz
Connecting the cooker to the mains
1
2
3
3
4
5

13
Remove packaging, empty the drawer,
clean the interior of the oven and the hob.
Take out and wash the oven ttings with
warm water and a little washing–up liquid.
Switch on the ventillation in the room or
open a window.
Heat the oven (to a temperature of 250°C,
for approx. 30 min.), remove any stains and
wash carefully; the heating zones of the hob
should be heated for around 4 min. without
a pan.
Before rst use
OPERATION

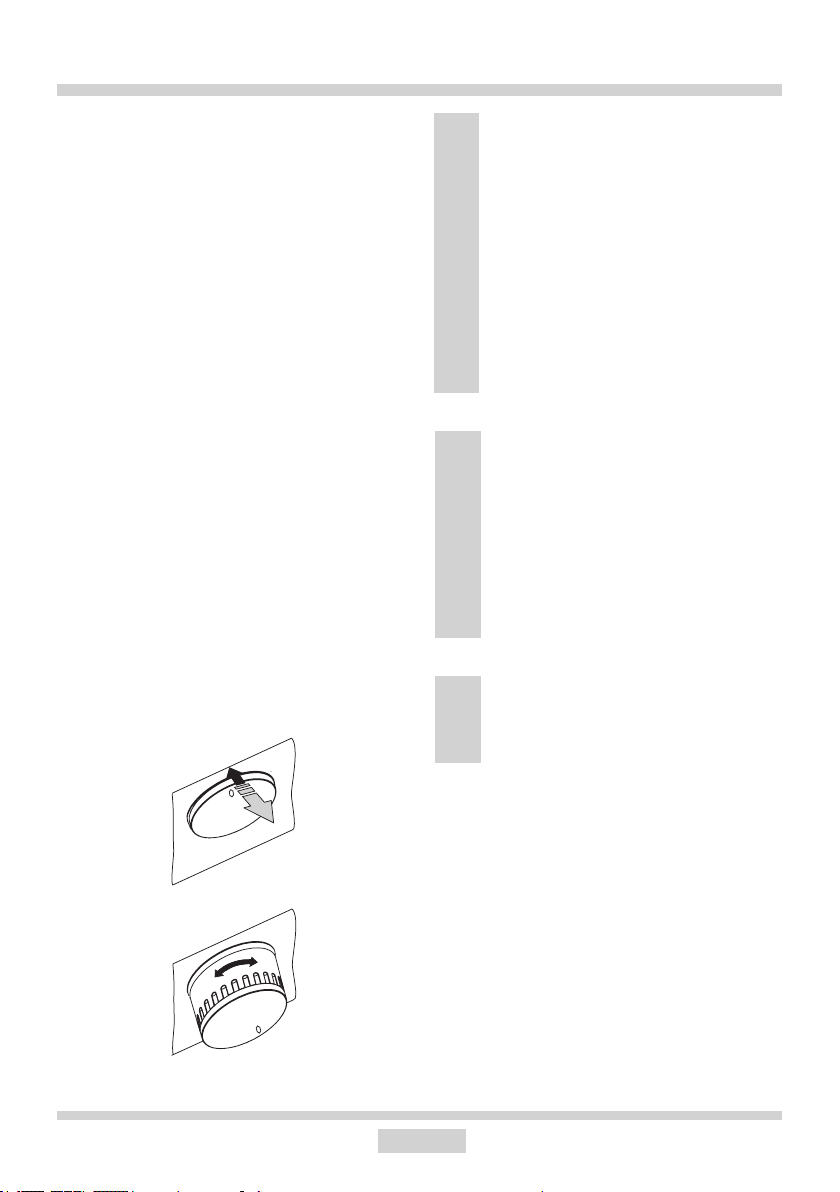

The oven is equipped with a retractable
knobs. In order to select a function do the
following:
1. Gently press and release a knob which
will pop out,
2. Turn the oven functions selection knob to
the desired function.
Symbols printed around the knob indicate
available oven functions.
1
2
Important!
The inside of the oven should only be
washed with warm water and a small
amount of washing–up liquid.
The electronic prgrammer Tts is
equipped with electronic sensors which
are switched on by touching or press-
ing the sensor surface for at least one
second.
Each sensor reaction is conrmed by
the beep.Keep the sensor surface clean
at all times.
Important!
In ovens equipped with the electronic
programmer Tts, the time “0.00” will
start ashing in the display eld upon
connection to the power supply.
The programmer should be set with
the current time. (See Electronic
programmer ). If the current time
is not set operation of the oven is
impossible.

14
OPERATION
Child safety lock
Oven door features a child safety lock de-
vice that prevents children from opening of
the door. The appliance is supplied by the
manufacturer with the door safety lock de-
vice engaged.
Release the
child safety lock.
The lock is
released and
you can open
the door.
The child safety lock is re-engaged
once you close the door.

15
OPERATION

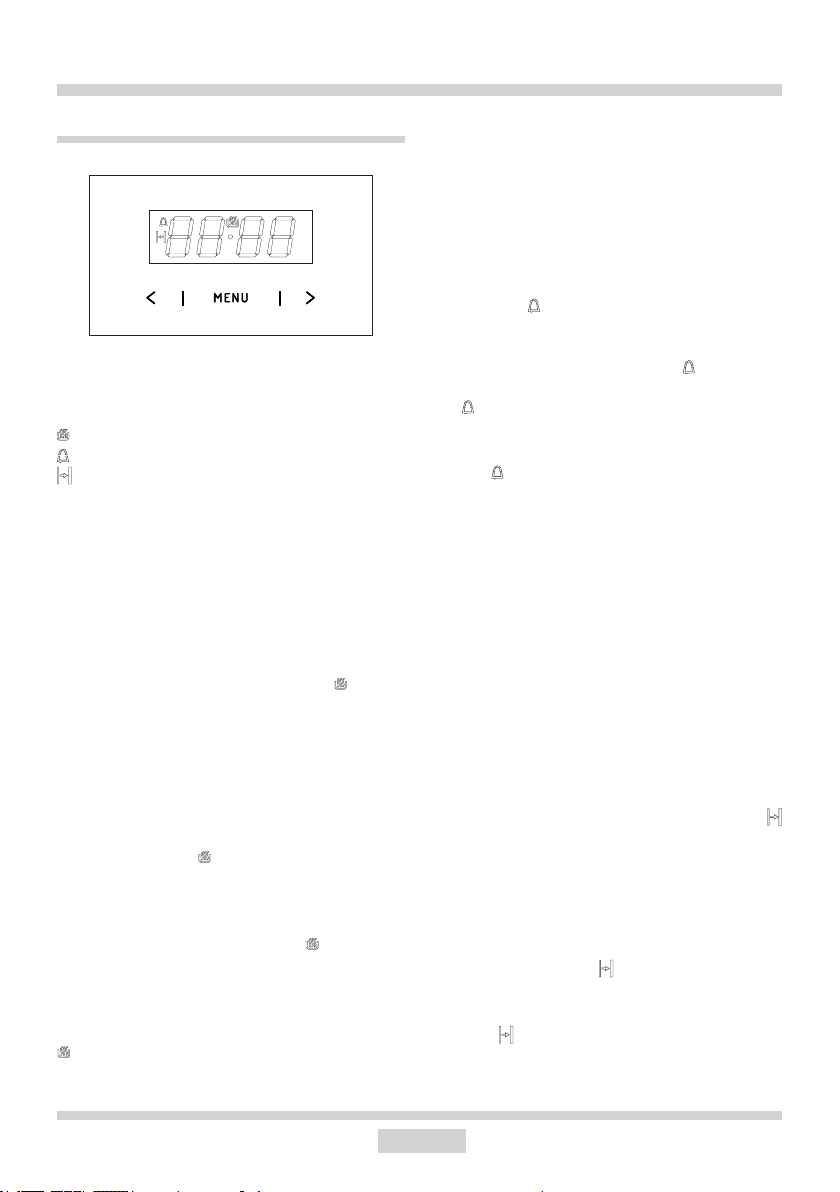

Electronic timer
Setting the time
When the appliance is plugged into the elec-
trical mains supply, or when power is restored
after power outage, the digital display will
show ashing 0.00.
Touch and hold MENU ((or simultaneously
touch < / >)until you will see on the
display and the dot below the symbol is
ashing,
Touch < / >within 7 seconds to set the
current time.
To store the new time setting, wait approxi-
mately 7 seconds after time has been set.
The dot below the symbol will stop ashing.
You can adjust the time later. To do this touch
< /> simultaneously and adjust the current
time while the dot below the symbol is
ashing.
Note:
The oven can be turned on when you see the
symbol on the display.
MENU — select the mode of operation
>— higher setting sensor
<— lower setting sensor
— appliance on indicator
— Kitchen timer
— Duration
Kitchen Timer
You can active the Kitchen Timer at any time,
regardless of the status of other functions.
The Kitchen Timer can be set from 1 minute
up to 23 hours and 59 minutes.
To set the Kitchen Timer:
touch MENU, then the display will show
blinking :
use the < / >, sensors to set the Kitchen
Timer. The display will show the set time
and Kitchen Timer symbol . Once the
set time elapses, alarm sounds and the
icon ashes,
Touch and hold MENU or simultaneously
touch and hold < / >to mute the alarm,
the will be o󰀨 and the display will show
the current time.
Note!
If no button is touched, alarm will turn o󰀨
automatically after approximately 7 minutes.
Timed operation
To set the appliance to switch o󰀨 after a
specic duration:
Set the operation mode knob and the tem-
perature control knob to your preferred
settings.
Touch MENU repeatedly until the display
shows dur (duration) briey and the
symbol will be ashing,
Set the desired duration from 1 minute to
10 hours using the
< / >sensors.
The set duration will be memorised after
about 7 seconds. The display will show the
current time and the symbol.
Once the Duration has elapsed the oven will
turn o󰀨 automatically. You will hear an alarm
and the symbol will be ashing.

16
OPERATION
Set the oven function selector knob and
the temperature selector knob in o󰀨 posi-
tion.,
Touch and hold MENU or simultaneously
touch and hold < / >to mute the alarm,
the will be o󰀨 and the display will show
the current time.
Cancel settings
Timer and Timed operation settings may be
cancelled at any time.
Cancel Timed operation settings:
Simultaneously touch and hold the < / >
sensors.
Cancel timer settings:
Touch the MENU sensor to select the
Kitchen Timer,
simultaneously touch the < / >sensors
Change the beep tone
You can change the beep tones as follows:
Simultaneously touch the < / >, sensors
Touch MENU repeatedly to select the ton
(tone). The display will be ashing:
Use the < / >sensors to select your pre-
ferred tone:
Use >to select the setting 1 to 3
Use <to select the setting 3 to 1
Adjust display brightness
You can adjust display brightness 1 to 9,
where 1 is the darkest and 9 is the brightest.
The brightness setting applies to an inac-
tive control panel, i.e. when no controls are
touched for 7 seconds.
You can adjust display brightness as follows:
Simultaneously touch the < / >sensors,
Touch MENU repeatedly to select the bri
(brightness) setting — the settings can
be accessed in sequence ton (tone) and
bri (brightness).
Use the < / >sensors to select your pre-
ferred brightness:
Use >to select the setting 1 to 9
Use <to select the setting 9 to 1
Note:
The display is at its brightest setting when
active, i.e. a control was touched within the
last 7 seconds.
Night Mode
The display is dimmed during the night hours
22:00 — 06:00.

17
OPERATION

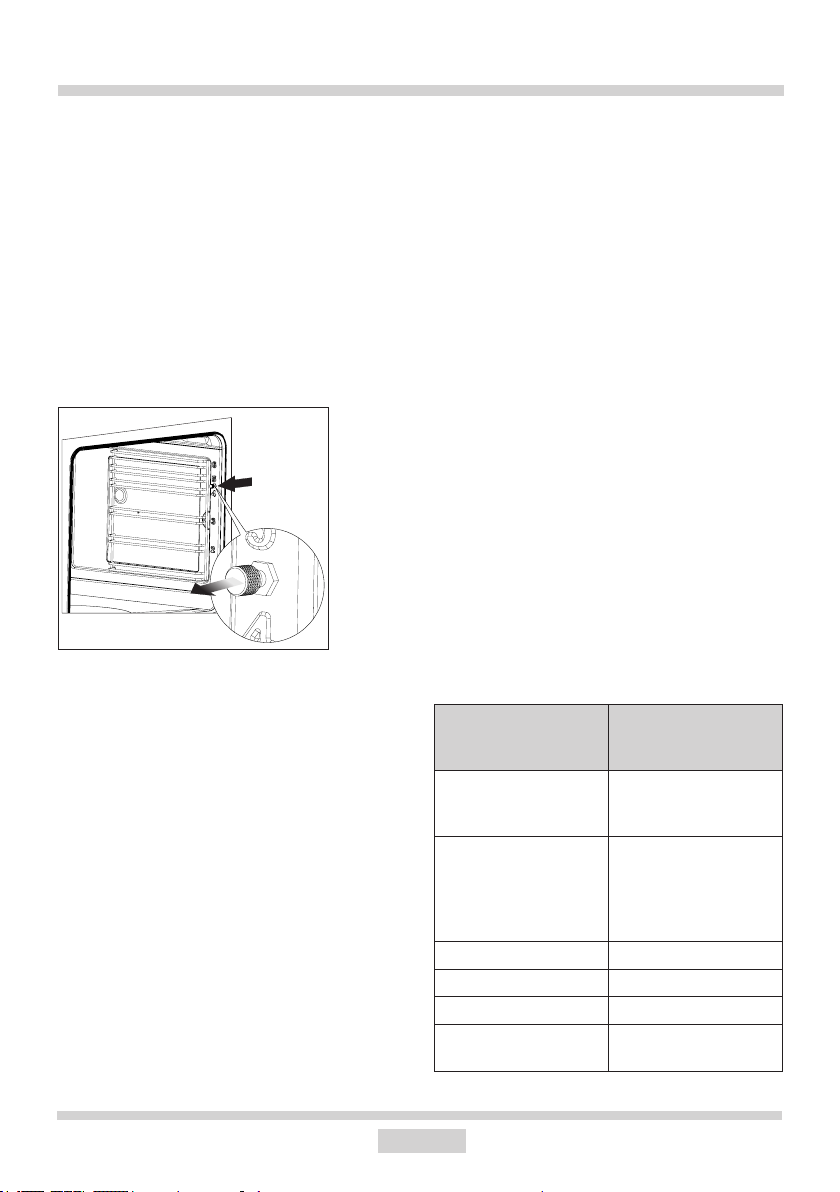

Meat Probe
Adjustment and display range: 30°C bis
99°C, Resolution: 1 Grad, Default set value:
80°C.
Meat probe is recognized automatically
when temperature at meat probe is above
0°C.
Important!
The temperature probe socket is protected
with a cap.
Remove the protective cap from the socket
to be able to plug in the temperature probe.
If meat probe is plugged in, the two digits on
the left side show the actual temperature at
the meat probe and the two digits at the right
side show the set point value.
If the probe temperature is lower than the
minimum setting temperature of 30 °C, the
display reads ”30”. If the probe temperature
is higher than the maximum setting tempe-
rature of 99°C, the display reads the maxi-
mum setting temperature.
With plugging in the connector of the meat
probe, the program is started and the nomi-
nal temperature is set to 80 °C. The value of
the set temperature can be changed as long
as the temperatures are displayed, but not
when timer is still in start up mode.
The meat probe alarm can be reset by pres-
sing any key.
An active meat probe program or a pending
alarm can be reset by disconnecting the meat
The use of temperature probe is not recom-
mended when cooking poultry and meat
with bones.
When not in use, disconnect the temperature
probe from its socket and remove from oven
chamber.
Important!
Use only original temperature probe supplied
with the appliance.
Recommended probe temperature set-
tings
TYPE OF MEAT TEMPERATURE
[°C]
PORK
Fillet
Roast
85 - 90
80 - 85
BEEF
Roast beef or llet
Rare
Medium
Well done
90 - 95
50 - 55
65 - 70
75 - 80
VEAL 85 - 90
LAMB 85 - 90
VENISON 80 - 85
FISH
e.g. salmon trout, cod
80 - 85
probe and pressing any key.
The use of temperature probe is recommen-
ded when cooking large portions of meat (at
least 1 kg).
The use of temperature probe is not recom-
mended when cooking poultry and meat with
bones.
When not in use, disconnect the temperature
probe from its socket and remove from oven
chamber.
Important!
Use only original temperature probe supplied
with the appliance.

18
WRONG WRONG WRONG WRONG
RIGHT
OPERATION

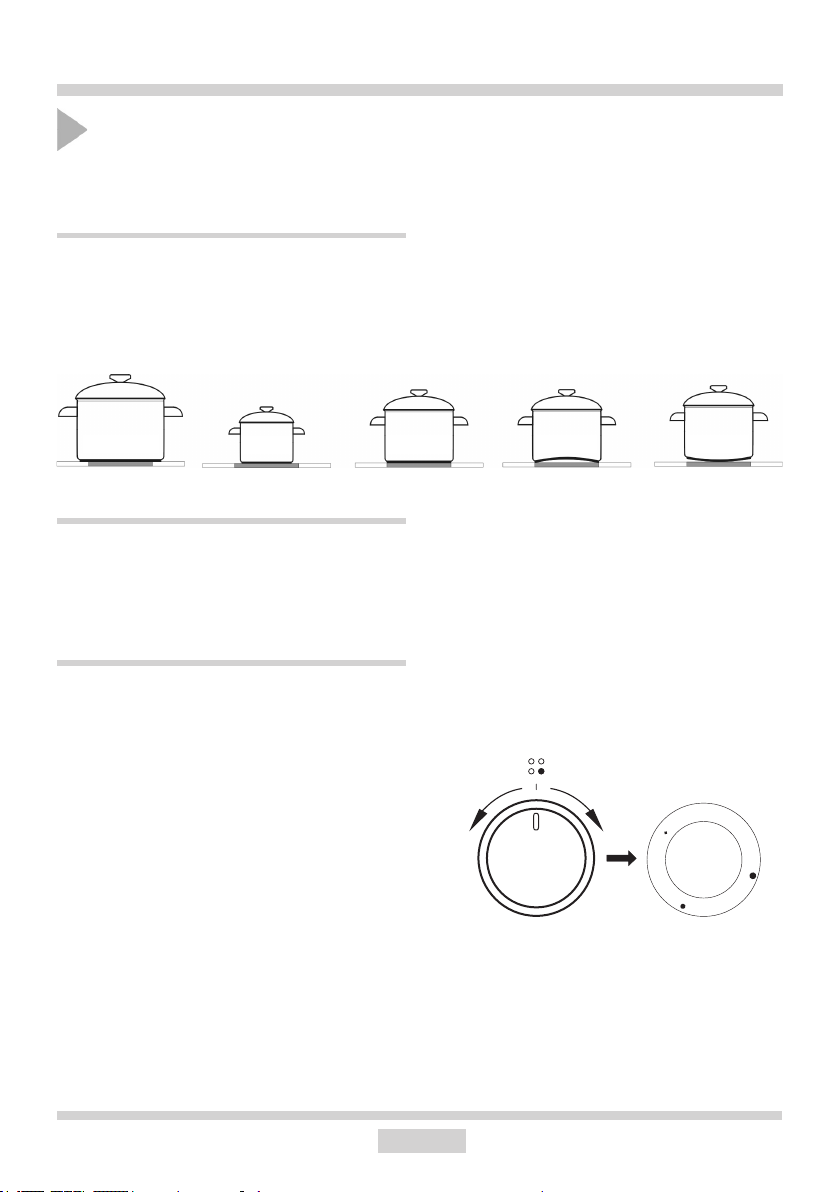

Controlling the heating zones of the ceramic hob.
Choice of cookware
Choose a pan with a diameter that is at least as large as the heating zone. For roasting tins
there is a special widened heating zone of 140x250. Do not use pans with a concave or
convex base. Always remember to put a proper cover on the pan. We recommend the use
of pans with thick, even bases.
If the heating zones and pans are solied it is impossible to make full use of the heat.
0 Switch o󰀨
● MIN. Warming up
1Stewing vegetables, slow cooking
● Cooking soups, larger dishes
2Slow frying
●Grilling meat, sh
3MAX. Fast heating up, fast cooking, frying
Heat level selection
The heating zones have di󰀨erent levels of heat. The level of heat can be adjusted gradually
by turning the appropriate knob to the right or left.
Examples of knob settings
0
1
2
3

19

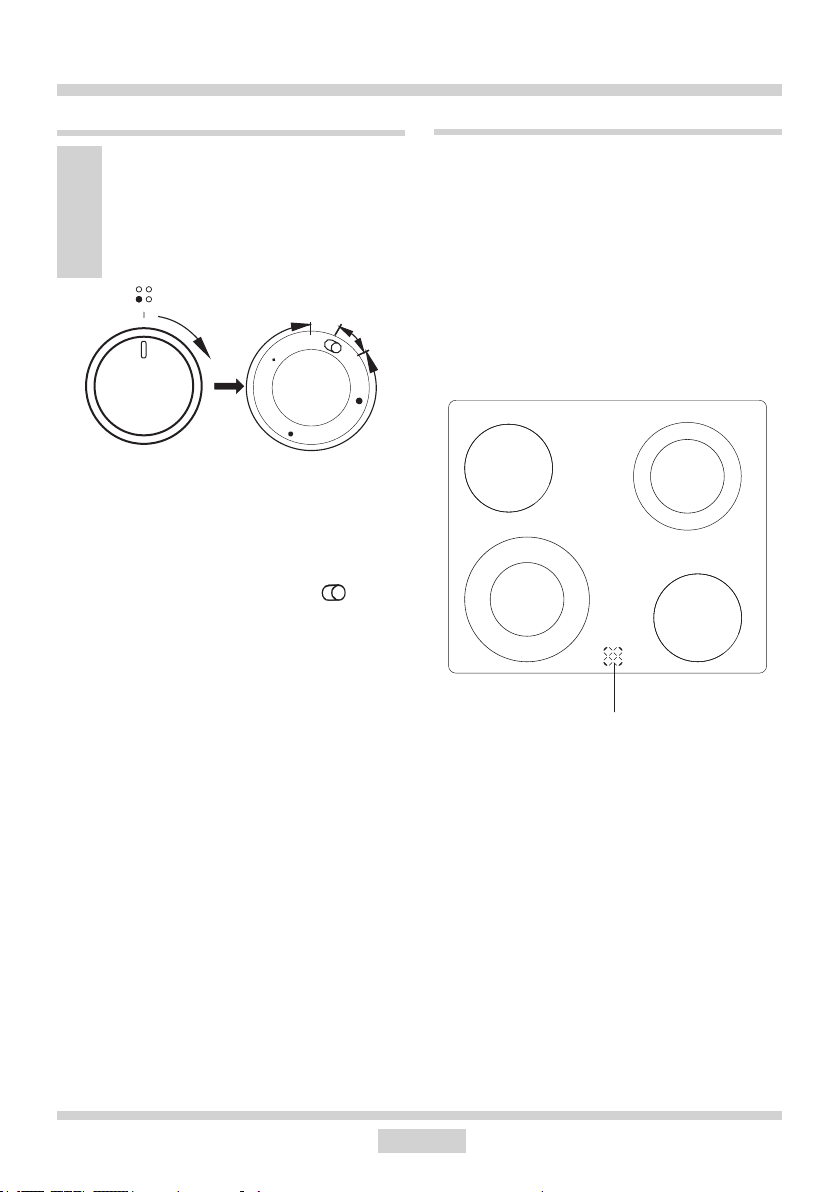

Zone heating indicator
Switching on the wider heating zone
Important!
Only switch on a heating zone by
turning the knob clockwise. Turning
the knob in the opposite direction can
cause damage to the switch.
OPERATION
With the settings 0 1 2 3 the knob
operates the internal heating zone and it is
possible to smoothly control the amount of
heat transferred to a pan. Turning the knob
temporarily to the position marked causes
the external heating zone to be switched on.
From that point, you can smoothly control the
amount of heat trasferred to a pan by both
heating zones (internal and external) as the
internal switch will switch both zones o󰀨 only
after the knob is set to position 0.
Zone heating indicator
If the temperature of a heating zone exceeds
50°C this is signalled by an indicator which
lights up for that zone.
When the heating indicator lights up it warns
the person using the cooker against touching
a hot heating zone.
For about 5 to 10 minutes after a heating
zone is switched o󰀨 it will still have residual
heat that can be used, for example to warm
up or keep dishes warm without switching on
another heating zone.
0
1
2
3

20
OPERATION

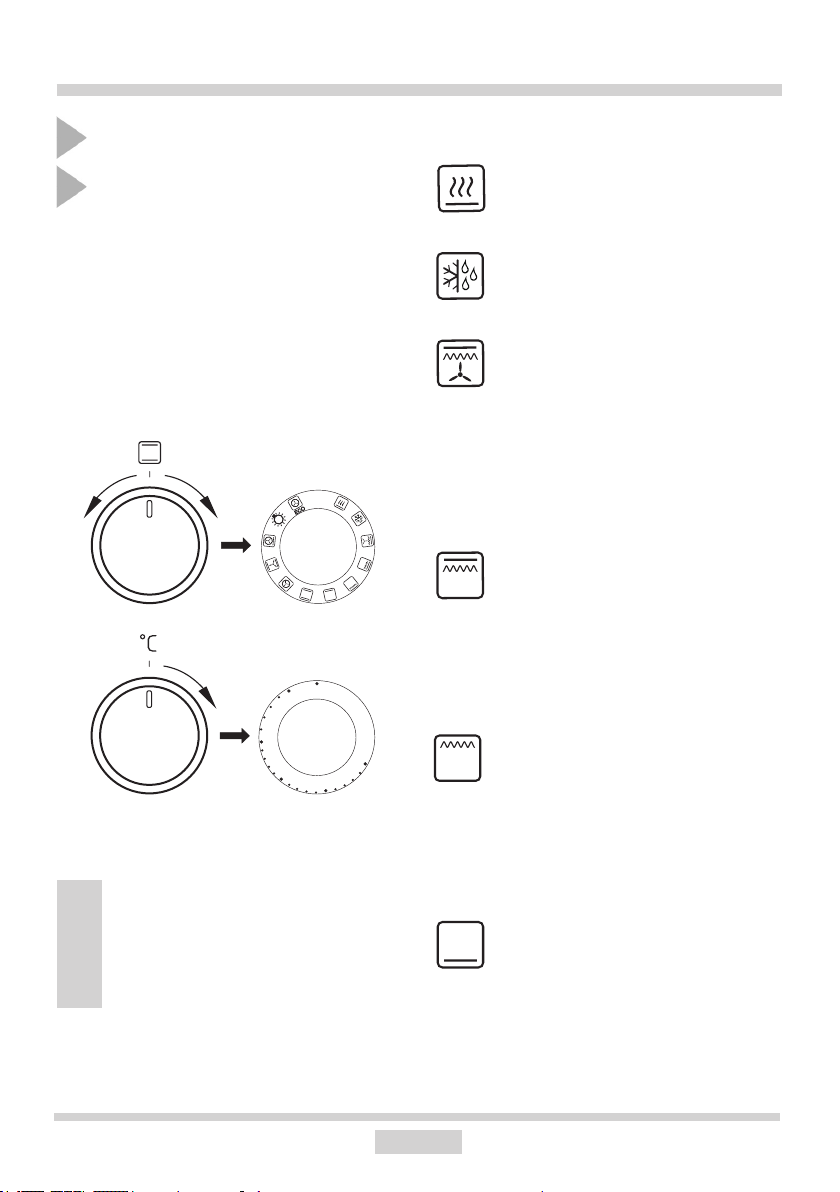

The oven can be switched o󰀨 by setting both
of these knobs to the position “”/“0”.
Caution!
When selecting any heating func-
tion (switching a heater on etc.) the
oven will only be switched on after
the temperature has ben set by the
temperature regulator knob.
The oven can be heated up using the bottom
and top heaters, the grill or the ultra-fan he-
ater. Operation of the oven is controlled by
the oven function knob – to set a required
function you should turn the knob to the se-
lected position, and the temperature regulator
knob – to set a required function you should
turn the knob to the selected position.
Oven with automatic air circu-
lation (including a fan and ring
heater)
Oven functions and operation. 0 Oven is o󰀨
Roaster on.
Roasting is used for cooking of small
portions of meat: steaks, schnitzel,
sh, toasts, Frankfurter sausages,
(thickness of roasted dish should not
exceed 2-3 cm and should be turned
over during roasting).
Defrosting
Only fan is on and all heaters are o󰀨.
Fan and combined grill on
When the knob is turned to this posi-
tion, the oven activates the combined
grill and fan function. In practice, this
function allows the grilling process to
be speeded up and an improvement
in the taste of the dish. You should
only use the grill with the oven door
shut.
Enhanced roaster (super roaster)
In this setting both roaster and top
heater are on. This increases tem-
perature in the top part of the oven’s
interior, which makes it suitable for
browning and roasting of larger por-
tions of food.
Rapid Preheating
Ring heater and roaster on. Use to
preheat the oven.
Bottom heater on
When the knob is set to this position
the oven is heated using only the
bottom heater. Baking of cakes from
the bottom until done (moist cakes
with fruit stu󰀩ng).
0
5050
100
150
200
250
