Gram CC 56050 User manual

(EN) INSTRUCTION MANUAL
Type
CC 56050
CC 56050 B

2
DEAR CUSTOMER,
The cooker is exceptionally easy to use and extremely ecient. After reading the instruction
manual, operating the cooker will be easy.
Before being packaged and leaving the manufacturer, the cooker was thoroughly checked
with regard to safety and functionality.
Before using the appliance, please read the instruction manual carefully.
By following these instructions carefully you will be able to avoid any problems in using the
appliance.
It is important to keep the instruction manual and store it in a safe place so that it can be
consulted at any time.
It is necessary to follow the instructions in the manual carefully in order to avoid possible
accidents.
Caution!
Do not use the cooker until you have read this instruction manual.
The cooker is intended for household use only.
The manufacturer reserves the right to introduce changes which do not aect the
operation of the appliance.

3
TABLE OF CONTENTS
Safety instructions ............................................................................................................. 4
Description of the appliance ............................................................................................. 9
Installation..........................................................................................................................11
Operation........................................................................................................................... 13
Baking in the oven – practical hints ............................................................................... 18
Test dishes............................................................................................................................21
Cleaning and maintenance.............................................................................................. 22
Technical data................................................................................................................... 27

4
SAFETY INSTRUCTIONS
Warning: The appliance and its accessible parts become hot
during use. Care should be taken to avoid touching heating
elements. Children less than 8 years of age shall be kept
away unless continuously supervised.
This appliance can be used by children aged from 8 years
and above and persons with reduced physical, sensory or
mental capabilities or lack of experience and knowledge if
they have been given supervision or instruction concerning
use of the appliance in a safe way and understand the ha-
zards involved. Children shall not play with the appliance.
Cleaning and user maintenance shall not be made by chil-
dren without supervision.
Warning: Unattended cooking on a hob with fat or oil can
be dangerous and may result in re.
NEVER try to extinguish a re with water, but switch o󰀨
the appliance and then cover ame e.g. with a lid or a re
blanket.
Warning: Danger of re: do not store items on the cooking
surfaces.
Warning: If the surface is cracked, switch o󰀨 the appliance
to avoid the possibillity of electric shock.
During use the appliance becomes hot. Care should be taken
to avoid touching heating elements inside the oven.
Accessible parts may become hot during use. Young children
should be kept away.

5
SAFETY INSTRUCTIONS
Warning: Do not use harsh abrasive cleaners or sharp metal
scrapers to clean the oven door glass since they can scratch
the surface, which may result in shattering of the glass.
Warning: Ensure that the appliance is switched o󰀨 before re-
placing the lamp to avoid the possibillity of electric shock.
You should not use steam cleaning devices to clean the
appliance.
Danger of burns! Hot steam may escape when you open the
oven door. Be careful when you open the oven door during
or after cooking. Do NOT lean over the door when you open
it. Please note that depending on the temperature the steam
can be invisible.
Use only original temperature probe supplied with the ap-
pliance
Caution: The cooking process has to be supervised. A short
term cooking process has to be supervised continuously.
Warning: Use only hob guards designed by manufacturer of
the cooking appliance or indicated by the manufacturer of
the appliance in the instructions for use as suitable or hob
guards incorporated in the appliance. The use of inappro-
priate guards can cause accidents.

6
SAFETY INSTRUCTIONS
Always keep children away from the cooker.
While in operation direct contact with the cooker may cause burns!
Ensure that small items of household equipment, including connection leads, do not touch
the hot oven or the hob as the insulation material of this equipment is usually not resistant
to high temperatures.
 Do not leave the cooker unattended when frying. Oils and fats may catch re due to
overheating or boiling over.
Do not allow the hob to get soiled and prevent liquids from boiling over onto the surface
of the hob. This refers in particular to sugar which can react with the ceramic hob and
cause irreversible damage. Any spillages should be cleaned up as they happen.
Do not place pans with a wet bottom on the warmed up heating zones as this can cause
irreversible changes to the hob (irremovable stains).
 Use pans that are specied by the manufacturer as designed for use with a ceramic
hob.
If any defects, deep scratches, cracks or chips appear on the ceramic hob, stop using the
cooker immediately and contact the service centre.
Do not switch on the hob until a pan has been placed on it.
Do not use pans with sharp edges that may cause damage to the ceramic hob.
Do not look directly at the halogen heating zones (not covered by a pan) when they are
warming up.
Do not put pans weighing over 15 kg on the opened door of the oven and pans over 25
kg on the hob.
Do not use harsh cleaning agents or sharp metal objects to clean the door as they can
scratch the surface, which could then result in the glass cracking.
 Do not use the cooker in the event of a technical fault. Any faults must be xed by an
appropriately qualied and authorised person.
In the event of any incident caused by a technical fault, disconnect the power and report
the fault to the service centre to be repaired.
The rules and provisions contained in this instruction manual should be strictly observed.
Do not allow anybody who is not familiar with the contents of this instruction manual to
operate the cooker.
The appliance has been designed only for cooking. Any other use (for example for heat-
ing) does not comply with its operating prole and may cause danger.

7
Using energy in a respon-
sible way not only saves
money but also helps the
environment. So let’s save
energy! And this is how you
can do it:
Use proper pans for cooking.
Pans with thick, at bases can save up to 1/3
on electric energy. Remember to cover pans
if possible otherwise you will use four times
as much energy!
Match the size of the saucepan to the
surface of the heating zone.
A saucepan should never be smaller than a
heating zone.
Ensure heating zones and pan bases
are clean.
Soils can prevent heat transfer – and repeat-
edly burnt–on spillages can often only be
removed by products which cause damage
to the environment.
Do not uncover the pan too often
(a watched pot never boils!).
Do not open the oven door unnecessarily
often.
Switch o󰀨 the oven in good time and make
use of residual heat.
For long cooking times, switch o󰀨 heating
zones 5 to 10 minutes before nishing cook-
ing. This saves up to 20% on energy.
Only use the oven when cooking larger
dishes.
Meat of up to 1 kg can be prepared more
economically in a pan on the cooker hob.
HOW TO SAVE ENERGY
Make use of residual heat from the
oven.
If the cooking time is greater than 40 minutes
switch o󰀨 the oven 10 minutes before the
end time.
Important! When using the timer,
set appropriately shorter cooking
times according to the dish being
prepared.
Only grill with the ultrafan after closing
the oven door.
Make sure the oven door is properly
closed.
Heat can leak through spillages on the door
seals. Clean up any spillages immediately.
Do not install the cooker in the direct
vicinity of refrigerators/freezers.
Otherwise energy consumption increases
unnecessarily.

8
During transportation, protec-
tive packaging was used to
protect the appliance against
any damage. After unpack-
ing, please dispose of all
elements of packaging in a
way that will not cause dam-
age to the environment.
All materials used for packaging the appli-
ance are environmentally friendly; they are
100% recyclable and are marked with the
appropriate symbol.
Caution! During unpacking, the packag-
ing materials (polythene bags, polystyrene
pieces, etc.) should be kept out of reach of
children.
UNPACKING DISPOSAL OF THE APPLIANCE
Old appliances should not sim-
ply be disposed of with normal
household waste, but should
be delivered to a collection and
recycling centre for electric and
electronic equipment. A symbol
shown on the product, the in-
struction manual or the packag-
ing shows that it is suitable for recycling.
Materials used inside the appliance are
recyclable and are labelled with information
concerning this. By recycling materials or
other parts from used devices you are making
a signicant contribution to the protection of
our environment.
Information on appropriate disposal centres
for used devices can be provided by your
local authority.

9

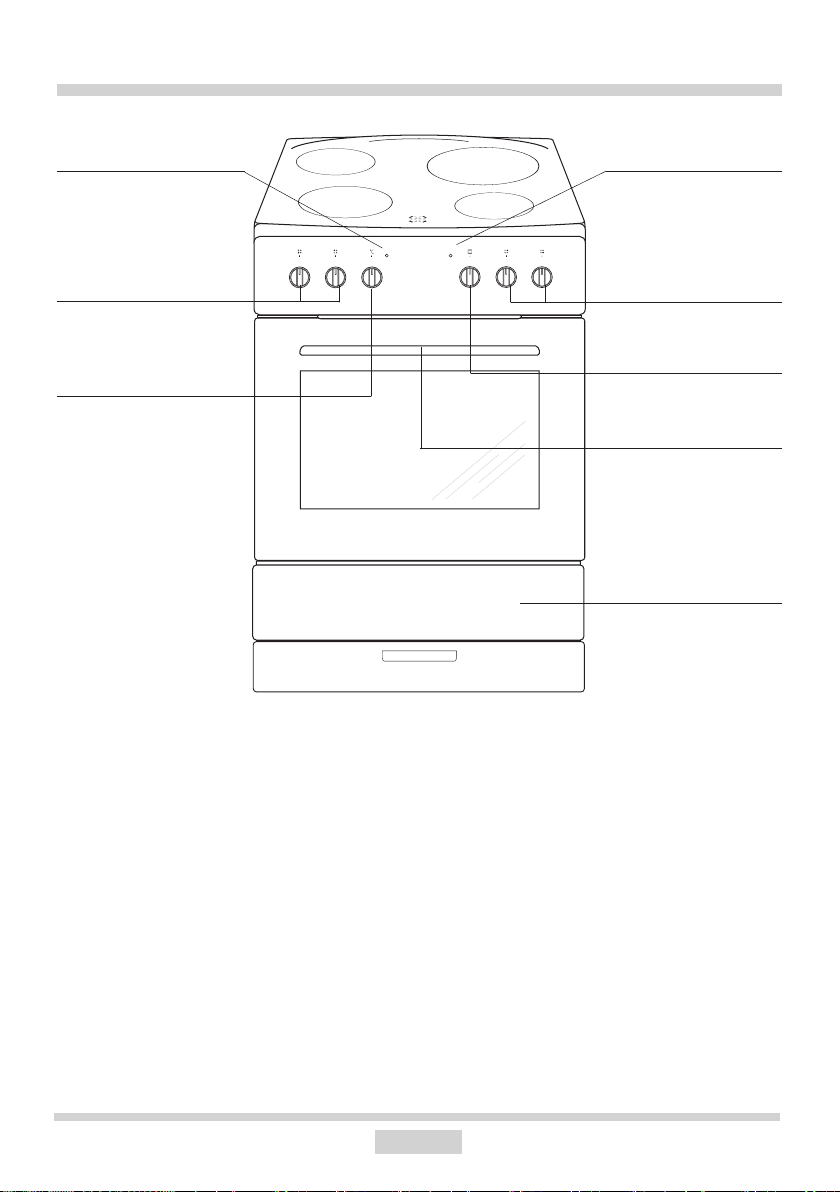

DESCRIPTION OF THE APPLIANCE
1Temperature control knob
2 Oven function selection knob
3, 4, 5, 6 Heating zone control knobs
7Temperatureregulatorsignal light
8 Oven operation signal light
9 Oven door handle
10 Drawer
1
2
8
7
9
10
5, 6
3, 4

10
SPECIFICATIONS OF THE APPLIANCE
Cooker ttings:
Sideracks
Grill grate
(drying rack)
Roasting tray
Baking tray

11
INSTALLATION
Installing the cooker
The kitchen should be dry and airy and
have e󰀨ective ventilation according to the
existing technical provisions.
The room should be equipped with a ven-
tilation system that pipes away exhaust
fumes created during combustion. This
system should consist of a ventilation
grid or hood. Hoods should be installed
according to the manufacturer’s instruc-
tions. The cooker should be placed so
as to ensure free access to all control
elements.
 Coating or veneer used on tted furniture
must be applied with a heat resistant
adhesive (100°C). This prevents surface
deformation or detachment of the coat-
ing. If you are unsure of your furniture’s
heat resistance, you should leave ap-
proximately 2 cm of free space around
the cooker. The wall behind the cooker
should be resistant to high temperatures.
During operation, its back side can warm
up to around 50°C above the ambient
temperature.
The cooker should stand on a hard, even
oor (do not put it on a base).
Before you start using the cooker it should
be leveled, which is particularly important
for fat distribution in a frying pan. To this
purpose, adjustable feet are accessible
after removal of the drawer. The adjust-
ment range is +/- 5 mm.
Mounting the overturning prevention
bracket.
The bracket is mounted to prevent overtur-
ning of the cooker. When the overturning
prevention bracket is installed, a child who
climbs on the oven door will not overturn the
appliance.
A
B
Cooker, height 900 mm
A=104 mm
B=147 mm

12
INSTALLATION
Installation information
The cooker is designed to be connected to one-phase 230V 1N~ mains power supply. Befo-
re connecting the appliance to the mains power supply, the user must ensure that the mains
data corresponds to the information given on the manufacturer's data plate, which can be
found on either the back or the right-hand side of the cooker or the copy of this plate which
is enclosed with this guidance.
The cooker is equipped with a power supply cable.Before connecting the cooker to the po-
wer supply, it is important that you read the information given below.
Connecting the cooker to the mains
Installation must only be carried out by an authorised electrician. This will ensure that the
applicable regulations in the “Heavy Current Regulation” are complied with.
The installation must comply with any special requirements issued by the local electricity
supply company.
The cooker must be connected to a separate power supply circuit.
Adapting the cooker to operate with three-phase 400V 3N~ mains power supply is posible
by apriopriate bridging in the connection box.
The connection must only be established according to the connection diagrams below.
 When connecting or replacing the power cable, at least one H05VV-F3G4 / H05VV-F5G2.5
conduit or equivalent must be used.
Important: To ensure compliance with the applicable safety requirements, a switch must
be tted which isolates all terminals and has a contact distance of at least 3 mm. (Can be
a master switch).
400V 3N~ 50Hz
3x16A
H05VVF-5G2,5
1
2
3
5
4
PE
L1
N
230V 1N~ 50Hz
50A
H05VVF-3G4
1
2
3
5
4
L1
L2
PE
N
L3
1
2
3
3
4
5
1
2
3
3
4
5

13
Remove packaging, empty the drawer,
clean the interior of the oven and the hob.
Take out and wash the oven ttings with
warm water and a little washing–up liquid.
Switch on the ventillation in the room or
open a window.
Heat the oven (to a temperature of 250°C,
for approx. 30 min.), remove any stains and
wash carefully; the heating zones of the hob
should be heated for around 4 min. without
a pan.
Before rst use
OPERATION
Important!
The inside of the oven should only be
washed with warm water and a small
amount of washing–up liquid.

14
WRONG WRONG WRONG WRONG
RIGHT
OPERATION
Controlling the heating zones of the ceramic hob.
Choice of cookware
Choose a pan with a diameter that is at least as large as the heating zone. For roasting tins
there is a special widened heating zone of 140x250. Do not use pans with a concave or
convex base. Always remember to put a proper cover on the pan. We recommend the use
of pans with thick, even bases.
If the heating zones and pans are solied it is impossible to make full use of the heat.
0 Switch o󰀨
● MIN. Warming up
1Stewing vegetables, slow cooking
● Cooking soups, larger dishes
2Slow frying
●Grilling meat, sh
3MAX. Fast heating up, fast cooking, frying
Heat level selection
The heating zones have di󰀨erent levels of heat. The level of heat can be adjusted gradually
by turning the appropriate knob to the right or left.
Examples of knob settings
0
1
2
3

15
OPERATION

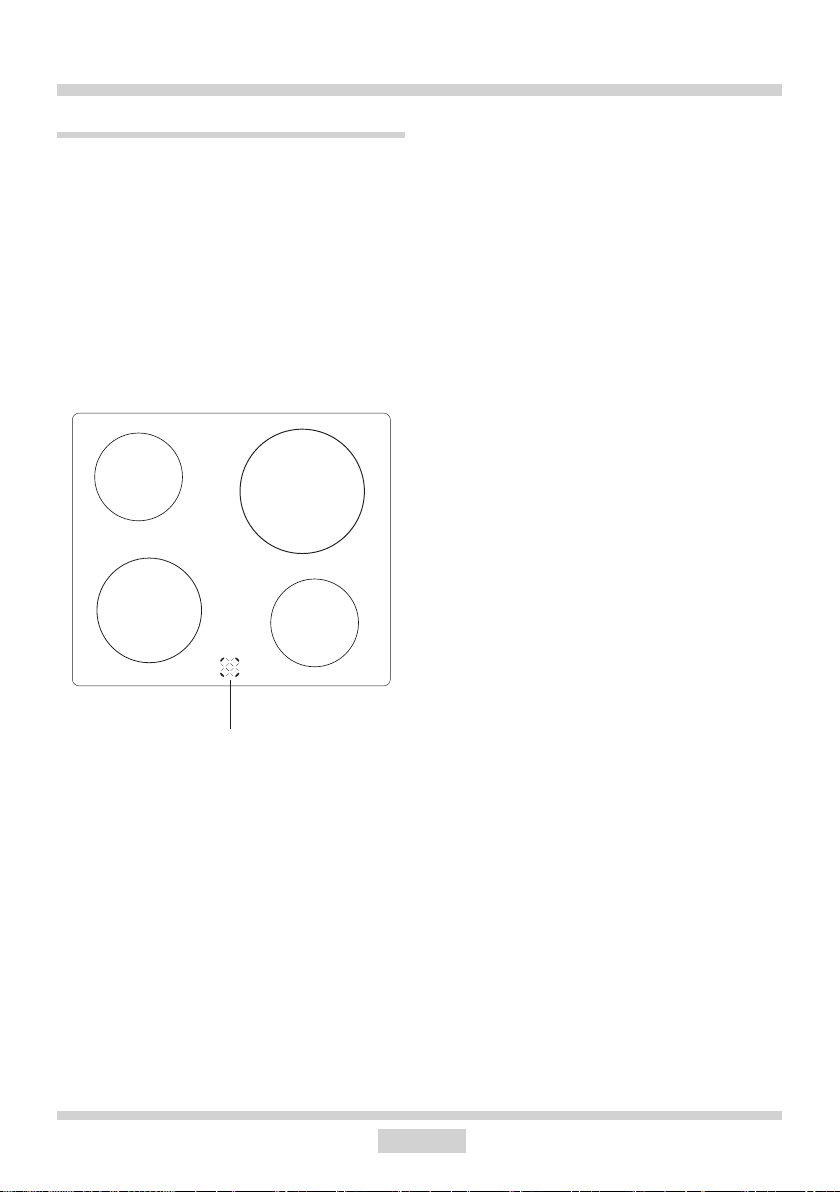

Zone heating indicator
Zone heating indicator
If the temperature of a heating zone exceeds
50°C this is signalled by an indicator which
lights up for that zone.
When the heating indicator lights up it warns
the person using the cooker against touching
a hot heating zone.
For about 5 to 10 minutes after a heating
zone is switched o󰀨 it will still have residual
heat that can be used, for example to warm
up or keep dishes warm without switching on
another heating zone.

16
OPERATION
The oven can be warmed up using the bottom
and top heaters, as well as the grill. Operation
of the oven is controlled by the oven function
knob – to set a required function you should
turn the knob to the selected position,
as well as the temperature regulator knob – to
set a required function you should turn the
knob to the selected position.
The oven can be switched o󰀨 by setting both
of these knobs to the position “”/“0”.

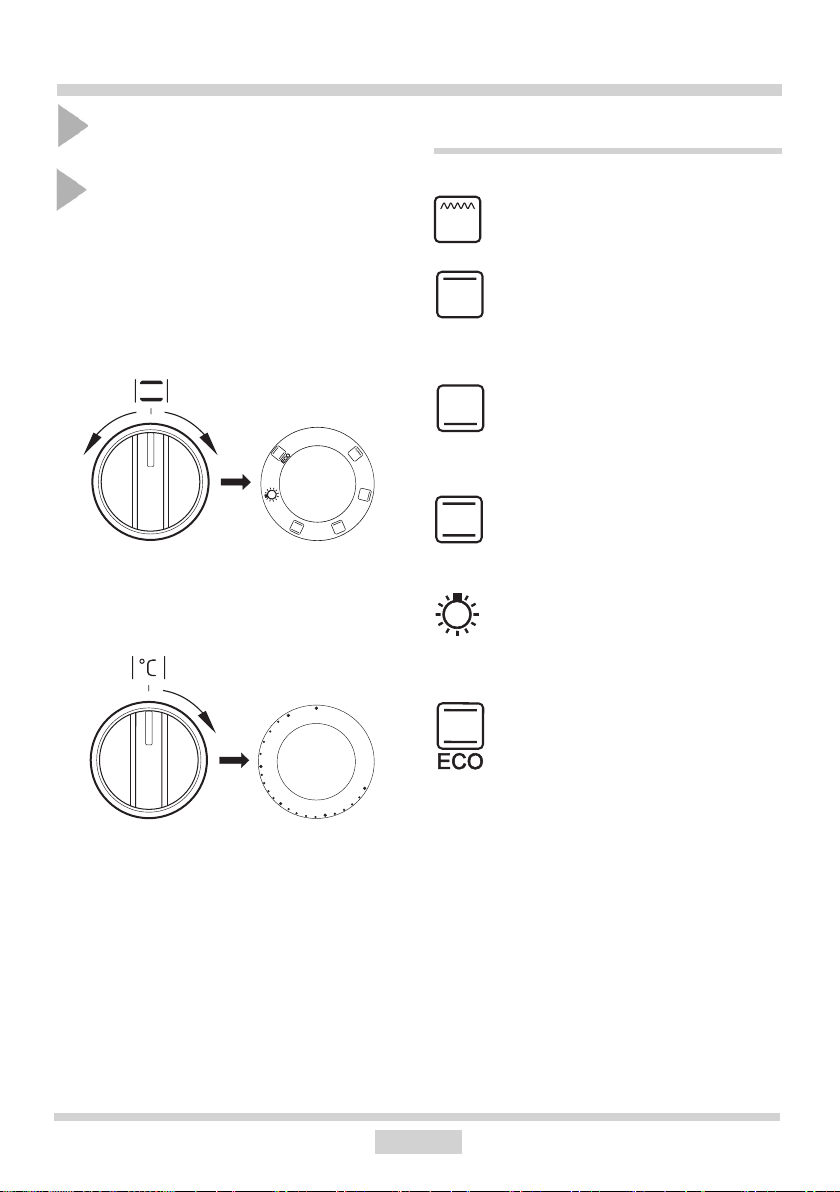

Possible settings of the oven function
knob
Oven with conventional heating
(including top + bottom heaters)
Oven functions and operation.
Switching on the oven is indicated by two
signal lights, 7, 8, turning on. The 8light
turned on means the oven is working. If the 7
light goes out, it means the oven has reached
the set temperature. If a recipe recommends
placing dishes in a warmed-up oven, this
should be not done before the 7light goes out
for the rst time. When baking, the 7 light will
temporarily come on and go out (to maintain
the temperature inside the oven). The 8signal
light may also turn on at the knob position of
“oven chamber lighting”.
Bottom and top heaters on
Setting the knob to this position
allows the oven to be heated con-
ventionally.
Grill heater on
Setting the knob to this position al-
lows dishes to be grilled on the grate.
0 Oven is o󰀨
Top heater on
Setting the knob to this postion allows
the oven to be heated only with the
top heater switched on, e.g. use for
nal baking from above.
Bottom heater on
When the knob is set to this position
the oven is heated using only the bot-
tom heater. Use for e.g. nal baking
from the bottom.
Separate oven lighting
By setting the knob to this posi-
tion the lighting inside the oven is
switched on, e.g. use when washing
the oven chamber.
ECO Heating
This is an optimised heating function
designed to save energy when pre-
paring food. At this knob position, the
oven lighting is o󰀨.
0
5050
100
150
200
250

17
The grilling process operates through infrared
rays emitted onto the dish by the incandes-
cent grill heater.
In order to switch on the grill you need to:
Set the oven knob to the position marked
grill ,
Heat the oven for approx. 5 minutes (with
the oven door shut).
Insert a tray with a dish onto the appropri-
ate cooking level; and if you are grilling
on the grate insert a tray for dripping on
the level immediately below (under the
grate).
Close the oven door.
OPERATION
Use of the grill
Warning!
When using function grill it is rec-
ommended that the oven door is
closed.
When the grill is in use accessible
parts can become hot.
It is best to keep children away from
the oven.
For grilling with the function grill and
combined grill the temperature must be
set to 250ºC, but for the function fan and
grill it must be set to a maximum of 190ºC.

18
BAKING IN THE OVEN – PRACTICAL HINTS
Baking
we recommend using the baking trays which were provided with your cooker;
it is also possible to bake in cake tins and trays bought elsewhere which should be
put on the drying rack; for baking it is better to use black trays which conduct heat
better and shorten the baking time;
shapes and trays with bright or shiny surfaces are not recommended when using the
conventional heating method (top and bottom heaters), use of such tins can result in
undercooking the base of cakes;
before the cake is taken out of the oven, check if it is ready using a wooden stick (if
the cake is ready the stick should come out dry and clean after being inserted into
the cake);
 after switching o󰀨 the oven it is advisable to leave the cake inside for about 5 min.;
the baking parameters given in Table are approximate and can be corrected based
on your own experience and cooking preferences;
 if information given in recipe books is signicantly di󰀨erent from the values included
in this instruction manual, please apply the instructions from the manual.
Roasting meat
cook meat weighing over 1 kg in the oven, but smaller pieces should be cooked on
the cooker.
use heatproof ovenware for roasting, with handles that are also resistant to high
temperatures;
when roasting on the drying rack or the grate we recommend that you place a baking
tray with a small amount of water on the lowest level of the oven;
it is advisable to turn the meat over at least once during the roasting time and during
roasting you should also baste the meat with its juices or with hot salty water – do
not pour cold water over the meat.

19
BAKING IN THE OVEN – PRACTICAL HINTS
ECO Heating
ECO Heating is an optimised heating function designed to save energy when
preparing food.
You cannot reduce the cooking time by setting a higher temperature; preheating
the oven is not recommended.
Do not change the temperature setting and do not open the oven door during
cooking.
Recommended setting for ECO Heating
Type
of
dish
Oven
functions
Temperature (0C) Level Time
in minutes
Sponge cake 180 - 200 2 - 3 25 - 401)
Yeast cake/
Pound cake 180 - 200 2 - 3 25 - 401)
Fish 190 - 210 2 - 3 25 - 1002)
Beef 200 - 220 2 90 - 1202)
Pork 200 - 220 2 90 - 1602)
Chicken 180 - 200 2 80 - 1002)
1) Recommended for baking under 40 minutes.
2) Recommended for baking more than 1 kg of meat.

20
BAKING IN THE OVEN – PRACTICAL HINTS
Type of
dish
Type
of heating
Temperature (0C) Level Time
(min.)
Sponge cake 160 - 200 2 - 3 30 - 50
Yeast cake/
Pound cake 160 - 170 1) 3 25 - 40 2)
Pizza 220 - 240 1) 2 15 - 25
Fish 210 - 220 2 45 - 60
Beef 225 - 250 2 120 - 150
Pork 160 - 230 2 90 - 120
Chicken 160 - 180 2 45 - 60
Vegetables 190 - 210 2 40 - 50
Oven with conventional heating (including top + bottom heaters)
The times are apply to dish that is placed into a cold oven. For the preheated oven, the times should be
reduced by about 5-10 minutes.
1) Preheat
2) Baking smaller items
Note: The gures given in Tables are approximate and can be adapted based on your own experience
and cooking preferences.
