Grand Cru GC46D User manual

INSTRUCTION MANUAL
Built-under Wine Cooler (s)
Model No.: GC46D
Built-under Beverage Cooler (s)
Model No.: GC46BC
This manual contains important information including safety and installation instructions of
the appliances. Please read it carefully before use and follow al safety information &
instructions. It is recommended to keep this manual for easy reference so that you can be
familiar with the operation of the appliance.

Important Safeguards
When using an electrical
appliance, basic precautions
should always be followed to
reduce the risk of fire, electric
shock, and injury to persons,
including the following:
For Your Safety
Read all instructions carefully,
even if you are quite familiar
with the appliance.
The appliance is intended to be
used exclusively for the storage of
wine.
Use this appliance only as
described in this manual. Other
uses not recommended may
cause fire, electric shock or
personal injury.
This appliance is not intended for
use by young children or infirm
persons unless they have been
adequately supervised by a
responsible person to ensure that
they can use the appliance safely.
Young children should be
supervised to ensure that they do
not play with the appliance.
To protect against the risk of
electric shock, DO NOT
IMMERSE the unit, cord, or plug
in water or spray any other liquid.
Unplug the appliance from the plug
socket when not in use, when
moving from one location to
another and before cleaning.
To disconnect the appliance, grip
the plug and pull it from the wall
outlet. Never pull by the cord.
Do not operate the appliance in the
presence of explosive and/or
flammable fumes.
Do not place the appliance or any
of its part near an open flame,
cooking or other heating
appliance.
Do not operate the appliance with
a damage cord or plug, if the
product malfunctions, or if it is
dropped or damaged in any
manner.
The use of attachments not
recommended by the
manufacturer may be hazardous.
Place the unit on a dry level
surface.
Do not operate if the housing is
removed or damaged.
A loose fit between the AC outlet
(receptacle) and plug may cause
overheating and a distortion of the
plug. Contact a qualified
electrician to replace loose or
worn outlet.
Locate the unit away from direct
sunlight and sources of heat
(stove, heater, radiator, etc.).
This appliance is CFC- and
HFC-free and contains small
quantities of Isobutene (R600a),
an environmentally friendly
coolant.
You must ensure that the cooling
circuit is undamaged when
installing the appliance. However,
if it becomes damaged, avoid
proximity to open fires and heat
sources of all kinds. The room in
which the appliance is located
should be ventilated for a few
minutes.
Never use an appliance with a
damaged circuit.
WARNING: Do not operate any
electrical appliance inside the
appliance.

Do not attempt to repair or replace
any part of your appliance unless
it is specifically recommended in
this manual. All other servicing
should be referred to a qualified
technician.
Replace all panels after service
before operating.
Use two or more people to move
and install the appliance. Failure
to do so can result in back or
other injury.
Never clean appliance parts with
flammable fluids. These fumes
can create a fire hazard or
explosion. And do not store or use
gasoline or other flammable
vapors and liquids in the vicinity of
this or any other appliance. The
fumes can create a fire hazard or
explosion.
Do not connect or disconnect the
electric plug when your hands are
wet.
It is recommended that a separate
circuit, serving only your
appliance be provided. Use
receptacles that cannot be turned
off by a switch or pull chain.
Save These Instructions
If you are experiencing problems,
check the Troubleshooting Guide
at the back of this manual. It lists
causes of minor operating
problems that you can correct
yourself.
Disposal of Old Appliance
Dispose of your appliance packaging
properly.
Refrigeration equipment must be
properly disposed of in a way
which protects the environment.
This applies to your old appliance
and to your new unit once it has
reached the end of its service life.
WARNING: Please ensure that old,
worn appliances are rendered
unusable before disposal by
removing the plug, cutting the
network cable, and removing or
destroying any snap fastenings or
bolts. You will thus prevent
children from locking themselves in
the appliance during play (risk of
suffocation) or endangering their
lives in any other way.
Disposal instructions:
The appliance must not be
disposed of in the dustbin or with
normal household rubbish.
The coolant circuit, particularly the
heat exchanger at the
back/bottom of the unit, must not
be damaged.
The
Electric
Shock Risk
symbol on the product or
its packaging indicates that this
product is not to be handled as
normal household waste but is to
be taken to a recycling collection
point for electrical and electronic
goods. By correctly disposing of
this product you are contributing
to the protection of the
environment and to the health of
your fellow human beings.
Improper disposal endangers
health and the environment.
Further information about the
recycling of the product may be
obtained from your town hall,
refuse collection department or
the store where you purchased
the product.
Electric
Shock Risk
WARNING: To reduce the risk of fire,
electric shock or personal injury, unplug
or disconnect the appliance from the
power supply before servicing.

--CONTENTS--
IMPORTANT SAFETY INFORMATION ..............................................................................1
STRUCTURE AND INSTALLATION...................................................................................2
ACCESSORY INSTALLATION BEFORE OPERATING.....................................................3
UNPACKING AND CLEANING THE WINE COOLER .......................................................................................3
OPERATING THE WINE COOLER.....................................................................................3
WORKING CLIMATE..........................................................................................................................................3
WINE STORAGE................................................................................................................................................3
CONTROL PANEL ............................................................................................................................................4
POWER ON/OFF CONTROL.............................................................................................................................5
UNLOCKING THE CONTROL PANEL...............................................................................................................5
INTERIOR LIGHTING ON/OFF CONTROL.......................................................................................................5
TEMPERATURE DISPLAY WINDOW ...............................................................................................................5
TEMPERATURE SETTING................................................................................................................................5
SELECTING FAHRENHEIT (ºF) & CELSIUS (ºC) DISPLAY.............................................................................6
CARE AND MAINTENANCE ..............................................................................................6
CLEANING THE WINE COOLER ......................................................................................................................6
POWER FAILURE..............................................................................................................................................6
MOVING THE WINE COOLER ..........................................................................................................................6
ENERGY SAVING TIPS.....................................................................................................................................7
TROUBLESHOOTING ........................................................................................................7
REVERSE THE DOOR SWING...........................................................................................8
WARRANTY REGISTRATIONFORM…………………………………………………………………………………………………10

1
IMPORTANT SAFETY INFORMATION
Before using the appliance, please properly position and install it as described in this manual. To avoid the
risk of fire, electrical shock or injury when using the appliance, please follow these basic precautions:
• The appliance is intended to be used exclusively for the storage of wine.
• Make sure the voltage/current marked on the rating label corresponds with your supply voltage. Plug into a
standard 10amp 3-pin outlet.
• It is recommended that a separate circuit, serving only your appliance be provided.
• Never clean the appliance parts with flammable fluids which may create a fire hazard or explosion. And do
not store or use gasoline or other flammable vapours and liquids in the vicinity of the appliance.
• Do not connect or disconnect the electric plug when your hands are wet.
• Unplug the appliance or disconnect power before cleaning, maintenance or servicing. Failure to do so can
result in electrical shock or death.
• Do not attempt to repair or replace any part of the appliance unless it is specifically recommended in this
material. All other servicing should be referred to a qualified service technician.
• To ensure proper ventilation for the appliance, the front of the unit must be completely unobstructed. Locate
the unit away from direct sunlight and sources of heat (stove, heater, radiator, etc.).
• The fuse (or circuit breaker) size should be 10 amp or higher.
• It is important for the appliance to be leveled in order to work properly. You may adjust the appliance’s feet
to level it.
• This appliance is intended for use by persons with sufficient experience and knowledge of electrical
appliances. Any other persons (including children) should be supervised or given instruction concerning
use of the appliance by a person responsible for their safety.
• Children should be supervised to ensure that they do not play with the appliance.
• Do not use solvent-based cleaning agents of abrasives on the interior. These cleaners may damage or
discolor the interior.
• Do not use this appliance for other than its intended purpose.
• The use of attachments not recommended by the manufacturer may be hazardous.
• When you dispose the appliance, take off the door and leave the shelves in place so that children may not
easily climb inside. And make sure the coolant circuit, particularly the heat exchanger at the back/bottom of
the unit not be damaged. The symbol on the product or its packaging indicates that this product is not
to be handled as normal household waste and it is to be taken to a recycling collection point for electrical
and electronic goods.

2
STRUCTURE AND INSTALLATION
The following pictures only show the structure of the appliance. The dimension and shelf quantity may differ
among the models of the same series.

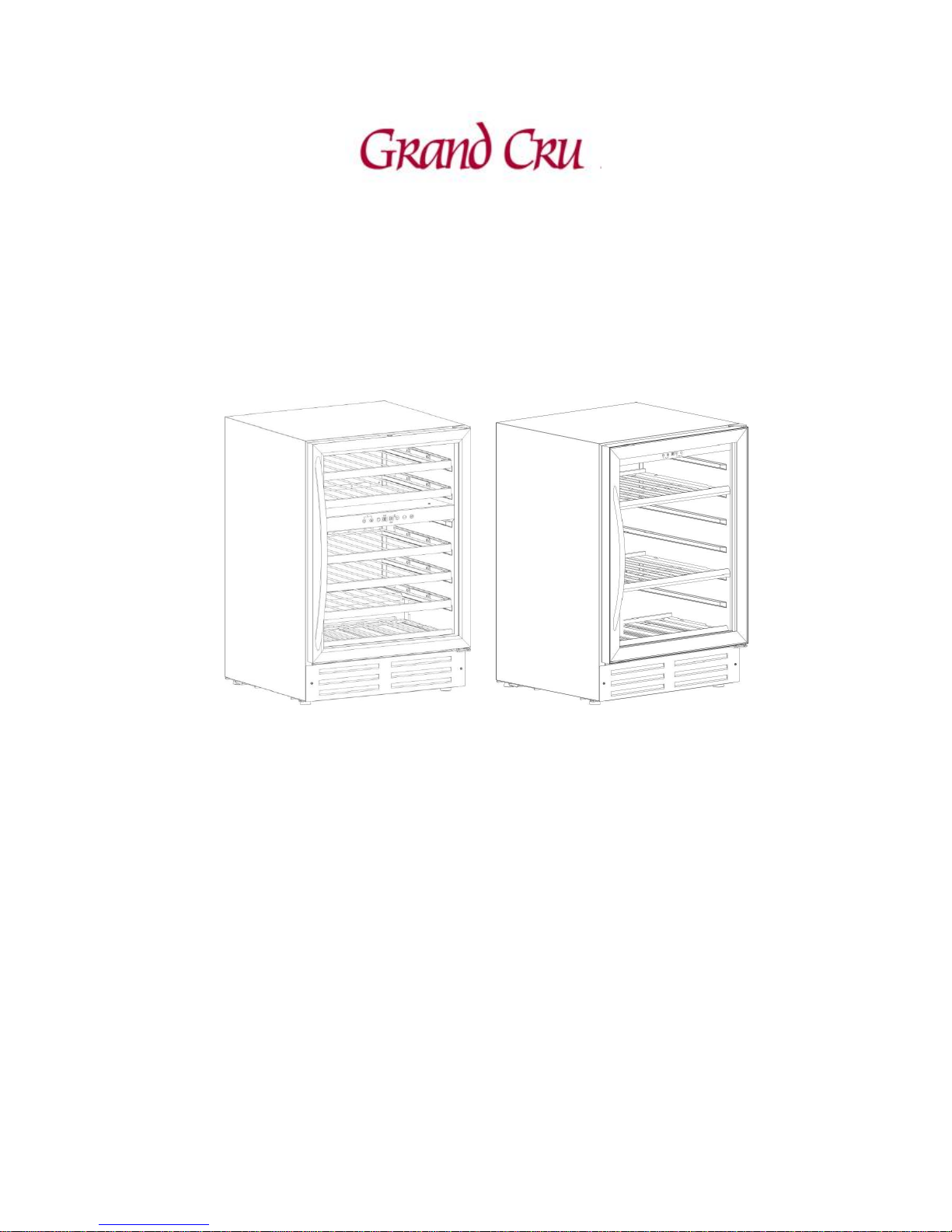

BUILT-UNDER SERIES (Built under a kitchen table top)

3
ACCESSORY INSTALLATION BEFORE OPERATING
UNPACKING AND CLEANING THE WINE COOLER
• Remove the exterior and interior packing materials.
•
Let the appliance stand upright for approximately 24 hours before connecting it to the power source,
which helps to reduce the possibility of a cooling-system malfunction from handling during
transportation.
• Use a soft cloth to clean the interior surface with lukewarm water.

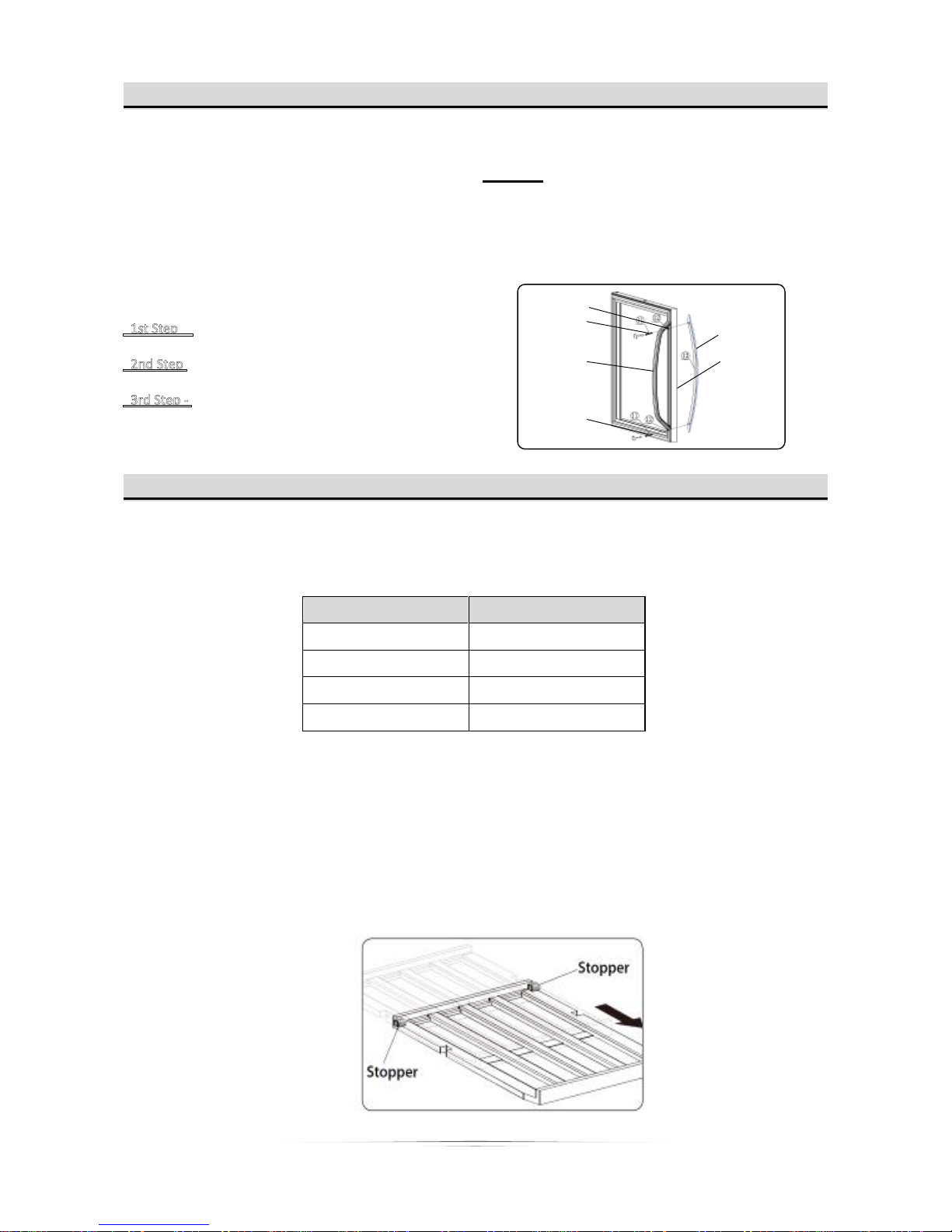

• Install the door handle provided with the appliance by following these steps:
-Remove the gasket on the internal
door to expose the two screw holes.
-Install the handle with the
screws and washers provided.
Restore the gasket.
OPERATING THE WINE COOLER
WORKING CLIMATE
• The appliance is designed for operating from SN to N climate (see below climate class chart). It is
recommended to maintain the ambient around 22-25°C which helps the appliance working with low power
consumption.
Climate Class
Ambient Temperature
SN
10 - 32 °C (50ºF-90ºF)
N
16 - 32 °C (61ºF-90ºF)
ST
18-38 °C (64ºF-100ºF)
T
18-43 °C (64ºF-109ºF)
• If the ambient temperature is above or below the designed climate range, the performance of the unit may
be affected. For example, the appliance operating in extreme cold or hot conditions may cause interior
temperatures to fluctuate, and the temperature set 5-22°C may not be reached sometimes.
WINE STORAGE
• The standard shelves are designed perfectly for Bordeaux style bottle storage. The maximum bottle loading
may vary subject to the different size or dimension of wine bottles you store.
• The shelves can be pulled out by approximately 1/3 for easy access to the wine storage.
• The shelves are fitted with a plastic Stopper on each side of the shelf track to prevent the shelf from sliding
out completely.
F lat washer t
Washerwash
err
Screw
Screw
Gasket
Handle
Door Frame

4
• To prevent damaging the door gasket, make sure to have the door opened fully all the way before pulling
the shelves out.
• Please store wine in sealed bottles.
• Do not cover the shelves with aluminum foil or any other shelf material which may prevent air circulation.
• Should the wine cooler be left empty for long periods it is suggested that the appliance is unplugged, and
after careful cleaning, leave the door ajar to allow air to circulate inside the cabinet in order to avoid possible
condensation, mould or odours forming.
Recommended temperatures for chilling/storing your wines.
Wine Type
Recommended Temp.
Red Wines
15 - 18ºC (59ºF-64ºF)
White Wines
9 - 14ºC (48ºF-57ºF)
Rose Wines
10 - 11ºC (50ºF-52ºF)
Sparkling Wines
5 - 8ºC (41ºF-46ºF)
CONTROL PANEL
•
For Single Zone
•
For Dual Zone

5
POWER ON/OFF CONTROL
• When the appliance is plugged in to a power outlet, it powers on automatically.
• Touch the power mark and hold for 10 seconds to turn off (or turn on) the appliance.
• No matter whether the appliance is under a locked or unlocked situation, you can turn off the appliance by
touching the power mark and holding for 10 seconds.
Warning: To avoid breaking the compressor, please do not turn on the appliance again within
5 minutes after you turn it off.
UNLOCKING THE CONTROL PANEL
• To unlock the control panel, touch the power mark and lighting mark with 2 fingers at the same
time and hold for 3 seconds. When unlocked a buzz sound will be heard.
• The control panel will be automatically locked with a buzz sound heard after 10 seconds without being
touched.
• Under the locked situation, the control panel will not react to any touch operation other than for lighting
on/off and temperature setting.
INTERIOR LIGHTING ON/OFF CONTROL
• Under the unlocked situation, touch the lighting mark to turn on (or turn off) the interior LED lighting.
• The lighting will be continuously on if it is not turned off.
TEMPERATURE DISPLAY WINDOW
• The temperature is displayed in digital display form. The digital display is shown as the set temperature
when you are setting the temperature, and it will change to be the actual temperature inside cabinet after 10
seconds without being touched.
• When the temperature probe is out of order, the display window will show with “HH” or “LL” instead of a
digital figure while a continuous buzz sound will be heard. In case of this happens, this appliance is
designed to keep the compressor and fan running periodically which helps to keep the desired temperature
of the inside cabinet to protect your stored wines.
Warning: To avoid destroying your stored wines, it is strongly recommended to have the
appliance repaired immediately, as the periodical running cannot ensure the appliance will achieve the
temperature you have set.
TEMPERATURE SETTING
For Single Zone beverage coolers:
•The temperature setting range is 2-20 ºC (36-68 ºF).
•Directly touch the or mark to set the wine cooler temperature as you want.
•The first touch on or mark will recall the previous set temperature displayed in the digital window.
•Touch the mark to increase the set temperature by 1ºC(or by 1ºF). On the contrary, touch the mark
to decrease the set temperature by 1ºC (or by 1ºF).
•The digital will change to display the real temperature of the inside cabinet after 10 seconds without being
touched.

6
For Dual Zone wine coolers:
•The temperature setting ranges are 5-12 ºC (41-54 ºF) for the upper zone and 12-22 ºC (54-72 ºF) for the
bottom zone.
•You need to select the set zone by touching the mark before touching the mark or to set the
desired temperature. The display window with digital flashing indicates the zone ready for temperature
setting.
•The first touch on mark or will recall the previous set temperature displayed in the digital window
•Touch the mark to increase the set temperature by 1ºC (or by 1ºF). On the contrary, touch the mark
to decrease the set temperature by 1ºC (or by 1ºF).
•The digital will change to display the real temperature of the inside cabinet after 10 seconds without being
touched.
Note: For the first time to use the appliance or to restart the appliance after having been shut off for a long
time, you may find a few degrees variance between the set temperature and the displayed temperature. It is
normal and everything of the appliance will be in the order after a few hours running.
SELECTING FAHRENHEIT (ºF) or CELSIUS (ºC) DISPLAY
For Single Zone
Touch the marks with 2 fingers at the same time and hold for 5 seconds, you can interchange the
Fahrenheit and Celsius display.
For Dual Zone
Directly touch the mark , you can interchange the Fahrenheit and Celsius display for both zones at the
same time.
CARE AND MAINTENANCE
CLEANING THE WINE COOLER
• Turn off the power, unplug the appliance, and remove all items including shelves.
• Wipe the inside surfaces with a sponge and baking soda solution. The solution should be about 2
tablespoons of baking soda to 1 litre of warm water.
• Wash the shelves with a mild detergent solution. Allow the wooden shelves to dry before placing them back
into the wine cooler.
• Remove excess water from the sponge or cloth when cleaning the controls, or any other electrical display
areas.
• Wipe the outside cabinet with warm water and a mild liquid detergent. Wipe dry with a clean soft cloth.
• Do not use steel wool or steel brush on the stainless steel. These will contaminate the stainless steel with
steel particles and rusting may occur.
POWER FAILURE
Most power failures are corrected within a few hours and should not affect the temperature of your appliance
if you minimize the number of times the door is opened. If the power is going to be off for a longer period of
time, you need to take the proper steps to protect your contents.
MOVING THE WINE COOLER
• Remove all items.
• Securely tape down all loose items (shelves) inside your appliance.
• Turn the adjustable legs up to the base to avoid damage.
• Tape the door shut.
• Ensure the appliance stays secure in the upright position during transportation. Also protect the outside of
appliance with a blanket, or similar item.

7
ENERGY SAVING TIPS
• The appliance should be located away from heat producing appliances, and away from direct sunlight.
• Ensure that the unit is adequately ventilated. Never cover the air vents.
• Only open the door when necessary. Avoid leaving the door open for long periods or opening/closing the
door frequently.
TROUBLESHOOTING
If you feel the appliance is out of order, follow these instructions to try to see if you can solve the problem
simply by yourself before calling for service.
No.
PROBLEM
PROBLEM POSSIBLE CAUSE / MEASURE
1
The wine cooler does not operate
Not plugged in.
The appliance is turned off.
The circuit breaker tripped or a blown fuse.
2
The wine cooler is not cold enough
Check the temperature control setting.
External environment may require a higher setting.
The door is opened too frequently.
The door is not closed completely.
The door gasket does not seal properly.
3
Automatically turn-on and
turn-off frequently
The room temperature is hotter than normal.
A large amount of contents has been added to the wine cooler.
The door is opened too frequently.
The door is not closed completely.
The temperature control is not set correctly.
The door gasket does not seal properly.
4
The lighting does not work
Not plugged in.
The circuit breaker tripped or a blown fuse.
The lighting is turned off.
5
Too much vibration
Check to assure that the appliance is level.
Check to assure no parts inside the cabinet or in the compressor
chamber are loose.
6
The wine cooler seems to make
too much noise
The rattling noise may come from the flow of the refrigerant, which
is normal.
As each cycle ends, you may hear gurgling sounds caused by the
flow of refrigerant.
Contraction and expansion of the inside walls may cause popping
and crackling noises.
The appliance is not level.
7
The door will not close properly.
The wine cooler is not level.
The door was reversed and not properly installed.
The gasket is dirty.
The shelves are out of position.
8
The display window is shown with “HH”
or “LL” instead of a digital figure, and/or with a
continuous buzz sound.
The temperature probe is out of order.

8
REVERSE THE DOOR SWING
Remarks:
•The instruction is based on a unit with right door hinge installed already.
•To reserve the door from right hinge to left hinge, you need to get ready 2 new spare parts:
an Upper Left Hinge, and a Bottom Left Hinge.
* All removed parts is suggested t be saved in case of door re-reversal.
1．Open the door, and loosen the screws from the support rod of the bottom hinge.
2．Remove the door off the upper hinge and take out the support rod.
3. For a door with lock, use a small flat head screwdriver to pry up the lock whole cap on
the top of the door and remove to the bottom.
4. Unscrew the upper hinge and bottom hinge.

9
5. Pry out the plastic caps at the left side of the cabinet, and remove them to the right side.
6. Install the hinge set which are packed as accessories with the instruction manual to the
opposite side.
7. Rotate the door 180oso that the top is now the bottom, and install it by attaching the
support rod with screws.

10
Your Grand CRU Warranty Registration Form
Thank you for purchasing a Grand Cru Wine Cooler from Home Icon Pty Ltd. Home Icon provides a 1 year
warranty on the Grand Cru range of Wine Coolers.
To register your wine cooler NOW for warranty, and allow us to provide you with the best possible after sales
service, please log on to our website at www.homeicon.com.au
Click on the ‘Warranty’ tab across the top, select the ‘To register your product warranty click here’ option and
fill out the details as required.
Should an instance arrive where you require some after sales assistance, please log on to our website at
www.homeicon.com.au
Click on the ‘Warranty’ tab across the top, select the ‘For Service Request click here’ option and fill out the
details as required.”
This warranty does not cover the following:
1. Any damages caused from improper use or not used in accordance with the instruction manuals.
2. Damage caused by connecting your product to the wrong power source/supply.
3. Incorrect installation or modifications made during installation or use of the product.
4. Removing screws or otherwise opening the outer case will void the warranty.
5. Any damages resulting from poor handling or moving of the product, misuse, fire or water damage etc.
6. Failure to maintain the product as per the Instruction Manual.
7. Problems caused by incorrect or inadequate venting of the product.
