Grand Cru 36D User manual

36D
Instruction
Manual

1
TABLE OF CONTENTS
Important Safeguards...................................................................................................2
Features of Your Wine Cooler....................................................................................4
Installation Instructions................................................................................................5
Electrical Connection ....................................................................................................6
Operating your wine cooler .......................................................................................8
Care and Maintenance .............................................................................................. 12
Troubleshooting Guide.............................................................................................. 14
Technical specifications............................................................................................. 15
Disposal of Old Appliance ....................................................................................... 16
THIS PRODUCT IS FOR HOUSEHOLD USE ONLY!
Please read these instructions carefully before the first use of
this product and save this manual for your future reference.

2
Important Safeguards
When using an electrical appliance, basic precautions should always be followed to
reduce the risk of fire, electric shock, and injury to persons, including the
following:
1. For your safety, read all instructions carefully, even if you are quite familiar with the
appliance.
2. Before using check that the voltage of wall outlet corresponds to the one shown on
the rating plate.
3. Use this appliance only as described in this manual. Other uses not recommended
may cause fire, electric shock or personal injury.
4. If the supply cord is damaged, it must be replaced by the manufacturer, its service
agent or similarly qualified persons to avoid a hazard.
5. This appliance is not intended for use by persons (including children) with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge,
unless they have been given supervision or instruction concerning use of the
appliance by a person responsible for their safety.
6. Young children should be supervised to ensure that they do not play with the
appliance.
7. To protect against the risk of electric shock, DO NOT IMMERSE the unit, cord, or
plug in water or spray any other liquid.
8. Unplug the appliance from the plug socket when not in use, when moving from one
location to another and before cleaning.
9. To disconnect the appliance, grip the plug and pull it from the wall outlet. Never
pull by the cord.
10. Do not operate the appliance in the presence of explosive and/or flammable
fumes.
11. Do not place the appliance or any of its part near an open flame, cooking or
other heating appliance.
12. The use of attachments not recommended by the manufacturer may be
hazardous.

3
13. Place the unit on a dry level surface.
14. Do not operate the appliance with a damage cord or plug, if the product
malfunctions, or if it is dropped or damaged in any manner.
15. This appliance has been incorporated with a grounded plug. Please ensure the
wall outlet in your house is well earthed.
16. Do not operate if the housing is removed or damaged.
17. A loose fit between the AC outlet (receptacle) and plug may cause overheating
and a distortion of the plug. Contact a qualified electrician to replace loose or worn
outlet.
18. Locate the unit away from direct sunlight and sources of heat (stove, heater,
radiator, etc.).
19. This appliance is CFC- and HFC-free and contains small quantities of Isobutene
(R600a), an environmentally friendly coolant.
20. You must ensure that the cooling circuit is undamaged when installing the
appliance. However, if it becomes damaged, avoid proximity to open fires and heat
sources of all kinds. The room in which the appliance is located should be ventilated
for a few minutes.
21. Never use an appliance with a damaged circuit.
22. Ensure that the ventilation openings to and from a built-in appliance are never
blocked or covered. No liability will be accepted for any damage incurred owing to
misuse of the appliance or as a result of repairs carried out by unqualified
personnel. In this case neither the guarantee nor any other liability claims will apply.
23. WARNING: Do not operate any electrical appliance inside the appliance.
24. Do not attempt to repair or replace any part of your appliance unless it is
specifically recommended in this manual. All other servicing should be referred to a
qualified technician.
25. Replace all panels before operating.
26. Use two or more people to move and install the appliance. Failure to do so can
result in back or other injury.
27. Never clean appliance parts with flammable fluids. These fumes can create a fire
hazard or explosion. And do not store or use gasoline or other flammable vapors
and liquids in the vicinity of this or any other appliance. The fumes can create a fire
hazard or explosion,

4
28. Do not connect or disconnect the electric plug when your hands are wet.
29. It is recommended that a separate circuit, serving only your appliance be
provided. Use receptacles that cannot be turned off by a switch or pull chain.
30. It is recommended to check regularly the supply cord for any sign of possible
deterioration, and the appliance should not be used if the cable is damaged.
31. The appliance is not intended to be operated by means of an external timer or a
separate remote –control system.
32. This device has been tested according to all relevant current CE guidelines, such
as electromagnetic compatibility and low voltage directives, and has been
constructed in accordance with the latest safety regulations.
WARNING: To reduce the risk of fire, electric shock or personal injury, unplug
or disconnect the appliance from the power supply before servicing.
Note: If you are experiencing problems, check the Troubleshooting Guide at the back of
this manual. It lists causes of minor operating problems that you can correct yourself.
Features of Your Wine
Cooler
Temp.
C/F
c
F
Temp.
c
F

5
 ① Digital Control Panel ② Stainless Steel Door ③ Stainless Steel Handle
 ④ Full shelves (Total 10) ⑤ Half Shelf (Total 2) ⑥ Base Grille ⑦ Leveling Legs
Installation Instructions
Before Using Your Wine Cooler
Remove all exterior and interior packing.
Before connecting the Wine Cooler to the power source, let it stand upright for
approximately 2 hours.
This will reduce the possibility of a malfunction in the cooling system caused by
handling during transportation.
Clean the interior surface with lukewarm water using a soft cloth.
The doors on this appliance can be opened from either the left or the right side.
The unit is delivered with the door opening on the left side. Should you wish to

6
open the door from the right, follow the instructions “Reversing the door swing of
your appliance?”
Installation of Your Wine Cooler
The appliances are designed to be built-in or recessed or free standing installation.
Place your Wine Cooler on a floor that is strong enough to support it when it is
fully loaded. To level your Wine Cooler, adjust the front leveling leg at the bottom
of the Wine Cooler.
Locate the Wine Cooler away from direct sunlight and sources of heat (stove,
heater, radiator, etc.). Direct sunlight may affect the acrylic coating and heat
sources may increase electrical consumption. Extreme cold ambient temperatures
may also cause the unit not to perform properly.
Avoid locating the unit in damp areas.
Plug the Wine Cooler into an exclusive, easily accessible plug socket. Any questions
concerning power should be directed towards a qualified electrician or an
authorized service centre.
The air vent at the front of the appliance must never be covered or blocked in any
way.
The appliance must be installed to all electrical, plumbing, water and drain
connections in accordance with state and local code
Cabinet Opening Dimensions (min)
Model
GC36D
Width
60cm

7
Built-in Cabinet Instructions
These units are designed for built-in or
free standing installation. If you plan to
use this unit in a built-in application please follow the requirements shown to the
below:
ATTENTION:
Store wine in sealed bottles.
Do not overload the cabinet.
Do not open the door unless necessary.
Do not cover shelves with aluminum foil or any other shelf material
which may prevent air circulation.
Should the wine cooler be left empty for long periods it is suggested that the
appliance is unplugged, and after careful cleaning, leave the door ajar to allow air
to circulate inside the cabinet in order to avoid possible condensation, mold or
odors forming.
Installing the Handle

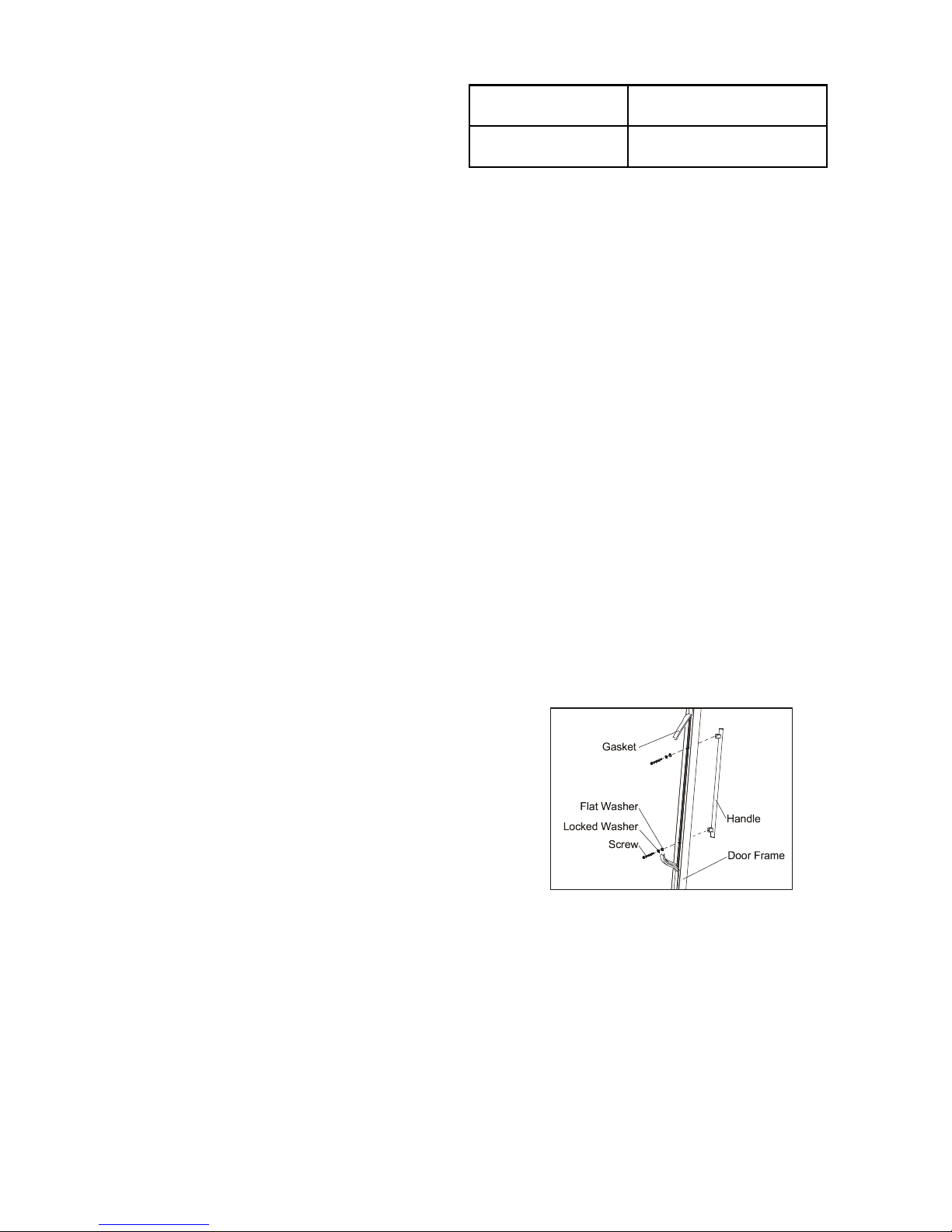

1. Remove the door gasket on the side you wish to
install the handle - you can see two designated
holes for handle installation.
2. Install the handle tightly as shown above with
two screws, lock washers and flat washers
provided.
3. Replace the door gasket.
Depth
57cm
Height
87cm

8
Electrical Connection
Check that the voltage marked on the product corresponds with your supply voltage.
WARNING: Improper use of the grounded plug can result in the risk of electrical shock. If
the power cord is damaged, have it replaced by a qualified electrician or an authorized
service center.
This appliance should be properly grounded for your safety. The power cord of this
appliance is equipped with a three pins plug which mates with standard three pins
wall outlets to minimize the possibility of electrical shock.
Do not under any circumstances cut or remove the third ground prong from the power cord
supplied. For personal safety, this appliance must be properly grounded.
This appliance requires a standard 220-240 Volt AC ~50Hz electrical outlet with three
pins. Have the wall outlet and circuit checked by a qualified electrician to make sure
the outlet is properly grounded. When a standard 2 pins wall outlet is encountered, it
is your responsibility and obligation to have it replaced with a properly grounded 3
pin wall outlet.
The cord should be secured behind the appliance and not left exposed or dangling to
prevent accidental injury.
The appliance should always be plugged into its own individual electrical outlet which
has a voltage rating that matches the rating label on the appliance. This provides the
best performance and also prevent overloading house wiring circuits that could cause
a fire hazard from overheated. Never unplug the appliance by pulling the power cord.
Always grip the plug firmly and pull straight out from the receptacle. Repair or replace
immediately all power cords that have become frayed or otherwise damaged. Do not
use a cord that shows cracks or abrasion damage along its length or at either end.
When moving the appliance, be careful not to damage the power cord.
Electrical fuse protection of at least 10 amperes must be provided. If the socket is no
longer accessible once the appliance has been built-in, suitable measures must be
taken during electrical installation to ensure that the appliance can be disconnected
from the mains.

9
Do not use your appliance with an extension cord unless this cord has been checked
and tested by a qualified technician or service person.
Operating Your Wine Cooler
This appliance is intended to be used exclusively for the storage of wine.
The Wine Cooler should be placed in a position where the ambient temperature is
between 16-35°C and 60-95ºF. If the ambient temperature is above or below this
range, the performance of the unit may be affected. For example, placing your unit
in extreme cold or hot conditions may cause interior temperatures to fluctuate. The
range of 5- 18°C / 40-64ºF may not be reached.
Note:
When you use the Wine Cooler for the first time or restart the Wine Cooler
after having been shut off for a long time, there could be a few degrees
variance between the temperature you select and the one indicated on the
LED readout. This is normal and it is due to the length of the activation time.
Once the Wine Cooler is running for a few hours everything will be back to
normal.
If the unit is unplugged, power lost, or turned off, you must wait 3 to 5
minutes before restarting the unit. If you attempt to restart before this time
delay, the Wine Cooler will not start.
The Controls of Your Wine Cellar
Temp. c

10
POWER

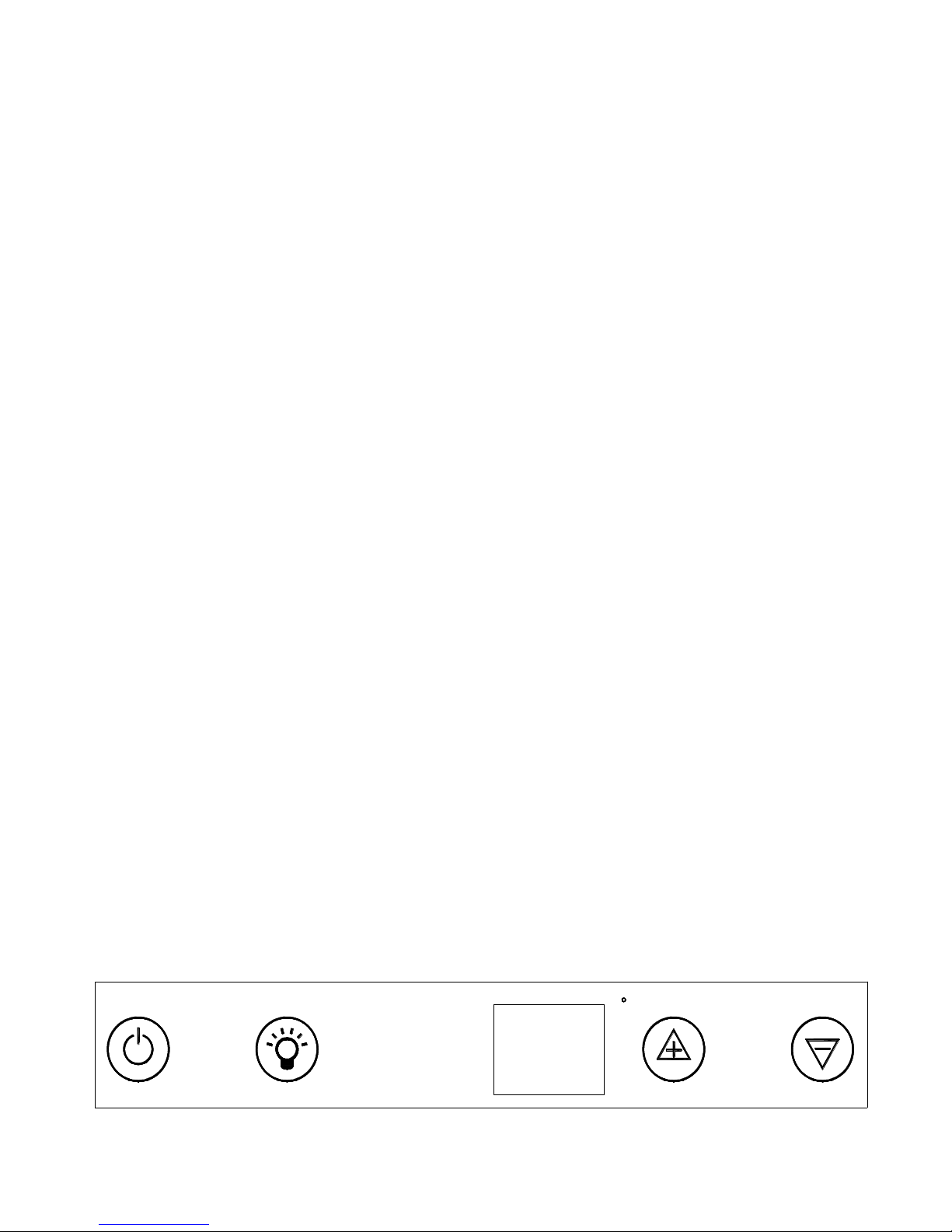

To control this appliance turn on/off. To turn OFF the appliance, touch the mark and
hold for 5 seconds.
LIGHT
To control the inner light turn on/off.
UP
Used to raise (warm) the set temperature by 1°C or 1ºF.
DOWN
Used to lower (cool) the set temperature by 1°C or 1ºF.
Setting the Temperature Control
You can set the temperature as required by touching the UP or DOWN
mark. When you touch the two marks for the first time, the LED readout
will show the original temperature set previously (the temperature preset at
the factory is 12°C).
The temperature will increase 1°C if you touch the UP mark once, or the
temperature will decrease 1°C if you touch the DOWN mark once.
To view the “set” temperature at any time, touch the UP or DOWN mark, the
“set” temperature will temporarily “flash” in the LED display for 5 seconds.
The wine cooler has two temperature zones. The temperature settings of BOTH ZONE
are adjustable with the range 5º-18ºC/40º- 64ºF. It is recommended to set to 13º ~
18ºC / 55 ~ 65ºF which is ideal for storing white and red wines and to 5º ~13ºC / 40 ~
55ºF which is ideal for storing sparkling and white wines.
The temperature that you desire to set will increase 1ºF or 1ºC if you touch the UP

11
mark once, on the contrary the temperature will decrease 1ºF or 1ºC if you touch
the DOWN mark once.
When you store mostly red wines, the temperature needs to be set at 15º - 18ºC /
58º - 64ºF and the LED lamp for RED will be lit red.
When you store mostly white wines, the temperature needs to be set at 9º - 14ºC /
48º - 57ºF and the LED lamp for WHITE will be lit green.
When you store mostly sparkling wines, the temperature needs to be set at 5º -
8ºC / 40º - 47ºF and the LED lamp for SPARKL will be lit amber.
To view the “set” temperature at any time, touch the UP or DOWN mark, the “set”
temperature will temporarily “flash” in the LED display for 5 seconds.
Shelves
To prevent damaging the door gasket, make sure the door is fully open when
pulling shelves out of the rail compartment.
For easy access to the bottles stored, pull the shelves out approximately 1/3. The
shelves are designed with an emergency stop to prevent them being removed too
far when loaded.
Defrosting
The unit defrosts automatically.
The evaporator behind the rear wall of the unit defrosts automatically. The
condensate collects in the drainage channel behind the rear wall of the unit, and
flows through the drainage hole into the drip tray by the compressor where it
evaporates.
Storage
Many bottles may differ in size and dimensions. As such the actual number of bottles
you may be able to store may vary.
Note:
GC36D - You can place 36 standard bottles in both zones with 3bottles on each
shelf.

12
Bottle capacities are approximate maximums
when storing traditional Bordeaux 750 ML
bottles and include bulk storage.
Care and Maintenance
Removing Shelves
To remove any of the shelves from the rail compartment, move the shelf to the
position where the notch of wooden shelf is exactly under the plastic post and lift
the wooden shelf. Please ensure these are replaced when the shelf is put back.
Note: Make sure the shelves are fully engaged before loading any bottle. Pull the
shelves out all the way to the STOP position and push back in several times to
make sure the shelves are properly engaged.
Cleaning Your Wine Cooler

13
Turn off the power, unplug the appliance, and remove all items including shelves
and rack.
Wash the inside surfaces with a warm water and baking soda solution. The solution
should be about 2 tablespoons of baking soda to a pint of water.
Wash the shelves with a mild detergent solution.
Wring excess water out of the sponge or cloth when cleaning any area of the
controls.
Wash the outside cabinet with warm water and mild liquid detergent. Rinse well and
wipe dry with a clean soft cloth.
Power Failure
Most power failures are corrected within a few hours and should not affect the
temperature of your appliance if you minimize the number of times the door is
opened. If the power is going to be off for a longer period of time, you need to take
the proper steps to protect your contents.
Vacation Time
Short holidays: Leave the Wine Cooler in operation for holidays of less than three
weeks.
Long absences: If the appliance will not be used for several months, remove all items,
turn off the appliance and unplug. Clean and dry the interior thoroughly. To prevent
odor and mold growth, leave the door open slightly: blocking it open if necessary.
Moving Your Wine Cooler
Remove all items.
Securely tape down all loose items (shelves) inside your appliance.
Turn the adjustable leg up to the base to avoid damage.
Tape the door shut.
Be sure the appliance stays secure in the upright position during transportation. Also
protect outside of appliance with a blanket, or similar item.
Energy Saving Tips
The Wine Cooler should be located in the coolest area of the room, away from heat

14
producing appliances, and out of the direct sunlight.
Ensure that the unit is adequately ventilated. Never cover air vents.
Only open the door for as long as necessary.
Troubleshooting Guide
Problems with Your Wine Cooler
You can solve many common Wine Cooler problems easily, saving you the cost of a
possible service call. Try the suggestions below to see if you can solve the problem
before calling customer service.
POSSIBLE PROBLEM
POSSIBLE CAUSE
Wine Cooler does not
operate.
Not plugged in.
The appliance is turned off.
The circuit breaker tripped or a blown fuse.
Wine Cooler is not cold
enough.
Check the temperature control setting.
External environment may require a higher setting.
The door is opened too often.
The door is not closed completely.
The door gasket does not seal properly.
Turns on and off
frequently.
The room temperature is hotter than normal.
A large amount of contents has been added to the Wine
Cooler.
The door is open too often.
The door is not closed completely.
The temperature control is not set correctly. The door
gasket does not seal properly.
The light does not work.
Not plugged in.

15
The circuit breaker tripped or a blown fuse.
The light switch is “OFF”.
Vibrations.
Check to assure that the Wine Cooler is level.
The Wine Cooler seems to
make too much noise.
The rattling noise may come from the flow of the
refrigerant, which is normal. As each cycle ends, you may
hear gurgling sounds caused by the flow of refrigerant in
your Wine Cooler.
Contraction and expansion of the inside walls may cause
popping and crackling noises.
The Wine Cooler is not level.
The door will not close
properly.
The Wine Cooler is not level.
The door was reversed and not properly installed.
The gasket is dirty.
The shelves are out of position.
Display “EL” or “EH”.
The air temperature sensor is failed.
Technical specifications
Type
GC36D
Volume (liters)
116
Material
Case
Iron
Door
Glass
Unit Dimension (W×D×H) (mm)
600*570*870
Packaging Dimension (W×D×H)(mm)
660*625*930
Net Weight (Kg)
46
Gross Weight (Kg)
51
Current (A)
0.6
Fitting ambient temperature range of working
＜30°C
Temperature Range
Left zone
5°C—22°C
Right zone
5°C—22°C
Rated Voltage
220-240V AC
Rated Frequency (Hz)
50
Input power (W)
185
Climate type
N SN
Refrigerant
R600a
Power Consumption (KW·h/24h)
0.56
Protection Type
I
Insulation blowing gas
Cyclopentane

16
Electrical diagram
PLUG
E
N
L
BN POWER PCB
YE/GN
BL
REDBK YE GR RED BK
REDBK YE GR RED BK
BK
WH
BN
BL
GN
YE
RED
DISPLAY / CONTROL
PCB(C) DISPLAY / CONTROL
PCB(D)
GN
YE
t
GN
GN
BK
WH
t
BL
BL
YE/GN
OLP
STARTER
BL RED
M
BL
RED
M
GN
RED
M
YE
RED GN BK
RED GN BK
YE/GN
Disposal of Old Appliance
Dispose of your appliance packaging properly.
Refrigeration equipment must be properly disposed of in a way which protects the
environment.
The appliance must not be disposed of in the dustbin or with normal household
rubbish.
The coolant circuit, particularly the heat exchanger at the back/bottom of the unit,
must not be damaged.
WARNING: Please ensure that old, worn appliances are rendered unusable before
disposal by removing the plug, cutting the network cable, and removing or
destroying any snap fastenings or bolts. You will thus prevent children from locking
themselves in the appliance during play (risk of suffocation) or endangering their lives
in any other way.
We decline liability for any damage or accident derived from any use of this
product which is not in conformity with the instructions contained in this booklet.

17
CORRECT DISPOSAL OF THIS PRODUCT
This marking indicates that this product should not be disposed with other
household wastes throughout the EU. To prevent possible harm to the
environment or human health from uncontrolled waste disposal, recycle it
responsibly to promote the sustainable reuse of material resources. To return
your used device, please use the return and collection systems or contact the
retailer where the product was purchased. They can take this product for
environmental safe recycling.
