GRAND EFFECTS FPIAUT24 User manual

GRAND EFFECTS
H0667600 REV A
OPERATION AND
MAINTENANCE MANUAL
WARNING
IF THESE INSTRUCTIONS ARE NOT FOLLOWED
EXACTLY, A FIRE OR EXPLOSION MAY RESULT,
CAUSING PROPERTY DAMAGE, PERSONAL
INJURY, OR DEATH.
FOR YOUR SAFETY: This product must be installed and serviced by a contractor who is licensed and qualified in pool equipment
by the jurisdiction in which the product will be installed where such state or local requirements exists. In the event no such state or
local requirement exists, the installer or maintainer must be a professional with sufficient experience in pool equipment installation
and maintenance so that all of the instructions in this manual can be followed exactly. Before installing this product, read and follow all
warning notices and instructions that accompany this product. Failure to follow warning notices and instructions may result in property
damage, personal injury, or death. Improper installation and/or operation can create carbon monoxide gas and flue gases which can
cause serious injury, property damage, or death. For installations in the vicinity of occupied/living spaces, as an additional measure
of safety, Zodiac Pool Systems LLC strongly recommends installation of suitable carbon monoxide detectors in the vicinity of this
appliance and in any adjacent occupied spaces. Improper installation and/or operation may void the warranty.
Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance.
WHAT TO DO IF YOU SMELL GAS
• Immediately switch off main gas supply.
• Do not try to light any appliance.
• Do not touch any electrical switch; do not use any phone in your building.
• Immediately call your gas supplier from a neighbor’s phone. Follow the gas supplier’s instructions.
• If you cannot reach your gas supplier, call the fire department.
Installation and service must be performed by a qualified installer, service agency or the gas supplier.
Grand Effects®
24” - 30” Fire Pits Inserts
Standard Line Automated Operation

Page 2 24” - 30” Fire Pit Inserts
Standard Line Automated Operation
Table of Contents
Section 1. Important Safety Instructions....... 3
Section 2. General Description ...................... 4
2.1 Product Overview..........................................................4
2.2 Product Contents...........................................................4
Section 3. Installing the Grand Effects®
24” - 30” Fire Pit Inserts ............... 5
3.1 Preparing the Fire Pit Inserts for Installation .................5
3.2 Gas and Electric Requirements.....................................6
3.3 Installing the Fire Pit Inserts..........................................7
Section 4. Burner Setup and Adjustment .... 14
4.1 Burner Setup ...............................................................14
4.2 Burner Adjustment.......................................................15
Section 5. Maintenance ................................. 16
Section 6. Operation...................................... 17
6.1 Operating Instructions .................................................17
Section 7. Troubleshooting........................... 18

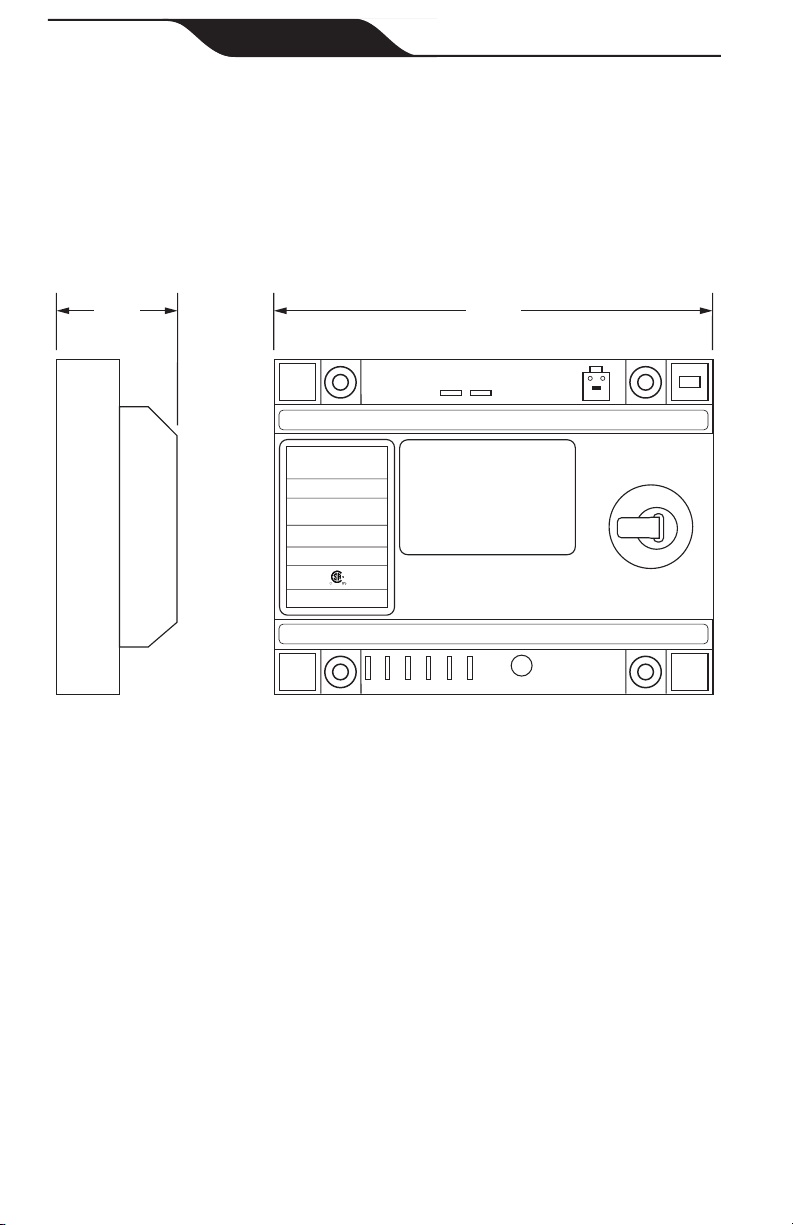

Section 8. Control Module Diagram ............. 21
Section 9. Wiring Diagram ............................ 22

24” - 30” Fire Pit Inserts
Standard Line Automated Operation Page 3
Section 1. Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS PERTAINING TO A RISK
OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS
READ AND FOLLOW ALL INSTRUCTIONS
When installing and using this electrical equipment, basic safety
precautions should always be followed, including the following:
WARNING
Before installing this fire pit, read and follow all warning notices and
instructions accompanying this pit. Failure to follow safety warnings and
instructions can result in severe injury, death, or property damage.
Visit www.zodiacpoolsystems.com for additional free copies of these
instructions or call Zodiac Technical Support at 800.822.7933 (U.S.) or
Grand Effects at 949.697.5270
DANGER
RISK OF ELECTRICAL SHOCK OR ELECTROCUTION. This fire
pit must be installed by a licensed or certified electrician in accordance
with the National Electrical Code®and applicable local codes and
ordinances. In Canada, the Canadian Electrical Code and all applicable
local codes and ordinances must be adhered to. Improper installation
will create an electrical hazard, which could result in death or serious
injury to pool or spa users, installers, or others due to electrical shock,
and may also cause damage to property. Read and follow the specific
instructions below.
SAVE THESE INSTRUCTIONS
ATTENTION INSTALLER
This manual contains important information about the installation,
operation and safe use of this product. This information should be given
to the owner/operator of this equipment.
WARNING
This unit is for outdoor use only.
Recommended CSA/AGA Clearances: Sides 4 ft / Top 6 ft

Page 4 24” - 30” Fire Pit Inserts
Standard Line Automated Operation
Section 2. General Description
2.1 Product Overview
This manual provides instructions for installing and replacing the
Grand Effects®24” - 30” Fire Pit Inserts.
CAUTION
The Grand Effects Fire Pit Inserts are not serviceable and therefore
contain no serviceable parts. In order to prevent risk of property damage
and/or injury, no service should be attempted to the bowl in the event
of a malfunction. The Fire Box Burner Assembly must be sent back to
a Grand Effects service center for repair. A certied gas professional
should remove and re-install the Fire Box Burner Assembly.

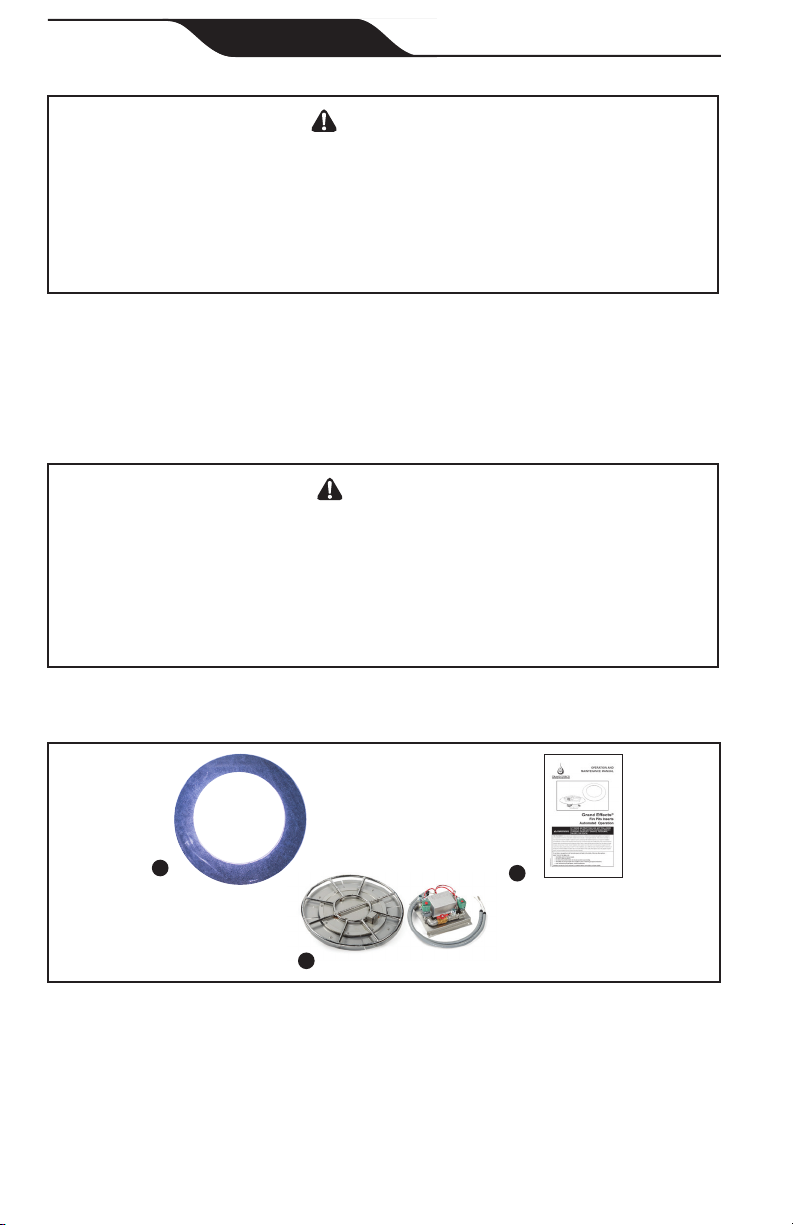

2.2 Product Contents
13
2
1. Support Plate Qty 1
2. Burner Assembly Qty 1
3. Grand Effects Fire Pit Inserts Automated Operation
and Maintenance Manual Qty 1
WARNING
RISK OF ELECTRICAL SHOCK OR ELECTROCUTION, which
could result in serious injury or death. The Grand Effects Fire Pits
are only available for 12-volt AC power. For supply connection, use only
an isolating low voltage power supply with ungrounded output, evaluated
and listed by a Nationally Recognized Testing Laboratory (NRTL) for
swimming pool use.

24” - 30” Fire Pit Inserts
Standard Line Automated Operation Page 5
Section 3. Installing the Grand Effects®
24” - 30” Fire Pit Inserts
WARNING
Risk of Electrical Shock or Electrocution. This fire pit must
be installed by a licensed or certified electrician or a qualified pool
serviceman in accordance with the National Electrical Code®(Canadian
Electrical Code, in Canada) and all applicable local codes and
ordinances. Improper installation will create an electrical hazard, which
could result in death or serious injury to pool or spa users, installers or
others due to electrical shock, and may also cause damage to property.
Always disconnect the power to the Pit at the circuit breaker before
installing or servicing the bowl. Failure to do so could result in death or
serious injury to serviceman, pool or spa users or others due to electrical
shock.
3.1 Preparing the Fire Pit Inserts for Installation
NOTE: The electrician must complete preparatory steps before re pit is
installed.
The National Electrical Code (NEC®) allows listed low-voltage gas fired-
luminaires, decorative fireplaces, fire pits, and similar equipment using low
voltage ignitors that do not require grounding, and are supplied by a listed
transformer / power supply with outputs that do not exceed the low-voltage
contact limit (15 V RMS ac, 30 V continuous dc) to be permitted to be
located less than 1.5 m (5 ft) from the inside walls of the pool.
Metallic equipment, including metallic gas piping, shall be bonded in
accordance with the National Electrical Code in the US, and Canadian
Electrical Code in Canada.
BONDING
In the United States the National Electrical Code® (NEC®) and in Canada
the Canadian Electrical Code (CEC), require that all metallic components
of a pool structure, including reinforcing steel, metal fittings and above
ground components be bonded together (forming an equipotential bonding
grid) with a solid copper conductor not smaller than an 8 AWG (6 AWG in
Canada).

Page 6 24” - 30” Fire Pit Inserts
Standard Line Automated Operation
Additionally, Zodiac Pool Systems LLC, requires that as required by Article
680 of the NEC, the appliance be properly connected to an equipotential
bonding grid/loop that includes all electrical equipment in the system and
on the equipment pad. Bonding lugs must be connected with a solid copper
wire at least 8 AWG (6 AWG in Canada) or larger. Failure to do so may void
the Zodiac Pool Systems LLC warranty.
CAUTION
To prevent premature failure of the appliance resulting from stray
voltages and voltage differentials, the burner must be bonded to
other equipment which is part of the pool plumbing system with a
solid copper wire not smaller in diameter than 8 AWG (6 AWG) in
Canada).

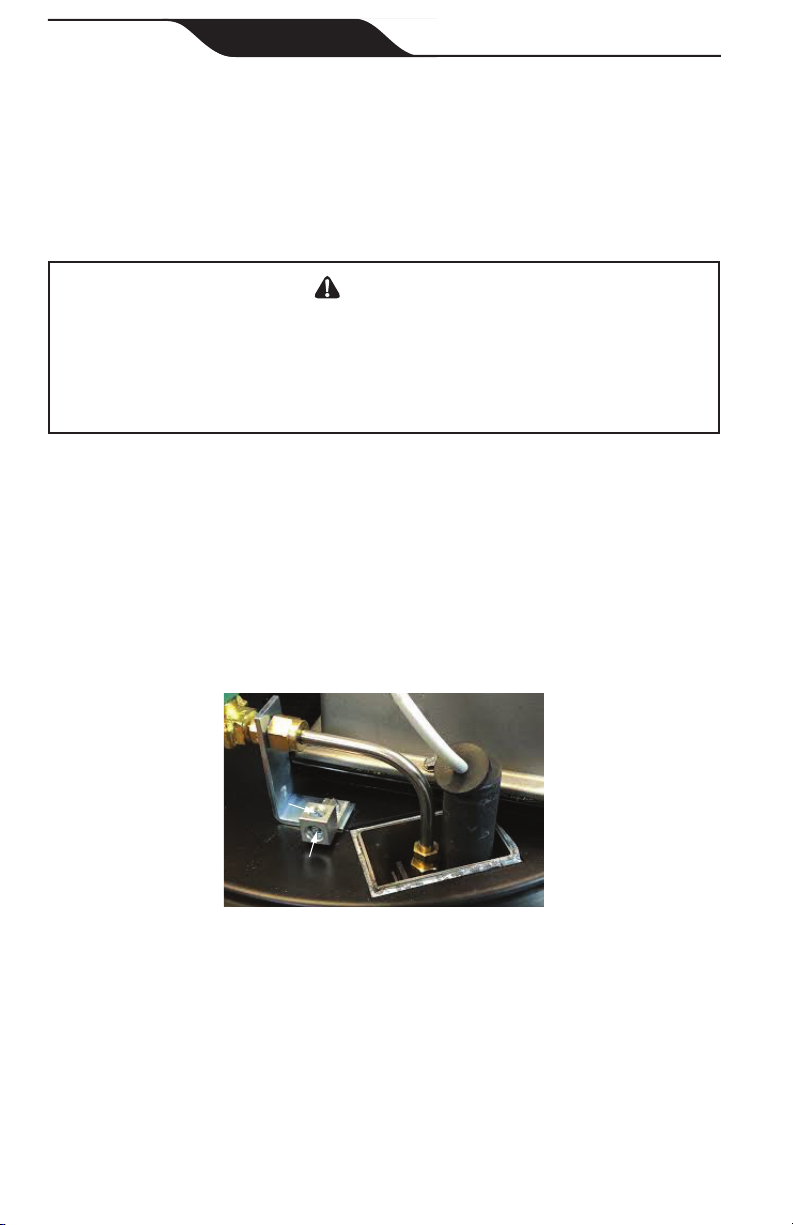

BONDING THE BURNER
Note: The Burner insert contains a bonding lug near the pilot on the
bottom.
1. Loosen the setscrew.
2. Insert the bond wire into the hole.
3. Tighten the setscrew until the bond wire is secured into place.
Bonding Lug /
Bond Wire Insert
Setscrew
Figure 1. Bonding Lug on Burner Assembly

24” - 30” Fire Pit Inserts
Standard Line Automated Operation Page 7
3.2 Gas and Electric Requirements
Input Voltage 120 VAC / 60 Hz to Grand Effects®
Control Panel
Gas Type Natural Propane
Gas Pressure (Nominal) 7” wc 11” wc
Gas Flow 24” Burner System
30” Burner System
275,000 standard btu/hr
400,000 standard btu/hr
Note: Check with your gas supplier to verify gas ows and pressures
available at the location of your installation. In many cases utility
companies will install larger meters at no charge to accommodate
larger ows.
3.3 Installing the Fire Pit Inserts
WARNING
Do not install near any combustibles such as wood structures,
fuels, clothing, fabrics, or dry vegetation.
Keep surrounding area clear of all debris such as paper, leaves,
pine-needles and other combustible materials.
WARNING
This unit is for outdoor use only.
Recommended CSA/AGA Clearances: Sides 4 ft / Top 6 ft
A LP gas regulator should never be installed in the fire pit. It should be
installed by a gas expert in a remote location away from the heat source.
Install burner assembly out of the way of pedestrian traffic.
Installation shall be performed by a licensed contractor. All aspects of
installation must conform to local or national codes, or in the absence of
codes, with Natural Fuel Gas Code NFPA®54 / ANSI Z223.1.
Using fire brick to line the inside of the fire pit is not recommended. Fire
brick will retain heat and may result in overheating of the electronics.
The control panel and approved gas valve must be located where they can
be easily accessible so that the gas can be shut off quickly in case of an
emergency.

Page 8 24” - 30” Fire Pit Inserts
Standard Line Automated Operation

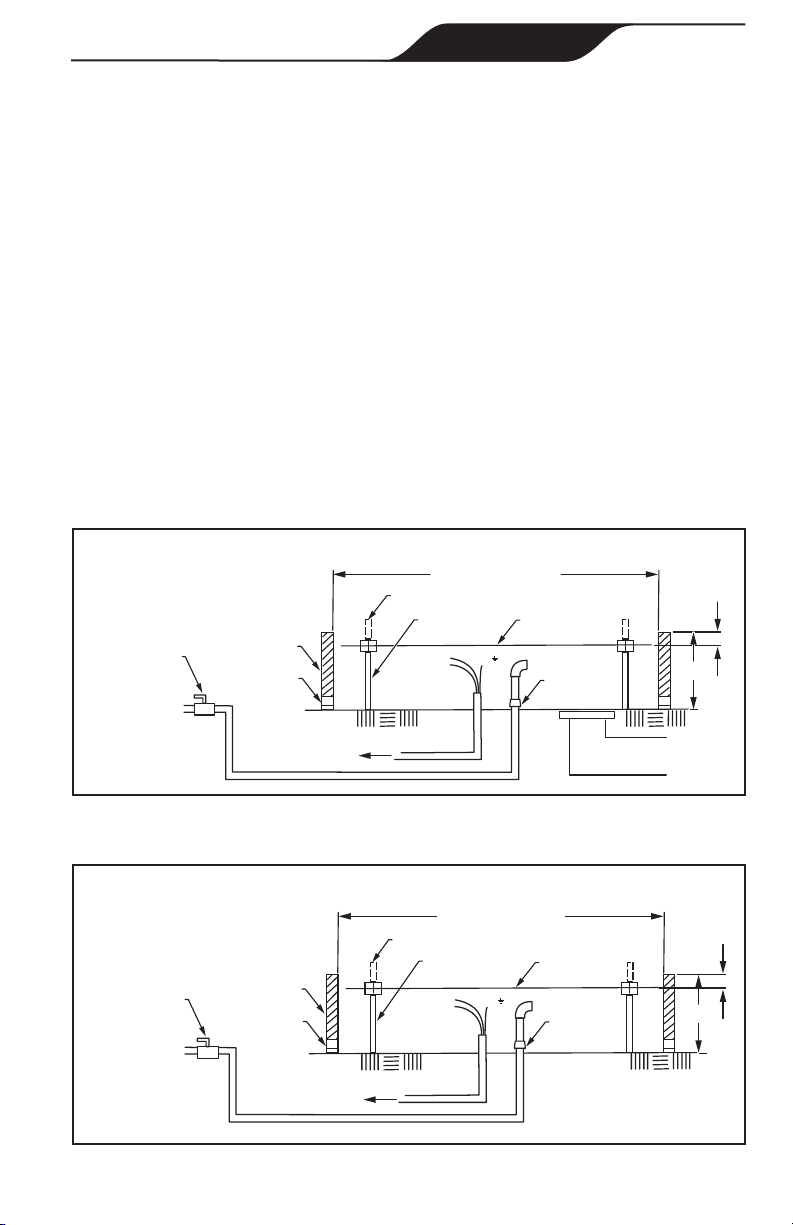

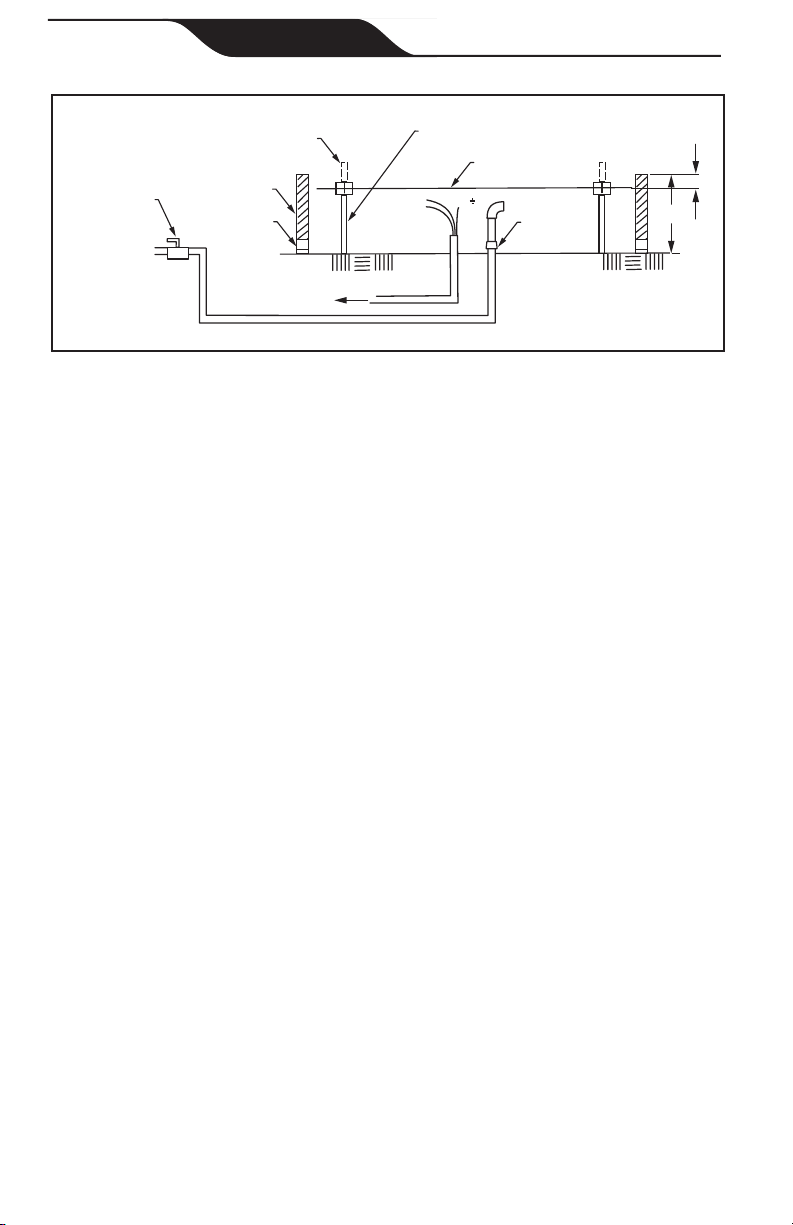

1. Install the control panel and gas piping as shown in Figure 2: Natural
Gas, Figure 3: Propane Gas, or Figure 4: Commercial Installation. Gas
lines must be clean and free from any dirt, debris, or contamination.
Note: Piping and re pit construction are different for natural gas and
propane gas.
2. The gas piping must be installed underground between the control
panel and each burner, as shown in Figure 2, 3 and 4.
GAS INLET
CONNECTION
MANUAL GAS
VALVE
120 VAC 60HZ INPUT
TO CONTROL PANEL
CONTROL PANEL
(TYPICALLY MOUNTED WITH
POOL EQUIPMENT UP TO 150 FEET
FROM BURNER)
2 VAC OUTPUT & CONDUIT (UNDERGROUND)
1” NPT GAS PIPING (UNDERGROUND)
Figure 2. Natural Gas
CONTROL PANEL
(TYPICALLY MOUNTED WITH
POOL EQUIPMENT)
GAS INLET
(PROPANE)
GAS
OUTLET
24 VAC OUTPUT & CONDUIT (UNDERGROUND)
1” NPT GAS PIPING (UNDERGROUND)
PROPANE ADDER
SUPPLIED BY GRAND EFFECTS®
INSTALLED AS CLOSE AS
POSSIBLE TO FIRE PIT
120 VAC 60HZ INPUT
TO CONTROL PANEL
MANUAL GAS
VALVE
JUNCTION BOX
24 VAC
24 VAC
LEAKAGE TEST
PORT
Figure 3. Propane Gas

24” - 30” Fire Pit Inserts
Standard Line Automated Operation Page 9
CONTROL PANEL
(TYPICALLY MOUNTED WITH
POOL EQUIPMENT UP TO 150 FEET
AWAY FROM BURNER)
GAS INLET
GAS
OUTLET
24 VAC OUTPUT & CONDUIT (UNDERGROUND)
COMMERCIAL SAFETY PIPE TRAIN
SUPPLIED BY GRAND EFFECTS
(INSTALL AS CLOSE AS POSSIBLE
TO FIRE PIT)
120 VAC 60HZ INPUT
TO CONTROL PANEL
MANUAL GAS
VALVE
JUNCTION BOX
24 VAC
24 VAC
1” NPT GAS PIPING (UNDERGROUND)
KEYED SWITCH*
KILL SWITCH*
24 VAC 60 HZ INPUT DETAILS
LEAKAGE TEST
PORT
*SUPPLIED BY OTHERS
Figure 4. Commercial Installation
3. The piping must be reduced to 3/4″ NPT or larger at the burner, as
shown in Figure 5, 6 and 7.
4. At each burner, install a 90° gas pipe elbow on the gas line for proper
installation of a gas hose. Do not kink or make a tight radius bend on
the gas hose.
IMPORTANT: Do not come straight up with the gas hose. As shown in
Figure 5, 6 and 7, a 90° gas pipe elbow must be installed
on the gas line for proper installation of the gas hose. The
product warranty is voided if it is not installed with an elbow.
X1
X2 GRD
1 “GAS BALL VALVE
OR KEYED VALVE
INSTALLED ON
FIRE PIT
1” NPT
GAS INLET
REDUCE
TO 3/4”
DRAIN
SUPPORT
THREADED ROD
REMOVE EXCESS
AFTER INSTALLING NUT
FIRE PIT WALL
2.5” DIA. (4)
MULTIPLE VENTS
REQUIRED
TO GRAND EFFECTS®
CONTROL PANEL
18” MIN.
2”
Figure 5. Natural Gas - Residential Installation

Page 10 24” - 30” Fire Pit Inserts
Standard Line Automated Operation
X1
X2 GRD
1” GAS BALL VALVE
OR KEYED VALVE
INSTALLED ON
FIRE PIT
1” NPT
GAS INLET
REDUCE
TO 3/4”
SUPPORT
THREADED ROD
REMOVE EXCESS
AFTER INSTALLING NUT
FIRE PIT WALL
2.5” DIA. (4)
MULTIPLE VENTS
REQUIRED
TO GRAND EFFECTS
CONTROL PANEL
18” MIN.
2”
Figure 6. Propane - Residential Installation
5. Install low voltage wiring (14 or 16 ga. 24VAC) underground between
the control panel and each burner assembly. Wire per Grand Effects®
wiring diagram. 120v source into the control panel can come from any
120v source, including auxiliary relay from the pool controller or home
system. Typically, the pool controller is the device that turns the unit on
and off. If a pool controller is not available, Grand Effects can provide a
hand held remote system or an electrician can wire a decorative switch
for on/off control up stream of the Grand Effects control panel.
6. Maintain good piping practice by keeping pipe length and elbows to
a minimum to eliminate unnecessary pressure drops. Corrugated ex
gas lines should not be used.
7. The Support Plate can be installed in a few different methods. Smaller
Support Plates can be supported using legs (threaded rod) supplied
by Grand Effects. When using threaded rod, adjust the height of the
support plate as shown in Figures 5, 6 and 7. Cut off the excessive
length of bolts. When using threaded rod as legs, the bottom of the
re pit should be concrete to support the weight of the Support Plate,
Burner Assembly and decorative media. When using larger Support
Plates, stainless “L” brackets may be sufcient to hold Support Plate
and burner assembly and media. If not, then structural galvanized
angle iron cross members should be included. Cross member supports
should be xed and laid across re pit in a rigid manner to hold
Support Plate, Burner Assembly and decorative media.Venting the air
gap at the bottom of the re pit walls is required for cooling the burner
assembly as shown in Figure 5 and Figure 6.

24” - 30” Fire Pit Inserts
Standard Line Automated Operation Page 11
8. Venting is required to keep burner electronics from overheating.
Venting is achieved with air holes located at the bottom of the re pit
walls as shown in Figures 5, 6, 7 and 8.
NOTE: Providing good drainage is critical. Fire Pits using propane should
not have drains located at bottom of cavity. Drainage should be
achieved with vent holes located at bottom of side walls as shown
in Figures 6 and 8.
IMPORTANT: There is an 18” minimum depth requirement on residential
re pits and 24” minimum depth on commercial re pits as
shown in Figures 5, 6, 7 and 8.
9. On commercial installations, it is recommended to install a keyed
switch and kill switch located in close proximity and in visible sight of
feature or features. The keyed and kill switches must be electrically
wired into the 110v upstream of the Grand Effects®Control Panel.
X1
X2 GRD
1” GAS BALL VALVE
OR KEYED VALVE
INSTALLED ON
FIRE PIT
1” NPT
GAS INLET
REDUCE
TO 3/4”
DRAIN
SUPPORTTHREADED ROD
REMOVE EXCESS
AFTER INSTALLING NUT
FIRE PIT WALL
2.5” DIA. (4)
MULTIPLE VENTS
REQUIRED
TO GRAND EFFECTS
CONTROL PANEL
24” MIN.
39” MIN. FOR 24” BURNER
43” MIN. FOR 30” BURNER
2”
Figure 7. Natural Gas - Commercial Installation
X1
X2 GRD
1” GAS BALL VALVE
OR KEYED VALVE
INSTALLED ON
FIRE PIT
1” NPT
GAS INLET
REDUCE
TO 3/4”
SUPPORT
THREADED ROD
REMOVE EXCESS
AFTER INSTALLING NUT
FIRE PIT WALL
2.5” DIA. (4)
MULTIPLE VENTS
REQUIRED
TO GRAND EFFECTS
CONTROL PANEL
24” MIN.
2”
39” MIN. FOR 24” BURNER
43” MIN. FOR 30” BURNER
Figure 8. Propane - Commercial Installation

Page 12 24” - 30” Fire Pit Inserts
Standard Line Automated Operation
10. Install the Sub-panel at the bottom of Fire pit as shown in Figures 9,
10, 11 and 12. It is important to have good drainage as warranty is void
if Sub-panel becomes submerged with water. The burner assembly
must be centered and supported by the support plate.
11. Securely connect all electrical wires from the conrol panel and burner
assembly, using wire nuts which are listed/certied for the application
by a Nationally Recognized Testing Lab (NRTL) such as UL, CSA, or
ETL. Be careful to hook up “X1” to “X1” and “X2” to “X2”. To further
protect and insulate the connections, wrap the wire-nut connections
with NRTL-listed/certied electrical tape. Install electrical Burner
Ground and Burner Spark from Sub-panel to burner.
12. Install pilot and main gas hoses from Sub-panel to Burner Assembly.
With all gas connections tight, position the burner assembly so that it
sits level on the Support Plate.

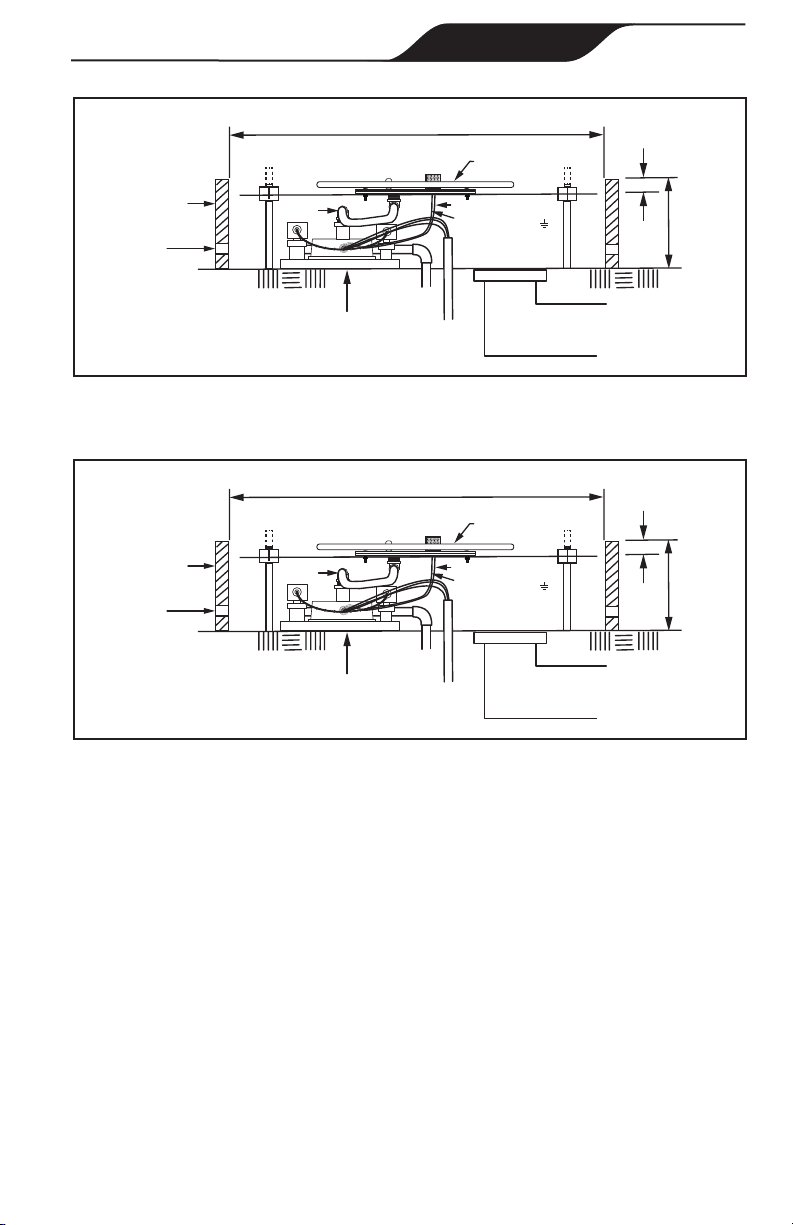

DRAIN
PILOT GAS
BURNER ASSEMBLY
FIRE PIT WALL
2.5 D (4)
MULTIPLE
VENTS
REQUIRED
GAS
ELECTRICAL
18”
MIN.
2”
SUB-PANEL -
MOUNTED TO FLOOR
PROVIDE ADEQUATE
DRAINAGE
MAIN
GAS BURNER SPARK
BURNER GROUND
Figure 9. Natural Gas - Residential Installation
DRAIN
PILOT GAS
BURNER ASSEMBLY
FIRE PIT WALL
2.5 D (4)
MULTIPLE
VENTS
REQUIRED
GAS
ELECTRICAL
18”
MIN.
2”
SUB-PANEL -
MOUNTED TO FLOOR
PROVIDE ADEQUATE
DRAINAGE
MAIN
GAS BURNER SPARK
BURNER GROUND
Figure 10. Propane Gas - Residential Installation

24” - 30” Fire Pit Inserts
Standard Line Automated Operation Page 13
DRAIN
PILOT GAS
BURNER
ASSEMBLY
FIRE PIT WALL
2.5 D (4)
MULTIPLE
VENTS
REQUIRED
GAS
ELECTRICAL
18”
MIN.
2”
SUB-PANEL -
MOUNTED TO FLOOR
PROVIDE ADEQUATE
DRAINAGE
MAIN
GAS BURNER SPARK
BURNER GROUND
39” MINIMUM FOR 24” BURNER
43” MINIMUM FOR 30” BURNER
Figure 11. Natural Gas - Commercial Installation
DRAIN
PILOT GAS
BURNER
ASSEMBLY
FIRE PIT WALL
2.5 D (4)
MULTIPLE
VENTS
REQUIRED
GAS
ELECTRICAL
18”
MIN.
2”
SUB-PANEL -
MOUNTED TO FLOOR
PROVIDE ADEQUATE
DRAINAGE
MAIN
GAS BURNER SPARK
BURNER GROUND
39” MINIMUM FOR 24” BURNER
43” MINIMUM FOR 30” BURNER
Figure 12. Propane Gas - Commercial Installation

Page 14 24” - 30” Fire Pit Inserts
Standard Line Automated Operation
Section 4. Burner Setup and Adjustment
4.1 Burner Setup
1. At the control panel, turn the manual gas valve to the “Off” position.
2. With 120VAC coming into the Control Panel, turn the switch located in
the panel to the “On” position.
3. At the burner assembly, check that the spark electrode is arcing across
to the pilot hood. You should be able to hear and see the electrode
spark. If there is no spark, make sure that the burner assembly is
receiving 24VAC from the control panel.
4. Reposition the burner assembly so that it is sitting level in the pit.
5. At the control panel, open the manual gas valve.
6. In the control panel, turn the burner switch to the “On” position.
7. After the burner assembly has been lit, it can now be adjusted for
ame size by adjusting the ball valve or keyed valve.
8. Install decorative rock or glass on top of the “burner support” and
burner assembly. Larger lava rock is recommended (2″ - 4″ in size). It
will work better than smaller rock. Make sure that all rock is clear of the
pilot area and hood area. Pilot hood area needs to remain clear of rock
for proper ventilation.
NOTE: Do not use glass with propane installations. (If you use glass with
natural gas, you will need to lay down pre-cut stainless mesh
screen to prevent glass from falling through.
NOTE: Both sides of the pilot hood need to be clear of rock for proper
ventilation.
WARNING
Use only approved decorative media to cover the burner assembly.
Lava and tumbled lava/ceramic stone and fire glass are all accepted
media.
To avoid the risk of property damage and serious injury, including death,
use caution when in the immediate area, as pieces may pop or explode
when exposed to heat or when wet and exposed to heat.
IMPORTANT: Do not use re glass with propane installations.

24” - 30” Fire Pit Inserts
Standard Line Automated Operation Page 15
IMPORTANT: At this time, the burner assembly should light. If the
burner does not light, it may be a result of air in the gas
line. Purging the air from the gas line may be required. If
this happens, carefully purge the air from the gas line by
disconnecting the gas hose from the burner assembly. The
end of the gas hose should be outside of the bowl when
purging air from the gas line.
WARNING
To avoid the risk of property damage and serious injury, including
death, when purging air from a propane system, be sure to disconnect
wires going to the burner assemblies (terminals X1/X2) located in
Grand Effects®control panel. There should be no power at the burner
assemblies when purging propane. The propane adder valve should
remain wired and energized when purging. After purging is complete,
make sure the area is vented and free from built-up gas.
Reinstall wires at X1/X2 terminals, thus providing power to burner
assemblies.
4.2 Burner Adjustment
Note: The burner should have a ame height of approximately 12″ from
the top of the bowl. If the burner is adjusted too low, it will create an
unstable pilot, resulting in possible On/Off cycling.
1. The height of the ame can be adjusted at each burner by opening or
closing the 3/4″ gas valve or keyed valve as shown in Figure 4.
2. After the burner has been adjusted, make sure that the burner
assembly is repositioned so that it is sitting level in the pit.

Page 16 24” - 30” Fire Pit Inserts
Standard Line Automated Operation
Section 5. Maintenance
Periodically clean the burner assembly and pit with a wet cloth or cleaning
solution to remove carbon build-up.
Frequency of the cleaning will depend on usage.
Periodically inspect the underside of the burner assembly for any signs of
excessive temperatures.
Check that all gas connections are tight.
The units should be cycled frequently, especially after a rain. The burner
assembly will not work in snow and ice conditions. The burner assembly
should be covered and protected from snow and ice. The burner should
not be operated in high wind conditions. High winds can limit the cooling air
required for cooling of the burner assembly and cause over heating of the
electronics.
Important: Gas must be securely shut off when not in use.
Note: If any problems are present, consult a licensed heating specialist or
call Grand Effects®.

24” - 30” Fire Pit Inserts
Standard Line Automated Operation Page 17
Section 6. Operation
WARNING! This unit is for outdoor use only. For your safety:
• If you smell gas, shut off the gas valve immediately.
• Extinguish any open ame.
• If odor continues, immediately call your gas supplier.
• Do not store or use gasoline or other ammable vapors and/or liquids in
the vicinity of this appliance.
• Do not leave ame on while unsupervised.
• Do not operate in windy or rainy conditions. If this is done, the unit will
cycle on and off automatically.
• Unit should be operated only by a responsible adult.
• When in use, an open ame is present; therefore, use with extreme care
and at your own risk.
• Before any inspection of the unit, always turn off power and gas supply
at the control panel.
• If you experience problems with this unit, call Grand Effects or a
licensed heating professional. All work on this unit must be performed
by a licensed heating professional.
WARNING
To avoid the risk of property damage and serious injury, including death,
before you turn on the Grand Effects System, make sure that features are
clear of people, animals, or any objects that are combustible.
6.1 Operating Instructions
To turn unit “On”:
1. Energize power to Grand Effects®Transformer.
To turn unit “Off”:
1. De-energize power to Grand Effects Transformer.
Note: If burner fails to light, turn corresponding burner switch in the control
panel to the “Off” position, and then to the “On” position. This will
initiate a new trial for ignition.

Page 18 24” - 30” Fire Pit Inserts
Standard Line Automated Operation
Section 7. Troubleshooting
WARNING
To avoid the risk of property damage and serious injury, including death,
call Grand Effects®or a licensed heating professional if you experience
problems with this unit. All work on this unit must be performed by a
licensed heating professional.
WARNING
Standard Fire Box Burner
In order to avoid the risk of property damage, serious injury, including
death, turn OFF power and gas at the control panel prior to initiating
troubleshooting steps. Turn power and gas ON once troubleshooting is
complete. Some steps may require power and gas to be temporarily ON
for verication, but turned OFF for repair (see bolded step).
Symptom Corrective Action
Main burner does not light
(no spark)
1. Remove rock/glass away from
pilot area. (Look for small pieces
obstructing pilot.)
2. If still no spark, conrm that you have
12VAC out of the panel and at the
burner.
3. If you have voltage going out to the
burner, but no spark, replace the
ignition module.
4. If you have no voltage out of the
panel, replace the transformer.
Spark (but no pilot) 1. Remove rock/glass away from pilot
area.
2. Conrm if gas is coming out of the
pilot; you can hear it. (Use a BBQ
lighter to determine if gas is coming
out of the pilot.)
3. If no pilot gas, check that gas is turned
on.
4. Pilot orice may be plugged. Replace
pilot assembly.
5. If still no gas, pilot valve may not be
opening. Turn gas off and conrm if
pilot solenoid is energizing.
6. If not energizing, replace the ignition
module. If it is energizing, but the
valve is not opening or is dirty,
replace the gas manifold.

24” - 30” Fire Pit Inserts
Standard Line Automated Operation Page 19
WARNING
Standard Fire Box Burner
In order to avoid the risk of property damage, serious injury, including
death, turn OFF power and gas at the control panel prior to initiating
troubleshooting steps. Turn power and gas ON once troubleshooting is
complete. Some steps may require power and gas to be temporarily ON
for verication, but turned OFF for repair (see bolded step).
Symptom Corrective Action
Burner goes On/Off 1. Is it going off because of wind? If so,
how windy? Slight breeze or gusty? (If
wind, rotate burner assembly in bowl
so wind is not blowing across pilot.)
2. If using glass, make sure an open
pilot hood is used. Remove rock/
glass away from pilot area. Does it get
better? How much glass? Thin down
glass on burner assembly.
3. Remove all rock/glass from the burner
assembly. Does the problem go away?
4. If gas pressure is too low or main
burner is adjusted too low, the pilot
will be too small and unstable.
5. If burner shuts off after a 30-minute
period and then goes off and
doesn’t come back on, replace the
ignition module.
Pilot comes on but no main
burner
1. If possible, conrm that main
gas solenoid is energizing. If not
possible, replace the ignition module.
2. Main burner solenoid may have to be
replaced if buzzing. Look for signs
of overheating.
Main burner or pilot does
not shut off
1. If the valve is not opening or is dirty,
replace the gas manifold.

Page 20 24” - 30” Fire Pit Inserts
Standard Line Automated Operation
Section 8. Control Module Diagram
G
R
A
N
D
E
F
F
E
C
T
S
Fire and Water Features
www.grandeffects.com
12VAC 50/60Hz
1 = .3A IV = 2.5A
GE1020FB12V
2021-116 REV B
S/O-0027352 1840
THIS CONTROL IS TO BE
USED WITH OUTDOOR
APPLIANCES ONLY
MV PV
(GND) VALV (GND) SPRK
(GND)
X2
(TH)
X1
+FC -FC
1.45 5.25
GRAND EFFECTS®
GE1020
CONTROL MODULE
