Grandbeing Vision HD SP0108-U01 User manual

Model No.: SP0108-U01
Operating Instructions
Thanks for purchasing our product.
Please be sure to read this instruction manual
carefully before using our product.

Introduction
Grandbeing’s SP0108-U01 is a eight-way HDMI splitter. It distributes one
input HDMI signal to eight identical HDMI outputs. These eight outputs are
synchronized.
SP0108-U01 has the ability of pre-emphasis and equalization. Series
connection of SP0108-U01 achieves long distance transmission of HDMI
signal of more than 15 meters.
SP0108 offers solutions for digital entertainment center, HDTV retail and
show site, HDTV, STB, DVD and Projector factory, noise, space and security
concerns, data center control, information distribution, conference room
presentation, school and corporate training environments.

HDMI Splitter
■Product Overview ( Model Number: SP0108-U01 )
Dear customer
Thank you for purchasing this product. For optimum performance and safety,
please read these instructions carefully before connecting, operating or
adjusting this product. Please keep this manual for future reference.
■Features
zEasy to Use: Install in seconds, no need of setting.
zDistribution: Eight identical HDMI outputs.
zHDMI V1.3B.
"Notice
Grandbeing Inc. reserves the right to make changes in the hardware,
packaging and any accompanying documentation without prior written notice.
Page 1

Warning
To reduce the risk of fire, electric shock or product damage:
1. Do not expose this apparatus
to rain, moisture, dripping or
splashing and that no objects
filled with liquids, such as vases,
shall be placed on the apparatus.
6. Clean this apparatus
only with dry cloth.
10. Refer all servicing to
qualified service
personnel.
9. Only use attachments /
accessories specified by
the manufacturer.
8. Protect the power cord
from being walked on or
pinched particularly at
p
lu
g
s.
7. Unplug this apparatus
during lightning storms or
when unused for long
periods of time.
5. Do not place sources of naked
flames, such as lighted candles,
on the unit.
4. Do not install near any heat
sources such as radiators, heat
registers, stoves, or other
apparatus ( including amplifiers )
that produce heat.
3. To prevent risk of electric
shock or fire hazard due to
overheating, do not obstruct
the unit’s ventilation openings
with newspapers, tablecloths,
curtains, and similar items.
2. Do not install or place this unit
in a bookcase, built-in cabinet or
in another confined space.
Ensure the unit is well ventilated.
Page 2

■Package Contents
①Main unit. P/N_SP0108-U01.
②5VDC Power Supply.P/N_VDC0504.
③ Operating Insrtuctions.P/N_INSSP0108-U01.
NOTE: Cables are optional.
■Connections and Operations
1) Connect the HDMI input sources into SP0108-U01. ( Input cables are
optional)
2) Connect the HDMI output equipments into SP0108-U01. ( Output
cables are optional)
3) Insert the DC side of 5v power supply into SP0108-U01 and then connect
the AC side of the power supply into the wall outlet.
4) Turn on the power.
Attention : Insert / Extract cables gently.
■Specifications
Operating Temperature Range -5 to +35°C (-41 to +95°F)
Operating Humidity Range 5 to 90 % RH ( no condensation )
Video Amplifier Bandwidth 140mHz
Input Video Signal 0.5-1.0 volts p-p
Input DDC Signal 5 volts p-p (TTL)
Maximum Single Link Range 1080P Deep Color 2.25GHz
Page 3

Video Format Supported
VGA:
640x480,800x600,1024x768,1280x1024
DTV/HDTV:
480i/576i/480p/576p/720p/1080i/1080P
HDMI output HDMI 1.3 video and audio (support
DTS-HD)
Maximum Transmission Distance 〉50m (If needed, HDMI extender is
optional)
Vertical Frequency Range 60Hz
Power Consumption 10 Watts (max.)
Power Supply 5VDC
Dimensions 235mmL x 132mmW x 32mmH
Mass 0.8 Kgs
■Panel Descriptions
Front Panel
① Indicators of HDMI output. When a HDMI equipment is connected, the
corresponding LED lit.
② Power Button. When power on,the Power status LED lit.
Page 4

Back Panel

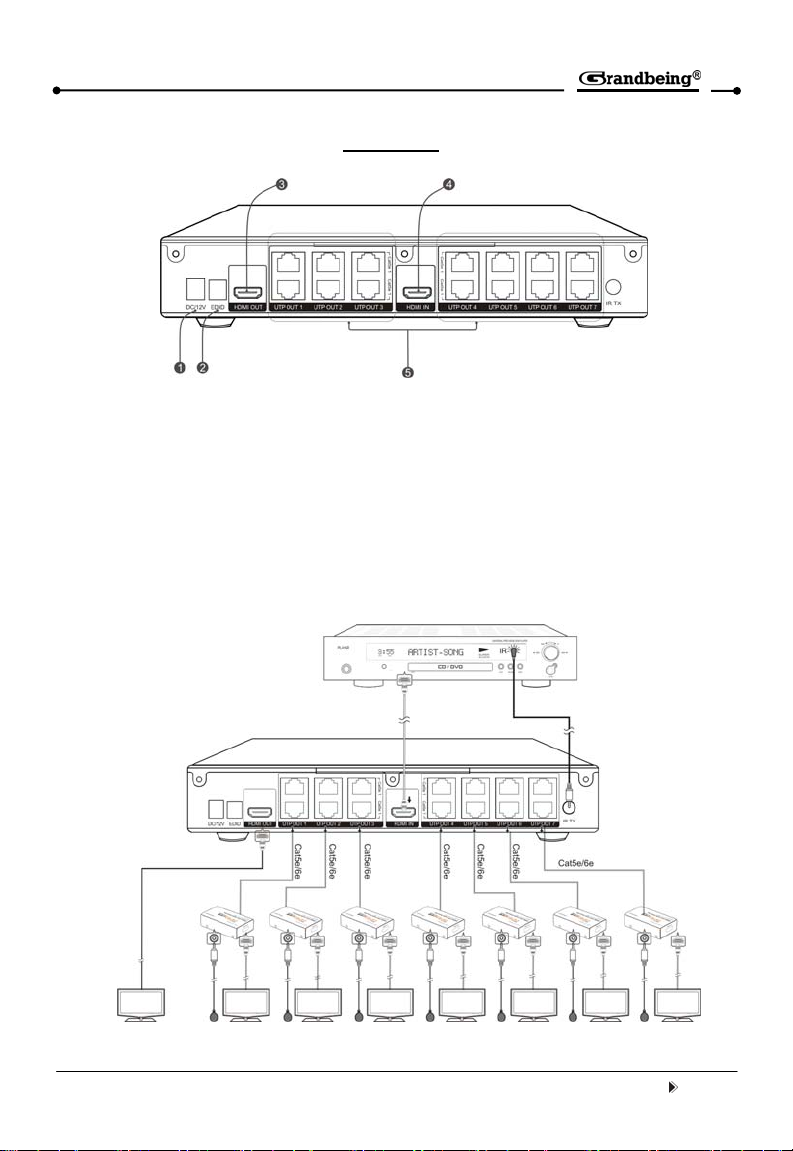

① Power input.
②EDID Setting.
③ HDMI output port.
④HDMI input port.
⑤ UTPOUT Ports.
■Typical Application
Page 5

■Maintenance
Clean this unit with a soft, dry cloth. Never use alcohol, paint thinner or benzine
to clean this unit.
■Product Service
●Provided Service
1) Damage Requiring service: The unit should be serviced by qualified
service personnel if:
zThe DC power supply cord or AC adaptor has been damaged;
zObjects or liquids have gotten into the unit;
zThe unit has been exposed to rain;
zThe unit does not operate normally or exhibits a marked change in
performance;
zThe unit has been dropped or the cabinet damaged.
2) Servicing Personnel: Do not attempt to service the unit beyond that
described in these operating instructions. Refer all other servicing to
authorized servicing personnel.
3) Replacement parts: When parts need replacing ensure the servicer
uses parts specified by the manufacturer or parts that have the same
characteristics as the original parts. Unauthorized substitutes may result
in fire, electric shock, or other hazards.
4) Safety check: After repairs or service, ask the servicer to perform safety
checks to confirm that the unit is in proper working condition.
●Mail-In Service
When shipping the unit, carefully pack and send it prepaid, adequately insured
and preferably in the original carton. Include a letter detailing the complaint and
Page 6

provide a daytime phone and/or email address where you can be reached.
If repair is needed during the limited warranty period the purchaser will be
required to furnish a sales receipt/proof of purchase indicating date of
purchase, amount paid and place of purchase. Customer will be charged for
the repair of any unit received without such proof of purchase.
●Warranty
If your product does not work properly because of a defect in materials or
workmanship, Grandbeing Company (referred to as “the warrantor”) will, for
the length of the period indicated as below, （Parts (1) Year，Labor(90)
Days）which starts with the date of original purchase (“Limited Warranty
period”), at its option either (a) repair your product with new or refurbished
parts, or (b) replace it with a new or a refurbished product. The decision to
repair or replace will be made by the warrantor.
During the “Labor” Limited Warranty period there will be no charge for labor.
During the “Parts” warranty period, there will be no charge for parts. You must
mail-in your product during the warranty period. This Limited Warranty is
extended only to the original purchaser and only covers product purchased as
new. A purchase receipt or other proof of original purchase date is required for
Limited Warranty service.
●Warranty Limits And Exclusions
1) This Limited Warranty ONLY COVERS failures due to defects in
materials or workmanship, and DOES NOT COVER normal wear and
tear or cosmetic damage. The Limited Warranty ALSO DOES NOT
COVER damages which occurred in shipment, or failures which are
caused by products not supplied by the warrantor, or failures which result
from accidents, misuse, abuse, neglect, mishandling, misapplication,
alteration, faulty installation, set-up adjustments, misadjustment of
consumer controls, improper maintenance, power line surge, lightning
Page 7

damage, modification, or service by anyone other than a Factory Service
Center or other Authorized Service, or damage that is attributable to acts
of God.
2) There are no express warranties except as listed under “limited
warranty coverage”. The warrantor is not liable for incidental or
consequential damages resulting from the use of this product, or
arising out of any breach of this warranty. (As examples, this excludes
damages for lost time, cost of having someone remove or re-install an
installed unit if applicable, travel to and from the service location, loss of
or damage to media or images, data or other recorded content. The items
listed are not exclusive, but are for illustration only.)
3) Parts and service, which are not covered by this limited warranty,
are your responsibility.
Page 8

Grandbeing Technology Co., Ltd.
Address:
6C, Jialitai Building, No. 6 Yanshan Road,
Nanshan District Shenzhen, P.R. China
Tel: [phone]/Fax: [phone]
Post Code: 518067
www.grandbeing.biz
