Grandbeing SW0301 User manual

Operating Instructions
Grandbeing®
HDMI Switch
Model No. SW0301
Operating Instructions（P/N of this Instructions is INSSW0301）
Dear customer
Thank you for purchasing this product. For optimum performance and safety,
please read these instructions carefully before connecting, operating or adjusting
this product. Please keep this manual for future reference.
FEATURES
zEasy to Use: Install in seconds, no need for setting.
zSwitching: User could select anyone of the three HDMI inputs to the output.
zSignalling rates up to 1.65Gbps in support of UXGA and 1080P display.
zEach port supports HDMI or DVI inputs.
z8dB receiver equalization to compensate for 5m HDMI cable losses.
z3dB driver pre-emphasis to compensate for PCB losses.
NOTICE
Grandbeing Inc. reserves the right to make changes in the hardware, packaging
and any accompanying documentation without prior written notice.
GRANDBEING®
１

Operating Instructions
TABLE OF CONTENTS
Introduction
Package Contents
Panel Descriptions
Connecting and Operating
Specifications
Maintenance
Product Service
Warranty
WARNING:
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR PRODUCT
DAMAGE:
1) DO NOT EXPOSE THIS APPARATUS TO RAIN, MOISTURE, DRIPPING
OR SPLASHING AND THAT NO OBJECTS FILLED WITH LIQUIDS, SUCH
AS VASES, SHALL BE PLACED ON THE APPARATUS.
2) DO NOT INSTALL OR PLACE THIS UNIT IN A BOOKCASE, BUILT-IN
CABINET OR IN ANOTHER CONFINED SPACE. ENSURE THE UNIT IS
WELL VENTILATED.
3) TO PREVENT RISK OF ELECTRIC SHOCK OR FIRE HAZARD DUE TO
OVERHEATING, DO NOT OBSTRUCT THE UNIT’S VENTILATION
OPENINGS WITH NEWSPAPERS, TABLECLOTHS, CURTAINS, AND
SIMILAR ITEMS.
4) DO NOT INSTALL NEAR ANY HEAT SOURCES SUCH AS RADIATORS,
HEAT REGISTERS, STOVES, OR OTHER APPARATUS (INCLUDING
AMPLIFIERS) THAT PRODUCE HEAT.
5) DO NOT PLACE SOURCES OF NAKED FLAMES, SUCH AS LIGHTED
CANDLES, ON THE UNIT.
6) CLEAN THIS APPARATUS ONLY WITH DRY CLOTH.
7) UNPLUG THIS APPARATUS DURING LIGHTNING STORMS OR WHEN
UNUSED FOR LONG PERIODS OF TIME.
8) PROTECT THE POWER CORD FROM BEING WALKED ON OR PINCHED
PARTICULARLY AT PLUGS.
9) ONLY USE ATTACHMENTS/ACCESSORIES SPECIFIED BY THE
MANUFACTURER.
10) REFER ALL SERVICING TO QUALIFIED SERVICE PERSONNEL.
INTRODUCTION
Grandbeing’s SW0301 is a three-way HDMI selector. User could select any HDMI
input by a remote or switch button on the front panel of the main unit. SW0301
has the functions of equalization and pre-emphasis. It could achieve
long-distance transmission of HDMI signal to more than 15 meters.
SW0301 offers solutions for digital entertainment center, HDTV retail and show
site, HDTV, STB, DVD and Projector factory, noise, space and security concerns,
data center control, information distribution, conference room presentation, school
GRANDBEING®
２

Operating Instructions
and corporate training environments.
PACKAGE CONTENTS
1) Main unit. P/N_SW0301
2) 5V DC Power Adapter.P/N_VDC0502
3) Operating Instructions. P/N_INSSW0301
4) Remote P/N_RMT003
5) 2 AA alkaline batteries P/N_BAT005
* HDMI cables are optional.
PANEL DESCRIPTIONS

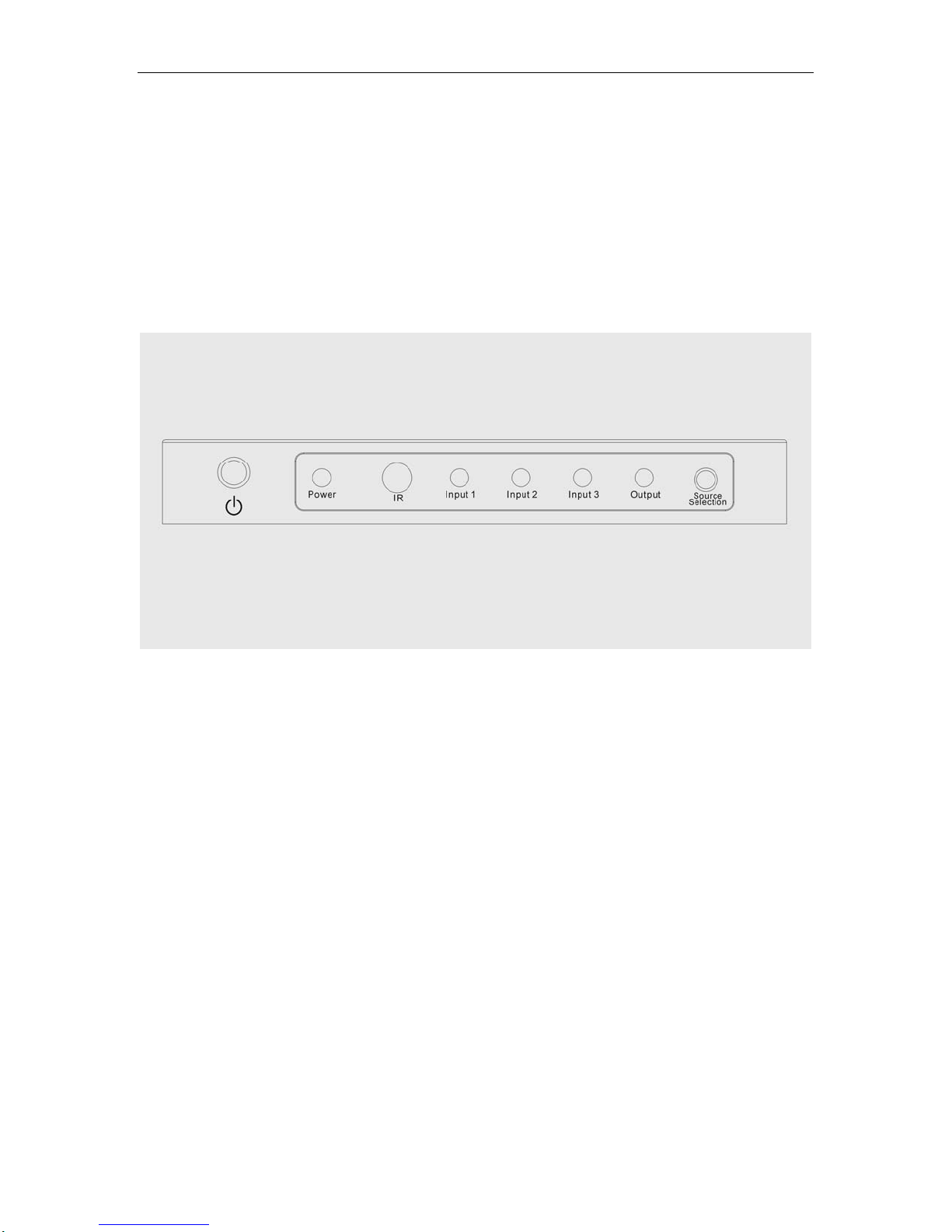

Front Panel
1) Power Switch.
2) Power indicator.
3) IR window.
4) Input status indicator.
5) Output status indicator.
6) Source selection button.
GRANDBEING®
３

Operating Instructions

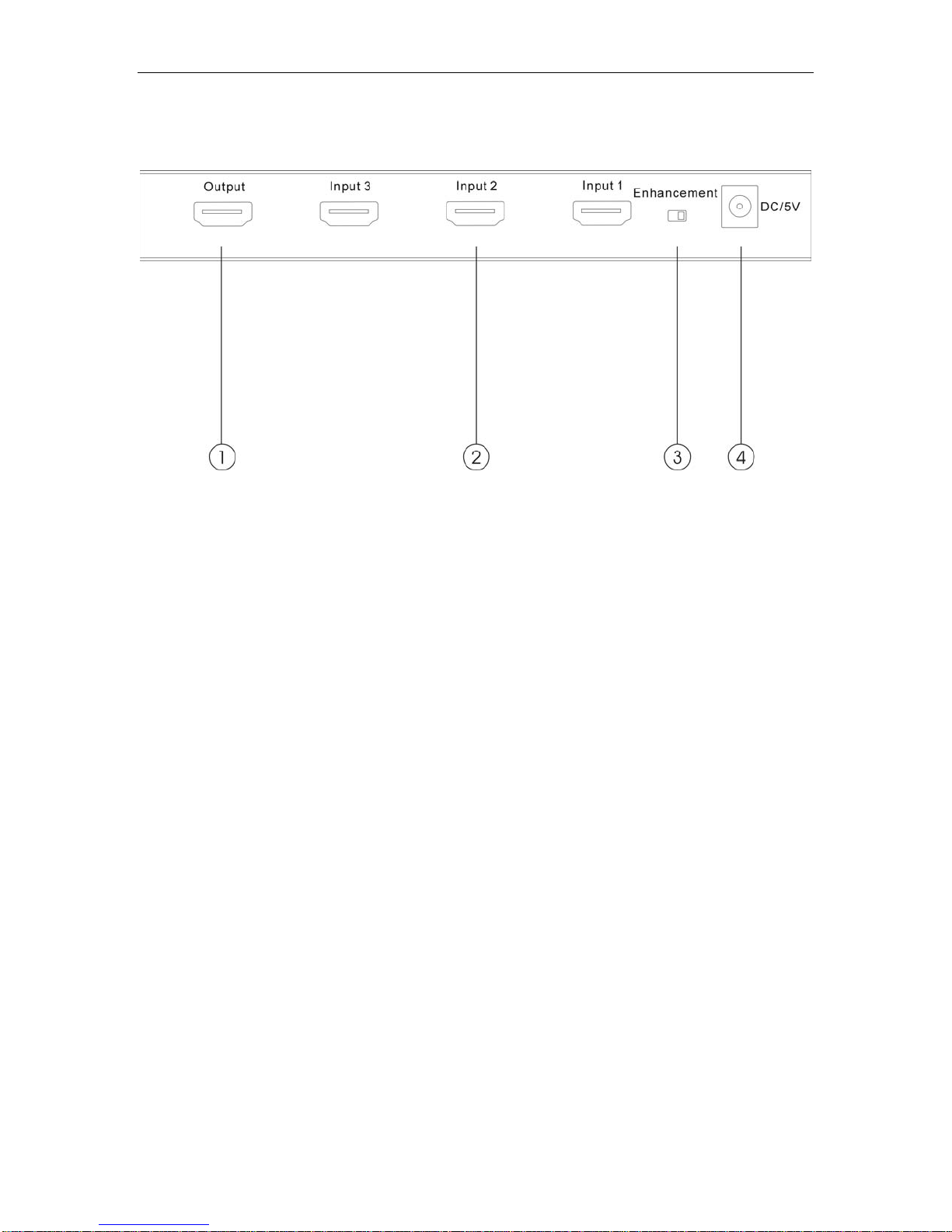

Rear Panel
1) HDMI output
2) HDMI input.
3) HDMI output enhancement switch.
4) Power input.
CONNECT AND OPERATE
1) Connect the input sources into SW0301. (Input cables are optional)
2) Connect the HDMI device into the HDMI Output slot in the back of SW0301.
3) Insert the DC side of 5v power supply into SW0301 and then connect the AC
side of the power supply into the wall outlet.
4) Turn on the power.
5) Choosing the input by remote or source select button.
*HDMI enhancement switch could be switched to right side if the HDMI cable length
over 15 meters.
SPECIFICATIONS
Operating temperature range……………….…………… -5 to +35℃(-41 to +95℉)
Operating humidity range………………………… 5 to 90 % RH (no condensation)
Signalling rates............…..........................................................….up to 1.65Gbps
Input Video Signal........................…............................................. 0.5-1.0 volts p-p
Input DDC Signal.........................…............................................ 5 volts p-p (TTL)
Maximum Single Link Range........….......….................................... UXGA, 1080P
Output Video…………………………………………….…..HDMI1.2a+HDCP1.0/1.1
Power Consumption.....................…............................................. 10 Watts (max.)
Power Supply....…......................................................................................…5VDC
GRANDBEING®
４

Operating Instructions
Dimensions..................................….................... 190mmW x 26mmH x 113mmD
Mass.......................................…..…………............................................. 0.72 Kgs
Note: Specifications are subject to change without notice. Mass and dimensions are
approximate.
MAINTENANCE
Clean this unit with a soft, dry cloth. Never use alcohol, paint thinner or benzine to
clean this unit.
PRODUCT SERVICE
1) Damage requiring service: The unit should be serviced by qualified service
personnel if:
(a) The DC power supply cord or AC adaptor has been damaged;
(b) Objects or liquids have gotten into the unit;
(c) The unit has been exposed to rain;
(d) The unit does not operate normally or exhibits a marked change in
performance;
(e) The unit has been dropped or the cabinet damaged.
2) Servicing Personnel: Do not attempt to service the unit beyond that
described in these operating instructions. Refer all other servicing to
authorized servicing personnel.
3) Replacement parts: When parts need replacing ensure the servicer uses
parts specified by the manufacturer or parts that have the same
characteristics as the original parts. Unauthorized substitutes may result in
fire, electric shock, or other hazards.
4) Safety check: After repairs or service, ask the servicer to perform safety
checks to confirm that the unit is in proper working condition.
WARRANTY
If your product does not work properly because of a defect in materials or
workmanship, Grandbeing Company (referred to as “the warrantor”) will, for the
length of the period indicated as below, （Parts (1) Year，Labor(90) Days）which
starts with the date of original purchase (“Limited Warranty period”), at its option
either (a) repair your product with new or refurbished parts, or (b) replace it with a
new or a refurbished product. The decision to repair or replace will be made by
the warrantor.
During the “Labor” Limited Warranty period there will be no charge for labor.
During the “Parts” warranty period, there will be no charge for parts. You must
mail-in your product during the warranty period. This Limited Warranty is
extended only to the original purchaser and only covers product purchased as
new. A purchase receipt or other proof of original purchase date is required for
GRANDBEING®
５

Operating Instructions
Limited Warranty service.
Mail-In Service
When shipping the unit carefully pack and send it prepaid, adequately insured and
preferably in the original carton. Include a letter detailing the complaint and
provide a day time phone and/or email address where you can be reached.
IF REPAIR IS NEEDED DURING THE LIMITED WARRANTY PERIOD THE
PURCHASER WILL BE REQUIRED TO FURNISH A SALES RECEIPT/PROOF
OF PURCHASE INDICATING DATE OF PURCHASE, AMOUNT PAID AND
PLACE OF PURCHASE. CUSTOMER WILL BE CHARGED FOR THE REPAIR
OF ANY UNIT RECEIVED WITHOUT SUCH PROOF OF PURCHASE.
LIMITED WARRANTY LIMITS AND EXCLUSIONS
1) This Limited Warranty ONLY COVERS failures due to defects in materials or
workmanship, and DOES NOT COVER normal wear and tear or cosmetic
damage. The Limited Warranty ALSO DOES NOT COVER damages which
occurred in shipment, or failures which are caused by products not supplied
by the warrantor, or failures which result from accidents, misuse, abuse,
neglect, mishandling, misapplication, alteration, faulty installation, set-up
adjustments, misadjustment of consumer controls, improper maintenance,
power line surge, lightning damage, modification, or service by anyone other
than a Factory Service center or other Authorized Servicer, or damage that is
attributable to acts of God.
2) THERE ARE NO EXPRESS WARRANTIES EXCEPTAS LISTED UNDER
“LIMITED WARRANTY COVERAGE”. THE WARRANTOR IS NOT LIABLE
FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES RESULTING FROM
THE USE OF THIS PRODUCT, OR ARISING OUT OFANY BREACH OF
THIS WARRANTY. (As examples, this excludes damages for lost time, cost of
having someone remove or re-install an installed unit if applicable, travel to
and from the servicer, loss of or damage to media or images, data or other
recorded content. The items listed are not exclusive, but are for illustration
only.)
3) PARTS AND SERVICE, WHICH ARE NOT COVERED BY THIS LIMITED
WARRANTY, ARE YOUR RESPONSIBILITY.
GRANDBEING®
６

Operating Instructions
Grandbeing Technology Co., Ltd
6C, Jialitai Building, No.6 Yanshan Rd. Nanshan District, Shenzhen ,
P.R. China
Post Code:518067
Tel: [phone]
Fax:[phone]
Email:[email protected], [email protected]
Website:http://www.grandbeing.com
GRANDBEING®
７
