GE-P4002-UT
GE-P4002-UT
4 Ports PoE Switch
4 PORTS POE SWITCH
4 ports PoE Switch is a security surveillance Ethernet Switch which aims at Ethernet high definition surveillance and Ethernet project
security system. The product fully combines the characteristics of security surveillance, provides fast packet forwarding ability and
abundant backplane bandwidth, which ensures clear image and fluent transmission. Inserted static, surge protection circuit can improve
product stability. The product supports one key CCTV model, can achieve VLAN, QoS priority after configuration, control the Net storm,
protect the information security, prevent the viral transmission and Ethernet attack, fully satisfy the Ethernet video security surveillance
system and Ethernet project needs.
Major ports: 2pcs*100Mbps uplink Ethernet port(reserve a port to
connect internet);4pcs*100Mbps downlink PoE Ethernet ports ,
every port supports MDI/MDIX;
Special function: One key CCTV model 1～4 downlink ports can only
communicate with uplink ports;
Power input: DC48V, 57V;
Transmission Distance : Ethernet port 0,100m; the furthest
transmission distance could reach 250m in CCTV model; Uplink port
can reach 100m;
Standard: Meet IEEE802.3 ,IEEE802.3u,IEEE802.3 af/at standards,
PoE use
End-Span, the spare cable can be of other use;
Protection: Excellent anti-thunder, anti-static and anti-interference
ability;
Appearance: Delicate design and easy installation, configure the
anti-theft lock hole, guard against theft;
Operation: Plug and Play, No Setting required.

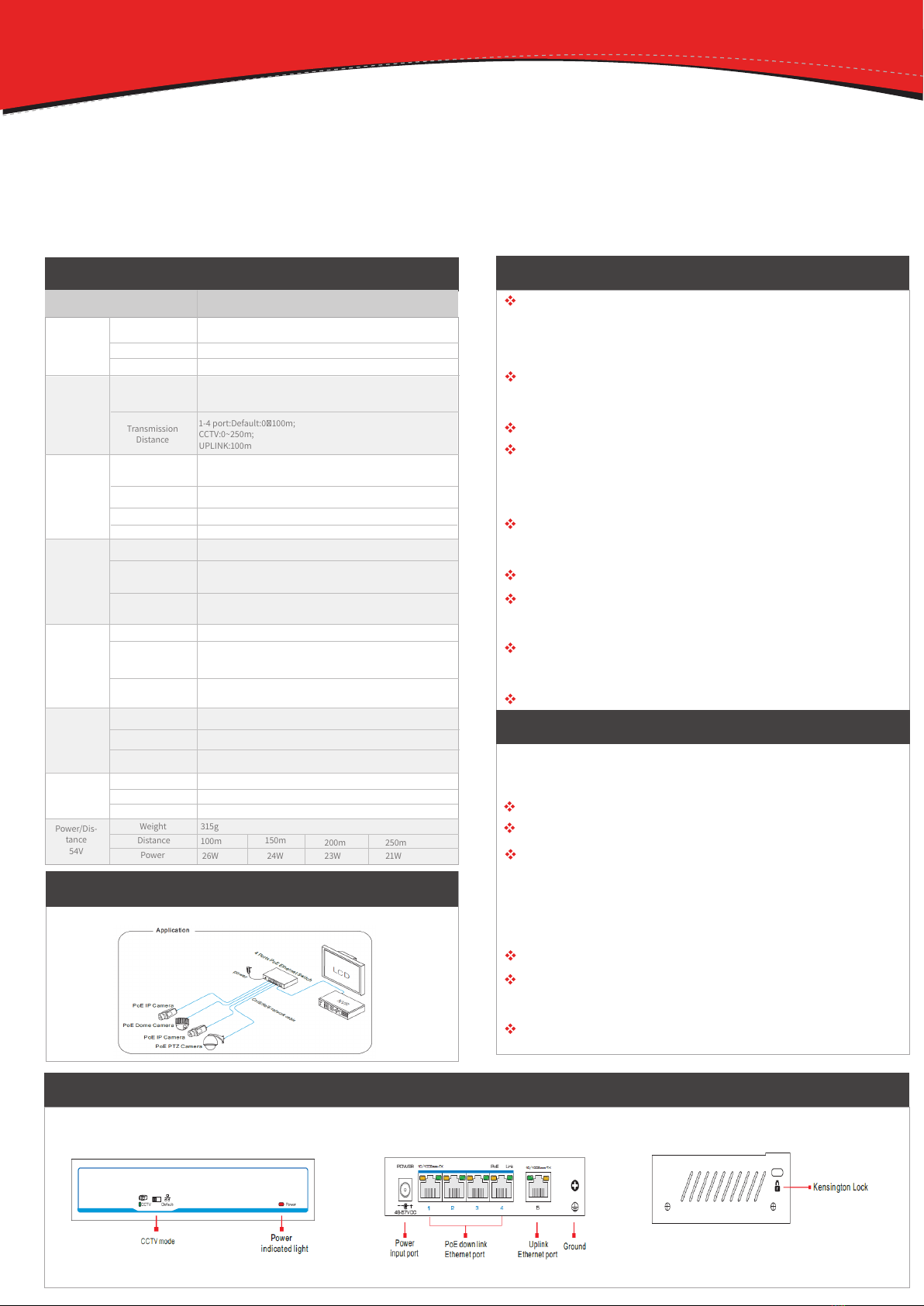

GE-P4002-UT 4 Ports PoE Switch
Introduction
Specification Feature
Board Diagram
Item
MAC
Transmission
Distance
2K
Backplane Band-
width
Pluse Group
ESD
1-4 port:Default:0～100m;
CCTV:0~250m;
UPLINK:100m
1.0G
Level 2 Standard: IEC61000-4-4
1a Contact Discharge Level 3
1b Air Discharge Level 3
Standard: IEC61000-4-2
Description
Anti-thunder Level
Characteristics
Please check the following items before installation, if it is missing,
please contact the dealer.
4 ports PoE Ethernet Switch 1pcs
Power adaptor 1pcs
AC Power Cable 1pcs
Accessories 1pcs
User Manual 1pcs
Please follow installation s teps as below:
Please turn off the signal power and display device power before
installation, or it will damage the transmission equipment;
Use network cable connect PoE IP camera and 1~4 downlink ports
of product respectively;
Power Supply Power Adaptor
Voltage Range DC48V~54V
Consumption <5W
Speed
1-4 port:Default:10/100Mbps;
CCTV:10Mbps;
UPLINK:100Mbps
Power Light
Ethernet Port Light
Surveillance Module
Light
2Kput≤60W
2pcs(Yellow&Green) on RJ45,yellow indicates PoE,
green indicates Link/Act
1pcs(Green), green indicates CCTV
Level 3
Standard: IEC61000-4-5
Working Temperature
Storage Temperature
-10c~55c
-40～~85～
Humity
(Non-condesing)
Dimension(L*W*H)
Out Shell
0~95%
135mm×85.6mm×27mm
Galvanized Sheet
Application
GE-P4002-UT
Packet Forwarding
Rate
Packet Buffer
0.75Mbps
768K
Front Board Back Board Side Board
Installation steps
Power
Ethernet
Network
Switch
Status
Indicator
Network
Switch
Working
Environment
Mechanical
Power/Dis-
tance
54V
Color Black
315g
26W
Weight
Distance
Power 24W 23W 21W
100m 150m 200m 250m
3Web design & development for ActiveXplore
Characteristics
Please follow the steps if the equipment has trouble.
Make sure the equipment is installed according to the manufactures installation guide.
Confirm RJ45 cable order meets EIA/TIA568A or 568B standard.
Every PoE port can provide PoE equipment maximum power less than 30W, please do not
connect the PoE equipment with power over 30W.
Replace the equipment with a proper functioning 4 ports PoE Ethernet Switch to check if the epuipment is damaged
Please contact your vendor if trouble still exists.
GE-P4002-UT 4 Ports PoE Switch
Trouble shooting
Plug Producing Method
Instruments to be used: wire crimper, network tester. Wire sequence of RJ45 plug should conform with
EIA/TIA568A or 568B.
Please remove 2cm long the insulating layer, and bare 4 pairs UTP cable;
Separate the 4 pairs UTP cable and straighten them;
Line up the 8 pieces of cables per EIA/TIA 568A or 568B;
Cut out 1.5 cm cable wrap and leave the bare wire;
Plug 8 cables into RJ45 plug, make sure each cable is in each pin;
Use the wire crimper to crimp it;
Repeat above 5 steps to make the another end;
Use network tester to test the cable if it works.
Use a network cable connect equipment uplink port and NVR or computer;
Connect power adapter ;
Check if the installation is correct, equipment is in good condition, the connection is stable, then power on for system;
Ensure the Ethernet equipment with power on can work properly.
Installation steps
