Grandhall IT1002 User manual

gas barbec e
IT1001
Assembly instructions
Instructions d’assemblage
Montageanweisungen
Istruzioni per il montaggio
Montage-instructies
Montering
Kokoamisohjeet
Instrucciones de armado
Instruções para Montagem
Monteringsvejledning
Montering
GB
FR
DE
IT
NL
SE
FI
ES
PT
DK
NO
IE
CH
CH
CH
BE
AT
LU
IT1002
IT2002
IT2002
IT1002 IT1001
Upute za uporabu
Navodila za uporabo
HR
SI

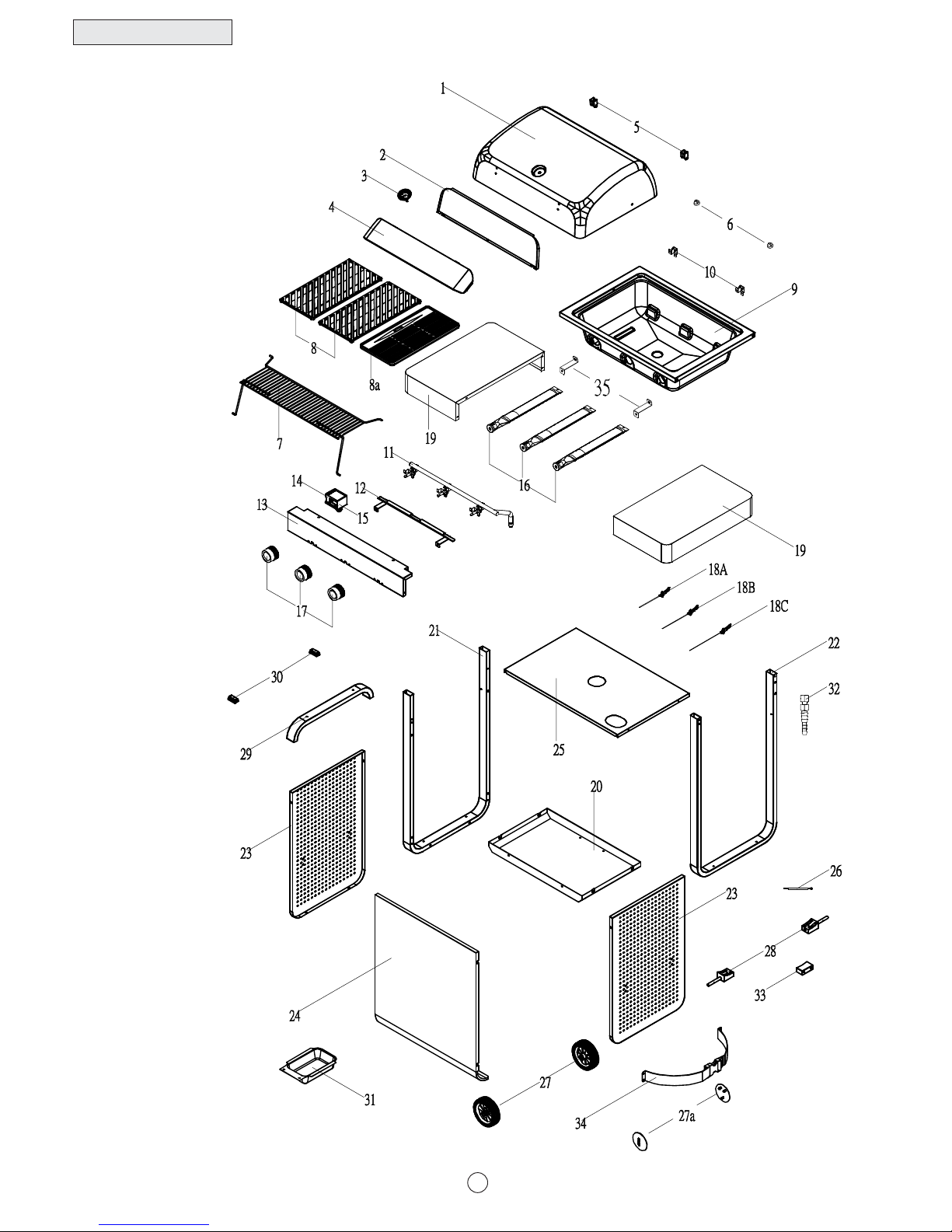

PART LIST - IT1001 Model
SEQDESCRIPTION P/No Qty SEQ DESCRIPTION P/No Qty
1Hood P00138198B 1 22 Trolleyframe, right P03303166D 1
2 Hoodhandleinsulate P03303161Q 1 23 Trolleyshelf, left/.right P07510037C 2
3Temperaturegauge P00601531B 1 24 Trolleyfront panel P07702129B 1
4 Hoodhandle P00202029A 1 25 Separationpanel P01001116D 1
26 Ground wire P02628003H 1
5 Hoodbracket, upper P033031624 2
27 Wheel P05123003A 2
6Protectivepad P05518002I 2
27a Wheelcover P05124001C 2
7 Cooking rack/secondary P01513017F 1
28 Wheelseat P03303169D 2
8 Cooking grid P01615057F 2
29 Trolley leg P03303167D 1
30 Legseat P04523004A 2
8a Hot plate P05701005H 1
31 Greasereceptacle P02701305G 1
9Bowl P00735019A 1
32 Universalhosebarb P03901024A 1
10 Hoodbracket, lower P033031634 2
33 Tank stop plate P03303168D 1
11 Gasvalve/manifold assembly30 mb
ar
Y0060772 1
34 Tankstrap P05314016V 1
Gasvalve/manifold assembly50 mbar Y0060773
Gasvalve-main 30mbar P03234082B 3
Gasvalve-main 50mbar P03234083B 3
Manifold P05003324B 1
12 Gascollectortube-cross lighters P022034384 1
13 Controlpanelwithprinting 30mbar P02906542A 1
Controlpanelwithprinting 50mbar P02906552A 1
14 ElectricIgnitor, 4-port P02502164C 1
15 ElectricIgnitorprotector P03303164D 1
16 Burner P020030544 3
Burner-Isrealonly P020030534 3
17 Main knob P03426477C 3
18A Electricwireset, A P02618062C 1
18B Electricwireset, B P02618063C 1
18C Electricwireset, C P02618064C 1
19 Sideshelf, left/right P01105043E 2
20 Trolleybottomshelf P01001115D 1
21 Trolleyframe, left P03303165D 1
2
35 Control panel support bracket P03303177K 1










IT1001 Model
3

1.
2.
4

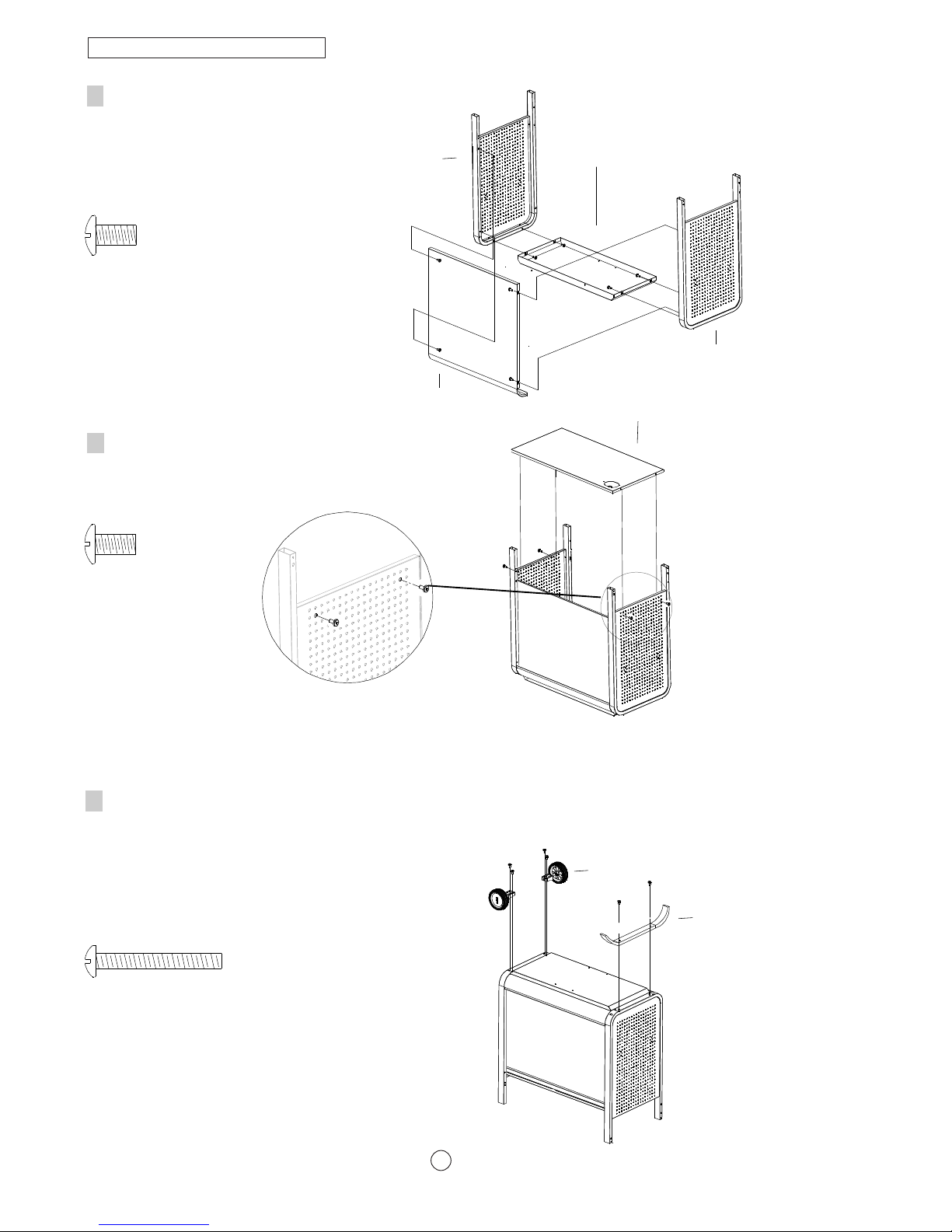

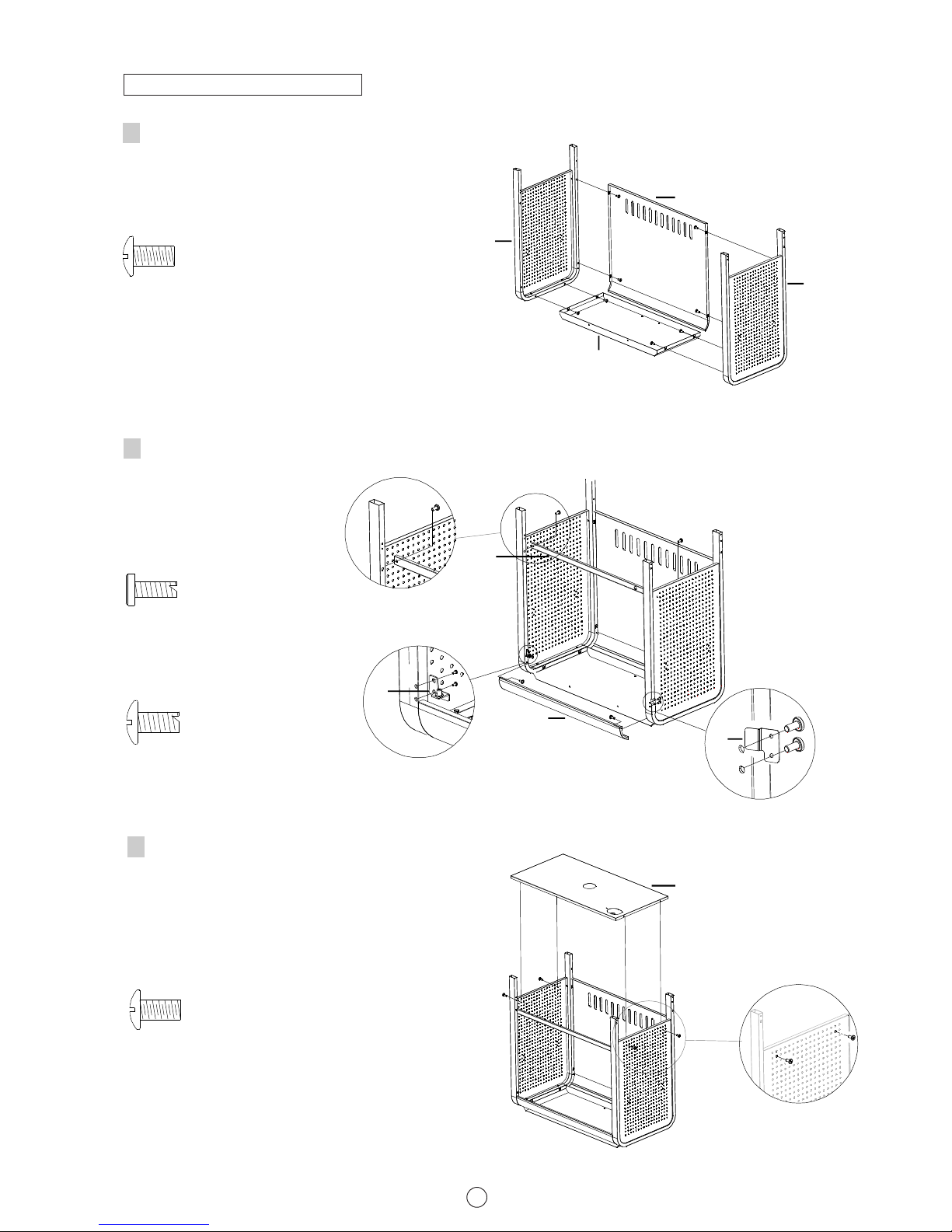

ASSEMBLY -
Install side/bottom/front panels
Install separation panel
Note: Be sure the panel to be installed into
the hole with highlighted point at 2nd row.
3.Install wheels and trolley leg
IT1001 Model
#21/#23 #20
#22/#23
#24 #25
#29
#27
PhillipsHeadScrew3/16"x3/8"
Qty.8
PhillipsHeadScrew3/16"x3/8"
Qty.4
PhillipsHeadScrew3/16"x1-3/16"
Qty.6

4.
5
Install head/hose/hose barb
DO NOT OBSTRUCT THE VENTILATION
OPENINGS IN THE TROLLEY.
NE PAS BOUCHER LES OUVERTURES DE
VENTILATION DANS LE CHARIOT.
NICHT DIE VENTILATIONSÖFFNUNGEN IM
WAGEN BLOCKIEREN.
NON OSTRUIRE LE APERTURE DI
VENTILAZIONE DEL CARRELLO.
DE VENTILATIEOPENINGEN IN DE TROLLEY
NIET BLOKKEREN.
BLOCKERA EJ VENTILATIONSHÅLEN
I GRILLBAREN.
KÄRRYN TUULETUSAUKKOJA EI SAA
PEITTÄÄ.
NO OBSTRUYA LAS ABERTURAS DE
VENTILACIÓN DEL CARRITO.
NÃO OBSTRUA AS ABERTURAS DE
VENTILAÇÃO NO TRÓLEI.
VENTILATIONSÅBNINGEN I TROLLEYEN MÅ
IKKE SPÆRRES.
VENTILASJONSÅPNINGENE PÅ TRALLEN
MÅ IKKE TILDEKKES.
WARNINGS INFORMATION
NL
SE
FI
ES
PT
DK
NO
FR
GB
DE
IT
NE OVIRAJTE PREZRAČEVALNE ODPRTINE
V VOZIČKU.
SI
NE BLOKIRAJTE OTVORE VENTILACIJE U
KOLICIMA.
HR
5.Install side shelf/side burner
#32
#19
#19
FlatHeadSelf-tapping Screw
3/16"x3/8"
Qty.4
HexHeadScrew 3/16"x3/8"
Qty.8

6.
6

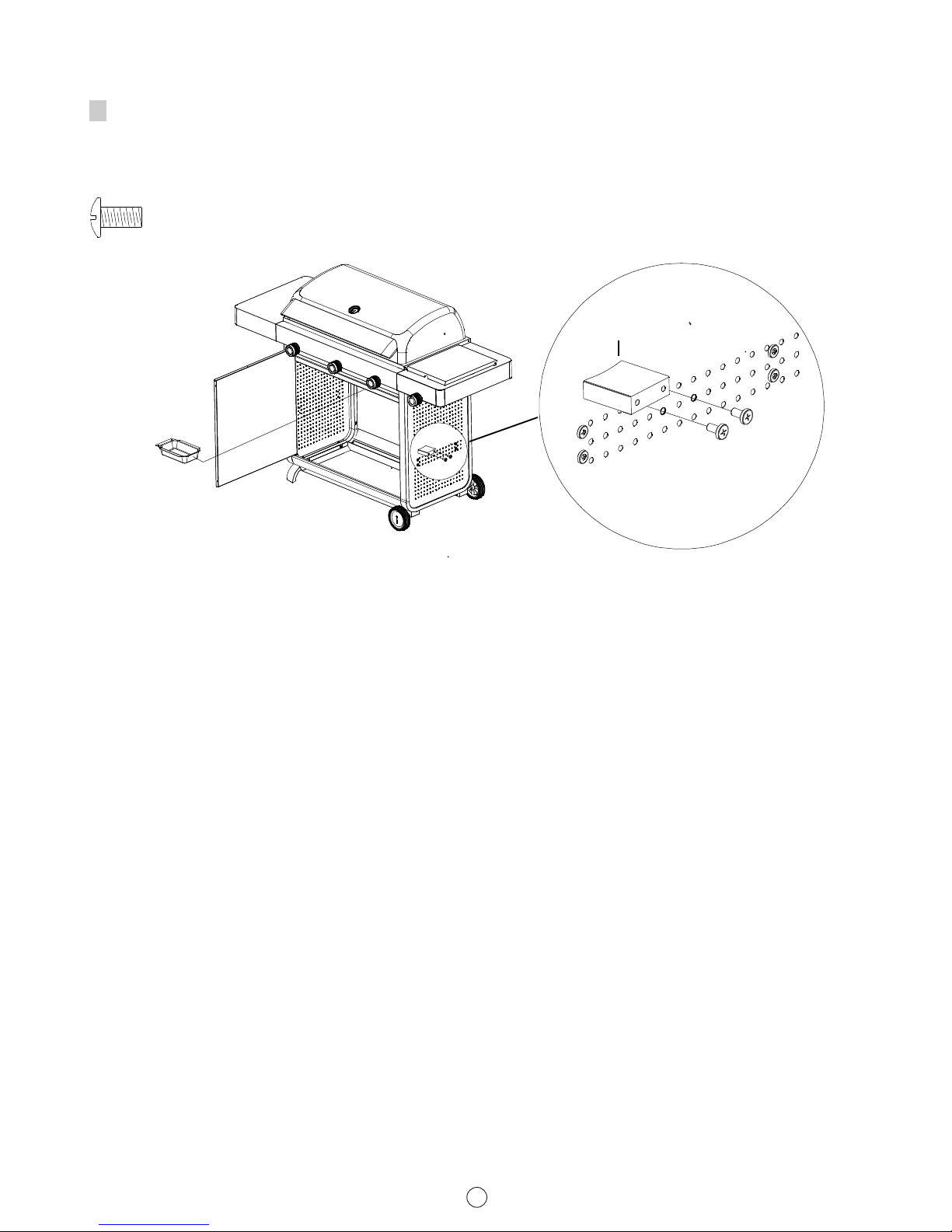

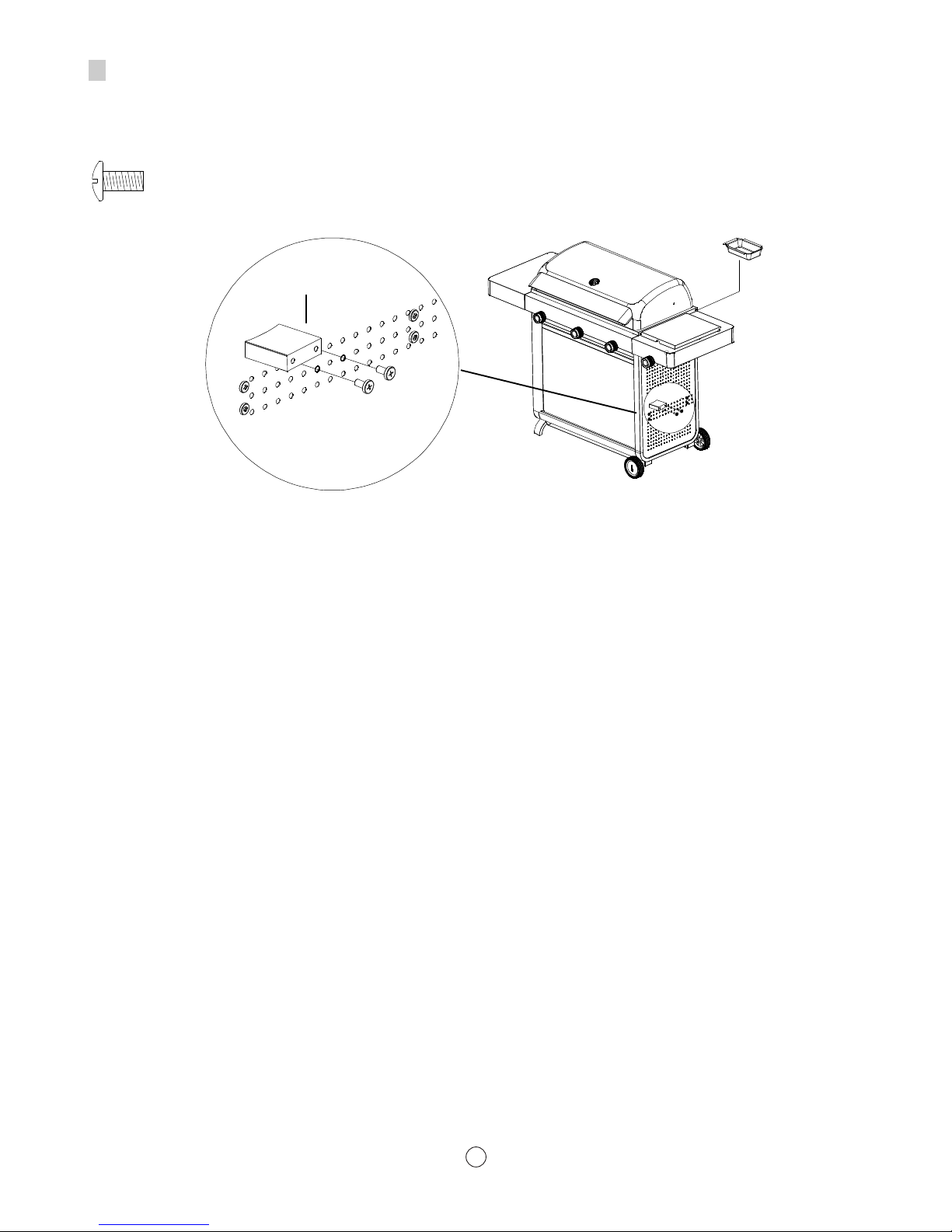

Install grease receptacle and tank stop plate
Note:Be sure the tank stop plate
to be installed into the hole with
highlighted point between the four screws.
#33
PhillipsHeadScrew3/16"x3/8"
Qty.2

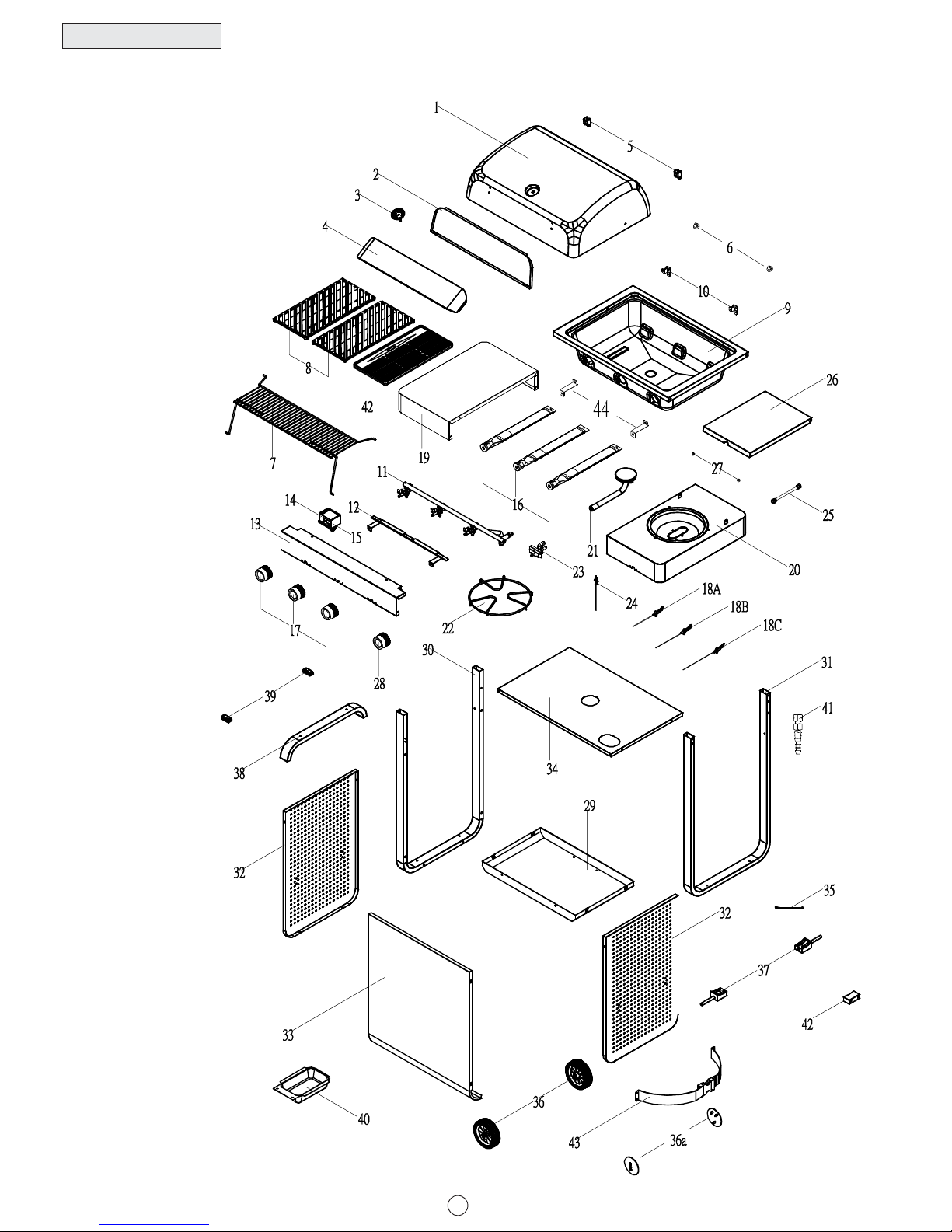

PART LIST - IT1002 Model
7
SEQDESCRIPTION P/No Qty SEQ DESCRIPTION P/No Qty
1Hood P00138198B 1 22 Sideburnerpot support P00805015H 1
2 Hoodhandleinsulate P03303161Q 1 23 Gasvalveforsideburner-30mbar P03234084I 1
3Temperaturegauge P00601531B 1 Gasvalveforsideburner-50mbar P03234085I 1
4 Hoodhandle P00202029A 1 24 Sideburnerelectrode P02618066C 1
25 Sideburnerconnectiontube P03711040F 1
5 Hoodbracket, upper P033031624 2
26 Sideburnerhood P001155781 1
6Protectivepad P05518002I 2
27 Protectivepad P05518002 I 2
7 Cooking rack/secondary P01513017F 1
28 Sideburnerknob P03426487C 1
8 Cooking grid P01615057F 2
29 Trolleybottomshelf P01001115D 1
8a Hot plate P05701005H 1
30 Trolleyframe, left P03303165D 1
9Bowl P00735019A 1
31 Trolleyframe, right P03303166D 1
10 Hoodbracket, lower P033031634 2
32 Trolleyshelf, left/right P07510037C 2
11 Gasvalve/manifold assembly30 mb
ar
Y0060774 1
33 Trolleyfront panel P07702129B 1
Gasvalve/manifold assembly50 mbar Y0060775
34 Separationpanel P01001116D 1
Gasvalve-main 30mbar P03234082B 3
35 Ground wire P02628003H 1
Gasvalve-main 50mbar P03234083B 3
36 Wheel P05123003A 2
Manifold P05003334B 1
36a Wheelcover P05124001C 2
12 Gascollectortube-cross lighters P022034384 1
37 Wheelseat P03303169D 2
13 Controlpanelwithprinting 30mbar P02906582A 1
38 Trolley leg P03303167D 1
39 Legseat P04523004A 2
40 Greasereceptacle P02701305G 1
41 Universalhosebarb P03901024A 1
14 ElectricIgnitor, 4-port P02502164C 1
42 Tankstop plate P03303168D 1
15 ElectricIgnitorprotector P03306164D 1
43 Tankstrap P05314016V 1
16 Burner P020030544 3
Burner-Isrealonly P020030534 3
17 Main knob P03426477C 3
18A Electricwireset, A P02618062C 1
18B Electricwireset, B P02618063C 1
18C Electricwireset, C P02618064C 1
19 Sideshelf, left P01105043E 1
20 Sideshelf frame P02302015E 1
21 Sideburner-30mbar P020040444 1
Sideburner-50mbar P020040454 1
44 Control panel support bracket P03303177K 1










IT1002 Model
8

1.
2.
9
ASSEMBLY -
Install side/bottom/front panels
Install separation panel
Note: Be sure the panel to be installed into
the hole with highlighted point at 2nd row.
3.Install wheels and trolley leg
IT1002 Model
#21/#23 #29
#31/#32
#33 #34
#38
#36
PhillipsHeadScrew3/16"x3/8"
Qty.8
PhillipsHeadScrew3/16"x3/8"
Qty.4
PhillipsHeadScrew3/16"x1-3/16"
Qty.6

4.
5.
10

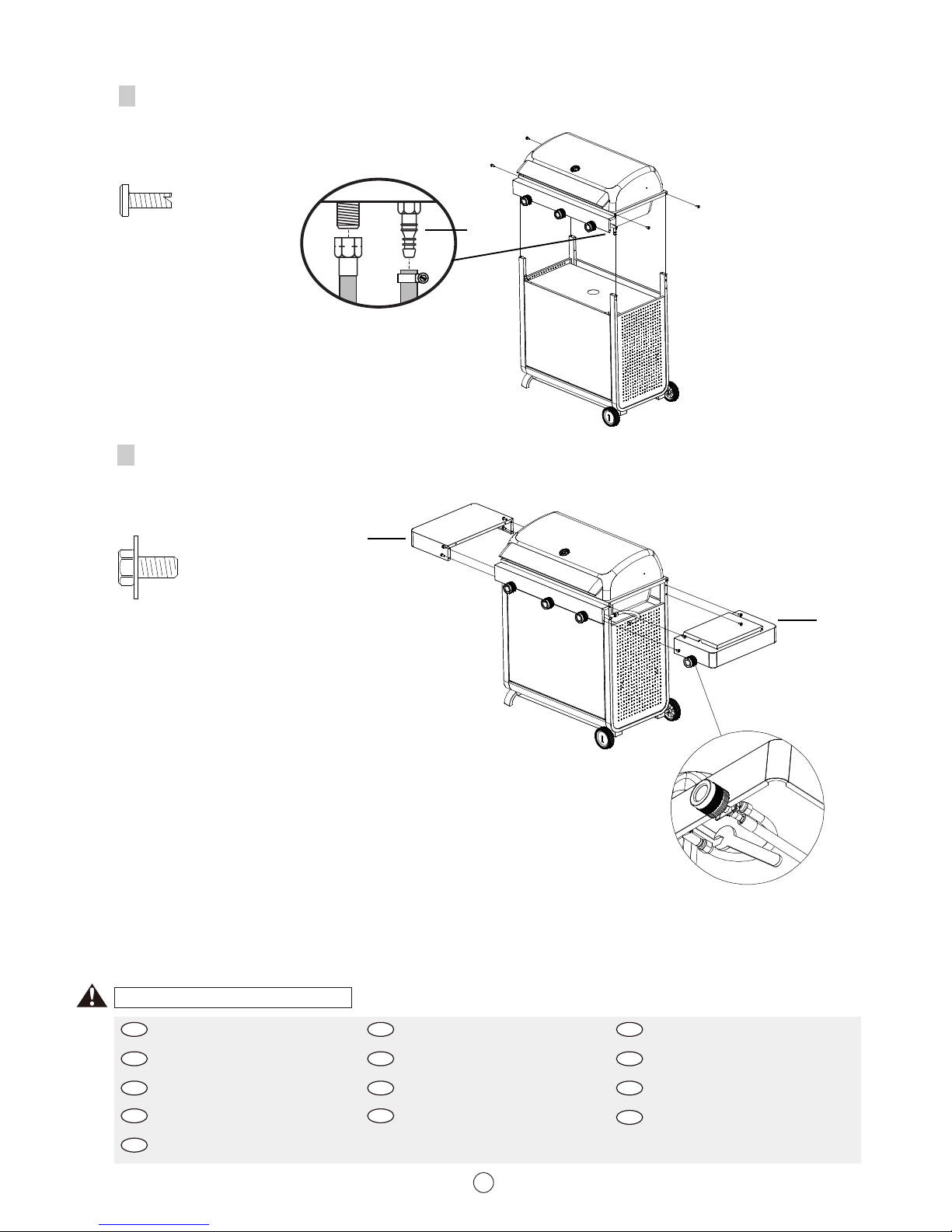

Install head/hose/hose barb
Install side shelf/side burner
DO NOT OBSTRUCT THE VENTILATION
OPENINGS IN THE TROLLEY.
NE PAS BOUCHER LES OUVERTURES DE
VENTILATION DANS LE CHARIOT.
NICHT DIE VENTILATIONSÖFFNUNGEN IM
WAGEN BLOCKIEREN.
NON OSTRUIRE LE APERTURE DI
VENTILAZIONE DEL CARRELLO.
DE VENTILATIEOPENINGEN IN DE TROLLEY
NIET BLOKKEREN.
BLOCKERA EJ VENTILATIONSHÅLEN
I GRILLBAREN.
KÄRRYN TUULETUSAUKKOJA EI SAA
PEITTÄÄ.
NO OBSTRUYA LAS ABERTURAS DE
VENTILACIÓN DEL CARRITO.
NÃO OBSTRUA AS ABERTURAS DE
VENTILAÇÃO NO TRÓLEI.
VENTILATIONSÅBNINGEN I TROLLEYEN MÅ
IKKE SPÆRRES.
VENTILASJONSÅPNINGENE PÅ TRALLEN
MÅ IKKE TILDEKKES.
WARNINGS INFORMATION
NL
SE
FI
ES
PT
DK
NO
FR
GB
DE
IT
NE OVIRAJTE PREZRAČEVALNE ODPRTINE
V VOZIČKU.
SI
NE BLOKIRAJTE OTVORE VENTILACIJE U
KOLICIMA.
HR
#19
Note: After tightening, please do a leak test, refer to Operation Manual.
#41
#20
FlatHeadSelf-tapping Screw
3/16"x3/8"
Qty.4
HexHeadScrew 3/16"x3/8"
Qty.8

6.
11
Install grease receptacle and tank stop plate
Note:Be sure the tank stop plate
to be installed into the hole with
highlighted point between the four screws.
#33
PhillipsHeadScrew3/16"x3/8"
Qty.2

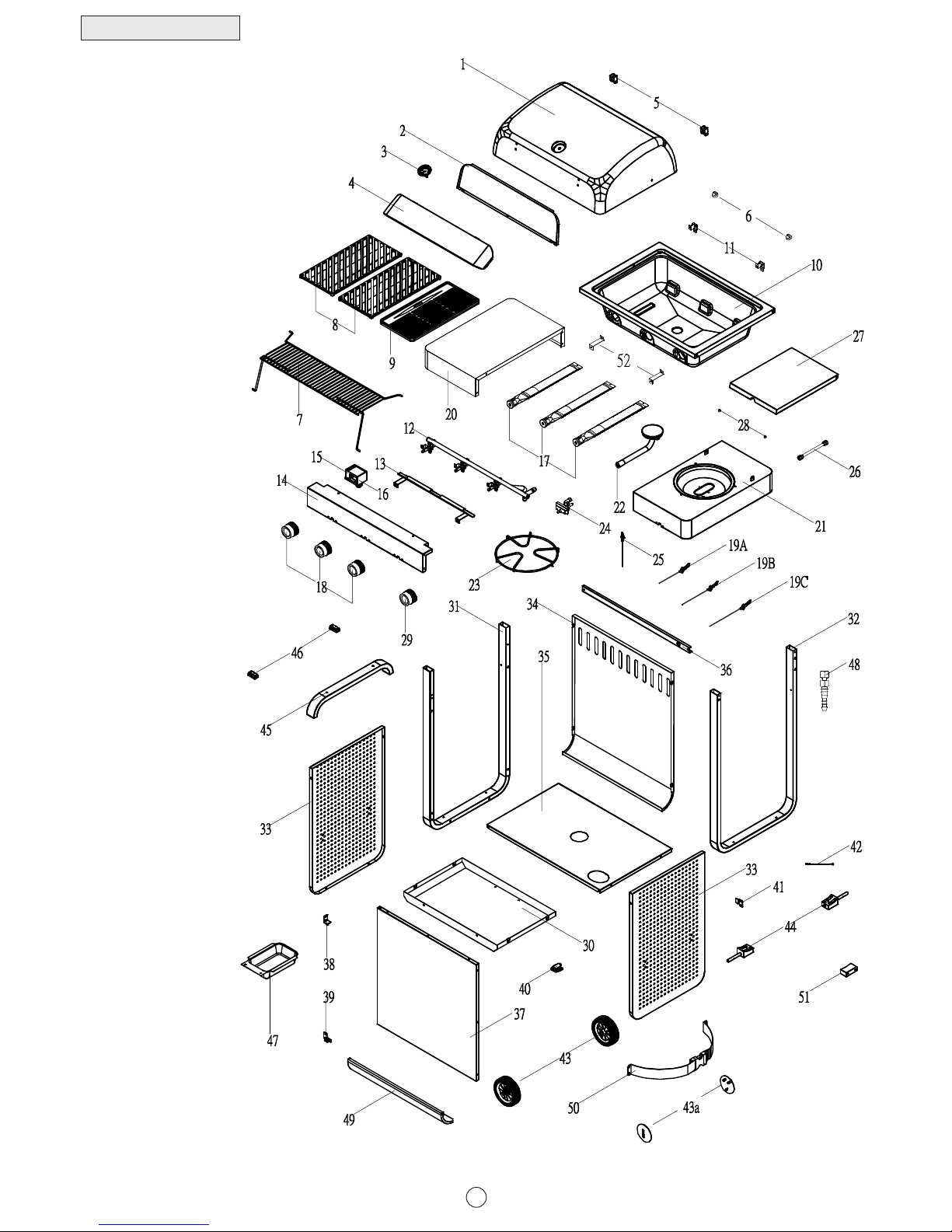

PART LIST - IT2002 Model
12
SEQDESCRIPTION P/No Qty SEQ DESCRIPTION P/No Qty
1Hood P00138198B 1 23 Sideburnerpot support P00805015H 1
2 Hoodhandleinsulate P03303161Q 1 24 Gasvalveforsideburner-30mbar P03234084I 1
3Temperaturegauge P00601531B 1 Gasvalveforsideburner-50mbar P03234085I 1
4 Hoodhandle P00202029A 1 25 Sideburnerelectrode P02618066C 1
26 Sideburnerconnectiontube P03711040F 1
5 Hoodbracket, upper P033031624 2
27 Sideburnerhood P001155781 1
6Protectivepad P05518002I 2
28 Protectivepad P05518002 I 2
7 Cooking rack/secondary P01513017F 1
29 Sideburnerknob P03426487C 1
8 Cooking grid P01615057F 2
30 Trolleybottomshelf P01001115D 1
9Hot plate P05701005H 1
31 Trolleyframe, left P03303175D 1
10 Bowl P00735019A 1
32 Trolleyframe, right P03303176D 1
11 Hoodbracket, lower P033031634 2
33 Trolleyshelf, left/right P07510037C 2
12 Gasvalve/manifold assembly30 mb
ar
Y0060774 1
34 Trolleyshelf, rear P07702130B 1
Gasvalve/manifold assembly50 mbar Y0060775
35 Separationpanel P01001116D 1
Gasvalve-main 30mbar P03234082B 3
36 Trolleyfront bracket P03303170D 1
Gasvalve-main 50mbar P03234083B 3
37 Door P04305071B 1
Manifold P05003334B 1
38 Hinge, upper/left P033130504 1
13 Gascollectortube-cross lighters P022034384 1
39 Hinge, lower/left P033130514 1
14 Controlpanelwithprinting 30mbar P02906562A 1
40 Doormagnet P05351005B 1
41 Doorstop plate P03303171D 1
Controlpanelwithprinting 50mbar P02906572A 1
42 Ground wire P02628003H 1
43 Wheel P05123003A 2
15 ElectricIgnitor, 4-port P02502164C 1
43a Wheelcover P05124001C 2
16 ElectricIgnitorprotector P03306164D 1
44 Wheelseat P03303169D 2
17 Burner P020030544 3
45 Trolley leg P03303167D 1
Burner-Isrealonly P020030534 3
46 Legseat P04523004A 2
18 Main knob P03426477C 3
47 Greasereceptacle P02701305G 1
19A Electricwireset, A P02618062C 1
48 Universalhosebarb P03901024A 1
19B Electricwireset, B P02618063C 1
49 Trolleydecorationpanel P03303172D 1
19C Electricwireset, C P02618064C 1
50 Tankstrap P05314016V 1
20 Sideshelf, left P01105043E 1
51 Tank stop plate P03303168D 1
21 Sideshelf frame P02302015E 1
22 Sideburner-30mbar P020040444 1
Sideburner-50mbar P020040454 1
52 Control panel support bracket P03303177K 1










IT2002 Model
13

1.
2.
3.
14
ASSEMBLY -
Install side/rear/bottom panels
Install trolley front bracket and decoration panel/lower hinge/door stop plate
Install separation panel
IT2002 Model
PhillipsHeadScrew3/16"x3/8"
Qty.8
#34
#32/#33
#30
#31/#33
Note: Donottightenall screws
until thefrontdecorationpanel(#49)
isattached.
FlatHeadSelf-tapping Screw
3/16"x3/8"
Qty.6
Self-tappingScrew3/16"x3/8"
Qty.2
A
B
A
A
A
B
#36
#49
#39
#41
PhillipsHeadScrew3/16"x3/8"
Qty.4
#35
Note: Besurethepaneltobe
installedintotheholewithhigh-
lightedpointat2nd row.

4.
5.
15
Install wheels and trolley leg
Install door/upper hinge
PhillipsHeadScrew3/16"x1-3/16"
Qty.6
#43
#45
Self-tappingScrew3/16"x3/8"
Qty.2
#38
#37

6.
7.
16
Install head/hose/hose barb
Install side shelf/side burner
DO NOT OBSTRUCT THE VENTILATION
OPENINGS IN THE TROLLEY.
NE PAS BOUCHER LES OUVERTURES DE
VENTILATION DANS LE CHARIOT.
NICHT DIE VENTILATIONSÖFFNUNGEN IM
WAGEN BLOCKIEREN.
NON OSTRUIRE LE APERTURE DI
VENTILAZIONE DEL CARRELLO.
DE VENTILATIEOPENINGEN IN DE TROLLEY
NIET BLOKKEREN.
BLOCKERA EJ VENTILATIONSHÅLEN
I GRILLBAREN.
KÄRRYN TUULETUSAUKKOJA EI SAA
PEITTÄÄ.
NO OBSTRUYA LAS ABERTURAS DE
VENTILACIÓN DEL CARRITO.
NÃO OBSTRUA AS ABERTURAS DE
VENTILAÇÃO NO TRÓLEI.
VENTILATIONSÅBNINGEN I TROLLEYEN MÅ
IKKE SPÆRRES.
VENTILASJONSÅPNINGENE PÅ TRALLEN
MÅ IKKE TILDEKKES.
WARNINGS INFORMATION
NL
SE
FI
ES
PT
DK
NO
FR
GB
DE
IT
NE OVIRAJTE PREZRAČEVALNE ODPRTINE
V VOZIČKU.
SI
NE BLOKIRAJTE OTVORE VENTILACIJE U
KOLICIMA.
HR
#20
Note: After tightening, please do a leak test, refer to Operation Manual.
#21
#48
FlatHeadSelf-tapping Screw
3/16"x3/8"
Qty.4
HexHeadScrew 3/16"x3/8"
Qty.8

8.
17
Install grease receptacle and tank stop plate
Note: Be sure the tank stop plate
to be installed into the hole with
highlighted point between the four screws.
#51
PhillipsHeadScrew3/16"x3/8"
Qty.2

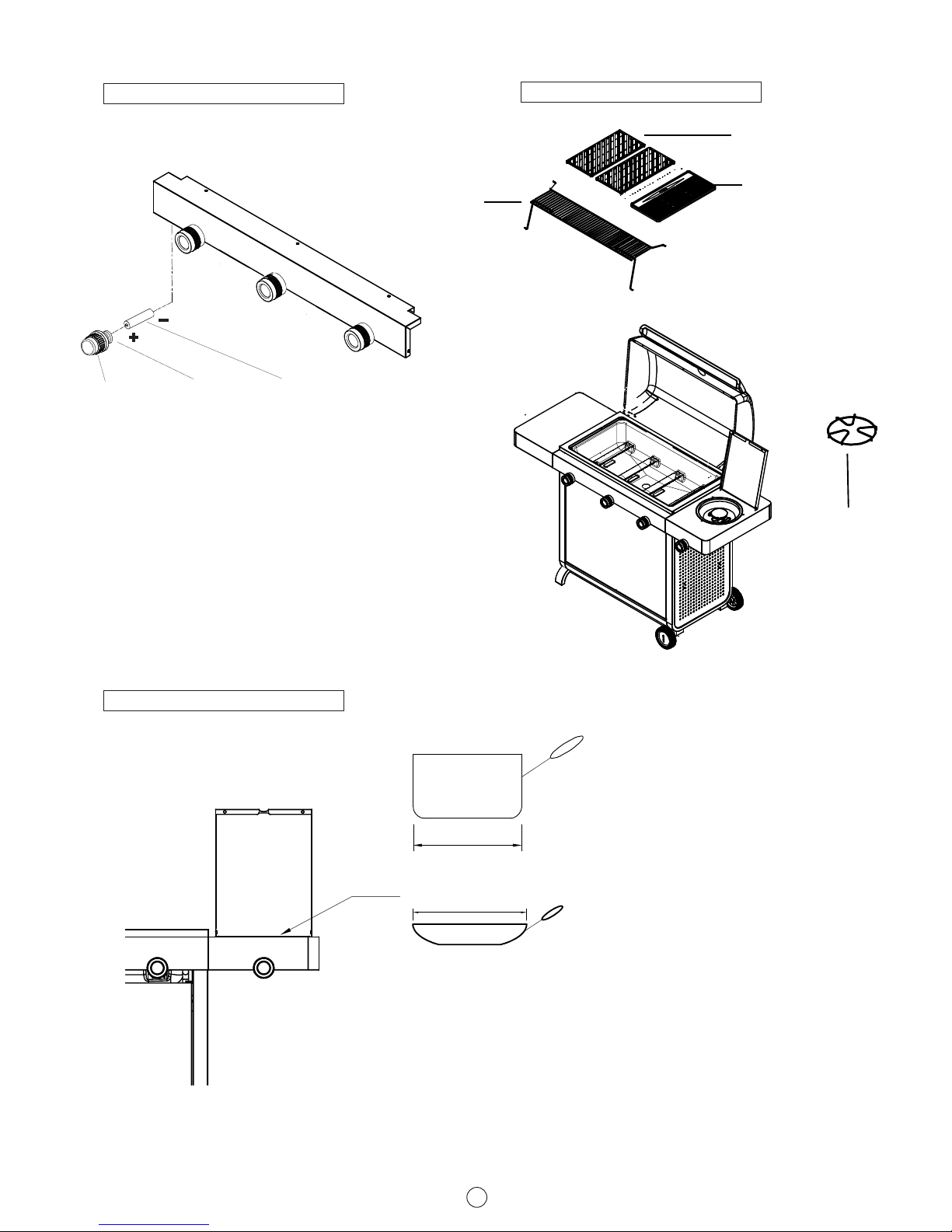

IGNITION BATTERY
COOKING COMPONENT INSTALLATION
18
Cooking grid
Secondary cooking
/ warming rack
Ignitor Cap AA Battery
Spring Side burner pot support
IT 1001#7
IT 1001 #8
IT 1001 #8a
IT 1002 #22
SIDE BURNER POTS
300mm Max
Flat base
IT 1002#7
IT 1002 #8
IT 1002 #8a
IT 2002 #23
IT 2002#7
IT 2002 #8
IT 2002 #9
100- 260mm
Hot plate

19
• – I 3+ (28-30/37)
–I 3B/P (30)
0.77mm –I 3B/P (50)
•Side 0.78mm –I 3+ (28-30/37)
–I 3B/P (30)
0.70mm –I 3B/P (50)

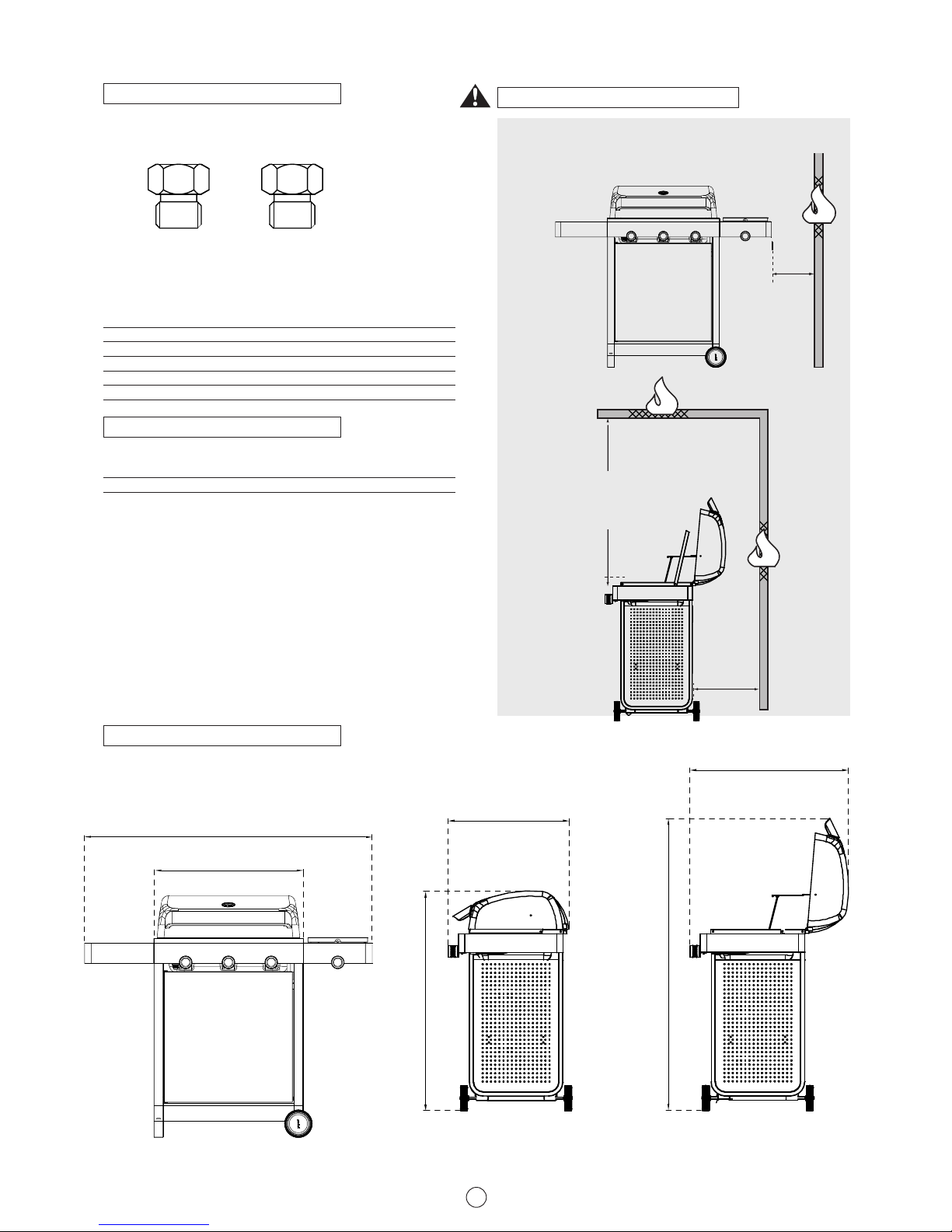

•MINIMUM CLEARANCES FROM COMBUSTIBLE MATERIALS MUST BE:
REAR - 450 mm
SIDES - 250 mm
TOP - 1000 mm
WARNINGS INFORMATION
INJECTOR
DIMENSIONS
Main
Side
450 mm
1000 mm
250 mm
•Main
11.1kW
806grams / h
•Side 2.6kW 190grams / h
INPUT
Main 0.90mm
0.90/0.77
0.78/0.70
1250 mm
650 mm
574 mm
756 mm
1395 mm
1051 mm

250˚

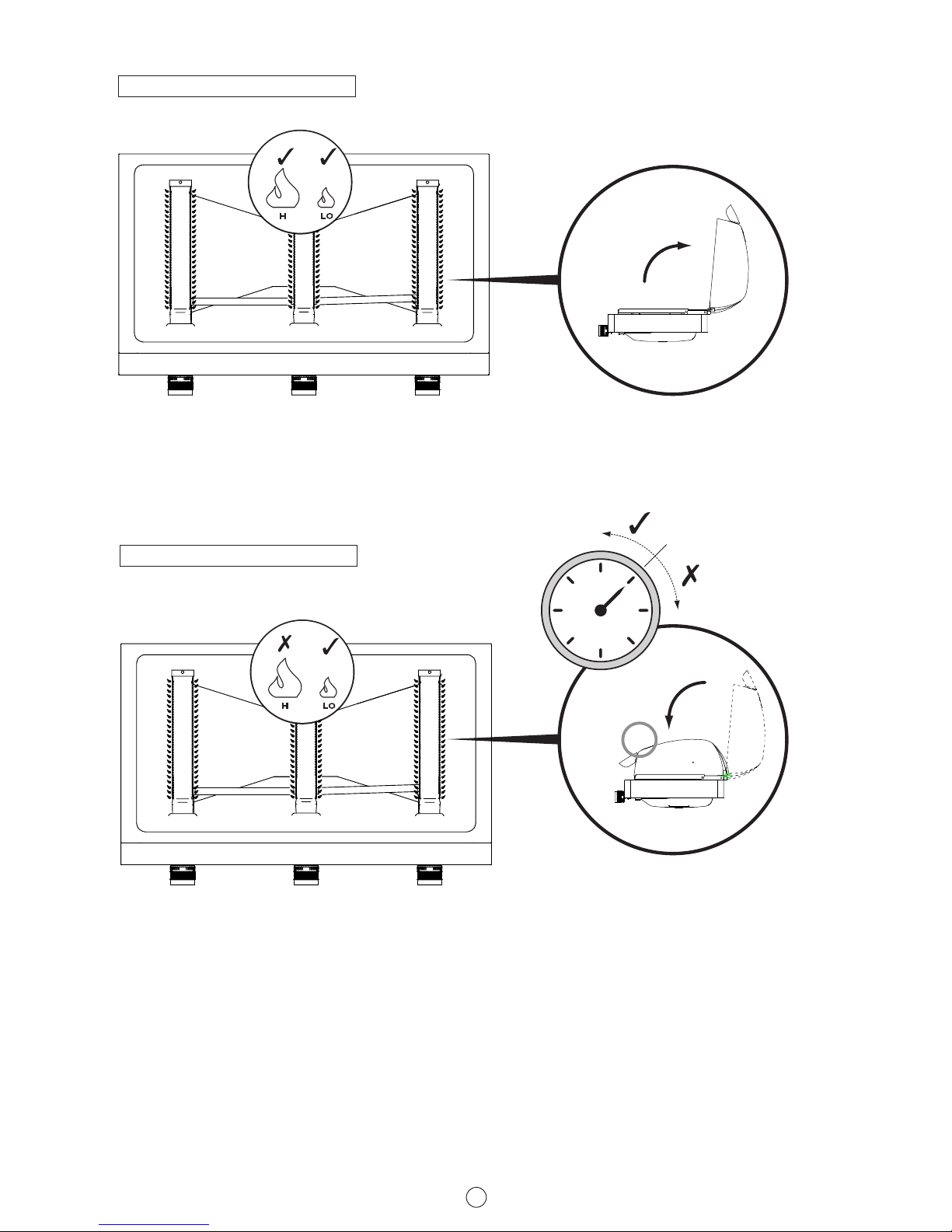

COOKING WITH HOOD DOWN
COOKING WITH HOOD OPEN
20
