Grange Fencing Elite User manual

PORTICO
ARCH
ELITE
ELITE PORTICO ARCH (ELITEPORTE)
PLAN
2.43m
2.1m
1.126m
1.3m to 1.9m
Width of
opening can be
adjusted to suit
your needs.
GRANGE FENCING LIMITED
Halesfield 21, TelfordTF7 4PA
Tel:[phone] Fax:[phone]
Email:[email protected] Web:www.grangefen.co.uk
OUT OF HOURS MESSAGE SERVICE: 01952 588088
JULY 2011 ISSUE 2
PLEASE SEE
OVERLEAF FOR
ASSEMBLY
INSTRUCTIONS
ALL PRODUCTS ARE
MEASURED TO THE HIGHEST
AND WIDEST POINT AND ALL
SIZES ARE APPROXIMATE
Grange Code: ELITEPORTE

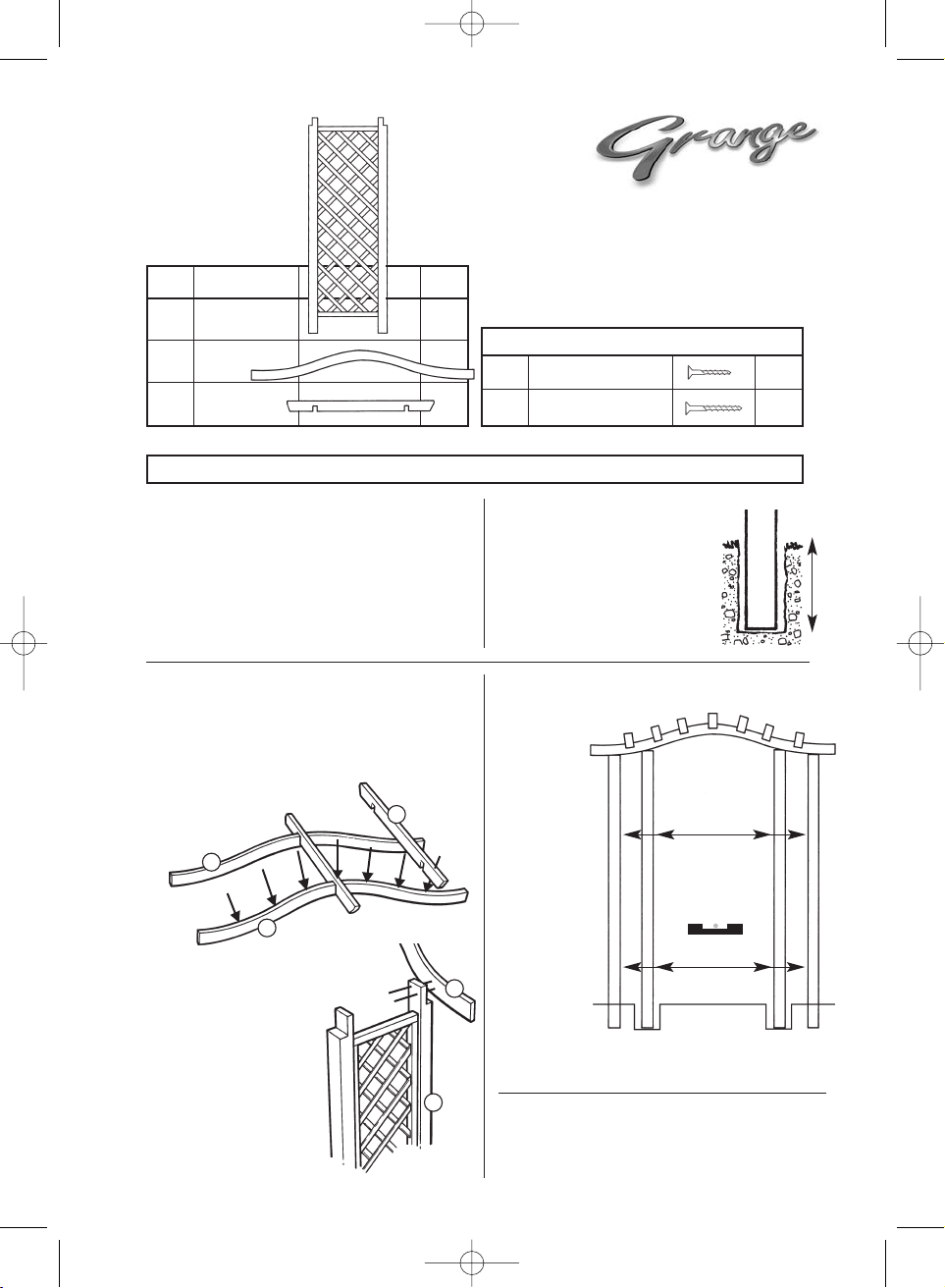

Elite Portico Arch Inst 8/7/11 10:49 Page 1

ELITE PORTICO ARCH
ASSEMBLY INSTRUCTIONS
BEFORE YOU START
ASSEMBLY
•Check the pack/s and make sure that you have
all of the parts listed above. If not, contact
your retailer who will be able to help you.
•When you are ready to start, make sure you
have the right tools to hand, plenty of space
and a clean, dry area for assembly.
•It is advisable for two people to carry out
the work.
Ref.
POZIDRIVE SCREWDRIVER - ELECTRIC DRILL
PARTS SUPPLIED
TOOLS REQUIRED (not supplied)
Description Qty.
A
B
C
SIDE
SECTION
CURVED
BEAM
ROOF
RAFTER
2
2
7
x4 x 50 14
1x HARDWARE PACK:
y4 x 60 8
SITE PREPARATION
Excavate a 300mm square hole
(approx) for each post to a depth
of at least 300mm. (Fig.A right)
Wewould recommend that you
use MetCrete,fast set post
fixing concrete to fix your posts.
Easy to use, it sets in just
10 minutes.
1. Begin with the roof assembly.
2. Mark off seven points along the length of each
of the curved beams where the rafters will be
fitted (see Fig.1). It is recommended that the
centreis marked first and the other points
measured from it.
3. Fix the rafters to the curved
beams using screws (x)from
the topside of the rafters
into the curved beam.
4. Lower one of the side
sections into the
prepared holes. Fix
the roof assembly to
the side section using
screws (y)through the
post into the roof
assembly. Use two
screws at each point
(see Fig.2).
5. Repeat for the 2nd side section.
6. Ensure the
arch is
equally
spaced,
level and
vertical
(see Fig.3)
7. Fill in the
holes using
MetCrete
or other
preferred
filling.
Ensure
the arch
hasn’t
moved
during
infill.
Fig A.
Fig 1.
Fig 2.
Fig 3.
300mm
1
x
yy
B
B
A
B
C
=
=
=
=
To ensure longevity of your structure it is
recommended that it is treated with a wood
preservative on a yearly basis.
AFTERCARE
