Grant Instruments XUB Series User manual

EN
ES
Digital Ultrasonic
Bath
XUB Series
Operating Manual

XUB Series 32925 V1
Operating Manual 1
EN
Contents
Safety instructions...............................................................................................2
Installation............................................................................................................3
Controls ................................................................................................................4
Quick guide...........................................................................................................5
Operator instructions ..........................................................................................6
Operator menu .....................................................................................................8
Starting the cycle...............................................................................................13
Cycle abort modes.............................................................................................14
Advanced menu .................................................................................................16
Using the Memory Card.....................................................................................22
Recording and downloading the data..............................................................23
Ultrasonic detergents........................................................................................24
Technical information........................................................................................25
Specifications.....................................................................................................26
Troubleshooting.................................................................................................28
Maintenance .......................................................................................................30
Returning equipment to Grant..........................................................................30
Warranty..............................................................................................................31
Disposal of this ultrasonic bath .......................................................................31
Service record....................................................................................................32
Notes...................................................................................................................33
Grant ultrasonic baths are manufactured in the United Kingdom
and conform to exacting international standards.

XUB Series 32925 V1
Operating Manual 2
Safety instructions
Use of products
The following products are covered by this operating manual:
•XUB5, XUB10, XUB12, XUB18, XUB25
The products listed above are a series of general purpose ultrasonic cleaning baths
designed for indoor use by a professional user.
Electrical
Connect to an 115VAC 60Hz fully earthed supply.
It would be dangerous to operate an ultrasonic bath without an earth connected.
The mains plug and/or socket is fitted with 10A fuses. NEVER FIT A FUSE OF A
HIGHER RATING.
Ensure that excess mains cable is stored neatly.
General use
Ensure that the bath contains liquid before you switch it on.
Always use a basket to support items to be cleaned.
Not doing so may damage the bath and invalidate your warranty.
Do not place hands or fingers in the bath.
Care should be taken when operating the bath at higher temperatures as external
surfaces may become hot.
Never use toxic, flammable, acidic, caustic or corrosive solutions in the bath.
Avoid moving the bath when it is full of water.
Read the whole of these instructions. Safety may be impaired if they are not followed.
Contact Grant or its agent for advice on cleaning techniques or detergents.
Grant will not be responsible for damage or injury caused by incorrect use of the
equipment.

XUB Series 32925 V1
Operating Manual 3
EN
Installation
The following parts and accessories are included with the Grant digital ultrasonic bath:
-1 x basket
-1 x lid
-1 x MC card and MC USB card reader
-1 x 2m length of drain hose
-1 x hose tail
-1 x Grant M2 detergent sample
-1 x power cable (IEC C13 plug to NEMA 5-15P)
How to install
Screw the hose connector into the drain valve located on the rear of the unit.
Locate the unit close to a drain or sink.
Connect one end of the drain hose to the hose connector, and locate the other end
over a drain or sink.
Connect the mains lead into a suitable mains socket.
Ensure that the mains plug and the switch are easily accessible.
Your Grant digital ultrasonic bath is now ready to use.

XUB Series 32925 V1
Operating Manual 4
Controls
Ensure your Grant digital ultrasonic bath is plugged into a
115VAC 60Hz fully earthed supply.
Once plugged in, switch on your Grant digital bath via the
power on/off switch at the rear of the unit.
The switch will then illuminate.
The Grant digital bath is operated through a menu driven control system:
The different keys perform the following functions:
KEY 1: – Starts and ends the ultrasonic cycle
KEY 2: Menu – Scroll through the menu
KEY 3: Up/On – Adjust the settings in the options menu
KEY 4: Down/Off – Adjust the settings in the options menu
KEY 3
KEY 4
KEY 1
KEY 2

XUB Series 32925 V1
Operating Manual 5
EN
Maximum
Fill Line
Quick guide
Pour cold water into the bath so that it reaches the liquid level sensor but does not go
over the maximum fill line.
Add the required dose of detergent (see page 24).
Switch on the machine via the switch at the rear of the unit, just above the electrical
mains lead.
Press the “” key to accept the programmed cleaning cycle settings and start the
cleaning cycle.
At the end of the cleaning cycle, remove the basket from the bath and rinse the
cleaned items under clean running water. The lid can be inverted and the basket
placed on top to catch excess liquid as the items dry.
REMEMBER
-Always keep the bath full of liquid when in operation
-Do not put hot water above 50°C (120°F) into the b ath
-Always use the basket
-Never expose hands, fingers or other body parts to cleaning solutions
-Never use toxic, flammable, acidic, caustic or corrosive solutions
-Never breathe the fumes from strong solutions
-Rinse the items in clean water once the cycle is complete
Subjecting the bath to improper treatment or misuse will invalidate the warranty.

XUB Series 32925 V1
Operating Manual 6
Operator instructions
When the Grant digital bath power is turned on and the bath is full of liquid, the
following screens will display alternately.
When the water temperature is at or above the temperature set, the message “Temp
OK” will display.
To immediately start the cycle using the already set cleaning parameters, press the 
key.
The Grant digital bath remembers the set parameters from the previous cycle. If the
operator wants to run the same cleaning cycle, it is therefore not necessary to run
through the menu each time.

XUB Series 32925 V1
Operating Manual 7
EN
When the Grant digital ultrasonic bath power is turned on and the liquid level is too
low, the following screen will display.
The level sensor can be disabled for specialist cleaning applications where deionised
(DI) water is used (see page 19).

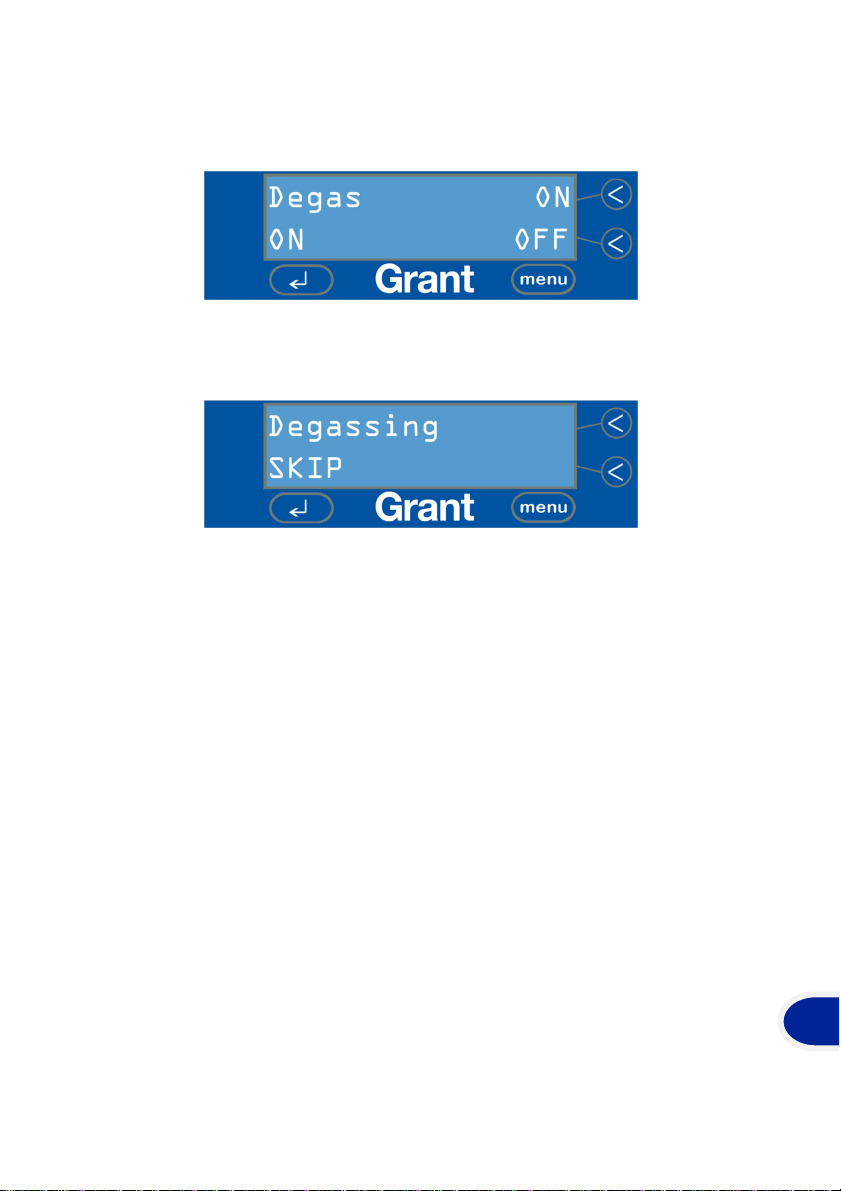

When the bath is filled with liquid to the correct level, you will be given the option to
degas (see page 25).
By choosing YES, your Grant digital ultrasonic bath will run an automatic degas cycle.
The following screen will display.
The degassing process is to remove all bubbles from the water as these impede the
cleaning performance. Once all of the bubbles have come to the surface, complete the
degassing cycle by pressing the key.
Note: If the machine detects low liquid level for more than 5 seconds, it is assumed
that the bath has been filled with fresh water, and you will be given the option of
running a degas cycle.

XUB Series 32925 V1
Operating Manual 8
Operator menu

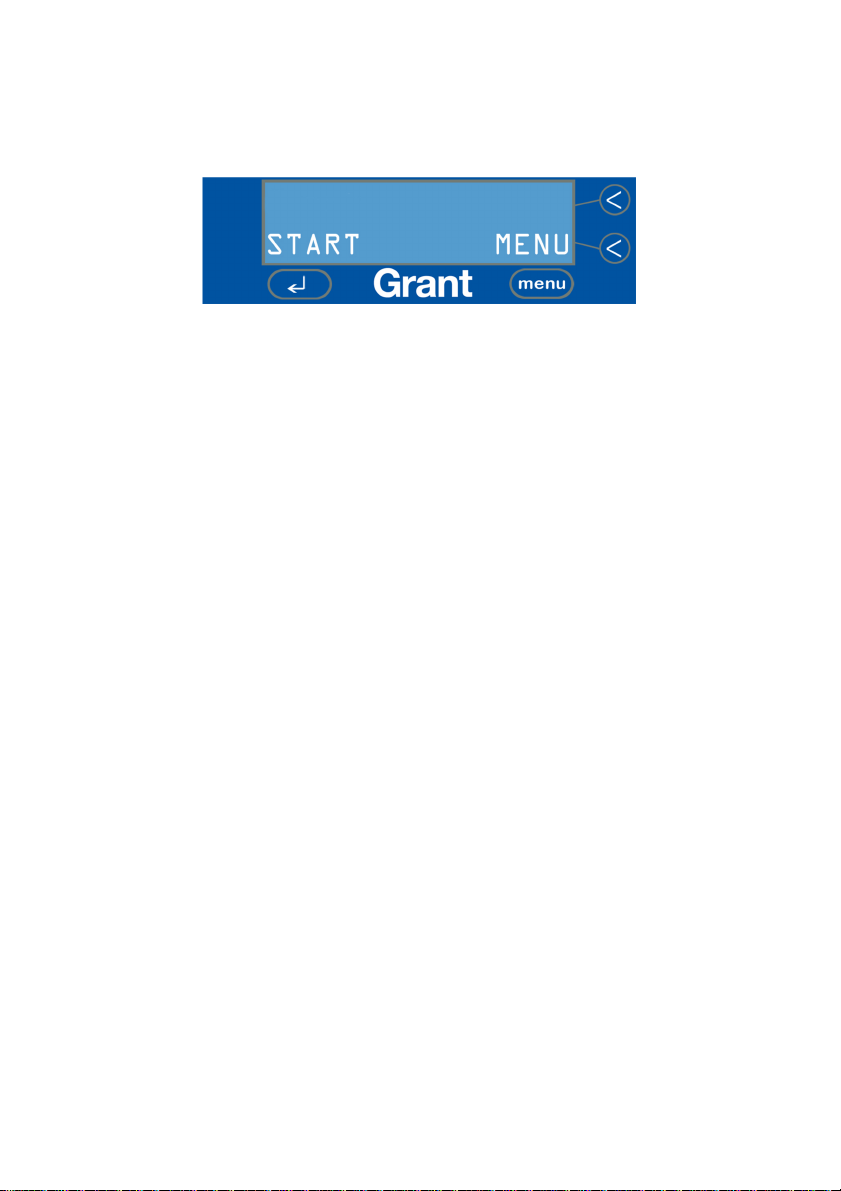

A number of the Grant digital ultrasonic bath cleaning parameters can be altered.

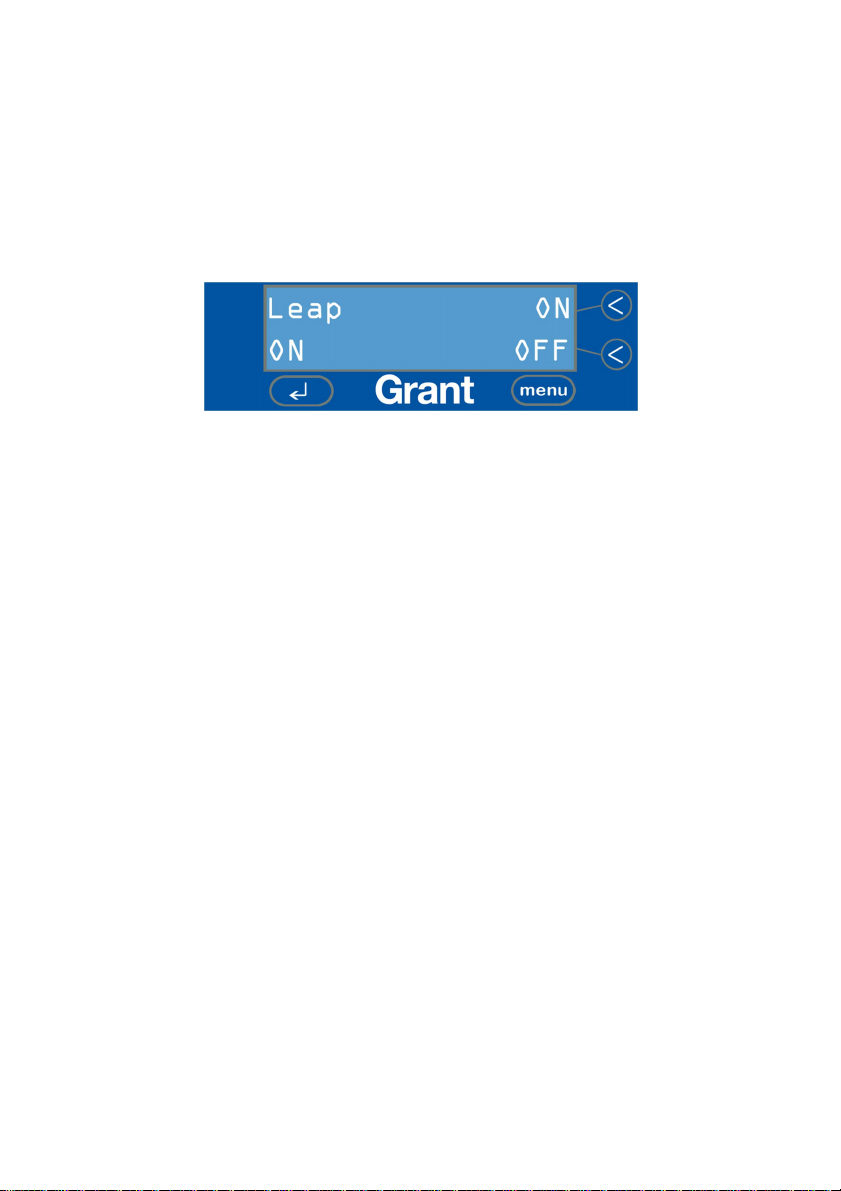

To access the options menu and scroll through the various changeable parameters,
press the MENU key, when the following screen is displayed.
To scroll through the menu, press the MENU key. To exit the MENU at any time,
press the key.
