Grant ap360 User manual

Air Purifier
ap360
Operating Manual
www.grantinstruments.com
[e-mail]
Tel: [phone]

ap360 Air Purifier 34526 V3
Operating manual Page 2
www.grantinstruments.com
If you have any feedback on Grant products or services, we would like to hear from you.
Please send all feedback to:
Grant Instruments (Cambridge) Ltd
Shepreth
Cambridgeshire
SG8 6GB
UK
Tel: [phone]
Fax: [phone]
E-mail: [e-mail]
Representative in the European Union
Grant Instruments Europe B.V
Strawinskylaan 411
WTC, Tower A, 4th Floor
1077 XX, Amsterdam
The Netherlands
E-mail: [e-mail]
Contents
1Use of products 3
2Using this operating manual 3
3Product registration and warranty 3
4Safety information 4
5Unpacking and Installing 5
5.1 Unpacking instructions 5
5.2 Installation 5
5.3 Electrical supply 5
6Using the ap360 6
6.1 Control panel buttons and indicators 6
6.2 Getting started in MANUAL mode 6
6.3 Automatic operation in PROGRAM mode 7
6.4 Feature menus 7
6.4.1 Programming the ap360 7
6.4.2 Setting the time and day 8
6.4.3 Checking the Service information 8
6.5 Amber and Red Indicators- What do they mean? 9
7Technical specifications 11
8Care and service 12
8.1 Cleaning 12
8.2 Filter lifetime and replacement 12
8.3 UV lamp lifetime and replacement 12
8.4 Fuses 13
8.5 Replacing the mains cord 13
8.6 Routine safety tests 13
8.7 Service 13
9Product Compliance 14

ap360 Air Purifier 34526 V3
Operating Manual Page 3
www.grantinstruments.com
1 Use of products
The following products are covered by this operating manual:
ap360 Air Purifier
This product is an air purifier fitted with a H13 HEPA filter and UV-C emitters. It kills
airborne viruses and bacteria, maximising air quality and reducing the risk of pathogens
harmful to human health.
It is intended for indoor use in offices, laboratories, clinical settings, other workspaces
and public areas.
This appliance is not intended for use by persons (including children)
with reduced physical, sensory or mental capabilities or lack of
experience or knowledge unless they have been given supervision or
instruction concerning use of the appliance by a person responsible for
their safety.
Children should be supervised to ensure they do not play with the
appliance.
2 Using this operating manual
This operating manual will help you to unpack, set up and operate the ap360 correctly
and safely. Important safety information, symbols and warnings are listed below and
should be read carefully.
If there is a technical matter that this operating manual does not address or any other
questions concerning this product, please contact Grant Instruments or your local
distributor who will help provide any additional information.
3 Product registration and warranty
When used in accordance with this manual, the ap360 is guaranteed for two years
against faulty materials or workmanship. The HEPA filter and UV lamp have limited
lifetime and are not included in the warranty.
Grant recommends completing the on-line registration form at
www.grantinstruments.com.Not registering your product may affect your warranty.
Extended Warranty as well as Service Plans for the replacement of the HEPA filter and
UV lamps can be purchased by contacting our sales department at
[e-mail].
See Section 8 Care and Service for more information on HEPA filter and UV lamp
lifetime and replacement.

ap360 Air Purifier 34526 V3
Operating manual Page 4
www.grantinstruments.com
4 Safety information
Safety symbols
The symbols below are marked on the equipment and in this manual to indicate:
Read this manual before using this appliance
Important safety warning
Recommended operation
Failure to follow may affect the performance of the equipment
Safety warnings
Read the whole of the instructions. Safety may be impaired if they are not
followed.
This unit contains a UV-C emitter type TUV PL-L 55W
Use of the unit other than as described in this manual or damage to the
housing may result in the escape of dangerous UV-C radiation. UV-C
radiation may, even in small doses, cause harm to the eyes and skin
If the unit is visibly damaged it must not be operated
Not for use in environments with a risk of flammable or explosive gases.
The unit must be operated within the limits listed in this guide
If a potentially hazardous liquid is spilt onto the equipment, disconnect it from
the power supply and have it checked by a competent person. It is the user’s
responsibility to carry out appropriate decontamination if hazardous material
is spilt on the equipment.

ap360 Air Purifier 34526 V3
Operating Manual Page 5
www.grantinstruments.com
5 Unpacking and Installing
5.1 Unpacking instructions
Standard equipment includes:
•ap360 Air purifier
•Mains cords with plug for UK, Europe and Australia/New Zealand
•Operating manual
Remove packing materials carefully and retain for future shipment or storage of the unit.
5.2 Installation
For maximum efficiency position the ap360 in or near the centre of the space to be
purified. If this is not practicable then position it in a clear area.
A single ap360 is suitable for a room up to 36m² (6m x 6m or about 20ft x 20ft)
Position the ap360 on a level, clean floor area free from dust or lint. Allow good access
for airflow to and from the unit.
Once in position the unit can be prevented from moving by setting the 2 lockable castors
in the downward lock position.
Place on a flat and stable surface to reduce the risk of the unit toppling
over
To prevent the airflow from being restricted, do not place anything on
top of the unit or allow the side vents to be obstructed.
5.3 Electrical supply
Check that the supply voltage marked on the serial number label, and the type of mains
plug, are correct for your mains supply outlet, which must have an Earth (ground)
connection.
Only use the mains cord provided or one with an identical rating
Plug the unit into your mains supply outlet using the mains cord. The mains inlet is at the
rear of the unit. To disconnect the unit at any time from the mains supply, remove the
mains plug from the mains supply outlet.
Ensure that the mains plug is easily accessible when the unit is
installed for use.

ap360 Air Purifier 34526 V3
Operating manual Page 6
www.grantinstruments.com
6 Using the ap360

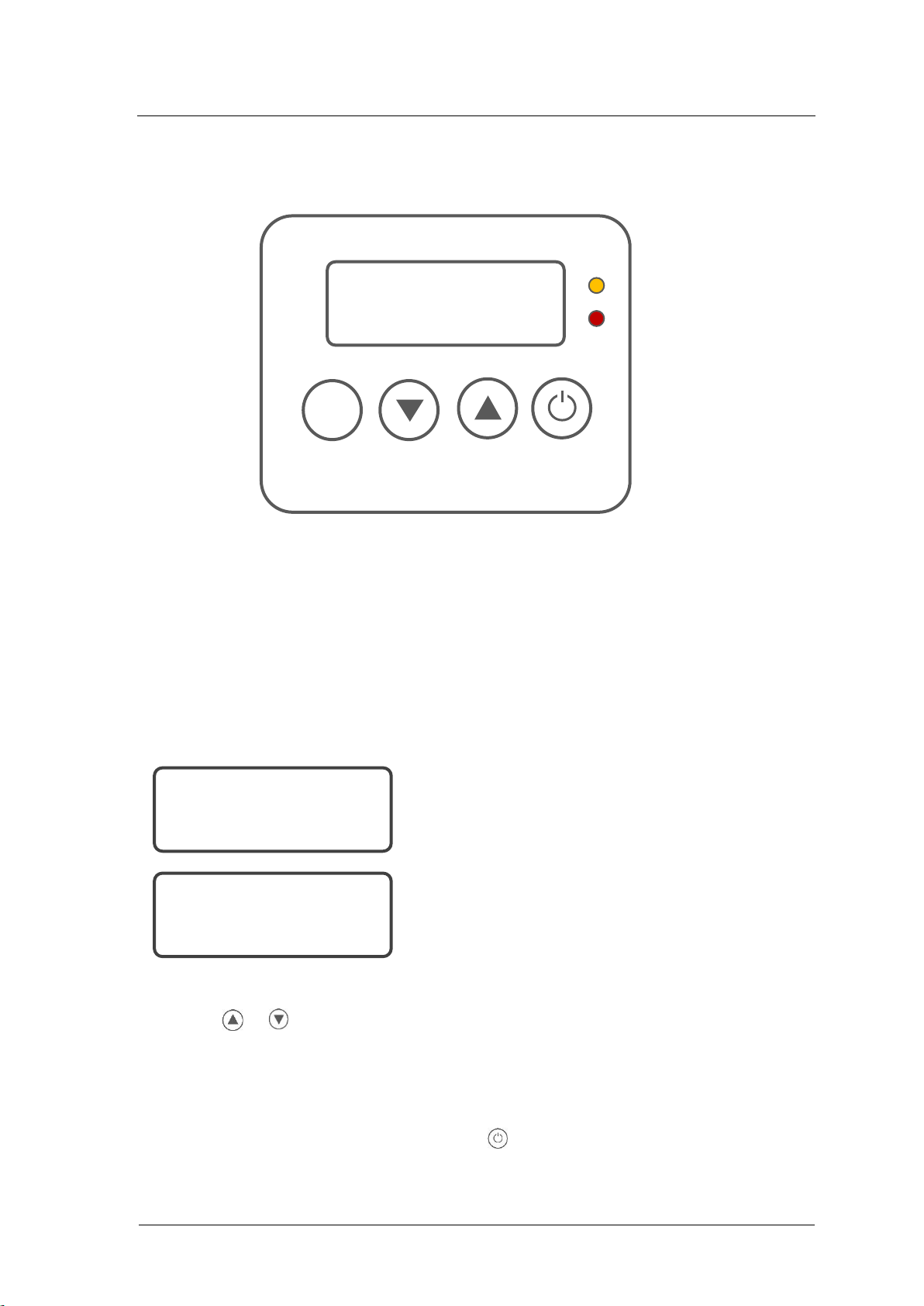

6.1 Control panel buttons and indicators
The display will illuminate when the unit is first switched on. If no buttons are pressed for
30 seconds the display will dim. Pressing any button will turn the display light back on.
6.2 Getting started in MANUAL mode
There is an ON/OFF switch next to the mains inlet at the rear of the unit. Switch to the
ON position. The ap360 will start in MANUAL mode
On first start-up, the fan is at speed 1.
Press the U or D buttons to change the fan speed. 4 speeds are available. The UV
lamp will start automatically once the fan is running.
Useful tip. To purify a space in the minimum time, set the fan speed to 4 for a short time
then change to a lower fan speed for quieter continuous background operation.
To switch OFF the ap360, press and hold the B button for 3 seconds. Alternatively use
the ON/OFF switch at the rear of the unit.
SET
button
UP
button
Red alarm indicator
Amber warning indicator
Display
DOWN
button
ON/OFF/BACK
button
set
Please wait ….
Please wait while the unit does a self-test
during start-up
11:36
11:36 Manual
UV On Fan 1
The display shows current time, Mode,
UV light status and fan speed

ap360 Air Purifier 34526 V3
Operating Manual Page 7
www.grantinstruments.com
6.3 Automatic operation in PROGRAM mode
When in MANUAL mode, press the B button momentarily to change to PROGRAM
mode
If a program has already been set, the unit fan speed and UV lamp will change to these
settings. To continue operating with these program settings, leave the ap360 in
PROGRAM mode.
The ON and OFF time, as well as fan speed can be set for each day of the week
To set a new or change an existing program, use the programming instructions in the
Feature Menus section below
Useful tip. You can change to MANUAL mode at any time by pressing the B button.
The fan speed can be then be changed using the U and D arrows if required.
Change back to PROGRAM mode using the B button to continue the program.
6.4 Feature menus
Press the S button when in MANUAL or PROGRAM mode to see the menus.
Scroll down and up the menus using the U and D buttons. Press the S button to
select the chosen menu.
Programs - For programming ON & OFF times for each day of the week
Time & Day - For setting the time and day when this changes
Service –For checking the Lamp & Filter status and Service Engineer information
Return to the MANUAL or PROGRAM mode at any time by pressing the B button
momentarily.
The ap360 will automatically work out the day of the week from the date set.
6.4.1 Programming the ap360
Navigate to the Programs menu and press S .
Find and select the day you wish to program using the U , D and S buttons.
11:36 On 08:00
Thurs Off 17:00
UV On Fan 2
The display shows the current time,
day and program ON & OFF times, UV
lamp status and fan speed.
Time and Day
>Programs
Service

ap360 Air Purifier 34526 V3
Operating manual Page 8
www.grantinstruments.com
Press S to select fan Speed. The digit will flash to indicate it is being changed.
Use the U and D buttons to change the value.
Press S again to change the On and Off times.
Press B twice at any point to move back to the menu list.
6.4.2 Setting the time and day
Navigate to the Time and Day menu option and press SET.
The first digit of the date will start flashing to indicate it is being changed.
Use the U and D buttons to change the value of the digit.
Press S to edit the next digit.
Press B twice at any point to return to the menu list.
6.4.3 Checking the Service information
Navigate to the Service menu option and press S.
Software version. Press S to see the versions installed on the unit.
Fan Speed. Press S to see the fan speed in rpm
Status. Press S to See the number of hours remaining before Lamp/Filter service is
required. When the number of hours is less than 500, the amber warning indicator will
come on.
>Monday
Tuesday
Wednesday
Speed: Off (Mon)
UV:On
On: 08:30
Off: 17:30
Time and Day
Date: 05/09/20
Time: 10:59:55
Fan: 20%
Speed: 1720rpm
Lamps/Filter
8500 hours
I11 R11 L11 F11

ap360 Air Purifier 34526 V3
Operating Manual Page 9
www.grantinstruments.com
Contact Grant Instruments to schedule Lamp and Filter replacements
The I11 R11 L11 F11 display is status information for Service Engineer use.
Lamps/Filter. This menu is for a Service Engineer to reset the Lamp/Filter timer
following a lamp & filter replacement.
Press B momentarily to return to the Menu list
6.5 Amber and Red Indicators- What do they mean?
An amber warning indicator means a UV Lamp and Filter will soon need replacing or
there is a problem with the UV lamp
A flashing red indicator means the UV lamp and Filter lifetime has expired
A full-on red indicator means there is a fault with the unit; it will automatically shut down.
See the Troubleshooting guide below for action to take

ap360 Air Purifier 34526 V3
Operating manual Page 10
www.grantinstruments.com
7 Troubleshooting
Indicator
Warning or fault
Action to take
How to resolve
Amber is
FULL ON
No warnings or fault
on the display
Go to the SERVICE
menu and check
STATUS
If Lamps/Filter
menu info shows
500 hours then the
Lamps & Filter will
soon need
replacing.
Contact Grant
Instruments or your
local agent to
obtain a service
pack
Amber is
FULL ON
UV Err is shown on
the display
UV lamp is not
switching on.
This can be caused
by a UV not
correctly fitted or
faulty. Switch off
unit and disconnect
from the mains
Contact Grant
Instruments for
support
Red is
FLASHING *
UV lamps and filter
lifetime has expired
Go to the SERVICE
menu and check
STATUS
If Lamps/Filter
menu info shows 0
hours then the
Lamps & Filter
need replacing.
Contact Grant
Instruments or your
local agent to
obtain a service
pack
Red is
FULL ON **
Lid Open or
Filter Missing shown
of the display.
The unit has been
dismantled or
incorrectly
reassembled
Switch off unit and
disconnect from the
mains.
Contact Grant
Instruments for
support
*A red flashing warning means that the ap360 purification is not operating within the unit
specification. Grant Instruments advise the unit is switched off and not operated until the
UV lamp or filter is changed as required
**Faults are potentially dangerous to the equipment or the user. Safety interlocks
will shut down the ap360 to prevent exposure to harmful UV radiation.

ap360 Air Purifier 34526 V3
Operating Manual Page 11
www.grantinstruments.com
8 Technical specifications
Operating conditions
Ambient Temperature
5 to 40°C
Maximum relative humidity
80% R.H. in room temperatures up to 31°C
decreasing linearly to 50 % R.H. at 40°C
Altitude above sea level
Up to 2,000 m (6,500 ft)
Operating Environment
Indoor use only
Electrical details
Mains supply: 220-230V @ 50/60 Hz
Pollution degree: 2
Installation Category: II
Note: Mains supply voltage fluctuations are not to exceed ±10% of the nominal supply
voltage
Physical details
Dimensions (H x W x D): 1050mm x 350mm x 350mm
Weight (Unpacked): 13.4kg
Performance
Airflow
Fan speed 1 Ultra low
Fan speed 2 Low
Fan speed 3 Medium
Fan speed 4 High 360 m³/hour max
Filter
H13 HEPA (EN1822). Efficiency 99.95%
UV Lamp
2 x 55 Watt lamps TU PL-L55W
UV-C wavelength 253.7nm
UV dose
280 J/m²
Sound levels
47 dB(A) @ Fan speed 1
71 dB(A) @ Fan speed 4

ap360 Air Purifier 34526 V3
Operating manual Page 12
www.grantinstruments.com
9 Care and service
Before cleaning or any other maintenance task the unit must be
disconnected from the mains supply
9.1 Cleaning
Clean the outside of the unit with a damp cloth. Domestic detergents may be used to
remove stubborn dirt.
Before using any other cleaning or decontamination method, check with Grant
Instruments or your local representative to make sure that the proposed method will not
damage the equipment.
9.2 UV lamp lifetime and replacement
The two UV lamps have a lifetime of 9000 hours. The unit will display an amber warning
when there are 500 hours of life remaining. When the lifetime has expired completely the
unit will display a flashing red warning.
The UV lamps are replaceable by a competent person. Grant Instruments offer
replacement UV lamps as part of a service pack. Contact
[e-mail].
Attempted replacement of the UV lamps may result in exposure to
dangerous UV-C radiation. UV-C radiation may, even in small doses,
cause harm to the eyes and skin
9.3 Filter lifetime and replacement
The internal HEPA filter has a limited lifetime. The performance of the filter will depend
on the cleanliness of the environment. The performance can be maximised by keeping
the area around the ap360 clear of dust and lint.
Grant Instruments recommends the filter is replaced at the same time as the UV lamps.
Grant Instruments offer replacement filters as part of a service pack which can be fitted
by a competent person. Contact [e-mail]
If you do not replace the filter when recommended the performance of
the ap360 will be severely affected

ap360 Air Purifier 34526 V3
Operating Manual Page 13
www.grantinstruments.com
9.4 Fuses
The fuses are internal and are not user replaceable.
9.5 Replacing the mains cord
Any replacement mains cord-set used with the unit must meet the same specification as
the one originally supplied with the unit to maintain the safety of the unit.
For Europe (including the UK), the cable must have the following markings; <HAR>,
HO5VV-F 3Gx1mm2 and be rated to carry 10A. The mains plug and IEC connector must
carry approvals from a European certification body (e.g. BSI, VDE or equivalent).
For Australia the cable must have the following markings; HO5VV-F 3Gx1mm2 and be
rated to carry 10A. The mains plug, lead and IEC connector must carry approvals from
an Australian regional authority (e.g. N, NSW or equivalent).
For North America, the cable must have the following markings; SVT, 3x 18AWG, VW-1,
75°C, 300V, FT2 and be rated to carry 10A. The mains plug, lead and IEC connector
must carry 3rd party approval marks for Canada and the US (e.g. CSA and UL marks/file
numbers).
9.6 Routine safety tests
If routine tests are to be made, we recommend a test of the integrity of the protective
earth conductor and an insulation test at 500 V DC. Routine flash tests are not
recommended for any electrical equipment, because repeated high voltage tests degrade
insulation materials.
9.7 Customer support and service
Grant have a dedicated in-house technical support and service department on hand to
manage product support enquiries, service, and repairs.
For the ap360, Grant offer replacement part kits for UV lamp and filter replacement.
If repair is required, switch off the ap360 and contact Grant or your local representative.
Grant Instruments (Cambridge) Ltd
Shepreth
Cambridgeshire
SG8 6GB
UK
Tel: [phone]
Fax: [phone]
E-mail: [e-mail]

ap360 Air Purifier 34526 V3
Operating manual Page 14
www.grantinstruments.com
10 Product Compliance
Safety
The Grant ap360 meets the requirements of international safety standard IEC60335-2-65
Household and similar electrical appliances –Safety –Part 2-65 Particular requirements
for air cleaning appliances
Electrical safety and electromagnetic compatibility
The Grant ap360 complies with the requirements of the EU Low Voltage Directive
(2014/35/EU) for electrical safety and the EU EMC directive (2014/30/EU) for
electromagnetic compatibility.
Restriction of hazardous substances (RoHS)
The Grant ap360 complies with the requirements of the EU RoHS Directive (Directive
2011/65/EU including 2015/863).
Product disposal
At the end of the product life, dispose of the ap360 responsibly.
Grant Instruments complies fully with the Waste Electrical & Electronic Equipment
(WEEE) regulations 2013. We are a member of the B2B Compliance Scheme (Scheme
Approval Number WEE/MP3338PT/SCH), which handle our WEEE obligations on our
behalf. Grant Instruments have been issued with a unique registration number by the UK
Environmental Agency, this reference number is WEE/GA0048TZ.
For information regarding WEEE collections in the UK please contact our B2B
Compliance Scheme directly on 01691 676 124.
For other countries please contact your equipment supplier.
For General WEEE information please visit: www.b2bcompliance.org.uk
REACH Regulations
This product does not contain any Substances Very Hazardous to Heath (SVHCs) at
greater than 0.1% that need to be identified in accordance with Regulation (EC) No
1907/2006 and therefore does not have an entry in the SCIP database.

ap360 Operating Manual 34526 V3
Operating manual Page 15
Notes

Grant Instruments (Cambridge) Ltd Grant Instruments Europe B.V.
Shepreth Strawinskylaan 411
Cambridgeshire WTC, Tower A, 4th Floor
SG8 6GB 1077 XX, Amsterdam
UK The Netherlands
Tel: [phone] Email: [email protected]struments.com
Fax: [phone]
Email: [e-mail]
Web: www.grantinstruments.com
34526 V3 /DMN S14 /January 2020
