7600REF
REFERENCE GENERATOR
Installation and Safety Manual
071860200
OCTOBER 2007

2 7600REF — Installation and Safety Manual
Contacting Grass Valley
Copyright © Grass Valley. All rights reserved.
This product may be covered by one or more U.S. and foreign patents.
Grass Valley Web Site
The www.thomsongrassvalley.com web site offers the following:
Online User Documentation — Current versions of product catalogs, brochures,
data sheets, ordering guides, planning guides, manuals, and release notes
in .pdf format can be downloaded.
FAQ Database — Solutions to problems and troubleshooting efforts can be
found by searching our Frequently Asked Questions (FAQ) database.
Software Downloads — Download software updates, drivers, and patches.
International
Support Centers
France
24 x 7
[phone] or [phone]
[phone] or [phone]
United States/Canada
24 x 7 [phone] or [phone]
Local Support
Centers
(available
during normal
business hours)
Asia
Hong Kong, Taiwan, Korea, Macau: [phone] Indian Subcontinent: [phone]
Southeast Asia/Malaysia: [phone] Southeast Asia/Singapore: [phone]
China: [phone] Japan: [phone]
Australia and New Zealand: [phone] Central/South America: [phone]
Middle East: [phone] Near East and Africa: [phone] or [phone]
Europe
Belarus, Russia, Tadzikistan, Ukraine, Uzbekistan: [phone] Switzerland: [phone]
S. Europe/Italy-Roma: [phone] -Milan: [phone] S. Europe/Spain: [phone]
Benelux/Belgium: [phone] Benelux/Netherlands: [phone] N. Europe: [phone]
Germany, Austria, Eastern Europe: [phone] UK, Ireland, Israel: [phone]

7600REF — Installation and Safety Manual 3
Contents
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Safety Summary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Safety Terms and Symbols . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Terms in This Manual . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Terms on the Product . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Symbols on the Product . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Warnings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Cautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Regulatory Notices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Certifications and Compliances. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
FCC Emission Control. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Canadian EMC Notice of Compliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
EN55022 Class A Warning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Canadian Certified Power Cords. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Canadian Certified AC Adapter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Certifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Frame Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Unpacking. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Rack Mounting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Module Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

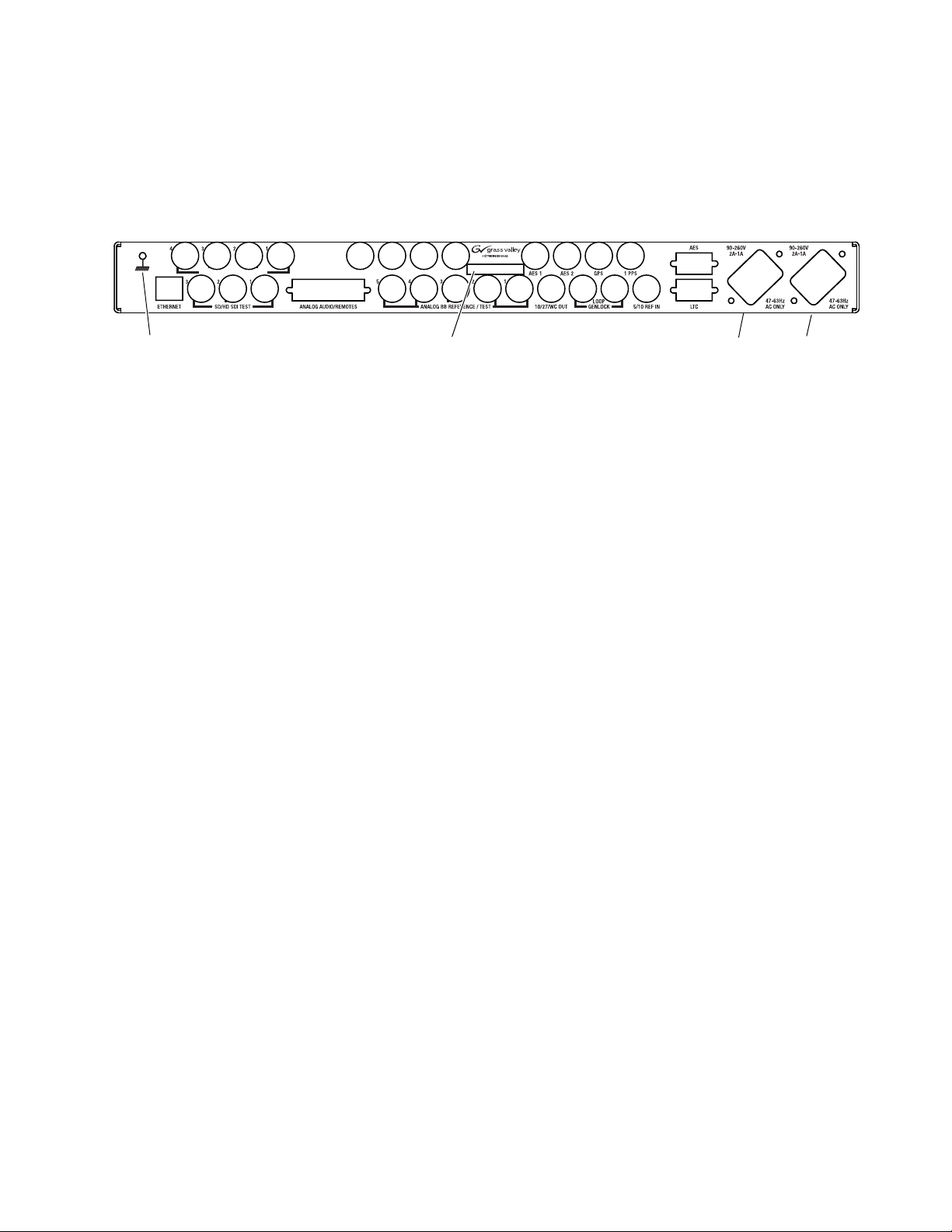

Frame Rear Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Grounding Lug . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
AC Mains Connection and Fusing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Module Cabling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Power Up . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

4 7600REF — Installation and Safety Manual
Contents

7600REF — Installation and Safety Manual 5
Introduction
This Installation and Safety manual is provided to inform the user about
specific safety and regulatory information for the 7600REF Reference Gen-
erator Frame. It ships with the frame to ensure that the user has this infor-
mation when the frame is received.
Read the following sections concerning safety before attempting to install
the unit:
• Safety Summary (page 6)
• Warnings (page 8)
•Cautions(page 9)
•RegulatoryNotices(page 10)
•FrameInstallation(page 12)
The 7600REF Instruction Manual which contains detailed installation and
operation for the unit is included with this product on CD-ROM in PDF
format. It describes all aspects of the unit, including cabling, complete oper-
ational details, and enabling software options.
All related documentation for this product can also be found in PDF format
on the Thomson Grass Valley web site at this URL:
www.thomsomgrassvalley.com/docs/modular

6 7600REF — Installation and Safety Manual
Safety Summary
Safety Summary
Read and follow the important safety information below, noting especially
those instructions related to risk of fire, electric shock or injury to persons.
Additional specific warnings not listed here may be found throughout the
manual.
WARNING Any instructions in this manual that require opening the equipment cover
or enclosure are for use by qualified service personnel only. To reduce the
risk of electric shock, do not perform any servicing other than that con-
tained in the operating instructions unless you are qualified to do so.
Safety Terms and Symbols
Terms in This Manual
Safety-related statements may appear in this manual in the following form:
WARNING Warning statements identify conditions or practices that may result in per-
sonal injury or loss of life.
CAUTION Caution statements identify conditions or practices that may result in damage
to equipment or other property, or which may cause equipment crucial to
your business environment to become temporarily non-operational.
Terms on the Product
The following terms may appear on the product:
DANGER — A personal injury hazard is immediately accessible as you read
the marking.
WARNING — A personal injury hazard exists but is not immediately acces-
sible as you read the marking.
CAUTION — A hazard to property, product, and other equipment is present.

7600REF — Installation and Safety Manual 7
Safety Summary
Symbols on the Product
The following symbols may appear on the product:
Indicates that dangerous high voltage is present within the
equipment enclosure that may be of sufficient magnitude to
constitute a risk of electric shock.
Indicates that user, operator or service technician should refer
to product manual(s) for important operating, maintenance,
or service instructions.
This is a prompt to note fuse rating when replacing fuse(s).
The fuse referenced in the text must be replaced with one
having the ratings indicated.
Identifies a protective grounding terminal which must be con-
nected to earth ground prior to making any other equipment
connections.
Identifies an external protective grounding terminal which
may be connected to earth ground as a supplement to an
internal grounding terminal.
Indicates that static sensitive components are present which
may be damaged by electrostatic discharge. Use anti-static
procedures, equipment and surfaces during servicing.

8 7600REF — Installation and Safety Manual
Warnings
Warnings
The following warning statements identify conditions or practices that can
result in personal injury or loss of life.
Dangerous voltage or current may be present — Disconnect power and remove
battery (if applicable) before removing protective panels, soldering, or
replacing components.
Do not service alone — Do not internally service this product unless another
person capable of rendering first aid and resuscitation is present.
Remove jewelry — Prior to servicing, remove jewelry such as rings, watches,
and other metallic objects.
Avoid exposed circuitry — Do not touch exposed connections, components or
circuitry when power is present.
Use proper power cord — Use only the power cord supplied or specified for
this product.
Ground product — Connect the grounding conductor of the power cord to
earth ground.
Operate only with covers and enclosure panels in place — Do not operate this
product when covers or enclosure panels are removed.
Use correct fuse — Use only the fuse type and rating specified for this
product.
Use only in dry environment — Do not operate in wet or damp conditions.
Use only in non-explosive environment — Do not operate this product in an
explosive atmosphere.
High leakage current may be present — Earth connection of product is essential
before connecting power.
Dual power supplies may be present — Be certain to plug each power supply
cord into a separate branch circuit employing a separate service ground.
Disconnect both power supply cords prior to servicing.
Use proper lift points — Do not use door latches to lift or move equipment.
Avoid mechanical hazards — Allow all rotating devices to come to a stop before
servicing.

7600REF — Installation and Safety Manual 9
Cautions
Cautions
The following caution statements identify conditions or practices that can
result in damage to equipment or other property
Use correct power source — Do not operate this product from a power source
that applies more than the voltage specified for the product.
Use correct voltage setting — If this product lacks auto-ranging power sup-
plies, before applying power ensure that the each power supply is set to
match the power source.
Provide proper ventilation — To prevent product overheating, provide equip-
ment ventilation in accordance with installation instructions.
Use anti-static procedures — Static sensitive components are present which
may be damaged by electrostatic discharge. Use anti-static procedures,
equipment and surfaces during servicing.
Do not operate with suspected equipment failure — If you suspect product damage
or equipment failure, have the equipment inspected by qualified service
personnel.
Ensure mains disconnect — If mains switch is not provided, the power cord(s)
of this equipment provide the means of disconnection. The socket outlet
must be installed near the equipment and must be easily accessible. Verify
that all mains power is disconnected before installing or removing power
supplies and/or options.
Route cable properly — Route power cords and other cables so that they ar not
likely to be damaged. Properly support heavy cable bundles to avoid con-
nector damage.
Use correct power supply cords — Power cords for this equipment, if provided,
meet all North American electrical codes. Operation of this equipment at
voltages exceeding 130 VAC requires power supply cords which comply
with NEMA configurations. International power cords, if provided, have
the approval of the country of use.
Use correct replacement battery — This product may contain batteries. To
reduce the risk of explosion, check polarity and replace only with the same
or equivalent type recommended by manufacturer. Dispose of used bat-
teries according to the manufacturer’s instructions.
Troubleshoot only to board level — Circuit boards in this product are densely
populated with surface mount technology (SMT) components and applica-
tion specific integrated circuits (ASICS). As a result, circuit board repair at
the component level is very difficult in the field, if not impossible. For war-
ranty compliance, do not troubleshoot systems beyond the board level.

10 7600REF — Installation and Safety Manual
Regulatory Notices
Regulatory Notices
Certifications and Compliances
FCC Emission Control
This equipment has been tested and found to comply with the limits for a
Class A digital device, pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful interference
when the equipment is operated in a commercial environment. This equip-
ment generates, uses, and can radiate radio frequency energy and, if not
installed and used in accordance with the instruction manual, may cause
harmful interference to radio communications. Operation of this equip-
ment in a residential area is likely to cause harmful interference in which
case the user will be required to correct the interference at his own expense.
Changes or modifications not expressly approved by Grass Valley Group
can affect emission compliance and could void the user’s authority to
operate this equipment.
Canadian EMC Notice of Compliance
This digital apparatus does not exceed the Class A limits for radio noise
emissions from digital apparatus set out in the Radio Interference Regula-
tions of the Canadian Department of Communications.
Le présent appareil numérique n’emet pas de bruits radioélectriques
dépassant les limites applicables aux appareils numeriques de la classe. A
préscrites dans le Règlement sur le brouillage radioélectrique édicte par le
ministère des Communications du Canada.
EN55022 Class A Warning
In a domestic environment, products that comply with Class A may cause
radio interference in which case the user may be required to take adequate
measures.
Canadian Certified Power Cords
Canadian approval includes the products and power cords appropriate for
use in the North America power network. All other power cords supplied
are approved for the country of use.
Canadian Certified AC Adapter
Canadian approval includes the AC adapters appropriate for use in the
North America power network. All other AC adapters supplied are
approved for the country of use.

7600REF — Installation and Safety Manual 11
Regulatory Notices
FCC Emission Limits
This device complies with Part 15 of the FCC rules.Operation is subject to
the following two conditions: (1) This device must cause not interference,
and (2) this device must accept any interference received, including inter-
ference that may cause undesirable operation.
Certifications
Safety – This product has been evaluated and meets the following Safety
Certification Standards listed under the Safety category in the table below.
EMI – This product has been evaluated for Electromagnetic Compatibility
under the EN 55022 / EN 55024 standards for Emissions and Immunity and
meets the requirements listed under the EMI Category in the table below.
This product complies with Class A. In a domestic environment this
product may cause radio interference in which case the user may be
required to take adequate measures.
Category Standard Designed/tested for compliance with:
Safety
ANSI / UL60950 “Standard for Safety of Information Technology Equipment - Safety - Part 1: General
Requirements”, (ANSI/UL 60950-1, First Edition, Dated April 1, 2003, with revision
through and including November 26, 2003.)
IEC 60950 “Standard for Safety for Information Technology Equipment - Safety - Part 1: General
Requirements”, (IEC 60950-1, First Edition, 2001, Corrigendum 1:10-2002)
CAN/CSA C22.2, No. 60950 “Standard for Safety of Information Technology Equipment - Safety - Part 1: General
Requirements”, (CAN/CSA-C22.2 No. 60950-1-03. First Edition Dated April 1,
2003, with revisions through and including November 26, 2003)
EN60950 Safety of Information Technology Equipment, including Electrical Business Equip-
ment.
73/23/EEC Low Voltage Directive
EMI
EMC Directive 89/336/EEC Information and Technology Equipment
EN 55022: 1998, Inc.
A1:2000 & A2:2003
Radio Disturbance Characteristics
Electromagnetic compatibility.
Product family standard for Information and Technology equipment for professional
use.
Emissions, Class A
EN 61000-3-2: Power Line Harmonic Emissions, Radiated Magnetic Field Emis-
sions, Peak Inrush Current
EN61000-3-3: Mains voltage flicker and manual switching (Dmax = 4%)
EN 55024:1998, Inc.
A1:2000 & A2:2003
Immunity Characteristics
Electromagnetic compatibility--Product family standard for Information and Tech-
nology equipment for professional use.
EN 61000-4-2:
Electrostatic Discharge “ESD” Immunity
EN 61000-4-3:
Radiated RF Electromagnetic Field Immunity
EN 61000-4-4:
Electrical Fast Transient/Burst “EFT” Immunity
EN 61000-4-5: Surge Immunity
EN 61000-4-6: Conducted RF Immunity
EN 61000-4-11: Voltage Dips, Short Interruptions and Voltage Variations
US FCC Class A
Canada FCC Industry Canada
CISPR Pub. 22 (1997 Class A)
Australia & New Zealand: AS/NZS 3548

12 7600REF — Installation and Safety Manual
Frame Installation
Frame Installation
Follow the instructions below to unpack and install the 7600REF frame. For
more detailed instructions and cabling the rear of the frame, refer to the
7600REF Instruction Manual.
Unpacking
Carefully unpack the unit from its packing box and check for signs of
damage. Check the contents of the box against the packing list and your
original order to ensure that you have received the correct parts.
In the event the unit has been damaged or does not match your order,
contact the Thomson Grass Valley Sales office listed on Contacting Grass
Valley on page 2.
Rack Mounting
The 1 RU rack frame has integral rack mounting ears on the frame front
cover for direct mounting into a standard 19 inch rack. Carefully place the
unit in your rack and firmly attach it to the rack using four standard rack
screws (not provided).
CAUTION This unit has air intakes on one side of the unit and fan-assisted exhaust vents
on the other side. Ensure that these vents have an unobstructed air flow, to
prevent the unit from overheating. Pay particular attention to ensure that any
rack wiring or cable trays do not obstruct the vents. 60 mm (2.36 in.) of clear
space should be allowed between the vents and any potential obstruction.
Module Installation
No installation of any modules should be necessary. All modules will come
installed in the frame from the factory. The presence of modules depends
on the 7600REF model you have ordered. Software options for the frame
type you have ordered will already be enabled when the frame is received.

7600REF — Installation and Safety Manual 13
Frame Rear Connections
Frame Rear Connections
The rear backplane of the 7600REF Reference Generator is illustrated in
Figure 1.
Figure 1. 7600REF Rear Backplane
Grounding Lug
The unit is provided with a single 4 mm (0.16 in.) ground lug on the far left
of the rear panel. Incoming mains ground from the IEC connector is inter-
nally bonded to both the chassis and technical 0V to meet safety require-
ments and performance specifications. The stud allows the addition of an
ground strap, if required, for rack installations.
AC Mains Connection and Fusing
CAUTION The power supply cord is used as the main power disconnection device.
Ensure that the socket outlet is located/installed near the equipment and is
easily accessible.
ATTENTION Le cordon d’alimentation est utilise comme interrupteur général. La prise de
courant doit être située ou installée à proximité de l’équipement et être facile
d’accès.
The power supplies within the unit are a switch mode design and are
auto-sensing to handle a wide input voltage range. See Specifications on
page 15.
Each 7600REF model is fitted with two AC mains power supplies. Each
power supply has its own dedicated IEC mains plug on the rear of the unit.
You should receive the correct line cord for your line standard in the ship-
ping box.
Module Cabling
Cabling of module BNCs and Sub-D connectors depends upon the frame
model type and what modules are included with the model. Refer to the
7600REF Instruction Manual for details on cabling the required connections.
Grounding Lug AC/Mains InAC/Mains In
Model #, Part #, and Serial #

14 7600REF — Installation and Safety Manual
Power Up
Power Up
When one or both of the AC mains is connected to a power source, the unit
will power up.
Once powered up, the LCD display will display initialization messages as
it configures the internal hardware installed in the unit. Once initialization
is complete, a message indicating a normal operating status is displayed as
shown below.
7600REF Main Menu
<Digital Video> Analogue Video Audio –>

7600REF — Installation and Safety Manual 15
Specifications
Specifications
The specifications for the 7600REF Reference Generator frame are given in
Table 1.
Table 1. 7600REF Frame Specifications
Parameter Value
Frame Dimensions
Width 19 in. rack mounting
Height 44 mm (1.73 in.) 1 Rack Unit
Depth 433 mm (17.0 in.) excluding connectors
Weight 4 kg (8.82 lbs) no option modules
5 kg (11 lbs) maximum with option modules
Operating temperature range 0 to 45 degrees C
Storage temperature range -25 to 70 degrees C
Operating humidity 95% RH non-condensing
Power
Input voltage range 100-240 VAC, 50-60 Hz
Maximum input current 1.4 Amps
Internal fuse 3.15 Amps
Miscellaneous
Setup data retention when unit not
powered > 1000 hours. Unit must have been powered for > 24 hours prior to this.
Serial communication type RS422/232 (software configured)
Power fail indication Relay contact, closed under normal operation, open for any failure state.
Fan fail indication Relay contact, closed under normal operation, open for any failure state.
Remote inputs Two grounding inputs provided on Sub-D connector.
Remote outputs Two outputs provided on Sub-D connector. Open collector outputs rated at
45V/500mA maximum.
Option interfaces Up to three single width option modules may be installed in the unit.
Ethernet RJ-45 interface. Software configured for DHCP or static IP address.

16 7600REF — Installation and Safety Manual
Specifications
