GRASS VALLEY 8935FC - User manual

Specifications Ordering Information

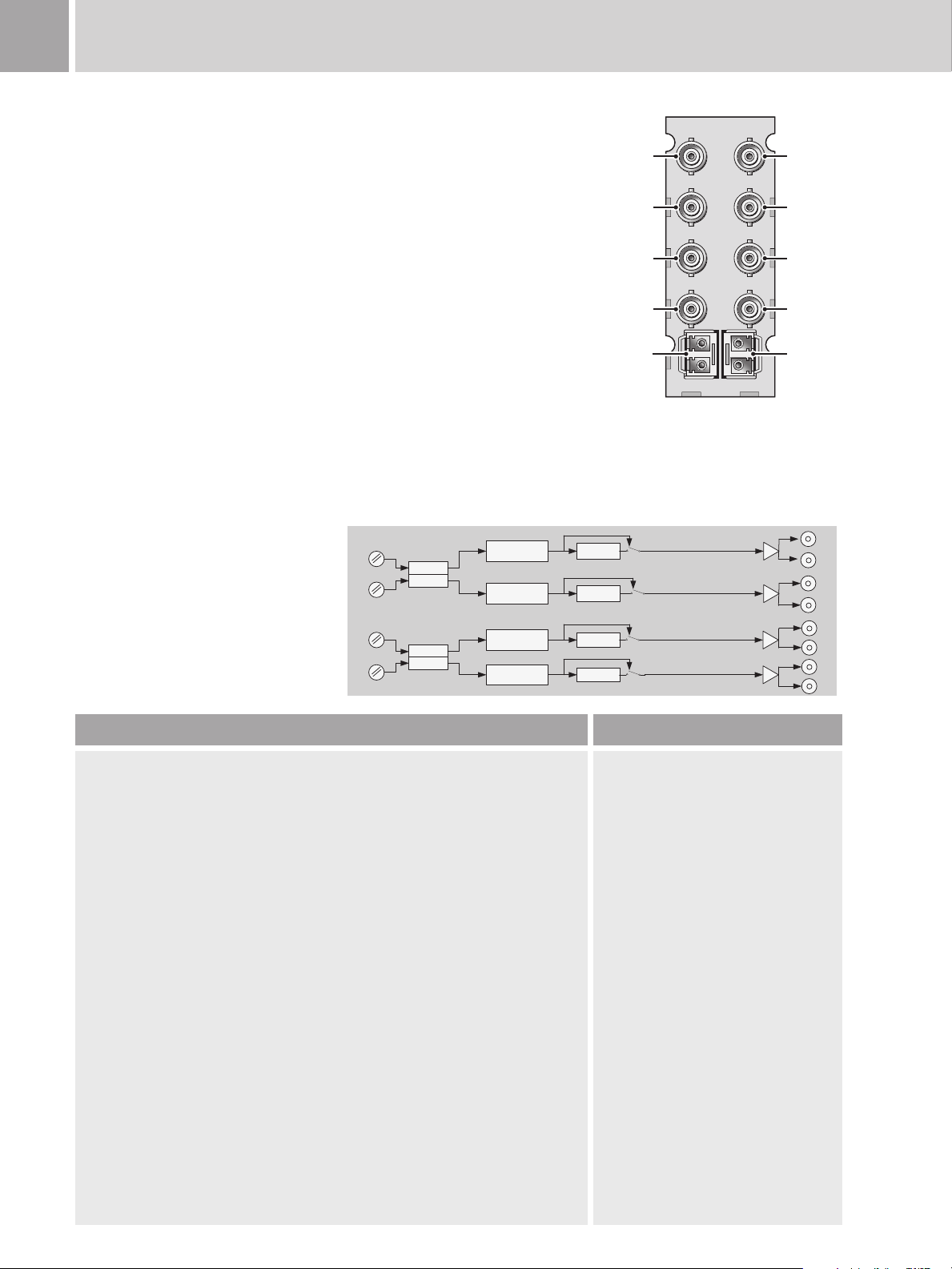

Fiber
Inputs
Ch2
Ch1
Ch4
Ch3
Equalizer #1 Reclock
Bypass
Bypass
Bypass
Bypass
Ch1
Ch 2
Ch 3
Ch 4
Ch 5
Ch 6
Ch 7
Ch 8
Dual RX SFP
RX #1
RX #2
Equalizer #2
RX #3
RX #4
Equalizer #3
Equalizer #4
Cable Driver #1
Cable Driver #2
Cable Driver #3
Cable Driver #4
Dual RX SFP
Reclock
Reclock
Reclock
The 8935FC is a four-channel optical to
electrical broadcast-quality fiber optic receiver
module with two electrical outputs per
channel. It can accommodate SD/HD-SDI
video 270 Mb/s to 1.5 Gb/s as well as DVB
ASI, unbalanced AES, and Grass Valley audio
TDM interfaces. The optical circuitry is housed
in dedicated strapmount SFP submodule
devices mounted on the module circuit board.
To construct a four-channel solution, select two
of the SFP-DRX-1 SFP dual receiver devices.
The SFP-DRX-1 supports both 1310 nm
wavelengths and CWDM wavelengths (1270
nm to 1610 nm). This replaceable SFP
optical technology allows for easy upgrade,
reconfiguration, and servicing.
Parameters are controllable via our NetConfig
web browser interface for configuration. The
popular NetCentral application provides health
monitoring for modular products as well as
many other Grass Valley products.
J1 J2
J3 J4
J5 J6
J7 J8
1
32
IN IN
Ch 1
Output
CH 1
Output
Fiber In
Connector
Ch 2
Output
CH 2
Output
Ch 3
Output
CH 3
Output
Ch 4
Output
CH 4
Output
Fiber In
Connector
4
8935FC-R
Supported Frame Types
GeckoFlex
Power Rating
7.5 Watts (with two SFP devices) – single slot
Inputs
Four channels of SD/HD-SDI on single-mode fiber
Connector: Four LC optical connectors
Minimum optical input: -20 dBm
Maximum optical input: -1 dBm
Outputs
Electrical outputs: Two electrical outputs per optical
input
Reclocking:
•SMPTE292M-1998at1.485Gb/s
•SMPTE259M-1997andDVBASIat270Mb/s
Non-reclocking: 1 to 540 Mb/s, AES 3id-2001 and
MADI
Return loss:
•15dB5MHzto540MHz
•10dB540MHzto1.5GHz
Electrical length: Reclocked at 270 Mb: 10 ns,
Reclocked at 1.5 Gb: 8 ns
Bypass: 7 ns
Modes of Operation
The 8935FC supports following modes of operations:
•Autoreclock270Mb/s/1.5Gb/s/bypassmode
•Autoreclock270Mb/s/1.5Gb/smode
•Fixedreclock270Mb/smode
•Fixedreclock1.5Gb/smode
•Fixedbypassmode
Environmental
Operating temperature range: 0 to +45°C
Non-operating temperature range: -10 to +70°C
Humidity: 90% non-condensing
Ordering Information
Specifications
60
Key Features
Four-channel SD/HD-SDI fiber receiver•
(each SFP-DRX SPF has dual single-mode
PIN receivers)
Also supports DVB ASI, AES, and Grass•
Valley audio TDM interface
Supports up to two SFP-DRX-1 devices for•
up to four fiber-optic inputs
Two reclocked outputs for stable long•
distance reception of each optical feed
Reclock bypass for non-SDI signal types•
Inputs accommodates 1310 nm and•
CWDM wavelengths
Single-mode fiber•
Can be used with the 8935CF transmitter•
and other fiber-ready modules for
distances of between 0 and 50 km,
depending on the transmitter
Meets SMPTE 292M/297M/259M signal•
specifications
Applications
Receiving multiple high-definition video•
feeds over long distance fiber connections
For receiving implementing SD/HD-SDI•
optical tie-lines
To provide multi-channel receiving•
capability alongside the 8939FCA/8939FCB
for an extremely compact multiplexed
fiber solution
For detailed specifications, installation, and setup
instructions see:
www.grassvalley.com/docs/modular
8935FC 4-Channel Fiber Optic to 4-Channel Electrical Conversion Module
This module can be mounted in a single slot in
a GeckoFlex frame but not in other 8900 series
frames, including Gecko-A or Gecko-V frames.
8935FC
Optical to electrical converter, front and 8935FC-R rear
module set
Important order note: two SFP devices are required
for the full operation of the 8935FC module.
SFP Device
SFP-13103G-M1DRX-K – 1270 nm > 1610 nm dual
receiver kit containing fiber optic submodule, mounting
bracket, and fiber cable assembly
