GRASS VALLEY 7500NB User manual

7500 SERIES
7500NB/7500WB ROUTERS
Instruction Manual
071810700
FIRST PRINTING: JULY 2001

Contacting Grass Valley Group
Copyright © Grass Valley Group. All rights reserved.
This document may not be copied, in whole or in part, or otherwise reproduced, except as specifically
permitted under U.S. copyright law, without the prior written consent of Grass Valley Group, P.O. Box
599000, Nevada City, CA 95959-7900 USA. GRASS VALLEY GROUP is a registered trademark and
Grass Valley is a trademark of Grass Valley Group. All registered trademarks and trademarks are prop-
erty of their respective holders. Grass Valley Group products are covered by U.S. and foreign patents,
issued and pending. Product options and specifications subject to change without notice. The informa-
tion in this manual is furnished for informational use only, is subject to change without notice, and
should not be construed as a commitment by Grass Valley Group. Grass Valley Group assumes no re-
sponsibility or liability for any errors or inaccuracies that may appear in this publication.
Online User Documentation
Current versions of product catalogs, brochures, data sheets, ordering
guides, planning guides, manuals, and release notes may be downloaded
via the Product Documentation link on the Grass Valley Group home page:
FAQ Database
Many solutions to problems and troubleshooting efforts can be found by
searching our Frequently Asked Questions (FAQ) database. To access:
1.
Select the Service/Support link on the Grass Valley Group home page.
2.
Select the Online Support & FAQ link on the Service/Support page.
3.
Follow the directions provided to access the FAQ database and other
online support services.
Software Downloads
Software updates, drivers and patches may be downloaded via the
Download link on the Grass Valley Group home page:
Region Voice Fax Address Web Site
North America [phone]
530-478-4148 [phone] Grass Valley Group P.O. Box 599000
Nevada City, CA 95959-7900
USA
www.grassvalleygroup.com
Pacific Operations [phone]
Support: 852-2585-6579 [phone]
U.K., Europe, Asia, Middle East [phone] [phone]
France [phone]
Germany [phone] [phone]

7500 Series Instruction Manual iii
Contents
Preface
About This Manual. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . vii
Additional Documentation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . vii
Safety Summary
Safety Terms and Symbols. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ix
Terms in This Manual. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ix
Terms on the Product . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ix
Symbols on the Product . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . x
Warnings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . x
Cautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xi
Regulatory Notices
Certifications and Compliances . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xiii
FCC Emission Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xiii
Canadian EMC Notice of Compliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xiii
EN55022 Class A Warning. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xiii
Canadian Certified Power Cords . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xiv
Canadian Certified AC Adapter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xiv
Laser Compliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xiv
Laser Safety Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xiv
Laser Safety. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xiv
FCC Emission Limits. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xv
Certification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xv
Section 1 — Overview
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1
System Level Architecture. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2
7500NB Architecture. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2
7500WB Architecture . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-7
Section 2 — Installation
Frame Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-1
7500 NB Frame Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-1
7500 WB Frame Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-2
Module Installation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-3
7500NB Module Placement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-3
7500WB Module Placement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-4
Cabling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-5

iv 7500 Series Instruction Manual
Contents
7500NB Backplane Cabling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-6
7500NB Backplane Cabling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-8
Pinouts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-10
Communications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-13
7500NB Ethernet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-13
7500WB Ethernet. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-16
Global Serial Channel. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-17
References . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-18
7500NB AES Reference. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-18
7500NB Video Reference . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-20
7500WB Video Reference . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-21
Power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-22
AC Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-22
48V DC Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-22
7500NB 48V DC. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-22
7500WB 48V DC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-23
Section 3 — Configuration
7500NB Configuration. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-1
Series 7000 Control of 7500NB . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-1
New AES Configured Node Controller Settings . . . . . . . . . . . . . . . . . . . . . . . 3-2
AES Attributes. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-3
Physical Matrix . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-6
7500WB Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-7
Series 7000 Control of 7500WB . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-7
New 7500WB Configured Node Controller Settings. . . . . . . . . . . . . . . . . . . . 3-7
VRef Override . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-8
Section 4 — Functional Description
Matrix Controller . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-1
Matrix Modules . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-2
7500WB Modules . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-2
7500NB Modules. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-4
Section 5 — Maintenance and Troubleshooting
Field Replaceable Units . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-1
Modules . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-1
To Remove Modules. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-1
To Insert Modules . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-1
Air Filter 7500WB 256x256. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-2
Fan Assembly 7500WB 256x256 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-2
To Replace a Fan . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-2
Service and Replacement Parts. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-3
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-3
Matrix Controller LEDs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-4
Matrix Modules. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-5
Power Supply Modules . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-7
7500NB Power Supply Module. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-7
7500WB Power Supply Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-7
Thermal Control Module Reset 7500WB 256x256 . . . . . . . . . . . . . . . . . . . . . . . . 5-8

7500 Series Instruction Manual v
Contents
To Reset the Thermal Control Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-8
Appendix — Specifications
Mechanical and Power Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-1
Performance and Environmental Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . A-1
7500NB . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-1
7500WB . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-2
Glossary
Index

vi 7500 Series Instruction Manual
Contents

7500 Series Instruction Manual vii
Preface
About This Manual
This manual provides installation, operation, and service information spe-
cific to the 7500 Series Routing frames.
Additional Documentation
The 7500 Series Routing frames can be controlled by either the Series 7000
Signal Management System or the Encore Control System. Configuration
information required for using the 7500 Series frames with either of these
systems is contained in the control system’s documentation set.
Electronic copies of all routing documentation is available on the documen-
tation CD that came with your frame.Aprinted copy of the documentation
set was provided with the system. Individual manuals may be ordered by
contacting Customer Service.

viii 7500 Series Instruction Manual
Preface

7500 Series Instruction Manual ix
Safety Summary
Read and follow the important safety information below, noting especially
those instructions related to risk of fire, electric shock or injury to persons.
Additional specific warnings not listed here may be found throughout the
manual.
WARNING Any instructions in this manual that require opening the equipment cover
or enclosure are for use by qualified service personnel only. To reduce the
risk of electric shock, do not perform any servicing other than that con-
tained in the operating instructions unless you are qualified to do so.
Safety Terms and Symbols
Terms in This Manual
Safety-related statements may appear in this manual in the following form:
WARNING Warning statements identify conditions or practices that may result in per-
sonal injury or loss of life.
CAUTION Cautionstatementsidentifyconditionsorpracticesthatmayresultindamage
to equipment or other property.
Terms on the Product
The following terms may appear on the product:
DANGER
— A personal injury hazard is immediately accessible as you read
the marking.
WARNING
— A personal injury hazard exists but is not immediately acces-
sible as you read the marking.
CAUTION
— A hazard to property, product, and other equipment is present.

x 7500 Series Instruction Manual
Symbols on the Product
The following symbols may appear on the product:
Warnings
The following warning statements identify conditions or practices that can
result in personal injury or loss of life.
Dangerous voltage or current may be present
— Disconnect power and remove
battery (if applicable) before removing protective panels, soldering, or
replacing components.
Do not service alone
— Do not internally service this product unless another
person capable of rendering first aid and resuscitation is present.
Remove jewelry
— Prior to servicing, remove jewelry such as rings, watches,
and other metallic objects.
Avoid exposed circuitry
— Do not touch exposed connections, components or
circuitry when power is present.
Indicates that dangerous high voltage is present within the
equipment enclosure that may be of sufficient magnitude to
constitute a risk of electric shock.
Indicates that user, operator or service technician should
refer to product manual(s) for important operating, mainte-
nance, or service instructions.
This is a prompt to note fuse rating when replacing fuse(s).
The fuse referenced in the text must be replaced with one
having the ratings indicated.
Identifies a protective grounding terminal which must be
connected to earth ground prior to making any other equip-
ment connections.
Identifies an external protective grounding terminal which
may be connected to earth ground as a supplement to an
internal grounding terminal.
Indicates that static sensitive components are present which
may be damaged by electrostatic discharge. Use anti-static
procedures, equipment and surfaces during servicing.

7500 Series Instruction Manual xi
Use proper power cord
— Use only the power cord supplied or specified for
this product.
Ground product
— Connect the grounding conductor of the power cord to
earth ground.
Operate only with covers and enclosure panels in place
— Do not operate this
product when covers or enclosure panels are removed.
Use correct fuse
— Use only the fuse type and rating specified for this
product.
Use only in dry environment — Do not operate in wet or damp conditions.
Use only in non-explosive environment
— Do not operate this product in an
explosive atmosphere.
High leakage current may be present
— Earth connection of product is essential
before connecting power.
Dual power supplies may be present
— Be certain to plug each power supply
cord into a separate branch circuit employing a separate service ground.
Disconnect both power supply cords prior to servicing.
Double pole neutral fusing
— Disconnect mains power prior to servicing.
Use proper lift points
— Do not use door latches to lift or move equipment.
Avoidmechanicalhazards
—Allow all rotating devices to come to a stop before
servicing.
Cautions
The following caution statements identify conditions or practices that can
result in damage to equipment or other property
Use correct power source
— Do not operate this product from a power source
that applies more than the voltage specified for the product.
Use correct voltage setting
— If this product lacks auto-ranging power sup-
plies, before applying power ensure that the each power supply is set to
match the power source.
Provide proper ventilation
— To prevent product overheating, provide equip-
ment ventilation in accordance with installation instructions.
Use anti-static procedures — Static sensitive components are present which
may be damaged by electrostatic discharge. Use anti-static procedures,
equipment and surfaces during servicing.

xii 7500 Series Instruction Manual
Do not operate with suspected equipment failure
— If you suspect product
damage or equipment failure, have the equipment inspected by qualified
service personnel.
Ensure mains disconnect
— If mains switch is not provided, the power cord(s)
of this equipment provide the means of disconnection. The socket outlet
must be installed near the equipment and must be easily accessible. Verify
that all mains power is disconnected before installing or removing power
supplies and/or options.
Routecableproperly
— Route power cords and other cables so that they ar not
likely to be damaged. Properly support heavy cable bundles to avoid con-
nector damage.
Use correct power supply cords
— Power cords for this equipment, if provided,
meet all North American electrical codes. Operation of this equipment at
voltages exceeding 130 VAC requires power supply cords which comply
with NEMA configurations. International power cords, if provided, have
the approval of the country of use.
Use correct replacement battery
— This product may contain batteries. To
reduce the risk of explosion, check polarity and replace only with the same
or equivalent type recommended by manufacturer. Dispose of used bat-
teries according to the manufacturer’s instructions.
Troubleshoot only to board level
— Circuit boards in this product are densely
populated with surface mount technology (SMT) components and applica-
tion specific integrated circuits (ASICS). As a result, circuit board repair at
the component level is very difficult in the field, if not impossible. For war-
ranty compliance, do not troubleshoot systems beyond the board level.

7500 Series Instruction Manual xiii
Regulatory Notices
Certifications and Compliances
FCC Emission Control
This equipment has been tested and found to comply with the limits for a
Class A digital device, pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful interference
when the equipment is operated in a commercial environment. This equip-
ment generates, uses, and can radiate radio frequency energy and, if not
installed and used in accordance with the instruction manual, may cause
harmful interference to radio communications. Operation of this equip-
ment in a residential area is likely to cause harmful interference in which
case the user will be required to correct the interference at his own expense.
Changes or modifications not expressly approved by Grass Valley Group
can affect emission compliance and could void the user’s authority to
operate this equipment.
Canadian EMC Notice of Compliance
This digital apparatus does not exceed the Class A limits for radio noise
emissions from digital apparatus set out in the Radio Interference Regula-
tions of the Canadian Department of Communications.
Le présent appareil numérique n’emet pas de bruits radioélectriques
dépassant les limites applicables aux appareils numeriques de la classe A
préscrites dans le Règlement sur le brouillage radioélectrique édicte par le
ministère des Communications du Canada.
EN55022 Class A Warning
For products that comply with Class A. In a domestic environment this
product may cause radio interference in which case the user may be
required to take adequate measures.

xiv 7500 Series Instruction Manual
Canadian Certified Power Cords
Canadian approval includes the products and power cords appropriate for
use in the North America power network. All other power cords supplied
are approved for the country of use.
Canadian Certified AC Adapter
Canadian approval includes the AC adapters appropriate for use in the
North America power network. All other AC adapters supplied are
approved for the country of use.
Laser Compliance
Laser Safety Requirements
The device used in this product is a Class 1 certified laser product. Oper-
ating this product outside specifications or altering from its original design
may result in hazardous radiation exposure, and may be considered an act
of modifying or new manufacturing of a laser product under U.S. regula-
tions contained in 21CFR Chapter1, subchapter J or CENELEC regulations
in HD 482 S1. People performing such an act are required by law to recer-
tify and reidentify this product in accordance with provisions of 21CFR
subchapter J for distribution within the U.S.A., and in accordance with
CENELEC HD 482 S1 for distribution within countries using the IEC 825
standard.
Laser Safety
Laser safety in the United States is regulated by the Center for Devices and
Radiological Health (CDRH). The laser safety regulations are published in
the “Laser Product Performance Standard,” Code of Federal Regulation
(CFR), Title 21, Subchapter J.
The international Electrotechnical Commission (IEC) Standard 825, “Radi-
ation of Laser Products, Equipment Classification, Requirements and
User’s Guide,” governs laser products outside the United States. Europe
and member nations of the European Free trade Association fall under the
jurisdiction of the Comite European de Normalization Electrotechnique
(CENELEC).
For the CDRH: The radiant power is detected trough a 7 mm aperture at a
distance of 200 mm from the source focused through a lens with a focal
length of 100 mm.
For IEC compliance: The radiant power is detected trough a 7 mm aperture
at a distance of 100 mm from the source focused through a lens with a focal
length of 100 mm.

7500 Series Instruction Manual xv
FCC Emission Limits
This device complies with Part 15 of the FCC Rules. Operation is subject to
the following two conditions: (1) This device may no cause harmful inter-
ference, and (2) this device must accept any interference received,
including interference that may cause undesirable operation. This device
has been tested and found to comply with FCC Part 15 Class B limits for a
digital device when tested with a representative laser-based fiber optical
system that complies with ANSI X3T11 Fiber Channel Standard.
Certification
Category Standard Designed/tested for compliance with:
Safety UL1419 Professional Video and Audio Equipment

xvi 7500 Series Instruction Manual

7500 Series Instruction Manual 1-1
Section
1
Overview
Introduction
The 7500 Series Routing frames can be controlled by either the Series 7000
Signal Management System or the Encore Control System. The 7500 Series
Routing frames expand the multiformat routing capability of the Series
7000 Signal Management System and are compatible with existing Series
7000 matrices and control panels.
The 7500NB frame is designed to switch digital signals up to 50 Mbps.
Figure 1-1 shows an example of MPEG signal routing using a SMS-
NB512x512

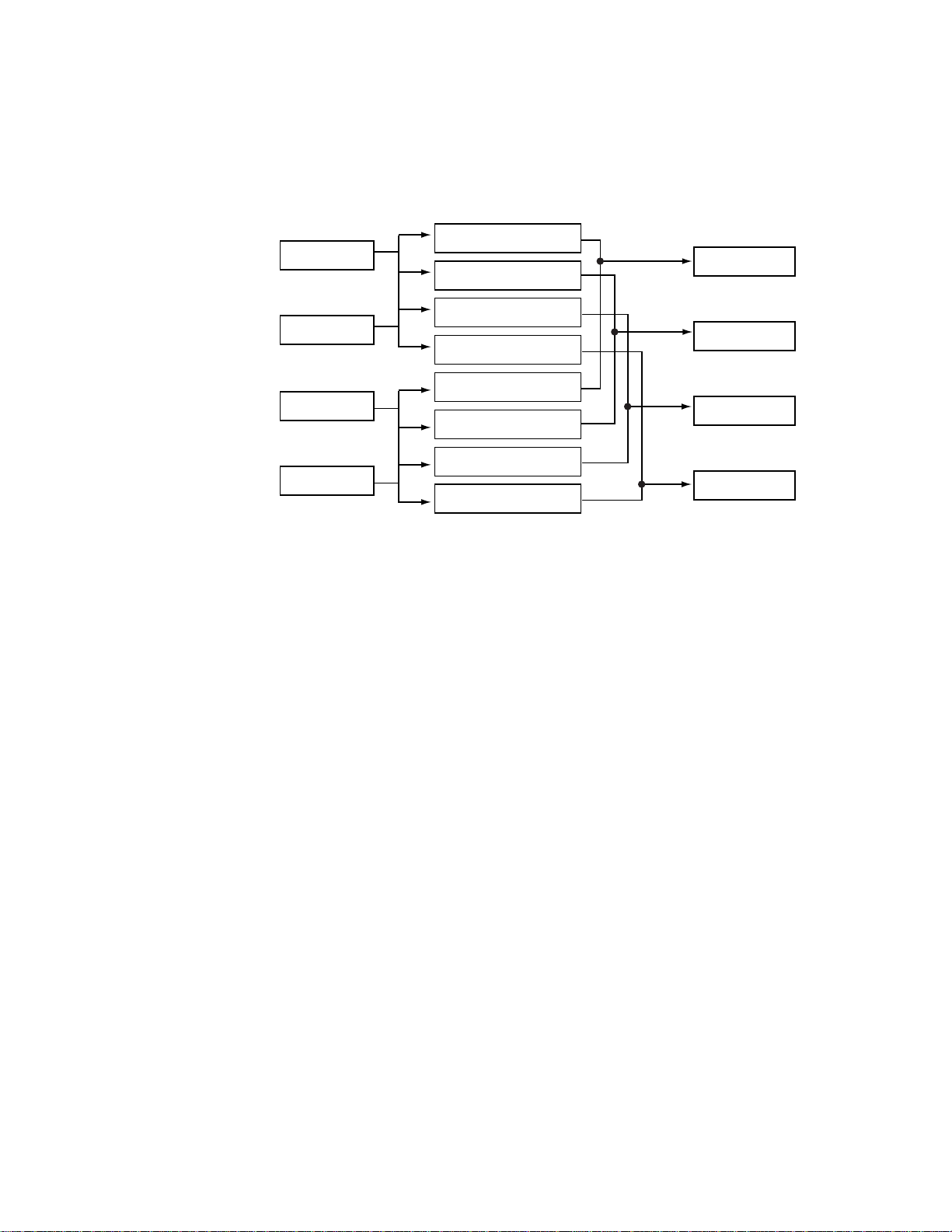

Figure 1-1. 7500NB 512x512 MPEG Signal Routing
Multiple MPEG
Transport Streams
DMUX MUX
Incoming
Satellite Feed Re-Transmission
via Cable or Satellite
DMUX MUX
Incoming
Satellite Feed Re-Transmission
via Cable or Satellite
SMS-NB512x512
Matrix Frame
PROFILE XP
Time Delay Recorder
PROFILE XP
Streaming Server
0723_00_01

1-2 7500 Series Instruction Manual
Section 1 — Overview
The 7500WB frame is designed to switch signals from 10 Mbps to 1.485
Gbps. Figure 1-2 shows an example of Standard Definition (SD) and High
Definition (HD) signal routing using a 7500WB 256x256.
Figure 1-2. 7500WB 256x256 HD and SD Signal Routing
System Level Architecture
7500NB Architecture
7500NB AES Audio Systems are built around a 256x256, two bay, 12RU
matrix. The 7500NB 256x256 uses one matrix and the 7500NB 512x512 uses
two matrices connected together at the backplanes with expansion con-
nector modules. The 7500NB 1024x1024 uses eight matrices connected
together.
Matrices are populated with crosspoint modules, input modules, output
modules, and matrix controller modules. synchronous and asynchronous
input and output modules are available. Both types of modules can be
placed in the same matrix. The synchronous modules can be configured to
allow an asynchronous signal to be passed through an input or an output.
The two bay, 12RU matrix uses four input modules, four output modules,
and eight crosspoint modules for a fully configured 256x256 system. Each
bay of the system contains a slot for a matrix controller and a power supply.

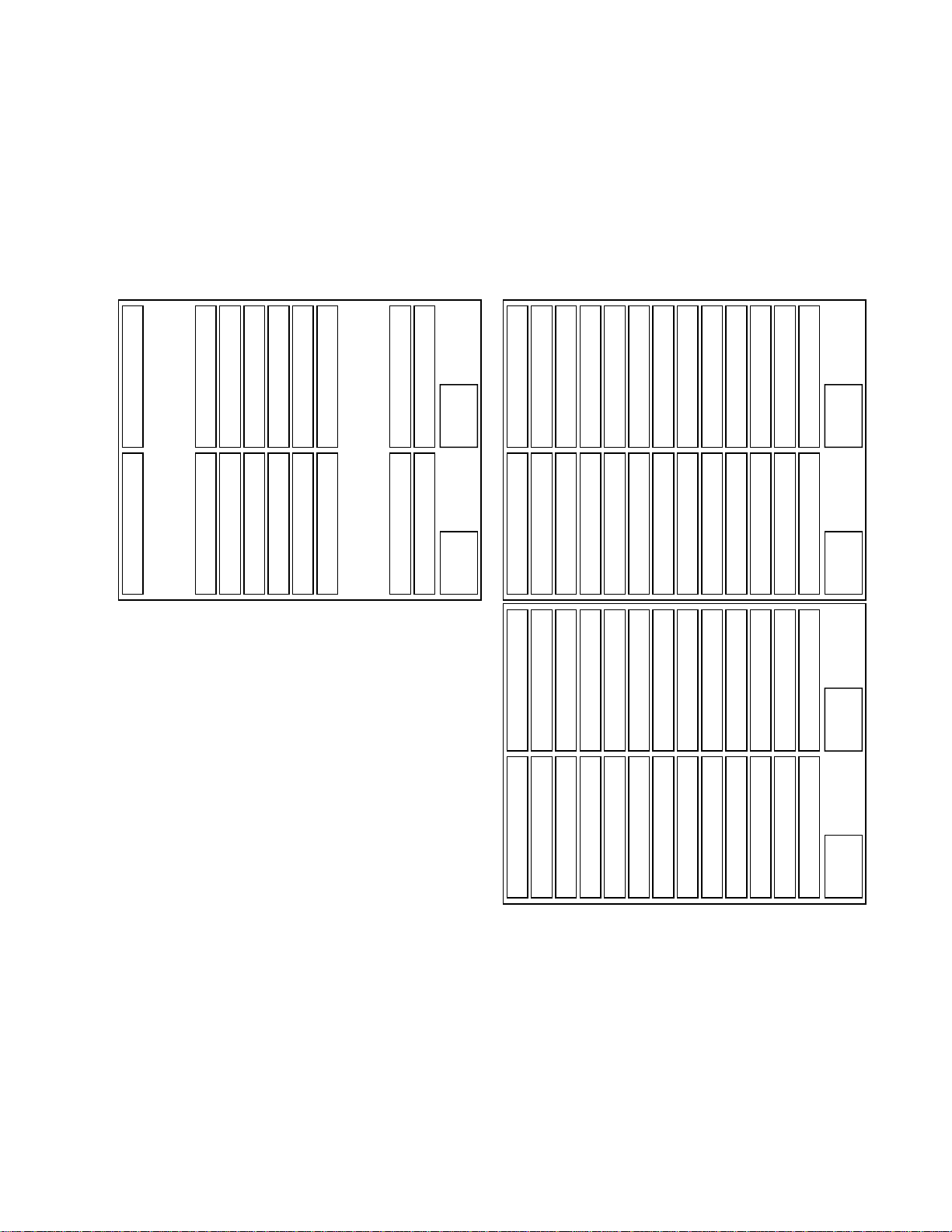

The slot locations for the modules are shown in Figure 1-3. The empty slots
are used for crosspoint modules in expansion systems larger than 256x256.
8900 Series
A-to-D Converters
2000 Series DAs2000 Series DAs
Profile XP
Monitor
Master Control
Profile®XP
Monitor
Master Control
Monitor
SDI Inputs
Analog
Inputs
HD Inputs
SD
Operation
HD
Operation
8900 Series DAs
Down Converter
Up Converter
HD Tie Lines
SD Tie Lines
7500WB 256x256
Matrix Frame
0723_00_02

7500 Series Instruction Manual 1-3
System Level Architecture
Two of the two bay, 12RU matrices are connected using expansion connec-
tors to create a fully configured 512x512 system. The system uses eight
input modules, eight output modules, and thirty-two crosspoint modules
as shown in Figure 1-3. The top bay is always used for inputs 1-128, the
second one for inputs 129-256, the third for 255-384, and the fourth bay is
used for inputs 385-512.
Figure 1-3. 7500NB Module Placement
7500NB 256x256
Power
Supply
2
Power
Supply
1
Inputs 1-64
Xpt Expansion Slot
Xpt Expansion Slot
Xpt (In=1-128, Out=1-64)
Outputs 1-64
Xpt (In=1-128, Out=129-192) Xpt (In=1-128, Out=193-256)
Outputs 65-128
Xpt (In=1-128, Out=65-128)
Xpt Expansion Slot Xpt Expansion Slot
Inputs 65-128
Matrix Controller 1
Inputs 129-192
Xpt Expansion Slot
Xpt Expansion Slot
Xpt (In=129-256, Out=1-64)
Outputs 129-192
Xpt (In=129-256, Out=129-192) Xpt (In=129-256, Out=193-256)
Outputs 193-256
Xpt (In=129-256, Out=65-128)
Xpt Expansion Slot Xpt Expansion Slot
Inputs 193-256
Matrix Controller 2
Power
Supply
4
Power
Supply
3
Inputs 257-320
Xpt (In=257-384, Out=1-64)
Xpt (In=257-384, Out=129-192) Xpt (In=257-384, Out=257-320)
Outputs 257-320
Xpt (In=257-384, Out=385-448) Xpt (In=257-384, Out=449-512)
Outputs 321-384
Xpt (In=257-384, Out=321-384) Xpt (In=257-384, Out=193-256)
Xpt (In=257-384, Out=65-128)
Inputs 321-384
Matrix Controller 3
Inputs 385-448
Xpt (In=385-512, Out=1-64)
Xpt (In=385-512, Out=129-192) Xpt (In=385-512, Out=257-320)
Outputs 385-448
Xpt (In=385-512, Out=385-448) Xpt (In=385-512, Out=449-512)
Outputs 449-512
Xpt (In=385-512, Out=321-384) Xpt (In=385-512, Out=193-256)
Xpt (In=385-512, Out=65-128)
Inputs 449-512
Matrix Controller 4
7500NB 512x512
Power
Supply
2
Power
Supply
1
Inputs 1-64
Xpt (In=1-128, Out=257-320)
Xpt (In=1-128, Out=385-448)
Xpt (In=1-128, Out=1-64)
Outputs 1-64
Xpt (In=1-128, Out=129-192) Xpt (In=1-128, Out=193-256)
Outputs 65-128
Xpt (In=1-128, Out=65-128)
Xpt (In=1-128, Out=449-512) Xpt (In=1-128, Out=321-384)
Inputs 65-128
Matrix Controller 1
Inputs 129-192
Xpt (In=129-256, Out=257-320)
Xpt (In=129-256, Out=385-448)
Xpt (In=129-256, Out=1-64)
Outputs 129-192
Xpt (In=129-256, Out=129-192) Xpt (In=129-256, Out=193-256)
Outputs 193-256
Xpt (In=129-256, Out=65-128)
Xpt (In=129-256, Out=449-512) Xpt (In=129-256, Out=321-384)
Inputs 193-256
Matrix Controller 2

1-4 7500 Series Instruction Manual
Section 1 — Overview
Inputs are routed by the Crosspoint modules to the Output modules to
ensure that all Inputs are available to all Outputs. See Figure 1-4 for the
256x256 signal flow and Figure 1-5 for the 512x512 signal flow.
Figure 1-4. 7500NB 256x256 Signal Flow
Inputs 1-64
Inputs 65-128
Inputs 129-192
Inputs 193-256
Outputs 1-64
Outputs 65-128
Outputs 129-192
Outputs 193-256
Xpt (In=1-128, Out=1-64)
Xpt (In=1-128, Out=65-128)
Xpt (In=1-128, Out=129-192)
Xpt (In=1-128, Out=193-256)
Xpt (In=129-256, Out=1-64)
Xpt (In=129-256, Out=65-128)
Xpt (In=129-256, Out=129-192)
Xpt (In=129-256, Out=193-256)
