SPLIT AIR CONDITIONER
OWNER’S
MANUAL
WALL MOUNTED MODEL
Thank you for choosing our product.
For proper operation, please read and keep this manual carefully.
If you have lost the Owner’s Manual, please contact the local agent or visit
www.cvmore.com or sent email to [email protected] for electronic version.

EN
EN
This appliance is not intended for use by persons (including children) with reduced physical, sensory or
mental capabilities, or lack of experience and knowledge, unless they have been given supervision or
instruction concerning use of the appliance by a person responsible for their safety. Children should be
supervised to ensure that they do not play with the appliance
This marking indicates that this product should not be disposed with other household
wastes throughout the EU. To prevent possible harm to the environment or human
health from uncontrolled waste disposal, recycle it responsibly to promote the sus-
tainable reuse of material resources. To return your used device, please use the re-
turn and collection systems or contact the retailer where the product was purchased.
They can take this product for environmental safe recycling.
R410A(R32/125: 50/50): 2087.5
Content
EN
Operation Notices
Precautions 1
Parts Name 4

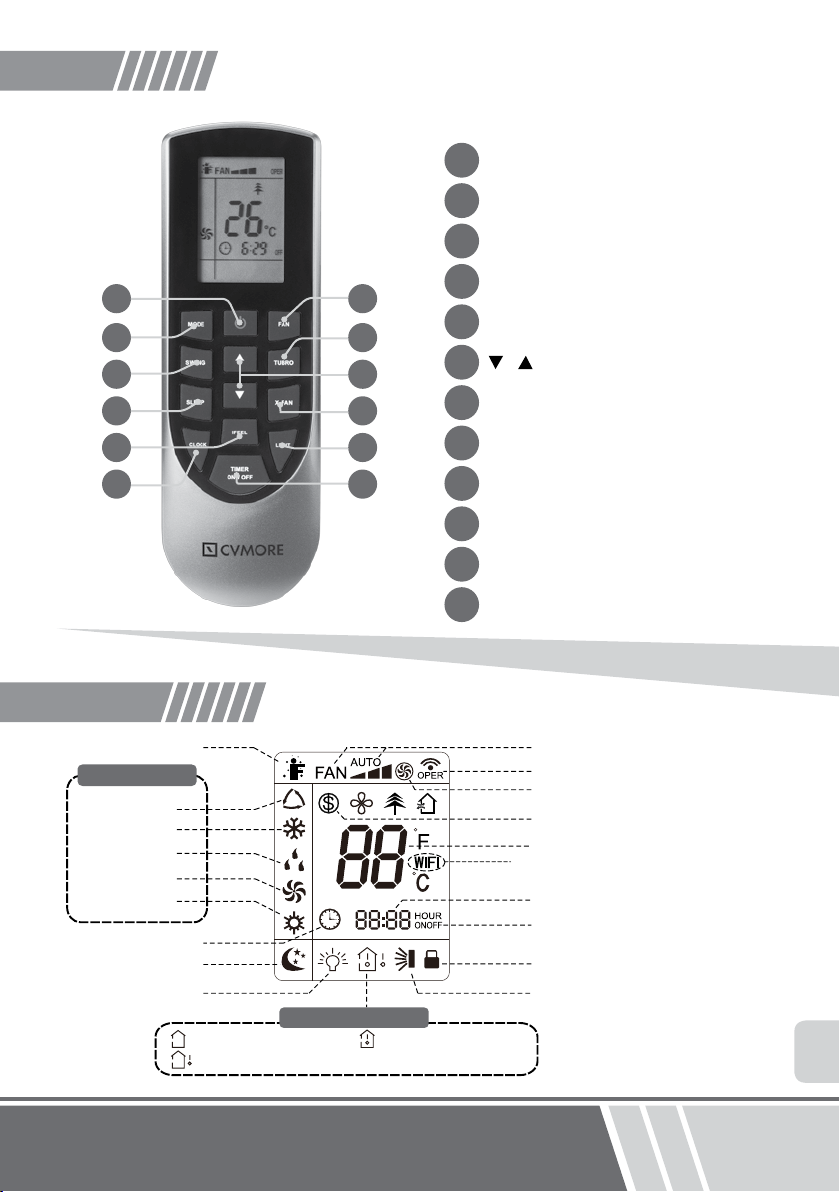

Remote controller buttons
Introduction for icons on display screen 5
Introduction for buttons on remote controller 5
Combination buttons function 10
Operation guide 11
Batteries replacement 12
Emergency operation 12
Maintenance
Clean and Maintenance 13
Malfunction
Malfunction analysis 14
Installation Notice
Installation dimension diagram 17
Tools for installation 17
Selection of installation location 18
Electric connection requirements 18
Installation
Installation of indoor unit 19
Check after installation 24
Test and operation
Test operation 24
Attachment
Conguration of connection pipe 25
Pipe expanding method 26
this manual applies for:
CVATI & CVATO 09
CVATI & CVATO 12
CVATI & CVATO 18
CVATI & CVATO 24

1
EN
EN
Precautions
Explanation
of Symbols
DANGER Indicates a hazardous situation that, if
not avoided, will result in death or serious injury.
WARNING
Indicates a hazardous situation that, if
not avoided, could result in death or serious injury.
CAUTION Indicates a hazardous situation that, if
not avoided, may result in minor or moderate injury.
Indicates a hazard that would be assigned a signal word
WARNING or CAUTION.
NOTICE Indicates important but not hazard-related information,
used to indicate risk of property damage.
WARNING
Operation and Maintenance
This appliance can be used by children aged from 8 years and above and persons
with reduced physical, sensory or mental capabilities or lack of experience and
knowledge if they have been given supervision or instruction concerning use of
the appliance in a safe way and understand the hazards involved.
Children shall not play with the appliance.
Cleaning and user maintenance shall not be made by children without supervision.
Do not connect air conditioner to multi-purpose socket. Otherwise, it may cause
re hazard.
Do disconnect power supply when cleaning air conditioner. Otherwise, it may
cause electric shock.
If the supply cord is damaged, it must be replaced by the manufacturer, its service
agent or similarly qualied persons in order to avoid a hazard.
Do not wash the air conditioner with water to avoid electric shock.
Do not spray water on indoor unit. It may cause electric shock or malfunction.
After removing the lter, do not touch ns to avoid injury.
Do not use re or hair dryer to dry the lter to avoid deformation or re hazard.
Maintenance must be performed by qualied professionals. Otherwise, it may
cause personal injury or damage.
Do not repair air conditioner by yourself. It may cause electric shock or damage.
Please contact dealer when you need to repair air conditioner.
Do not extend ngers or objects into air inlet or air outlet. It may cause personal
injury or damage.
Do not block air outlet or air inlet. It may cause malfunction.
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
EN

2
EN
EN
Precautions
Do not spill water on the remote controller, otherwise the remote controller may be
broken.
When below phenomenon occurs, please turn off air conditioner and disconnect power
immediately, and then contact the dealer or qualied professionals for service.
• Power cord is overheating or damaged.
• There’s abnormal sound during operation.
• Circuit break trips off frequently.
• Air conditioner gives off burning smell.
• Indoor unit is leaking.
If the air conditioner operates under abnormal conditions, it may cause malfunction,
electric shock or re hazard.
When turning on or turning off the unit by emergency operation switch, please press
this switch with an insulating object other than metal.
Do not step on top panel of outdoor unit, or put heavy objects. It may cause damage
or personal injury.
Attachment
Installation must be performed by qualied professionals. Otherwise, it may cause
personal injury or damage.
Must follow the electric safety regulations when installing the unit.
According to the local safety regulations, use qualied power supply circuit and circuit
break.
Do install the circuit break. If not, it may cause malfunction.
An all-pole disconnection switch having a contact separation of at least 3mm in all
poles should be connected in xed wiring.
Including an circuit break with suitable capacity, please note the following table. Air
switch should be included magnet buckle and heating buckle function, it can protect
the circuit-short and overload.
Air Conditioner should be properly grounded. Incorrect grounding may cause electric
shock.
Don’t use unqualied power cord.
Make sure the power supply matches with the requirement of air conditioner.
Unstable power supply or incorrect wiring or malfunction. Please install proper power
supply cables before using the air conditioner.
Properly connect the live wire, neutral wire and grounding wire of power socket.
Be sure to cut off the power supply before proceeding any work related to electricity
and safety.
Do not put through the power before nishing installation.
If the supply cord is damaged, it must be replaced by the manufacturer, its service
agent or similarly qualied persons in order to avoid a hazard.
The temperature of refrigerant circuit will be high, please keep the interconnection
cable away from the copper tube.
The appliance shall be installed in accordance with national wiring regulations.
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
WARNING
EN

3
EN
EN
Precautions
WARNING
Working temperature range
Installation must be performed in accordance with the requirement of NEC and CEC
by authorized personnel only.
The air conditioner is the rst class electric appliance. It must be properly grounding
with specialized grounding device by a professional. Please make sure it is always
grounded effectively, otherwise it may cause electric shock.
The yellow-green wire in air conditioner is grounding wire, which can’t be used for
other purposes.
The grounding resistance should comply with national electric safety regulations.
The appliance must be positioned so that the plug is accessible.
All wires of indoor unit and outdoor unit should be connected by a professional.
If the length of power connection wire is insufcient, please contact the supplier for
a new one. Avoid extending the wire by yourself.
For the air conditioner with plug, the plug should be reachable after nishing
installation.
For the air conditioner without plug, an circuit break must be installed in the line.
If you need to relocate the air conditioner to another place, only the qualied person
can perform the work. Otherwise, it may cause personal injury or damage.
Select a location which is out of reach for children and far away from animals or plants.
If it is unavoidable, please add the fence for safety purpose.
The indoor unit should be installed close to the wall.
For some model:
For some model:
NOTICE: The operating temperature range (outdoor temperature) for cooling is -15°C ~43°C.
Heating temperature range for the model without electric heating belt for chassis -15°C ~24°C.
Heating temperature range for the model with electric heating belt for chassis is -20°C ~24°C.
NOTICE: The operating temperature range (outdoor temperature) for cooling is -15°C ~48°C.
Heating temperature range for the model without electric heating belt for chassis -15°C ~24°C.
Heating temperature range for the model with electric heating belt for chassis is -20°C ~24°C.
•
•
•
•
•
•
•
•
•
•
•
•
Indoor side DB / WB (°C) Outdoor side DB / WB (°C)
Maximum cooling 32 / 23 43 / 26
Maximum heating 27 / - 24 / 18
Indoor side DB / WB (°C) Outdoor side DB / WB (°C)
Maximum cooling 32 / 23 48 / 30
Maximum heating 27 / - 24 / 18
EN

4
EN
EN

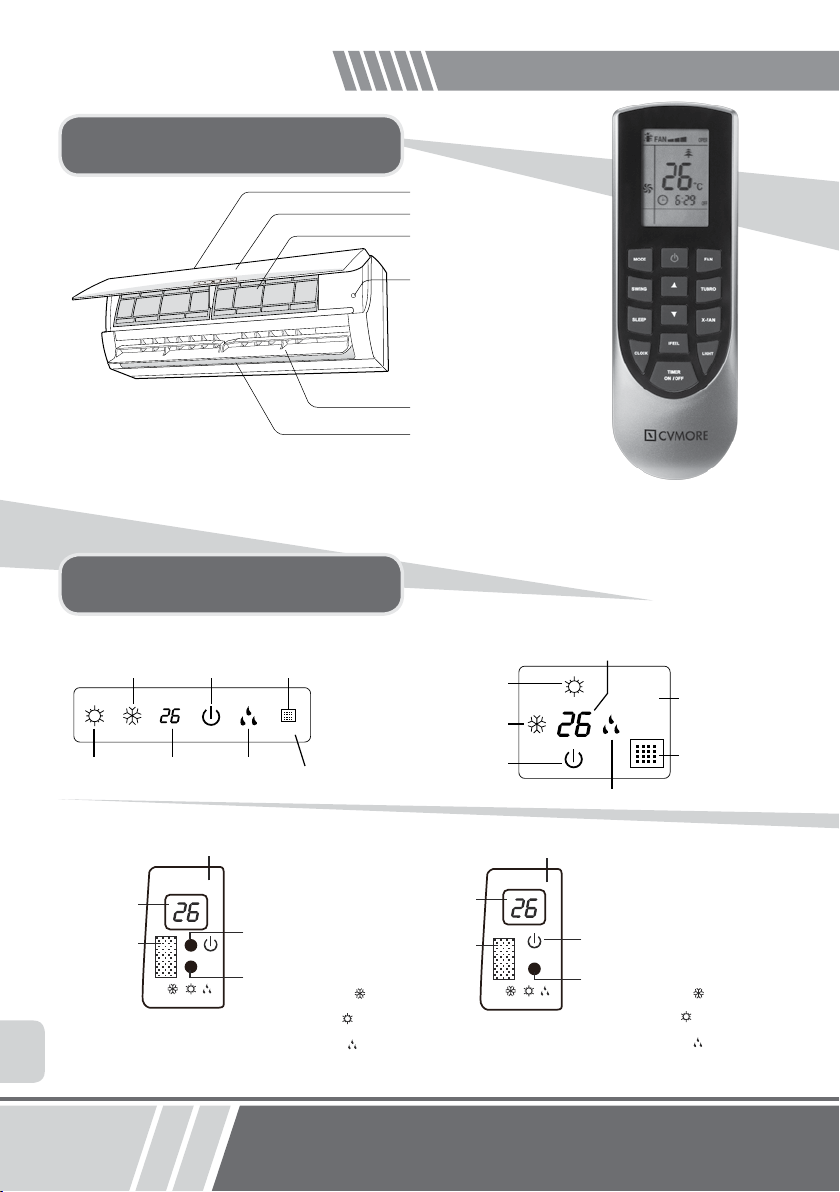

Parts Name
Indoor Unit
Parts Name
air inlet
panel
filter
aux.button
horizontal louver
air outlet
NOTICE: Actual product may be different from above graphics,
please refer to actual products.
NOTICE: Display content or position may be different from above graphics, please refer to actual products
(Display content or position may be different from above
graphics, please refer to actual products) Remote Control
heating
indicator
temp.
indicator
cooling
indicator
power
indicator
receiver
window
drying
indicator display
heating
indicator
temp.indicator
cooling
indicator
power
indicator
receiver
window
drying indicator
display
W R G
temp.
indicator
display
receiver
window
G
W
R
Power LED color indicator:
Green-status-ON.
Red -status-OFF.
Mode LED color indicator:
White-W-Cool Mode-
Red-R-Heat Mode-
Green-G-Dry Mode-
(heating
model)
W R O
temp.
indicator
display
receiver
window
O
W
R
Power LED color indicator:
Green-status-ON.
Red -status-OFF.
Mode LED color indicator:
White-W-Cool Mode-
Red-R-Heat Mode-
Orange-O-Dry Mode-
(heating
model)
For some model:
heating
indicator
temp.
indicator
cooling
indicator
power
indicator
receiver
window
drying
indicator display
heating
indicator
temp.indicator
cooling
indicator
power
indicator
receiver
window
drying indicator
display
W R G
temp.
indicator
display
receiver
window
G
W
R
Power LED color indicator:
Green-status-ON.
Red -status-OFF.
Mode LED color indicator:
White-W-Cool Mode-
Red-R-Heat Mode-
Green-G-Dry Mode-
(heating
model)
W R O
temp.
indicator
display
receiver
window
O
W
R
Power LED color indicator:
Green-status-ON.
Red -status-OFF.
Mode LED color indicator:
White-W-Cool Mode-
Red-R-Heat Mode-
Orange-O-Dry Mode-
(heating
model)
For some model:
heating
indicator
temp.
indicator
cooling
indicator
power
indicator
receiver
window
drying
indicator display
heating
indicator
temp.indicator
cooling
indicator
power
indicator
receiver
window
drying indicator
display
W R G
temp.
indicator
display
receiver
window
G
W
R
Power LED color indicator:
Green-status-ON.
Red -status-OFF.
Mode LED color indicator:
White-W-Cool Mode-
Red-R-Heat Mode-
Green-G-Dry Mode-
(heating
model)
W R O
temp.
indicator
display
receiver
window
O
W
R
Power LED color indicator:
Green-status-ON.
Red -status-OFF.
Mode LED color indicator:
White-W-Cool Mode-
Red-R-Heat Mode-
Orange-O-Dry Mode-
(heating
model)
For some model: For some model:

5
EN
EN
Remote Controller Buttons
Icons on Display Screen
01
02
04
07
09
11
03
05
06
08
10
12
01
02
03
04
05
06
07
08
09
10
11
12
ON / OFF button
MODE button
FAN button
SWING button
TURBO button
/ button
SLEEP button
TEMP button
I FEEL button
LIGHT button
CLOCK button
TIMER ON / TIMER OFF button
Send signal
Turbo mode
8oC heating function
Set temperature
Set time
TIMER ON / TIMER OFF
Child lock
Up & down swing
Set fan speed
Light
Temp. display type
:Set temp.
:Outdoor ambient temp.
:Indoor ambient temp.
Sleep mode
Clock
Heat mode
Fan mode
Dry mode
Cool mode
Auto mode
Operation mode
I feel
This is a general remote controller. Some
models have this function while some do
not. Please refer to the actual models.

6
EN
EN
Remote Controller Buttons
NOTE:
This is a general use remote controller, it could be used for the air conditioners with
multifunction; For some function, which the model doesn’t have, if press the corre-
sponding button on the remote controller that the unit will keep the original running
status.
After putting through the power, the air conditioner will give out a sound. Operation
indictor is ON (red indicator). After that, you can operate the air conditioner by using
remote controller.
Under on status, pressing the button on the remote controller, the signal icon “ “ on
the display of remote controller will blink once and the air conditioner will give out a
“de” sound, which means the signal has been sent to the air conditioner.
Under off status, set temperature and clock icon will be displayed on the display of
remote controller (If timer on, timer off and light functions are set, the corresponding
icons will be displayed on the display of remote controller at the same time); Under
on status, the display will show the corresponding set function icons.
•
•
•
When selecting auto mode, air conditioner will operate automatically according
to ex-factory setting. Set temperature can’t be adjusted and will not be displayed
as well. Press “FAN” button can adjust fan speed. Press “SWING” button can
adjust fan blowing angle.
After selecting cool mode, air conditioner will operate under cool mode. Cool
indicator on indoor unit is ON. Press “ ” or “ “ button to adjust set temperature.
Press “FAN” button to adjust fan speed. Press “SWING” button to adjust fan blow-
ing angle.
When selecting dry mode, the air conditioner operates at low speed under dry
mode. Dry indicator on indoor unit is ON. Under dry mode, fan speed can’t be
adjusted. Press “SWING” button to adjust fan blowing angle.
When selecting fan mode, the air conditioner will only blow fan, no cooling and
no heating. Press “FAN” button to adjust fan speed. Press “SWING” button to
adjust fan blowing angle.
When selecting heating mode, the air conditioner operates under heat mode.
Heat indicator on indoor unit is ON. Press “ ” or “ “ button to adjust set
•
•
•
•
•
ON / OFF button
1
MODE button2
Press this button can turn on or turn off the air conditioner. After turning on the air
conditioner, operation indicator on indoor unit’s display is ON (green indicator.
The colour is different for different models), and indoor unit will give out a sound.
Press this button to select your required operation mode.
AUTO COOL FANDRY HEAT

7
EN
EN
NOTE:
For preventing cold air, after starting up heating mode, indoor unit will delay 1~5
minutes to blow air (actual delay time is depend on indoor ambient temperature).
Set temperature range from remote controller: 16~30oC ; Fan speed: auto, low
speed, medium speed, high speed.
•
•
NOTE:
Under AUTO FAN speed, air conditioner will select proper fan speed automatically
according to ex-factory setting.
Fan speed under dry mode is low speed.
•
•
NOTE:
“、、 “may not be available. When air conditioner receives this signal, the
air conditioner will blow fan automatically.
•
When selecting “ “, air conditioner is blowing fan automatically. Horizontal
louver will automatically swing up & down at maximum angle.
When selecting “ 、、、 、 “, air conditioner is blowing fan at xed
position. Horizontal louver will stop at the xed position.
When selecting “ 、、 “, air conditioner is blowing fan at xed angle.
Horizontal louver will send air at the xed angle.
Hold “ “ button above 2s to set your required swing angle. When reaching your
required angle, release the button..
•
•
•
•
temperature. Press “FAN” button to adjust fan speed. Press “SWING” button to
adjust fan blowing angle. (Cooling only unit won’t receive heating mode signal.
If setting heat mode with remote controller, press ON/OFF button can’t start up
the unit).
FAN button
3
SWING button
4
Pressing this button can set fan speed circularly as: auto (AUTO), low ( ),
medium ( ), high( ).
Press this button can select up & down swing angle. Fan blow angle can be
selected circularly as below:
Auto
no display
(horizontal louvers stops at current position)

8
EN
EN
Remote Controller Buttons
Press “ ” or “ “ button once increase or decrease set temperature 1oC. Hold-
ing “ ” or “ “ button, 2s later, set temperature on remote controller will change
quickly. On releasing button after setting is nished, temperature indicator on
indoor unit will change accordingly. (Temperature can’t be adjusted under auto
mode)
When setting TIMER ON, TIMER OFF or CLOCK, press “ ” or “ “ button to
adjust time. (Refer to CLOCK, TIMER ON, TIMER OFF buttons).
•
•
& buttons
6
TURBO button
5
Under COOL or HEAT mode, press this button to turn to quick COOL or quick
HEAT mode. “ “ icon is displayed on remote controller. Press this button again
to exit turbo function and “ “ icon will disappear.
SLEEP button
7
Under COOL, HEAT or DRY mode, press this button to start up sleep function.
““ icon is displayed on remote controller. Press this button again to cancel
sleep function and “ “ icon will disappear.
TEMP button
8
By pressing this button, you can see indoor set temperature, indoor ambient
temperatureor outdoor ambient temperature on indoor unit’s display. The setting
on remote controlleris selected circularly as below:
no display
When selecting “ “ or no display with remote controller, temperature indicator
on indoor unit displays set temperature.
When selecting “ “ with remote controller, temperature indicator on indoor unit
displays indoor ambient temperature.
When selecting “ “ with remote controller, temperature indicator on indoor unit
displays outdoor ambient temperature.
•
•
•
NOTE:
Outdoor temperature display is not available for some models. At that time,
indoor unit receives “ “ signal, while it displays indoor set temperature.
•

9
EN
EN
It’s defaulted to display set temperature when turning on the unit. There is no
display in the remote controller.
Only for the models whose indoor unit has dual-8 display.
When selecting displaying of indoor or outdoor ambient temperature, indoor
temperature indicator displays corresponding temperature and automatically
turn to display set temperature after three or ve seconds.
•
•
•
Please put the remote controller near user when this function is set. Do not put
the remote controller near the object of high temperature or low temperature in
order to avoid detecting inaccurate ambient temperature.
•
I FEEL button9
Press this button to start I FEEL function and “ “ will be displayed on the re-
mote controller. After this function is set, the remote controller will send the de-
tected ambient temperature to the controller and the unit will automatically adjust
the indoor temperature according to the detected temperature. Press this button
again to close I FEEL function and “ “ will disappear.
TIMER ON button
“TIMER ON” button can set the time for timer on. After pressing this button, “ “
icon disappears and the word “ON” on remote controller blinks. Press “ ” or “ “
button to adjust TIMER ON setting. After each pressing “ ” or “ “ button, TIMER
ON setting will increase or decrease 1min. Hold “ ” or “ “ button, 2s later, the
time will change quickly until reaching your required time. Press “TIMER ON” to
conrm it. The word “ON” will stop blinking. “ “ icon resumes displaying. Can-
cel TIMER ON: Under the condition that TIMER ON is started up, press “TIMER
ON” button to cancel it.
•
TIMER ON / TIMER OFF button
12
LIGHT button10
Press this button to turn off display light on indoor unit. “ “ icon on remote con-
troller disappears. Press this button again to turn on display light. “ “ icon is
displayed.
CLOCK button11
Press this button to set clock time. “ “ icon on remote controller will blink. Press
“” or “ “ button within 5s to set clock time. Each pressing of “ ” or “ “ but-
ton, clock time will increase or decrease 1 minute. If hold “ ” or “ “ button, 2s
later, time will change quickly. Release this button when reaching your required
time. Press “CLOCK” button to conrm the time. “ “ icon stops blinking.
NOTE:
Clock time adopts 24-hour mode.
The interval between two operation can’t exceeds 5s. Otherwise, remote con-
troller will quit setting status. Operation for TIMER ON/TIMER OFF is the same.
•
•

10
EN
EN
Remote Controller Buttons
Combination buttons Functions
TIMER OFF button
“TIMER OFF” button can set the time for timer off. After pressing this button,
”“ icon disappears and the word “OFF” on remote controller blinks. Press “ ”
or “ “ button to adjust TIMER OFF setting. After each pressing “ ” or “ “ button,
TIMER OFF setting will increase or decrease 1min. Hold “ ” or “ “ button, 2s
later, the time will change quickly until reaching your required time.
Press “TIMER OFF” word “OFF” will stop blinking. “ “ icon resumes displaying.
Cancel TIMER OFF. Under the condition that TIMER OFF is started up, press
Introduction for buttons on remote controller “TIMER OFF” button to cancel it.
•
NOTE:
Under on and off status, you can set TIMER OFF or TIMER ON simultaneously.
Before setting TIMER ON or TIMER OFF, please adjust the clock time.
After starting up TIMER ON or TIMER OFF, set the constant circulating valid.
After that, air conditioner will be turned on or turned off according to setting time.
ON / OFF button has no effect on setting. If you don’t need this function, please
use remote controller to cancel it.
•
•
•
NOTE:
Under energy-saving function, fan speed is defaulted at auto speed and it can’t
be adjusted.
Under energy-saving function, set temperature can’t be adjusted. Press “TUR-
BO” button and the remote controller won’t send signal.
Sleep function and energy-saving function can’t operate at the same time. If
energy - saving function has been set under cooling mode, press sleep button
will cancel energy-saving function. If sleep function has been set under cooling
mode, start up the energy-saving function will cancel sleep function.
•
•
•
Energy Saving function
Under cooling mode, press “TEMP” and “ CLOCK” buttons simultaneously to
start up or turn off energy-saving function. When energy-saving function is start-
ed up, “SE” will be shown on remote controller, and air conditioner will adjust the
set temperature automatically according to ex-factory setting to reach to the best
energy-saving effect. Press “TEMP” and “CLOCK” buttons simultaneously again
to exit energy-saving function.
8oC Heating function
Under heating mode, press “TEMP” and “CLOCK” buttons simultaneously to start
heating function. When this function is started up, “ “ and “8oC“ will be shown on
remote controller, and the air conditioner keep the heating status. Press “TEMP” and
“CLOCK” buttons simultaneously again to exit 8oC heating function.
NOTE:
Under 8oC heating function, fan speed is defaulted at auto speed and it can’t be
adjusted.
•

11
EN
EN
Combination buttons Functions
Operation guide
Under 8oC heating function, set temperature can’t be adjusted. Press “TURBO”
button and the remote controller won’t send signal.
Sleep function and 8oC heating function can’t operate at the same time. If 8oC
heating function has been set under cooling mode, press sleep button will cancel
8oC heating function. If sleep function has been set under cooling mode, start up
the 8oC heating function will cancel sleep function.
Under oF temperature display, the remote controller will display 46 oF heating.
•
•
•
Child Lock function
Press “ ” and “ “ simultaneously to turn on or turn off child lock function. When
child lock function is on, “ “ icon is displayed on remote controller. If you operate
the remote controller, the “ “ icon will blink three times without sending signal to
the unit.
Temperature display switchover function
Under OFF status, press “ “ and “MODE” buttons simultaneously to switch
temperature display between oC and oF .
This function is applicable to partial of models.
•
WIFI Function
Press “MODE” and “TURBO” button simultaneously to turn on or turn off WIFI function.
When WIFI function is turned on, the “WIFI“ icon will be displayed on remote controller;
Long press “MODE” and “TURBO” buttons simultaneously for 10s, remote controller
will send WIFI reset code and then the WIFI function will be turned on. WIFI function is
defaulted ON after energization of the remote controller.
After putting through the power, press “ON/OFF” button
on remote controller to turn on the air conditioner.
Press “MODE” button to select your required mode:
AUTO, COOL, DRY, FAN, HEAT.
Press “ ” or “ “ button to set your required temperature.
(Temperature can’t be adjusted under auto mode).
Press “FAN” button to set your required fan speed:
auto, low, medium and high speed.
Press “SWING” button to select fan blowing angle.
1.
2.
3.
4.
5.

12
EN
EN
signal sender battery
Cover of battery box
remove
reinstall
signal sender battery
Cover of battery box
remove
reinstall
Press the back side of remote
controller marked with “ “, as shown
in the g, and then push out the cover
of battery box along the arrow direction.
Replace two 7# (AAA 1.5V) dry batteries,
and make sure the position of “+” polar
and “-” polar are correct.
Reinstall the cover of battery box.
1.
2.
3.
Use insulated object to press the auto button
Batteries Replacement
Emergency operation
NOTICE
During operation, point the remote control signal sender at the receiving window on
indoor unit.
The distance between signal sender and receiving window should be no more than
8m, and there should be no obstacles between them.
Signal may be interfered easily in the room where there is fluorescent lamp or
wireless telephone; remote controller should be close to indoor unit during oper-
ation.
Replace new batteries of the same model when replacement is required.
When you don’t use remote controller for a long time, please take out the batteries.
If the display on remote controller is fuzzy or there’s no display, please replace bat-
teries.
If remote controller is
lost or damaged, please
use auxiliary button to
turn on or turn off the air
conditioner. The operation
in details are as below: As
shown in the gure, open
panel, press aux button to
turn on off the air condition-
er. When the air conditioner is
turned on, it will operate under
auto mode.
•
•
•
•
•
•
aux. button
panel
WARNING:

13
EN
EN

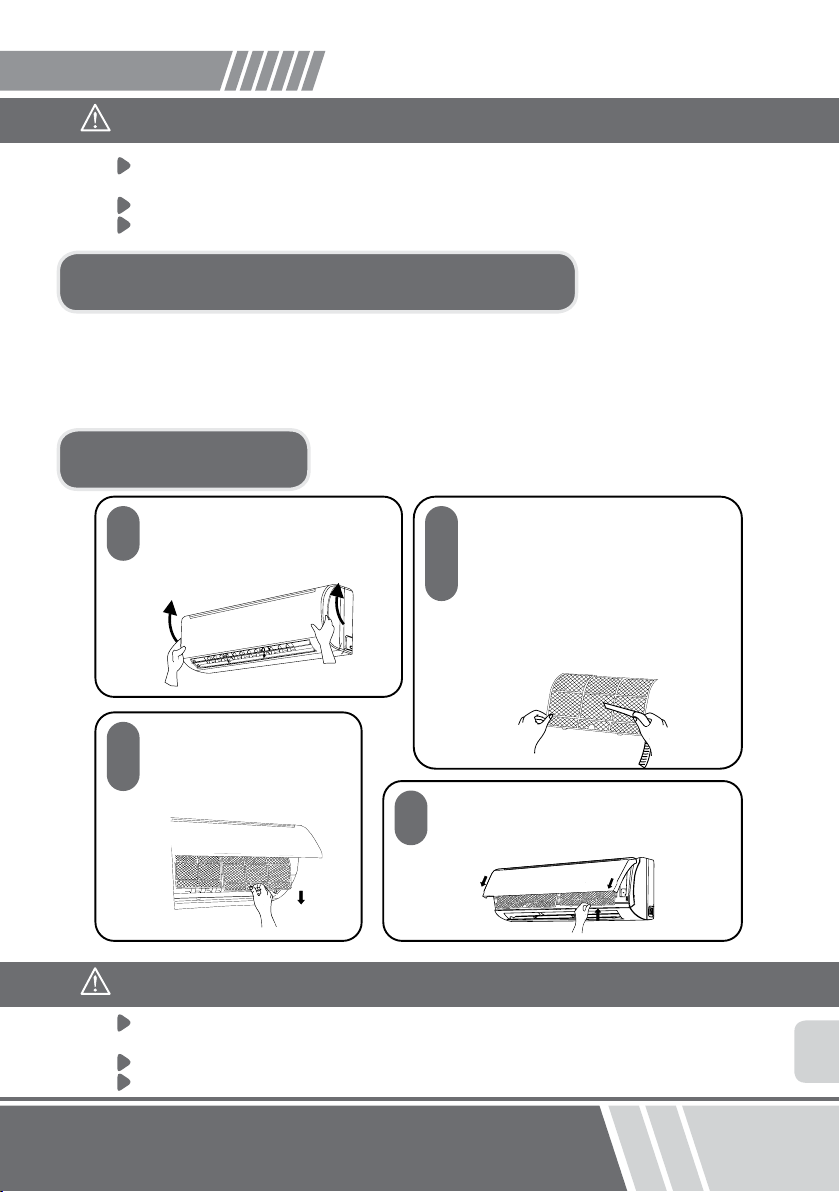

Clean and maintenance
WARNING:
WARNING:
Turn off the air conditioner and disconnect the power before cleaning the air
conditioner to avoid electric shock.
Do not wash the air conditioner with water to avoid electric shock.
Do not use volatile liquid to clean the air conditioner.
The lter should be cleaned every three months. If there is much dust in the oper-
ation environment, clean frequency can be increased.
After removing the lter, do not touch ns to avoid injury.
Do not use re or hair dryer to dry the lter to avoid deformation or re hazard.
Clean surface of indoor unit
When the surface of indoor unit is dirty, it is recommended to use a soft dry cloth
or wet cloth to wipe it.
NOTICE:
Do not remove the panel when cleaning it.
•
Clean lter
13
Open panel Clean filter
Pull out the panel to a certain
angle as shown in the fig.
2Remove filter
Remove the filter as
indicated in the fig.
● Use dust catcher or water to
clean the filter.
● When the filter is very dirty, use
the water (below 45oC) to clean
it, and then put it in a shady
and cool place to dry.
4Install filter
Install the filter and then close the
panel cover tightly.

14
EN
EN
Clean and maintenance
Malfunction analysis
Checking before use-season NOTICE:
1. Check whether air inlets are blocked.
2. Check whether air switch,plug and socket are in good condition.
3. Check whether lter is clean.
4. Check whether drainage pipe is damaged.
Checking after use-season NOTICE:
1. Disconnect power supply.
2. Clean lter and indoor unit’s panel.
Notice for recovery
Many packing materials are recyclable materials.
Please dispose them in appropriate recycling unit.
If you want to dispose the air conditioner, please contact local dealer or
consultant service center for the correct disposal method.
1.
2.
Phenomenon Check items Solution
Indoor unit can’t
receive remote
controller’s
signal or remote
controller has
no action.
• Whether it’s interfered severely
(such as static electricity, stable
voltage)?
• Pull out the plug. Reinsert
the plug after about 3min,
and then turn on the unit again.
• Whether remote controller is
within the signal receiving range? • Signal receiving range is 8m.
• Whether there are obstacles? • Remove obstacles.
• Whether remote controller is
pointing at the receiving window?
• Select proper angle and point
the remote controller at the
receiving window on indoor unit.
• Is sensitivity of remote controller
low; fuzzy display and no dis-
play?
• Check the batteries. If the
power of batteries is too low,
please replace them.
• No display when operating
remote controller?
• Check whether remote controller
appears to be damaged.
If yes, replace it.
Please check below items before asking for maintenance. If the malfunction still
can’t be eliminated, please contact local dealer or qualied professionals.
General phenomenon analysis

15
EN
EN
Malfunction analysis
Phenomenon Check items Solution
Indoor unit can’t
receive remote
controller’s
signal or remote
controller has
no action.
• Fluorescent lamp in room?
• Take the remote controller
close to indoor unit.
• Turn off the uoresent lamp
and then try it again.
No air emitted
from indoor unit
• Air inlet or air outlet of indoor
unit is blocked? • Eliminate obstacles.
• Under heating mode, indoor
temperature is reached to set
temperature?
• After reaching to set temperature,
indoor unit will stop blowing
out air.
• Heating mode is turned on just
now?
• In order to prevent blowing
out cold air, indoor unit will be
started after delaying for several
minutes, which is a normal
phenomenon.
Air conditioner
can’t operate
• Power failure? • Wait until power recovery.
• Is plug loose? • Reinsert the plug.
• Air switch trips off or fuse is
burnt out?
• Ask professional to replace
air switch or fuse.
• Wiring has malfunction? • Ask professional to replace it.
• Unit has restarted immediately
after stopping operation?
• Wait for 3min, and then turn
on the unit again.
• Whether the function setting
for remote controller is correct? • Reset the function.
Mist is emitted
from
indoor unit’s
air outlet
• Indoor temperature and humidity
is high?
• Because indoor air is cooled
rapidly. After a while, indoor
temperature and humidity will
be decrease and mist will
disappear.
Set temperature
can’t
be adjusted
• Unit is operating under auto
mode?
• Temperature can’t be adjusted
under auto mode. Please switch
the operation mode if you need
to adjust temperature.
• Your required temperature
exceeds the set temperature
range?
• Set temperature range:
16oC ~30oC.

16
EN
EN
Malfunction analysis
Phenomenon Check items Solution
Error code Troubleshooting
Cooling (heating)
effect is not good.
• Voltage is too low? • Wait until the voltage
resumes normal.
• Filter is dirty? • Clean the lter.
• Set temperature is in proper
range?
• Adjust temperature to proper
range.
• Door and window are open? • Close door and window.
Odours are
emitted
• Whether there’s odour source,
such as furniture and cigarette, etc.
• Eliminate the odour source.
• Clean the lter.
Air conditioner
operates abnormally
suddenly
• Whether there’s interference,
such as thunder, wireless
devices, etc.
• Disconnect power, put back
power, and then turn on the
unit again.
“Water owing”
noise
• Air conditioner is turned on or
turned off just now?
• The noise is the sound of
refrigerant owing inside the unit,
which is a normal phenomenon.
Cracking
noise
• Air conditioner is turned on or
turned off just now?
•
This is the sound of friction caused
by expansion and / or contraction
of panel or other parts due to the
change of temperature.
E5 It can be eliminated after restarting the unit. If not, please contact qualied professionals for service.
E6 It can be eliminated after restarting the unit. If not, please contact qualied professionals for service.
E8 It can be eliminated after restarting the unit. If not, please contact qualied professionals for service.
U8 It can be eliminated after restarting the unit. If not, please contact qualied professionals for service.
H6 It can be eliminated after restarting the unit. If not, please contact qualied professionals for service.
C5 Please contact qualied professionals for service.
F1 Please contact qualied professionals for service.
F2 Please contact qualied professionals for service.
F0 It can be eliminated after restarting the unit. If not, please contact qualied professionals for service.
When air conditioner status is abnormal, temperature indicator on indoor unit
will blink to display corresponding error code. Please refer to below list for iden-
tication of error code.
Error Code
Note: If there’re other error codes, please contact qualified professionals for service.

17
EN
EN
Installation dimension diagram
Tools for installation
1 Level meter 2 Screw driver 3 Impact drill
4 Drill head 5 Pipe expander 6 Torque wrench
7 Open-end wrench 8 Pipe cutter 9 Leakage detector
10 Vacuum pump 11 Pressure meter 12 Universal meter
13 Inner hexagon spanner 14 Measuring tape
When below phenomenon occurs, please turn off air conditioner and disconnect
power immediately, and then contact the dealer or qualied professionals for service.
• Power cord is overheating or damaged.
• There’s abnormal sound during operation.
• Air switch trips off frequently.
• Air conditioner gives off burning smell.
• Indoor unit is leaking.
Do not repair or ret the air conditioner by yourself.
If the air conditioner operates under abnormal conditions, it may cause
malfunction, electric shock or re hazard.
•
•
•
WARNING:
NOTE:
Please contact the local agent for installation.
Don’t use unqualied power cord.
•
•
At least 250cm
At least 15cm
At least 300cm
Space tothe ceiling
Space to the obstruction
At least 15cm
At least 15cm
Space to the wall
Space to the wall
Space to the floor

18
EN
EN
Selection of installation location
Electric connection Requirements
Basic requirement
1.
Installing the unit in the following places maycause malfunction. If it is unavoid
able, please consult the local dealer:
1. The place with strong heat sources, vapors, ammable or explosive gas,
or volatile objects spread in the air.
2. The place with high-frequency devices (such as welding machine, medical
equipment).
3. The place near coast area.
4. The place with oil or fumes in the air.
5. The place with sulfureted gas.
6. Other places with special circumstances.
7. Do not use the unit in the immediate surroundings of a laundry a bath a
shower or a swimming pool.
Indoor unit
2.
1. There should be no obstruction near air inlet .
2. Select a location where the condensation water can be dispersed easily and
won’t affect other people.
3. Select a location which is convenient to connect the outdoor unit and near the
power socket.
4. Select a location which is out of reach for children.
5. The location should be able to withstand the weight of indoor unit and won’t
increase noise and vibration.
6. The appliance must be installed 2.5m above oor.
7. Don’t install the indoor unit right above the electric appliance.
8. Please try your best to keep way from uorescent lamp.
1. Must follow the electric safety regulations when installing the unit.
2. According to the local safety regulations, use qualied power supply circuit and air switch.
3. Make sure the power supply matches with the requirement of air conditioner. Unstable
power supply or incorrect wiring or malfunction. Please install proper
power supply cables before using the air conditioner.
4. Properly connect the live wire, neutral wire and grounding wire of power socket.
5. Be sure to cut off the power supply before proceeding any work related to electricity and safety.
6. Do not put through the power before nishing installation.
7. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent
or similarly qualied persons in order to avoid a hazard.
8. The temperature of refrigerant circuit will be high, please keep the interconnection cable
away from the copper tube.
9. The appliance shall be installed in accordance with national wiring regulations.
Safety precaution
