Gree GMV-ND09A/A-TU User manual

Owner's Manual
Original Instructions
Commercial Air Conditioners
GMV DC Air Handler
Models:
GMV-ND09A/A-T(U)
GMV-ND12A/A-T(U)
GMV-ND18A/A-T(U)
GMV-ND24A/A-T(U)
GMV-ND30A/A-T(U)
GMV-ND36A/A-T(U)
GMV-ND42A/A-T(U)
GMV-ND48A/A-T(U)
GMV-ND54A/A-T(U)

Preface
For correct installation and operation, please read all instructions carefully. Before reading the
instructions, please be aware of the following items:
(1) For the safe operation of this unit, please read and follow the instructions carefully.
(2) During operation, total capacity of indoor units should not exceed the total capacity of
outdoor units. Otherwise, poor effect of cooling or heating may result.
(3) Direct operators or maintainers should well keep this manual.
(4) If this unit fails to operate normally, please contact our service ncenter as soon as possible
and provide the following information:
Content on the nameplate (model No., cooling capacity, production code, ex-factory date).
Malfunction details (before and after the malfunction occurs).
(5) Each unit has been strictly tested and proved to be qualified before ex-factory. In order to
prevent units from being damaged or operating normally because of improper disassembly,
please do not disassemble the unit by yourself. If you need to disassemble and check units,
please contact our service center. We will send specialists to guide the disassembly.
(6) All graphics in this manual is only for your reference. For sales or production reasons, these
graphics are subject to change by manufacturer without prior notice.
User Notice
This appliance is not intended for use by persons (including children) with reduced physical,
sensory or mental capabilities, or lack of experience and knowledge, unless they have been
given supervision or instruction concerning use of the appliance by a person responsible for their
safety. Children should be supervised to ensure that they do not play with the appliance.
Correct Disposal of this product
This marking indicates that this product should not be disposed with other
household wastes. To prevent possible harm to the environment or human health
from uncontrolled waste disposal, recycle it responsibly to promote the sustainable
reuse of material resources. To return your used device, please use the return and
collection systems or contact the retailer where the product was purchased. They
can take this product for environmental safe recycling.

Exception Clauses
Manufacturer will bear no responsibilities when personal injury or property loss is caused by the
following reasons:
(1) Damage the product due to improper use or misuse of the product;
(2) Alter, change, maintain or use the product with other equipment without abiding by the instruction manual of
manufacturer;
(3) After verification, the defect of product is directly caused by corrosive gas;
(4) After verification, defects are due to improper operation during transportation of product;
(5) Operate, repair, maintain the unit without abiding by instruction manual or related regulations;
(6) After verification, the problem or dispute is caused by the quality specification or performance of parts and
components that produced by other manufacturers;
(7) The damage is caused by natural calamities, bad using environment or force majeure.

Contents
1 Safety Precautions······················································································ 1
2 Product Introduction····················································································3
2.1 Names of Key Components················································································ 3
2.2 Rated Working Condition··················································································· 3
3 Preparative for Installation··········································································· 4
3.1 Pre-Installation Instruction·················································································· 4
3.2 Important Safety Instructions···············································································4
3.3 Requirements for Communication Line··································································6
3.4 Wiring Requirements·························································································7
4 Installation Instructions··············································································· 8

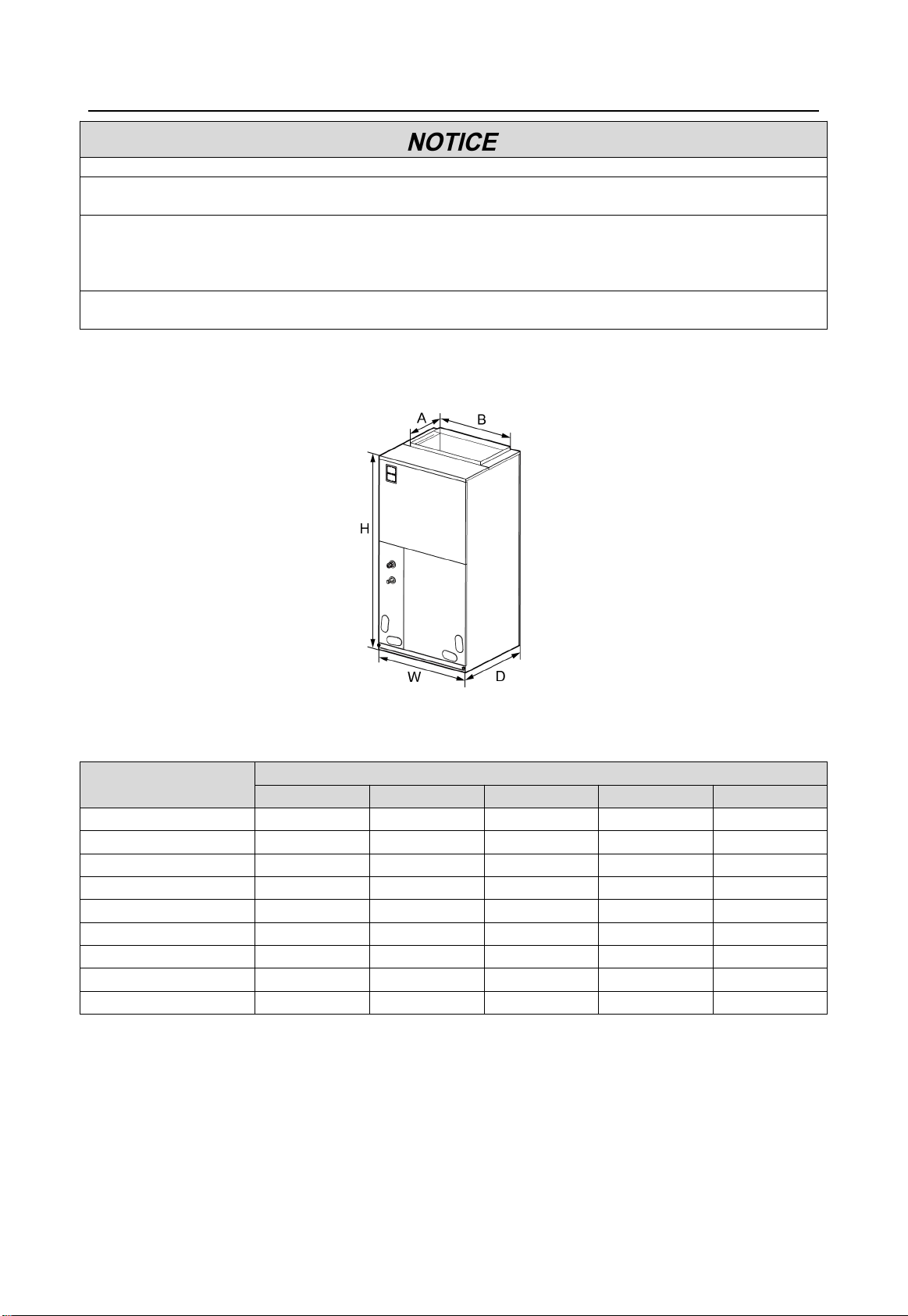

4.1 Dimension Data······························································································· 8
4.2 Location········································································································· 8

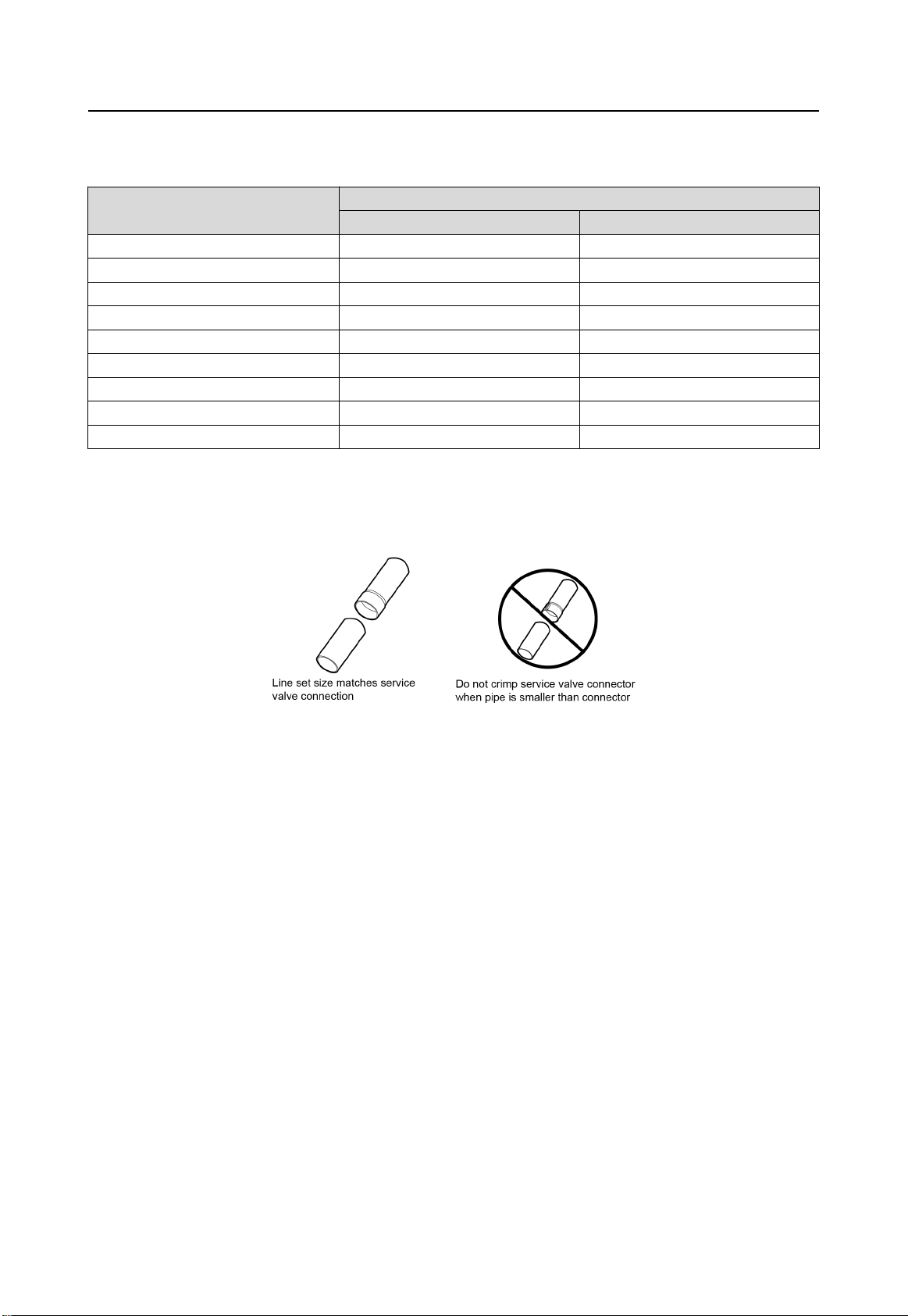

4.3 Piping Work···································································································10
4.4 Condensate Removal······················································································ 10
4.5 Ductwork·······································································································11
4.6 Installation of Wired Controller··········································································· 11
5 Wiring Work······························································································ 11

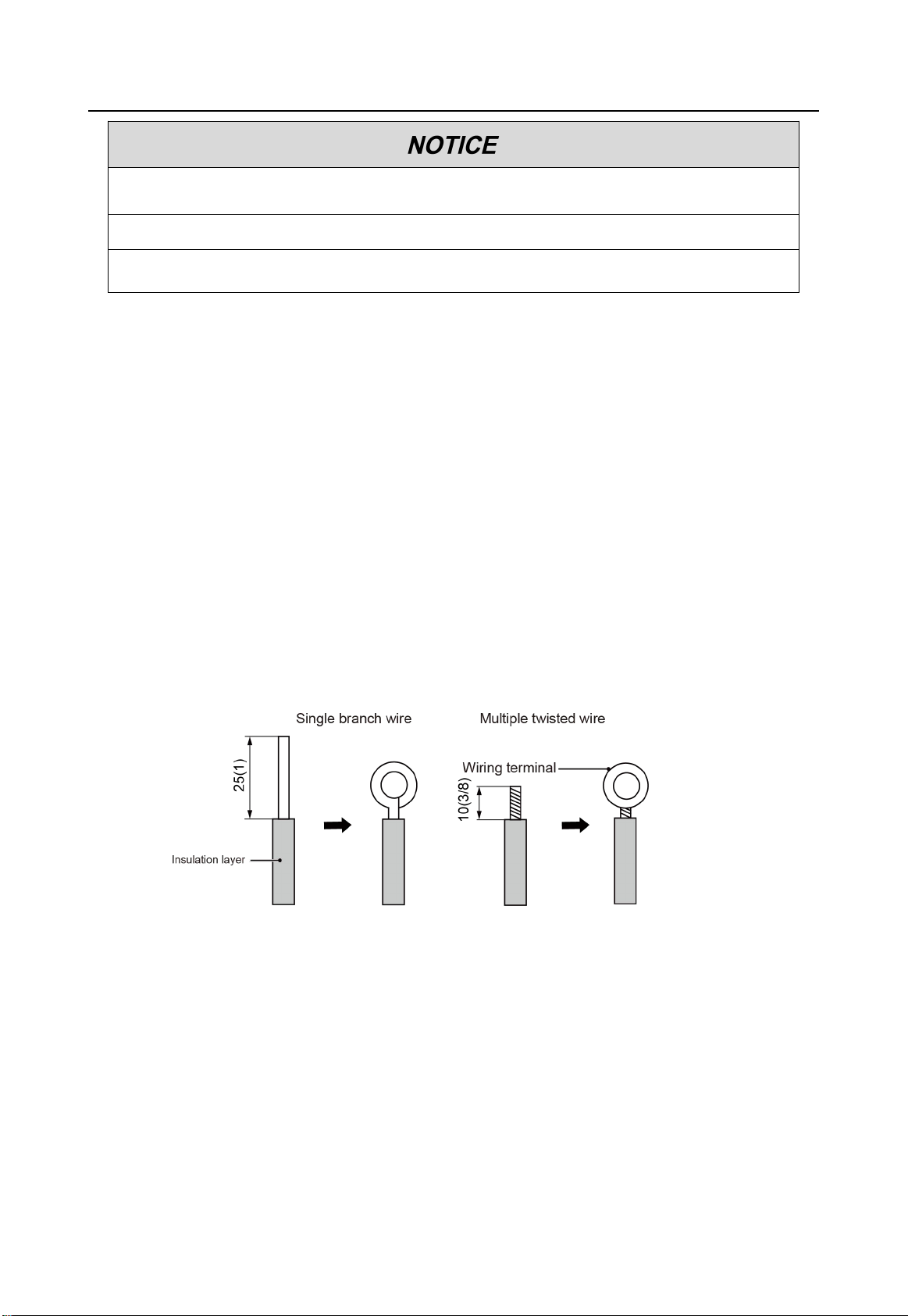

5.1 Connection of Wire and Patch Board Terminal······················································ 12
5.2 Power Cord Connection··················································································· 13
5.3 Connection of Communication Wire between Indoor Unit and Outdoor Unit (or indoor unit)
························································································································13

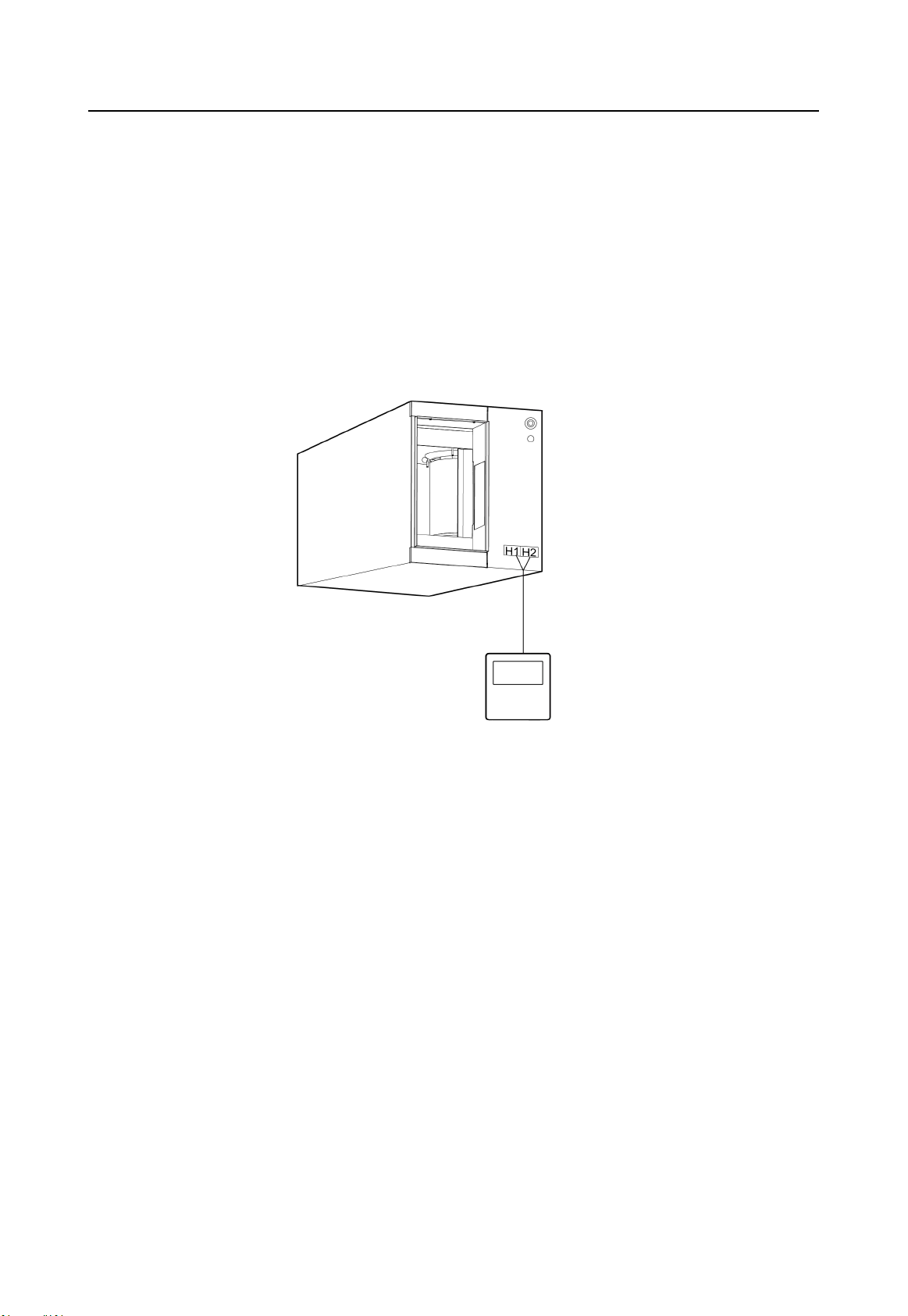

5.4 Connect Communication Wire of Wired Controller··················································14
5.5 Illuminate for Connection of Wired Controller and Indoor Units Network······················14
6 Routine Maintenance················································································· 15
6.1 Cleaning of Filter···························································································· 15
6.2 Maintenance before the Seasonal Use································································ 16
6.3 Maintenance after the Seasonal Use···································································16
7 Table of Error Codes for Indoor Unit···························································· 16
8 Troubleshooting························································································ 16

GMV DC Air Handler
1
1 Safety Precautions
(1) This product can’t be installed at corrosive, inflammable or explosive environment or the place with
special requirements, such as kitchen. Otherwise, it will affect the normal operation or shorten the service
life of the unit, or even cause fire hazard or serious injury. As for above special places, please adopt
special air conditioner with anti-corrosive or anti-explosion function.
(2) Follow this instruction to complete the installation work. Please carefully read this manual before unit
startup and service.
(3) Wire size of power cord should be large enough.The damaged power cord and connection wire should
be replaced by exclusive cable.
(4) After connecting the power cord, please fix the electric box cover properly in order to avoid accident.
(5) Never fail to comply with the nitrogen charge requirements.Charge nitrogen when welding pipes.
(6) Never short-circuit or cancel the pressure switch to prevent unit damage.
(7) Please firstly connect the wired controller before energization, otherwise wired controller can not be
used.
(8) Before using the unit, please check if the piping and wiring are correct to avoid water leakage, refrigerant
leakage, electric shock, or fire etc.
(9) Do not insert fingers or objects into air outlet/inlet grille.
(10) Open the door and window and keep good ventilation in the room to avoid oxygen deficit when the gas/oil
supplied heating equipment is used.
(11) Never start up or shut off the air conditioner by means of directly plug or unplug the power cord.
(12) Turn off the unit after it runs at least five minutes; otherwise it will influence oil return of the compressor.
(13) Do not allow children operate this unit.
(14) Do not operate this unit with wet hands.
(15) Turn off the unit or cut off the power supply before cleaning the unit, otherwise electric shock or injury
may happen.
(16) Never spray or flush water towards unit, otherwise malfunction or electric shock may happen.
(17) Do not expose the unit to the moist or corrosive circumstances.
(18) Under cooling mode, please don't set the room temperature too low and keep the temperature difference
between indoor and outdoor unit within 5°C (41°F).
(19) User is not allowed to repair the unit. Fault service may cause electric shock or fire accidents. Please
contact Gree appointed service center for help.
(20) Before installation, please check if the power supply is in accordance with the requirements specified on
the nameplate. And also take care of the power safety.

GMV DC Air Handler
2
(21) Installation should be conducted by dealer or qualified personnel. Please do not attempt to install the unit
by yourself. Improper handling may result in water leakage, electric shock or fire disaster etc.
(22) Be sure to use the exclusive accessory and part to prevent the water leakage, electric shock and fire
accidents.
(23) Make sure the unit can be earthed properly and soundly after plugging into the socket so as to avoid
electric shock. Please do not connect the ground wire to gas pipe, water pipe, lightning rod or telephone
line.
(24) Electrify the unit 8 hours before operation. Please switch on for 8 hours before operation. Do not cut off
the power when 24 hours short-time halting (to protect the compressor).
(25) If refrigerant leakage happens during installation, please ventilate immediately. Poisonous gas will
emerge if the refrigerant gas meets fire.
(26) Volatile liquid like thinner or gasoline will damage the appearance of air conditioner. Please use soft dry
cloth or wet cloth with mild detergent to clean the outer case of air conditioner.
(27) If anything abnormal happens (such as burning smell), please power off the unit and cut off the main
power supply, and then immediately contact Gree appointed service center. If abnormality keeps going,
the unit might be damaged and lead to electric shock or fire.
Any personal injury or property loss caused by improper installation, improper debug, unnecessary
repair or not following the instructions of this manual should not be the responsibility of Gree Electric
Appliances, Inc. of Zhuhai.

GMV DC Air Handler
3
2 Product Introduction

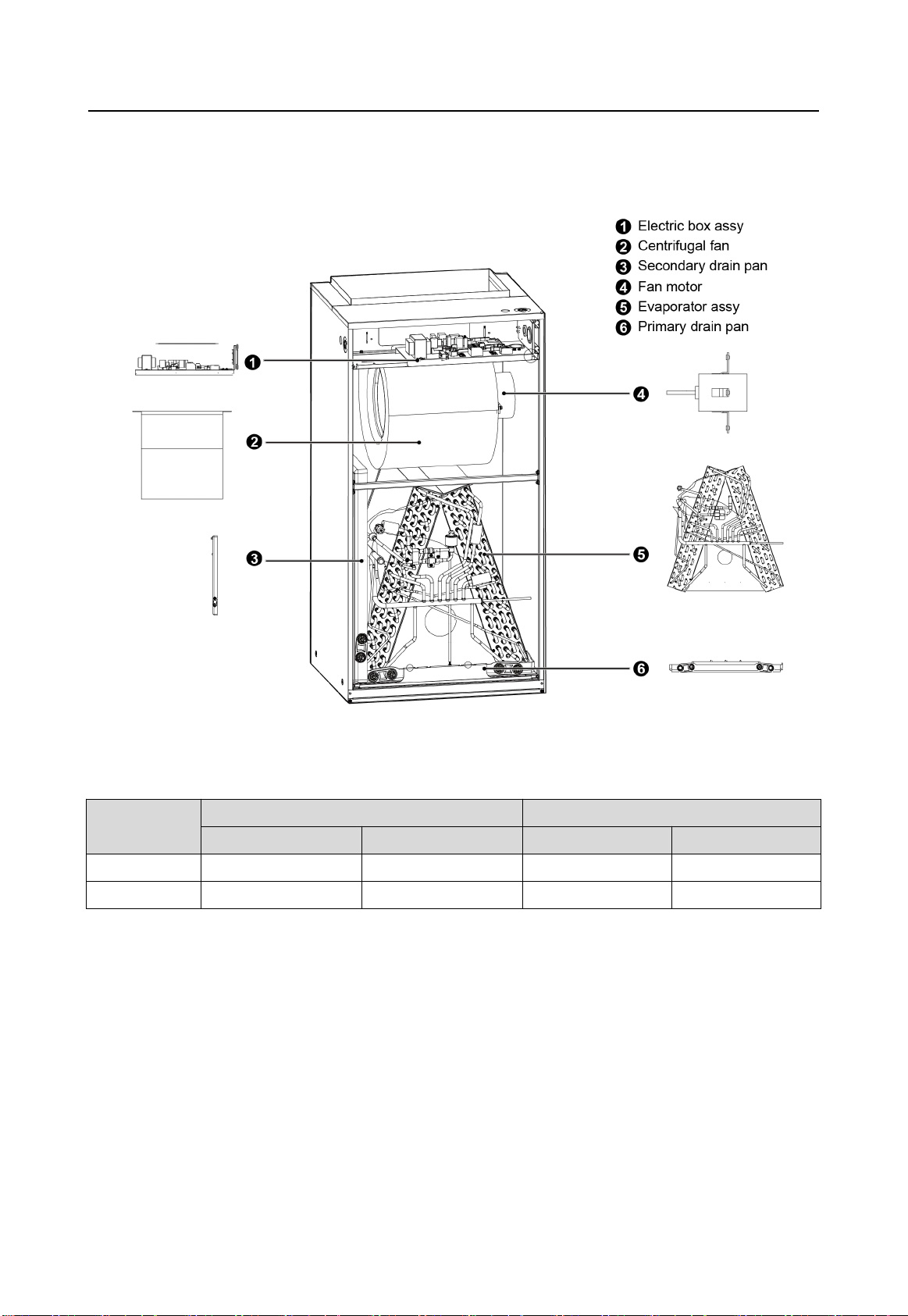

2.1 Names of Key Components
Fig.2.1
2.2 Rated Working Condition
—
Indoor Side Condition
Outdoor Side Condition
Dry Bulb Temp°C(°F)
Wet Bulb Temp°C(°F)
Dry Bulb Temp°C(°F)
Wet Bulb Temp°C(°F)
Rated Cooling
26.7(80.0)
19.4(67.0)
35(95.0)
23.9(75.0)
Rated Heating
21.1(70.0)
15.6(60.0)
8.3(47.0)
6.1(43.0)
Indoor Unit Working Temperature Range: 16°C (60.8 °F) ~32°C (89.6 °F)

GMV DC Air Handler
4
3 Preparative for Installation
3.1 Pre-Installation Instruction
3.1.1 Checking Product Received
After receiving the product, please check if there is any damage caused by transportation.
Shipping damage is the responsibility of the carrier. Verify the model No., specifications and
accessories are correct prior to installation. The distributor or manufacturer will not accept claims
from dealers for transportation damage or installation of incorrectly shipped units.
3.1.2 Before Installation
Carefully read all instructions for the installation prior to installing product. Make sure each step
or procedure is understood and any special considerations are taken into account before starting
installation. Assemble all tools, hardware and supplies needed to complete the installation. Some
items may need to be purchased locally. Make sure everything needed to install the product is on
hand before starting.
3.1.3 Codes & Regulations
This product is designed and manufactured to comply with national codes. It is installer’s
responsibilities to install the product in accordance with such codes and/or any prevailing local
codes/regulations. The manufacturer assumes no responsibilities for equipment installed in violation
of any codes or regulations.
3.1.4 Replacement Parts
When reporting shortages or damages, or ordering repair parts, give the complete product No.
and serial numbers as stamped on the product. Replacement parts for this product are available
through your contractor or local distributor.
3.2 Important Safety Instructions
Recognize Safety Symbols, Words, and Labels
The following symbols and labels are used throughout this manual to indicate immediate or
potential hazards. It is the owner’s responsibility to read and comply with all safety information and
instructions accompanying these symbols. Failure to heed safety information increases the risk of
serious personal injury or death, property damage and/or product damage.
Immediate hazards which will result in property damage, product damage,
severe personal injury or death.
Hazards or unsafe practice could result in property damage, product
damage, severe personal injury or death.
Hazards or unsafe practices which may result in property damage, product
damage, severe personal injury or death.
Before serving or installing this equipment. The electrical power to this unit

GMV DC Air Handler
5
must be in the “off” position. Caution, more than one disconnect may exist. Failure to observe this
warning may result in an electrical shock that can cause personal injury or death.
The United States environmental protection agency (“EPA”) has issued
various regulations regarding the introduction and disposal of refrigerants introduced into this unit.
Failure to follow these regulations may harm the environment and can lead to the imposition of
substantial fines. These regulations may vary due to the passage of laws. A certified technician must
perform the installation and service of this product. Should questions arise, contact your local EPA
office.
Due to high system pressure and electrical shock in potential, installation
and service work can be dangerous. Only trained and qualified personnel are permitted to install or
service this equipment. Observe all warnings contained in this manual and labels/tags attached to the
equipment.
This product is factory shipped for use with a 208-230/1/60 electrical power
supply. This air handler must not be reconfigured to operate with any other power supply.
The unit must have an uninterrupted, unbroken electric grounding to
minimize the possibility of personal injury if an electric fault occurs. The electric grounding circuit may
consist of an appropriate sized power cord which connected with the grounding piece located in the
unit control box and also connecting to the building electric service panel. Other methods of
grounding are permitted if performed in accordance with the “national electric code” (NEC) /
“American national standards institute” (ANSI) / “national fire protection association” (NFPA) 70 and
local/state codes. In Canada, electric grounding conforms to the Canadian electric code CSA c22.1.
Failed to observe this warning can result in electrical shock that can cause personal injury.
Fig.3.2.1
Special warning for installation of furnaces or air handling units in enclosed areas, such
as garages, utility rooms or parking areas.
Carbon monoxide producing devices (such as an automobile, space heater, gas water heater,
etc.) should not be operated in enclosed areas such as unventilated garages, utility rooms or parking
areas because of the danger of carbon monoxide (CO) poisoning resulting from the exhaust
emissions. If a furnace or air handler is installed in an enclosed area such as a garage, utility room or
parking area and a carbon monoxide producing device is operated therein, there must be adequate

GMV DC Air Handler
6
ventilation directly to outside.
This ventilation is necessary to avoid the danger of CO poisoning which can occur if a carbon
monoxide producing device continues to operate in the enclosed area. Carbon monoxide emission
can be (re)circulated throughout the building if the furnace or air handler is operating in any mode.
CO can cause serious illness including permanent brain damage or death.
3.3 Requirements for Communication Line
If the unit is installed in the place with strong electromagnetic interference, shielded
wire must be applied on the communication wire between indoor unit and wired controller. Twisted
pair line with shielding function must be applied on the communication wire between indoor unit and
indoor unit (outdoor unit).

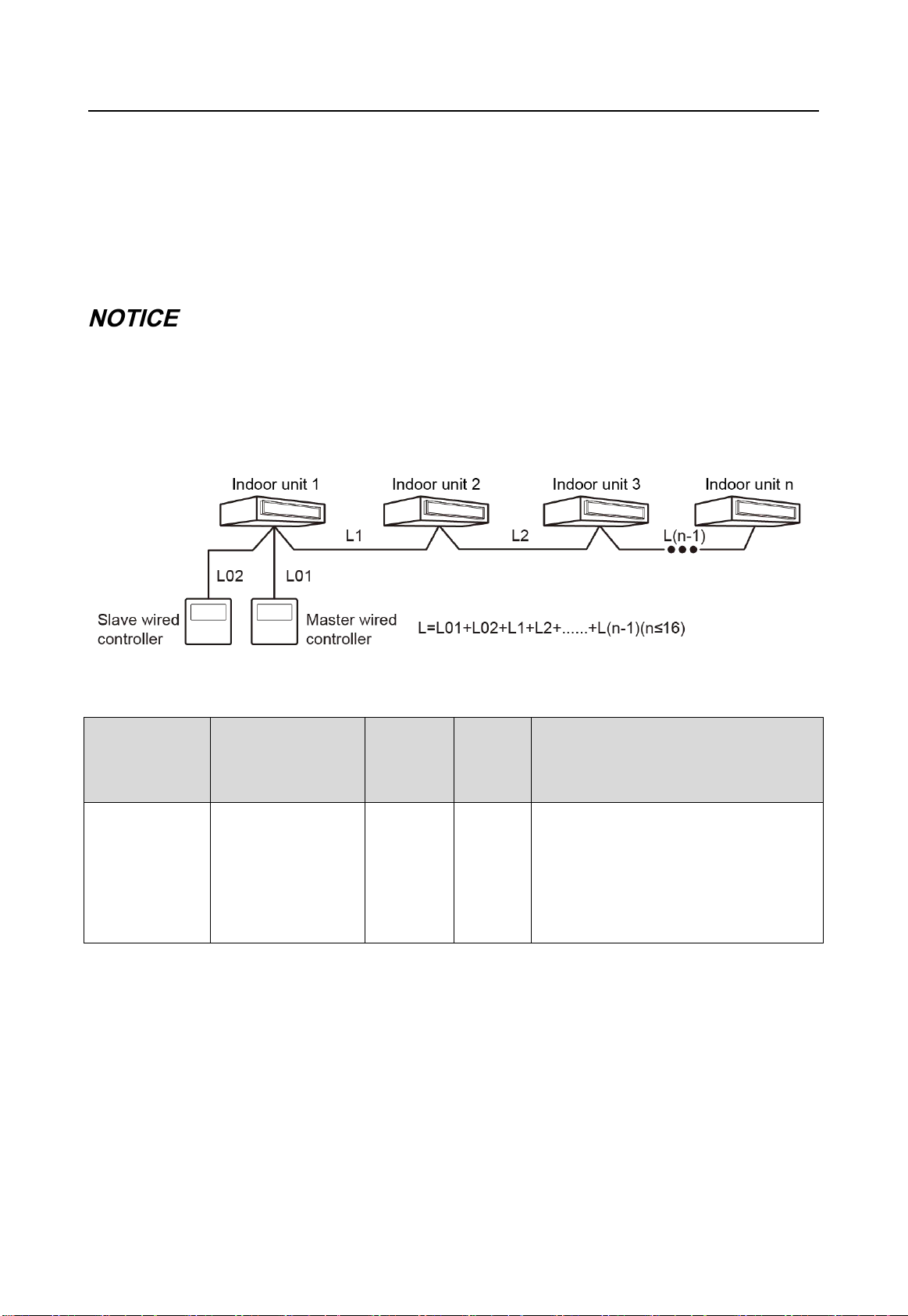

3.3.1 Select communication line for indoor unit and wired controller
Fig.3.3.1
Wire type
Total length of
communication wire
between indoor unit
and wired controller
Wire size
Wire
standard
Remarks
Light/Ordinary
polyvinyl chloride
sheathed cord.
(UL60335-2011)
L≤250m
(L≤820-1/5ft.)
2×AWG18~
2×AWG16
UL60335-
2011
1. Total length of communication cable can't
exceed 250m (820-1/5ft.).
2. The cord shall be Circular cord (the cores
shall be twisted together).
3. If unit is installed in places with intense
magnetic field or strong interference, it is
necessary to use shielded wire.

GMV DC Air Handler
7
3.3.2 Select communication line for indoor unit and outdoor unit
Fig.3.3.2
Wire type
Total length of
communication wire
between indoor unit and
indoor unit(outdoor unit)
Wire size
Wire standard
Remarks
Light/Ordinary
polyvinyl chloride
sheathed cord.
(UL60335-2011)
L≤1000m
(L≤3280-5/6ft.)
≥2×AWG18
UL60335-2011
1. If the wire diameter is enlarged
to 16 AWG, the total
communication cable length can
reach 1500m (4921-1/4ft.).
2. The cord shall be Circular cord
(the cores shall be twisted
together).
3. If unit is installed in places with
intense magnetic field or strong
interference, it is necessary to
use shielded wire.
3.4 Wiring Requirements
(1) Power Cord Size and Air Switch Capacity
Model
Power Cord Size
Minimum Circuit Ampacity
(A)
Maximum Overcurrent
Protection
(A)
GMV-ND09A/A-T(U)
208/230V-1Ph-60Hz
1.4
15
GMV-ND12A/A-T(U)
1.4
15
GMV-ND18A/A-T(U)
1.4
15
GMV-ND24A/A-T(U)
1.4
15
GMV-ND30A/A-T(U)
1.8
15
GMV-ND36A/A-T(U)
3.3
15
GMV-ND42A/A-T(U)
3.4
15
GMV-ND48A/A-T(U)
4.3
15
GMV-ND54A/A-T(U)
4.4
15

GMV DC Air Handler
8
(1) Use copper wire only as unit’s power cord. Operating temperature should be within its rated value.
(2) If the power cord is more than 15 m (49-1/4 ft.) long, please increase properly the sectional area of power cord to
avoid overload, which may cause accident.
(3) Above selection requirements: Power cord size is based on BV single-core wire (2~4pc) at 40° (104°F) ambient
temperature when laying across plastic pipe. Air switch is D type and used at 40°C (104°F). If actual installation
condition varies, please lower the capacity appropriately according to the specifications of power cord and air
switch provided by manufacturer.
(4) Install cut-off device near the unit. The minimum distance between each stage of cut-off device should be 3 mm
(1/8 inch) (The same for both indoor unit and outdoor unit).
4 Installation Instructions
4.1 Dimension Data
Fig.4.1
Unit: inch (mm)
Model
Dimension
W
D
H
A
B
GMV-ND09A/A-T(U)
18-1/8(460)
21-1/4(540)
43-1/2(1105)
11-5/8(295)
16-3/4(426)
GMV-ND12A/A-T(U)
18-1/8(460)
21-1/4(540)
43-1/2(1105)
11-5/8(295)
16-3/4(426)
GMV-ND18A/A-T(U)
18-1/8(460)
21-1/4(540)
43-1/2(1105)
11-5/8(295)
16-3/4(426)
GMV-ND24A/A-T(U)
18-1/8(460)
21-1/4(540)
43-1/2(1105)
11-5/8(295)
16-3/4(426)
GMV-ND30A/A-T(U)
18-1/8(460)
21-1/4(540)
43-1/2(1105)
11-5/8(295)
16-3/4(426)
GMV-ND36A/A-T(U)
21-1/4(540)
21-1/4(540)
48-1/4(1224)
11-5/8(295)
20(508)
GMV-ND42A/A-T(U)
21-1/4(540)
21-1/4(540)
48-1/4(1224)
11-5/8(295)
20(508)
GMV-ND48A/A-T(U)
24-7/8(630)
21-1/4(540)
48-1/4(1224)
11-5/8(295)
20(508)
GMV-ND54A/A-T(U)
24-7/8(630)
21-1/4(540)
48-1/4(1224)
11-5/8(295)
20(508)
4.2 Location
4.2.1 Installation Site
A place where cool air can be distributed throughout the room.
A place where condensation water is easily drained out.
A place that can bear the weight of indoor unit.
A place which is easy for maintenance.

GMV DC Air Handler
9
A place where easy connection with the outdoor unit is available.
A place where is 1m or more away from other electric appliances such as television, audio
device, etc.
Avoid a location where there is heat source, high humidity or inflammable gas.
Do not place the unit near a laundry, a bath, a shower or a swimming pool.
Be sure that the installation conforms to the installation dimension diagram.
The space around the unit is adequate for ventilation.
4.2.2 Air Handler
This air handler is designed for indoor installation only. Do not install it
outdoors.
When installing the air handler, take consideration to minimize the length of refrigerant tubing as
much as possible. Do not install the air handler in a location either above or below the condenser that
violates the instructions provided with the condenser. Service clearance is to take precedence. Allow
a minimum of 24” in front of the unit for service clearance. When installing in an area directly over a
finished ceiling (such as an attic), an emergency drain pan is required directly under the unit. See
local and state codes for requirements. When installing this unit in an area that may become wet,
elevate the unit with a sturdy, non-porous material. In installations that may lead to physical damage
(i.e. a garage) it is advised to install a protective barrier to prevent such damage.
This air handler is designed for a complete supply and return ductwork system. These duct type
indoor units are used to supply conditioned air to one zone. Do not operate this product without all
ductwork attached.
Based upon the actual conditions, if air handler is installed as Fig.4.2(A), the air handler should
be concealed in a specific room or space and make sure the air handler is not accessible to the
general public.
Based upon the actual conditions, if air handler is installed as Fig.4.2(B), make sure that there is
enough space for care and maintenance and the height between the air handler and ground is above
2500mm. And the air handler is not accessible to the general public.
(A) (B)
Fig.4.2

GMV DC Air Handler
10
4.3 Piping Work
4.3.1 Specification of Connection Pipe
Model
External Diameter (inch)
Gas Pipe
Liquid Pipe
GMV-ND09A/A-T(U)
3/8
1/4
GMV-ND12A/A-T(U)
1/2
1/4
GMV-ND18A/A-T(U)
5/8
3/8
GMV-ND24A/A-T(U)
5/8
3/8
GMV-ND30A/A-T(U)
5/8
3/8
GMV-ND36A/A-T(U)
5/8
3/8
GMV-ND42A/A-T(U)
5/8
3/8
GMV-ND48A/A-T(U)
5/8
3/8
GMV-ND54A/A-T(U)
5/8
3/8
4.3.2 Piping Preparation
All cut ends are to be round, burr free, and cleaned. Failure to follow this practice increases the
chances for refrigerant leakage.
Fig.4.3
4.4 Condensate Removal
(1) It is not allowed to connect the condensate drain pipe into waste pipe or other pipelines
which are likely to produce corrosive or peculiar smell to prevent the smell from entering
indoors or corrupt the unit.
(2) It is not allowed to connect the condensate drain pipe into rain pipe to prevent rain water
from pouring in and cause property loss or personal injury.
(3) Condensate drain pipe should be connected into special drain system for air conditioner.
(4) The drain pan has primary and secondary drain connection (Fig.4.4). Condensate removal
is performed by attaching a 3/4” PVC pipe to the evaporator coil pan and terminated in
accordance with local or state Plumbing/HVAC codes. The installation must include a “P”
style trap that is located closely to the evaporator coil. Do not over-tighten the drain
connection(s) in order to prevent possible damage to the evaporator drain pan. See Fig.4.4
for details of a typical condensate line “P” trap.

GMV DC Air Handler
11
Fig.4.4
4.5 Ductwork
This air handler is designed for a complete supply and return ductwork system.
Do not operate the unit without all ductwork completed.
Do not operate this product without all ductwork attached.
Inadequate ductwork that restricts airflow can result in improper performance and compressor or
heater failure. Ductwork is to be constructed in a manner that limits restrictions and maintains suitable
air velocity. Ductwork is to be sealed to the unit in a manner that will prevent leakage.
Return Ductwork: Do not terminate the return ductwork in an area that can introduce toxic, or
objectionable fumes/odors into the ductwork. The return ductwork is to be introduced into the air
handler bottom (upflow configuration).
Return Air Filters: Each installation must include a return air filter. This filtering may be performed
at the air handler or externally such as a return air filter grille.
4.6 Installation of Wired Controller
Please refer to User Manual of Wired Controller for the installation details.
When installation is finished, the unit must be tested and debugged before
operation. Please refer to Instruction Manual of ODU for auto addressing and debugging details.
5 Wiring Work
Before obtaining access to terminals, all supply circuits must be
disconnected.
(1) Units must be earthed securely, or it may cause electric shock.
(2) Please carefully read the wiring diagram before carry out the wiring work, incorrect wiring could cause
malfunction or even damage the unit.
(3) The unit should be powered by independent circuit and specific socket.
(4) The wiring should be in accordance with related regulations in order to ensure the units reliable running.
(5) Install circuit breaker for branch circuit according to related regulations and electrical standards.
(6) Keep cable away from refrigerant piping, compressor and fan motor.

GMV DC Air Handler
12
(7) The communication wires should be separated from power cord and connection wire between indoor unit
and outdoor unit.
(8) Adjust the static pressure via wired controller according to site circumstance.
(9) If the supply cord is damaged, it must be replaced by manufacturer, its service agent or similarly qualified
persons in order to avoid a hazard.
5.1 Connection of Wire and Patch Board Terminal
(1) The connection of wire (as shown in Fig.5.1.1)
1) Strip about 25mm (1 inch) insulation of the wire end by stripping and cutting tool.
2) Remove the wiring screws on the terminal board.
3) Shape the tail of wire into ring by needle nose plier, and keep the gauge of ring in
accordance with screw.
4) Use the screwdriver for tightening the terminal.
(2) The connection of stranded wire (as shown in Fig.5.1.2)
1) Strip about 10mm (3/8 inch) insulation of the end of stranded wire by stripping and cutting
tool.
2) Loosen the wiring screws on terminal board.
3) Insert the wire into the ring tongue terminal and tighten by crimping tool.
4) Use the screwdriver for tightening the terminal.
Unit: mm(inch)
Fig.5.1.1 Fig.5.1.2

GMV DC Air Handler
13
5.2 Power Cord Connection
NOTICE! All indoor units must be unified of power supply so that they can be powered ON/OFF
at the same time.
Fig.5.2
For units with single-phase power supply.
(1) Detach the electric box lid.
(2) Let the power cord pass through the wiring through-holes.
(3) Connect the power cord to terminal "L1, L2 "
(4) Fix the power cord with wiring clamp.
5.3 Connection of Communication Wire between Indoor Unit and Outdoor
Unit (or indoor unit)
(1) Detach the electric box lid.
(2) Let the Communication cable pass through the wiring through-holes.
(3) Connect the communication wire to terminal D1 and D2 of indoor 4-bit wiring board, as
shown in Fig.5.3.1.
Fig.5.3.1 Fig.5.3.2
(4) Fix the communication cable with clamp of electric box.
(5) For more reliable communication, make sure connect the terminal resistor to the most

GMV DC Air Handler
14
downstream IDU of the communication bus (terminal D1 and D2), as shown in Fig.5.3.2,
terminal resistor is provided with each ODU.
5.4 Connect Communication Wire of Wired Controller
(1) Open electric box cover of indoor unit.
(2) Let the communication wire go through the rubber ring.
(3) Connect the communication wire to terminal H1 and H2 of indoor 4-bit wiring board.
(4) Fix the communication wire with wire clip on the electric box.
(5) Wiring instructions of remote receiving light board and wired controller:
1) Fig 5.4.1 shows the installation of wired controller.
Fig.5.4.1
2) Wired controller and receiving light board can be installed at the same time. When
operating through a remote controller, both wired controller and the receiving light board
can receive the signals.
5.5 Illuminate for Connection of Wired Controller and Indoor Units Network
(1) Communication wire of indoor unit and outdoor unit (or indoor unit) is connected to D1, D2.
(2) Wired controller is connected to H1, H2.
(3) One indoor unit can connect two wired controllers that must be set as master one and slave
one.
(4) One wired controller can control 16 indoor units in maximum at the same time (As shown in
Fig.5.5).

GMV DC Air Handler
15
(1) The type of indoor units must be the same if they are controlled by the same wired controller.
(2) When the indoor unit is controlled by two wired controllers, the addresses of the two wired controllers should be
different through address setting. Address 1 is for main controller; Address 2 is for slave controller. Detailed
setting please refer to the instruction manual of wired controller.
Fig.5.5
6 Routine Maintenance
(1) Do turn off the unit and cut off the main power supply when cleaning the air conditioner to avoid electric shock or
injury.
(2) Stand at solid table when cleaning the unit.
(3) Do not clean the unit with hot water whose temperature is higher than 45°C to prevent fade or deformation.
(4) Do not dry the filters by fire, or it may catch fire or become deformed.
(5) Clean the filter with a wet cloth dipped in neutral detergent.
(6) Please contact after-sales service staff if there is abnormal situation.
6.1 Cleaning of Filter
(1) Remove the filters from inlet of IDU. Use a vacuum cleaner to remove dust. If the filters are
dirty, wash them with warm water and mild detergent, and dry the filters in the shade.
(2) If the unit used in the environment with much dust, please clean it regularly. (Usually once

GMV DC Air Handler
16
every two weeks).
6.2 Maintenance before the Seasonal Use
(1) Check if the air inlet and air outlet of indoor and outdoor unit are blocked.
(2) Check if securely grounded.
(3) Check if all the power cord and communication cable are securely connected.
(4) Check if any error code displayed after energized.
6.3 Maintenance after the Seasonal Use
(1) Set the unit in fan mode for half a day in a sunny day to dry the inner part of unit;
(2) When the unit won’t be used for a long time, please cut off power supply for energy saving;
the characters on the wired controller screen will disappear after cutting off the power
supply.
7 Table of Error Codes for Indoor Unit
Error
Code
Content
Error
Code
Content
Error
Code
Content
L0
Indoor Unit Error
L9
Quantity Of Group Control
Indoor Units Setting Error
d8
Water Temperature Sensor
Error
L1
Indoor Fan
Protection
LA
Indoor Units Incompatibility
Error
d9
Jumper Cap Error
L2
E-heater Protection
LH
Low Air Quality Warning
dA
Indoor Unit
Hardware Address Error
L3
Water Full
Protection
LC
Outdoor-Indoor Incompatibility
Error
dH
Wired Controller PC-Board
Error
L4
Wired Controller
Power Supply Error
d1
Indoor Unit PC-Board Error
dC
Capacity DIP Switch Setting
Error.
L5
Anti-Frosting
Protection
d3
Ambient Temperature Sensor
Error
dL
Outlet Air Temperature
Sensor Error
L7
No Master Indoor
Unit Error
d4
Inlet Pipe Temperature Sensor
Error
dE
Indoor Unit CO2Sensor
Error
L8
Power Insufficiency
Protection
d6
Outlet Pipe Temperature
Sensor Error
db
Special Code:
Field Debugging Code
Troubleshooting
The air conditioner is not expected to be serviced by users. Incorrect repair may cause electric
shock or fire, so please contact an authorized service center for professional service. The following
checks prior to contact may save your time and money.
