Gree G-TECH Series User manual

USER MANUAL
[ G-TECH SERIES ]
GWH09AEC-K6DNA1A
(GWH09AEC-K6DNA1A/I + GWH09AEC-K6DNA1A/O)
GWH12AEC-K6DNA1A
(GWH12AEC-K6DNA1A/I + GWH12AEC-K6DNA1A/O)
EN ORIGINAL INSTRUCTIONS, VER. 01 2019-12-10

IMPORTANT NOTE:
Read this manual carefully before installing or operating your new air conditioning unit.
Make sure to save this manual for future reference.

R32: 675
This marking indicates that this product should not be disposed with other household wastes
throughout the EU. To prevent possible harm to the environment or human health from un-
controlled waste disposal, recycle it responsibly to promote the sustainable reuse of mate-
rial resources. To return your used device, please use the return and collection systems or
contact the retailer where the product was purchased. They can take this product for envi-
ronmental safe recycling.
This appliance is not intended for use by persons (including children) with reduced physical, sensory
or mental capabilities, or lack of experience and knowledge, unless they have been given supervision
or instruction concerning use of the appliance by a person responsible for their safety.
Children should be supervised to ensure that they do not play with the appliance.
If it needs to install, move or maintain the air conditioner, please contact dealer or local service
center to conduct it at first. Air conditioner must be installed, moved or maintained by appointed
unit. Otherwise, it may cause serious damage or personal injury or death.
Frequency band(s) in which the radio equipment operates 2401MHz-2483MHz
Maximum radio-frequency power transmitted in the frequency band(s) in which the radio equipment
operates 20dBm
Maintenance
Content
Operation Notices
The Refrigerant .................................................................................................... 1
Precautions........................................................................................................... 2
Emergency operation ........................................................................................... 8
Clean and maintenance........................................................................................ 9
Screen Operation Guide
Parts name.......................................................................................................... 20
Buttons on remote controller................................................................................ 21
Introduction for buttons on remote controller....................................................... 22
Function introduction for combination buttons..................................................... 26
Malfunction
Malfunction analysis............................................................................................. 28
Replacement of batteries in remote controller..................................................... 27

Explanation of Symbols
Exception Clauses
Indicates a hazardous situation that, if not avoided, will
Manufacturer will bear no responsibilities when personal injury or
1.Damage the product due to improper use or misuse of the product;
2.Alter, change, maintain or use the product with other equipment without abiding
by the instruction manual of manufacturer;
product;
4.After verification, defects are due to improper operation during transportation of
regulations;
5.Operate, repair, maintain the unit without abiding by instruction manual or related
performance of parts and components that produced by other manufacturers;
6.After verification, the problem or dispute is caused by the quality specification or
majeure.
7.The damage is caused by natural calamities, bad using environment or force
3.After verification, the defect of product is directly caused by corrosive gas;
property loss is caused by the following reasons.
result in death or serious injury.
Indicates a hazardous situation that, if not avoided, could
result in death or serious injury.
Indicates a hazardous situation that, if not avoided, may
result in minor or moderate injury.
Indicates important but not hazard-related information,
used to indicate risk of property damage.
Indicates a hazard that would be assigned a signal word
WARNING or CAUTION.
DANGER
WARNING
CAUTION
NOTICE

1
The Refrigerant
WARNING：
To realize the function of the air conditioner unit, a special refrigerant circulates in
the system. The used refrigerant is the fluoride R32, which is specially cleaned.
The refrigerant is flammable and inodorous. Furthermore, it can leads to explosion
under certain conditions. But the flammability of the refrigerant is very low. It can
be ignited only by fire.
Compared to common refrigerants, R32 is a nonpolluting refrigerant with no harm
to the ozonosphere. The influence upon the greenhouse effect is also lower. R32
has got very good thermodynamic features which lead to a really high energy
efficiency. The units therefore need a less filling.
Do not use means to accelerate the defrosting process or to clean, other than those
recommended by the manufacture. Should repair be necessary, contact your nea-
rest authorized Service Centre. Any repairs carried out by unqualified personnel
may be dangerous. The appliance shall be stored in a room without continuously
operating ignition sources. (for example: open flames, an operating gas appliance
or an operating electric heater.) Do not pierce or burn.
Appliance shall be installed, operated and stored in a room with a floor area larger
than 10m2.
Appliance filled with flammable gas R32. For repairs, strictly follow manufacturer’s
instructions only. Be aware that refrigerants may not contain an odour. Read specialist’s
manual.
Appliance filled with flammable gas R32.
Before use the appliance, read the owner’s manual first.
Before repair the appliance, read the service manual first.
Before install the appliance, read the installation manual first.

2
Precautions
WARNING
Do not connect air conditioner to multi-purpose socket.
This appliance can be used by children aged from 8
Operation and Maintenance
If the supply cord is damaged, it must be replaced by
the manufacturer, its service agent or similarly qualified
persons in order to avoid a hazard.
Do not spray water on indoor unit. It may cause electric
shock or malfunction.
Otherwise, it may cause fire hazard.
Children shall not play with the appliance.
Cleaning and user maintenance shall not be made by
children without supervision.
years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience
and knowledge if they have been given supervision or
instruction concerning use of the appliance in a safe
way and understand the hazards involved.
Do not wash the air conditioner with water to avoid
electric shock.
After removing the filter, do not touch fins to avoid injury.
Do not use fire or hair dryer to dry the filter to avoid
deformation or fire hazard.
Do disconnect power supply when cleaning air
conditioner. Otherwise, it may cause electric shock.

Do not block air outlet or air inlet. It may cause
malfunction.
remote controller may be broken.
●Power cord is overheating or damaged.
●There’s abnormal sound during operation.
●Circuit break trips off frequently.
●Air conditioner gives off burning smell.
●Indoor unit is leaking.
contact the dealer or qualified professionals for service.

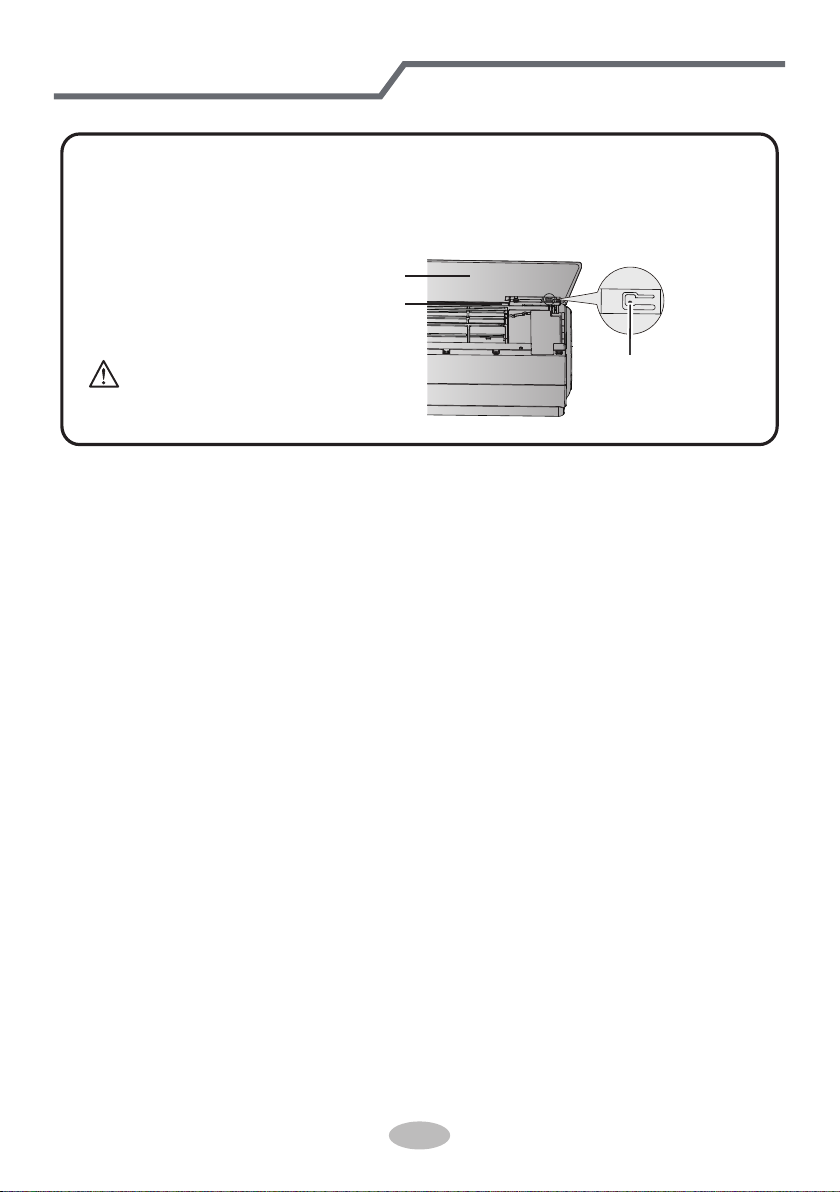

When turning on or turning off the unit by emergency
operation switch, please press this switch with an insulating
object other than metal.
outlet. It may cause personal injury or damage.
Precautions
WARNING
conditioner and disconnect power immediately, and then
If the air conditioner operates under abnormal conditions,
it may cause malfunction, electric shock or fire hazard.
Do not spill water on the remote controller, otherwise the
electric shock or damage. Please contact dealer when
you need to repair air conditioner.
Do not repair air conditioner by yourself. It may cause
objects. It may cause damage or personal injury.
Do not step on top panel of outdoor unit, or put heavy
When below phenomenon occurs, please turn off air
Do not extend fingers or objects into air inlet or air
Maintenance must be performed by qualified
professionals. Otherwise, it may cause personal injury
or damage.
3

Do install the circuit break. If not, it may cause malfunction.
Precautions
According to the local safety regulations, use qualified
power supply circuit and circuit break.
WARNING
Must follow the electric safety regulations when installing
the unit.
Be sure to cut off the power supply before proceeding
any work related to electricity and safety.
Don't use unqualified power cord.
Make sure the power supply matches with the requirement
of air conditioner. Unstable power supply or incorrect wiring
may result in electric shock, fire hazard or malfunction.
Please install proper power supply cables before using the
air conditioner.
Properly connect the live wire, neutral wire and
grounding wire of power socket.
Installation must be performed by qualified professionals.
Otherwise, it may cause personal injury or damage.
Attachment
An all-pole disconnection switch having a contact separation
of at least 3mm in all poles should be connected in fixed
wiring.
Including an circuit break with suitable capacity, please
note
the following table. Air switch should be included
magnet buckle and heating buckle function, it can protect
the circuit-short and overload.
Air Conditioner should be properly grounded. Incorrect
grounding may cause electric shock.
4

Installation must be performed in accordance with the
persons in order to avoid a hazard.
must be properly grounding with specialized grounding
device by a professional. Please make sure it is always
grounded effectively, otherwise it may cause electric shock.
The appliance must be positioned so that the plug is
accessible.
If the length of power connection wire is insufficient, please
contact the supplier for a new one. Avoid extending the
wire by yourself.
All wires of indoor unit and outdoor unit should be
connected by a professional.
national wiring regulations.
requirement of NEC and CEC by authorized personnel
only.
Precautions
WARNING
wire, which can't be used for other purposes.
The grounding resistance should comply with national
electric safety regulations.
The air conditioner is the first class electric appliance. It
keep the interconnection cable away from the copper
tube.
The temperature of refrigerant circuit will be high, please
the manufacturer, its service agent or similarly qualified
If the supply cord is damaged, it must be replaced by
The yellow-green wire in air conditioner is grounding
The appliance shall be installed in accordance with
Do not put through the power before finishing installation.
5

The indoor unit should be installed close to the wall
reachable after finishing installation.
Please notice that the unit is filled with flammable gas
R32. Inappropriate treatment of the unit involves the
risk of severe damages of people and material. Details
to this refrigerant are found in chapter “refrigerant”.
Check whether the maintenance area or the room area
meet the requirement of the nameplate.
- It’s only allowed to be operated in the rooms that meet
the requirement of the nameplate.
Check whether the maintenance area is well-ventilated.
- The continuous ventilation status should be kept
- The naked flame is prohibited in the maintenance area;
- Replace the vague or damaged warning mark.
unload and open the container.
in the maintenance area.
during the operation process.
and the “no smoking” warning board should be hanged.
Check whether there is fire source or potential fire source
Check whether the appliance mark is in good condition.
Please use the flammable gas detector to check before
No fire source and smoking.
According to the local rules and laws.
far away from animals or plants.If it is unavoidable,
please add the fence for safety purpose.
6
Precautions
WARNING
place, only the qualified person can perform the work.
Otherwise, it may cause personal injury or damage.
If you need to relocate the air conditioner to another
must be installed in the line.
For the air conditioner without plug, an circuit break
Select a location which is out of reach for children and
For the air conditioner with plug , the plug should be

Indoor side DB/WB(℃) Outdoor side DB/WB(℃)
Maximum cooling 32/23 43/26
Maximum heating 27/- 24/18
●
NOTICE:
The operating temperature range (outdoor temperature) for heat pump unit of
low-temperature cooling is -15℃~ 43℃.
For heat pump unit of low-temperature cooling and heating is
-22℃~ 43℃.
Precautions
WARNING
Leak test is a must after installation.
It is not allowed to drill hole or burn the connection pipe.
The air conditioner must be installed in a room that is
larger than the minimum room area. The minimum room
area is shown on the nameplate or following table a.
The air conditioner is not allowed to use in a room that
has running fire (such as fire source, working coal gas
ware, operating heater).
Instructions for installation and use of this product are
provided by the manufacturer.
7
Working temperature range

Emergency operation
WARNING:
Use insulated object to press the auto button
aux. button
panel
display
If remote controller is lost or damaged, please use aux.button to turn on or
turn off the air conditioner. The operation in details is as below:
As shown in the fig. Open panel, press aux. button to turn on or turn off the
air conditioner. When the air conditioner is turned on, it will operate under
auto mode.
8

Clean and maintenance

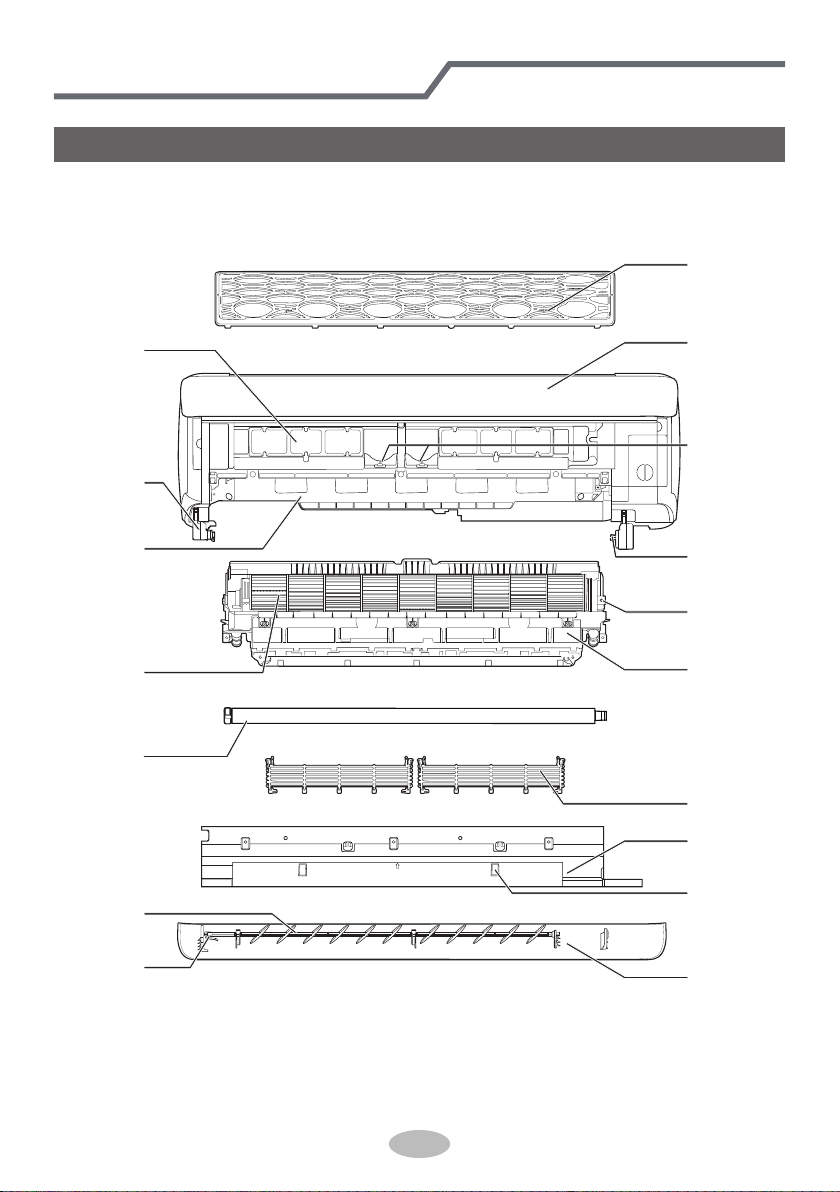

Schematic diagram of parts
Filter
Evaporator
Swing motor
Base
Blade
Drainage pipe
Screw cover
Clasp of swing
blade
Panel
Storage groove
of screw
Silver screw
Cross buckle
Bottom case
Guard network
Air-outlet frame
Guide louver
Swing blade
9

Clean and maintenance
Do not touch the
aluminum fins with
hand directly.
Otherwise, it may
cause injury.
Prohibition
Do not wash the
Prohibition
Prohibition
10
Notices for clean
electrical components
Prohibitionwith water.
Warning
Please select the clean procedure according to the actual operation environment
or the degree of dirt of parts.
Indoor unit clean
Caution
Before maintenance, please
do cut off the power.
Otherwise, it may cause
electric shock.
During disassembly
process, do not
stand underneath
the air conditioner.
During the process of
maintenance, please
make sure the stand
position is stable and
reliable. Otherwise,
it may cause injury.

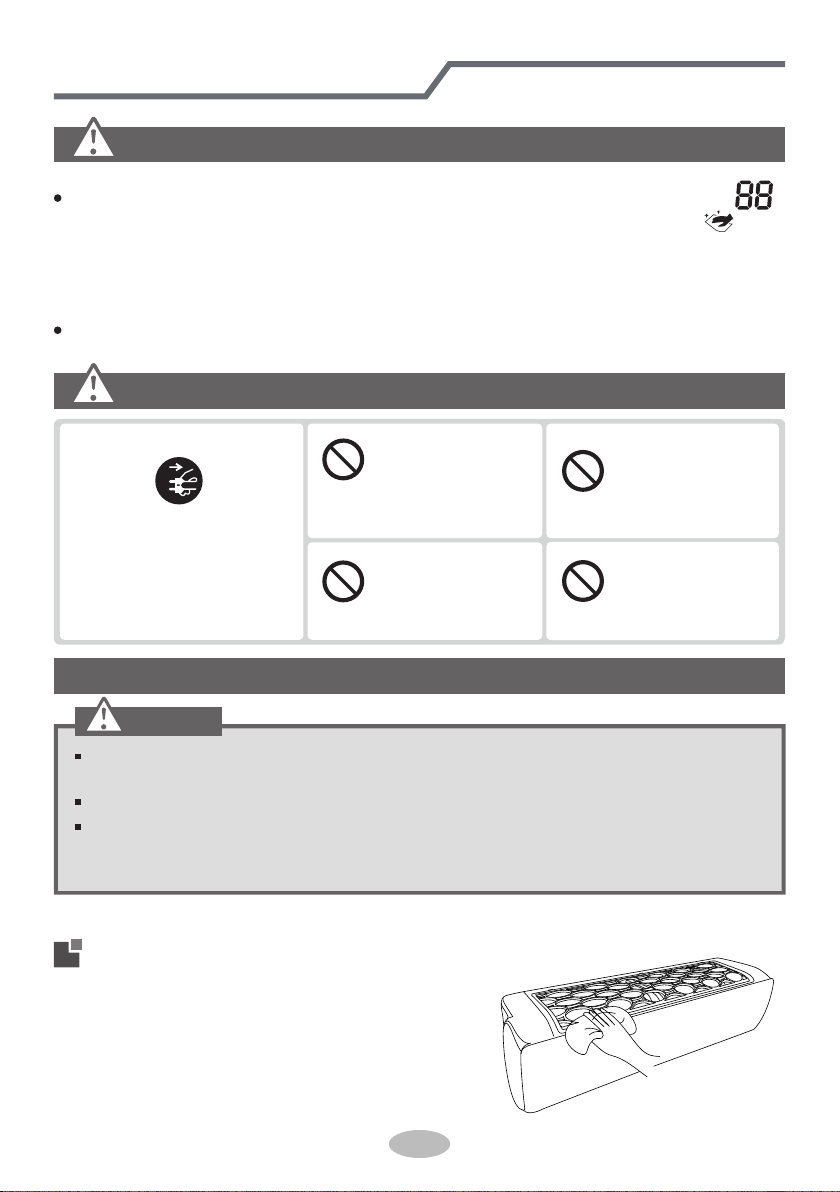

Do not use volatile liquid (such as thinner, gasolin, etc.) to clean the air
conditioner. Otherwise, the appearance of the air conditioner may be damaged.
When the unit has operated for a period of time and the display flashes to display " "
continuously, it indicates you should clean the air conditioner. When hold “ ”
button on the remote controller for 3s to enter into deep cleaning (power must be
cut off for cleaning) under off status, the reminding status will disappear after
turning on the unit. If you don't want to clean the air conditioner at the moment,
press the combination buttons of "MODE+TEMP" to cancel this remind.
Daily clean (appearance/filter clean)
Wipe the appearance
P
Do not use liquid or corrosive detergent clean the appliance and do not splash
water or other liquid onto it, otherwise, it may damage the plastic components,
even cause electric shock.
lease use clean and soft cloth to wipe the appearance of the air conditioner.
Please pull out the
power plug
When there's dust on the appearance of the
unit, please wipe it with soft cloth; When the
surface is dirty (such as grease), please use
immerse the cloth into warm water (45℃),
wrist up it and then wipe the surface. You can
also dip a little neutral detergent when it's
nessary.

Clean and maintenance
Filter
Handle
Filter clean

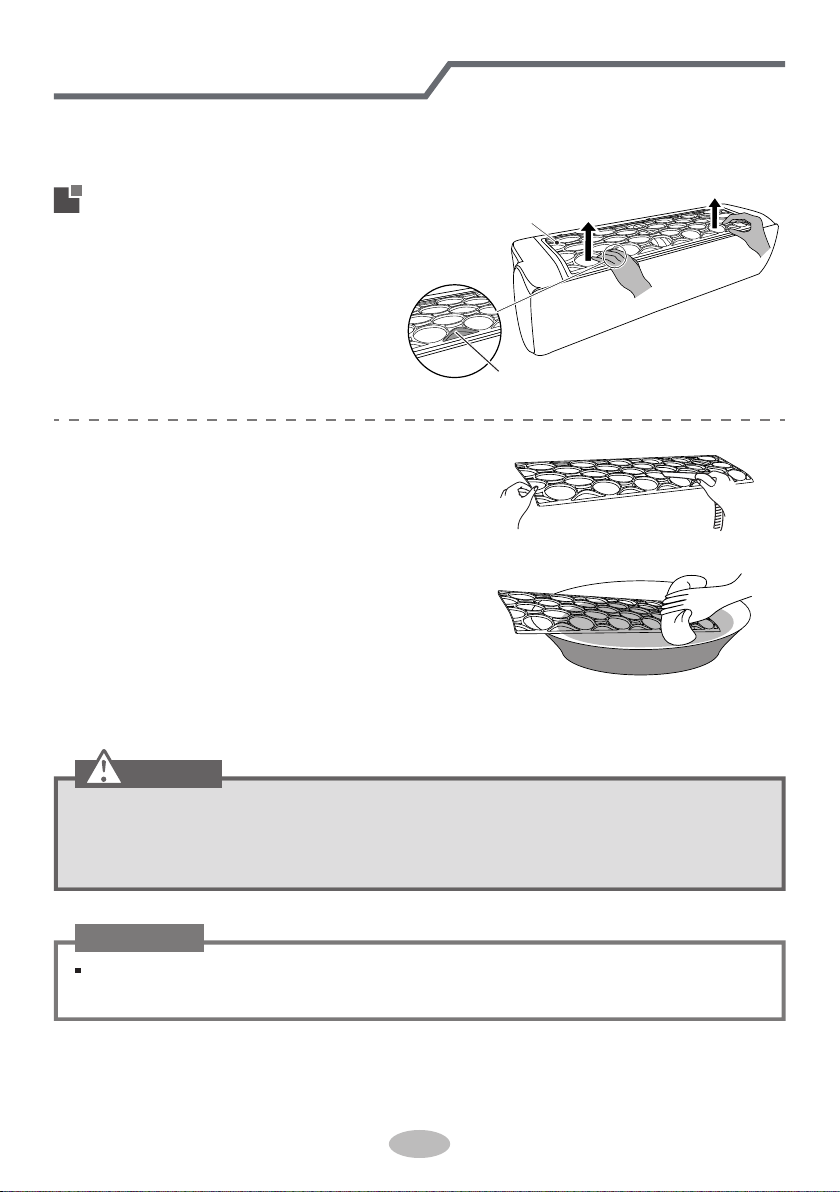

①Hold the handles at both sides of filter with
both hands, and then pull the filter upwards
to remove it.
②Use clear water to wash it or dust catcher to
clean it. If the filter is very dirty (such as
grease), use warm water (45℃) dissolved
with neutral detergent to clean it, and then
put it at the shady place to dry it.
Caution
Reminder
Do not use hot water (more than 45℃) to clean the filter to prevent color losing
or deformation.
Do not dry the filter on the fire or use hair drier to dry the filter. Otherwise, it may
cause fire or deformation.
User can select the clean period according to the actual circumstances and
operation environment.
11

Clean and maintenance
12
Deep clean (parts clean)
Claps of
swing blade
swing motor
T-ON
Guide louver clean
①Under standby status, press
button for 3s, and the display flashes
to display . Meanwhile, the guide
louver will open automatically.
②When the guide louver automatically
rotates to the maximum position,
will disappear. Cut off the
power.
④Press the left side connection rod
with left hand, hold the guide louver
with the right hand, and then pull
the guide louver outwards.
⑥Immerse the cloth into the warm
water (45℃), wring it out and then
wipe the dirty part slightly. After
that, dry it.
③Press the clasp at the left side of
the swing blade and pull it to the
right side, and then it can separate
with the swing motor.
⑤Press the cross clasp at the right
side of guide louver with right hand,
hold the guide louver with left hand
and then draw out the guide louver
to the left side.
⑦When the installation is finished,
energize the air conditioner again
until the guide louver is reset
automatically and then the unit can
be operated.

Clean and maintenance
13
maximum
panel
panel Storage groove of screw
Air-outlet frame clean
Caution
The black screw is the removable screw. Prohibit disassembling the silver screw
at your will (except the silver screw of blade).
Prevent the air-outlet frame dropping to avoid injury.
①Open the panel with both hands.
When the panel is opened to the
maximum angle (when a sound has
been heard), the panel can be fixed.
③Open the screw cover at the lower
side of the air-outlet frame and then
use screwdriver to remove 2 black
screws.
⑤Immerse the cloth into the warm water (less than 45℃), wring it out and
then use it to wipe the dirty part, and then dry it.
②Use screwdriver to remove 3 black
screws on the upper side of the
air-outlet frame. After that, put the
screws into the storage box of screw.
④Pull the air-outlet frame outwards
according to the diagram as below
and then remove it.

Clean and maintenance
14
1.Pull out the drainage pipe
Note: Do not twist off
the silver screws.
Right drainage
pipe
Blade node
Lock status Unlock status
Fig.1
Fig.2
Write drainage pipe
Bottom case and parts clean
Press the beige locking spring at both
ends of white drainage pipe simulta-
neously, and then pull the drainage
pipe backwards.
2.Remove the guard net
Caution: There may be residual water drop
in the drainage pipe. Please make the outlet
of drainage pipe face upwards when then
drainage pipe is removed.
Press spring fastener at both sides of the guard
net with both hands simultaneously and pull it
upwards,and then remove the guard
net.

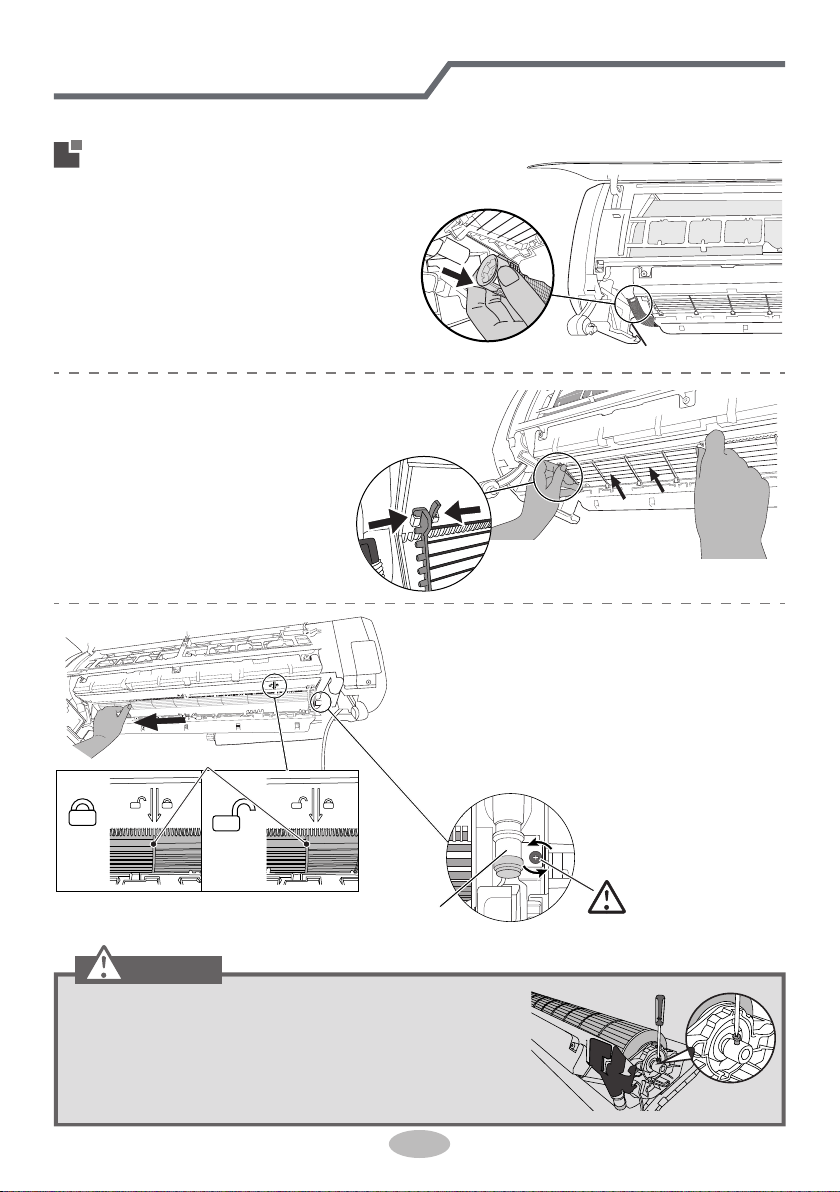

3.Remove blade
① Rotate the blade slightly and the find the silver
screw at the right side of the blade. Use the
screwdriver to loose the silver screw for
2-3 circles slowly in an anticlockwise direction.
(as shown in fig.1)
②Until the blade can slide to the left side to
unlock status (as shown in fig.2).
Caution
If the screw is removed carelessly when disassembling
the blade, put the blade sub-assy on the ground flatly,
rotate the screw into the axle sleeve of blade (2-3 circles
clockwise), fix the blade sub-assy at the indoor unit and
then fix the screw at the motor shaft. Tighten the screws
as shown in the right figure (2-3 circles clockwise).

Clean and maintenance
15
Caution: Do not wash or wipe
the aluminium shaft of blade
and the black sponge.
Press point
Press point
Caution: There is lubricating oil at
the shaft rubber block. Do not clean
or wipe it.
③Remove 4 black screws at both sides used for fixing the bottom case.
④Press the appointed positions at both sides with both thumbs (as shown in
below figure), hold the bottom case with other four fingers and then lift it
upwards, and then remove the bottom case of the air conditioner.
Caution
When user has remove the bottom case, do not touch the evaporator to prevent
scratching the fingers.
⑤Immerse the cloth into water (below 45℃), wring it out and then wipe the
dirty position of the unit. After that, dry the cloth.

Clean and maintenance
16
Caution
Guide rail of base
Hand-shape
Blocking position
Install bottom case
1
Indoor unit installation
Before reinstall the bottom case when it has
been cleaned, please check whether the blade
has been pushed to the left side.
Hold the position with " " under the bottom case, push it upwards parallel
along the guide rail of base and then check whether the both ends of bottom
case is set into the tail of the guide rail of base for ensuring the installation.
Fix the bottom case
2
①Check whether the guide rail of
bottom case is installed at the
blocking position of base.
② When the bottom case is assembled,
take 4 screws from the storage box
of screw at the middle of the front
case and then use the screwdriver
to fix these 4 screws at the bottom
case.
