Gree GPC08AH-A3NNC3B User manual

GPC08AH-A3NNC3B
GPC09AH-A3NNC3B
GPC10AH-A3NNC3B
MODEL:
Change for Life
Portable Air Conditioner
Owner's Manual
Residential Air Conditioners
Thank you for choosing Residential
manual carefully before operation and retain it for future reference.
Air Conditioners, please read this owner’s

SUMMARY 1
WORKING PRINCIPLE 1
STRUCTURE 3
OPERATING METHODS 4
Environmental temperature 6
OPERATION OF WIRELESS REMOTE CONTROL 7
DRAINAGE METHOD 11
10
ACCESSORIES AND INSTALLATION OF HEAT EXHAUST HOSE 13
MAINTENANCE 15
Names and functions of wireless remote control 7
Guide for operation- General operation 9
MALFUNCTION ANALYSIS 16
SAFE NOTE AND NOTICE 17
AFTER SALES SERVICE 18
Functions and operation methods of control panel
Guide for operation- Optional operation 9
5
Introduction for special function

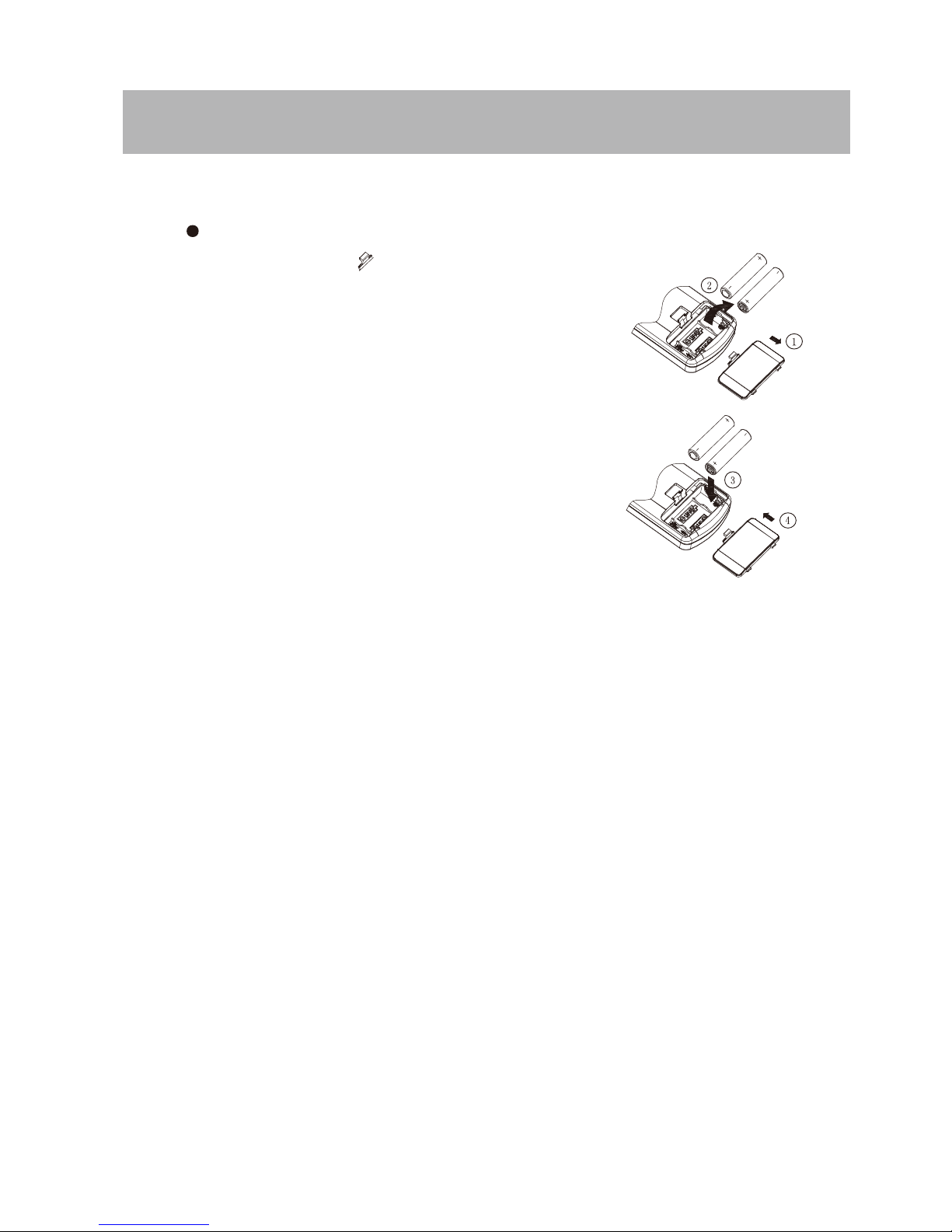

Changing batteries and notices
9
CONTENTS
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.

Thank you for your selection, please read this instruction carefully before operating and keep it for consultation.

Mobile Air Conditioner is a type of small, multifunctional and movable air conditioner that contains
functions of COOL, DRY and separate ventilation, and it can be moved freely according to different
location and occasion, it is suitable for office and houses especially those with many rooms.This
product also contains the advantages of compact configuration, excellent process, elegant
appearance, convenient moving, low cost and low noise.
Note: Please read this instruction carefully before operating the unit. This instruction is only for
reference the specification parameters are subject to be changed without notice.
Under function of fan motor, indoor airflow changed into cooled air through evaporator then
blew out, while the indoor airflow changed into heated air though condenser then blew out.
There are 2 flues designed on structure of this unit: heated air is discharged from rear air outlet
vent on back air conditioner while cooled air from front air outlet vent of the unit. After guide
louver, gentle and steady cooled airflow is produced to reach needed cooling effect.
Working principle
SUMMARY
WORKING PRINCIPLE
- 1-
evaporator
fluel
capillary
flue2
condenser
cool air
fan motor
heat air

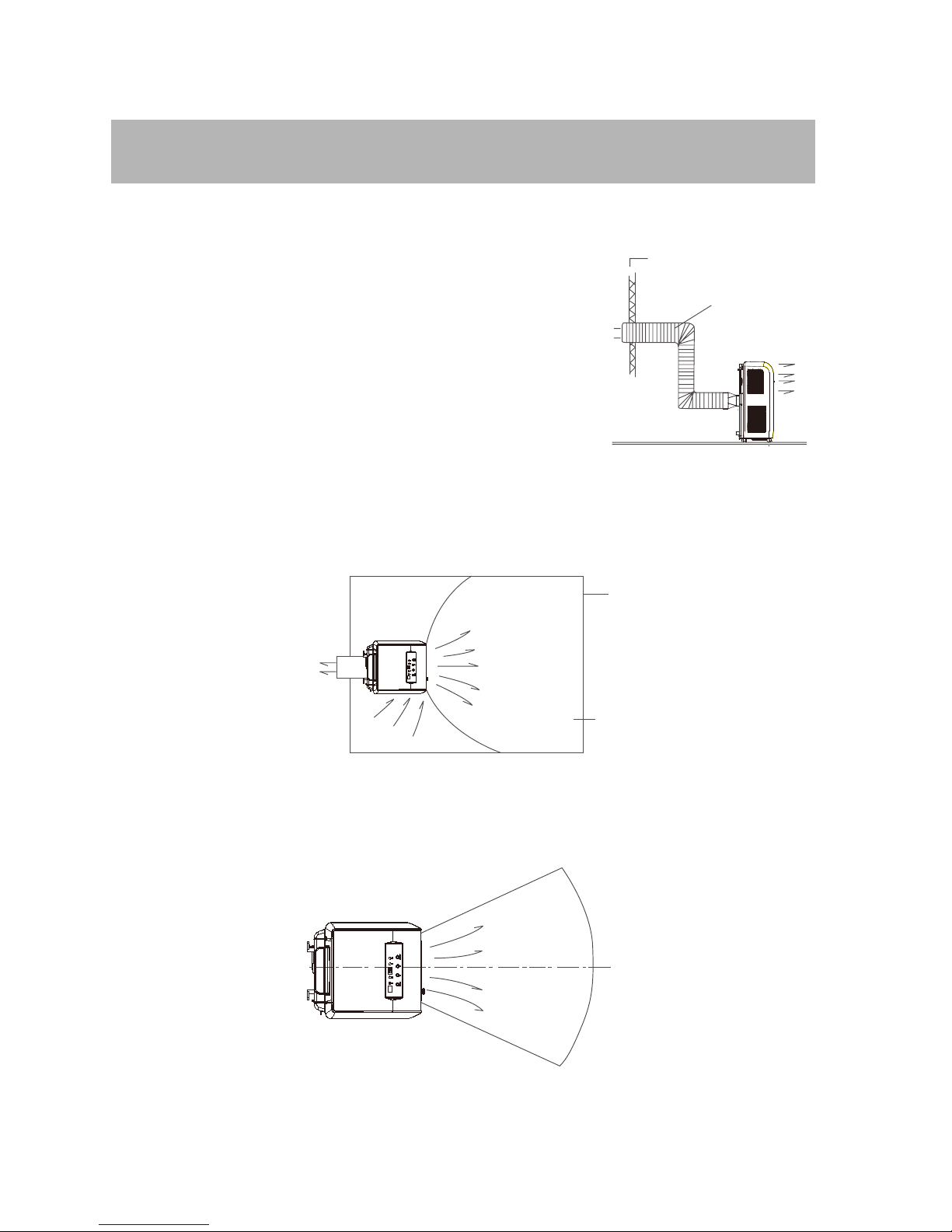

Usage Location
1.Where room area is smaller than 15m ,and wall(or building)has well heat insulation effect.As shown
in following figure,if unit is in shown location,the cooling effect will bebetter.
2.If room area is larger than 20m ,for example workshop or factory,the unit can only offer cooled air to
partial area(as shown in following figure),and people in this area can enjoy better cooling effect.
- 2-
When only used as dehumidifier,remember to take off heat
discharge pipe from unit and install it onto unit when the unit is
used as air conditioner.Since partial indoor air will be heated
as heat air and discharged to outside by discharge pipe after
cyc-ling then outdoor air will enter to maintain balance air
pressure,thus the air conditioner will only lower temperature
of partial re-gional air of indoor room instead of turning entire
indoor air to a lower temperature.
2
2
WORKING PRINCIPLE
window or wall
discharge pipe
cooled air
Heated air
Cooling
Flow direction
of cooled air
Mobile AC
Heat air
Room
region
1.5~2m
60~70
(Sector cooling area)

Rear
Air outlet vent
Upper air inlet grille
Lower air inlet grille
Control panel
Guide louver
Swing louver
Wheel
Power
Filters
Remote conrtoller box
cord
Front
STRUCTURE
- 3-

Power
The temp.range of this unit is16 35℃for cooli-
ng and ranges from 6 35℃for dehumidifying
the unit.
It is better to adopt power lead with pick up current above 15A to prevent
sudden drop of voltage when the unit is running.
It is necessary to exchange broken power hose by special power hose.
When it is necessary to change power hose or maintain,please contact the
seller and have them repaired by professional personnel.
Earth must be conducted reliably and should connect to special earthing.
equipments in building to ensure well earth.
Do not replace fuse by steel or copper and capacity for fuse should be pro-
per.it is forbidden to fix power on blade or sharp objects to prevent creep-
age leaded by mangled wire.
Circuitry must be installed and fixed by professional personnel following
te national wiring regulations.Creepage protect switch with enough capa-
Place the unit on horizontal floor when using and ma-
intain a distance for above 50cm from walls,surface
of flammable objects or other obstructions.
city and.
Check before connecting power:
The normal running fluctuation range of voltage of the unit is 10% of
value listed on nameplate.Too high or too low of voltage will influence
OPERATING METHODS
15A solenoid heat tripping air switch must be contained in circuitry. It is forbidden to connect earth
wire to water pipe or gas pipe,plug off power plug or cut off power supply when the unit is not going
to be used.
Earth
Power must contain reliable earth wire
Gas pipe
Water pipe
- 4-
Applyrange for COOL and DRY
Disposal requirement

Receiver window
WATER FULL light
MODE button
LED screen
DRY mode light
FAN mode light
Temperature selection button ON/OFF button
COOL mode light
- 5-
Functions and operation methods of control panel
When pressing key is valid,buzzer makes a sound,indicated light indicates relevant state,system
will last for 2 seconds.
6.
When the unit running in cool mode, it can decrease the temperature of the room, and make people
very comfortable.
7.
When it twinkling, that means the water in the tank is full, We should drain off the water.
Panel control
l.
3. MODE
In the state of running,press the key to enter the mode of COOL DEHUMIDIFY FAN.
4. Fan speed
Turn on or turn off the unit (press once to turn on unit and repress to turn off).
When working in FAN mode,it is good for air circulation.
5. Dry mode
When the unit running in the dry mode,it can decrease the humidity of the room.
ON/OFF
2. "+","-" key
In COOL mode, press "-" once, the set temperature will decrease 1 (1 ), press "+" once, the set
temperature will incresae 1 (1 ). The set temperature can be selected from 16 -30 (61 -86).
℃
℃℃℃
Cool mode
Water full
℉
℉℉℉

No matter under what circumstance after electrified,the interval between twice start of compressor should not
beless than 3 minutes;after started,compressor will not stop by the change of temp. in 6 minutes.
Closed doors and windows can get better dry effect.Press “ON/OFF” to turn on the unit and MODE
is selected DRY,then cool and dry indicated lights are on and unit runs in dry mode.
When drying,indoor fan motor runs in low speed,compressor and outdoor fan motor run continuously,set te-
mperature will not be displayed and is not adjustable.Discharge pipe is unnecessary to be installed.
Press“ON/OFF” to turn on unit,set temperature will not be displayed and is not adjusable;
Environmental temperature
Usage environmental temperature of this unit is 16 35℃.
1 Install heat discharge pipe well,select a location near door and window, connect the heat
discharge pipe to outside and note to leave an air return vent such as a window
or door to guarantee the indoor air return normal.
2 After press “ON/OFF” to turn on unit and pressed MODE to select cool mode,cool indicated
light on and unit runs in cooling way.
3 Turn on the switch firstly,approve to run in COOL mode,the air conditioner can select 3 fan speeds.
Dry
Compressor delay protect
FAN
While COOL is running,in order to raise cooling effect, please:
Draw up curtain to prevent sunshine from shining into the air conditioning room:
Prevent setting other heat source in the room.
Note
Note
Cool
- 6 -
the air conditioner can select 3 fan speeds.

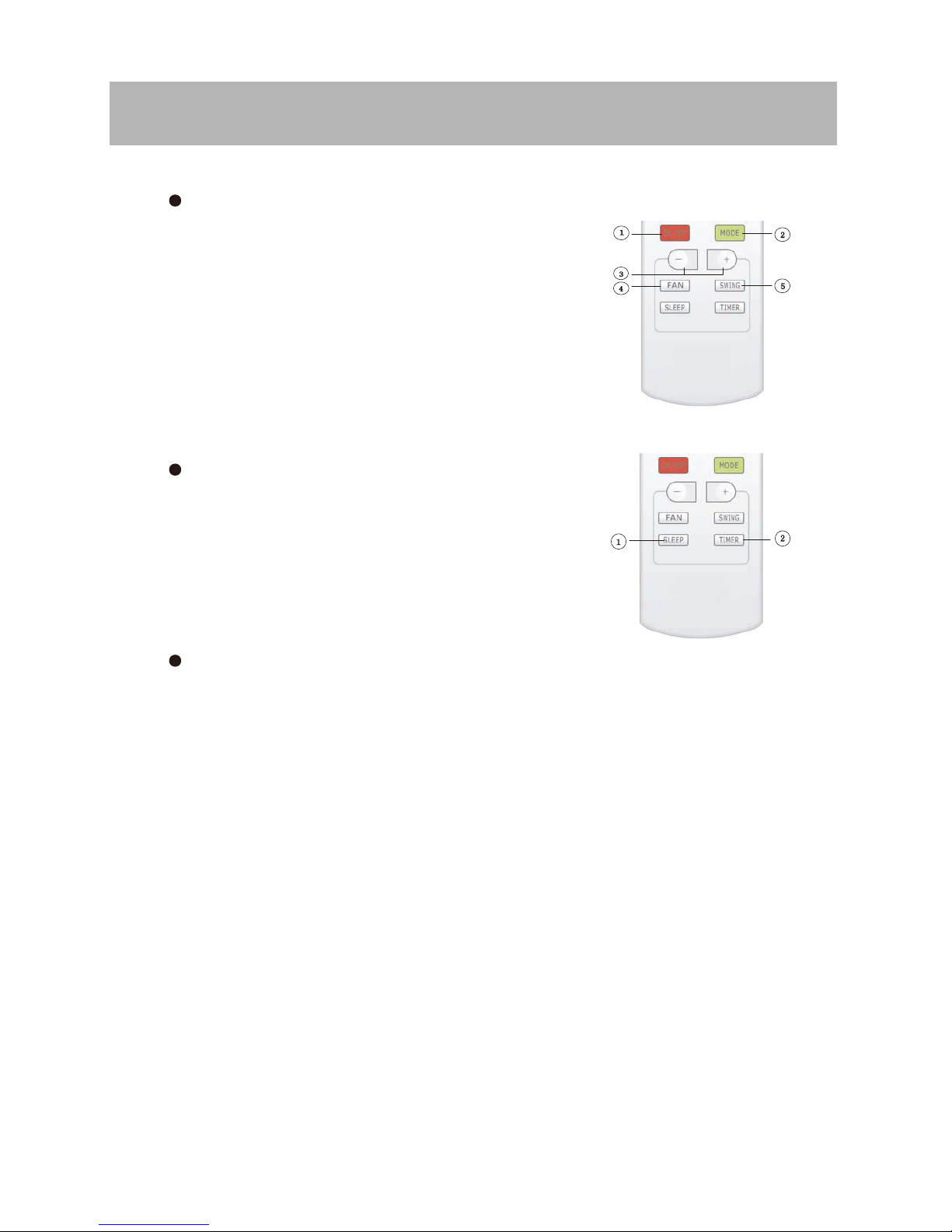

Names and functions of wireless remote control
●
ON/OFF button
ON/OFF
Remote control
Signal transmitter
▲▲▲▲▲
AUTO
COOL
DRY
FAN
HEAT (Only for cooling and heating unit.
As for cooling only unit, it won’t have
any action when it receives the signal
of heating operation.)
(Note: Not available on this unit.)
Fan 2Fan 1
Fan 3 Fan 4
Don't drop or throw the remote control; Don't let any liquid in the remote control and
Note: Be sure that there are no obstructions between receiver and remote control;
put the remote control directly under the sunlight or any place where is very hot.
●Press this button, Auto, Cool, Dry, Fan,
Heat mode can be selected circularly.
MODE button
MODE
Auto mode is default while power on.
Under Auto mode, the temperature will not
be displayed; Under Heat mode, the
initial value is 28 82
℉ ; Under other
modes, the initial value is 25 77
℉
●Press this button, Sleep On and Sleep
Off can be selected. After powered on, Sleep
SLEEP button
SLEEP
Off is defaulted. After the unit is turned
off, the Sleep function is canceled. After
Sleep function set up, the signal of Sleep
will display. In this mode, the time of timer
can be adjusted. Under Fan and Auto
modes, this function is not available.
●By pressing this key, you may select AUTO,
FAN 1, FAN 2, FAN 3 or FAN 4, and may
FAN button
FAN
cool mode. After being energized, AUTO
is defaulted. Only LOW fan can be set
Press this button, the unit will be turned on,
press it once more, the unit will be turned
off. When turning on or turning off the unit,
the Timer, Sleep function will be canceled,
but the presetting time is still remained.
not adjust the fan speed, but can send
(Note: When select Fan 4, the fan speed is
same as Fan 3 on this unit.)
message.
under DRY mode, pressing this key can
also cycle between them. FAN 4 only in
●
SWING button
SWING
Press this key to activate or deactivate
the swing.
AUTO COOL DRY
FAN
HEAT
-7-
with multifunction; For some function, which the model dosen't have, if press the
corresponding button on the remote controller that the unit will keep the original
running status.
Note: This is a general use remote controller, it could be used for the air conditioners
Note: Heat mode is not
available on this unit
Note:Swing mode is not available on this unit
OPERATION OF WIRELESS REMOTE CONTROL
AUTO

Remote control
●
+ button
+
●Presetting temperature can be decreased.
Press this button, the temperature can be
- button
-
set up, continuously press this button
and hold for two seconds, the relative
contents can quickly change, until unhold
this button and send the order that the ℃
(oF) signal will be displayed all the time.
The temperature adjustment is unav-
ailable under the Auto mode, but the order
can be sent by if pressing this button.
For presetting temperature increasing.
Press this button,can set up the temperature,
when unit is on . Continuously
press and
hold this button for more than 2 seconds,
the corresponding contents will be
changed
rapidly, until unpress the button
℃（℉）
laying all along. In Auto mode, the temp-
erature can not be set up, but operate this
button can send the signal. Centigrade
setting range :16-30; Fahrenheit scale
setting range 61-86.
then send the information, is disp-
●
By pressing this key under switch-off state,
you may set the time for auto switch-on. The
TIMER button
TIMER
range of setting is 0.5 ~ 24 hours. The
characters "T-ON" and "H" will flash for 5
seconds. Within 5 seconds,you may make
one press of this key to complete the setting
and send the message.If the setting is valid,
the set time will be displayed for 2 seconds
before display of the temperature message.
During flash, you may press "+" key to
increase the value and press "-" key to decrease
the value. The time will increase or decrease
by 0.5 hours with each press of this key.
If pressing "+" or "-" key continuously, the
time value will change rapidly. The remote
controller can increase the set time by 0.5
hours every 0.25 seconds. After being
energized, the fault is no timer setting, and
there is no display of "T-ON" or "H". Press
ON/OFF key to switch on the unit and cancel
the auto switch-on.When the temperature
display becomes constant, you may press
this key again to display the remaining set
time. The time value, "T-On" and "H" will
display constantly for 2 seconds. After 2
seconds,the preset temperature will be
displayed. Within these 2 seconds, you may
press this key again to cancel the auto
switch-on and send the message.
By pressing this key under switch-on state,
you may set the time for auto switch-off.
The method of setting as the same as for
auto switch-on.
●
- 8-
OPERATION OF WIRELESS REMOTE CONTROL

OPERATION OF WIRELESS REMOTE CONTROL
- 9 -
1. After powere on, pressON/OFF button, the unit will start to run.
2. Press MODE button, select desired running mode, enter into
the corresponding operation directly.
3. Pressing + or - button, to set the desired temperature. (It is unnecessary
set the temp. at AUTO mode.)
4. Pressing FAN button, set fan speed, can select AUTO, FAN 1, FAN 2,
FAN 3 or FAN 4.
(Note: When select Fan 4, the fan speed is same as fan3 on this unit)
5. Pressing SWING button, to select the swing.
(Note: Not available on this unit)
1. Press SLEEP button, to set sleep.
2. Press TIMER button, can set the scheduled timer on or timer off.
Guide for operation - General operation
Guide for operation - Optional operation
Introduction for special function
When AUTO RUN mode is selected, the setting temperature will not be displayed on the
LCD, the unit will be in accordance with the room temp. automatically to select the suitable
running method and to make ambient comfortable.
★About AUTO RUN
Under switch-on or switch-off state, you may hold "+" and "-" key simultaneously to lock and
unlock the keypad. When locked, the display will show the LOCK icon, in which case the
lock icon will flash three times upon operation of any key. After the keypad is unlocked, the
lock icon on the display will be hidden. After being energized, the default is unlock.
About switch between Fahrenheit and Centigrade
Under switch-off state, you may hold "-" and "MODE" keys simultaneously to switch between
and
℃℉.
★
★About LOCK
Under switch-on or switch-off state, you may hold "+" and "FAN" key simultaneously for 3
seconds to set the lamp on or off and send the code. After being energized, the lamp is
defaulted on.
★About Lamp

- 10 -
1. Slightly to press the place to take out the back cover of wireless
4. Attach the back cover of wireless remote control. (As show in figure)
2. Take out the old batteries. (As show in figure)
3. Insert two new AAA1.5V dry batteries, and pay attention to the polarity.
★
remote control. (As shown in figure)
(As show in figure)
When changing the batteries, do not use the old or different batteries,
If the wireless remote control will not be used for a long time, please
otherwise, it can cause the malfunction of the wireless remote control.
take them out, and don't let the leakage liquid damage the wireless
remote control.
The operation should be in its receiving range.
It should be placed at where is 1m away from the TV set or stereo sound sets.
If the wireless remote control can not operate normally, please take them out,
after 30s later and reinsert, if they cannot normally run, please change them.
NOTE:
●
●
●
●
●
Changing batteries and notices
OPERATION OF WIRELESS REMOTE CONTROL

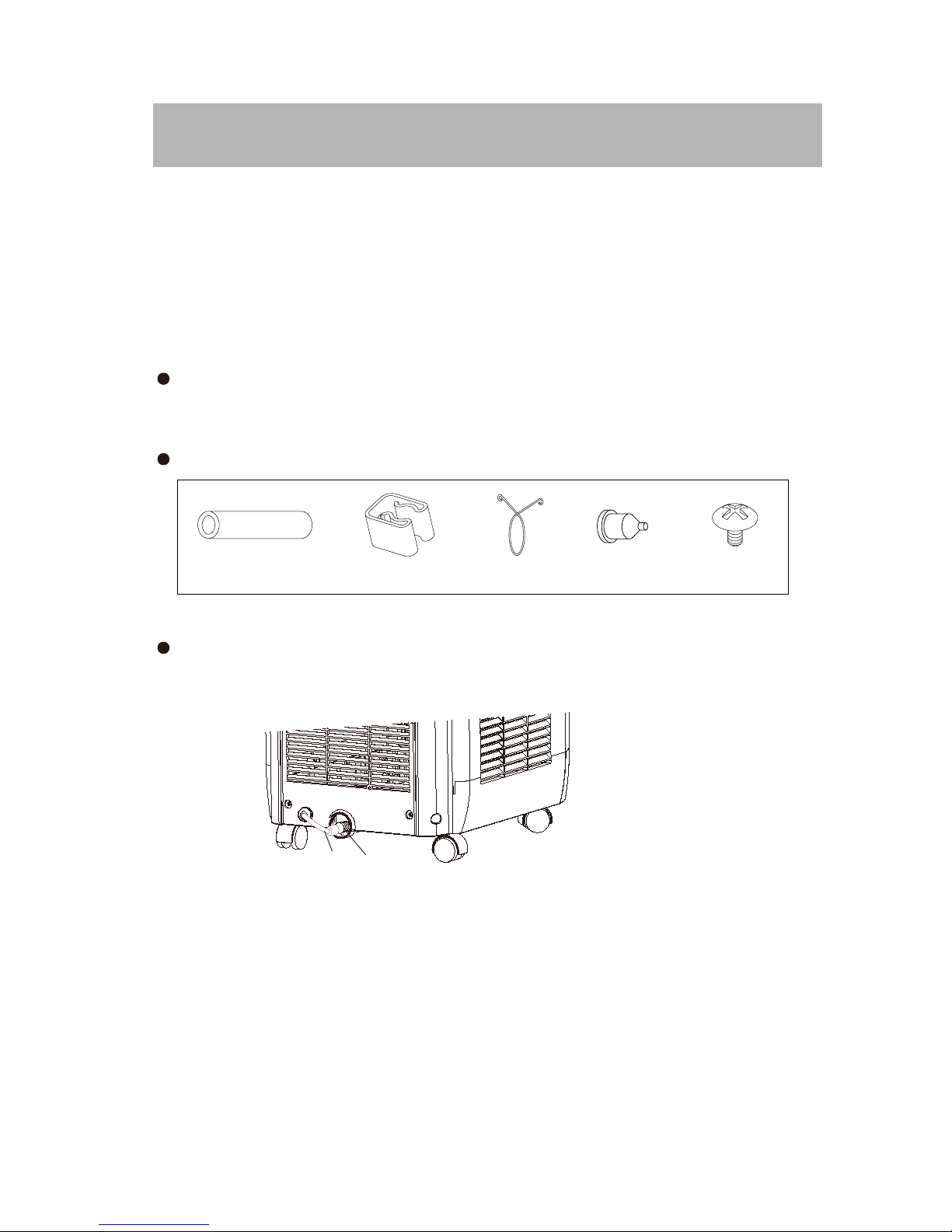

When COOL or DRY is running, condensate will drain to water tank.When water tank is filled buz-
zer will sound 8 timers for warn, water tank green indicated light on panel on with H8 displayed on
of condensate and fix drainage pipe fixing clamp as shown in following figure. The unit will resume
running when water filled protect released and compressor stops for 3 minutes.
display window and whole unit stop running. Plug out plug on drainage hose and take off the hose from
fixing clamp, then drain out water in tank. After that,plug the pipe plug onto pipe to prevent leakage
Install of drainage hose (as shown in following figure):
Note: Drainage hose must be installed before using otherwise block of drain may occur
and affects normal run of unit.
Drain Hose included:
Install Drain Hose
1. Remove drain cap from drain port.
Drain Cap
2. Attach one end of the drain hose to the drain port with the clamp. See Drain Hose graphic.
3. Insert the rubber plug into the other end of the drain hose and secure with clip. See Drain Hose graphic.
4. Attach the drain hose clamp to the back panel of the air conditioner near the drain port with the screw
provided.
A. Drain port
B. Drain cap
A
B
Drain hose Rubber plug Screw
DRAINAGE METHOD
- 11
-
Drain hose clip
Drain hose Clamp

5. Snap the free end of the drain hose into the drain hose clamp
Drain Hose
Install Exhaust Hose and Adapter
1. Roll air conditioner to its selected location. See “Location Requirements.”
2. Insert one end of the flexible exhaust hose into the exhaust adapter.
3. Twist clockwise to lock hose into place.
4. Insert the other end of the flexible exhaust hose into the window exhaust adapter.
5. Twist clockwise to lock hose into place.
A. Rubber plug
B. Drain port
C. Drain hose
D. Drain hose clip
E. Drain hose clamps
A. Exhaust adapter
B. Flexible exhaust hose
C. Window exhaust adapter
ABC
D
E
-
Drain Hose Clamp
A. Drain port
B. Attach drain hose clamp with screw provided.
AB
- 12
-
DRAINAGE METHOD
A
B
C

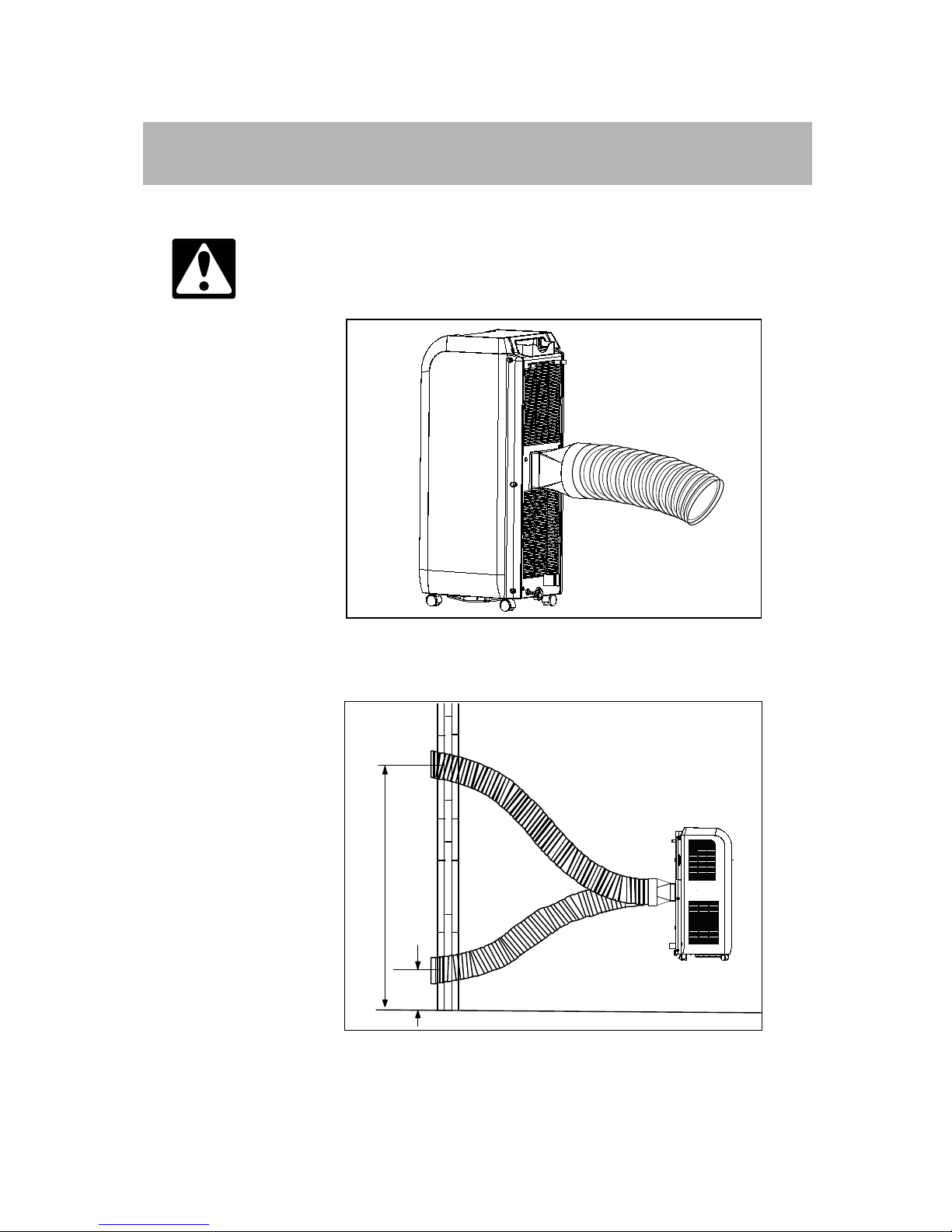

●Length range of exhaust pipe should be 500mm-1500mm.
It is recommended to use it with shortest length.
●When installing, exhaust pipe should be as flat as possible.
Don't prolong the pipe or connect it with other exhaust pipe, or
Correct installation is as shown in figure(When installing it on
wall, height of hall should be about 40cm-130cm from floor).
- 13 -
ACCESSORIES AND INSTALLATION OF HEAT EXHAUST HOSE
130cm
40cm

55c
65cm
m
55cm

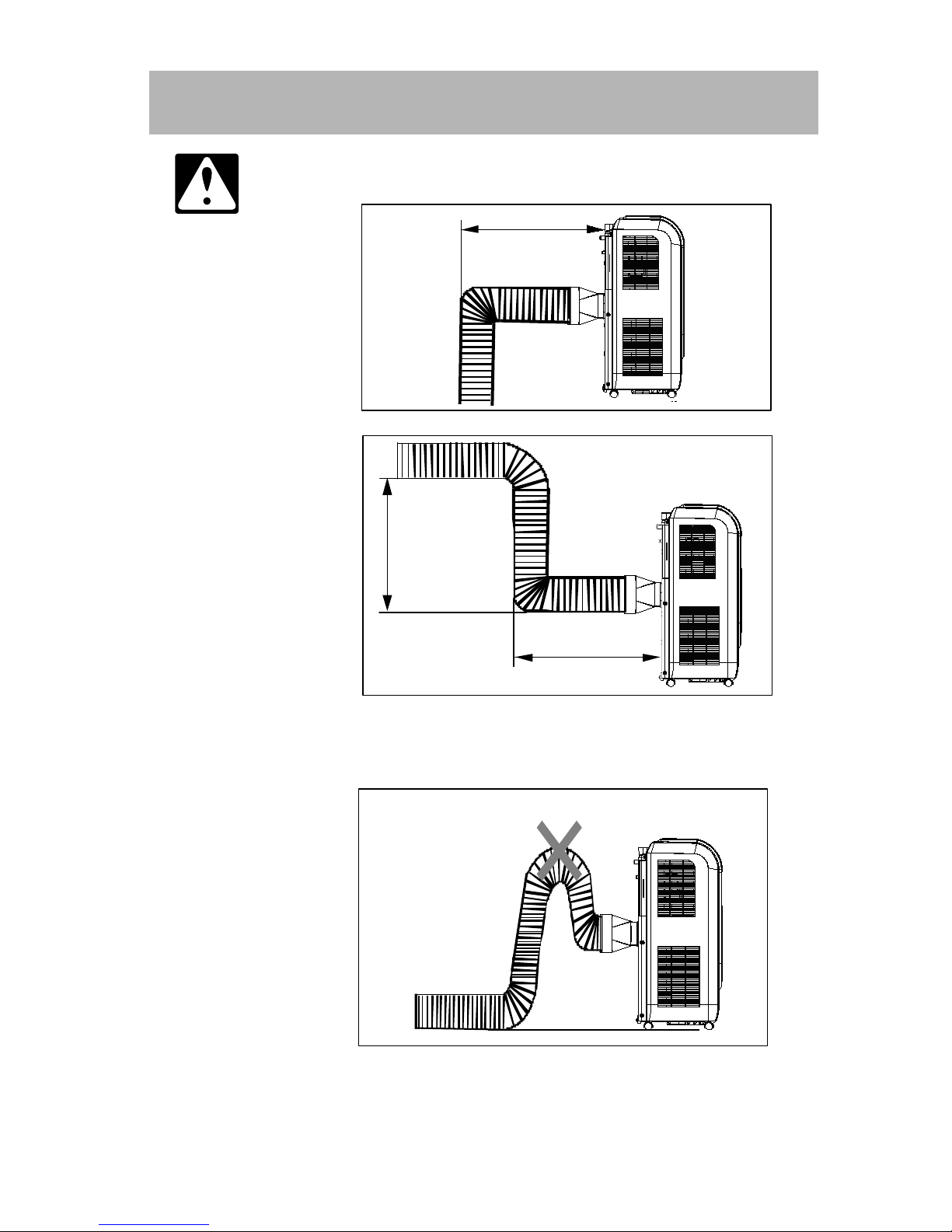

If the pipe are to be bent, please install it by considering
Wrong installation is shown in following figure (If the pipe is
following dimension.
bent too much, it would easily cause malfunction.)
- 14 -
ACCESSORIES AND INSTALLATION OF HEAT EXHAUST HOSE

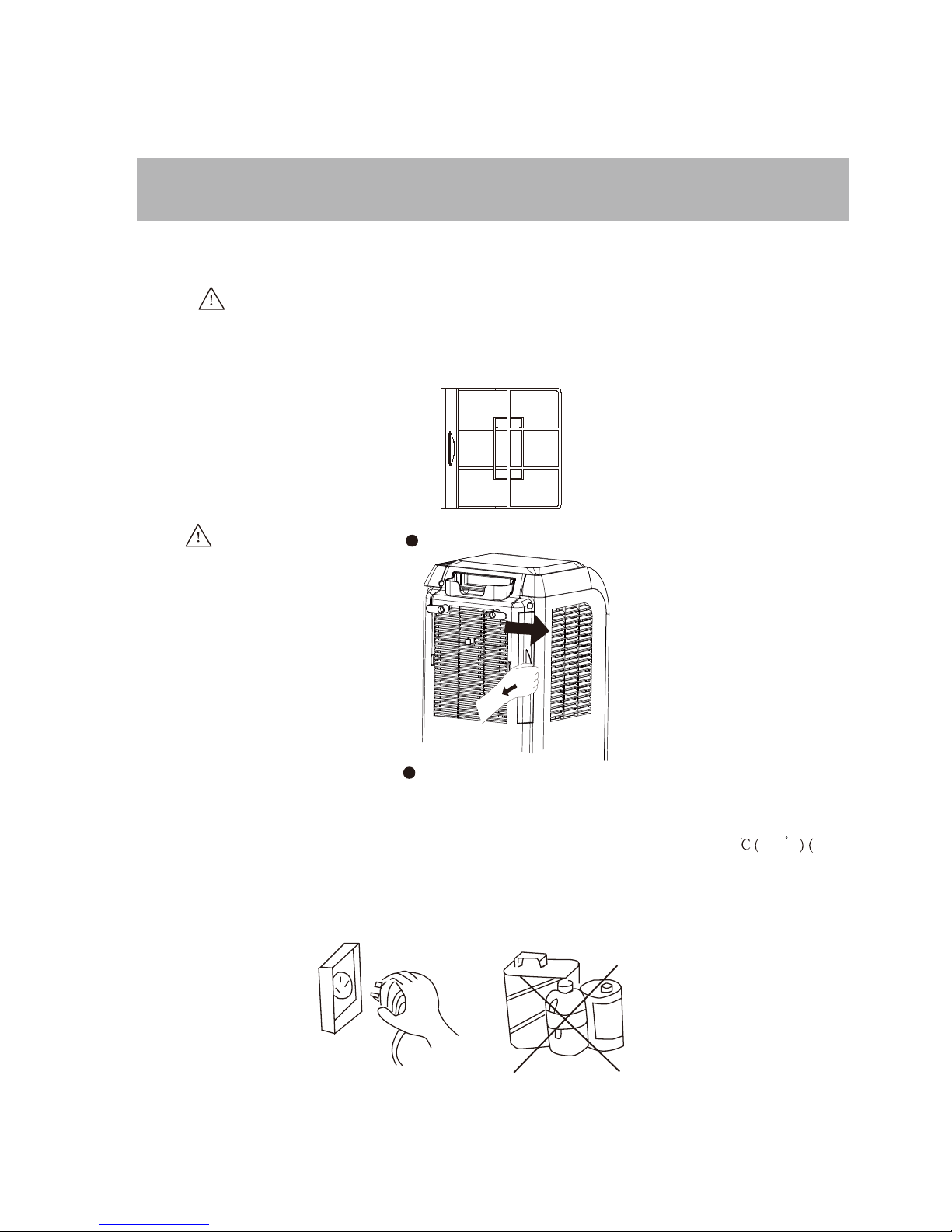

There are wheels at bottom of mobile air conditioner that enable the unit moves among
rooms conveniently according to need.
Pull out power plug from socket and cut off power before any maintenance to
prevent creepage occurs.
If too much duct deposed on filter,performance of air conditioner will reduce,
thus it is better to clean filter at least once 2 weeks.
Mobile AC
Warning
Clean air filter
Please soak the cloth by warm whose temperature is lower than 40 104 F or
soap water or water with proper cleaner)and wipe the dirty part on unit slightly
after the cloth is wrung.Don't clean the unit by gasoline,diesel oil or similar thing.
Pull out the power plug before cleaning.
Note: Disassembly
Wash
From these two direction to take out filters.
Clean filter individually,When cleaning,wash it by shooting
water(for example shower)and shakes it.Or soak it in warm
soap water then dry it.
Gas
Clean AC
1
2
MAINTENANCE
- 15
-

If malfunction occur, please check the following before maintenance:
protection.
Troubles
The air conditioner doesn't start.
Although it was set to COOL
mode, there is no cool wind.
Although it was set the DRY
mode, there is no cool wind.
The LED displays" ".
The LED displays" ".
Possible Causes
The power supply is not connected well
The power plug is not inserted tightly.
Thereis themalfunction of power plug
orsocket.
The fuseis broken.
1. The room temp. is lower than
the set temp.
2. The evaporator frosts.
1. The evaporator frosts.
1.Low voltage over current
The water tank gets full.
Solutions
1. Insert the powerplug tightly.
2. Replace the powerplug orsocket.
3. Ask for the maintenance man to
replace the fuse.
1. Thisis the normalphenomenon.
2. Unit is running indefrosting operation,
it will resume running inoriginal
operationafter defrosting.
1. Unit is running indefrosting operation,
it will resumerunningin original
operation afterdefrosting.
Cut off power supply, after 10
minutes, turn on theunit, if " "
still be displays, please inform the
maintenance manto maintain.
1 Pour outwaterin thetank
2 If the malfunction stillexists,
please inform the maintenance
manto maintain.
The LED displays" ".
The LED displays" ".
MALFUNCTION ANALYSIS
- 16 -
Check if indoor room temperature
sensor isconnected properly
Check if the evaporator temperature
is connected properly.
Malfunction of evaporator tem-
perature sensor.
Malfunction of evaporator tem-
perature sensor.

Location Don't place the unit in narrow location. Guarantee better ventilation for unit
to prevent malfunction occurs.
Don't place the unit in where there is direct sunburn to prevent fade and re-
duce of effect.
The unit should be at least 50cm away from surface of flammable thing.
Don't soak the unit or operate it in place where is easy to get wet to prevent
creepage.
Don't operate the unit in following location for malfunction may be led:
*Gas place *Fire *where is easy to get oil.
Consider safe problem to following people.
1)Children and patients
2)Sick people or who cannot express himself or herself
3)Those who are exhausted, badly drunk or taken lot of soporific.
Don't climb on the unit or place something on it for drop may occur and le-
ading malfunction.
Don't let wind blows to human directly for long time for it is not good for
health.
The unit should leave TV for at least lm to prevent disturbance of electro-
magnetic wave.
Don't block air inlet or outlet vent for it would lead malfunction.
Don't insert finger or stick etc. into air outlet vent; take special care to child-
ren to prevent accidence.
It is forbidden to slope or turn down air conditioner. Take off power plug
immediately if abnormal circumstance occurs and contact the authorized
seller for check and repair.
Don't sprinkle and shower unit by insecticide for it will lead deformation or
breakage
If your air conditioner has problems on quality or others, please contact lo-
cal seller.
Others:
SAFE NOTE AND NOTICE
- 17
-
Avoid using heating appliances near the air conditioner.
