Gree GJC05BT-A6NRNE1A User manual

Change for life
Owner's Manual
Original Instructions
Window Type Air Conditioner
Thank you for choosing our product.
Please read this Owner's Manual carefully before operation and
retain it for future reference.
If you have lost the Owner's Manual, please contact the local agent
or visit www.gree.com or send an email to [e-mail] for
the electronic version.

GJC05BT-A6NRNE1A
GJC05BT-A6NMNF1A
GJC05BT-A6NRNF1A
GJC05BT-A6NMNF1B
GJC05BT-A6NRNF1C
GJC06BT-A6NRNF1A
GJC06BT-A6NRNF1B

INSTALLATION INSTRUCTIONS.........................................................................................................................8
AIR CONDITIONER SAFETY...............................................................................................................................6
SAFETY PRECAUTIONS......................................................................................................................................3
Electrical Requirements........................................................................................................................................6

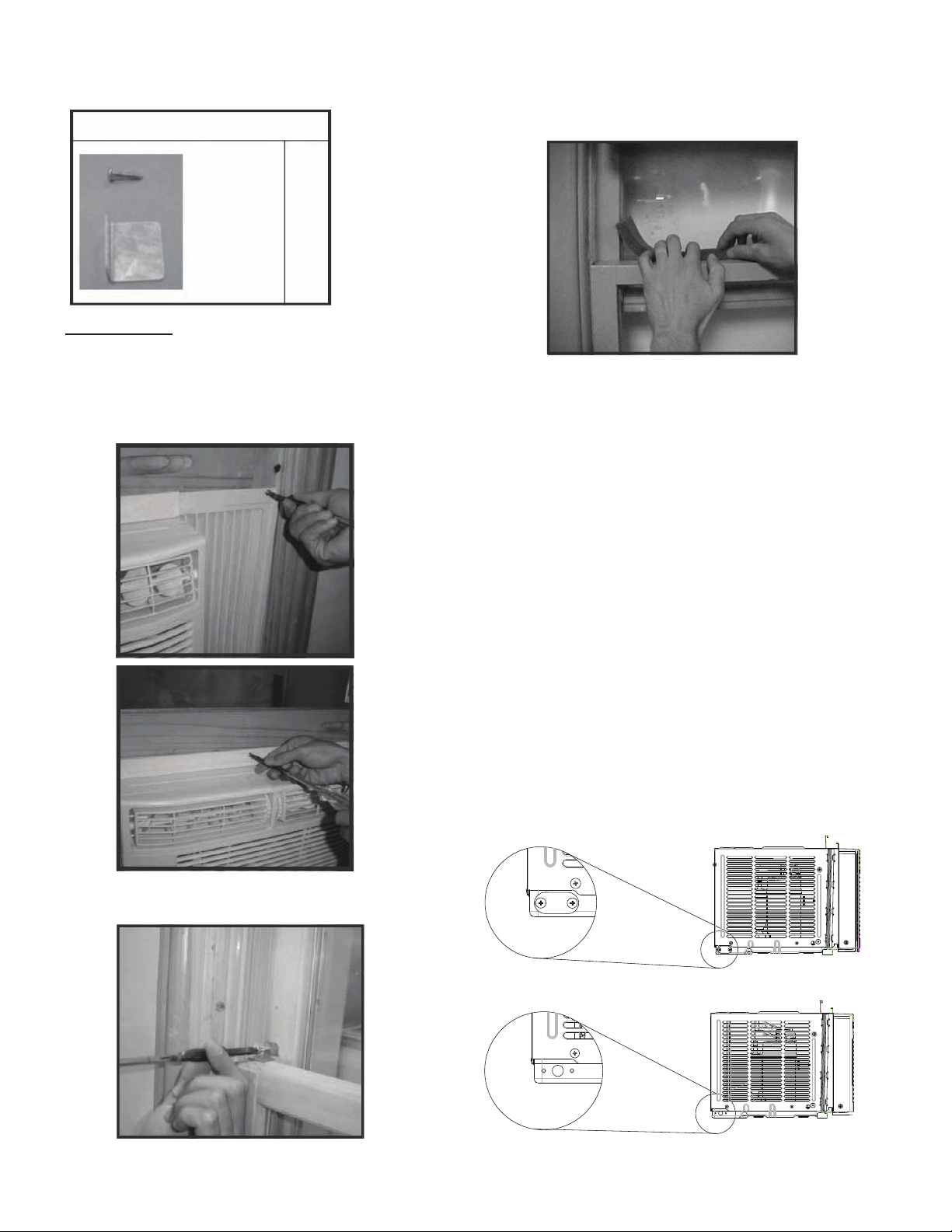

How to In stall..............................................................................................................................................9
AIR CONDITIONER USE.....................................................................................................................................11

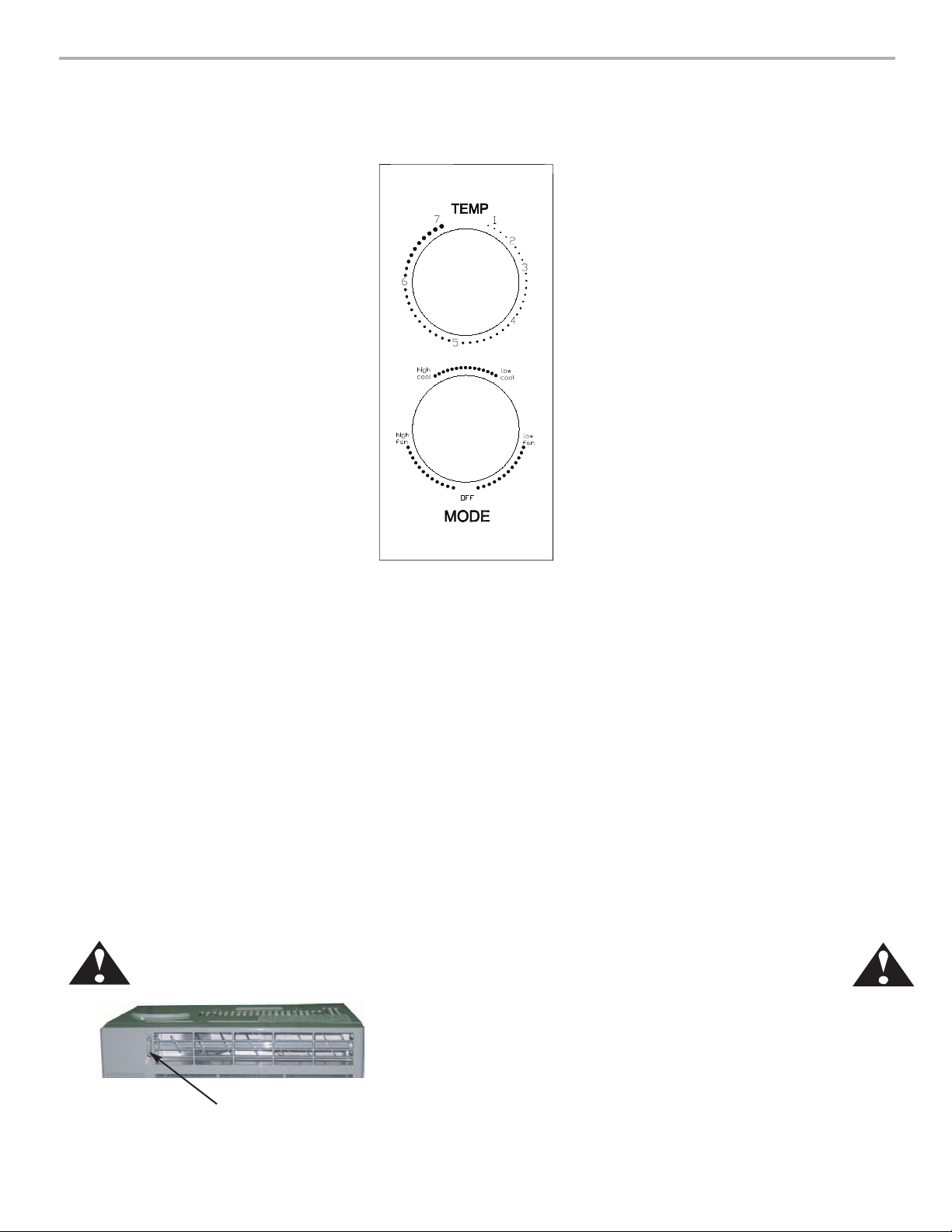

Function and Control..................................................................................................................................11
Introduction of remote controller.................................................................................................................13
Air conditioner Features....................................................................................................... ......................15
Care and Cleaning..............................................................................................................................................
16
TROUBLESHOOTING........................................................................................................................................17
ASSISTANCE OR SERVICE..............................................................................................................................18
TABLE OF CONTENTS
READ THIS MANUAL
Inside you will find many helpful hints on how to use and maintain your air co nditioner
properly. Just a little preventive care on your part can save you a great deal of time
and money over the life of your air conditioner. You'll find many answers to common
problems in the chart of troubleshooting tips. If you review our chart of Troubleshooting
Tips first, you may not need to call for service at all.
The air conditioner is not intended for use by young children or infirm persons without
supervision.
Young children should be supervised to ensure that they do not play with the air conditioner.
If the power cord is to be replaced, replacement work must be performed by
authorized
personnel only.
Installation work must be performed in accordance with the national wiring standards
by authorized personnel only.
Contact the authorized service technician for repair or maintenance of this unit.
Contact the installer for installation of this unit.
CAUTION
THE REFRIGERANT.............................................................................................................................................1
SAFETY OPERATION OF FLAMMABLE REFRIGERANT................................................................................19
SAFETY NOTICES FOR MAINTENANCE.........................................................................................................21

This appliance is not intended for use by persons (including children) with reduc-
ed physical, sensory or mental capabilities or lack of experience and knowledge,
unless they have been given supervision or instruction concerning use of the ap-
pliance by a person responsible for their safety. Children should be supervised to
ensure they are away from the appliance.
This appliance can be used by children aged from 8 years and above and
Children shall not play with the appliance.
Cleaning and user maintenance shall not be made by children without supervision.
persons with reduced physical,sensory or mental capabilities or lack of experience
and knowledge if they have been given supervision or instruction concerning use of
the appliance in a safe way and understand the hazards involved.

The figures in this manual may be different with the material objects, please refer to the
material objects for reference.
Caution, risk of fire.
Before use the appliance, read the owner’s manual first.
Before install the appliance, read the installation manual first.
Before repair the appliance, read the service manual first.
Please read this operating manual carefully before operating the unit.
The Refrigerant
Compared to common refrigerants, R32 is a nonpolluting refrigerant with no harm to
the ozonosphere. The influence upon the greenhouse effect is also lower. R32 has got
very good thermodynamic features which lead to a really high energy efficiency. The
units therefore need a less filling.
WARNING:
Should repair be necessary, contact your nearest authorized Service Centre.
Any repairs carried out by unqualified personnel may be dangerous.
Appliance filled with flammable gas R32. For repairs,strictly follow manufacturer’s instructions only.
Read specialist’s manual.
To realize the function of the air conditioner unit, a special refrigerant circulates in the
system. The used refrigerant is the fluoride R32,which is specially cleaned. The refrigerant
is flammable and inodorous. Furthermore, it can leads to explosion under certain conditions.
But the flammability of the refrigerant is very low. It can be ignited only by fire.
1

2
The Refrigerant
WARNING:
NOTE:
Any person who is involved with working on or breaking into a refrigerant circuit
shouldhold a current valid certificate from an industry-accredited assessment
authority, whichsuthorizes their competence to handle refrigerants safely in
accordance with an industry recognized assessment specification.
Servicing shall only be performed as recommended by the equipment manufacturer.
Maintenance and repairrequiring the assistance of other skilled personnel shall be
carried out under the supervision of the person competent in the use of flammable
refrigerants.
Do not use means to accelerate the defrosting process or to clean, other than those
recommended by the manufacturer.
The appliance shall be stored in a room without continuously operating ignition
sources (for example: open flames, an operating gas appliance or an operating
electric heater.)
Do not pierce or burn. Be aware that refrigerants may not contain an odor.
Adopt R32 flammable refrigerant. When maintaining or disposing the unit, the
refrigerant inside the system must be eliminated. Refrigerant should be recovered,
which can’t be discharged freely.
Keep ventilation opening clear of obstruction.
The unit can only be maintained according to the method suggested by manufacturer.
Appliance shall be stored in a room without continuously operating open flames (for
example an operating gas appliance) and ignition sources (for example an operating
electric heater) close to the appliance. No open fire (fired equipment such as electrical
heater and gas stove etc. ) or any equipment (e.g. switch) that might generate arc
around the appliance.

3
Do not disassemble or modify unit.
To prevent injury to the user or other people and property damage, the following instructions
must be followed. Incorrect operation due to ignoring of instructions may cause harm or
damage. The seriousness is classified by the following indications.
.yrujnisuoiresrohtaedfoytilibissopehtsetacidnilobmyssihT
This symbol indicates the possibility of injury or damage to property.
.SIHTODREVEN
.SIHTODSYAWLA
●.wolebnwohssaeralaunamsihtnidesuslobmysfogninaeM
!
Plug in power plug properly
! Do not operate or stop the unit by
inserting or pulling out the power plug.
Do not damage or use an
unspecified power cord.
Do not modify power cord length or
share the outlet with other appliances.
! rosdnahtewhtiwetarepotonoD
in damp environment.
Do not direct airflow at room
occupants only.
Always ensure effective grounding.
,sdnuosegnartsfitinuehtgulpnU
smell, or smoke comes from it.
Keep firearms away.
Do not allow water to run into
electric parts.
roesoolsitifitekcosehtesutonoD
damaged.
Do not use the power cord close to
heating appliances.
dnarekaerbtiucricllatsnisyawlA
a dedicated power circuit.
Do not open the unit during
operation.
Do not use the power cord near
flammable gas or combustibles, such as
gasoline, benzene, thinner, etc.
!
!
!
●.erifesuacyamtI ●.kcohscirtcelednaerifesuacyamtI ●.erifronoisolpxenaesuacyamtI
●.kcohscirtceleesuacyamtI
●Incorrect installation may cause fire
.kcohscirtceledna
●.htlaehruoyegamaddluocsihT
●ti,degamadsidrocrewopehtfI
must be replaced by the
manufacturer or an authorized
service center in order to avoid
hazard.
●.kcohscirtcelednaerifesuacyamtI
●It may cause failure of machine or
electric shock.
●.kcohscirtceleesuacyamtI
●It may cause electric shock or fire due
to heat generation.
●.kcohscirtcelednaerifesuacyamtI
●Incorrect grounding may cause
electric shock.
●It may cause electric shock or fire
.noitarenegtaehoteud
●Otherwise, it may cause electric
shock or fire due to excess heat
generation.
Ventilate room before operating air conditioner if there
.ecnailpparehtonamorfegakaelsagasi
!
●.snrubdnaerif,noisolpxeesuacyamtI ●.kcohscirtcelednaeruliafesuacyamtI
Safety Precautions
WARNING
CAUTION
WARNING

4
rewopehttaffotinuehtnrut,tinuehtsretneretawfI
ylppusetalosI.rekaerbtiucricehtffohctiwsdnateltuo
atcatnocdnatuogulprewopehtgnikatyb
.naicinhcetecivresdeifilauq
When the air filter is to be
latemehthcuottonod,devomer
.tinuehtfostrap
Do not clean the air conditioner
with water.
Ventilate the room well when used
together with a stove, etc.
,denaelcebotsitinuehtnehW
switch off, and turn off the
.rekaerbtiucric
!
!
tnalpesuohrotepatuptonoD
tceridotdesopxeeblliwtierehw
air flow.
Do not use for special purposes.
Stop operation and close the
window in storm or hurricane.
Do not place obstacles around
air-inlets or inside of air-outlet.
Do not use strong detergent such as
wax or thinner but use a soft cloth.
Hold the plug by the head of the
power plug when taking it out.
Ensure that the installation bracket
of the outdoor appliance is not
damages due to prolonged exposure.
ehtnotcejboyvaehecalptonoD
power cord and ensure that the
.desserpmoctonsidrocrewop
hctiwsrewopniamehtffonruT
roftinuehtgnisutonnehw
.emitgnola
Always insert the filters securely.
Clean the filter once every
two weeks.
Do not drink water drained from
air conditioner.
Appearance may be deteriorated due
to change of product color or
scratching of its surface.
.kcohscirtceleroerifforegnadsierehT It contains contaminants and could
make you sick.
Operation without filters may cause
failure.
Do not use this air conditioner to
preserve precision devices, food,
pets, plants, and art objects. It may
.cte,ytilauqfonoitaroiretedesuac
.erifrotcudorpfoeruliafesuacyamtI
.ruccoyamegatrohsnegyxonA
If bracket is damaged, there is concern
.tinufognillafoteudegamadfo
It may cause electric shock and
damage.
.tnalprotepehterujnidluocsihT
Water may enter the unit and degrade
the insulation. It may cause an electric
shock.
It may cause failure of appliance or
accident.
Operation with windows opened may
cause wetting of indoor and soaking
of household furniture.
Do not clean unit when power is on
as it may cause fire and electric
.yrujninaesuacyamti,kcohs
.yrujninaesuacyamtI
Use caution when unpacking and installing.
Sharp edges could cause injury.
!
!
!
!
Safety Precautions
WARNING

Safety Precautions
5

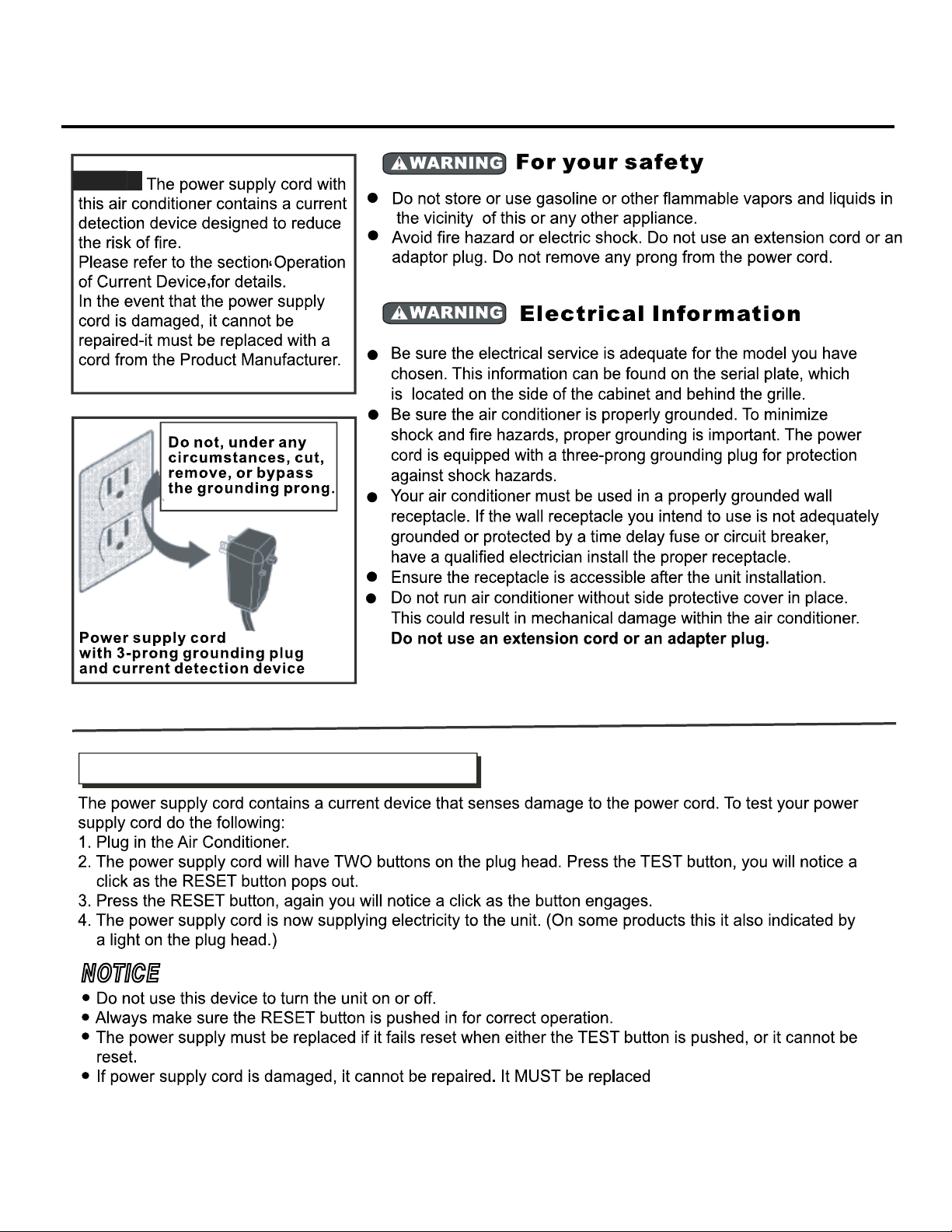

Operation of Current Device
Please contact Customer Service.
with a new cord - please
contact Customer Service.
N OT IC E
WARNING

6
AIR CONDITIONER SAFETY
Y ou c an be k illed or s erious ly injured if you don't
immediately follow ins tructions .
Y ou c an be killed or s erious ly injured if you don't
follow ins truc tions .
All s afety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury,
and tell you what ca n happen if the instructions are not followed.
We have provided many important safety messages in this manual and on your appliance. Always read and
obey all safety mes s ages .
This is the safety alert symbol.
This s ymbol alerts you to potential hazards that can kill or hurt you and others.
All safety mes sages will follow the safety alert symbol and either the word “ DANGER ” or
“WAR NING .” T hes e words mean:
To reduce the risk of fire, electrical shock or injury when us ing your air conditioner, follow thes e bas ic
precautions:
SAVE THESE INSTRUCTIONS
Unplug air conditioner before servicing.
Use two or more people to move and install air conditioner.
Plug into a grounded 3 prong outlet.
Do not remove ground prong.
Do not use an adapter.
Do not use an extension cord.
Electrical Requirements
The electrical ratings for your air conditioner are listed on the
model and serial number label. The model and serial number
label is located behind the front panel above the coil area.
Specific electrical requirements are listed in the chart below.
Follow the requirements for the type of plug on the power supply
cord.
Power supply cord Wiring requirements
115 volt (103.5 min. -
126.5max.)
0-12 amps
15-amp time-delay fuse or
circuitbreaker
Use on single outlet circuit
only.
WARNING
Electrical Shock Hazard
Plug into a grounded 3 prong outlet.
Failure to follow these instructions can result in
death, fire, or electrical shock.
Do not use an extension cord.
Do not use an adapter.
Do not remove ground prong.
Your safety and the safety of other are very important.
IMPORTANT SAFETY INSTRUCTIONS
WARNING:
LCDI
POWER
RESET
TEST
RESET
TEST

7
Recommended ground method
For your personal safety, this air conditioner must be grounded.
This air conditioner is equipped with a power supply cord having
a grounded 3 prong plug. To minimize possible shock hazard, the
cord must be plugged into a mating, grounded 3 prong outlet,
grounded in accordance with all local codes and ordinances. If a
mating outlet is not available, it is the customer's responsibility to
have a properly grounded 3 prong outlet installed by a qualified
electrical installer.
It is the customer's responsibility:
To contact a qualified electrical installer.
To assure that the electrical installation is adequate and in
conformance with National Electrical Code, ANSI/NFPA 70 -
latest edition, and all local codes and ordinances.
Copies of the standards listed may be obtained from:
National Fire Protection Association
One Batterymarch Park
Quincy, Massachusetts 02269

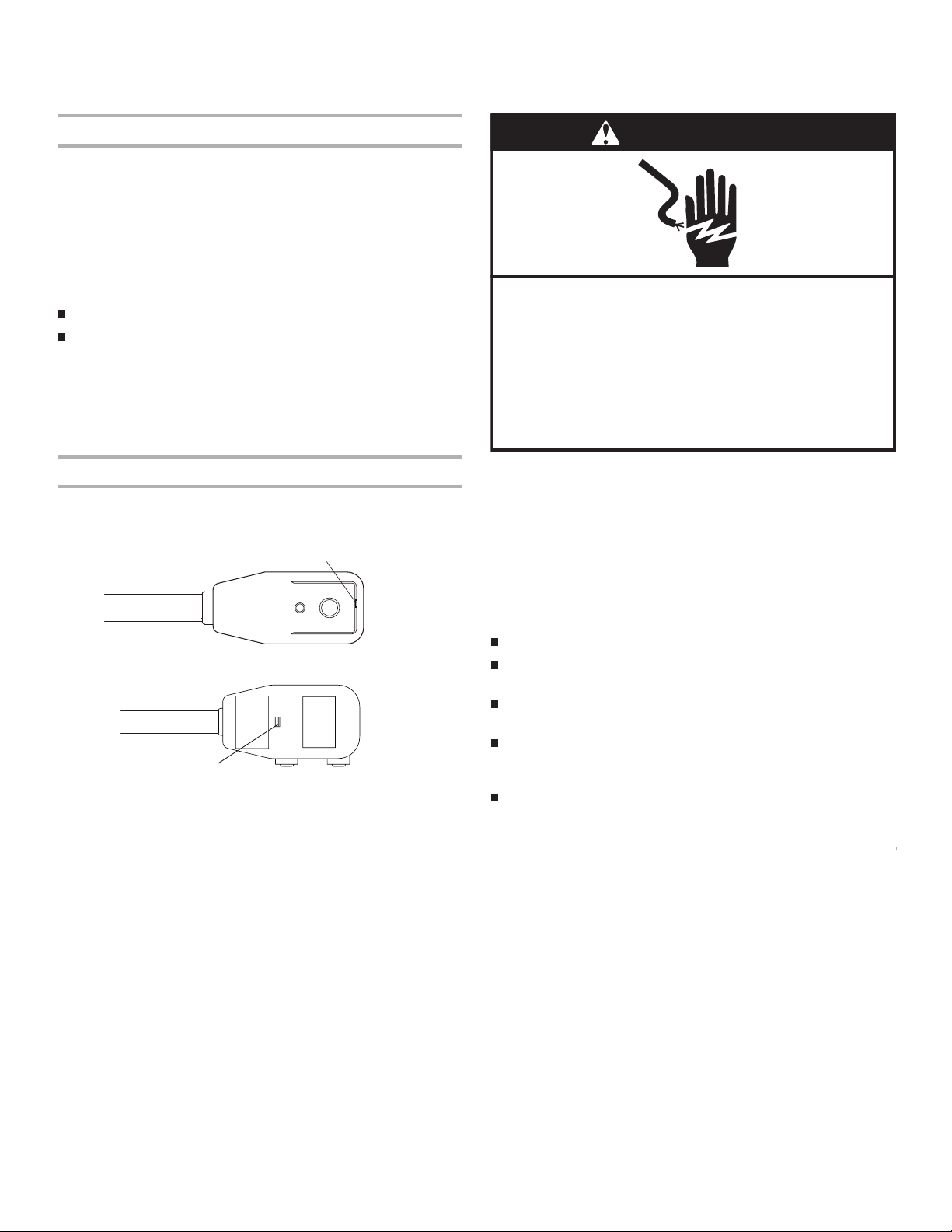

Power Supply Cord
NOTE: Your unit’s device may differ from the one shown.
This room air conditioner is equipped with a power supply cord
required by UL. This power supply cord contains state-of-the-art
electronics that sense leakage current. If the cord is crushed, the
electronics detect leakage current and power will be
disconnected in a fraction of a second.
To test your power supply cord:
1. Plug power supply cord into a grounded 3prong outlet.
2. Press RESET (on some devices, a green light will turn on).
3. Press TEST (listen for click; Reset button will trip, and on
some devices, a green light will turn off).
4. Press and release RESET (listen for click; Reset button will
latch, and on some devices, a green light will turn on). The
power supply cord is ready for operation.
NOTES:
The Reset button must be pushed in for proper operation.
The power supply cord must be replaced if it fails to trip when
the test button is pressed or fails to reset.
Do not use the power supply cord as an off/on switch. The
power supply cord is designed as a protective device.
A damaged power supply cord must be replaced with a new
power supply cord obtained from the product manufacturer
and must not be repaired.
The power supply cord contains no user serviceable parts.
Opening the tamper-resistant case voids all warranty and
performance claims.
WARNING
Electrical Shock Hazard
Plug into a grounded 3 prong outlet.
Failure to follow these instructions can result in
death, fire, or electrical shock.
Do not use an extension cord.
Do not use an adapter.
Do not remove ground prong.
LCDI
POWER
RESET
TEST
Indicator
RESET
TEST
Indicator

8
6
INSTALLATION INSTRUCTIONS
NOTE:SAVE CARTON and these INSTALLATION
INSTRUCTIONS for future reference.The cartion is the
best way to store unit during winter,or when not in use.
TOOLS NEEDE
Phillips Screw Driver
Drill(If pilot holes are needed）
TOOL NEEDED
Phillips Screwdrive
A.Remove the air conditioner
from the carton and place on
a flat surface.
B.Remove top rail from the bottom
of the packaging material as shown
in Fig.A
those in the top of the unit as
D.Align the hole in the top rail with
shown in Fig.B
When handling unit.be careful to avoid cuts from sharp
metal edges and aluminum fins on front and rear coils.
Before installing unit,the top rail must be assembled on the unit
You air conditioner is designed to install in standard double
hung windows with opening widths of 23 to 36 inches
(584 mm to 914 mm)(FIG.1)
lower sash must open sufficiently to allow a clear vertical
opening of 14-1/2 inches (368mm).Side louvers and the
rear of the AC must have clear air space to allow enough
airflow through the condenser,for heat removal.The rear
of the unit must be outdoors,not inside a building or
garage.
Some assembly is required.Please read these instructions
carefully.
NOTE:FOR SAFETY REASONS,ALL
FOUR(4)SCREWS MUST BE SECURELY
FASTENED.
Mounting Hardware
Top Rail Hardware Qty.
Qty.
4
1
3/8” Screw
3/4” Screw
Top Rail
Sash lock 1
C .Tear off the paster at back side of
sponge, and then align it at the
bottom edge of upper guide rail to
stick the sponge at the bottom of
upper guide rail. (The sponge has
been stick on the upper guide rail
for some models.Therefore, this
step can be omitted.)
E.Secure the top rail to the unit
with the 3/8”screws as shown
in Fig.C
upper guide rail
sponge
Top Rail
packaging
Fig.A
Fig.B
Fig.C

9
How to In stall
Storm Window Requirements
A storm window frame will not allow the air conditioner to
tilt properly which in turn will keep it from draining properly.
To adjust for this, attach a board or piece of wood to the
sill. The board or wood piece should have a depth of at
least 1 1/2”. Make sure the board or piece of wood is ap-
proximately 1/2” higher than the storm window frame. This
will allow the air conditioner to tilt enough for proper drain-
age. (See FIG. 5).
Placing the Unit Inside a Window
1. Place the air conditioner on the sill with the bottom
mounting rail against its back edge. Center the air con-
ditioner and close the window securely behind the top
mounting rail. The air conditioner should be slightly
tilted to the outside area. Use a level; about a 1/3 bub-
ble will be the correct case slant to the outside. (See
FIG. 5 & FIG. 6)
2. Once the air conditioner is placed, extend both the left
and right accordion panels to the width of the window.
Accordion Panel Installation
Now that you have installed the top rail, you can now install
the accordion panels on each side.
1. Place the air conditioner on a hard flat surface.
2. Locate the accordion panels in the box.
3. Gently pull the free end of the accordion panel (See
FIG. 2). Do this for both panels.
4. Slide the free end of the accordion panel into the side
panel of the air conditioner (See FIG. 3). Do this for
each side.
5. Once the accordion panels are slid into place adjust
the top and bottom rails of the accordion panels into
the top and bottom rails of the air conditioner (See FIG.
4).
SASH
1 1/2” MIN
(38 mm)
STORM
WINDOW
FRAME
Board or wood
piece must be
approximately
1/2” higher
than the storm
window frame
for proper
drainage
FIG. 5
FIG. 3
FIG. 4
FIG. 8
FIG. 7

10
3/4” Screws
Sash Lock
6
1
MOUNTING HARDWARE
Qty
Tools Needed:
Phillips Screw Driver
Drill (if plot ho les are needed)
Frame Lock, Sash Lock, and Foam Seal
Installation
1. Drive 3/4” screws into the top of the accordion panel
frame and the top rail to securely attach the window
air conditioner tothe lower sash. (See FIG. 9/10)
2.Tosecure the lower sash into place, use the sash lock
and a 3/4” screw as shown below (See FIG. 11)
3.For added insulation, cut the supplied insulation foam to
the width of the window. Insert the foam between the
window sashes to prevent air and objectsfrom getting
into the room.(See FIG. 12)
Removing the Air Conditioner from the
Window
Drain water
1.Turn the air conditioner off, and disconnect the power
cord.
2.Remove the sash seal from between windows, and
unscrew sash lock.
3.Remove the screws installed through the frame and
frame lock.
4.Close (slide) the side panels into frame.
5.Keeping a firm grip on air conditioner, raise the sash
and carefully “rock” air conditioner backward to drain
any condensate water in base of unit. Becareful not to
spill any remaining water while lifting unit from window.
6.Store parts WITHthe air conditioner in the box
To get the maximum cooling efficiency , the air conditioner is
designed to splash the condensate on the condenser coil. If the
splashing sound annoys you, you can provide an outside drain by
using the following procedure, which may however cause a small
loss of performance.
1. The air conditioner have the drainage gasket-FIG a.
2. Remove the drainage gasket from the body base plate- FIG b.
FIG.9
FIG. 10
FIG.12
FIG.11
FIG.a
FIG.b

11
AIR CONDITIONER USE
The display always shows the room temperature except when setting the Set temperature or the Delay timer.
Lights next to the touch pads on the air conditioner control panel indicate the selected settings.
Operating your air conditioner properly helps you to obtain the
best possible results.
This section explains proper air conditioner operation.
IMPORTANT:
If you turn off the air conditioner, wait at least 3 minutes
before turning it back on. This prevents the air conditioner
from blowing a fuse or tripping a circuit breaker.
Do not try to operate your air conditioner in the cooling mode
when outside temperature is below 65 °F (18°C). The inside
evaporator coil will freeze up, and the air conditioner will
operate properly.
NOTE: In the event of a power failure, your air conditioner will
operate at the previous settings when the power is restored.
This is a general use remote controller, it could be
used for the air conditioner swith multifunction; For some
function, which the model doesn't have, if press the
corresponding button on the remote controller that the unit
will keep the original running status.
Starting Your Air Conditioner— Digital Control
Note: If no button press for 2 minutes,all LED brightness is off directly.
1Power button
2Mode button
3Fan Speed button
4Sleep button
5Delay 1-24hr button
7display on dual-8 nixie tube
6+ / button
-
5
4
3
2
1
6
7
Auto speed indicator
High speed indicator
Medium speed indicator
Low speed indicator
Cooling indicator
Eco indicatorfan
Fan indicator
Timer indicator
Sleep indicator
6
2Mode button
Press this button can your required operation mode in turn. Corresponding indicator will be on.
●Cool:Under this mode, air conditioner operates under cooling mode. Cooling indicator will be on. Press “Fan Speed”
●Fan Only:Under this mode, air conditioner will not cool or heat, only blow wind. Fan indicator will be on. Press “Fan
●Energy Save:Under this mode, air conditioner operates under SE mode. SE indicator will be on. Press “Fan Speed”
button can adjust the fan speed.
Cool Fan
Only
Energy
Save
1Power button
Press this button can turn on or turn off air conditioner.(After energization or restart up the unit or timer on, the unit will
operate at SE mode; If power failure during operation of the unit, it will operate at the operation status before power failure.)
Function and Control
button can adjust the fan speed.
Speed” button can adjust the fan speed. (No auto fan speed under fan mode).

3Fan Speed button
Press this button can select your required fan speed in turn. Corresponding speed indicator will be on.
Low Med High Auto
④When there’s malfunction, dual-8 nixie tube will display corresponding malfunction code.
E8 It can be eliminated after power off and re-up electricity.
If not, please contact qualified professionals for service.
EP malfunction of indoor ambient temperature sensor or
indoor evaporator temperature sensor
12
4Sleep button
Press this button to go into the SLEEP operation mode. Press any button to cancel this function. This function can be
started up under fan mode and cooling mode. Under cooling mode, the unit operates at low fan speed and it
automatically adjusts the temperature; under fan mode, the unit operate at low fan speed.
5Delay 1-24hr button
Press this button can set TIMER ON and TIMER OFF. During setting process, setting indicator will be on.
●
Timer preview:Under timer status, press “Delay 1-24hr” button to enter into timer preview. Dual-8 nixie tube displays residual time.
Cancel timer:During timer preview or timer setting process, press “Delay 1- 24hr” button to cancel timer setting.
Timer indicator will be off.
6+/ button
Under temperature setting status, after each pressing of “ +” or “ ” button,temperature will increase or decrease 1°F.
Temperature setting range: 64~86°F
Under timer setting status, after each pressing of “ +” or “ ” button, time will increase or decrease 1h.
After timer function is started up, press Delay 1-24hr button to display residual time.
Dual-8 nixie tube defaults to display Fahrenheit temperature. If it needs to display centigrade temperature,
press temperature +and buttons simultaneously for 3s. If it needs to display Fahrenheit temperature, repeat
this operation.
②
③
Under on status but not timer and temperature setting status, it displays indoor ambient temperature.
Under temperature setting status, it displays set temperature. Under timer setting or timer viewing status,
it displays the time.
7Display of dual-8 nixie tube
①
TIMER ON:Press this button under off status can set TIMER ON. Timer indicator will be on. Dual-8 nixie tube displays
timer value. After each pressing
of “ +
-
” or “ ” button, time will increase or decrease 1h. If hold “ +” or “ ”
-
button, time will change quickly after 2s. Loose the button until reaching to
into timer status.
TIMER OFF:Press this button under on status can set TIMER OFF. Timer indicator will be on. Dual-8 nixie tube
displays timer value. After each pressing
of “ +” or “ ”
-
button, time will increase or decrease 1h. If hold “ +” or “ ”
-
button, time will change quickly after 2s. Loose the button until reaching to
into timer status.
Note:
Time setting range: 1-24h
-
-
-
-

4MODE button
Press this button can select your required operation mode in turn.
● After selecting cooling mode, air conditioner will operate under cooling mode.Cooling indicator on control panel will be on.
Press “ ∧” or “ ∨” button to adjust set temperature. Press “Fan-” or “Fan+” button to adjust fan speed.
●
After selecting fan mode, air conditioner only blow wind, not cooling or heating. Fan indicator on control panel will be on.
Press “Fan-” or “Fan+” button to adjust fan speed.
● After selecting SE mode, air conditioner will operate under SE mode. SE indicator on control panel will be on.
Press “ ∧” or “ ∨” button can adjust set temperature. Press “Fan-” or “Fan+” to adjust fan speed.
Cool Fan
Only
Energy
Save
Introduction of remote controller
Note:
This is a general use remote controller, it could be used for the air conditioners with multifunction; For some function,
which the model dosen’t have, if press the corresponding button on the remote controller that the unit will keep the
original running status.
1
2
3
4
5
6
7
1ON/OFF button
2Fan+ / Fan- button
3∧/ ∨button
4MODE button
5SLEEP button
6+ / - button
7DELAY button
Fan
Fan
-
SLEEP
MODE
DELAY
ON/OFF
+
1ON/OFF button
Press this button can turn on or turn off the air conditioner.The unit defaults to operate under SE mode when turning the unit at OFF status.
2Fan- / Fan+ button
Press fan- button to decease fan speed; press fan+ button to increase fan speed.
3∧/ ∨button
After each pressing of “ ∧” button or “ ∨” button, temperature will increase or decrease1°C(1°F). If hold “ ” button or
∧
“ ∨” button, 2s later, set temperature displayed on dual-8 nixie tube will change quickly. Loosen the button after it has
13
reached to your required temperature.

●
TIMER OFF: At on status, press this button can set TIMER OFF. Refer to the TIMER ON for details.
Cancel timer: Under timer status, press “DELAY” button again.
Time setting range
Cooling only unit type: 1-24h
Replacement of Batteries in Remote Controller
1. Signal sender Battery
2. Reinstall
Remove
3. Reinstall the cover of battery box.
Cover of battery box
●The distance between signal sender and receiving window should be no more than 8m, and there should be no
●
conditioner when using the remote controller.
Replace new batteries of the same model when replacement is required.
When you don’t use remote controller for a long time, please take out the batteries.
14
6- / + button
Under timer setting status, after each pressing of “+” or “-” button, time will increase or decrease 1h. Hold “+” or “-” button,
2s later, time displayed on dual-8 nixie tube will change quickly. Loosen the button until the time is reached to your set time.
Note:
●
As for cooling only unit, after each pressing “+” or “-” button, time will increase or decrease 1h.
As for electric heating mode, when setting time within 10hours, after each pressing “+” or “-” button, time will increase
or decrease 0.5h; when setting time is among 10-24h, after each pressing “+” or “-” button, time will increase or
decrease 1h.
●
●
Note:
●
Press the back side of remote controller marked
the cover of battery box along the arrow direction.
Replace two 7# (AAA 1.5V) dry batteries, and
make sure the position of “+” polar and “-” polar
are correct.
●
●
5SLEEP button
Press this button to go into the SLEEP operation mode. Press any button to cancel this function. This function can be
started up under fan mode and cooling mode. Under cooling mode, the unit operates at low fan speed and it
automatically adjusts the temperature; under fan mode, the unit operate at low fan speed.
TIMER ON: At off status, press this button and press “+” or “-” button within 5s can set time for TIMER ON. After each
pressing of “+” or “-” button, time will increase or decrease 0.5h or 1h. If hold “+” or “-” button, time will change quickly
after 2s. Loose the button until reaching to your required time. 5s later,
7DELAY button
Press this button can set TIMER ON and TIMER OFF.
●
Note:
obstacles between them.

Air Conditioner Features
Please always wait 3 minutes when turning unit off and then on again, and when changing from cool to fan
and back to cool. This prevents the compressor from overheating and possible circuit breaker tripping.
Cool Mode
The desired cool setting is selected by rotating the knob to the right to the appropriate location.
“high cool” has maximum cooling effect and airflow.
“low cool” has minimum cooling effect and airflow.
Note: If your unit is equipped with a vent handle, keep it closed for maximum efficiency.
Fan Mode
Rotate the knob to the left to select your choice of fan speeds for air circulation.
Note: When selecting a fan speed, the compressor will not run.
(2-WAY)
AUGER WHEEL
Air Directional Louvers
Air directional louvers control air flow direction. Your air conditioner has
the louver type described below.
Auger Type
Rotate the Auger Wheels until the desired Left/Right direction is obtained.
Thermostat
The thermostat is used to set the desired room temperature when the unit is being operated in the “COOL MODE”.
To set the desired room temperature, rotate the thermostat switch to the desired setting. After the set temperature is achieved the
thermostat will automatically start and stop the compressor in order to maintain the desired set temperature.
Rotate the thermostat selector clockwise for higher cool settings. Higher cool settings will provide lower room temperature.
Rotate the thermostat selector counter clockwise for lower cool settings. Lower cool settingswill provide higher room temperature.
15
The controls featured in this manual are representative of many available models. Your
modelmay offer slightly different features.
Power Saver (on some models)
Fan and compressor on & off at the same time.
“med cool” has medium cooling effect and airflow.

16
Clean your air conditioner occasionally to keep it looking new. Be sure to unplug the
unit before cleaning to prevent shock or fire hazards.
Air Filter Cleaning
The air filter should be checked at least once a month to see if cleaning is necessary.
Trapped particles in the filter can build up and cause an accumulation of frost on the
cooling coils.
•Remove filter by sliding out from the right-hand side.
•Wash the filter using liquid dishwashing detergent and warm water. Rinse filter thor-
oughly. Gently shake excess water from the filter. Be sure filter is thoroughly dry before
replacing.
•Or, instead of washing you may vacuum the filter clean.
Cabinet Cleaning
•Be sure to unplug the air conditioner to prevent shock or fire hazard. The cabinet and
front may be dusted with an oil-free cloth or washed with a cloth dampened in a solution
of warm water and mild liquid dishwashing detergent. Rinse thoroughly and wipe dry.
•Never use harsh cleaners, wax or polish on the cabinet front.
•Be sure to wring excess water from the cloth before wiping around the controls. Excess
water in or around the controls may cause damage to the air conditioner.
•Plug in air conditioner.
Winter Storage
If you plan to store the air conditioner during the winter, remove it carefully from the
window according to the installation instructions. Cover it with plastic or return it to the
original carton.
Care and Cleaning
Normal Sounds
Repairing Paint Damage
When your air conditioner is operating normally, you may hear sounds such as:
Droplets of water hitting the condenser, causing a pinging or clicking sound. The water droplets help cool the condenser.
Air movement from the fan.
Clicks from the thermostat cycle.
Vibrations or noise due to poor wall or window construction.
A high-pitched hum or pulsating noise caused by the modern high-efficiency compressor cycling on and off.
Cleaning the Front Panel
1. Unplug air conditioner or disconnect power.
2. Clean front panel with a soft, damp cloth.
3. Air dry front panel completely.
4. Plug in air conditioner or reconnect power.
Check once or twice a year for paint damage. This is very important, especially in areas near oceans or where rust is
problem. If needed, touch up with a good grade enamel paint.
NOTE: To reduce paint damage during the winter, install a heavyduty cover over air conditioner cabinet. For information on
ordering a heavy-duty cover, see “Accessories.”
Annual Maintenance
Your air conditioner needs annual maintenance to help ensure steady, top performance throughout the year. Call your local
authorized dealer to schedule an annual checkup. The expense of an annual inspection is your responsibility.
