Gree GPC08AI-K3NNC6A User manual

MODEL: GPC08AI-K3NNC6A
Change for Life
Portable Air Conditioner
Owner's Manual
Residential Air Conditioners
Thank you for choosing Residential
manual carefully before operation and retain it for future reference.
Air Conditioners, please read this owner’s
GPC10AI-K3NNC6A

1 PRECAUTIONS 1
2
3
4
5
6
7
8
9
10
11
12
13
14
LOCATION 3
STRUCTURE 5
INSTALLATION OF THE POWER CORD HOOK 6
CONTROL PANEL DISPLAY & OPERATING INSTRUCTIONS 11
HOW TO USE THE REMOTE CONTROL 12
OPERATION OF WIRELESS REMOTE CONTROL 13
MAINTENANCE
MALFUNCTION ANALYSIS
17
18
15
SAFE NOTE AND NOTICE 19
AFTER SALES SERVICE 20
INCLUDE 4
INSTALLATION OF DRAINAGE HOSE 7
DRAINAGE METHOD 8
ACCESSORIES AND INSTALLATION OF HEAT EXHAUST HOSE 9
CONTENTS

PRECAUTIONS
WARNINGS FOR USE
•Install the air conditioner in accordance with the installation instructions in the latter section of this
manual.
•Do not modify any part of this product.
•Do not insert anything into any part of the unit.
•Ensure the power supply used has an appropriate voltage rating.
•
- -
1
Use of a power supply with an improper voltage rating can result in damage to the
unit and possibly fire.
In the event of any abnormality with the air conditioner (ex. a burning smell), turn it off immediately
and disconnect the power supply.

-2-
USAGE CAUTIONS
•Ventilate the room periodically during use, especially if using gas appliances.
•
•Do not splash or pour water directly onto the unit.
Water can cause electrical shock or equipment damage.
•Drainage should be performed whenever moving the air conditioner.
If any water remains in the tank, it may spill out while being moved.
•Remove the window panel in the event of particularly adverse weather.
Extremely adverse weather may cause water to leak in through the openings.
•
The drained water may spill out into the room.
•The temperature around the drainage hose must not be below freezing point when used.
Drained water may freeze inside the hose, causing water inside the unit to over flow into the room.
•Do not block the exhaust air outlet with obstacles.
Cooling performance may be reduced or stop completely.
NOTES ON OPERATION
•Allow 3 minutes for the compressor to restart cooling.
If you turn the air conditioner off and immediately restart it, allow three minutes for the compressor to restart
cooling. There is an electronic device in the unit that keeps the compressor turned off for three minutes for
safety.
•
•
•
•
•
PRECAUTIONS
Be sure to turn the unit off and disconnect the power supply cord before performing any maintenance
or cleaning.
To ensure proper drainage, the drainage hose must have no kinks or be on a different level.
In the event of a power failure during use, allow 3 minutes before restarting the unit.
After power is reinstated, restart the air conditioner. If the power was off for less than three minutes, be sure
to wait at least three minutes before restarting the unit. If you restart the air conditioner within three minutes,
a protective device in the unit may cause the compressor to shut off. This protective device will prevent cooling
for about 5 minutes. Any previous settings will be canceled and the unit will return to its initial settings.
Low temperature operation: Is your unit freezing up?
Freezing may occur when the unit is set close to 16°F in low ambient temperature conditions, especially at
night.
In these conditions, a further temperature drop may cause the unit to freeze.
Setting the unit to a higher temperature will prevent it from freezing.
Dry mode increases room temperature.
The unit generates heat during dry mode and the room temperature will rise. Warm air will be
blown out from the Exhaust air outlet, but this is normal and does not indicate a problem with the unit.
This air conditioner blows the warm air generated by the unit outside the room via the exhaust hose
while in cool mode.
Accordingly, the same amount of air as that blown out will enter the room from outside through any
openings into the room.
When cooling operation is performed at high humidity conditions, water tank inside the unit may
frequently become full.
When water tank inside the unit is full, the unit stops operating, Buzzer will sound 8 times, LED window
show error code "H8".
In this case, perform drainage to drain out water within the unit.

S
- 3-
PRECAUTIONS
OPERATING CONDITIONS
•The air conditi oner must be operated with in the temperature range indicated below.
MODE Room temperature
Cool 16°C ~ 35°C
•A built-in safety device may cut off operation if the temperature exceeds these limits.
ENERGY EFFICIENCY TIPS
•Avoid direct sunlight.
Close blinds, drapes or shades to keep out direct sunlight while in cooling mode.
•Keep the filter clean.
Keeping the filter clean greatly aids efficient operation.
A dirty filter blocks the flow of air, making your air conditioner work harder and less effi-
ciently.
•Turn off unnecessary lights.
Your air conditioner must remove the heat produced by your lights or other heat-produc-
ing appliances.Turn off any lights or appliances that are not in use.
•Turn off the air conditioner when no one is home.

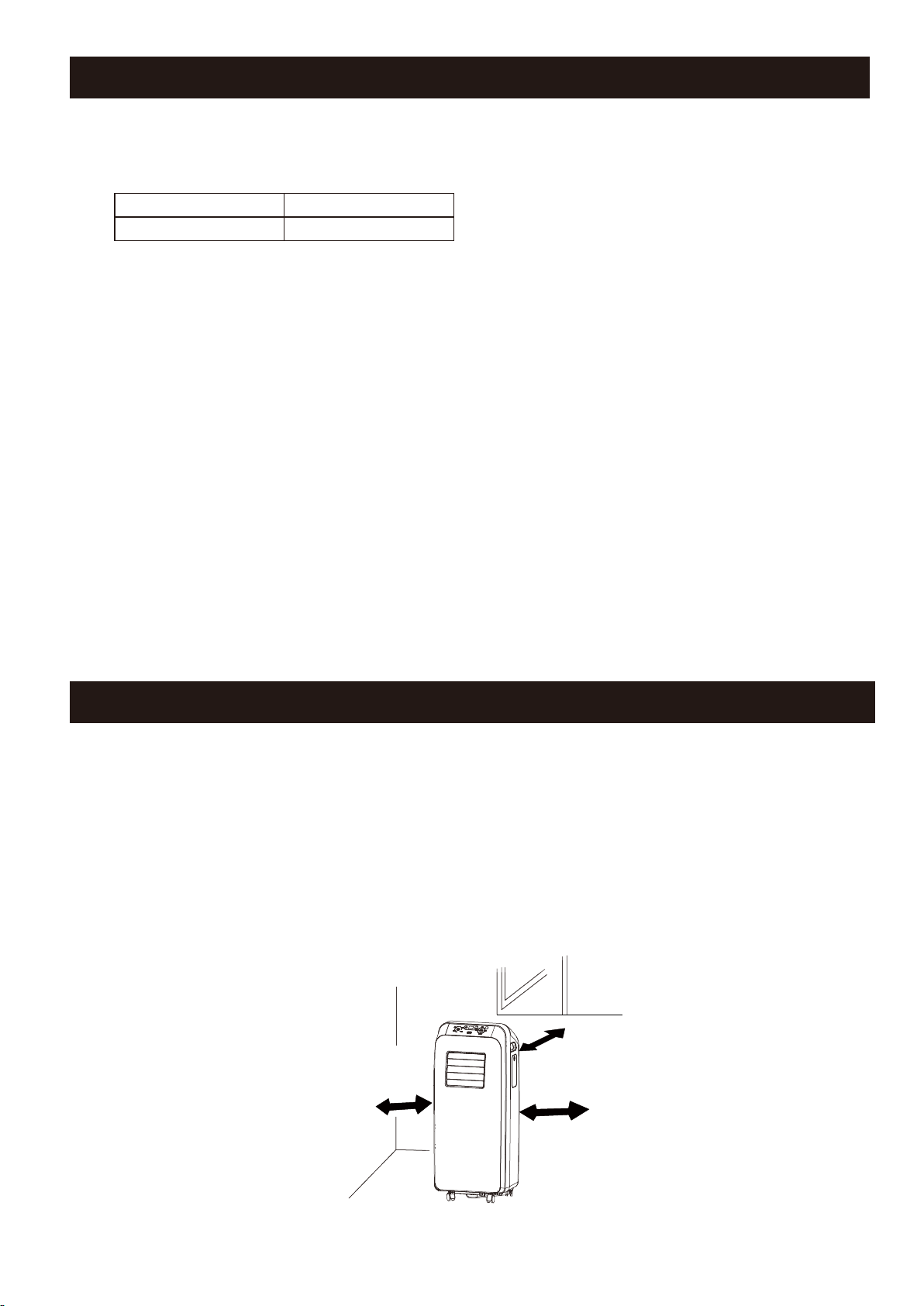

LOCATION
•
•
•
•
•
Use only when necessary. The less time the air conditioner is used, the lower the running
costs.
The air conditioner should be placed on a firm foundation to minimize noise and vibration.
For safe and secure positioning, place the unit on a smooth, level floor strong enough to
support the unit.
The unit has casters to aid placement, but it should only be rolled on smooth, flat surfaces.
Use caution when rolling on carpet surfaces. Do not attempt to roll the unit over
objects.
The unit must be placed within reach of a properly rated grounded socket.
Never place any obstacles around the air inlet or outlet of the unit.
Allow at least 12" (30cm) of space from the wall for efficient air-conditioning.
30cm
30cm
30cm

PARTS INCLUDED
Adapter B Flexible Exhaust Hose Window Exhaust Adapter
Drainage pipe Clamp Pipe hoop Rubber plug Screw
Manual Remote control Battery(2)
(AAA.1.5V)
-4-
Clamp(2)
INCLUDE
Adapter A

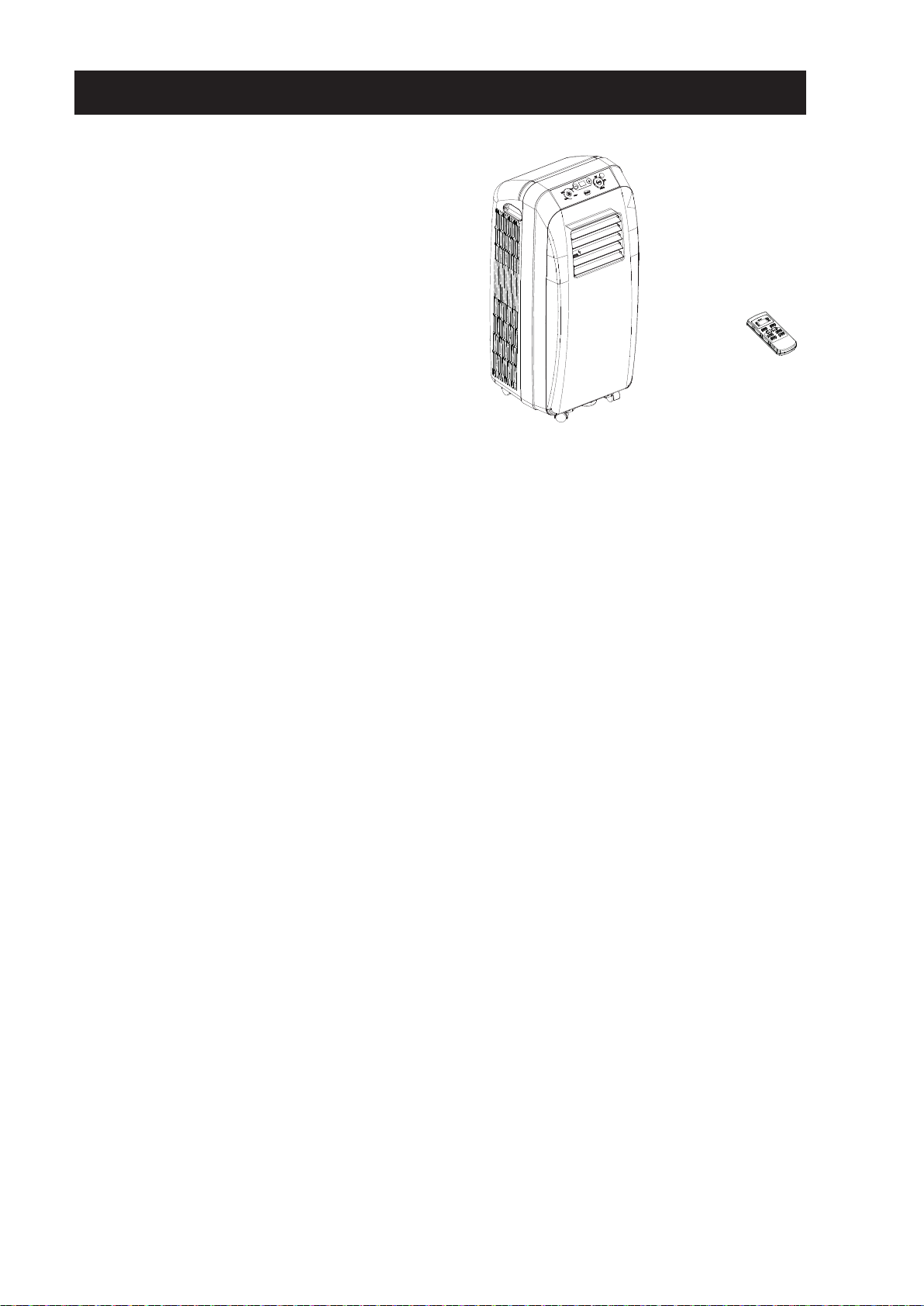

1, Control panel and display lamp
2, Remote control signal receiver window
3, Handel
4, Remote controller box
5, Air outlet
6, Vertical louvers
7, Horizontal louvers
8, Wheel
9, Air inlet
10, Grille
11, Air filter
12, Air outlet
13, Air inlet
14, Power cord clamp
15, Power cord
16, Adapter B
17, Flexible Exhaust Hose
18, Adapter A
19, Window Exhaust Adapter
20, Remote control
-5-
STRUCTURE
Front
Rear

-6-

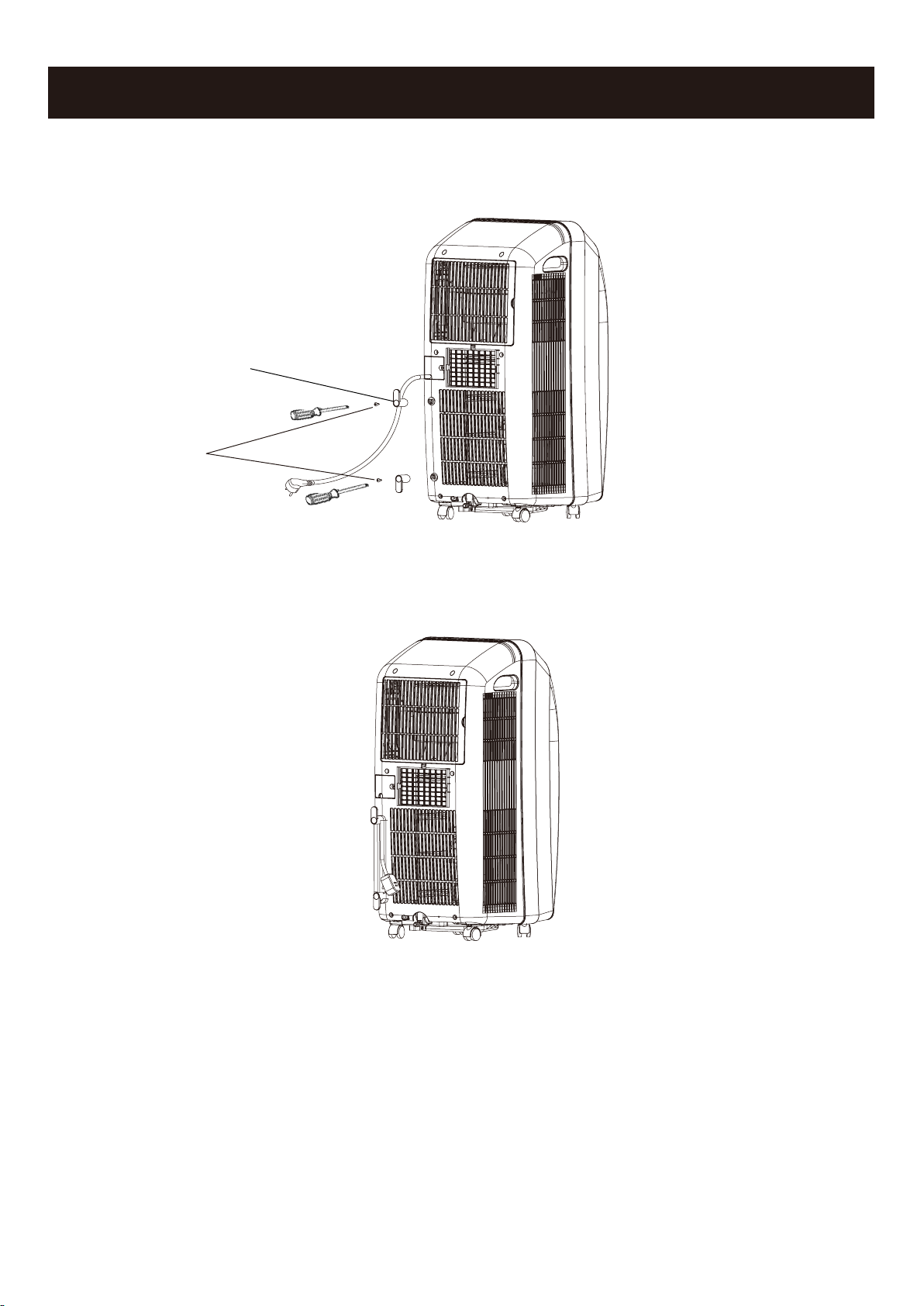

INSTALLATION OF THE POWER CORD HOOK
•Attach the clamps to the back of air conditioner with the screws.
clamp
screw
•Wind the power cord round the power cord hook.

Install of drainage hose(as shown in following figure):
Note: Drainage hose must be installed before using otherwise block of drain may occur and affects
normal run of unit.
1. Remove drain cap from drain port.
A.
B.
A
B
-7-
INSTALLATION OF DRAINAGE HOSE
5. Snap the free end of het drain hose into the drain hose clamp.
A. Rubber plug
B. Drain port
C. Drain hose
D.
E .
Drain hose clamp
Drain hose clips
3. Attach one end of the drain hose to the drain port with the clip. See Drain Hose graphic .
4. Insert the rubber plug into the other end of the drain hose and secure with clip. See Drain Hose graphic.
2. Attach the drain hose clamp to the back panel of the air conditioner near the drain port with the screw
provided.
Drain port
Drain cap
A
B
C
E
D
A. Drain port
B. Attach drain hose clamp with screw provided.
A
B

A .Drain port
B .Attach drain hose clamp with screw provided.

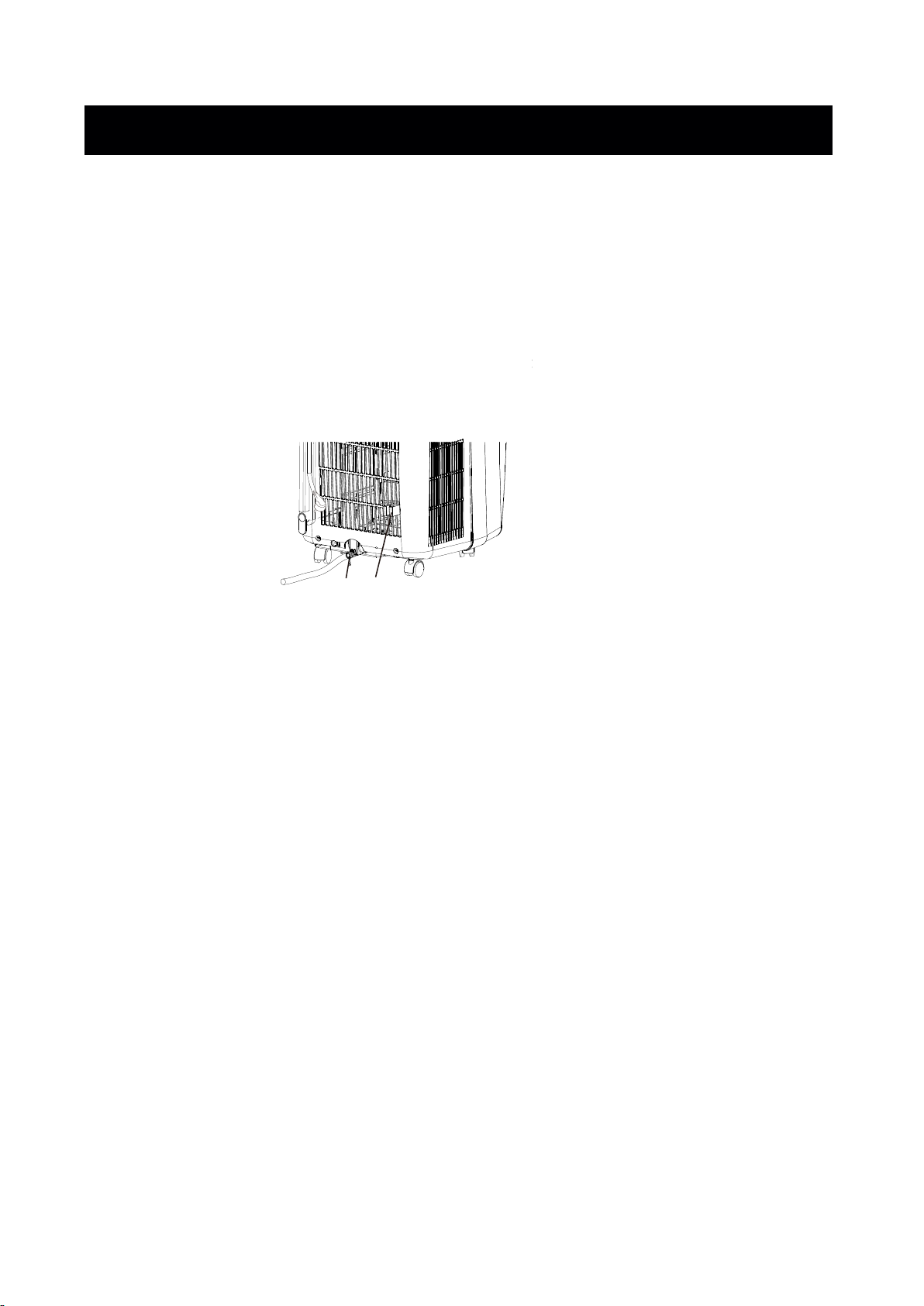

DRAINAGE METHOD
-8-
A
B
When COOL or DRY is running, condensate will drain to water tank. When water tank
is filled, Buzzer will sound 8 times, LED window show error code "H8".
In this case, plug out drain hose from fixing clamp, unsecured the clip, pull out the rubber
plug from the drain hose, then drain out water in tank.
Then reinstall the drainage hose as step 4 to step 5 in page 7.
The unit will resume running when water filled protect released and compressor stops
for 3 minutes.

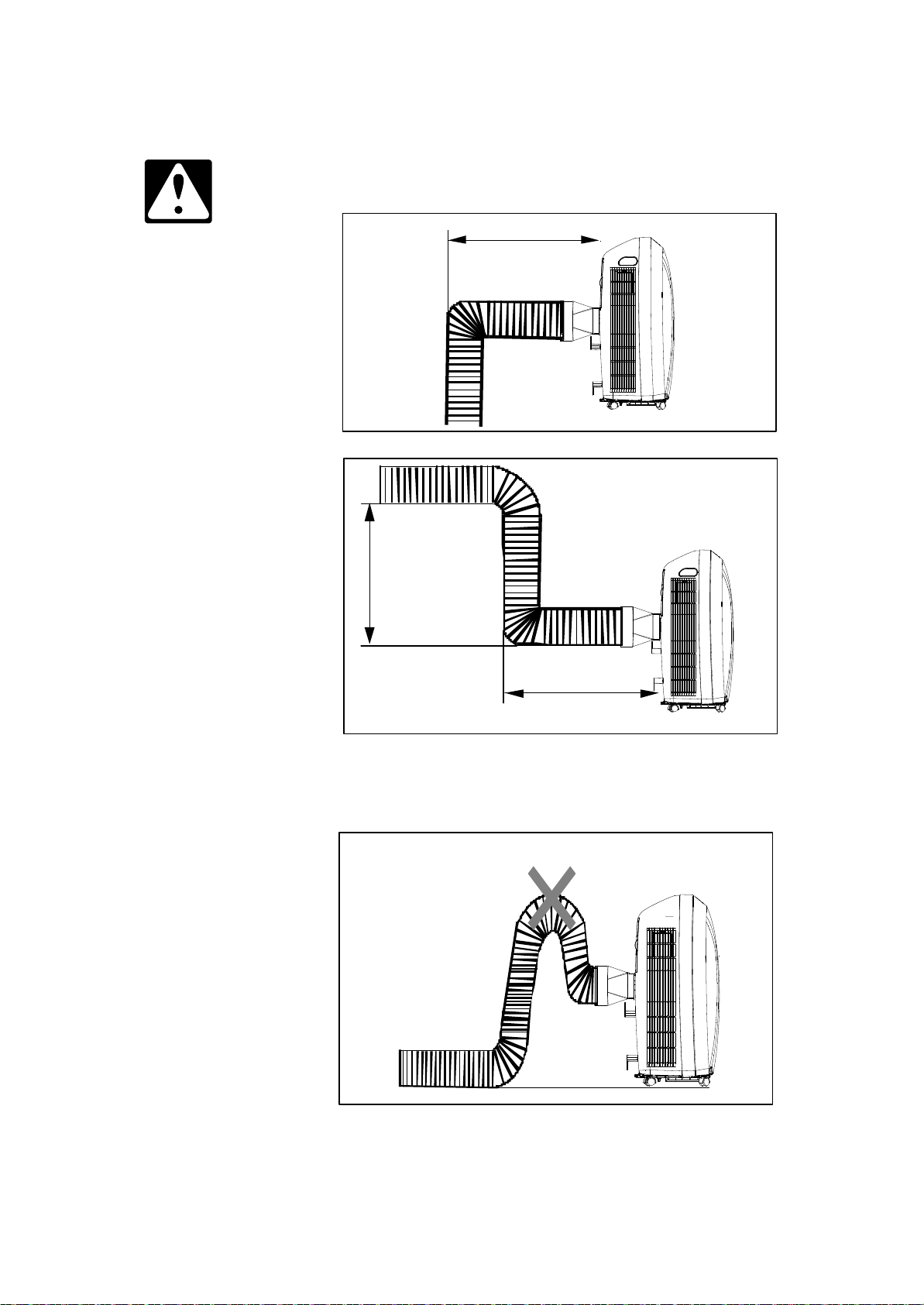

●Length range of exhaust pipe should be 500mm-1500mm.
It is recommended to use it with shortest length.
●When installing, exhaust pipe should be as flat as possible.
Don't prolong the pipe or connect it with other exhaust pipe, or
Correct installation is as shown in figure (When installing it on
wall, height of hall should be about 40cm-100cm from floor).
100cm
40cm
- 9
-
ACCESSORIES AND INSTALLATION OF HEAT EXHAUST HOSE

55 cm
55 cm
If the pipe are to be bent, please install it by considering
Wrong installation is shown in following figure (If the pipe is
following dimension.
bent too much, it would easily cause malfunction.)
- 10 -
65 cm

-1 -1
In cool mode, it can decrease the temperature of the room, and make people very comfortable.
OPERATING INSTRUCTIONS
l.
3. Mode Button
4. Fan speed Button
When the unit is running in Cool or Fan mode, press the Fan speed Button to select the fan speed
in High, Middle, Low, Auto.
ON/OFF Button
2. "+","-"
Button
Receiver window
LED window
DRY mode lamp
Temperature selection button COOL mode lamp
MODE button
FAN mode lamp
FAN Speed lamp ON/OFF button
Fan speed button
CONTROL PANEL DISPLAY & OPERATING INSTRUCTIONS
6.Louver Direction
This unit has 4-Way directional louvers.
Use the louver guides to direct air where
cooling or fanning is needed most.Hold the
louver and adjust the air flow direction,
as show in the right diagram.
5.Water Full
When COOL or DRY is running, condensate will drain to water tank. When water tank is filled.
Buzzer will sound 8 times, LED screen show error code ‘H8’.
In this case, reference page 8 to drain out water intank.
Press the button once to manually turn the unit on. Press once more to turn the unit off.
Press Mode Button repeatedly to cycle between the modes:Cooling,Dry,and Fan only mode.
Each press of the Mode button will light up a different lamp on the control panel. The exhause
hose and window kit must be installed when the unit is in Cool or Dry mode.When using the unit
as a fan,it is unnecessary to keep the exhaust hose and window kit connected to the unit.
Hold this hand grip to adjust the
direction of Horizontal Louvers
Hold this hand grip to adjust the
direction of Vertical Louvers
CONTROL PANEL & DISPLAY
When pressing key is valid,buzzer makes a sound,indicated lamp indicates relevant state,system will last
for 2 seconds.
In COOL mode, press "-" once, the set temperature will decrease 1 , press "+" once, the set
temperature will incresae 1 30 ( 61 to 68 ).to
℃ ℃
℃(℉)
℃(℉). ℉ ℉
The set temperature range from 16
Med
High
Fan
speed
Low
Auto
ON/OFF
Cool
Dry
Mode
Fan only
-
+

Point the remote control towards
the units signal receiver window
and press the desired button. A
beep will sound when the unit receives
the signal.
•Make sure nothing, such as curtains,
blocks the signal receiver window.
•
HOW TO USE THE REMOTE CONTROL
CAUTION
•Do not expose the signal receiver window to direct sunlight. This may adversely
affect its operation. If necessary, close the curtains to block out the sunlight.
•Use of a fluorescent lamp in the same room may interfere with transmission of the
signal.
•The unit may be affected by signals emitted from other remote controllers for televisions,
VCRs or other equipment used in the same room.
•Do not leave the remote control exposed to direct sunlight or near a heater. Protect
the remote control from moisture and shock which can discolor or damage it.
-12 -
For good receive, the distance between
operator and the unit no more than 5
meters.
......................................

-13 -
OPERATION OF WIRELESS REMOTE CONTROL
Names and functions of wireless remote control
●
ON/OFF button
ON/OFF
Remote control
Signal transmitter
▲▲▲▲▲
AUTO
COOL
DRY
FAN
HEAT (Only for cooling and heating unit.
As for cooling only unit, it won’t have
any action when it receives the signal
of heating operation.
(Note: Not available on this unit.)
Fan 2Fan 1
Fan 3 Fan 4
Don't drop or throw the remote control; Don't let any liquid in the remote control and
Note: Be sure that there are no obstructions between receiver and remote controller;
put the remote control directly under the sunlight or any place where is very hot.

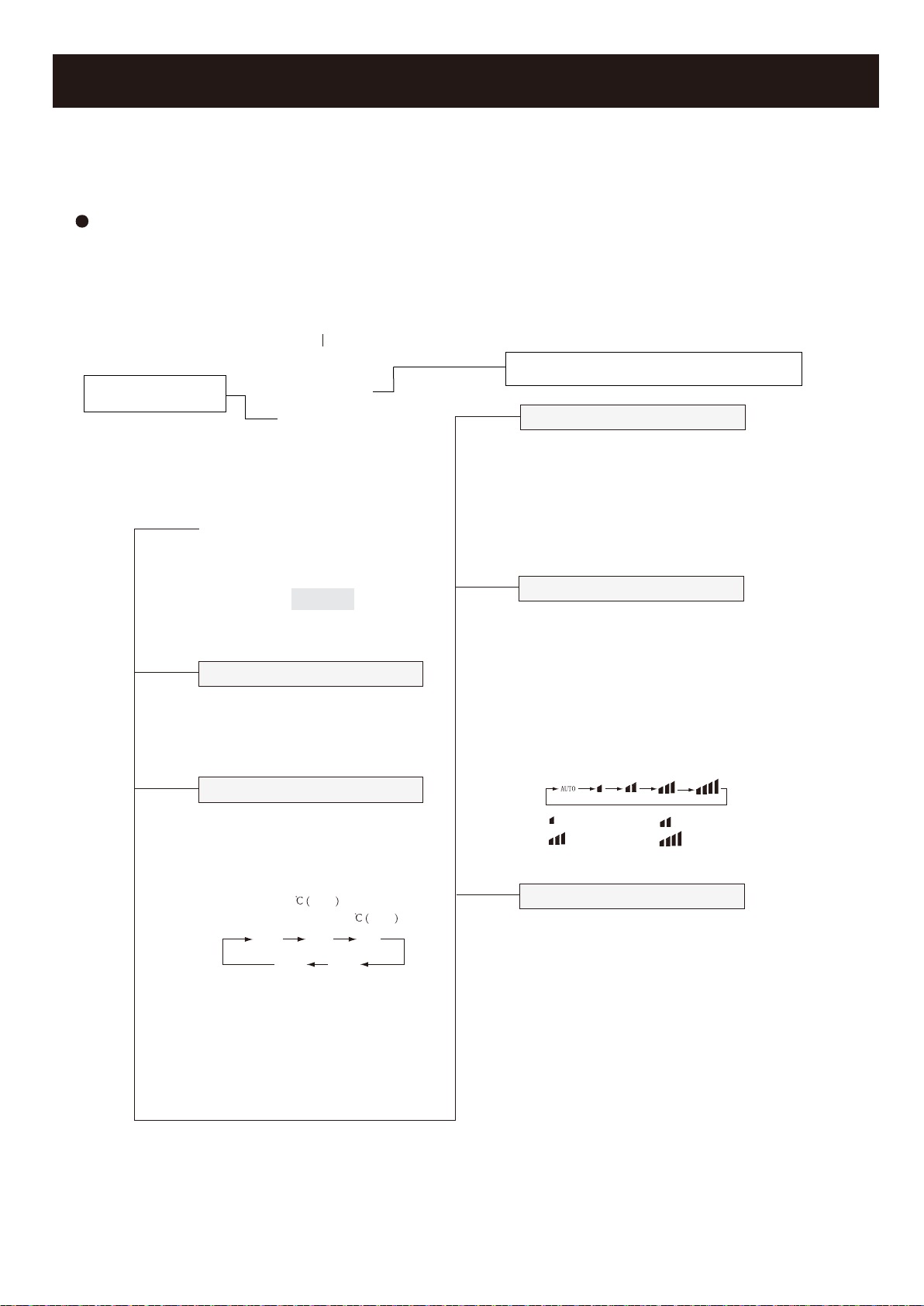

●Press this button, Auto, Cool, Dry, Fan,
Heat mode can be selected circularly.
MODE button
MODE
Auto mode is default while power on.
Under Auto mode, the temperature will not
be displayed; Under Heat mode, the
initial value is 28 82
℉ ; Under other
modes, the initial value is 25 77
℉
●Press this button, Sleep On and Sleep
Off can be selected. After powered on, Sleep
SLEEP button
SLEEP
Off is defaulted. After the unit is turned
off, the Sleep function is canceled. After
Sleep function set up, the signal of Sleep
will display. In this mode, the time of timer
can be adjusted. Under Fan and Auto
modes, this function is not available.
●By pressing this key, you may select AUTO,
FAN 1, FAN 2, FAN 3 or FAN 4, and may
FAN button
FAN
cool mode. After being energized, AUTO
is defaulted. Only LOW fan can be set
Press this button, the unit will be turned on,
press it once more, the unit will be turned
off. When turning on or turning off the unit,
the Timer, Sleep function will be canceled,
but the presetting time is still remained.
not adjust the fan speed, but can send
(Note: When select Fan 4, the fan speed is
same as Fan 3 on this unit.)
message.
under DRY mode, pressing this key can
also cycle between them. FAN 4 only in
●
SWING button
SWING
Press this key to activate or deactivate
the swing.
AUTO COOL DRY
FAN
HEAT
with multifunction; For some function, which the model dosen't have, if press the
corresponding button on the remote controller that the unit will keep the original
running status.
Note: This is a general use remote controller, it could be used for the air conditioners
Note: Heat mode is not
available on this unit
Note:Swing mode is not available on this unit

-14 -
OPERATION OF WIRELESS REMOTE CONTROL
Remote control
●
+ button
+
●Presetting temperature can be decreased.
Press this button, the temperature can be
- button
-
set up, continuously press this button
and hold for two seconds, the relative
contents can quickly change, until unhold
this button and send the order that the
℃
( ℉ ) signal will be displayed all the time.
The temperature adjustment is unav-
ailable under the Auto mode, but the order
can be sent by if pressing this button.
For presetting temperature increasing.
Press this button, can set up the temperature,
when unit is on. Continuously press and
hold this button for more than 2 seconds,
the corresponding contents will be
changed rapidly, until unpress the button
laying all along. In Auto mode, the temp-
erature can not be set up, but operate this
button can send the signal. Centigrade
setting range: 16-30; Fahrenheit scale
setting range 61-86.
then send the information,
℃( ℉ ) is disp-
●
By pressing this key under switch-off state,
you may set the time for auto switch-on. The
TIMER button
TIMER
range of setting is 0.5 ~ 24 hours. The
characters "T-ON" and "H" will flash for 5
seconds. Within 5 seconds, you may make
one press of this key to complete the setting
and send the message.If the setting is valid,
the set time will be displayed for 2 seconds
before display of the temperature message.
During flash, you may press "+" key to
increase the value and press "-" key to decrease
the value. The time will increase or decrease
by 0.5 hours with each press of this key.
If pressing "+" or "-" key continuously, the
time value will change rapidly. The remote
controller can increase the set time by 0.5
hours every 0.25 seconds. After being
energized, the fault is no timer setting, and
there is no display of "T-ON" or "H". Press
ON/OFF key to switch on the unit and cancel
the auto switch-on.When the temperature
display becomes constant, you may press
this key again to display the remaining set
time. The time value, "T-On" and "H" will
display constantly for 2 seconds. After 2
seconds,the preset temperature will be
displayed. Within these 2 seconds, you may
press this key again to cancel the auto
switch-on and send the message.
By pressing this key under switch-on state,
you may set the time for auto switch-off.
The method of setting as the same as for
auto switch-on.
●

-15-
OPERATION OF WIRELESS REMOTE CONTROL
1. After powered on, pressON/OFF button, the unit will start to run.
2. Press MODE button, select desired running mode, enter into
the corresponding operation directly.
3. Pressing + or - button, to set the desired temperature. (It is unnecessary
set the temp. at AUTO mode.)
4. Pressing FAN button, set fan speed, can select AUTO, FAN 1, FAN 2,
FAN 3 or FAN 4.
(Note: When select Fan 4, the fan speed is same as fan3 on this unit)
5. Pressing SWING button, to select the swing.
(Note: Not available on this unit)
1. Press SLEEP button, to set sleep.
2. Press TIMER button, can set the scheduled timer on or timer off.
Guide for operation - General operation
Guide for operation - Optional operation
Introduction for special function
When AUTO RUN mode is selected, the setting temperature will not be displayed on the
LCD, the unit will be in accordance with the room temp. automatically to select the suitable
running method and to make ambient comfortable.
★About AUTO RUN
Under switch-on or switch-off state, you may hold "+" and "-" key simultaneously to lock and
unlock the keypad. When locked, the display will show the LOCK icon, in which case the
lock icon will flash three times upon operation of any key. After the keypad is unlocked, the
lock icon on the display will be hidden. After being energized, the default is unlock.
About switch between Fahrenheit and Centigrade
Under switch-off state, you may hold "-" and "MODE" keys simultaneously to switch between
and
℃℉.
★
★About LOCK
Under switch-on or switch-off state, you may hold "+" and "FAN" key simultaneously for 3
seconds to set the lamp on or off and send the code. After being energized, the lamp is
defaulted on.
★About Lamp

-16-
1. Slightly to press the place to take out the back cover of wireless
4. Attach the back cover of wireless remote control. (As show in figure)
2. Take out the old batteries. (As show in figure)
3. Insert two new AAA1.5V dry batteries, and pay attention to the polarity.
★
remote control. (As shown in figure)
(As show in figure)
When changing the batteries, do not use the old or different batteries,
If the wireless remote control will not be used for a long time, please
otherwise, it can cause the malfunction of the wireless remote control.
take them out, and don't let the leakage liquid damage the wireless
remote control.
The operation should be in its receiving range.
It should be placed at where is 1m away from the TV set or stereo sound sets.
If the wireless remote control can not operate normally, please take them out,
after 30s later and reinsert, if they cannot normally run, please change them.
NOTE:
●
●
●
●
●
Changing batteries and notices
OPERATION OF WIRELESS REMOTE CONTROL

Mobile AC
Warning
Clean air filter
Note: Disassembly
Wash
From these two direction to take out filters.
Gas
Clean AC
1
-17 -
MAINTENANCE
There are wheels at bottom of mobile air conditioner that enable the unit moves
among rooms conveniently according to need.
Plug off power plug from socket and cut off power before any maintenance to
prevent creepage occurs.
If too much duct deposed on filter, performance of air conditioner will reduce,
thus it is better to clean filter at least once 2 weeks.
Clean filter individually, When cleaning, wash it by shooting
water(for example shower) and shakes it. Or soak it in warm
soap water then dry it.
Please soak the cloth by warm whose temperature is lower than 40℃(or 104 F)
soap water or water with proper cleaner)and wipe the dirty part on unit slightly
after the cloth is wrung.Don't clean the unit by gasoline, diesel oil or similar thing.
Pull out the power plug before cleaning.
o

If malfunction occur, please check the following before maintenance:
MALFUNCTION ANALYSIS
-18-
Troubles
The air conditioner doesn't
start.
Although it was set to COOL
mode, there is no cool wind.
Although it was set the DRY
mode, there is no cool wind.
The LED displays" ".
The LED displays" ".
Possible Causes
The water tank gets full.
Solutions
Cut off power supply, after 10
minutes,turn on the unit,if" "
The power supply is not connected well.
The power plug is not inserted tightly.
There is the malfunction of power plug
or socket.
The fuse is broken.
1. Insert the power plug tightly.
2. Replace the power plug or socket.
3. Ask for the maintenance man to
replace the fuse.
1. The room temp. is lower than
the set temp.
2. The evaporator frosts.
1. This is the normal phenomenon.
2. Unit is running in defrosting operation,
it will resume running in original
operation after defrosting.
1. The evaporator frosts.
1. Unit is running in defrosting operation,
it will resume running in original
operation after defrosting.
1.Low voltage over current
protection.
still be displays, please inform the
maintenance man to maintain.
1. Pour out water in the tank
2. If the malfunction still exists,
please inform the maintenance
man to maintain.
The LED displays" ".
Check if indoor room temperature
sensor is connected properly
Malfunction of Ambient tem-
perature sensor.
The LED displays" ".
Check if the evaporator temperature
is connected properly.
Malfunction of evaporator tem-
perature sensor.
