Gree LIVS36HP230V1CH User manual

’
Service Manual
Change for life
GREE ELECTRIC APPLIANCES, INC. OF ZHUHAI
LIVS36HP230V1CH
LIVV30HP230V1AH
LIVV36HP230V1AH
VIR30HP230V1BH
VIR36HP230V1BH
VIRU30HP230V1AH
VIRU36HP230V1AH
VIR36HP230V1CH
LIVS36HP230V1CO
LIVV30HP230V1AO
LIVV36HP230V1O
VIR30HP230V1BO
VIR36HP230V1BO
VIRU30HP230V1AO
VIRU36HP230V1AO
VIR36HP230V1CO

Service Manual
Table of contents
Table of Contents
Part Ⅰ: Technical Information.......................................................................1
1. Summary......................................................................................................................1
2. Specications..........................................................................................................3
2.1 Specication Sheet..................................................................................................3

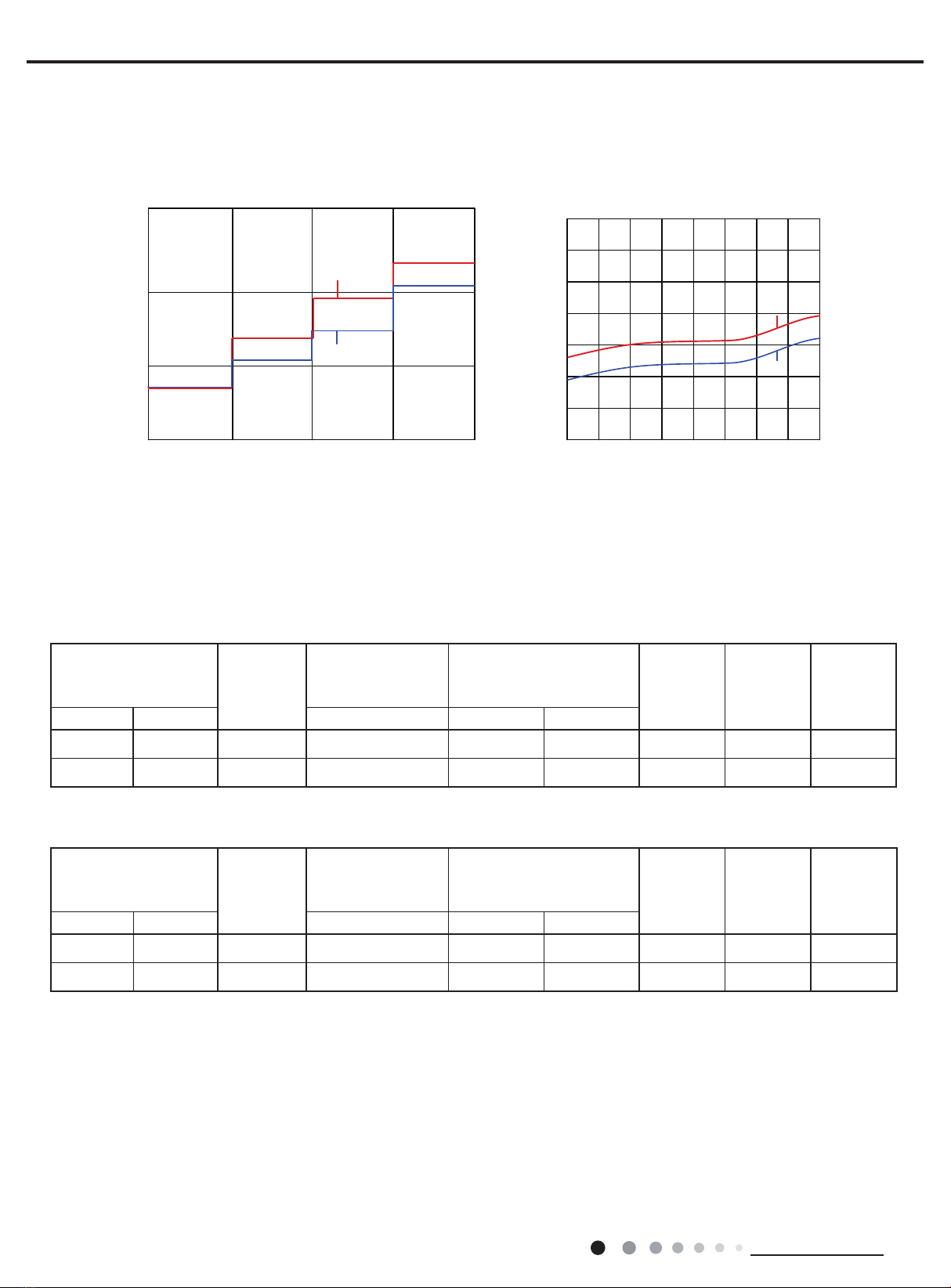

2.2 Capacity Variation Ratio According to Temperature .................................15
2.3 Noise Curve..............................................................................................................16
2.4 Cooling and Heating Data Sheet in Rated Frequency...............................16
3. Outline Dimension Diagram......................................................................17
3.1 Indoor Unit ................................................................................................................17
3.2 Outdoor Unit.............................................................................................................17
4. Refrigerant System Diagram....................................................................19
5. Electrical Part.........................................................................................................22
5.1 Wiring Diagram .......................................................................................................22
5.2 PCB Printed Diagram............................................................................................26
6. Function and Control......................................................................................30
6.1 Remote Controller Introduction of YAN1F6F(WiFi)....................................30
6.2 Remote Controller Introduction of YV1FB9F(WiFi)....................................35
6.3 GREE+ App Operation Manual ..........................................................................39
6.4 Ewpe Smart App Operation Manual.................................................................40
6.5 Brief Description of Modes and Functions ...................................................41
Part Ⅱ: Installation and Maintenance .................................................44
7. Notes for Installation and Maintenance..........................................44
8. Installation................................................................................................................47
8.1 Installation Dimension Diagram........................................................................47
8.2 Installation Parts-checking ................................................................................49
8.3 Selection of Installation Location.....................................................................49

Service Manual
Table of contents Table of contents
8.4 Requirements for electric connection ............................................................49
8.5 Installation of Indoor Unit....................................................................................49
8.6 Installation of Outdoor Unit ................................................................................52
8.7 Vacuum Pumping and Leak Detection............................................................53
8.8 Check after Installation and Test Operation .................................................53
9. Troubleshooting ..................................................................................................54
9.1 Flashing LED of Indoor/Outdoor Unit and Primary Judgement ............54
9.2 How to Check Simply the Main Part ................................................................62
9.3 Troubleshooting for Normal Malfunction ......................................................78
10. Exploded View and Parts List ..............................................................80
10.1 Indoor Unit..............................................................................................................80
10.2 Outdoor Unit ..........................................................................................................91
11. Removal Procedure.......................................................................................99
11.1 Removal Procedure of Indoor Unit ................................................................99
11.2 Removal Procedure of Outdoor Unit...........................................................108
Appendix:......................................................................................................................119
Appendix 1: Reference Sheet of Celsius and Fahrenheit............................. 119
Appendix 2: Conguration of Connection Pipe ............................................... 119
Appendix 3: Pipe Expanding Method...................................................................120
Appendix 4: List of Resistance for Temperature Sensor..............................121

1
Technical Information
Service Manual

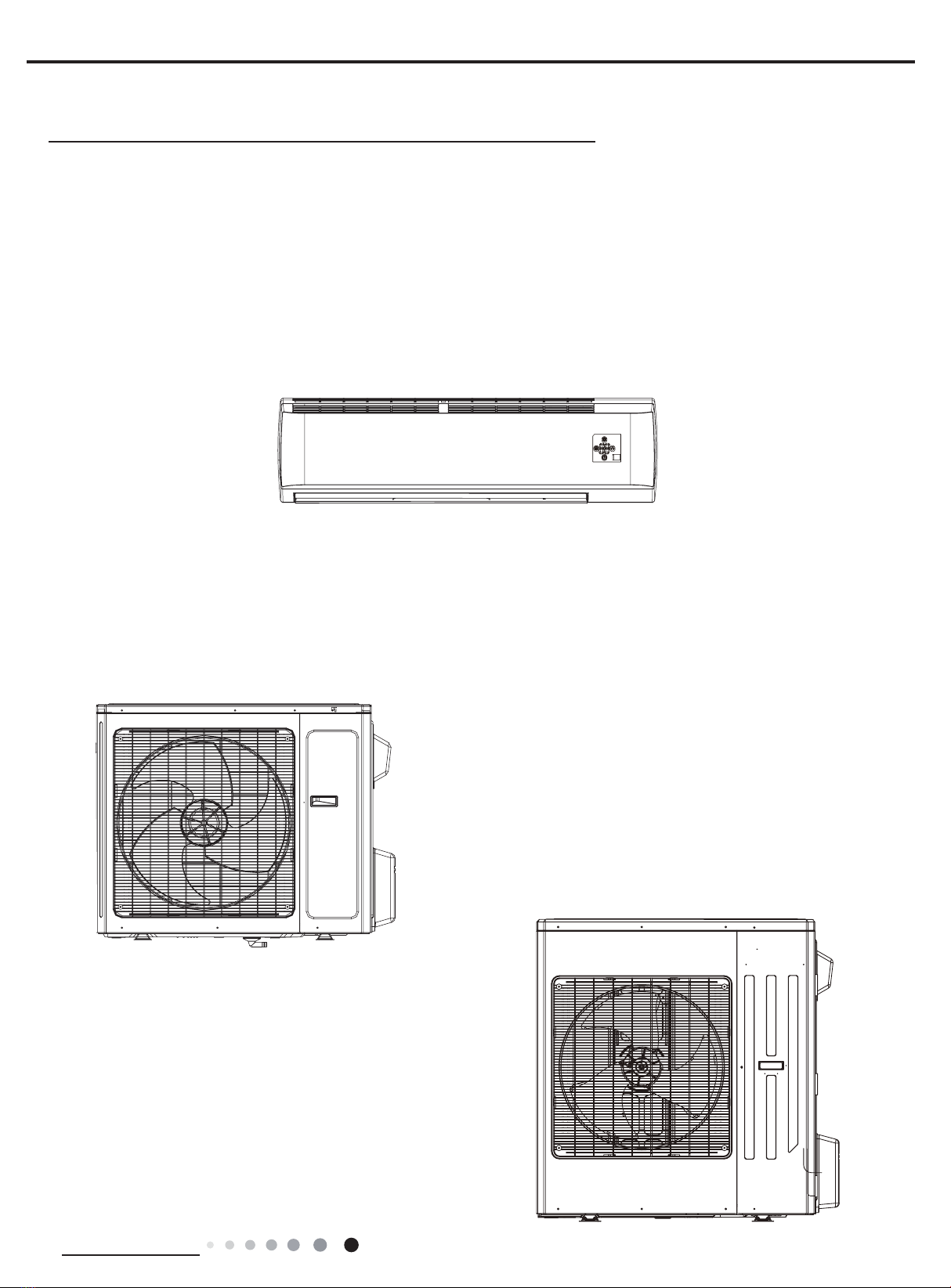

1. Summary
Part Ⅰ: Technical Information
Indoor Unit:
GWC30LB-D3DNB2G/I VIR30HP230V1BH
GWC36LB-D3DNB2G/I VIR36HP230V1BH
VIRU30HP230V1AH VIRU36HP230V1AH
VIR36HP230V1CH LIVS36HP230V1CH
GWC30QF-D3DNB2K/I LIVV30HP230V1AH
GWC36QF-D3DNB2O/I LIVV36HP230V1AH
Outdoor Unit:
GWC30LB-D3DNA3G/
VIR30HP230V1BO
VIR36HP230V1BO
VIR36HP230V1CO
LIVS36HP230V1CO
GWC36LB-D3DNA3G/O
GWC30QF-D3DNB2K/O
LIVV30HP230V1AO GWC36QF-D3DNB2O/
LIVV36HP230V1AO
VIRU36HP230V1AO
VIRU30HP230V1AO
A

2Technical Information
Service Manual
Remote Controller:
YAN1F6F(WiFi)
Model List:
No Model Product code Indoor model Indoor product
code Outdoor model Outdoor product code
Remote
Controller
1GWC30LB-D3DNB2G CB433000102 GWC30LB-D3DNB2G/I CB433N00102 GWC30LB-D3DNA3G/O CB171W10700
YAN1F6F(WiFi)
2 GWC30QF-D3DNB4G CB434005001 GWC30QF-D3DNB4G/I CB434N05001
3 GWC36LB-D3DNB2G CB433000302 GWC36LB-D3DNB2G/I CB433N00302 GWC36LB-D3DNA3G/O CB171W10900
4 GWC36QF-D3DNB4G CB434005102 GWC36QF-D3DNB4G/I CB434N05102
5 GWC36QF-D3DNB2O CB432022900 GWC36QF-D3DNB2O/I CB432N22900 GWC36QF-D3DNB2O/O CB432W22900
6LIVV36HP230V1A CB432023000 LIVV36HP230V1AH CB432N23000 LIVV36HP230V1AO CB432W23000
7 GWH36QF-D3DNB4O CB434017800 GWH36QF-D3DNB4O/I CB434N17800
8 VIR36HP230V1B CB433000402 VIR36HP230V1BH CB433N00402
VIR36HP230V1BO CB171W10800
9 GWH36LB-D3DNA4G CB471000101 GWH36LB-D3DNA4G/I CB471N00101
10 GWH36LB-D3DNA5G CB169001002 GWH36LB-D3DNA5G/I CB169N01002 YAN1F6FWiFi)
11 GWH36QF-D3DNB4G CB434004901 GWH36QF-D3DNB4G/I CB434N04901
YAN1F6F(WiFi)
12 VIRU36HP230V1A CB432010100 VIRU36HP230V1AH CB432N10100 VIRU36HP230V1AO CB432W10100
13 VIR30HP230V1BH CB433000202 VIR30HP230V1BH CB433N00202 VIR30HP230V1BO CB171W10600
14 GWH30QF-D3DNB4G CB434004801 GWH30QF-D3DNB4G/I CB434N04801
15 VIRU30HP230V1A CB432010000 VIRU30HP230V1AHCB432N10000 VIRU30HP230V1AO CB432W10000
16 GWC30QF-D3DNB2K CB432022200 GWC30QF-D3DNB2K/I CB432N22200 GWC30QF-D3DNB2K/O CB432W22200
17 LIVV30HP230V1A CB432022100 LIVV30HP230V1AH CB432N22100 LIVV30HP230V1AO CB432W22100
18 GWH30QF-D3DNB4K CB434017700 GWH30QF-D3DNB4K/I CB434N17700
19 VIR36HP230V1C CB432008101 VIR36HP230V1CH CB432N08101
VIR36HP230V1CO CB432W0810020 GWH36LB-D3DNA3H CB171014400 GWH36LB-D3DNA3H/I CB171N14400
21 GWH36QF-D3DNB4H CB434014800 GWH36QF-D3DNB4H/I CB434N14800
22 LIVS36HP230V1C CB432020300 LIVS36HP230V1CH CB432N20300 LIVS36HP230V1CO CB432W20300

3
Technical Information
Service Manual
2. Specications
2.1 Specication Sheet
Model GWC30LB-D3DNB2G
GWC30QF-D3DNB4G
VIR30HP230V1B
GWH30QF-D3DNB4G
Product Code CB433000102
CB434005001
CB433000202
CB434004801
Power Supply
Rated Voltage V~ 208/230 208/230
Rated Frequency Hz 60 60
Phases 11
Power Supply Mode Outdoor Outdoor
Cooling Capacity(Min~Max) Btu/h 28000(9485~30026) 28000(9485~30026)
Heating Capacity(Min~Max) Btu/h /28400(9997~32994)
Cooling Power Input(Min~Max) W 2700(350~3900) 2705(600~3900)
Heating Power Input(Min~Max) W /2800(650~4000)
Cooling Power Current A 11.5 11.5
Heating Power Current A /12
Rated Input W 3900 4000
Rated Current A 17 17
Rated Heating Current A /17.5
Air Flow Volume(SH/H/M/L) CFM 706/618/530/412 706/618/530/412
Dehumidifying Volume Pint/h 6.34 6.34
EER (Btu/h)/W 10.37 10.36
COP (Btu/h)/W /10.14
SEER 18 18
HSPF /9
Application Area yd241.86-62.19 41.86-62.19
Indoor Unit
Model of indoor unit GWC30LB-D3DNB2G/I
GWC30QF-D3DNB4G/I
VIR30HP230V1BH
GWH30QF-D3DNB4G/I
Indoor Unit Product Code CB433N00102
CB434N05001
CB433N00202
CB434N04801
Fan Type Cross-ow Cross-ow
Diameter Length(DXL) inch Φ4 1/4X20 9/16X2 Φ4 1/4X20 9/16X2
Fan Motor Cooling Speed (SH/H/M/L) r/min 1350/1150/950/850 1350/1150/950/850
Fan Motor Heating Speed (SH/H/M/L) r/min /1350/1200/1000/800
Output of Fan Motor W 70 70
Fan Motor RLA A 0.4 0.4
Fan Motor Capacitor μF //
Evaporator Form Aluminum Fin-copper Tube Aluminum Fin-copper Tube
Pipe Diameter inch Φ9/32 Φ9/32
Row-n Gap inch 2-1/16 2-1/16
Coil Length (LXDXW) inch 42 9/32X1X15 42 9/32X1X15
Swing Motor Model MP24BA MP24BA
Output of Swing Motor W 1.5 1.5
Fuse A 3.15 3.15
Sound Pressure Level (SH/H/M/L) dB (A) 51/45/41/37 51/45/41/37
Sound Power Level (SH/H/M/L) dB (A) 61/55/51/47 61/55/51/47
Dimension (WXHXD) inch 53 9/64X12 53/64X9 61/64 53 9/64X12 53/64X9 61/64
Dimension of Carton Box (LXWXH) inch 56 39/64X16 29/64X13 55/64 56 39/64X16 29/64X13 55/64
Dimension of Package (LXWXH) inch 56 47/64X16 37/64X14 7/16 56 47/64X16 37/64X14 7/16
Net Weight Ib 41.9 41.9
Gross Weight Ib 51.8 51.8

4Technical Information
Service Manual
Outdoor Unit
Model of Outdoor Unit GWC30LB-D3DNA3G/O VIR30HP230V1BO
Outdoor Unit Product Code CB171W10700 CB171W10600
Compressor Manufacturer/Trademark ZHUHAI LANDA
COMPERSSOR CO.LTD.
ZHUHAI LANDA COMPERSSOR
CO.LTD.
Compressor Model QXAS-D23zX090 QXAS-D23zX090
Compressor Oil RB68EP RB68EP
Compressor Type Rotary Rotary
Compressor Locked Rotor Amp (L.R.A) 40 40
Compressor RLA A 13.45 13.45
Compressor Power Input W 2450 2450
Overload Protector 1NT11L-6233 1NT11L-6233
Throttling Method Electron expansion valve+Capillary
Operation temp ºF 61~86 61~86
Ambient temp (cooling) ºF 0~115 0~115
Ambient temp (heating) ºF /-4~75
Condenser Form Aluminum Fin-copper Tube Aluminum Fin-copper Tube
Pipe Diameter inch Φ5/16 Φ5/16
Rows-n Gap inch 2-1/16 2-1/16
Coil Length (LXDXW) inch 37 1/2X1 1/2X29 7/16 37 1/2X1 1/2X29 7/16
Fan Motor Speed rpm 795 795
Output of Fan Motor W 120 120
Fan Motor RLA A 0.45 0.45
Fan Motor Capacitor μF //
Air Flow Volume of Outdoor Unit CFM 2354 2354
Fan Type Axial-ow Axial-ow
Fan Diameter inch Φ21 21/32 Φ21 21/32
Defrosting Method /Automatic Defrosting
Climate Type T1 T1
Isolation II
Moisture Protection IPX4 IPX4
Design Pressure(High) PSIG 550 550
Design Pressure(Low) PSIG 240 240
Sound Pressure Level (H/M/L) dB (A) 62/-/- 62/-/-
Sound Power Level (H/M/L) dB (A) 72/-/- 72/-/-
Dimension (WXHXD) inch 39 1/2X31 7/64X16 13/16 39 1/2X31 7/64X16 13/16
Dimension of Carton Box (LXWXH) inch 42 1/2X19X33 42 1/2X19X33
Dimension of Package (LXWXH) inch 42 21/32X19 13/64X33 21/32 42 21/32X19 13/64X33 21/32
Net Weight Ib 152.1 154.3
Gross Weight Ib 163.1 165.4
Refrigerant R410A R410A
Refrigerant Charge oz 84.66 84.66
Connection
Pipe
Length ft 24.6 24.6
Gas Additional Charge oz/ft 0.2 0.5
Outer Diameter Liquid Pipe inch 1/4 1/4
Outer Diameter Gas Pipe inch 5/8 5/8
Max Distance Height ft 32 3/16 32 3/16
Max Distance Length ft 98 27/64 98 27/64
Note:The connection pipe applies metric diameter.
The above data is subject to change without notice; please refer to the nameplate of the unit.

5
Technical Information
Service Manual
Model GWC36LB-D3DNB2G
GWC36QF-D3DNB4G
VIR36HP230V1B
GWH36LB-D3DNA5G
GWH36QF-D3DNB4G
GWH36LB-D3DNA4G
Product Code CB433000302
CB434005102
CB433000402
CB169001002
CB434004901
CB471000101
Power Supply
Rated Voltage V~ 208/230 208/230
Rated Frequency Hz 60 60
Phases 11
Power Supply Mode Outdoor Outdoor
Cooling Capacity(Min~Max) Btu/h 33600(7404~35997) 33600(7404~35997)
Heating Capacity(Min~Max) Btu/h /34600(14979~35997)
Cooling Power Input(Min~Max) W 4100 4100(450~4300)
Heating Power Input(Min~Max) W /3800(560~4300)
Cooling Power Current A 17 17
Heating Power Current A /16.5
Rated Input W 4300 4300
Rated Current A 20 20
Rated Heating Current A /20
Air Flow Volume(SH/H/M/L) CFM 736/647/530/412 736/647/530/412
Dehumidifying Volume Pint/h 7.4 7.4
EER (Btu/h)/W 8.20 8.20
COP (Btu/h)/W /9.11
SEER 18.00 18.00
HSPF /9
Application Area yd255.01-83.72 55.01-83.72
Indoor Unit
Model of indoor unit GWC36LB-D3DNB2G/I
GWC36QF-D3DNB4G/I
VIR36HP230V1BH
H GWH36LB-
D3DNA5G/I
GWH36QF-D3DNB4G/I
GWH36LB-D3DNA4G/I
Indoor Unit Product Code CB433N00302
CB434N05102
CB433N00402
CB169N01002
CB434N04901
CB471N00101
Fan Type Cross-ow Cross-ow
Diameter Length(DXL) inch Φ4 1/4X20 9/16 Φ4 1/4X20 9/16
Fan Motor Cooling Speed (SH/H/M/L) r/min 1400/1250/1000/800 1400/1250/1000/800
Fan Motor Heating Speed (SH/H/M/L) r/min /1400/1250/1050/850
Output of Fan Motor W 70 70
Fan Motor RLA A 0.4 0.4
Fan Motor Capacitor μF //
Evaporator Form Aluminum Fin-copper Tube Aluminum Fin-copper Tube
Pipe Diameter inch Φ9/32 Φ9/32
Row-n Gap inch 2-1/16 2-1/16
Coil Length (LXDXW) inch 42 9/32X1X15X2 42 9/32X1X15X2
Swing Motor Model MP24BA MP24BA
Output of Swing Motor W 1.5 1.5
Fuse A 55
Sound Pressure Level (SH/H/M/L) dB (A) 54/49/44/37 54/49/44/37
Sound Power Level (SH/H/M/L) dB (A) 64/59/54/47 64/59/54/47
Dimension (WXHXD) inch 53 9/64X12 53/64X9 61/64 53 9/64X12 53/64X9 61/64
Dimension of Carton Box (LXWXH) inch 56 39/64X16 29/64X13 55/64 56 39/64X16 29/64X13 55/64
Dimension of Package (LXWXH) inch 56 47/64X16 37/64X14 7/16 56 47/64X16 37/64X14 7/16
Net Weight Ib 41.9 41.9
Gross Weight Ib 51.8 51.8

6Technical Information
Service Manual
Outdoor Unit
Model of Outdoor Unit GWC36LB-D3DNA3G/O(LC) VIR36HP230V1BO(LCLH)
Outdoor Unit Product Code CB171W10900 CB171W10800
Compressor Manufacturer/Trademark
MITSUBISHI ELECTRIC
(GUANGZHOU)COMPRESSO
R CO. LTD
MITSUBISHI ELECTRIC
(GUANGZHOU)COMPRESSOR
CO. LTD
Compressor Model TNB306FPGMC TNB306FPGMC
Compressor Oil FV50S FV50S
Compressor Type Rotary Rotary
Compressor Locked Rotor Amp (L.R.A) 67.00 67.00
Compressor RLA A 17.5 17.5
Compressor Power Input W 3010 3010
Overload Protector CS01F272H01 CS01F272H01
Throttling Method Electron expansion valve Electron expansion valve
Operation temp ºF 61~86 61~86
Ambient temp (cooling) ºF 0~109 0~109
Ambient temp (heating) ºF /-4~75
Condenser Form Aluminum Fin-copper Tube Aluminum Fin-copper Tube
Pipe Diameter inch Φ5/16 Φ5/16
Rows-n Gap inch 2-1/16 2-1/16
Coil Length (LXDXW) inch 37X1 3/4X30 37X1 3/4X30
Fan Motor Speed rpm 890 890
Output of Fan Motor W 170 170
Fan Motor RLA A 0.73 0.73
Fan Motor Capacitor μF //
Air Flow Volume of Outdoor Unit CFM 2589 2589
Fan Type Axial- low Axial-ow
Fan Diameter inch Φ21 21/32 Φ21 21/32
Defrosting Method /Automatic Defrosting
Climate Type T1 T1
Isolation II
Moisture Protection IPX4 IPX4
Design Pressure(High) PSIG 550 550
Design Pressure(Low) PSIG 240 240
Sound Pressure Level (H/M/L) dB (A) 65/-/- 65/-/-
Sound Power Level (H/M/L) dB (A) 75/-/- 75/-/-
Dimension (WXHXD) inch 39 1/2X31 7/64X16 13/16 39 1/2X31 7/64X16 13/16
Dimension of Carton Box (LXWXH) inch 42 1/2X19X33 42 1/2X19X33
Dimension of Package (LXWXH) inch 42 21/32X19 13/64X33 21/32 42 21/32X19 13/64X33 21/32
Net Weight Ib 154.3 161.0
Gross Weight Ib 165.4 172.0
Refrigerant R410A R410A
Refrigerant Charge oz 84.66 91.71
Connection
Pipe
Length ft 24.6 24.6
Gas Additional Charge oz/ft 0.5 0.5
Outer Diameter Liquid Pipe inch 1/4 1/4
Outer Diameter Gas Pipe inch 5/8 5/8
Max Distance Height ft 32 3/16 32 3/16
Max Distance Length ft 98 27/64 98 27/64
Note:The connection pipe applies metric diameter.
The above data is subject to change without notice; please refer to the nameplate of the unit.

7
Technical Information
Service Manual
Model VIRU36HP230V1A GWH30QF-D3DNB2I
Product Code CB432010100 CB432010000
Power Supply
Rated Voltage V~ 208/230 208/230
Rated Frequency Hz 60 60
Phases 1 1
Power Supply Mode Outdoor Outdoor
Cooling Capacity(Min~Max) Btu/h 33000(8800~40900) 28000(5500~30700)
Heating Capacity(Min~Max) Btu/h 34600(16700~49400) 28800(4400~35200)
Cooling Power Input(Min~Max) W 3220(500~4100) 2500(420~3650)
Heating Power Input(Min~Max) W 3100(1000~7000) 2700(520~5800)
Cooling Power Current A 14.7 11.4
Heating Power Current A 14.2 12.4
Rated Input W 7000 5800
Rated Current A 19 17
Rated Heating Current A 30 25
Air Flow Volume(SH/H/M/L) CFM 824/706/589/441 824/706/589/441
Dehumidifying Volume Pint/h 7.4 6.34
EER (Btu/h)/W 10.25 11.2
COP (Btu/h)/W 11.16 10.67
SEER 23 23
HSPF 10.5 10.5
Application Area yd255.01-83.72 41.86-62.19
Indoor Unit
Model of indoor unit VIRU36HP230V1AH VIRU30HP230V1AH
Indoor Unit Product Code CB432N10100 CB432N10000
Fan Type Cross-ow Cross- low
Diameter Length(DXL) inch Φ4 1/4X20 9/16 Φ4 1/4X20 9/16
Fan Motor Cooling Speed (SH/H/M/L) r/min 1550/1300/1150/850 1550/1300/1150/850
Fan Motor Heating Speed (SH/H/M/L) r/min 1500/1300/1150/1000 1500/1300/1150/1000
Output of Fan Motor W 70 70
Fan Motor RLA A 0.4 0.4
Fan Motor Capacitor μF //
Evaporator Form Aluminum Fin-copper Tube Aluminum Fin-copper Tube
Pipe Diameter inch Φ9/32 Φ9/32
Row-n Gap inch 2-1/16 2-1/16
Coil Length (LXDXW) inch 42 9/32X1X15 42 9/32X1X15
Swing Motor Model MP24BA MP24BA
Output of Swing Motor W 2 2
Fuse A 5 5
Sound Pressure Level (SH/H/M/L) dB (A) 54/49/44/37 54/49/44/37
Sound Power Level (SH/H/M/L) dB (A) 64/59/54/47 64/59/54/47
Dimension (WXHXD) inch 53 9/64X12 53/64X9 61/64 53 9/64X12 53/64X9 61/64
Dimension of Carton Box (LXWXH) inch 56 39/64X16 29/64X13 55/64 56 39/64X16 29/64X13 55/64
Dimension of Package (LXWXH) inch 56 47/64X16 37/64X14 7/16 56 47/64X16 37/64X14 7/16
Net Weight Ib 41.9 41.9
Gross Weight Ib 51.8 51.8

8Technical Information
Service Manual
Outdoor Unit
Model of Outdoor Unit VIRU36HP230V1AO VIRU30HP230V1AO
Outdoor Unit Product Code CB432W10100 CB432W10000
Compressor Manufacturer/Trademark ZHUHAI LANDA COMPRESSOR
CO., LTD
ZHUHAI LANDA COMPRESSOR
CO., LTD
Compressor Model QXAW-F518zX440C QXFW-D318ZX035
Compressor Oil FV50S or equivalent FW68DA or equivalent
Compressor Type Rotary Rotary
Compressor Locked Rotor Amp (L.R.A) 36 30
Compressor RLA A 24 23
Compressor Power Input W 5830±3% 3350±3%
Overload Protector / /
Throttling Method Electron expansion valve Electron expansion valve
Operation temp ºF 61~86 61~86
Ambient temp (cooling) ºF 0~109 0~109
Ambient temp (heating) ºF -31~75 -31~75
Condenser Form Aluminum Fin-copper Tube Aluminum Fin-copper Tube
Pipe Diameter inch Φ5/16 Φ5/16
Rows-n Gap inch 2-1/16 2-1/16
Coil Length (LXDXW) inch 41 37/64X1 1/2×38 13/64 41 37/64X1 1/2×38 13/64
Fan Motor Speed rpm 940 850
Output of Fan Motor W 170 170
Fan Motor RLA A 0.73 0.73
Fan Motor Capacitor μF / 0
Air Flow Volume of Outdoor Unit CFM 3119 5300
Fan Type Axial-ow Axial-ow
Fan Diameter inch Φ21 21/32 Φ21 21/32
Defrosting Method Automatic Defrosting Automatic Defrosting
Climate Type T1 T1
Isolation I I
Moisture Protection IPX4 IPX4
Design Pressure(High) PSIG 550 550
Design Pressure(Low) PSIG 240 240
Sound Pressure Level (H/M/L) dB (A) 63/-/- 61/-/-
Sound Power Level (H/M/L) dB (A) 73/-/- 73/-/-
Dimension (WXHXD) inch 43 37/64X43 1/2X16 9/64 43 37/64X43 1/2X16 9/64
Dimension of Carton Box (LXWXH) inch 45 1/2X18 57/64X45 39/64 45 1/2X18 57/64X45 39/64
Dimension of Package (LXWXH) inch 45 39/64X19 X44 9/32 45 39/64X19 X44 9/32
Net Weight Ib 253.53 229.3
Gross Weight Ib 271.17 240.3
Refrigerant R410A R410A
Refrigerant Charge oz 123.5 123.5
Connection
Pipe
Length ft 24.6 24.6
Gas Additional Charge oz/ft 0.3 0.3
Outer Diameter Liquid Pipe inch 1/4 1/4
Outer Diameter Gas Pipe inch 5/8 5/8
Max Distance Height ft 98.4 98.4
Max Distance Length ft 164 164
Note:The connection pipe applies metric diameter.
The above data is subject to change without notice; please refer to the nameplate of the unit.

9
Technical Information
Service Manual
Model
VIR36HP230V1C
GWH36LB-D3DNA3H
GWH36QF-D3DNB4H
GWH36LB-D3DNA3H
Product Code
CB432008101
CB171014400
CB434014800
CB171014400
Power Supply
Rated Voltage V~ 208/230 208/230
Rated Frequency Hz 60 60
Phases 1 1
Power Supply Mode Outdoor Outdoor
Cooling Capacity(Min~Max) Btu/h 33600(7404~35997) 33600(7400~36000)
Heating Capacity(Min~Max) Btu/h 34600(14979~35997) 34600(15000~36000)
Cooling Power Input(Min~Max) W 4100(450~4300) 4100(450~4300)
Heating Power Input(Min~Max) W 3800(560~4300) 3800(560~4300)
Cooling Power Current A 17 17
Heating Power Current A 16.5 16.5
Rated Input W 4300 4300
Rated Current A 20 20
Air Flow Volume(SH/H/M/L) CFM 883/765/647/559 883/765/647/559
Dehumidifying Volume Pint/h 7.4 7.4
EER (Btu/h)/W 8.2 8.2
COP (Btu/h)/W 9.11 9.11
SEER 18 16
HSPF 9 9
Application Area yd255.01-83.72 55.01-83.72
Indoor Unit
Model of indoor unit
VIR36HP230V1CH
GWH36LB-D3DNA3H/I
GWH36QF-D3DNB4H/I
GWH36LB-D3DNA3H/I
Indoor Unit Product Code
CB432N08101
CB171N14400
CB434N14800
CB171N14400
Fan Type Cross-ow Cross- low
Diameter Length(DXL) inch Φ4 1/4X20 9/16X2 Φ4 1/4X20 9/16X2
Fan Motor Cooling Speed (SH/H/M/L) r/min 1400/1250/1000/800 1400/1250/1000/800
Fan Motor Heating Speed (SH/H/M/L) r/min 1400/1250/1050/850 1400/1250/1050/850
Output of Fan Motor W 70 70
Fan Motor RLA A 0.4 0.4
Fan Motor Capacitor μF //
Evaporator Form Aluminum Fin-copper Tube Aluminum Fin-copper Tube
Pipe Diameter inch Φ9/32 Φ9/32
Row-n Gap inch 2-1/16 2-1/16
Coil Length (LXDXW) inch 42 9/32X1X15X2 42 9/32X1X15X2
Swing Motor Model MP24BA MP24BA
Output of Swing Motor W 1.5 1.5
Fuse A 5 5
Sound Pressure Level (SH/H/M/L) dB (A) 54/49/44/37 54/49/44/37
Sound Power Level (SH/H/M/L) dB (A) 64/59/54/47 64/59/54/47
Dimension (WXHXD) inch 53 9/64X12 53/64X9 61/64 53 9/64X12 53/64X9 61/64
Dimension of Carton Box (LXWXH) inch 56 39/64X16 29/64X13 55/64 56 39/64X16 29/64X13 55/64
Dimension of Package (LXWXH) inch 56 47/64X16 37/64X14 7/16 56 47/64X16 37/64X14 7/16
Net Weight Ib 41.9 41.9
Gross Weight Ib 51.8 51.8

10 Technical Information
Service Manual
Outdoor Unit
Model of Outdoor Unit VIR36HP230V1CO LIVS36HP230V1CO
Outdoor Unit Product Code CB432W08100 CB432W20300
Compressor Manufacturer/Trademark ZHUHAI LANDA
COMPRESSORCO., LTD.
ZHUHAI LANDA
COMPRESSORCO., LTD.
Compressor Model QXAS-D32zX090A QXAS-D32zX090A
Compressor Oil FV50S FV50S
Compressor Type Rotary Rotary
Compressor Locked Rotor Amp (L.R.A) 67 67
Compressor RLA A 17.5 17.5
Compressor Power Input W 4150 4150
Overload Protector 1NT11L-6233/HPC 115/95/KSD
115oC
1NT11L-6233/HPC 115/95/KSD
115oC
Throttling Method Electron expansion valve Electron expansion valve
Operation temp ºF 61~86 61~86
Ambient temp (cooling) ºF 0~109 0~109
Ambient temp (heating) ºF -4~75 -4~75
Condenser Form Aluminum Fin-copper Tube Aluminum Fin-copper Tube
Pipe Diameter inch Φ5/16 Φ5/16
Rows-n Gap inch 2-1/16 2-1/16
Coil Length (LXDXW) inch 37X1 3/4X30 37X1 3/4X30
Fan Motor Speed rpm 890 890
Output of Fan Motor W 170 170
Fan Motor RLA A 0.73 0.73
Fan Motor Capacitor μF / /
Air Flow Volume of Outdoor Unit CFM 2589 2589
Fan Type Axial-ow Axial-ow
Fan Diameter inch Φ21 21/32 Φ21 21/32
Defrosting Method Automatic Defrosting Automatic Defrosting
Climate Type T1 T1
Isolation I I
Moisture Protection IPX4 IPX4
Design Pressure(High) PSIG 550 550
Design Pressure(Low) PSIG 240 240
Sound Pressure Level (H/M/L) dB (A) 65/-/- 65/-/-
Sound Power Level (H/M/L) dB (A) 75/-/- 75/-/-
Dimension (WXHXD) inch 39 1/2X31 7/64X16 13/16 39 1/2X31 7/64X16 13/16
Dimension of Carton Box (LXWXH) inch 42 1/2X19X33 42 1/2X19X33
Dimension of Package (LXWXH) inch 42 21/32X19 13/64X33 21/32 42 21/32X19 13/64X33 21/32
Net Weight Ib 158.8 158.8
Gross Weight Ib 169.8 169.8
Refrigerant R410A R410A
Refrigerant Charge oz 91.71 91.71
Connection
Pipe
Length ft 24.6 24.6
Gas Additional Charge oz/ft 0.5 0.5
Outer Diameter Liquid Pipe inch 1/4 1/4
Outer Diameter Gas Pipe inch 5/8 5/8
Max Distance Height ft 32 3/16 32 3/16
Max Distance Length ft 98 27/64 98 27/64
Note:The connection pipe applies metric diameter.
The above data is subject to change without notice; please refer to the nameplate of the unit.

11
Technical Information
Service Manual
Model GWC30QF-D3DNB2K LIVV30HP230V1A
GWH30QF-D3DNB4K
Product Code CB432022200 CB432022100
CB434017700
Power Supply
Rated Voltage V~ 208/230 208/230
Rated Frequency Hz 60 60
Phases 11
Power Supply Mode Outdoor Outdoor
Cooling Capacity Btu/h 30000 30000
Heating Capacity Btu/h /30000
Cooling Power Input W 2839 2839
Heating Power Input W /2750
Cooling Power Current A 12.4 12.4
Heating Power Current A /12
Rated Input W 3400 3800
Rated Current A 15 16.5
Rated Heating Current A /16.5
Air Flow Volume(SH/H/M/L) CFM 820/706/589/441 820/706/589/441
Dehumidifying Volume Pint/h 6.34 6.34
EER (Btu/h)/W 10.55 10.55
COP (Btu/h)/W /11.26
SEER 18 18
HSPF /9
Application Area yd241.86-62.19 41.86-62.19
Indoor Unit
Model of indoor unit GWC30QF-D3DNB2K/I LIVV30HP230V1AH
GWH30QF-D3DNB4K/I
Indoor Unit Product Code CB432N22200 CB432N22100
CB434N17700
Fan Type Cross-ow Cross-ow
Diameter Length(DXL) inch Φ4 1/4X20 9/16 Φ4 1/4X20 9/16
Fan Motor Cooling Speed (SH/H/M/L) r/min 1550/1300/1150/850 1550/1300/1150/850
Fan Motor Heating Speed (SH/H/M/L) r/min /1500/1300/1150/1000
Output of Fan Motor W 70 70
Fan Motor RLA A 0.55 0.55
Fan Motor Capacitor μF //
Evaporator Form Aluminum Fin-copper Tube Aluminum Fin-copper Tube
Pipe Diameter inch Φ9/32 Φ9/32
Row-n Gap inch 2-1/16 2-1/16
Coil Length (LXDXW) inch 42 9/32X1X15 42 9/32X1X15
Swing Motor Model MP24BA MP24BA
Output of Swing Motor W 1.5 1.5
Fuse A 55
Sound Pressure Level (SH/H/M/L) dB (A) 55/50/46/37 55/50/46/37
Sound Power Level (SH/H/M/L) dB (A) 65/60/56/47 65/60/56/47
Dimension (WXHXD) inch 53 9/64X12 53/64X9 61/64 53 9/64X12 53/64X9 61/64
Dimension of Carton Box (LXWXH) inch 56 39/64X16 29/64X13 55/64 56 39/64X16 29/64X13 55/64
Dimension of Package (LXWXH) inch 56 47/64X16 37/64X14 7/16 56 47/64X16 37/64X14 7/16
Net Weight Ib 43 43
Gross Weight Ib 52.9 52.9

12 Technical Information
Service Manual
Outdoor Unit
Model of Outdoor Unit GWC30QF-D3DNB2K/O LIVV30HP230V1AO
Outdoor Unit Product Code CB432W22200 CB432W22100
Compressor Manufacturer/Trademark ZHUHAI LANDA
COMPERSSOR CO.LTD.
ZHUHAI LANDA COMPERSSOR
CO.LTD.
Compressor Model QXFS-D25zX090H QXFS-D25zX090H
Compressor Oil FW68DA or equivalent FW68DA or equivalent
Compressor Type Rotary Rotary
Compressor Locked Rotor Amp (L.R.A) //
Compressor RLA A 16.9 16.9
Compressor Power Input W 2420 2420
Overload Protector HPC115/95U1 KSD115℃HPC115/95U1 KSD115℃
Throttling Method Electron expansion valve Electron expansion valve
Operation temp ºF 61~86 61~86
Ambient temp (cooling) ºF -4~105 -4~105
Ambient temp (heating) ºF /-13~75
Condenser Form Aluminum Fin-copper Tube Aluminum Fin-copper Tube
Pipe Diameter inch Φ9/32 Φ9/32
Rows-n Gap inch 2-1/16 2-1/16
Coil Length (LXDXW) inch 37 31/64X1 1/2X29 29/64 37 31/64X1 1/2X29 29/64
Fan Motor Speed rpm 880 880
Output of Fan Motor W 92 92
Fan Motor RLA A 0.7 0.7
Fan Motor Capacitor μF //
Air Flow Volume of Outdoor Unit CFM 2354 2354
Fan Type Axial-ow Axial-ow
Fan Diameter inch Φ21 21/32 Φ21 21/32
Defrosting Method /Automatic Defrosting
Climate Type T1 T1
Isolation II
Moisture Protection IPX4 IPX4
Design Pressure(High) PSIG 550 550
Design Pressure(Low) PSIG 240 240
Sound Pressure Level (H/M/L) dB (A) 59/-/- 60/-/-
Sound Power Level (H/M/L) dB (A) 69/-/- 70/-/-
Dimension (WXHXD) inch 39 1/2X31 7/64X16 13/16 39 1/2X31 7/64X16 13/16
Dimension of Carton Box (LXWXH) inch 42 1/2X19X33 42 1/2X19X33
Dimension of Package (LXWXH) inch 42 21/32X19 13/64X33 21/32 42 21/32X19 13/64X33 21/32
Net Weight Ib 136.7 138.9
Gross Weight Ib 147.7 149.9
Refrigerant R410A R410A
Refrigerant Charge oz 77.6 77.6
Connection
Pipe
Length ft 24.6 24.6
Gas Additional Charge oz/ft 0.2 0.2
Outer Diameter Liquid Pipe inch 1/4 1/4
Outer Diameter Gas Pipe inch 5/8 5/8
Max Distance Height ft 32 13/16 32 13/16
Max Distance Length ft 82 82
Note:The connection pipe applies metric diameter.
The above data is subject to change without notice; please refer to the nameplate of the unit.

13
Technical Information
Service Manual
Model GWC36QF-D3DNB2O LIVV36HP230V1A
GWH36QF-D3DNB4O
Product Code CB432022900 CB432023000
CB434017800
Power Supply
Rated Voltage V~ 208/230 208/230
Rated Frequency Hz 60 60
Phases 11
Power Supply Mode Outdoor Outdoor
Cooling Capacity Btu/h 33600 33600
Heating Capacity Btu/h /34600
Cooling Power Input W 3650 3650
Heating Power Input W /3620
Cooling Power Current A 12.4 12.4
Heating Power Current A /12
Rated Input W 3900 4200
Rated Current A 18 19
Rated Heating Current A /19
Air Flow Volume(SH/H/M/L) CFM 824/706/589/441 824/706/589/441
Dehumidifying Volume Pint/h 6.34 6.34
EER (Btu/h)/W 9.20 9.20
COP (Btu/h)/W /9.56
SEER 18 18
HSPF /9
Application Area yd241.86-62.19 41.86-62.19
Indoor Unit
Model of indoor unit GWC36QF-D3DNB2O/I LIVV36HP230V1AH
GWH36QF-D3DNB4O/I
Indoor Unit Product Code CB432N22900 CB432N23000
CB434N17800
Fan Type Cross-ow Cross-ow
Diameter Length(DXL) inch Φ4 1/4X20 9/16 Φ4 1/4X20 9/16
Fan Motor Cooling Speed (SH/H/M/L) r/min 1550/1300/1150/850 1550/1300/1150/850
Fan Motor Heating Speed (SH/H/M/L) r/min /1500/1300/1150/1000
Output of Fan Motor W 70 70
Fan Motor RLA A 0.55 0.55
Fan Motor Capacitor μF //
Evaporator Form Aluminum Fin-copper Tube Aluminum Fin-copper Tube
Pipe Diameter inch Φ9/32 Φ9/32
Row-n Gap inch 2-1/16 2-1/16
Coil Length (LXDXW) inch 42 9/32X1X15 42 9/32X1X15
Swing Motor Model MP24BA MP24BA
Output of Swing Motor W 1.5 1.5
Fuse A 55
Sound Pressure Level (SH/H/M/L) dB (A) 55/50/46/37 55/50/46/37
Sound Power Level (SH/H/M/L) dB (A) 65/60/56/47 65/60/56/47
Dimension (WXHXD) inch 53 9/64X12 53/64X9 61/64 53 9/64X12 53/64X9 61/64
Dimension of Carton Box (LXWXH) inch 56 39/64X16 29/64X13 55/64 56 39/64X16 29/64X13 55/64
Dimension of Package (LXWXH) inch 56 47/64X16 37/64X14 7/16 56 47/64X16 37/64X14 7/16
Net Weight Ib 44.1 44.1
Gross Weight Ib 54 24.5

14 Technical Information
Service Manual
The above data is subject to change without notice; please refer to the nameplate of the unit.
Outdoor Unit
Model of Outdoor Unit GWC36QF-D3DNB2O/O LIVV36HP230V1AO
Outdoor Unit Product Code CB432W22900 CB432W23000
Compressor Manufacturer/Trademark ZHUHAI LANDA
COMPERSSOR CO.LTD.
ZHUHAI LANDA COMPERSSOR
CO.LTD.
Compressor Model QXFS-D25zX090H QXFS-D25zX090H
Compressor Oil FW68DA or equivalent FW68DA or equivalent
Compressor Type Rotary Rotary
Compressor Locked Rotor Amp (L.R.A) /24
Compressor RLA A 16.9 16.9
Compressor Power Input W 2420 2420
Overload Protector HPC115/95U1 KSD115℃HPC115/95U1 KSD115℃
Throttling Method Electron expansion valve Electron expansion valve
Operation temp ºF 61~86 61~86
Ambient temp (cooling) ºF -4~105 -4~105
Ambient temp (heating) ºF /-13~75
Condenser Form Aluminum Fin-copper Tube Aluminum Fin-copper Tube
Pipe Diameter inch Φ9/32 Φ9/32
Rows-n Gap inch 2-1/16 2-1/16
Coil Length (LXDXW) inch 37 31/64X1 1/2X29 29/64 37 31/64X1 1/2X29 29/64
Fan Motor Speed rpm 880 880
Output of Fan Motor W 92 92
Fan Motor RLA A 0.7 0.7
Fan Motor Capacitor μF //
Air Flow Volume of Outdoor Unit CFM 2354 2354
Fan Type Axial-ow Axial-ow
Fan Diameter inch Φ21 21/32 Φ21 21/32
Defrosting Method /Automatic Defrosting
Climate Type T1 T1
Isolation II
Moisture Protection IPX4 IPX4
Design Pressure(High) PSIG 550 550
Design Pressure(Low) PSIG 240 240
Sound Pressure Level (H/M/L) dB (A) 59/-/- 61/-/-
Sound Power Level (H/M/L) dB (A) 69/-/- 71/-/-
Dimension (WXHXD) inch 39 1/2X31 7/64X16 13/16 39 1/2X31 7/64X16 13/16
Dimension of Carton Box (LXWXH) inch 42 1/2X19X33 42 1/2X19X33
Dimension of Package (LXWXH) inch 42 21/32X19 13/64X33 21/32 42 21/32X19 13/64X33 21/32
Net Weight Ib 137.8 140
Gross Weight Ib 148.8 151
Refrigerant R410A R410A
Refrigerant Charge oz 88.2 88.2
Connection
Pipe
Length ft 24.6 24.6
Gas Additional Charge oz/ft 0.2 0.2
Outer Diameter Liquid Pipe inch 1/4 1/4
Outer Diameter Gas Pipe inch 5/8 5/8
Max Distance Height ft 32 13/16 32 13/16
Max Distance Length ft 82 82
Note:The connection pipe applies metric diameter.

15
Technical Information
Service Manual
2.2 Capacity Variation Ratio According to Temperature
Cooling Heating
90 95 100 105109
100
105
95
90
85
80
75
70
65
60
55
50
Outdoor temp. (˚F
)O
utdoor temp. (˚F)
Capacity ratio (%)
Capacity ratio (%)
Conditions
Indoor:
Pipe length :
24.6ft
DB 80°F
WB66
°F
Indoor air flow: Super High
-4 514
110
100
90
80
70
60
50
40
23 32 41 50
Conditions
Indoor:DB
70°F
Indoor air flow:Super High
Pipe length:
24.6ft
0
20
40
60
80
100
120
140
0 14 23 32 59 68 77 86 95 104 109 115
0
20
40
60
80
100
120
140
-31-22 -13-4518 35 45 50 59 68
75
Capacity ratio (%) Capacity ratio (%)
Cooling Heating
Heating operation ambient temperature range is -4ºF~75ºF
Heating operation ambient temperature range is -13ºF~75ºF
Heating operation ambient temperature range is -31ºF~75ºF
Cooling Heating
90 95 100 105 109
100
105
95
90
85
80
75
70
65
60
55
50
Outdoor temp. (˚F
)O
utdoor temp. (˚F)
Capacity ratio (%)
Capacity ratio (%)
Conditions
Indoor:
Pipe length :
24.6ft
DB 80°F
WB66
°F
Indoor air flow: Super High
-13514
110
100
90
80
70
60
50
40
23 32 41 50
Conditions
Indoor:DB
70°F
Indoor air flow:Super High
Pipe length:
24.6ft

16 Technical Information
Service Manual
2.4 Cooling and Heating Data Sheet in Rated Frequency
Rated cooling
condition(°F) (DB/WB) Model
Pressure of gas pipe
connecting indoor and
outdoor unit
Inlet and outlet pipe
temperature of heat
exchanger Fan speed of
indoor unit
Fan speed of
outdoor unit
Compressor
revolution
(rps)
Indoor Outdoor P (PSIG) T1 (°F) T2 (°F)
80/66 95/- 30K 130~145 46.8 to 52.8 127 to 96.8 Super High High 46
80/66 95/- 36K 130~145 46.8 to 52.8 127 to 96.8 Super High High 37
Rated heating
condition(°F) (DB/WB) Model
Pressure of gas pipe
connecting indoor and
outdoor unit
Inlet and outlet pipe
temperature of heat
exchanger Fan speed of
indoor unit
Fan speed of
outdoor unit
Compressor
revolution
(rps)
Indoor Outdoor P (PSIG) T1 (°F) T2 (°F)
70/- 20/19 30K 507~550 134.4 to 102 36 to 39 Super High High 46
70/- 20/19 36K 507~550 134.4 to 102 36 to 39 Super High High 34
Instruction:
T1: Inlet and outlet pipe temperature of evaporator
T2: Inlet and outlet pipe temperature of condenser
P: Pressure at the side of big valve
Connection pipe length: 24.6ft.
Cooling:
Heating:
2.3 Noise Curve
30
40
50
60
LM
36K
30K
30K
HSH
Indoor fan motor rating speed
Noise/dB(A)
45
50
55
60
65
70
75
80
20 30 40 50 60 70 80 90 100
Compressor frequency(Hz)
Noise dB(A)
Indoor side noise Outdoor side noise
36K

17
Technical Information
Service Manual
53 9/64
12 53/64
9 61/34
11 19/32 3 1/2
1 37/64
13 25/32 1029 3/8
Φ2 3/4
Φ2 3/4
3. Outline Dimension Diagram
Unit:inch
3.2 Outdoor Unit
Unit:inch
14 37/64
31 7/64
16 13/16
15 9/16
39 1/2
24
36 2/9
3.1 Indoor Unit
GWC30LB-D3DNA3G/O VIR30HP230V1BO GWC36LB-D3DNA3G/O VIR36HP230V1BO
GWC30QF-D3DNB2K/O LIVV30HP230V1AO VIR36HP230V1CO LIVS36HP230V1CO
GWC36QF-D3DNB2O/O LIVV36HP230V1AO
