Service Manual
Change for life
GREE ELECTRIC APPLIANCES, INC. OF ZHUHAI

Service Manual
Table of Contents
Part I : Technical Information ..................................... 1
1. Summary......................................................................... 1
2. Specications............................................................... 2
2.1 Specication Sheet..................................................................................................2

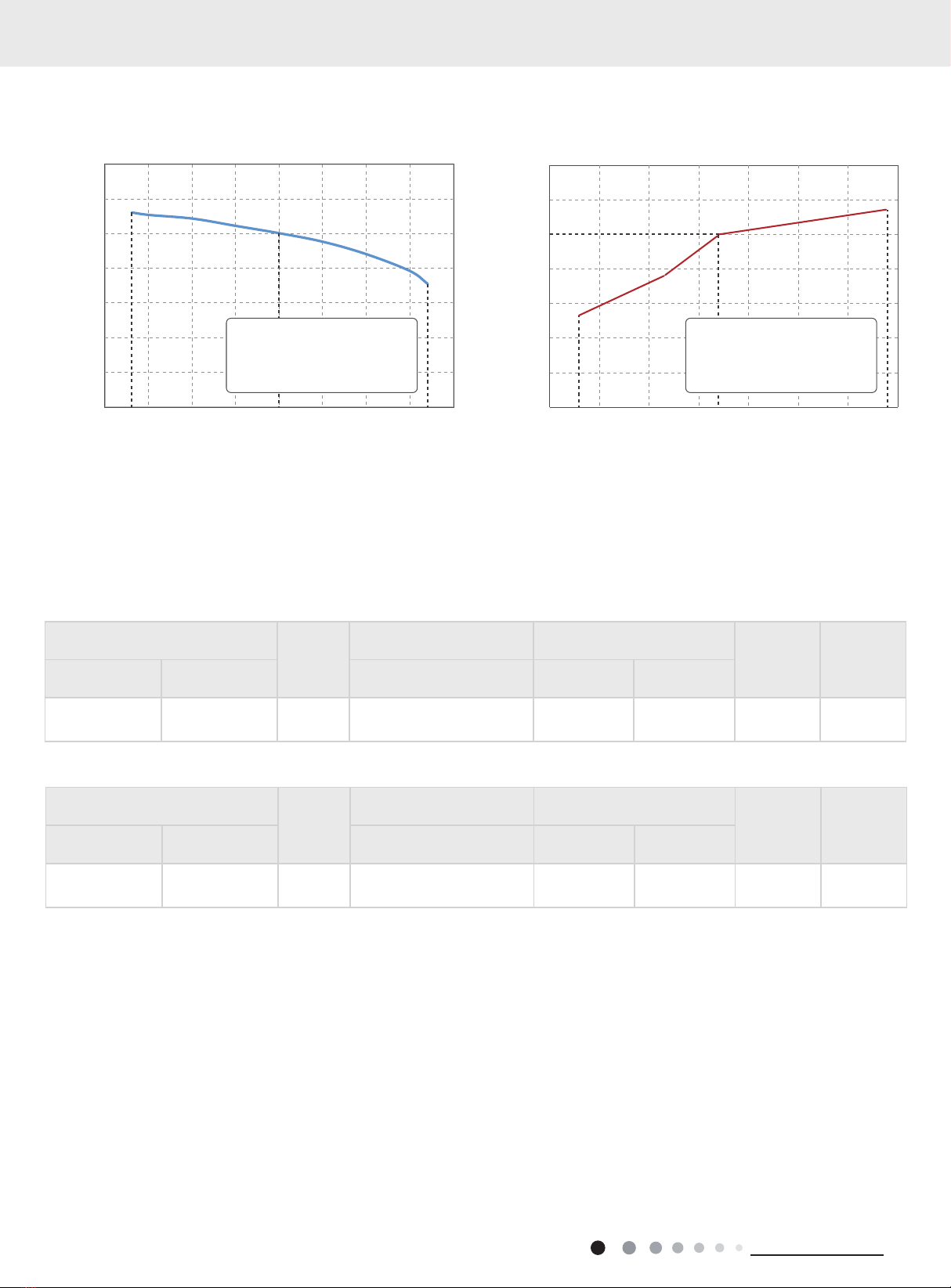

2.2 Capacity Variation Ratio According to Temperature .................................10
2.3 Cooling and Heating Data Sheet in Rated Frequency...............................10
3. Outline Dimension Diagram................................. 11
3.1 Indoor Unit ................................................................................................................11

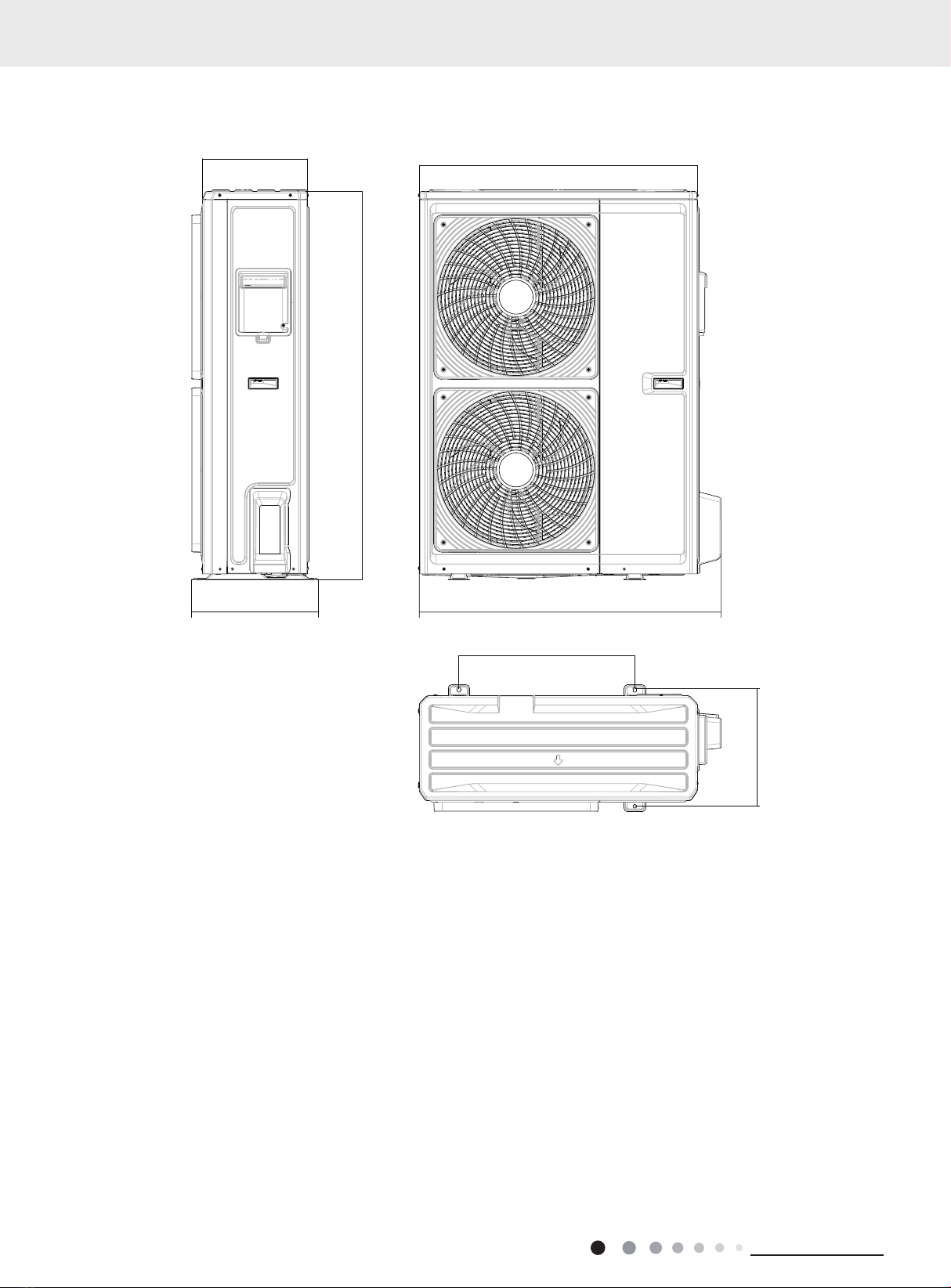

3.2 Outdoor Unit.............................................................................................................13
4. Refrigerant System Diagram ............................... 15
5. Electrical Part ............................................................. 16

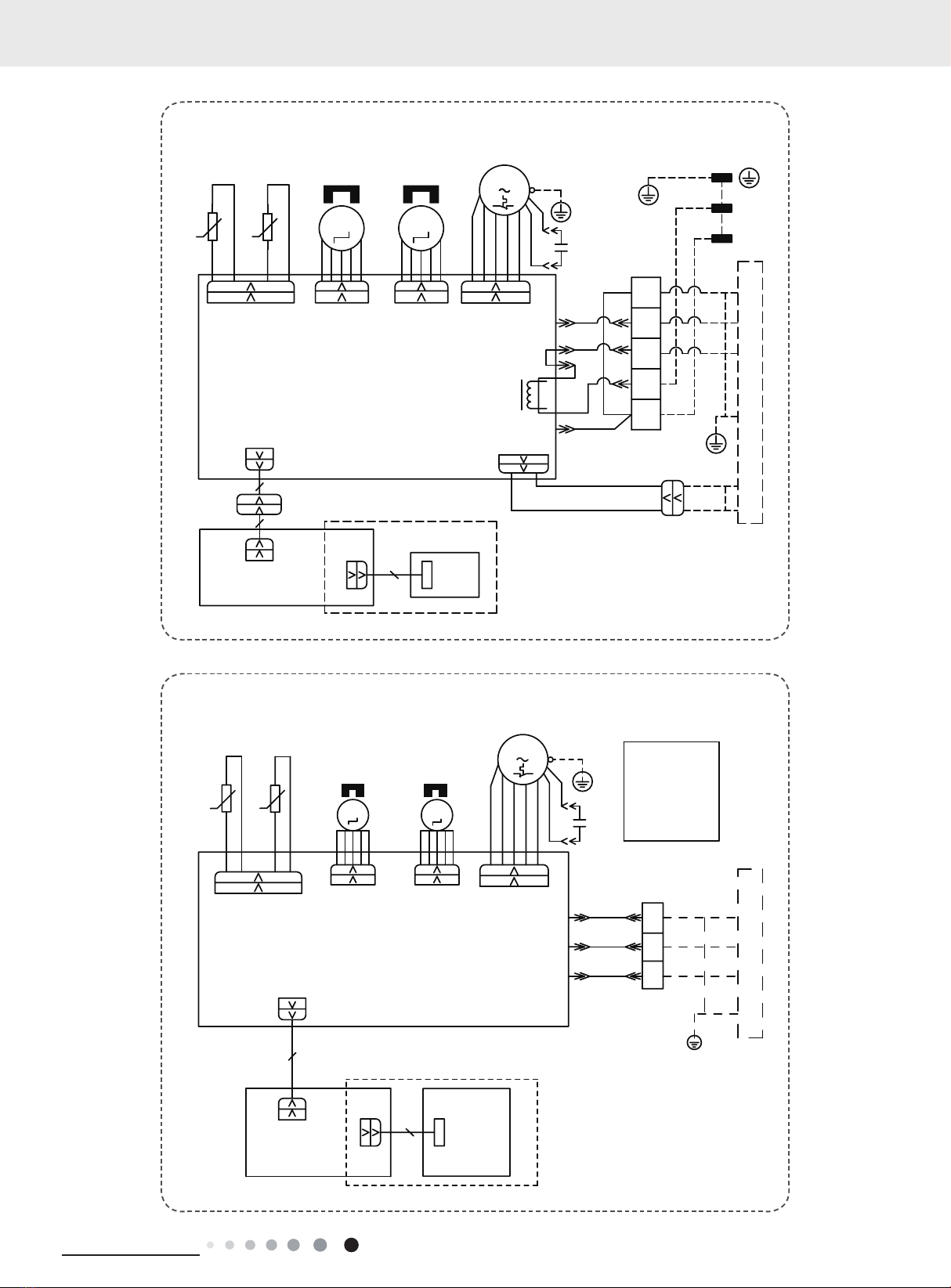

5.1 Wiring Diagram .......................................................................................................16
5.2 PCB Printed Diagram............................................................................................20
6. Function and Control .............................................. 23
6.1 Function Buttons of Air Conditioner...............................................................23
6.2 Remote Controller Introduction of YAP1F11(WiFi).....................................25
6.3 GREE+ App Operation Manual ..........................................................................29
6.4 Ewpe Smart App Operation Manual.................................................................30
6.5 Description of Each Control Operation..........................................................31
Part II : Installation and Maintenance .................. 35
7. Notes for Installation and Maintenance.......... 35
8. Installation ................................................................... 38
8.1 Installation Dimension Diagram........................................................................38
8.2 Installation Parts-checking ................................................................................41
8.3 Selection of Installation Location.....................................................................41
8.4 Electric Connection Requirement ....................................................................41
Table of Contents

Service Manual
Table of Contents
8.5 Installation of Indoor Unit....................................................................................42
8.6 Installation of Outdoor Unit ................................................................................43
8.7 Vacuum Pumping and Leak Detection............................................................45
8.8 Check after Installation and Test Operation .................................................45
9. Maintenance................................................................ 46
9.1 Error Code List........................................................................................................46
9.2 How to Check Simply the Main Part of Indoor ............................................49
9.3 How to Check Simply the Main Part of Outdoor .........................................59
9.4 Troubleshooting for Normal Malfunction ......................................................61
10. Exploded View and Parts List........................... 63
10.1 Indoor Unit..............................................................................................................63
10.2 Outdoor Unit ..........................................................................................................67
11. Removal Procedure ............................................... 75
11.1 Removal Procedure of Indoor Unit ................................................................75
11.2 Removal Procedure of Outdoor Unit.............................................................86
Appendix:.......................................................................... 94
Appendix 1: Reference Sheet of Celsius and Fahrenheit...............................94
Appendix 2: Conguration of Connection Pipe .................................................94
Appendix 3: Pipe Expanding Method.....................................................................95
Appendix 4: List of Resistance for Temperature Sensor................................96

1
Technical Information
Service Manual
Outdoor Unit:

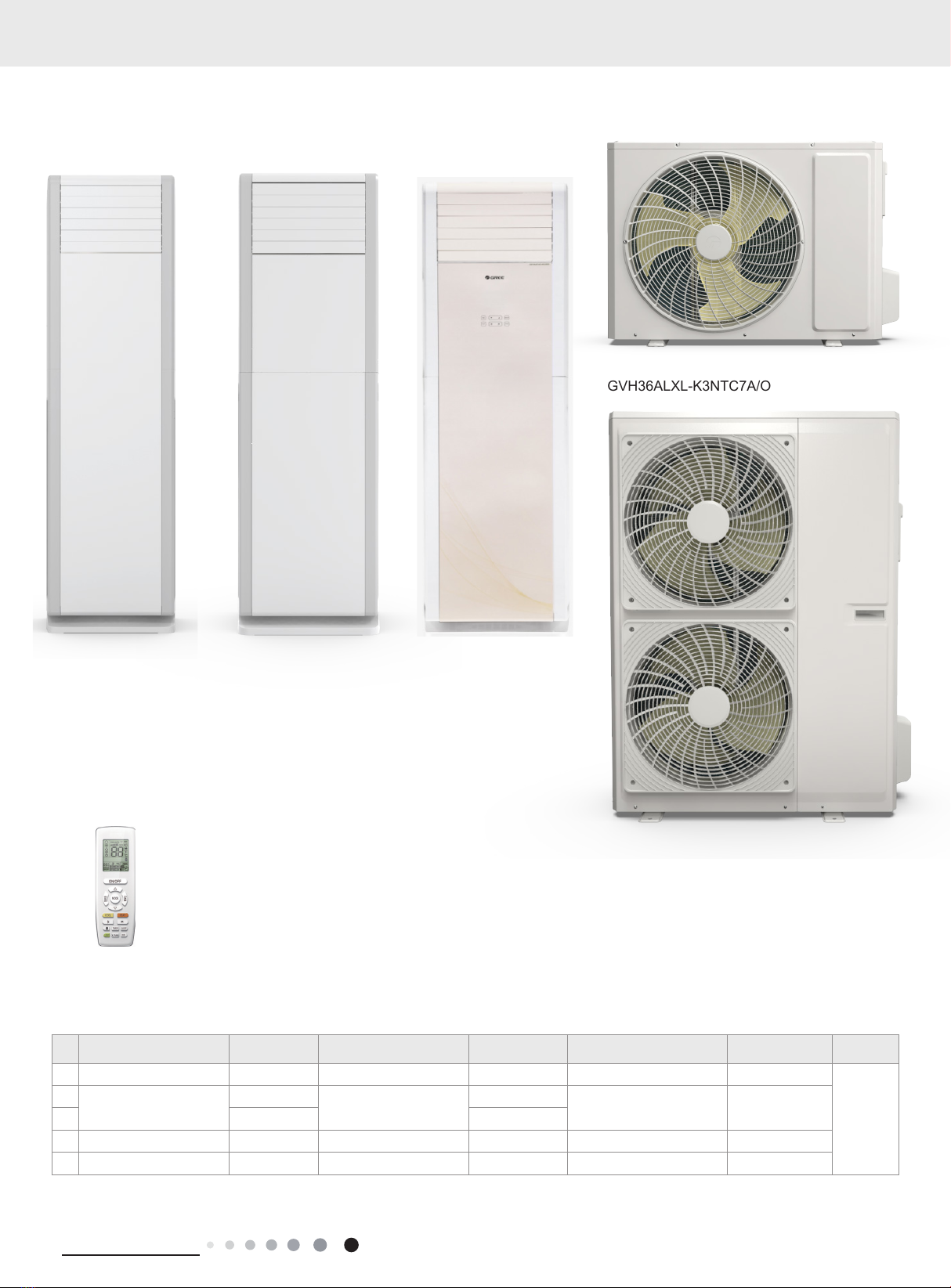

1. Summary
Indoor Unit:
GVC24AMXF-K3NTC7A/I
GVH24AMXF-K3NTC7A/I
(CG156N07700)
GVC36ALXL-K3NTC7A/I
GVH36ALXL-K3NTC7A/I
GVH24AMXF-K3NTC7A/I
(CG156N07701)
Remote Controller:
Model list:
No. Model Product code Indoor model Indoor product
code Outdoor model Outdoor product code
Remote
Controller
1 GVC24AMXF-K3NTC7A CG156007800 GVC24AMXF-K3NTC7A/I CG156N07800 GVC24AQXF-K3NTD1A/O CG082W01700
YAP1F11
(WiFi)
2GVH24AMXF-K3NTC7A CG156007700 GVH24AMXF-K3NTC7A/I CG156N07700 GVH24AQXF-K3NTD1A/O CG082W01600
3 CG156007701 CG156N07701
4 GVC36ALXL-K3NTC7A CG156008300 GVC36ALXL-K3NTC7A/I CG156N08300 GVC36ALXL-K3NTC7A/O CG156W08300
5 GVH36ALXL-K3NTC7A CG156008400 GVH36ALXL-K3NTC7A/I CG156N08400 GVH36ALXL-K3NTC7A/O CG156W08400
GVC24AQXF-K3NTD1A/O
GVH24AQXF-K3NTD1A/O
GVC36ALXL-K3NTC7A/O
GVH36ALXL-K3NTC7A/O
YAP1F11(WiFi)

2Technical Information
Service Manual
Model GVC24AMXF-K3NTC7A
Product Code CG156007800
Power
Supply
Rated Voltage V~ 220-240
Rated Frequency Hz 50
Phases 1
Power Supply Mode Indoor
Cooling Capacity W T1: 7200 / T3: 6100
Heating Capacity W /
Cooling Power Input W T1: 2320 / T3: 2700
Heating Power Input W /
Cooling Power Current A T1: 10.5 / T3: 12
Heating Power Current A /
Rated Input W 3100
Rated Cooling Current A 16
Rated Heating Current A /
Air Flow Volume m3/h 1150/1100/1000/950
Dehumidifying Volume L/h 2.5
EER W/W T1: 3.10 / T3: 2.26
COP W/W /
SEER /
HSPF /
Application Area m232-50
Indoor
Unit
Model of indoor unit GVC24AMXF-K3NTC7A/I
Indoor Unit Product Code CG156N07800
Fan Type Centrifugal
Fan Diameter Length(DXL) mm Φ352×130
Cooling Speed r/min 490/420/380/340
Heating Speed r/min /
Fan Motor Power Output W 64
Fan Motor RLA A 0.7
Fan Motor Capacitor μF 4.5
Evaporator Form Aluminum Fin-copper Tube
Evaporator Pipe Diameter mm Φ7
Evaporator Row-n Gap mm 2-1.3
Evaporator Coil Length (LXDXW) mm 724×25.4×392
Swing Motor Model MP35CK / MP35CD
Swing Motor Power Output W 2.5 / 2.5
Fuse Current A 5
Sound Pressure Level dB (A) Cooling: 47/44/42/38
Sound Power Level dB (A) Cooling: 57/54/52/48
Dimension (WXHXD) mm 507X1770X320
Dimension of Carton Box (LXWXH) mm 1985X620X425
Dimension of Package (LXWXH) mm 1988X623X440
Net Weight kg 38
Gross Weight kg 50
2. Specications
2.1 Specication Sheet

3
Technical Information
Service Manual
The above data is subject to change without notice; please refer to the nameplate of the unit.
Outdoor
Unit
Outdoor Unit Model GVC24AQXF-K3NTD1A/O
Outdoor Unit Product Code CG082W01700
Compressor Manufacturer ZHUHAI LANDA COMPRESSOR CO., LTD.
Compressor Model QXAH-E265H070
Compressor Oil RB68EP or equivalent
Compressor Type Rotary
Compressor LRA. A 56
Compressor RLA A 9.6
Compressor Power Input W 2180
Compressor Overload Protector HPD-456
Throttling Method Capillary
Set Temperature Range ºC 16~30
Cooling Operation Ambient Temperature Range ºC 18~52
Heating Operation Ambient Temperature Range ºC /
Condenser Form Aluminum Fin-copper Tube
Condenser Pipe Diameter mm Φ7
Condenser Rows-n Gap mm 2-1.4
Condenser Coil Length (LXDXW) mm 811×38.1×616
Fan Motor Speed rpm 740
Fan Motor Power Output W 60
Fan Motor RLA A 0.6
Fan Motor Capacitor μF 3.5
Outdoor Unit Air Flow Volume m3/h 3200
Fan Type Axial-ow
Fan Diameter mm Φ520
Defrosting Method /
Climate Type T3
Isolation I
Moisture Protection IPX4
Permissible Excessive Operating Pressure for
the Discharge Side MPa 4.3
Permissible Excessive Operating Pressure for
the Suction Side MPa 2.5
Sound Pressure Level dB (A) 57
Sound Power Level dB (A) 67
Dimension(WXHXD) mm 958X660X402
Dimension of Carton Box (LXWXH) mm 1029X453X715
Dimension of Package(LXWXH) mm 1032X456X737
Net Weight kg 52.5
Gross Weight kg 57
Refrigerant R410A
Refrigerant Charge kg 1.5
Connection
Pipe
Connection Pipe Length m 5
Connection Pipe Gas Additional Charge g/m 15
Outer Diameter Liquid Pipe inch 1/4
Outer Diameter Gas Pipe inch 5/8
Max Distance Height m 10
Max Distance Length m 25
Note: The connection pipe applies metric diameter.
2. Specications

4Technical Information
Service Manual
Model GVH24AMXF-K3NTC7A
Product Code CG156007700/CG156007701
Power
Supply
Rated Voltage V~ 220-240
Rated Frequency Hz 50
Phases 1
Power Supply Mode Indoor
Cooling Capacity W T1: 7034 / T3: 6100
Heating Capacity W 7300
Cooling Power Input W T1: 2280 / T3: 2700
Heating Power Input W 2190
Cooling Power Current A T1:10.5 / T3: 12
Heating Power Current A 9.5
Rated Input W 3100
Rated Cooling Current A 16
Rated Heating Current A 11.5
Air Flow Volume m3/h 1150/1100/1000/950
Dehumidifying Volume L/h 2.5
EER W/W T1: 3.09 / T3: 2.26
COP W/W 3.333
SEER /
HSPF /
Application Area m232-50
Indoor
Unit
Model of indoor unit GVH24AMXF-K3NTC7A/I
Indoor Unit Product Code CG156N07700/CG156N07701
Fan Type Centrifugal
Fan Diameter Length(DXL) mm Φ352×130
Cooling Speed r/min 490/420/380/340
Heating Speed r/min 490/420/380/340
Fan Motor Power Output W 64
Fan Motor RLA A 0.7
Fan Motor Capacitor μF 4.5
Evaporator Form Aluminum Fin-copper Tube
Evaporator Pipe Diameter mm Φ7
Evaporator Row-n Gap mm 2-1.3
Evaporator Coil Length (LXDXW) mm 724×25.4×392
Swing Motor Model MP24TA/MP35AA
Swing Motor Power Output W 1.5 / 2.5
Fuse Current A 5
Sound Pressure Level dB (A) Cooling: 47/44/42/38
Heating: 47/44/42/38
Sound Power Level dB (A) Cooling: 57/54/52/48
Heating: 57/54/52/48
Dimension (WXHXD) mm 507X1770X320
Dimension of Carton Box (LXWXH) mm 1985X620X425
Dimension of Package (LXWXH) mm 1988X623X440
Net Weight kg 38
Gross Weight kg 50
2. Specications

5
Technical Information
Service Manual
The above data is subject to change without notice; please refer to the nameplate of the unit.
Outdoor
Unit
Outdoor Unit Model GVH24AQXF-K3NTD1A/O
Outdoor Unit Product Code CG082W01600
Compressor Manufacturer ZHUHAI LANDA COMPRESSOR CO., LTD
Compressor Model QXAH-E265H070
Compressor Oil RB68EP or equivalent
Compressor Type Rotary
Compressor LRA. A 56
Compressor RLA A 9.6
Compressor Power Input W 2180
Compressor Overload Protector HPD-456
Throttling Method Capillary
Set Temperature Range ºC 16~30
Cooling Operation Ambient Temperature Range ºC 18~52
Heating Operation Ambient Temperature Range ºC -7~24
Condenser Form Aluminum Fin-copper Tube
Condenser Pipe Diameter mm Φ7
Condenser Rows-n Gap mm 2-1.4
Condenser Coil Length (LXDXW) mm 811×38.1×616
Fan Motor Speed rpm 740
Fan Motor Power Output W 60
Fan Motor RLA A 0.6
Fan Motor Capacitor μF 3.5
Outdoor Unit Air Flow Volume m3/h 3200
Fan Type Axial-ow
Fan Diameter mm Φ520
Defrosting Method Automatic Defrosting
Climate Type T3
Isolation I
Moisture Protection IPX4
Permissible Excessive Operating Pressure for
the Discharge Side MPa 4.3
Permissible Excessive Operating Pressure for
the Suction Side MPa 2.5
Sound Pressure Level dB (A) 57
Sound Power Level dB (A) 67
Dimension(WXHXD) mm 958X660X402
Dimension of Carton Box (LXWXH) mm 1029X453X715
Dimension of Package(LXWXH) mm 1032X456X737
Net Weight kg 54
Gross Weight kg 58.5
Refrigerant R410A
Refrigerant Charge kg 1.8
Connection
Pipe
Connection Pipe Length m 5
Connection Pipe Gas Additional Charge g/m 50
Outer Diameter Liquid Pipe inch 1/4
Outer Diameter Gas Pipe inch 5/8
Max Distance Height m 10
Max Distance Length m 25
Note: The connection pipe applies metric diameter.
2. Specications

6Technical Information
Service Manual
Model GVC36ALXL-K3NTC7A
Product Code CG156008300
Power
Supply
Rated Voltage V~ 220-240
Rated Frequency Hz 50
Phases 1
Power Supply Mode Outdoor
Cooling Capacity W T1: 10550 / T3: 9100
Heating Capacity W /
Cooling Power Input W T1: 3700 / T3: 4300
Heating Power Input W /
Cooling Power Current A T1: 17 / T3: 19
Heating Power Current A /
Rated Input W 5700
Rated Cooling Current A 26
Rated Heating Current A /
Air Flow Volume m3/h 1900/1700/1550/1400
Dehumidifying Volume L/h 3.5
EER W/W T1: 2.85 / T3: 2.14
COP W/W /
SEER /
HSPF /
Application Area m246-70
Indoor
Unit
Model of indoor unit GVC36ALXL-K3NTC7A/I
Indoor Unit Product Code CG156N08300
Fan Type Centrifugal
Fan Diameter Length(DXL) mm Φ379×180.5
Cooling Speed r/min 510/440/400/360
Heating Speed r/min /
Fan Motor Power Output W 150
Fan Motor RLA A 1.5
Fan Motor Capacitor μF 6
Evaporator Form Aluminum Fin-copper Tube
Evaporator Pipe Diameter mm Φ7
Evaporator Row-n Gap mm 2-1.4
Evaporator Coil Length (LXDXW) mm 876x472x25.4
Swing Motor Model MP35AB / MP24TA
Swing Motor Power Output W 2.5 / 1.5
Fuse Current A 5
Sound Pressure Level dB (A) Cooling: 53/51/49/46
Sound Power Level dB (A) Cooling: 63/61/59/56
Dimension (WXHXD) mm 587X1882X394
Dimension of Carton Box (LXWXH) mm 2150X735X530
Dimension of Package (LXWXH) mm 2153X738X545
Net Weight kg 55
Gross Weight kg 77.5
2. Specications

7
Technical Information
Service Manual
The above data is subject to change without notice; please refer to the nameplate of the unit.
Outdoor
Unit
Outdoor Unit Model GVC36ALXL-K3NTC7A/O
Outdoor Unit Product Code CG156W08300
Compressor Manufacturer ZHUHAI LANDA COMPRESSOR CO., LTD.
Compressor Model QXAS-F41N450B
Compressor Oil Ze-GLES RB68EP or FVC 68D or FV 50S or equivalent
Compressor Type Rotary
Compressor LRA. A 81
Compressor RLA A 16
Compressor Power Input W 3560
Compressor Overload Protector UP14SE5115-M
Throttling Method Capillary
Set Temperature Range ºC 16~30
Cooling Operation Ambient Temperature Range ºC 18~52
Heating Operation Ambient Temperature Range ºC /
Condenser Form Aluminum Fin-copper Tube
Condenser Pipe Diameter mm Φ7
Condenser Rows-n Gap mm 2-1.4
Condenser Coil Length (LXDXW) mm 794×38.1×1232
Fan Motor Speed rpm 850
Fan Motor Power Output W 68
Fan Motor RLA A 0.65
Fan Motor Capacitor μF 4
Outdoor Unit Air Flow Volume m3/h 6000
Fan Type Axial-ow
Fan Diameter mm Φ472
Defrosting Method /
Climate Type T3
Isolation I
Moisture Protection IPX4
Permissible Excessive Operating Pressure for
the Discharge Side MPa 4.3
Permissible Excessive Operating Pressure for
the Suction Side MPa 2.5
Sound Pressure Level dB (A) 60
Sound Power Level dB (A) 70
Dimension(WXHXD) mm 978X1260X412
Dimension of Carton Box (LXWXH) mm 1025X435X1285
Dimension of Package(LXWXH) mm 1033X443X1405
Net Weight kg 87
Gross Weight kg 97
Refrigerant R410A
Refrigerant Charge kg 3.2
Connection
Pipe
Connection Pipe Length m 5
Connection Pipe Gas Additional Charge g/m 15
Outer Diameter Liquid Pipe inch 3/8
Outer Diameter Gas Pipe inch 5/8
Max Distance Height m 20
Max Distance Length m 30
Note: The connection pipe applies metric diameter.
2. Specications

8Technical Information
Service Manual
Model GVH36ALXL-K3NTC7A
Product Code CG156008400
Power
Supply
Rated Voltage V~ 220-240
Rated Frequency Hz 50
Phases 1
Power Supply Mode Outdoor
Cooling Capacity W T1: 10550 / T3: 9100
Heating Capacity W 11800
Cooling Power Input W T1: 3700 / T3: 4300
Heating Power Input W 3650
Cooling Power Current A T1: 17 / T3: 19
Heating Power Current A 17
Rated Input W 5700
Rated Cooling Current A 26
Rated Heating Current A 23
Air Flow Volume m3/h 1900/1700/1550/1400
Dehumidifying Volume L/h 3.5
EER W/W T1: 2.85 / T3: 2.14
COP W/W 3.23
SEER /
HSPF /
Application Area m246-70
Indoor
Unit
Model of indoor unit GVH36ALXL-K3NTC7A/I
Indoor Unit Product Code CG156N08400
Fan Type Centrifugal
Fan Diameter Length(DXL) mm Φ379×180.5
Cooling Speed r/min 510/440/400/360
Heating Speed r/min 510/440/400/360
Fan Motor Power Output W 150
Fan Motor RLA A 1.5
Fan Motor Capacitor μF 6
Evaporator Form Aluminum Fin-copper Tube
Evaporator Pipe Diameter mm Φ7
Evaporator Row-n Gap mm 2-1.4
Evaporator Coil Length (LXDXW) mm 876x472x25.4
Swing Motor Model MP35AB / MP24TA
Swing Motor Power Output W 2.5 / 1.5
Fuse Current A 5
Sound Pressure Level dB (A) Cooling: 53/51/49/46
Heating: 53/51/49/46
Sound Power Level dB (A) Cooling: 63/61/59/56
Heating: 63/61/59/56
Dimension (WXHXD) mm 587X1882X394
Dimension of Carton Box (LXWXH) mm 2150X735X530
Dimension of Package (LXWXH) mm 2153X738X545
Net Weight kg 55
Gross Weight kg 77.5
2. Specications

9
Technical Information
Service Manual
The above data is subject to change without notice; please refer to the nameplate of the unit.
Outdoor
Unit
Outdoor Unit Model GVH36ALXL-K3NTC7A/O
Outdoor Unit Product Code CG156W08400
Compressor Manufacturer ZHUHAI LANDA COMPRESSOR CO., LTD.
Compressor Model QXAS-F41N450B
Compressor Oil Ze-GLES RB68EP or FVC 68D or FV 50S or equivalent
Compressor Type Rotary
Compressor LRA. A 81
Compressor RLA A 16
Compressor Power Input W 3560
Compressor Overload Protector UP14SE5115-M
Throttling Method Capillary
Set Temperature Range ºC 16~30
Cooling Operation Ambient Temperature Range ºC 18~52
Heating Operation Ambient Temperature Range ºC 0~24
Condenser Form Aluminum Fin-copper Tube
Condenser Pipe Diameter mm Φ7
Condenser Rows-n Gap mm 2-1.4
Condenser Coil Length (LXDXW) mm 794×38.1×1232
Fan Motor Speed rpm 850
Fan Motor Power Output W 68
Fan Motor RLA A 0.65
Fan Motor Capacitor μF 4
Outdoor Unit Air Flow Volume m3/h 6000
Fan Type Axial-ow
Fan Diameter mm Φ472
Defrosting Method Automatic Defrosting
Climate Type T3
Isolation I
Moisture Protection IPX4
Permissible Excessive Operating Pressure for
the Discharge Side MPa 4.3
Permissible Excessive Operating Pressure for
the Suction Side MPa 2.5
Sound Pressure Level dB (A) 60
Sound Power Level dB (A) 70
Dimension(WXHXD) mm 978X1260X412
Dimension of Carton Box (LXWXH) mm 1025X435X1285
Dimension of Package(LXWXH) mm 1033X443X1405
Net Weight kg 88
Gross Weight kg 98
Refrigerant R410A
Refrigerant Charge kg 3.2
Connection
Pipe
Connection Pipe Length m 5
Connection Pipe Gas Additional Charge g/m 50
Outer Diameter Liquid Pipe inch 3/8
Outer Diameter Gas Pipe inch 5/8
Max Distance Height m 20
Max Distance Length m 30
Note: The connection pipe applies metric diameter.
2. Specications

10 Technical Information
Service Manual
2.2 Capacity Variation Ratio According to Temperature
2. Specications
2.3 Cooling and Heating Data Sheet in Rated Frequency
Instruction:
T1: Inlet and outlet pipe temperature of evaporator
T2: Inlet and outlet pipe temperature of condenser
P: Pressure at the side of big valve
Connection pipe length: 5 m.
Cooling:
Outdoor temp.(°C)
Capacity ratio (%)
Outdoor temp.(°C)
Capacity ratio (%)
0
20
40
60
80
100
120
140
-10 -5-7 0510 15 20 2524
Condition Heating
Indoor: DB20°C
Indoor air flow: Super High
Pipe length: 5m
0
20
40
60
80
100
120
140
15 2018 25 30 35 40 45 50 5552
Condition Cooling
Indoor: DB27°C WB19°C
Indoor air flow: Super High
Pipe length: 5m
Heating:
Cooling:
Rated cooling condition(°C) (DB/WB)
Model
Pressure of gas pipe connecting
indoor and outdoor unit
Inlet and outlet pipe temperature of
heat exchanger Fan speed of
indoor unit
Fan speed of
outdoor unit
Indoor Outdoor P (MPa) T1 (°C) T2 (°C)
27/19 35/24 24K / 36K 0.4 ~ 0.6 in: 9
out: 12
in: 80
out: 36 Super High High
Heating:
Rated cooling condition(°C) (DB/WB)
Model
Pressure of gas pipe connecting
indoor and outdoor unit
Inlet and outlet pipe temperature of
heat exchanger Fan speed of
indoor unit
Fan speed of
outdoor unit
Indoor Outdoor P (MPa) T1 (°C) T2 (°C)
20/- 7/6 24K / 36K 1.6 ~ 1.8 in: 80
out: 35
in: 2
out: 4 Super High High

11
Technical Information
Service Manual
3. Outline Dimension Diagram
3.1 Indoor Unit
Model W H D
AM 507 1770 320
Unit:mm
+
:'
AM model

12 Technical Information
Service Manual
3. Outline Dimension Diagram
Model W H D
AL 587 1882 394
Unit:mm
+
:'
AL model

13
Technical Information
Service Manual
3.2 Outdoor Unit
GVC24AQXF-K3NTD1A/O GVH24AQXF-K3NTD1A/O
Unit:mm
3. Outline Dimension Diagram
889
958
340
660
370
570
402

14 Technical Information
Service Manual
978
1260
900
339
570
381
412
Unit:mm
GVC36ALXL-K3NTC7A/O GVH36ALXL-K3NTC7A/O

15
Technical Information
Service Manual
4. Refrigerant System Diagram
Cooling model
Heat pump model
Connection pipe specication:
Liquid pipe: 1/4" for 24K
3/8" for 36K
Gas pipe: 5/8"
Indoor unit Outdoor unit
Indoor unit Outdoor unit
COOLING
HEATING
Accumlator
4-Way valve
COOLING
Discharge
Suction
Discharge
Suction
Heat
exchanger
(evaporator)
Heat
exchanger
(evaporator) Heat
exchanger
(condenser)
Valve
Valve
Valve
Valve
Liquid pipe
side
Gas pipe
side
Liquid pipe
side
Gas pipe
side
Compressor
Strainer
StrainerStrainer
Capillary
Capillary

16 Technical Information
Service Manual
5. Electrical Part
5.1 Wiring Diagram
● Indoor Unit
● Instruction
Symbol Symbol Color Symbol Symbol Color Symbol Name
YE Yellow BN Brown COMP Compressor
RD Red BU Blue Grounding wire
YEGN Yellow/Green BK Black / /
Note: Jumper cap is used to determine fan speed and the swing angle of horizontal lover for this model.
OUTDOOR UNIT
N1(N)
SWING-UD
AP1
BU
2
XT
N(1)
SWING-LR
TERMINAL
BLOCK
BK
AC-L
BN
BU
BK
YEGN
PRINTED CIRCUIT BOARD
PE
BN
BU
YEGN POWER
L
N
T-SENSOR
TEMP.
ROOM
RT1 RT2
θ
θ
COM-DISPLAY
COM-MAIN AP3
M1 YEGN
C
FAN
FAN
PE
MOTOR
SENSOR
TEMP.
TUBE
SENSOR
L
N
UP-DOWN
STEP
MOTOR
LEFT-RIGHT
STEP
MOTOR
BU
COMP
CAP.
WIFI CONTACT
CN42
AP2DISPLAY
M2 M3
OPTIONAL
X1
3
CONNECTOR
BN BN
L2
600007065246
GVC24AMXF-K3NTC7A/I

17
Technical Information
Service Manual
OUTDOOR UNIT
N1(N)
SWING-UD
AP1
BU
2
XT
N(1)
SWING-LR
TERMINAL
BLOCK
BK
AC-L
BN
BU
BK
YEGN
PRINTED CIRCUIT BOARD
PE
BN
BU
YEGN POWER
L
N
T-SENSOR
TEMP.
ROOM
RT1 RT2
θ
θ
COM-DISPLAY
COM-MAIN AP3
M1 YEGN
C
FAN
FAN
PE
MOTOR
SENSOR
TEMP.
TUBE
SENSOR
L
N
UP-DOWN
STEP
MOTOR
LEFT-RIGHT
STEP
MOTOR
BU
COMP
CAP.
WIFI CONTACT
CN42
AP2DISPLAY
M2 M3
OPTIONAL
X2 CONNECTOR
3
BN BN
4WOF X1
OG
VT
L2
OUTDOOR UNIT
N
AP1
BU
2
3
XT
N(1)
TERMINAL
BLOCK
BK
AC-L BN
BU
BK
BN
YEGN
PRINTED CIRCUIT BOARD
PE
T-SENSOR
TEMP.
ROOM
RT1 RT2
θ
θM3
M2
COM-DISPLAY
COM-MAIN
DISPLAY
AP2
AP3
CN42
M1 YEGN
C
FAN
PE
MOTOR
SENSOR
TEMP.
TUBE
SENSOR
UP-DOWN
STEPPING
MOTOR
LEFT-RIGHT
STEPPING
MOTOR
COM
CAP.
(OPTIONAL)
WIFI
CONTACT
(COM-OUT)
CN3 CN2 CN449
(UD-SWING)(LR-SWING)(FAN2)
NOTE:Motor
ground only
applies to
the iron
shell motor.
600007065912
600007001422
GVH24AMXF-K3NTC7A/I(CG156N07700/CG156N07701)
GVC36ALXL-K3NTC7A/I GVH36ALXL-K3NTC7A/I
5. Electrical Part
