Gree GTHD(09)AANK3A1AI User manual

OPERATION
INSTALLATION
&
INSTRUCTIONS
FLOOR AND CEILING TYPE UNIT
GREE ELECTRIC APPLIANCES, INC. OF ZHUHAI
Read this operating & installation instruction carefully and keep it for future reference
MODEL
GTHD(09)AANK3A1AI
GTHD(12)AANK3A1AI
GTHD(18)AANK3A1AI
HEATPUMPSYSTEM

CONTENTS
OPERATION INSTRUCTIONS
1. Part names and their functions........................................................................................................... 1
2. How to use the remote control to operate the unit.............................................................................. 2
3. Maintenance............................................................................................................................................11
4. Operating guide................................................................................................................................. 12
5. Precautions ....................................................................................................................................... 13
6. Checking before contact the service man......................................................................................... 14
INSTALLATIONINSTRUCTIONS
7. Installation of Indoor unit.................................................................................................................... 15
8. Refrigerant piping work ..................................................................................................................... 18
9. DRAIN PIPING WORK ...................................................................................................................... 19
10. Test running ...................................................................................................................................... 20
11. ROUTINE CHECK AFTER INSTALLATION..................................................................................... 21
12.FAULT INDICATION.........................................................................................................................22

1
1
Remote Control
Remote Control Holder
PARTNAMESANDTHEIRFUNCTIONS
OPERATION INSTRUCTIONS

2
Name and Function-Remote control
Note:
Be sure that there are no obstructions between receiver and remote controller.
Don’t drop or throw the remote controller.
Don’t let any liquid in the remote controller and put the remote controller
directly under the sunlight or any place where is very hot.
SWING button
When it is pressed, the louvers
start to rotate automatically and
stop when repressed.
FAN button
Press this button to change
the fan speed of:
“ ” COOL mode
“ ” DRY mode
“ ” FAN mode
“ ” HEAT mode
ON/OFF button
Press this button to turn
on or turn off the unit.
MODE button
press this button to change the
operation mode in order of:
AUTO
TEMP. button
SET TEMP. increases 1 by
pressing button once,and de-
creases 1 by pressing button
once.
At COOL mode operation, SET
TEMP. can be selected from 16
to 30 .
At DRY mode operation, SET
TEMP. can be selected from 16
to 30 .
At HEAT mode operation, SET
TEMP. can be selected from 16
to 30 .
2
Howtouse the remote control tooperate theunit
OPERATION INSTRUCTIONS

3

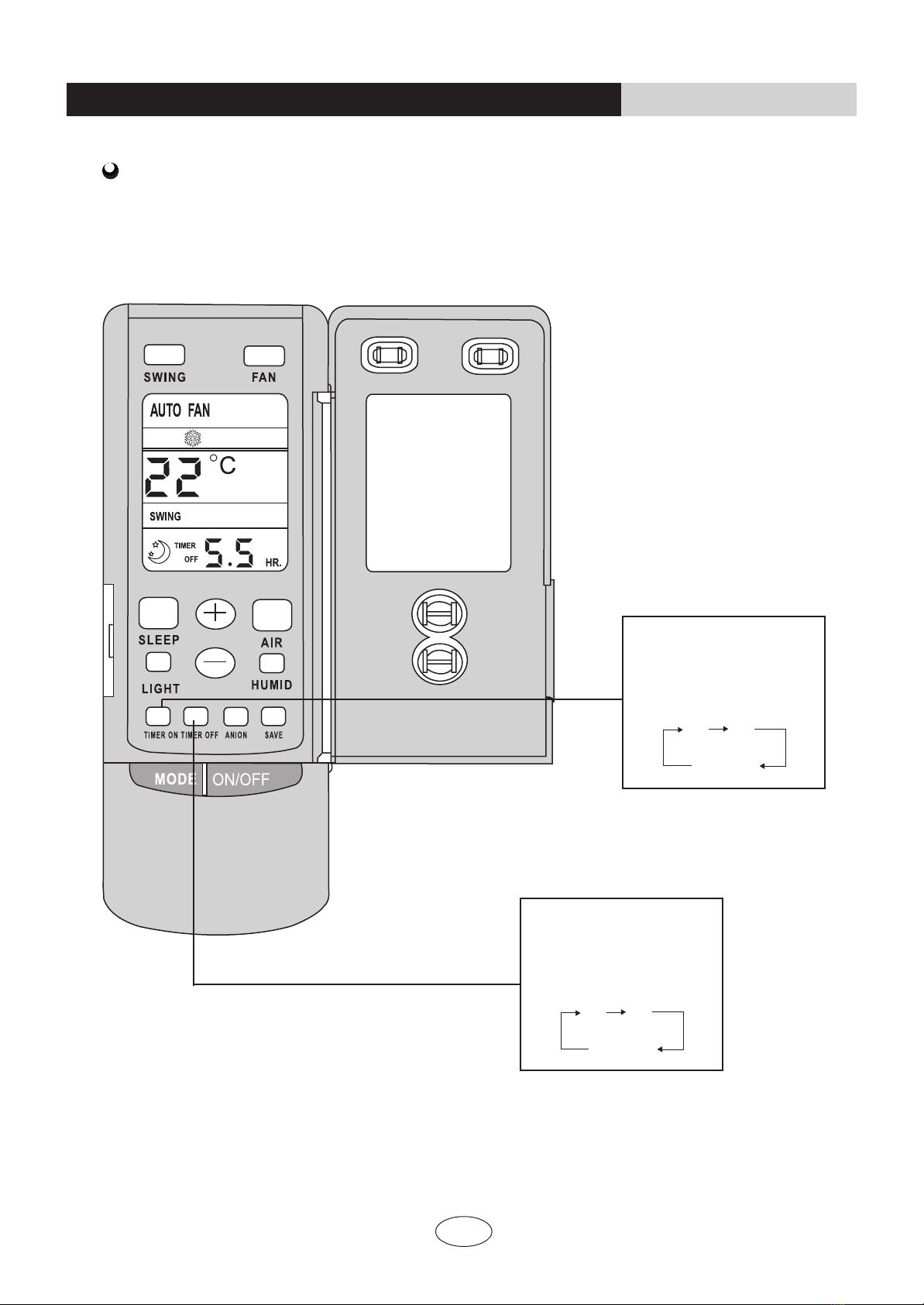

Name and Function-Remote control. (Remove the cover)
Note: This type of remote controller is a kind of new current controller.
some buttons of the controller which are not available to this Air con-
ditioner will not be described below.
Operate on unmentioned buttons would not impact on the normal use.
SLEEP button
PressthisbuttontosetSLEEP
operation, and stop when re-
pressed
Liquid crystal displayer. It
shows all set contents.
TIMER ON button
At stopping, press TIMER ON button,
set ON TIME in range of 0 to 24 hour
at the interval of 0.5h to start the unit
automatically.
TIMER OFF button
At operating, press TIMER
OFF button, set OFF TIME
in range of 0 to 24 hour to
stop the unit automatically.
0 24h
Timer
cancellation
0 24h
Timer
cancellation
How to use theremote control to operate the unit
OPERATION INSTRUCTIONS

4
COOL mode operation procedure
4.Press FAN button, set
fan speed.
5.Press TEMP. but-
ton, set suitable SET
TEMP.
2.Press MODE button,
set operation
mode.
3.Press SWING button,
the louvers start to ro-
tate automatically, and
stop when repress.
1.Plug in, press ON/OFF button,then air
conditioner is turned on.
According to difference between room temp. and set temp., microcomputer can control
cooling on or not.
If room temp. is higher than set temp., compressor runs at COOL mode.
If room temp. is lower than set temp., compressor stops and only indoor fan motor runs.
SET TEMP. should be in range of 16 to 30
How to use theremote control to operate the unit
OPERATION INSTRUCTIONS

5
HEAT mode operation procedure
If roomtemp.is lower than set temp, compressor runs at HEAT mode;
If roomtemp. is higher than set temp., compressor and outdoor fan motor stop.
SET TEMP. should be in range of 16 to 30
3.Press SWING button, the
louvers start to rotate
automatically, and stop
when repress it.
4.Press FAN button, set
fan speed.
5.Press TEMP. button, set
suitable SET TEMP.
1.Plug in, press ON/OFF
button,then air condi-
tioner is turned on.
2.Press MODE button,
set operation mode.
The unit (cool only) do not receive the
control signal which is used under the
heat mode.
How to use theremote control to operate the unit
OPERATION INSTRUCTIONS

6
DRY mode operation procedure
If roomtemp. is lower than set temp., compressor ,outdoor fan motor stop. If room temp. is
between 2of set temp., airconditioneris drying.If roomtemp. is higher than set
temp, it’s at COOL mode.
SET TEMP. should be in range of 16 to 30
3.Press SWING button,
the louvers start to ro-
tate automatically, and
stop when repress it.
4.Press TEMP. button,set
suitable SET TEMP.
2.Press MODE button,set
operation mode.
Air speed couldn’t be
changed after the
being set.
1.Plug in,pressON/OFF button,then
air conditioner is turned on.
How to use theremote control to operate the unit
OPERATION INSTRUCTIONS

7
AUTO mode operation procedure
Under Auto mode operation, standard SET TEMP. is 25 for COOL mode and 20 for
HEAT mode.
1 .Plug in,press ON/OFF button, then
air conditioner is turned on.
2.According to room temp. micro-
computer can automatically set
operation mode,so
as for best effect.
How to use theremote control to operate the unit
OPERATION INSTRUCTIONS

8
TIMER mode operation procedure
At stopping,press TIMERON
button, set ON TIME in
range of 0 to 24 hour to start
the unit automatically.
At operating,press TIMER
OFF button, set OFF TIME
in range of 0 to 24 hour to stop
the unit automatically.
024h
Timer
cancellation
0 24h
Timer
cancellation
How to use theremote control to operate the unit
OPERATION INSTRUCTIONS

9
SLEEP mode operation procedure
4.Press FAN button, set
fan speed.
5.Press TEMP. but-
ton, set suitable
SET TEMP.
1.Plug in, pressON/OFF button,then
air conditioner is turned on.
2.Press MODE button,
set or op-
eration mode.
3.Press SWING button,
the louvers start to ro-
tate automatically, and
stop when repress.
6.SLEEP button
Press it to set SLEEP
operation.
As the unit is cooling or drying, if SLEEP operation is set, SET TEMP. would increase 1
in 1 hour and 2 in 2 hours.
As the unit is heating, if SLEEP operation is set, SET TEMP. would decrease 1 in 1 hour
and 2 in 2 hours.
How to use theremote control to operate theunit
OPERATION INSTRUCTIONS

10

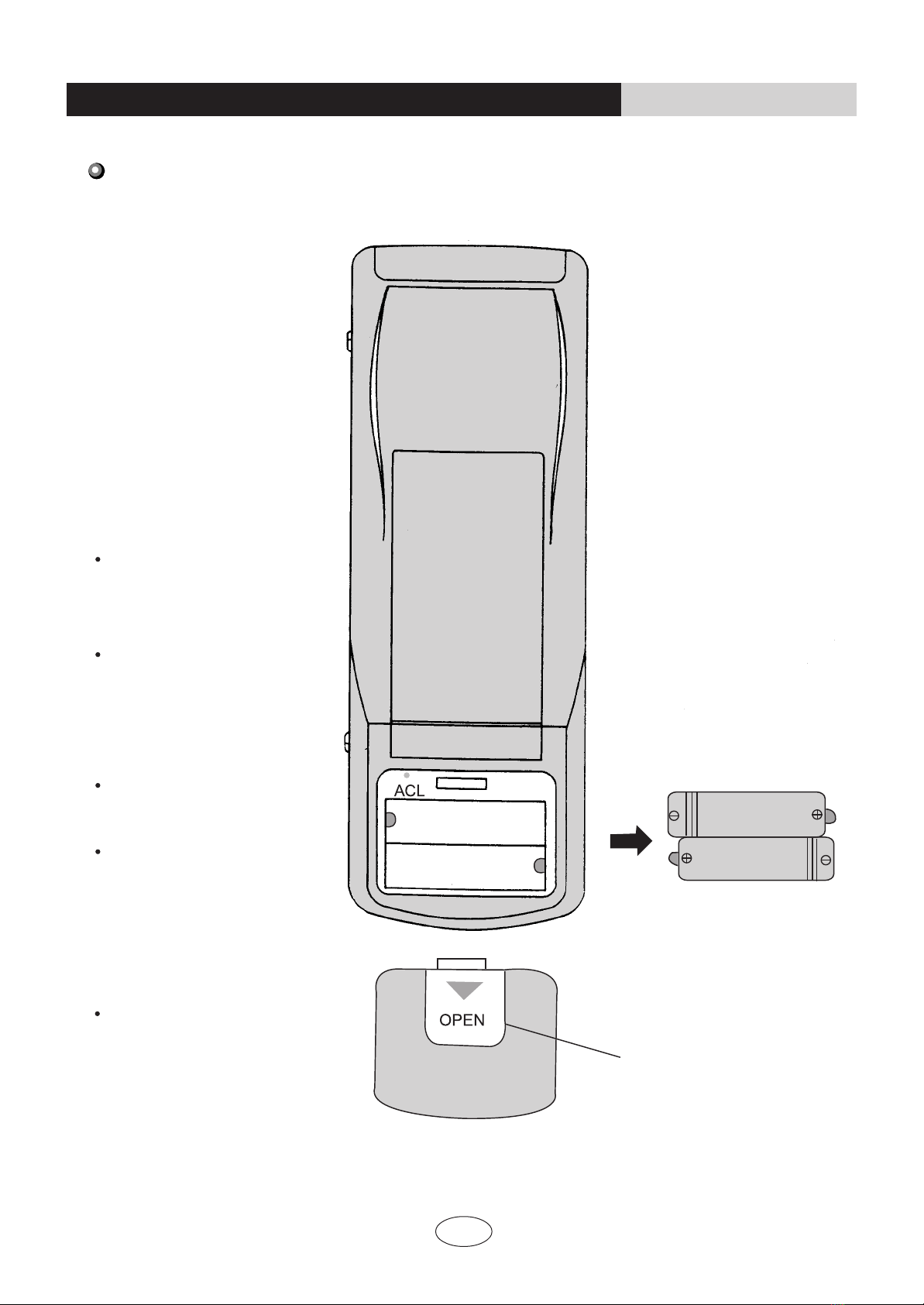

How to insert batteries
1.Remove the cover from the back
of the remote control.
2.Insert the two batteries ( Two AAA
dry - cell batteries ) and press but-
ton “ACL”.
3.Re - attach the cover.
NOTE:
Don’t confuse the new
and worn or different
types of batteries.
Remove batteries when
the remote controller is
not in use for a
longtime.
The lifetime of the bat-
teries is about one year.
The remote controller
should be placed about
1m or more away from
the TV. or any other
electric appliances.
Bad batteries are for-
bidden 1.Remove the cover
3.Re - attach the cover.
2. Insert the TWO AAA batteries
How to use the remote control to operate the unitOPERATION INSTRUCTIONS

11

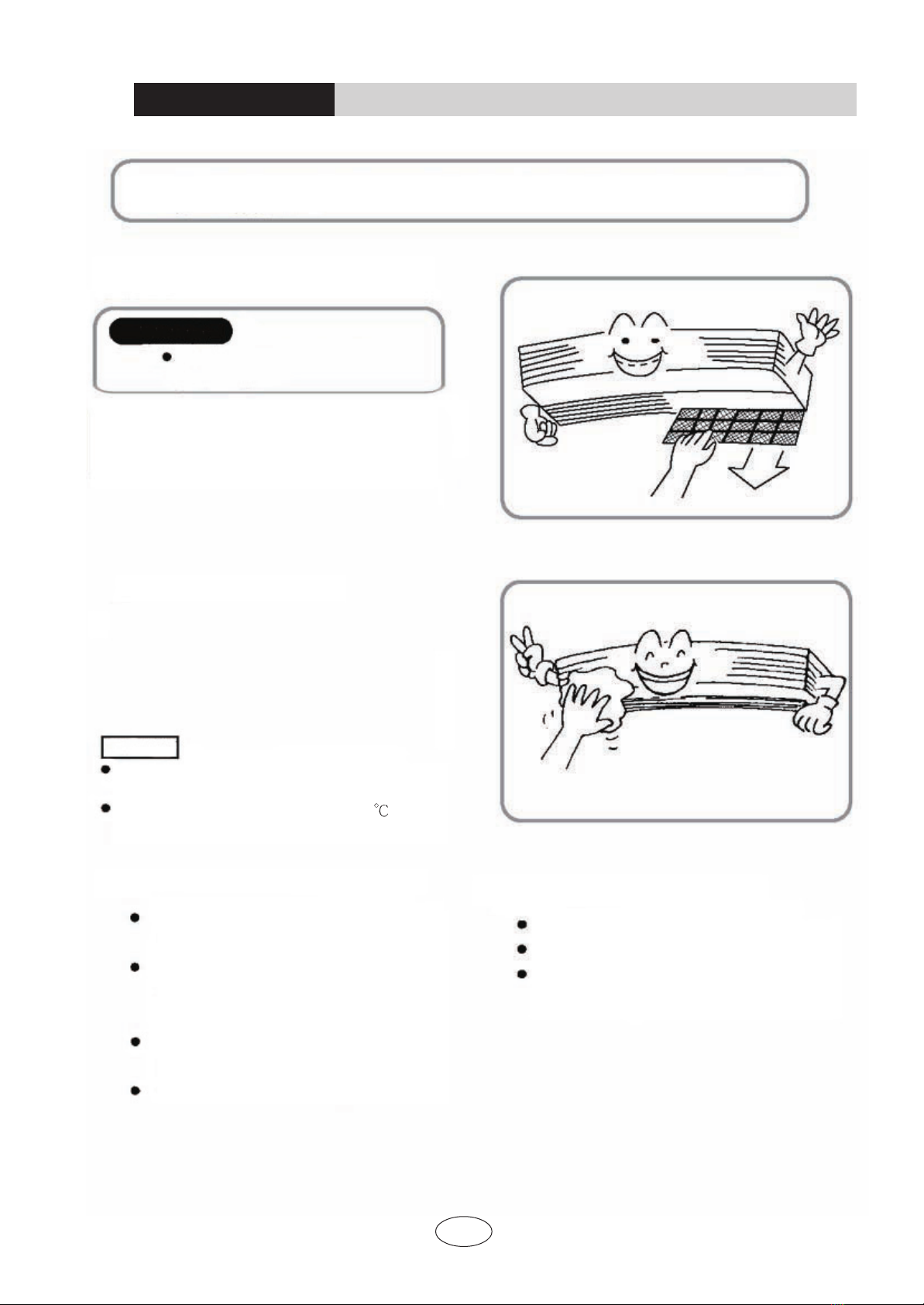

MAINTENANCEOPERATION INSTRUCTIONS
Clean the enclosure of the air conditioner and
the remote control with dry cloth or a vacuum
cleaner.If damp cloth is used, remove molsture
by using dry cloth afterward.
3
WARNING:Before inspection and maintenance of the unit, always set the power switch to "OFF"
to cut off the power supply.
Do not use benzine gasoline, thinners or polishing
products for cleaning.
Do not wash with not water(above 40 ),Some parts
of the unit may be deformed.
Check that nothing blocks the air inlet and
Running the unit without air filters can
cause malfunctions due to dirt or dust.
Always install air filters at all times.
outlet of the indoor and outdoor units.
Check that drainage hose is not bent or
clogged.
Check that the units are properly installed.
Cut off the power supply main switch.
Leave the fan running for 2-3 hours to dry
out the inside of the unit.
Clean the enclosure.
3.4 DURING THE OFF SEASON
3.3 AT THE START OF THE SEASON
3.2 CLEANING THE UNIT THE ENCLOSURE
3.1 CLEANING THE AIR FILTERS
The air filter must be cleaned by
profressional.
WARNING
CAUTION

12
OPERATING GUIDEOPERATION INSTRUCTIONS
4
●To disribute cool air throughout the room,
adjust air flow directionas shown by the
arrows (see picture)to diffuse cool air.
●The temperature should not be set
lower than what you need.This would
lead to increase energy cost.
●Draw close curtains or close glass windows
when cooling to prevent heat load from sun
light which may cause more electricity cost.
●Close window and door while operating
the unit to prevent leakage of cooled
air and save energy.
●In case of ineffective ventilation,open the window
to ventilate the room air once in a while but not too
long since cooled air will be uselessly dirained out.

13
PRECAUTIONSOPERATION INSTRUCTIONS
WARNING:The appliance should
not be used by children without
●
supervisor.
5
●Do not loate a heater or any oter heat source
close to the unit.The heat may deform plastic parts.
●Do not channel the air flow directly at people,
especially infants,aged persons,or patients.
●Do not locate any obstacle against the air flow
direction of indoor and outdoor unit.Inefficient
performance or malfunction may result.
●Turn off the air conditioner if,while running,
electricity interference occurs,if the unit is
not to be used for a long time,cut off the
power supply main switch.
●Do not insert objects into the air inlet or
outlet when the air conditioner is running as
it may cause damage or personal injury.Also
pay special attention when children are around.

Check the following before contacting the service man.You may find
the solution to your problems.After checking,if it still does not
●
operate, please contact your local dealer.
No operation
The air conditioner runs
Vapor or mist fume
Inperative
PROBLEMCAUSES
unit while running.
coming out of the
remote control.
but does not cool enough.
14
6
CHECKING BEFORE CONTACT THE SERVICE MANOPERATION INSTRUCTIONS
● Check if the timer switch is on or not.
● Check if the preset temperature is too high.
● Check if the sunlight shines directly into the room.
● Check if the door and window are opened.
● Check if there is anything obstructing the air discharge.
● Check if exhaust fan still operates.
smoke fume.
● Hot air in the room mixes with cool air. This causes
directions
● Check if the batteries are inserted in correct
● Check if the batteries are exhausted or not.
● Check if breaker switch is still on.

15
INSTALLATION
PAPER PLANK
Fig.1
Fig.2
30cm
ormore
60cm
or more
60cm
or more
150cm
or more
INSTALLATION OF INDOOR UNITOPERATION INSTRUCTIONS
The appliance shall not be installed in the laundry.
●
100cm
or more
WARNING:The air condition must be installated
and maintained by professional.
Releasethesidepanelbyunscrewingas
showninthepictureandpullthepanelas
shownbythearrows.
●
●
●
●
Such a place where cool air can be distributed
Such a place where condensation water is easily
Such a place that can handle the weight of indoor unit.
Such a place which has easy access for maintenance.
drained out.
throughout the room.
SELECTIONOFINSTALLATIONLOCATION.
Each type is similar to the other as follows;
●
●
THERE ARE 2STYLES OF INSTALLATION.
CEILING TYPE
FLOOR TYPE
7.1 Determine the mounting position on ceiling or wall
by using paper pattern to indicate indoor frame.
Mark the pattern and pull out the paper pattern.
suspender from the indoor unit as per procedure
7.2 Remove the return grill, the side panel, and
●press the fixing knob of the return grilles, the
grilles will be opened wider and then pull it out
from the indoor.
Where there is too much of oil area.
●
Where it is acid base area.
●
Where there is irregular electrical supply.
●
TO OCCUR.
AIR CONDITIONER TROUBLEIS LIABLE
CAUTIONS FOR INSTALLATION WHERE
below.
7

16
7.3
7.4
7.5
7.6
7.7
3
45
5
6
7
Fig.3 Fig.4
Fig.5 Fig.6
Fig.7
INSTALLATION OF INDOOR UNITOPERATION INSTRUCTIONS

17
INSTALLATION OF INDOOR UNITOPERATION INSTRUCTIONS
INSTALLATION DIMENSIONS OF THE INDOOR UNIT
When installing the indoor unit, you can refer the paper pattern for installation, and make sure that the drainage side must
be 10mm lower than the other side in order to drain the condensation water fluently.

18
REFRIGERANT PIPING WORKOPERATION INSTRUCTIONS
8.1
8.2
8.3
8.4
MODEL
PIPE SIZE
THICKNESS
(mm.)
MODEL PIPE SIZE THICKNESS
(mm.)
GTHD(09)AANK3A1AI
GTHD(18)AANK3A1AI
GTHD(12)AANK3A1AI 3/8"
0.71
0.8
0.8
GTHD(09)AANK3A1AI
GTHD(12)AANK3A1AI
GTHD(18)AANK3A1AI
1/4"
1/4"
1/4"
0.5
0.5
0.5
12
12
WARNING: The temperature of refrigerant circuit will be high. please keep the connecting
wire away from the naked pipe without Heat insulation layer.
Heat insulation layer
Heat insulation layer
8
