Gree 13-05020 User manual

OWNER’S MANUAL
CANADIAN STANDARDS
MINI-SPLIT HEAT PUMP (SEER 16)
12,000 BTU
12,000 BTU COOLING
13,000 BTU HEATING
Before using this air conditioner, please read the following instructions carefully and keep
this manual along with your proof of purchase in a safe place for future reference.
MODELS: 13-05020 / 13-05024
00228-16/01/07
© Copyright, Sunrise Tradex Corp., 2007

Safety precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
Air conditioner diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
Remote control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
Remote control operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-6
Safety notes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8-9
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10-11
Technical specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
Installation setup diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
Installation location . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
Installation instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15-19
Electrical wiring - indoor unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16-17
Electrical wiring - outdoor unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
Air purging and leakage test . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20
Test operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
Important notice . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22
Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23
Thank you for choosing this GREE mini-split heat pump, please keep this
owner’s manual with proof of purchase for reference.
CONTENTS

2

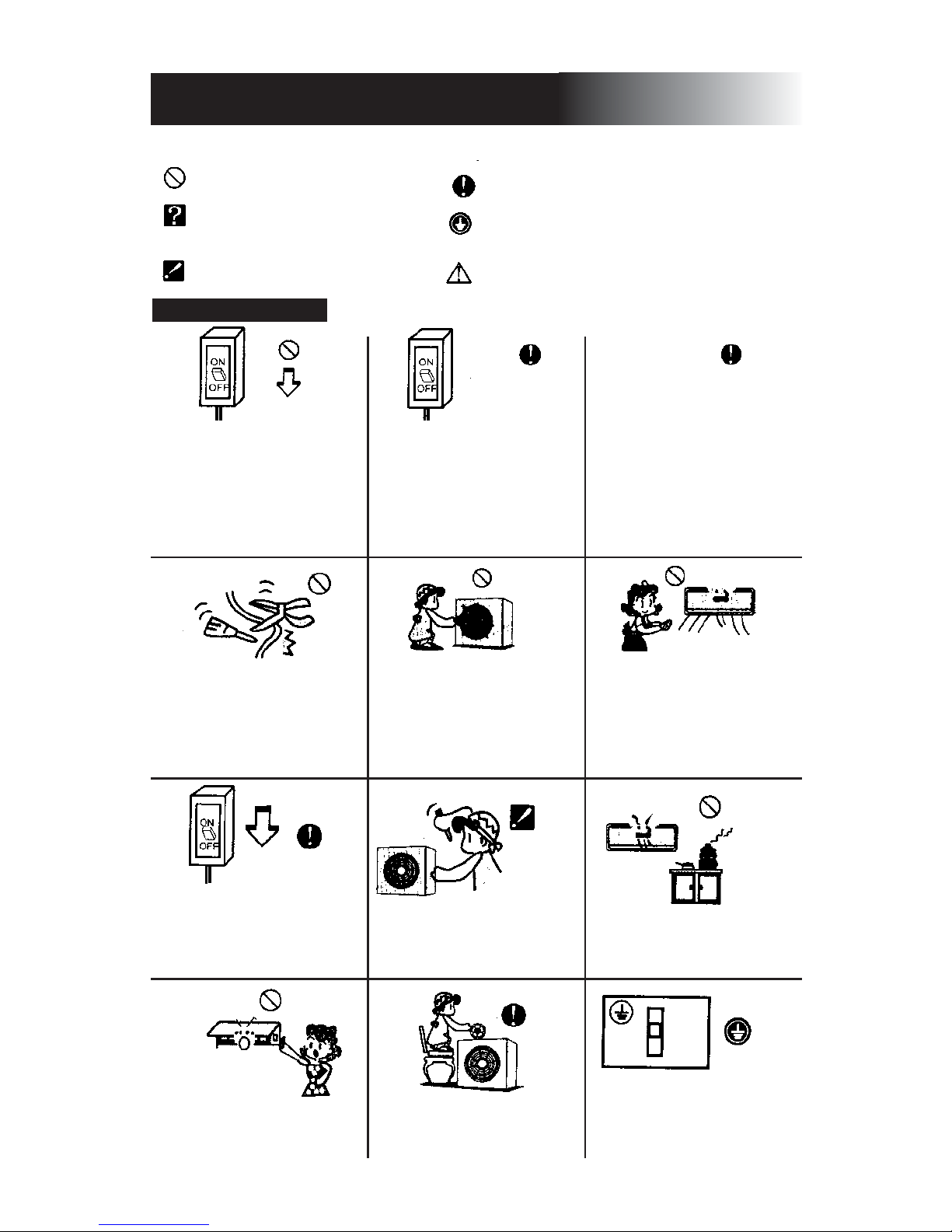

SAFETY PRECAUTIONS
Legend of symbols used in this manual :
Not to do. Be sure to follow instructions.
Grounding is necessary.
Feature of the appliance
(not a defect).
Pay attention. Warning: Incorrect handling may cause
serious hazards and/or injuries.
Only to the attention of
electricians or technicians :
To eliminate risks of short
circuits and fire hazards, do
not unplug the air conditioner
or switch off the circuit breaker
when unit is running.
Always check the power
supply cord or wire for signs of
damages before installing and
using the air conditioner. If the
power cord is damaged,
contact SUNRISE TRADEX
Customer Service.
Always close the air
conditioner before cutting the
power off when there is a
malfunction of the unit.
Do not operate the unit with
wet hands or spray water or
other liquid inside the unit.
Do not place any foreign
objects on the outdoor unit.
Make sure the air conditioner is
well grounded according to local
electricity codes and that the work
is done by a qualified and certified
electrician or technician.
To eliminate risks of electric
shocks and fire hazards, do
not attempt to repair the air
conditioner by yourself.
Do not put any combustion
appliance in the direct path of
the unit airflow ; it could affect
the combustion efficiency.
Never insert fingers, foreign
objects or anything to
obstruct the air inlet and
outlet grilles of both inside
and outside units.
Warn children.
Do not expose skin or eyes
directly to cool air over a
long period of time.
Keep clean and in good
working order the power
supply circuit breaker or plug.
To eliminate risks of electric
shocks or fire hazards, make
sure the power supply cord is
correctly plugged in.
Use 110-120V~60Hz power
supply only.
Disconnecting switch

3

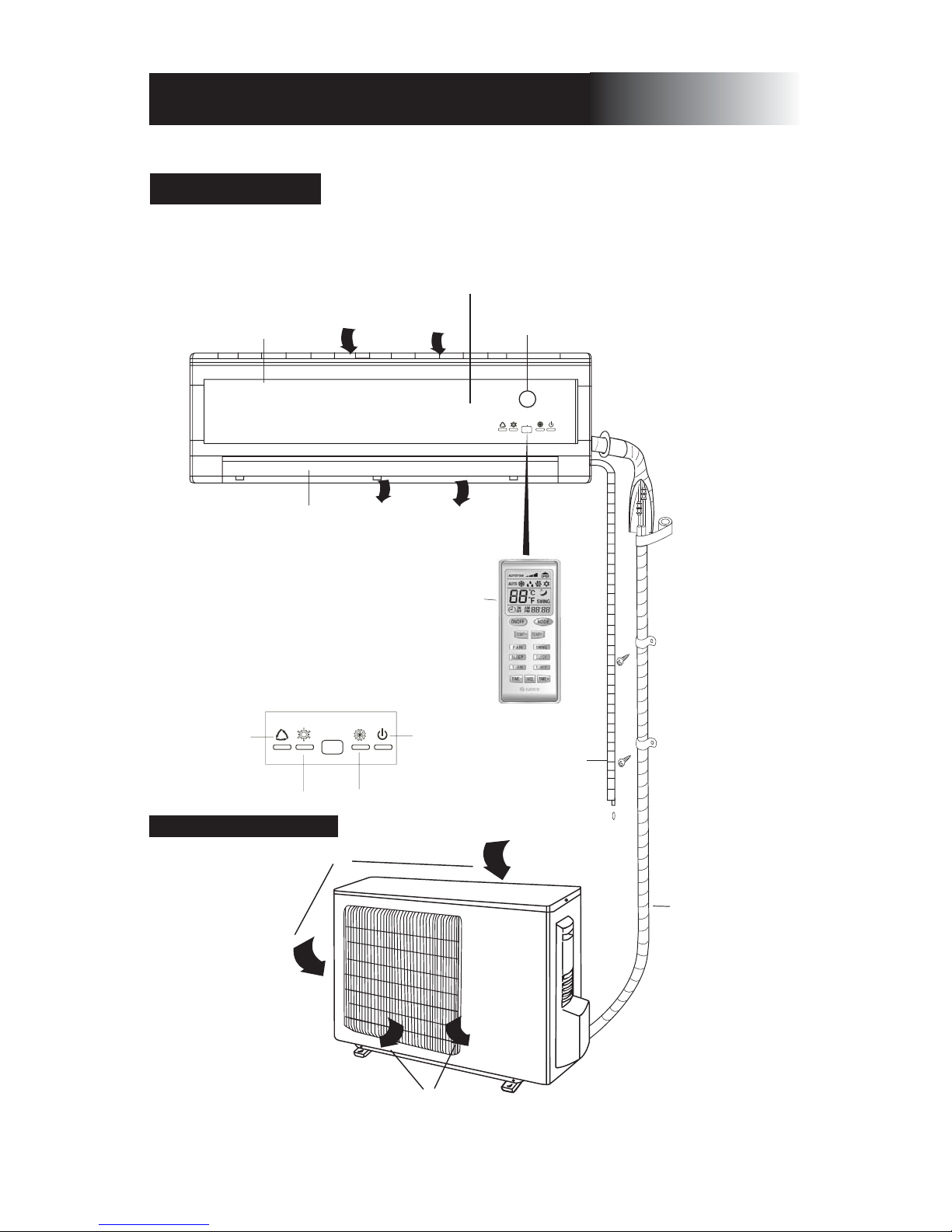

AIR CONDITIONER DIAGRAM
INDOOR UNIT
Air in Display
Surface panel
Front case
Air outLouvers
Remote control
Drain hose
Air in
Heating Cooling
Auto Power/Run
Air out
Actual model may differ from the diagram
Suction and
liquid refrige-
rant piping
and wiring
OUTDOOR UNIT

4

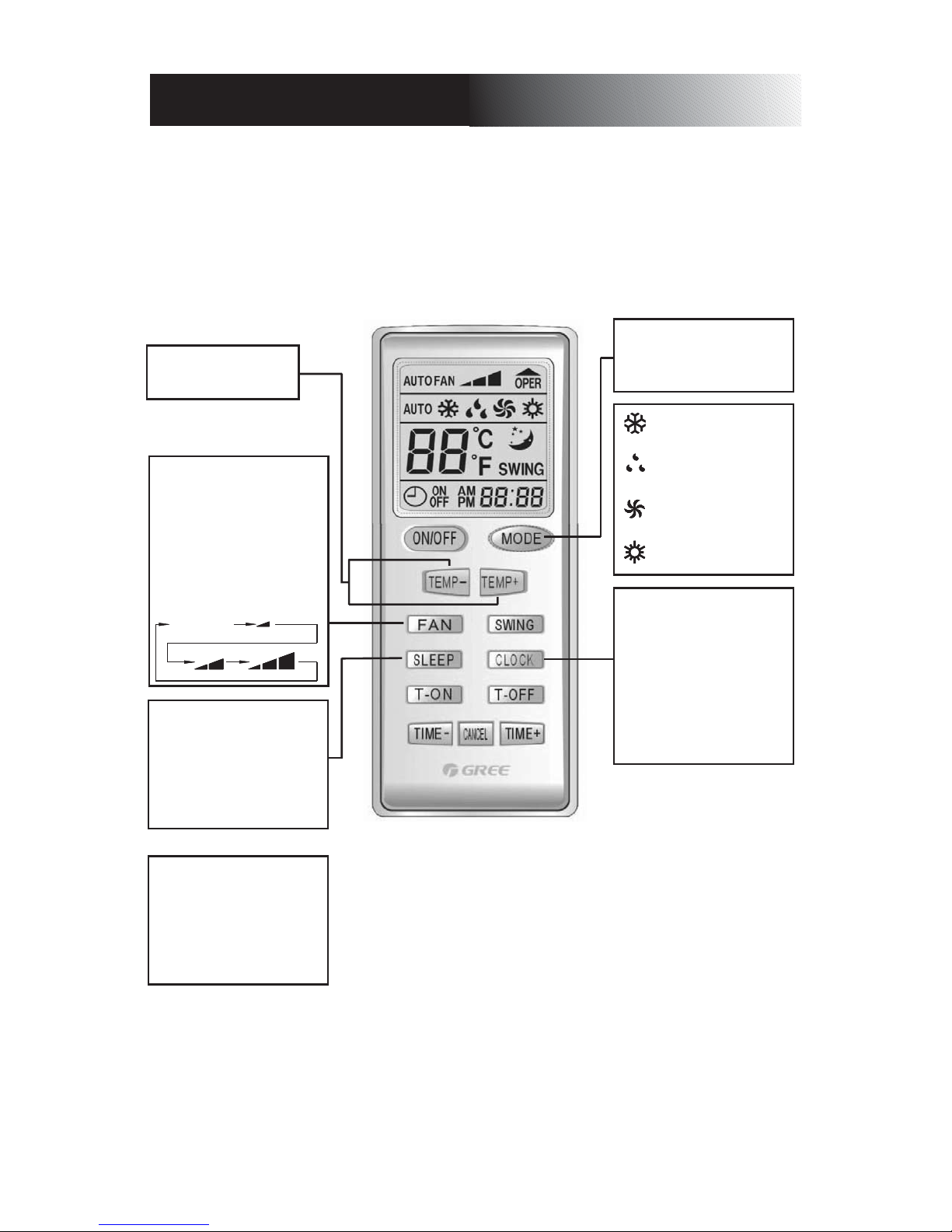

REMOTE CONTROL
NOTE :
• Don’t mix new with used
batteries or batteries of
different types.
• If you are not using the
remote control for a long
period of time, remove the
batteries to eliminate
potential battery leakage.
• The remote control should
be kept at least 1 m or
more away from the TV
set or any other electric or
electronic appliances.
• Make sure there is nothing
blocking the signal from
the remote control to the
inside unit.
• Do not drop or throw the
remote control.
• Do not leave the remote
control in a location
exposed to direct sunlight
or near a heat source.
• Do not spray any liquid or
immerse the remote
control.
2 AAA - 1.5V BATTERIES POWER THE REMOTE CONTROL.
• Do not use rechargeable batteries
How to insert the batteries
1. Following the arrows (see Figure), remove the battery cover.
2. Insert the 2 batteries, making sure that the terminals (+/-) are
correctly fitted. Put the cover back into position.
3. Using the tip of a pen or any other sharp object, press on the
ACL key.
4. Reinstall the cover.

Two buttons to set the
temperature
When unit is running under
AUTO, COOL, FAN, HEAT,
press this button to select
the fan speed. AUTO mode,
LOW fan, MED fan, HIGH
fan. In DEHUMIDIFYING
mode the fan speed is set
to LOW and cannot be
changed.
Press this button to select
the operation mode desired.
AUTO,COOLING,DEHUMI-
DIFYING, FAN, HEAT
Press clock button once.
Clock icon then is flashing.
You have approx.
7 seconds to set the clock.
With clock icon still flashing,
press the TIME- button to
decrease the time and the
TIME+ button to increase.
To confirm the hour set,
press the CLOCK button.
Under COOL,DRY,HEAT
mode, press the button
once to start the SLEEP
fonction. Press the button
once again, to stop the
function (Available on some
models only)
Mode and temperature
appearing on your remote
control will also show in the
round LCD display on the
unit (right side of the front
panel).
5
REMOTE CONTROL OPERATION
MPORTANT:
Some functions on this remote control are not available on models sold in Canada. The usage and
operation of these functions are therefore not detailed in this manual.
NOTE:
• Make sure that there is no obstruction between the remote and the inside unit.
• Do not drop or throw the remote control
• Do not place the remote control near hot places or exposed to sunlight
AUTO FAN
COOL mode
DRY mode
FAN mode
HEAT mode

6

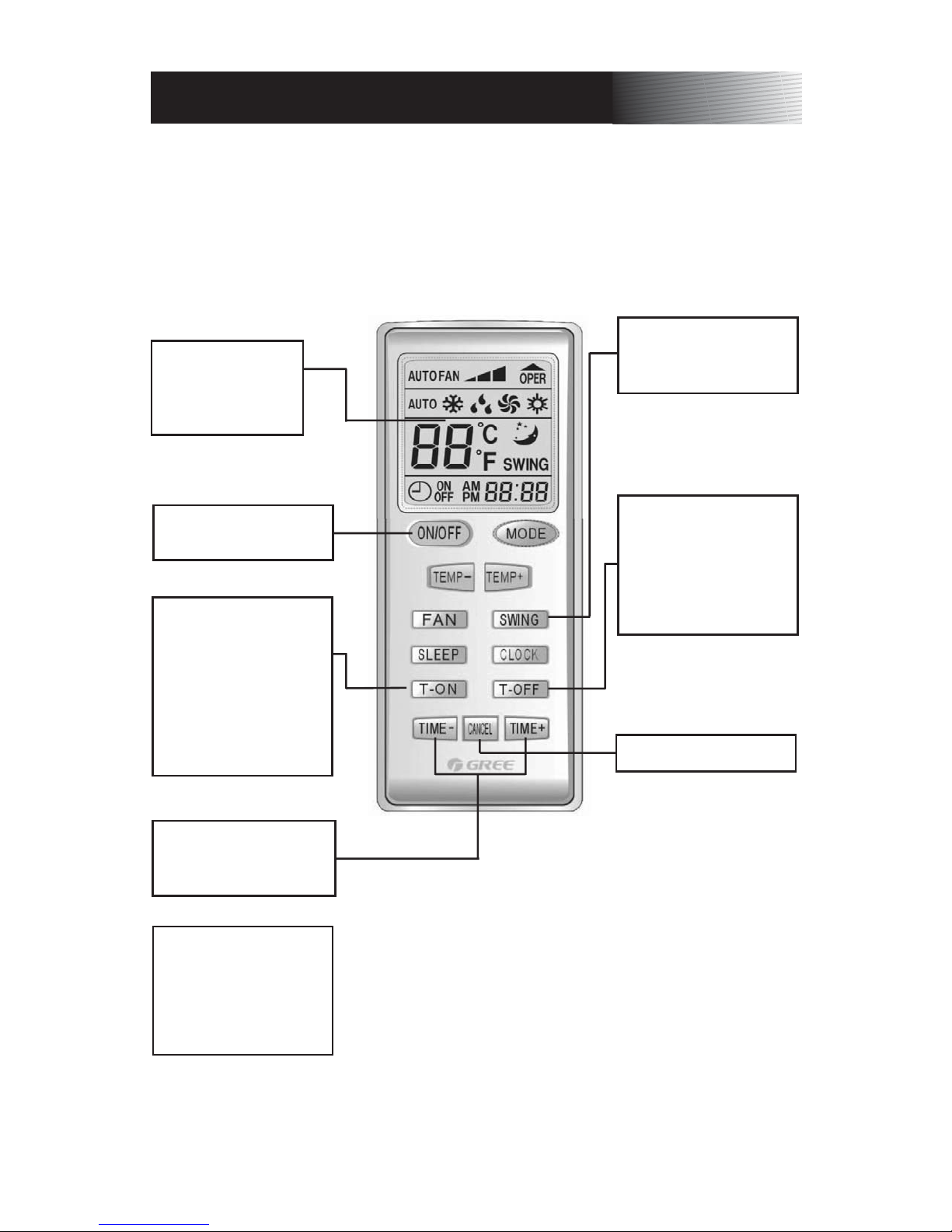

REMOTE CONTROL OPERATION
LIQUID CRYSTAL
DISPLAY
Show all set functions.
ON/OFF
Press this key to turn the
unit on or off.
Press on SWING to start
the automatic oscillation of
the louvers. Press again to
cancel or stop oscillation.
Press T-OFF to stop the air
conditioner at a desired
time. Once pressed, OFF
and clock icon will flash.
With the TIME- and TIME +
button, set the desired stop
of the unit.To confirm time,
press T-OFF once again.
Press CANCEL to cancel
all TIMER settings.
Press T-ON to start the air
conditioner at a desired
time.
Once pressed, ON and
clock icon will flash. With
the TIME- and TIME +
button, set the desired
start up of the unit.
To confirm time, press
T-ON once again.
TIME+ TIME- Button
Function instruction please
refer to T-ON button, T-OFF
button, CLOCK button.
Mode and temperature
appearing on your remote
control will also show in the
round LCD display on the
unit (right side of the front
panel).

7

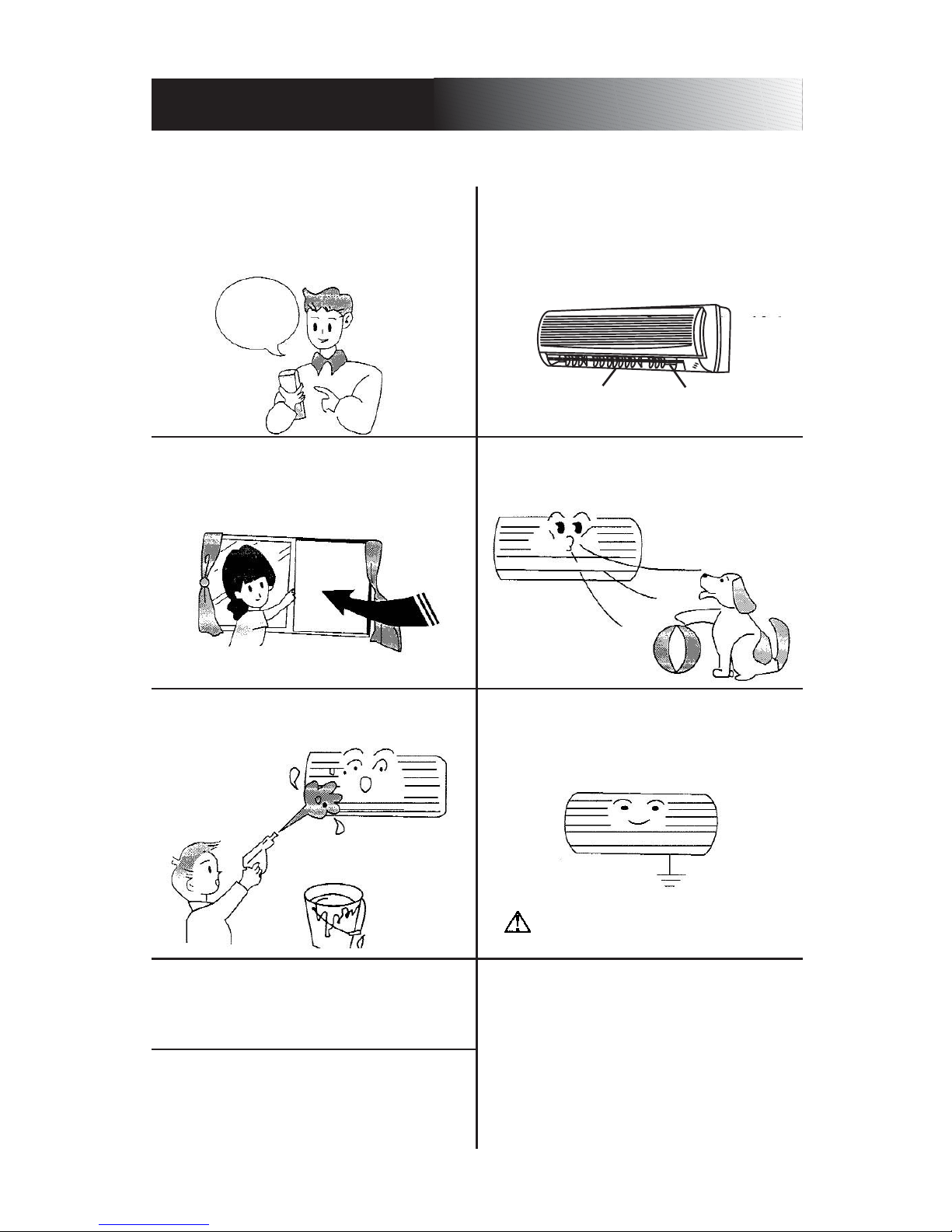

SAFETY NOTES
Always set the most adequate temperature.
It is recommend to set the temperature
about 5°C cooler than the outside
temperature to reduce energy costs.
Keep doors and windows closed when the
air conditioner is running, otherwise it could
affect the air conditioner cooling efficiency.
Do not splash water or other liquid on the
air conditioner to prevent risks of electric
shocks or unit malfunction.
Do not use the air conditioner for other pur-
poses than what it is designed for (such as
drying clothes, preserving foods, etc.).
The air conditioner must be properly
grounded. Do not connect the ground to
gas or water pipes, lightning rods, lighting
poles or telephone/cable lines.
Do not leave animals or plants exposed
directly to the coolling airflow for long
periods of time.
Louver of left/right
direction
• The airflow direction can be moved
upward or downward when unit is
running.
• Make sure that the air outlet grills and
intake vents are free from obstructions.
WARNING
To eliminate risks of vibrations and damage
to the compressor, make sure the air
conditioner is properly connected and
powered with 115 V / 1 ph / 60 Hz.
Unit working temperature range:
Do not operate unit if outside temperature
is below -5°C or above 43°C or you could
damage the compressor and void the
warranty.
Louver of upward/
downward direction

8

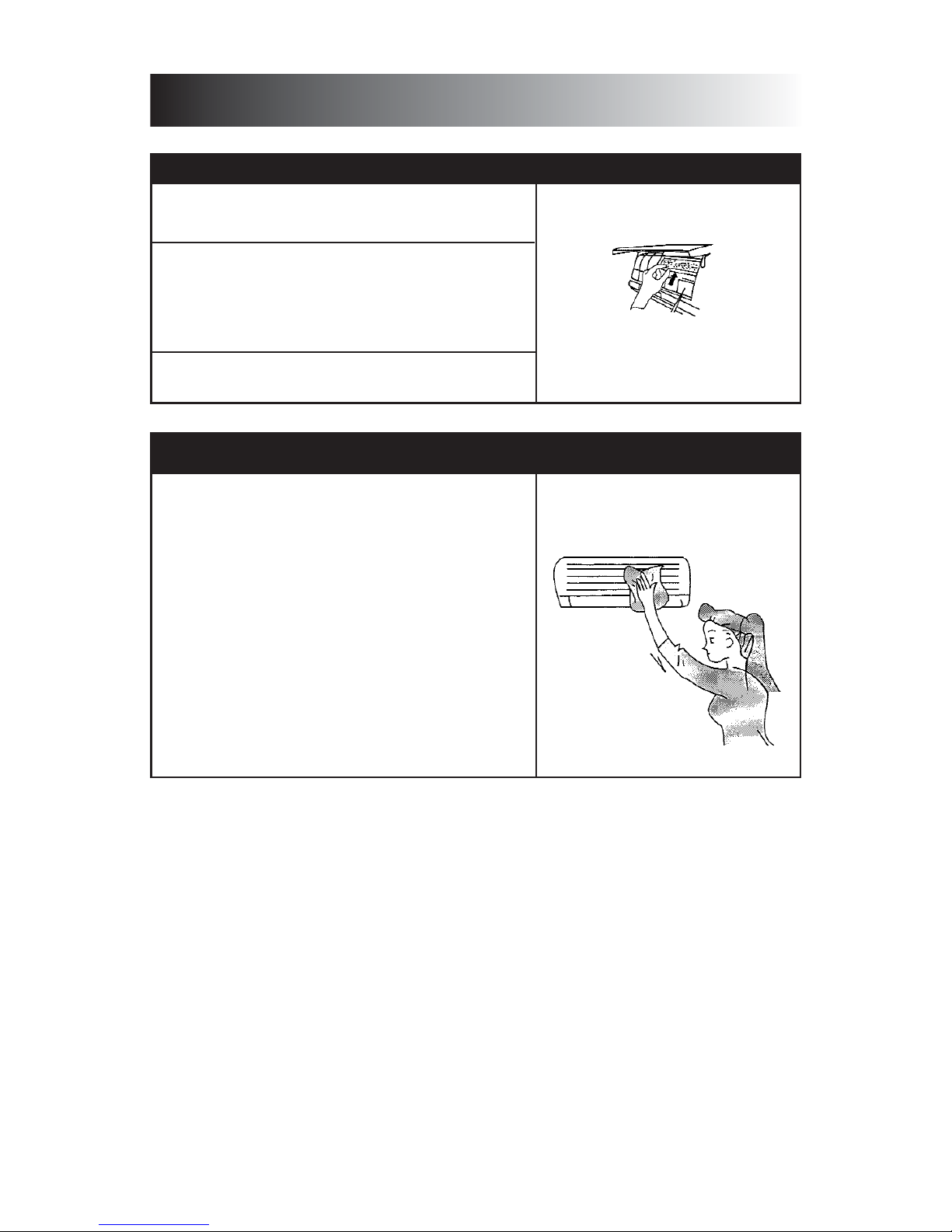

MAINTENANCE
CAUTION
Turn power off and then cut the circuit-breaker off before cleaning the air conditioner.
Never spray water on the indoor and outdoor units when cleaning the air conditioner.
Always use a dry soft cloth and warm water, without or with a mild detergent.
1. To remove, pull the front panel in the
direction of the arrows. Gently push aside
the brackets holding the panel.
2. Use a dry soft cloth, or a cloth slightly
dampened with warm water, with or
without a mild soap. Completely dry it.
• Never use water above 45°C to prevent
finish discoloration or plastic distortion.
3. Push aside the holding brackets to
reposition the panel. Make sure the panel
is correctly clipped.
• For a maximum efficiency, it is
recommended to clean the air filters every
two weeks, or more if you have animals.
1. Open the front panel and carefully remove
the air filters.
2. Gently clean with a vacuum cleaner or wash
the filters in warm soapy water. Rinse well
and let dry before putting it back.
• Never use water above 45°C to prevent
discoloration or plastic distortion.
Cleaning the front panel
Cleaning the air filters
Air filter
Slot
3. Reinstall the filters, then close the front
panel, making sure all parts are correctly
fitted.

MAINTENANCE
1. Remove the air filters, as described in step #1
of “Cleaning the air filters” section.
2. Take the active-carbon air filters out of the
bag and place them into the filter frames.
• Be cautious not cut yourself on the fins.
3. Reinstall the air filters, as described in step #3
of “Cleaning the air filers” section.
• If you are not to use your air conditioner for a
long period of time (ex.: during winter time),
please follow these instructions :
1. Turn the air conditioner off and cut the circuit-
breaker off.
2. Clean the filters and other parts, as well as the
outdoor and indoor unit enclosures.
3. Before using again your air conditioner :
• Check the filters, and if necessary, clean them,
as well as the indoor and outdoor units.
• Make sure that all parts and accessories are
correctly fitted.
• Make sure that the air outlet grills and intake
vents are cleared out.
• Do not forget to reset the circuit-breaker.
Active-carbon air filters (optional)
Not using the air conditioner for a long period of time
9

10
TROUBLESHOOTING
The air conditioner does not run
immediately after the power key is
pressed on.
There is an unusual odour coming out of
the air outlet grills when the air conditioner
is running.
A clicking noise can be heard when
the unit is turned on or shut off.
Air cooling is not efficient.
The remote control does not work.
The air conditioner does not operate at all.
The sound of flowing water can be heard
while the air conditioner is running.
In cooling mode, the compressor takes
approximately 3 minutes to resume
operation.
Air filters are dirty ; simply clean them.
This is caused by the refrigerant fluid
flowing through the unit.
This is caused by deformation of plastic
due to sudden change in temperature.
• Is the remote control out of the appropriate
working distance with the indoor unit?
• Is there anything blocking the signal
transmission between the remote control and
the indoor unit ?
• Are the batteries worned out?
• Is there any power failure ?
• Is the wiring loose?
• Is the power supply circuit breaker on ?
• Is the voltage rating high enough ?
• Is the TIMER ON function set on ?
• Is the set temperature suitable ?
• Are the air inlet and outlet grills obstructed ?
• Are the air filters dirty?
• Is the indoor fan speed set at low speed ?
• Is there any other heat sources in the room?
• Are the windows open?
Problem Possible cause and solution
WARNING: Do not attempt to repair your system by yourself. It can cause electric shock or fire.
Please verify the following items before calling for a technician, it can save you time and money

11
TROUBLESHOOTING
Unusual noise can be heard during operation.
Power fuse or switch often breaks.
Carelessly splash water or something into air conditioner.
Electrical lines and power plug are very hot.
Wind blowing from the outlet smells bad during operation.
Water is leaking on the inside wall.
Tradex Corp.
Tradex Corp.
www.sunrisetradex.com
1-800-686-2175
IMPORTANT NOTICE
It is important to have your mini-split air conditioner installed by a Sunrise Tradex Corp.
certified installer for your warranty to be valid. A mini-split air conditioner installed by a
technician other than a Sunrise Tradex Corp. certified installer will void the warranty.
If any of the following situations occur, stop all operations and call the Sunrise Tradex
Corp. Customer Service: 1-800-686-2175
Unit working temperature range: Do not operate unit if outside temperature is below
-5°
C or above 43°C or you could damage the compressor and void the warranty.
Use copper supply wires.
Caution mount with the lowest moving parts at least 2.4 m above floor or grade level.
Warning: risk of electric shock can cause injury or death. Disconnect all remote elec-
tric power supplies before servicing.
During connection of the pipes, if great torque is imposed on flare nuts, service valve
on narrow pipe may be damaged. When tightening flare nuts or narrow pipe, torque
should be adjusted between 13.7~18.6N.M (140~190KGF.CM).
Do not put this unit in wet place.
Fragile, handle with care.
Electrical installation must be in accordance with local electrical codes.
The installation of these units requires qualified personnel.
Certified (approved) type supply conductors must be used.
An independent branch circuit must be used.
Maximum inter connecting conductors length should not exceed 11 m (444.875”).
Refrigerating pipe lenght must be limited between 4 ~10 m (157.484” ~ 393.75”).
If the length exceeds 7.62 m (300”), the cooling capacity may become impaired.
Difference in height between indoor and outdoor unit should not exceed 7 m
(275.594”).
WARNING

12
TECHNICAL SPECIFICATIONS
MODEL
FUNCTIONS
ACCESSORY
COOLING CAPACITY (W)
HEATING CAPACITY (W)
POWER SUPPLY
FREQUENCY
COOLING / HEATING RATED CURRENT
MAXIMUM INPUT CURRENT
COOLING / HEATING RATED POWER
COOLING / HEATING RATED INPUT
RECYCLING AIR VOLUME (m3/h)
REFRIGERANT AND WEIGHT
WATER PROOF LEVEL
NOISE (INDOOR / OUTDOOR) dB (A)
CLIMATE TYPE
ANTI-ELECTRIC SHOCK PROTECTION
WEIGHT (KG) INDOOR UNIT / OUTDOOR UNIT
SUCTION CONNECTION SIZE
LIQUID CONNECTION SIZE
13-05020 / 13-05024
Cool/Heat
Air cleaner
2,500 W (1,350-3,200 W)
2,700 W (1,750-4,000 W)
115 V
60 Hz
3.53/3.86 A
6.0 A
1,360/1,390 W
730/800 W
450 W
R410A/1.2 kg
IP24
40/53 dBA
T1
I
8.5/45 kg
1/2”
1/4”
83 x 28.5 x 22.5 cm
84.8 x 54 x 32 cm
Working temperature range
Maximum cooling 32/23 43/26
Minimum cooling 21/15 21/-
Maximum heating 27/- 24/18
Minimum heating 20/- -5/-6
Indoor side
DB/WB(°C)
Outdoor side
DB/WB(°C)
1. Above information may change without notice. Accurate specifications can can be found on the
name plate located on the unit.
2. When the unit is restarted after it was stopped, it can automatically resume in its most latest
running mode, and the outdoor unit starts a little bit later.
Do not operate unit if outside temperature range as shown below, or you could damage
compresssor and void the warranty
INDOOR UNIT
OUTDOOR UNIT
DIMENSION (cm)
W X H X D

13
INSTALLATION SETUP DIAGRAM
Space to the ceiling
Space to the
wall
Space to the wall
Insulation tape
Air outlet side
Space to the cover
Air intake side
Space to the wall
Space to the wall
30cm or more
200cm or more
50cm or more
30cm or more
50cm or more
15cm or more
300cm or more
15cm or more
15cm or more
200cm or more
IMPORTANT NOTES
• The installation must be done by trained and qualified service
personnel with reliability according to this manual.
• It is important to have your mini-split air conditioner installed by
a Sunrise Tradex Corp. certified installer for your warranty to be
valid. A mini-split air conditioner installed by a technician other
than a Sunrise Tradex Corp. certified installer will void the
warranty.
Space to the floor
288
440

14
INSTALLATION LOCATION
INDOOR UNIT
1. The inlet and outlet should not be covered so that the outflow air can reach all parts of
the room.
2. Install in a location where is permitting easy connection with the outdoor unit.
3. A location from which the condensation water can be drained out conveniently.
4. Avoid a location where there is heat source, high humidity or inflammable gas.
5. Install in a location where is strong enough to withstand the full weight and vibration of
the unit.
6. Be sure that the installation conforms to the installation dimension diagram.
7. Be sure to leave enough space to allow access for routine maintenance.
8. Install in a location where is a least 1 m (39-3/8”) from other electric appliances such as
television, audio device, etc.
9. Select location where is easy to remove and clean the filter.
OUTDOOR UNIT
1. Select location from which noise and outflow air emitted by unit will not inconvenience
neighbors.
2. Select location where there should be sufficient ventilation.
3. The inlet and outlet should not be covered.
4. The location should be able to withstand the full weight and vibration of the outdoor unit.
5. There should be no danger of flammable gas or corrosive gas leaks.
6. Be sure that the installation conforms to the installation dimension diagram.
7. Please verify with your local authority if the installation of this unit is permitted.

15
INSTALLATION INSTRUCTIONS
INSTALL THE REAR PANEL
1. Always mount the rear panel horizontally.
2. Fix the rear panel on the selected location
with screws supplied with the unit.
3. Be sure that the rear panel has been fixed
firmly enough to withstand the weight of an
adult of 60 kg (132.3 lbs.), furthermore, the
weight should be evenly shared by each
screw.
INSTALL THE DRAIN HOSE
1. For a proper draining, the drain hose should be
placed at a downward slant.
2. Do not wrench or bend the drain hose or
flood its end in water.
3. The extended drainage pipe in the room should be wrapped with the insulating materials.
INSTALL THE PIPING HOLE
1. Make the piping hole 50 mm (2”) in the wall at a slight downward slant to the outdoor side.
The center of the hole should be determined refer to Fig.2.
2. Insert the piping-hole sleeve into the hole to prevent the connection piping and wiring
from being damaged when passing through the hole.
INSTALL THE CONNECTION PIPES
Connect the connection pipes with the relevant union pipes of the indoor unit of the
indoor unit and tighten the flare nut of the connection pipes.
NOTE:
• Connect the connection pipes with the indoor unit firstly and the outdoor unit secondly.
• Be careful in bending the connection pipes, or you will damage the pipes.
• If the tightening torque is too big in tightening the flare nuts, leakage will happen.
ELECTRICAL WIRING
Note: Only an electrician can install the electrical circuit.
1. Open the surface panel.
2. Remove the wiring cover.
3. Route the power connection cord from the back of the indoor unit and pull it toward the
front through the wiring hole for connection.
4. Connect as shown on diagram.
5. Reassemble the wiring cover.
(Fig.2)
Wrenched
Right piping
hole
Left piping
hole
Bent
Flooded
50 mm (2”) 50 mm (2”)

16
INSTALLATION INSTRUCTIONS

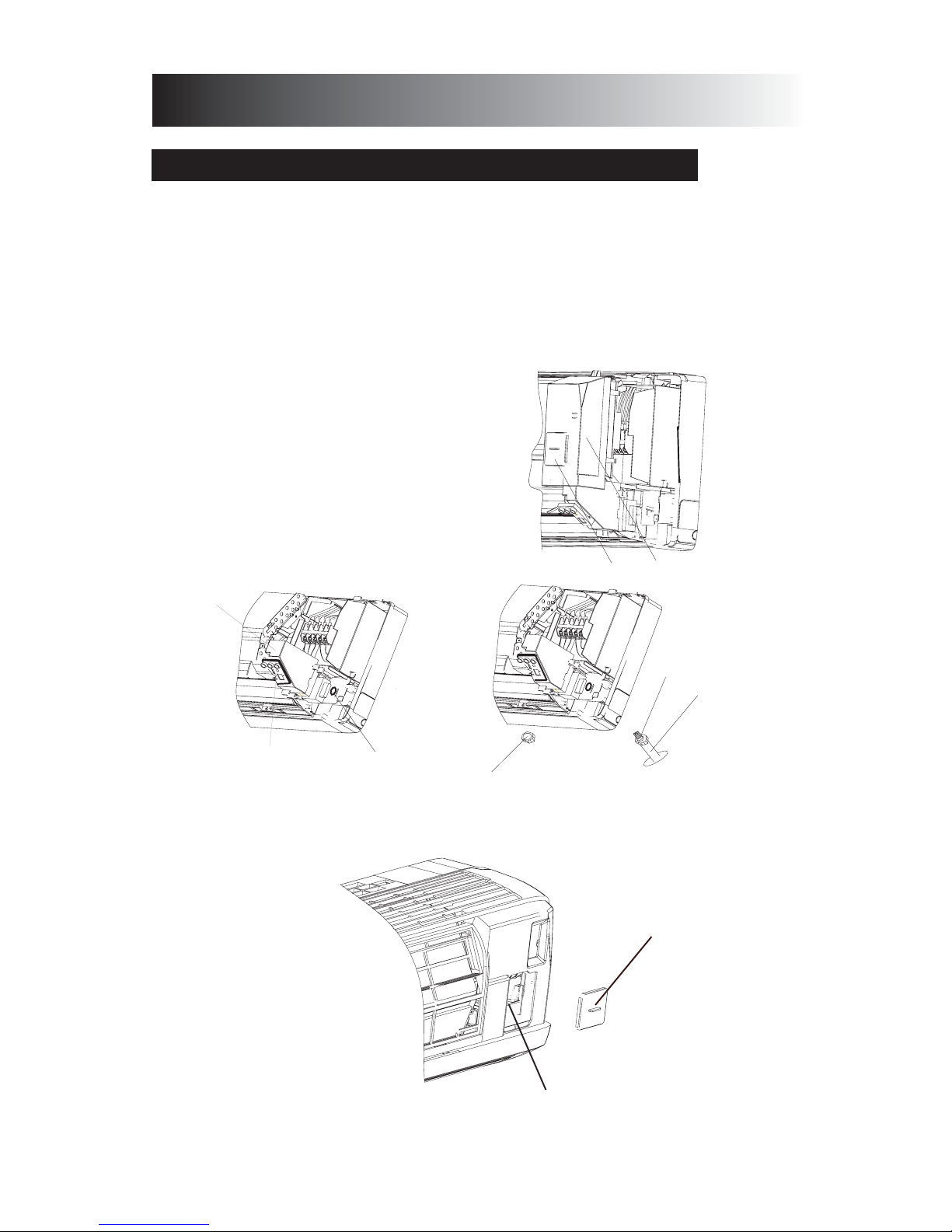

ELECTRICAL WIRING - INDOOR UNIT
*Only an electrician must do the connection of this unit.
Note: The power of indoor unit is supplied by the
outdoor unit.The outside disconnect switch must
be installed between electrical panel and
condensing unit.
Operation procedures:
1. Open the surface panel.
2. Open the cover and cover plate of electric box.
(Right figure).
3. Remove the receiving window as shown in the
below left figure.
Cover of
electric box
Support
Receiving window
4. Wire pipe should be tightened by the fixed nut and the electric box should be fixed as
shown in the above right figure and the below figure.
Cover of
wiring hole Fixed nut
Wiring cover
Power connection cord
Connector
Wire pipe
Cover plate of
electric box

17
INSTALLATION INSTRUCTIONS
IMPORTANT NOTICE
1. Wiring should be properly installed.
2. Tighten the screws on the terminal board.
3. Pull on each wire and make sure they are solidly in place.
4. Wrong wiring will cause unit to work abnormally and/or damage the unit.
5. Wrong wire grounding may cause short circuit.
Wiring cover Terminal
Wire clamp
Yellow-green
Ground
Blue
Brown
Black
1. Connect the neutral wire of the power connection cables to the ‘’ N(1)’’ terminal
2. Connect signal wire to the ‘’2’’ terminal
3. Connect Live wire to the ‘’3’’ terminal
4. Connect ground to ground symbol
5. Put back cover and front panel.
Note: Wiring must be done by an electrician according to the local rules & regulations and this
manual.
The connecting wire should be correctly connected to circuit interface.
Otherwise, it can cause a fire, electrical malfunction or cause damage to the unit.
The diagram is shown as below:
Power connection
(from compressor)

18
INSTALLATION INSTRUCTIONS
ELECTRICAL WIRING - OUTDOOR UNIT
IMPORTANT NOTICE
1. Wiring should be properly installed.
2. Tighten the screws on the terminal board.
3. Pull on each wire and make sure they are solidly in place.
4. Wrong wiring will cause unit to work abnormally and/or damage the unit.
5. Wrong wire grounding may cause short circuit.
Blue
Black
Brown Power
connection
Yellow-green
Ground
1.Remove the big handle
2.Remove the wire clamp and connect the end of the power connection cord with screws
to the wiring terminal board. Make sure that the wiring connection is in accordance with
the indoor unit (wire colors and numbers).
3.Make sure that the wiring has been connected securely.
4.Reinstall the big handle.
• Open the cover of outdoor unit.
•
Make the wire connections according to the following instructions.
Ground circuit
of indoor unit
Ground circuit
of outdoor unit
3-way terminal board
6-way terminal board
Power supply
115 V / 1 ph / 60Hz

1. When routing the piping and
wiring from the left or right side
of the indoor unit, cut off the tai-
lings from the chassis in neces-
sary (shown in Fig.4, (a), (b) (c)).
(1) Cut off the tailings 1 when
routing the wiring only.
(2) Cut off the tailings 1 and tai-
lings 2 (or tailings 1, tailings 2
and tailings 3) when routing both
the wiring and piping. 1, 2 and 3
in Fig. 4 are the recommended
piping.
2. Wrap the piping and wiring and
pull them through the cut-off-
tailings hole (Shown in Fig. 5).
3. Hang the mounting slots of the
indoor unit on the upper tabs of
the rear panel and check if it is
firm enough. (Shown in Fig. 6).
4. The height of the installed loca-
tion should be 2 m (78-3/4”) or
more from the floor.
Wrapping tape
Connection pipes
Power connection cord
Fig.4
Drainage hose
Right piping Right rear piping
Left piping
Tailings 3
Tailings 2
Tailings 1
Left rear piping
Fig.5 Fig.6
Fig.7
INSTALLATION INSTRUCTIONS
Installation of the outdoor unit
Install the connection pipe
1. Align the center of the piping flare
with the relevant valve.
2. Screw in the flare nut by hand and
then tighten the nut with spanner and
torque wrench refer to Fig.7.
NOTE: Exceeding tightening torque will
damage the flare surface.
Tightening torque table
Hex nut diameter (mm)
ø 6
ø 12
Tightening torque (N.m)
15 ~ 20
50 ~ 55
Torque wrench
Spanner
Flare
nut
Joint
19
Installation of the indoor unit
