GREE ELECTRIC APPLIANCES, INC. OF ZHUHAI
GPC12AL-K5NNA3A
GPH12AL-K5NNA3A
(Refrigerant R290)

Service Manual
Table of Contents
Part Ė: Technical Information.......................................................... 16
1. Summary .................................................................................................. 16
........................................................................................ 17
3. Outline Dimension Diagram........................................................... 19
4. Refrigerant System Diagram ......................................................... 20
5. Electrical Part......................................................................................... 21
5.1 Wiring Diagram ......................................................................................... 21
5.2 PCB Printed Diagram................................................................................ 23
6. Function and Control......................................................................... 25
6.1 Introduction of control panel...................................................................... 25
6.2 Remote Controller Introduction ................................................................. 27
6.3 Introduction of Basic Mode Function......................................................... 31
Part ė: Installation and Maintenance ......................................... 33
7.Notes Maintenance Safety Precautions: ................................. 33
8. Installation Precaution...................................................................... 39
9. Install .......................................................................................................... 41
9.1 Install Wire Hook....................................................................................... 41
9.2 Removing Collected Water ....................................................................... 41
9.3 Installation in a double-hung sash window................................................ 43
9.4 Installation in a sliding sash window ......................................................... 44
9.5 Installation and Disassembly of heat Discharge Pipe ............................... 46
9.6 Operation test............................................................................................ 47
10. Maintenance......................................................................................... 48
10.1 Error Code............................................................................................... 48
10.2 Malfunction Detection Flowchart............................................................. 50
10.3 Maintenance Method for Common Malfunction ...................................... 56
11. Exploded View and Parts List..................................................... 58
12. Removal Procedure ......................................................................... 64
Appendix:...................................................................................................... 72
Appendix 1: Reference Sheet of Celsius and Fahrenheit ............................... 72
Appendix 2: List of Resistance for Temperature Sensor ................................. 73
Table of Contents

1
Technical Information
Service Manual
Please read this manual carefully before installing and operating the GREE Hydrocarbon Air– Conditioner unit.
Careless installation and operation could cause severe injuries to operators, workers and damage to the air-conditioner unit
itself.
Keep this manual in a location for easy access as it is needed for reference during installation, maintenance, service and
operation of the unit.
This manual does not cover all aspects of installation, maintenance and service of the chiller units; if additional information is

General Information
Warning and cautions appear at appropriate locations throughout this manual book.
Abbreviations Used Within this Manual:
INTRODUCTION
Abbreviation Clear Words
OFDN Oxygen free and dry nitrogen
PPE Personnel protective equipment
LFL 
UFL 
HC Hydrocarbon
ATTENTION

2Technical Information
Service Manual
Notices
Please pay careful attention to these safety instructions, to avoid risks to people and property. Before starting work on maintenance
read this manual thoroughly and pay particular attention to the relevant chapters.

maintenance and repair and as well as dismantling and disposal have to be carried out by authorised personnel only.
During every operation strictly follow the instructions within this manual. Pay attention to the specific rules of air conditioning,
electrics and refrigerant handling of the country within which the equipment is installed.

attention to this information.
Information window highlighting

section or additional information
to consider.
This sign will indicate that you are

and the surrounding environment
can possibly contain it.
This is a general warning sign.
The Label is used to indicate that

present within the application and
service equipment.
Images that indicate something
what you should strictly avoid.




Carefully read the

General Safety Instructions
The Symbols Used in this Manual are as Follows
This is a specific
remark and
points out the
importance of a
specific section

3
Technical Information
Service Manual


area.
Unless there are further requirements, standards and legislation of the country within
which the equipment is installed may apply. Any technicians that works on GREE
hydrocarbon air– conditioners must be competent in the safe handling of flammable
refrigerants, in addition to being in possession of knowledge and skills to maintain best
refrigeration installation and servicing practices.
There are already training activities in place for engineers, technicians and sales staff
to provide professional knowledge and skills for the handling of HC refrigerants and
refrigeration systems operating with HCs.
Get trained and have your
n!
Pay attention to
the room size for
indoor unit
installation!
For specific in-
formation refer
page XXX of this
manual.
Minimum Room Size
Minimum Room Size
Get your Best
Practices
knowledge and
skills update for
HC refrigerants
and be
certificated for
these jobs!
The Symbols Used in this Manual are as Follows
ONLY original
GREE (OEM)
spare-parts are
permitted for
Service and Re-
pair!
Working on components with safety-relevant functions jeopardise the safe operation of the
installation. In case it is necessary to replace components, only use approved parts from GREE
Electric, the Original Equipment Manufacturer(OEM) or Gree released or authorised components.
The system contains the refrigerant R-290 (propane). This condition requires special safety
precautions to be observed. While working on the system, the presence of any kind of ignition
sources (e.g. sparks, open flames, hot surfaces, static electricity) are strictly prohibited. At the

Likewise, ensure the installation site is well ventilated. For further details as far as it concerns the
handling of the refrigerant R-290 (propane) .

Before filling the system, ensure that there is no air (or other non-condensable gases such as
nitrogen) left in the system, otherwise there is severe danger of damage to the system caused by
excessive high pressure.



by trained and authorised personnel only. When dealing with electrical issues, the specific
rules of the country within which the equipment is installed must be followed, in addition to the
instructions within this manual.
When working on the equipment or parts of it, the system has to be deenergised (by master
switch, circuit breaker or separate cut-out) and made safe against restart of the system. Do not
reconnect the system to the electric circuit until all work is done and all connections are tested.
If handled unsafely or unprofessionally, severe electric shocks can occur. Consider the wiring
diagram and follow the instructions of this manual very carefully whilst working on electrical parts.
Wrong connections or incorrect grounding may lead to severe injuries and mortal danger.
Ground the system according to the particular requirements of the country within which the
equipment is installed.

Proceed
according the
manuals
Instructions!

4Technical Information
Service Manual
Knowledge of the basic SI standard units for temperature, pressure, mass, density, energy.
Understanding of the basic theory of refrigeration systems including the functions of the main components in the system (compressor,
evaporator, condenser, thermostatic expansion valves).

The determination of non condensable gases in the refrigeration system and how to eliminate them.

The elimination of humidity from the refrigeration system and how to recover or vent HC refrigerant from a system.
Usage of tables and diagrams (log p/h diagram, saturation tables of a refrigerant, diagram of a single compression refrigeration cycle)
and interpretation of these tables and diagrams.
Knowledge of the basic operation of the following components in a refrigeration system and their role and importance for refrigerant

Carry out a pressure and leak test to check the strength and the tightness of the system.
Usage of a vacuum pump.
Evacuation of the system to remove air and moisture according to standard practice.
Knowledge of potential leakage points of refrigeration, air-conditioning and heat pump equipment. Making a visual and manual
inspection of the whole system.
Carry out a check for leakage of the system using an indirect method and/or one of the direct methods.
Direct leak detection methods:
1. Fixed leakage detection systems
2. Portable electronic gas detectors

4. Weak soapy water solution (bubble test) also in combination with OFDN
5. New installation tightness test for leakage detection procedure e.g. H2/N2
6. Operational system tightness test for leakage detection procedure
Indirect refrigerant detection methods:
1. Visual
2. Manual checks
· Temperature and pressure controls
· Sight class and moisture indicators
· Defrost controls, reverse cycle operation
· System protectors
· Measuring devices such as the pressure gauge manifold
· Thermometer
· Leak detector
· Refrigerant charging devices
· Vacuum pump
· Oxygen free dry nitrogen cylinder and pressure regulator

· 
· 

· Electrical circuit assessment and repair
Basics in RAC
Checks before putting in operation, after a long period of
nonuse, after maintenance or repair intervention or during
operation.
Checks for Leakage
Read More!
SAFETY CODE
OF PRACTICE
FOR REFRIGE-
RATING SYS-
TEMS
UTILISING A2 &
A3 REFRIGE-
RANTS
ISBN
1 872719 15 5

5
Technical Information
Service Manual
The use of OFDN
is important and
the HC gas de-
tector is indeed a
personnel pro-
tection device
(PPE)!
Use of portable measuring devices such as pressure gauges, thermometers and multi-
meters for measuring Volt/Amp/Ohm in the context of indirect methods for leakage
checking and interpretation of the measured parameters. It is very important to make
use of an electronic gas detection device. Take care that the electronic gas detector
is designed and certificated for the use with flammable refrigerants. Additionally, the
electronic HC gas detector must be part of the Personnel Protective Equipment (PPE)
of the technician because if this device is operational in the work area it will warn by
detection and signalling if HC refrigerant is in the atmosphere.
Usage of scales to weigh refrigerant. Knowledge of requirements and procedures for handling, storage and transportation especially

The basic functioning of a compressor (including capacity control and lubricating system) and risks of refrigerant leakage to its
operation. Installing a compressor properly, including control and safety equipment. Adjusting the safety and control switches.
Checking the oil return system. Start up and shut down a compressor and checking the good working conditions
of the compressor, including by making measurements during operation of compressor.
The basic functioning of a condenser. Installing a condenser properly, including control and safety
equipment. Adjusting the safety and control switches. Checking the hot-gas and liquid lines in
correct positions. Start up and shut down a condenser and check the good working conditions,
including by making measurements during operation. Checking the surface of the condenser.

The basic functioning of an evaporator (including defrosting system). Installation of an evaporator
including control and safety equipment. Adjusting the safety and control switches. Checking the
liquid and suction pipelines in the correct position and checking the hot gas defrost pipeline.
Start up and shut down an evaporator and check the good working of the evaporator, including
by making measurements during operation. Functional checking of the reverse cycling control

adjustments.
Professional brazing is another key component for safe and state of the art HC system
installation and servicing. Brazing leak free joints on metallic tubes and pipes that can be
used in refrigeration, air-conditioning or heat pump systems. Make/check pipe and component
supports and vibration elimination. Knowledge about the designing and dimensioning of the
different refrigeration system section pipes including risers. The behaviour of lubricants within the


sealed (hermetic) system.
Handling of the refrigerant during installation, maintenance, servicing or recovery or
venting
Installation, commissioning and maintenance of a compressor
Installation, commissioning and maintenance of condensers
Installation, commissioning and maintenance of evaporators
Piping
Preventive
maintenance will
improve the sys-
tem efficiency
Regular
professional
brazing
experience is an
important pre-
condition for the
work with
hydrocarbon
refrigerants!

6Technical Information
Service Manual
HC R290 Refrigerant Lssues
Basics
HC R-290 (propane) is an odourless and colourless gas of the group of hydrocarbons.
HC R-290 is heavier than air and at high concentrations can cause
narcotic effects and eventually asphyxiation.

g/m3 to 170 g/m3 in air. The auto-ignition temperature is about 470°C.

present (as with most other refrigerants).
Propane is often used as a fuel such as for heating or barbecues. However, for
use on refrigeration systems, fuel-grade propane is not suitable since it contains
high levels of impurities, which would damage the refrigeration system and may

Please notice that the unit is filled with propane. Details to this refrigerant are found in chapter “refrigerant”. Propane is highly

of people and material.
The structural formula of HC R-290 (propane)
HC R-290 refrig-
erant has a high
grade of purity.
Propane as a
cooking gas is
not useful for
refrigeration
purpose!
Important Refrigerant Properties and
Parameters:
Molecular formula C3H8
Melting point [°C] -188
Boiling point under atmospheric pressure [°C] -42
Molar mass [g mol -1] 44,10
Critical temperature [ °C] 96,8
Critical pressure [bar] 42
Practical limit [g/m3 ] 8
 38
 2,1
 171
 9,5
Ignition temperature [ °C] 470
Read More!
Guidlines for the
safe use of hydro-
carbon refrige-
rants
GIZ—PROKLIMA
http://www.gtz.de/
proklima

7
Technical Information
Service Manual
2 % 10 %
Oxygen 0 % to 100 %
HC R-290
Refrigerant
Flammability
Safety Data
Hazard I

For ignition, the concentration of HC in air has to be between the lower and upper


 
combustion.
Possible ignition sources are:
1. A flame, for example from brazing torch, halide torch leak lamp, match or
lighter, cigarette
2. A spark from an electrical component
3. Static electricity
4. Hot surfaces
· 
· Readily forms an explosive air-vapour mixture at ambient temperatures.
· Vapour is heavier than air and may travel to remote sources of ignition (e.g.
along drainage systems, into basements etc).
· 
· Cold burns (frostbite) will result from skin / eye contact with liquid.
· Liquid release or vapour pressure jets present a risk of serious damage to
the eyes.
· Abuse involving inhalation of high concentrations of vapour, even for short
periods, which can produce unconsciousness or may prove fatal. Inhalation
may cause irritation to the nose and throat, headache, nausea, vomiting,
dizziness and drowsiness. In poorly ventilated areas unconsciousness or
asphyxiation may result.
By way of illustration please compare to the schematic view:
1. Oxygen
2. Ignition source and

To ignite HC R-
290, three (3)
components
must exist at the
same time at
work area
to cause the
refrigerant
burning!
1 kg of liquid HC
R-290 refrigerant
creates about
250 litres of gas
Beside the flam-
mability, most
other safety
properties are
similar to other
refrigerants!
Rely always on
best service
practices in
refrigeration!

8Technical Information
Service Manual

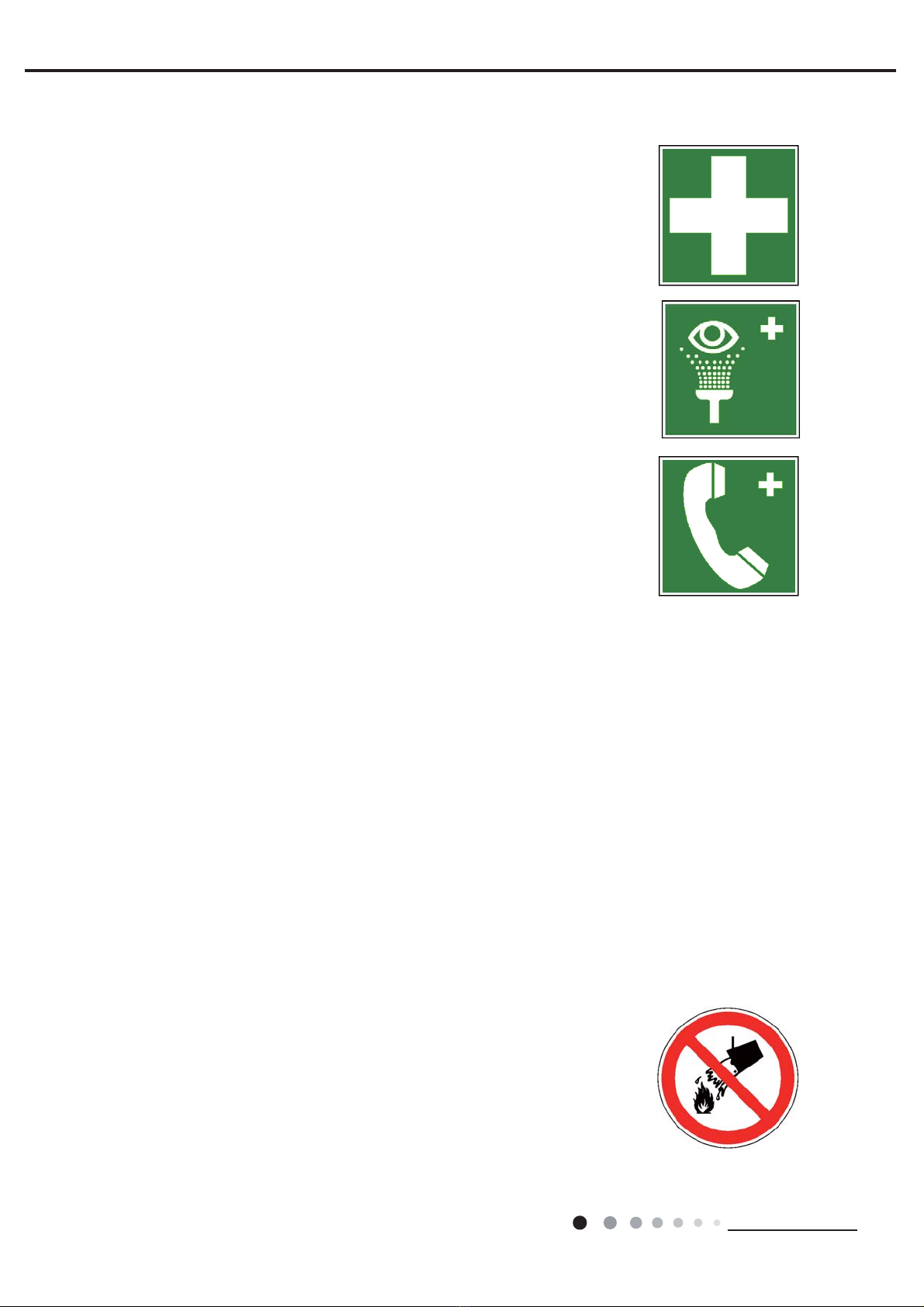

First Aid Measures
Fire Fighting Measures
Extinguishing Media:
DO NOT USE WATER JET
Inhalation:
Remove the affected person to fresh air. If breathing has stopped, administer
 
breathing but unconscious, place them in the recovery position. Obtain medical
assistance immediately.
Skin:

with sterile dressings Do not use ointments or powders. Obtain medical assistance
immediately.
Eyes:

with a sterile dressing and obtain medical assistance immediately.

etc.
· 
· 
· 
· Use water spray to cool heat-exposed containers, and to protect surroundingareas and personnel effecting the shut off
· Every precaution must be taken to keep containers cool to avoid the possibilityof a boiling liquid expanding vapour
explosion (BLEVE)

Release must be stopped and container cooled by water spray.



Use dry powder extinguisher

9
Technical Information
Service Manual
DO NOT USE WATER JET


Hazardous combustion products:
Incomplete combustion may form carbon monoxide.
Immediate emergency action:
· Clear people away from the area to a safe place
· Do not operate electrical equipment unless “Ex”-rated
· Summon the emergency services
· Treat or refer casualties if necessary
Further action (when release is made safe):
· Extinguish all naked lights – avoid creating sparks
· 
· Cover drains and disperse vapour with water spray.

Further actions:
· Stop release
· Use dry powder or carbon dioxide extinguishers
· 
Due to the flammability of R-290 and the risk of fire or explosion during servicing,
special safety rules must be followed during operation. In order to avoid damage for
people and property, particular requirements are listed hereafter.
Before servicing the unit, the surrounding area were the work will be done must be
clear of safety hazards to ensure safe working. Nevertheless it is required to carry out
a risk assessment in order to minimise the risk of ignition of R-290.

2. It is recommended to isolate the working environment in order to keep out any unauthorised personnel.
3. It is useful to set up signs such as „no smoking“ or „access denied“.
4. It is prohibited to store any combustible goods within the working environment.
5. Within two (2) metres radius, ignition sources are not allowed in the working area.
6. Fire extinguisher (dry powder) must be easily accessible at any time.
7. During service work, proper ventilation of the environment must be ensured.
Accidental Release Measures
Accidental Release Measures
The following safety measures must be followed:

10 Technical Information
Service Manual

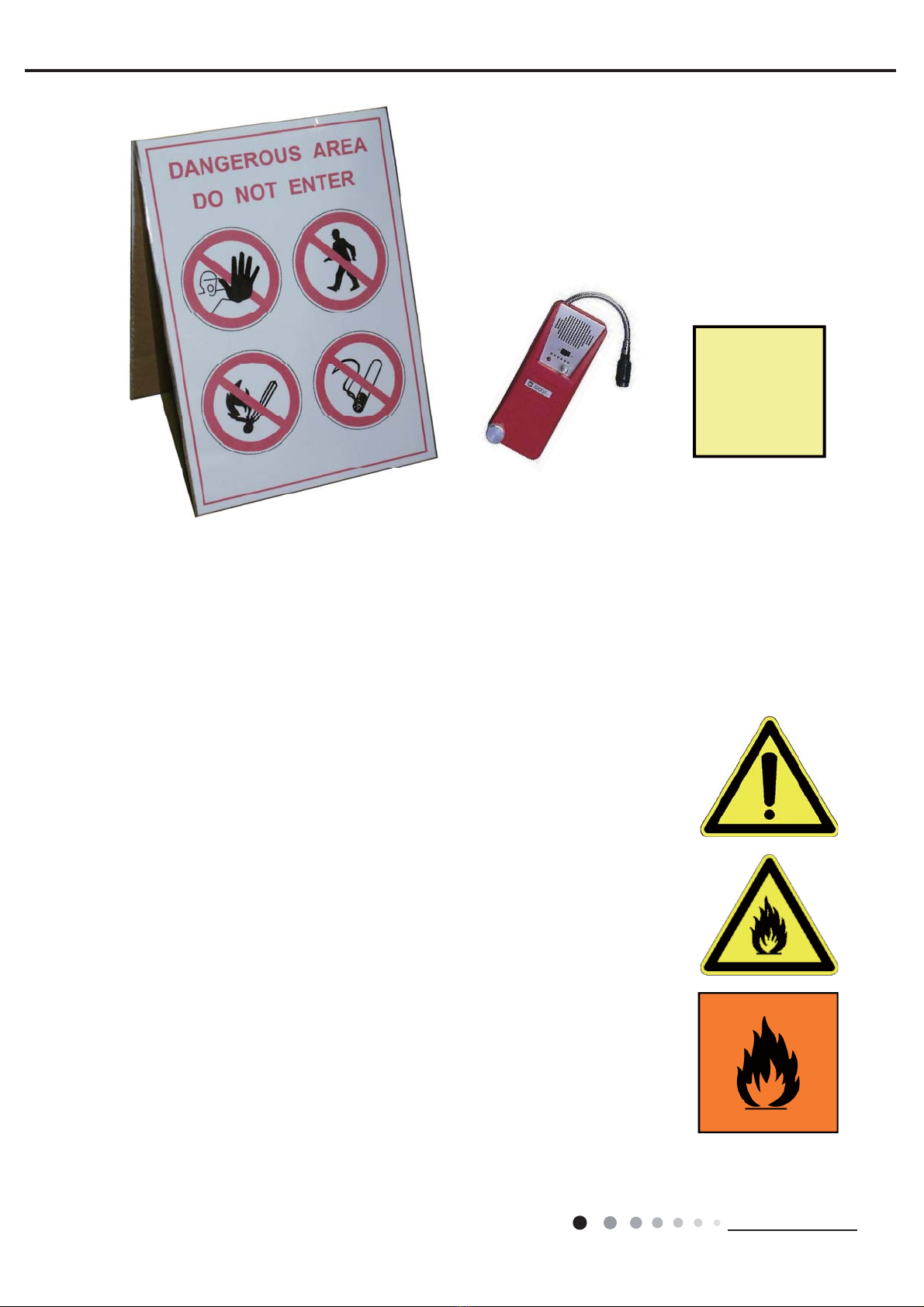

Sign plate to protect and mark the working area.
Appropriate detectors, suitable for hydrocarbons, must be available and operational all the time. Appropriate tools and
appliances must be available and ready for operation.
Any employees need to be instructed extensively about the safety measures and the possible safety hazard.
Before starting service work on the refrigerant circuit, the existing refrigerant must
be removed. When carrying out removal of the refrigerant, the following must be
considered:
· The recovery cylinder must be permitted for the use of R-290 (especially regarding the
pressure and the compatibility of the connectors and the valves).
· The recovery machine must be suitable for operation with R-290. Importantly, the
recovery machine must not itself be an ignition source.
· 
It is recommended to place and then to leave the cylinder on a digital scale. Pay attention

complete volume by liquid refrigerant.
· The pressure must be controlled in order to ensure that the permissible pressure of the
cylinder is not exceeded at any time.
· After filling, the cylinder must be marked with the mass and the type of refrigerant
recovered.
· The recovery machine should be operated until the pressure reduces to 0,3 bar
absolute pressure. R-290 is soluble to oil. This may lead to a rise of pressure because the
refrigerant vaporises from oil. It may be necessary to operate the recovery machine for a
second or even a third time.
· Small amounts of R-290 can be vented in safe manner to the environment.
· Remaining amounts of HC absorbed by the oil can be extracted from the system using
a vacuum pump in combination with an exhaust vent hose.
· A second “two way excess” recovery cylinder can be used in serial connection to act as
an oil-separator.


the system.
Refrigerant Recovery
The HC leak de-
tector is indeed
a Personal
Protective
Equipment
(PPE)
device!

11
Technical Information
Service Manual
System leaks must be immediately repaired by authorised personnel after becoming
acquainted. If they cannot be repaired immediately, the refrigerant charge should be
removed from the system until the point at which the leak can be properly repaired.
· Removing the refrigerant from the system in order to avoid an uncontrolled
discharge.
· Examine the leak source, determining the reason for the leak and carry out the
proper course of action
· Repair properly (NO „temporary repairing”)
· Based on the results of the systems’ examination, suitable measures need to be

· Before embarking on the repair, ensure that the refrigerant has been removed

· After each intervention into a refrigeration system (repairing leaks, replacing
components, brazing) the system must be subject to a leak test and following
strength test of the system.
Repair of Leaks
Regular
professional
brazing
experience is an
important pre-
condition for the
work with
hydrocarbon
refrigerants!
The use OFDN is
an important
precondition for
professional
leak repair!
1. System flush-
ing from HC
2. Inert gas braz-
ing
3. Leak testing
4. Strength test-
ing
5. Cleaning
(blowing)
agent
While servicing the unit it is recommended for the whole period of work — before,during
and after — to monitor the gas concentration in the air within the work environment. By
monitoring the air within the work environment the danger of a possible formation of

Doing the monitoring, ensure that the gas detectors are suitable for hydrocarbon detection.

detection.
Gas Detection
The HC leak de-
tector is indeed
a PPE device!

12 Technical Information
Service Manual
Before operation of the gas detector the instruction manual must be read carefully.
In case of any questions refer to the detector manufacturer. Furthermore ensure the
detector is correctly calibrated. Instructions for calibration can be found in the instruction
manual of the detector or upon request from the manufacturer.
A possible re-calibration must be done within an area which is free of refrigerants.
In case of a positive detection by the detector any work must be stopped immediately.

suitable and approved HC gas detectors, portable gas detectors can be used.
Such a detector can be clipped to clothing or placed on the floor within the working


 
refrigerant occurs, and can immediately act upon the relevant emergency procedures.
Portable HC Gas Detector
R-290 is available in a large variety of different cylinders which are to be distinguished

valves, often with own special construction of valves in order to distinguish them from the
cylinders of different refrigerants.

different countries. These requirements must be studied and adhered to. Principally the
following regulations in dealing with R-290 cylinders apply:

2. Close the cylinder with a cap any time the cylinder is not used
3. Never expose the cylinder to direct heat
4. Do not repair or modify the cylinder or the cylinders‘ connections
5. Only use suitable equipment for transportation of the cylinder, even for short distances.
Never roll the cylinder across the ground.
6. Take appropriate measures in order to prevent impurities, water or oil from entering the
cylinder.
7. Should it be necessary to warm the cylinder, only use warm water or air which temperature

time.
Cylinder Handling

13
Technical Information
Service Manual
8. Weigh the cylinder and compare it against the tare weight (normally stamped on the

out if and how much refrigerant there is inside the cylinder.
9. For accurate charging, use a set of reliable scales with appropriate resolution (depending
on the size of system charged with refrigerant) and use the smallest size of cylinder
available.



12. For refillable recovery cylinders keep in mind that with recovered amounts of HC
refrigerant, oil will always be present specific amounts may remain in the cylinder after
emptying.
Charging HC!
Always use the
smallest cylin-
der possible and
relay on appro-
priate accurate
and sensitive
scales
The storage of R-290 cylinders is controlled by regulations. These regulations take priority
over the present guidelines. Typically, such rules imply the following:
1. Cylinders should be stored in a separate area, preferably outside, otherwise in a dry, well
ventilated place far away from any ignition source.
2. Admission to storage area must only be given to authorised personnel only. Storage areas

3. Storage areas should be at ground level and never in the basement.
4. Access should be easy – exclude any obstacles.
5. Cylinders should be stored and operated only in an upright position.
6. Choose appropriate measures to prevent static charges
7. Please remember that the maximum quantity of stored refrigerant sometimes might be
regulated by national regulations.
Basically the following must be regarded concerning the transport of R290 cylinders:
1. During the transportation of R290 always carry along printed information about the
refrigerant. In case of emergency these information must be easy accessible. There
are often different demands to the transporters carrying a great quantity of gas. Inform
yourself before the scheduled transport.
2. Make yourself familiar with the risks of the refrigerant and the emergency measures
in case of accident or emergency.
 


4. Cylinders must be transported in an upright position and be tightly secured.
5. Make sure of a proper ventilation inside the van even though it might request a
change in the vans‘ body construction.


8. Do not leave cylinders in a locked van without surveillance longer than necessary.
The transport of cylinders is controlled by laws in most countries. These laws must always be regarded first before the
mentioned guidelines here. In many cases information about regulations for the transport of cylinders could be given by the
dealer of the refrigerant.
Read More!
Guidlines for the
safe use of hydro-
carbon refrige-
rants
GIZ—PROKLIMA
http://www.gtz.de/
proklima

14 Technical Information
Service Manual
Pressure—Temperature Chart
HC Refrigerant R-290
Temperature Absolute pressure Gauge pressure
°C °F kPa bar PSI kPa(g) bar(g) PSI(g)
-40 -40 111,12 1,11 16,12 11,12 0,11 1,61
-39 -38,2 116,00 1,16 16,83 16,00 0,16 2,32
-38 -36,4 121,05 1,21 17,56 21,05 0,21 3,05
-37 -34,6 126,27 1,26 18,31 26,27 0,26 3,81
-36 -32,8 131,66 1,32 19,10 31,66 0,32 4,59
-35 -31 137,23 1,37 19,90 37,23 0,37 5,40
-34 -29,2 142,97 1,43 20,74 42,97 0,43 6,23
-33 -27,4 148,90 1,49 21,60 48,90 0,49 7,09
-32 -25,6 155,02 1,55 22,48 55,02 0,55 7,98
-31 -23,8 161,33 1,61 23,40 61,33 0,61 8,89
-30 -22 167,83 1,68 24,34 67,83 0,68 9,84
-29 -20,2 174,54 1,75 25,31 74,54 0,75 10,81
-28 -18,4 181,44 1,81 26,32 81,44 0,81 11,81
-27 -16,6 188,56 1,89 27,35 88,56 0,89 12,84
-26 -14,8 195,89 1,96 28,41 95,89 0,96 13,91
-25 -13 203,43 2,03 29,51 103,43 1,03 15,00
-24 -11,2 211,19 2,11 30,63 111,19 1,11 16,13
-23 -9,4 219,18 2,19 31,79 119,18 1,19 17,29
-22 -7,6 227,39 2,27 32,98 127,39 1,27 18,48
-21 -5,8 235,84 2,36 34,21 135,84 1,36 19,70
-20 -4 244,52 2,45 35,46 144,52 1,45 20,96
-19 -2,2 253,44 2,53 36,76 153,44 1,53 22,26
-18 -0,4 262,61 2,63 38,09 162,61 1,63 23,58
-17 1,4 272,03 2,72 39,45 172,03 1,72 24,95
-16 3,2 281,70 2,82 40,86 181,70 1,82 26,35
-15 5 291,62 2,92 42,30 191,62 1,92 27,79
-14 6,8 301,81 3,02 43,78 201,81 2,02 29,27
-13 8,6 312,27 3,12 45,29 212,27 2,12 30,79
-12 10,4 323,00 3,23 46,85 223,00 2,23 32,34
-11 12,2 334,00 3,34 48,44 234,00 2,34 33,94
-10 14 345,28 3,45 50,08 245,28 2,45 35,58
-9 15,8 356,85 3,57 51,76 256,85 2,57 37,25
-8 17,6 368,70 3,69 53,48 268,70 2,69 38,97
-7 19,4 380,85 3,81 55,24 280,85 2,81 40,73
-6 21,2 393,29 3,93 57,04 293,29 2,93 42,54
-5 23 406,04 4,06 58,89 306,04 3,06 44,39
-4 24,8 419,09 4,19 60,78 319,09 3,19 46,28
-3 26,6 432,45 4,32 62,72 332,45 3,32 48,22
-2 28,4 446,13 4,46 64,71 346,13 3,46 50,20
-1 30,2 460,13 4,60 66,74 360,13 3,60 52,23
0 32 474,46 4,74 68,82 374,46 3,74 54,31
1 33,8 489,11 4,89 70,94 389,11 3,89 56,44
2 35,6 504,10 5,04 73,11 404,10 4,04 58,61
3 37,4 519,43 5,19 75,34 419,43 4,19 60,83
4 39,2 535,10 5,35 77,61 435,10 4,35 63,11
5 41 551,12 5,51 79,93 451,12 4,51 65,43
6 42,8 567,49 5,67 82,31 467,49 4,67 67,80
7 44,6 584,22 5,84 84,74 484,22 4,84 70,23
8 46,4 601,31 6,01 87,21 501,31 5,01 72,71
9 48,2 618,77 6,19 89,75 518,77 5,19 75,24
10 50 636,60 6,37 92,33 536,60 5,37 77,83

15
Technical Information
Service Manual
HC Refrigerant R-290
Temperature Absolute pressure Gauge pressure
11 51,8 654,81 6,55 94,97 554,81 5,55 80,47
12 53,6 673,40 6,73 97,67 573,40 5,73 83,17
13 55,4 692,38 6,92 100,42 592,38 5,92 85,92
14 57,2 711,75 7,12 103,23 611,75 6,12 88,73
15 59 731,51 7,32 106,10 631,51 6,32 91,59
16 60,8 751,68 7,52 109,02 651,68 6,52 94,52
17 62,6 772,25 7,72 112,01 672,25 6,72 97,50
18 64,4 793,24 7,93 115,05 693,24 6,93 100,55
19 66,2 814,64 8,15 118,16 714,64 7,15 103,65
20 68 836,46 8,36 121,32 736,46 7,36 106,82
21 69,8 858,71 8,59 124,55 758,71 7,59 110,04
22 71,6 881,39 8,81 127,84 781,39 7,81 113,33
23 73,4 904,51 9,05 131,19 804,51 8,05 116,69
24 75,2 928,07 9,28 134,61 828,07 8,28 120,10
25 77 952,07 9,52 138,09 852,07 8,52 123,58
26 78,8 976,53 9,77 141,64 876,53 8,77 127,13
27 80,6 1001,45 10,01 145,25 901,45 9,01 130,75
28 82,4 1026,83 10,27 148,93 926,83 9,27 134,43
29 84,2 1052,68 10,53 152,68 952,68 9,53 138,18
30 86 1079,00 10,79 156,50 979,00 9,79 141,99
31 87,8 1105,79 11,06 160,38 1005,79 10,06 145,88
32 89,6 1133,08 11,33 164,34 1033,08 10,33 149,84
33 91,4 1160,85 11,61 168,37 1060,85 10,61 153,87
34 93,2 1189,12 11,89 172,47 1089,12 10,89 157,97
35 95 1217,88 12,18 176,64 1117,88 11,18 162,14
36 96,8 1247,16 12,47 180,89 1147,16 11,47 166,38
37 98,6 1276,94 12,77 185,21 1176,94 11,77 170,70
38 100,4 1307,24 13,07 189,60 1207,24 12,07 175,10
39 102,2 1338,07 13,38 194,07 1238,07 12,38 179,57
40 104 1369,42 13,69 198,62 1269,42 12,69 184,12
41 105,8 1401,31 14,01 203,25 1301,31 13,01 188,74
42 107,6 1433,73 14,34 207,95 1333,73 13,34 193,44
43 109,4 1466,71 14,67 212,73 1366,71 13,67 198,23
44 111,2 1500,23 15,00 217,59 1400,23 14,00 203,09
45 113 1534,31 15,34 222,54 1434,31 14,34 208,03
46 114,8 1568,96 15,69 227,56 1468,96 14,69 213,06
47 116,6 1604,18 16,04 232,67 1504,18 15,04 218,17
48 118,4 1639,97 16,40 237,86 1539,97 15,40 223,36
49 120,2 1676,34 16,76 243,14 1576,34 15,76 228,63
50 122 1713,30 17,13 248,50 1613,30 16,13 233,99
51 123,8 1750,86 17,51 253,94 1650,86 16,51 239,44
52 125,6 1789,02 17,89 259,48 1689,02 16,89 244,98
53 127,4 1827,79 18,28 265,10 1727,79 17,28 250,60
54 129,2 1867,17 18,67 270,81 1767,17 17,67 256,31
55 131 1907,17 19,07 276,62 1807,17 18,07 262,11
56 132,8 1947,80 19,48 282,51 1847,80 18,48 268,01
57 134,6 1989,07 19,89 288,49 1889,07 18,89 273,99
58 136,4 2030,98 20,31 294,57 1930,98 19,31 280,07
59 138,2 2073,54 20,74 300,75 1973,54 19,74 286,24
60 140 2116,75 21,17 307,01 2016,75 20,17 292,51

16 Technical Information
Service Manual
GPC12AL-K5NNA3A
GPH12AL-K5NNA3A
1. Summary
Part Ė: Technical Information
YB1F2(XFAN)
Remote Controller:
FAN
AUTO
OPER
AIR
HEALTH
FILTER
TURBO
ON/OFF
X-FAN
HOUR
HUMIDITY
ON/OFF
MODE
FAN
X-FAN
TURBO
TEMP TIMER
SLEEP LIGHT
Model Product Code Remote Controller
GPC12AL-K5NNA3A CK010031700 YB1F2(XFAN)
GPH12AL-K5NNA3A CK010031600 YB1F2(XFAN)

17
Technical Information
Service Manual
Parameter Unit Value
Model GPC12AL-K5NNA3A GPH12AL-K5NNA3A
Product Code CK010031700 CK010031600
Power
Supply
Rated Voltage V Њ220-240 220-240
Rated Frequency Hz 50 50
Phases 1 1
Cooling Capacity W 3500 3500
Heating Capacity W / 3300
Cooling Power Input W 1345 1345
Heating Power Input W / 1175
Cooling Power Current A 5.8 5.8
Heating Power Current A / 5.1
Rated Input W 1550 1550
Rated Current A 7.8 7.8
Air Flow Volume(H/M/L) m3/h 360/330/300 360/330/300
Dehumidifying Volume L/h 1.8 1.8
EER W/W 2.6 2.6
COP W/W / 2.8
SEER //
HSPF //
Application Area m215-22 15-22
Climate Type T1 T1
Isolation II
Moisture Protection IPX0 IPX0
Permissible Excessive Operating Pressure for the
Discharge Side MPa 3.0 3.0
Permissible Excessive Operating Pressure for the
Suction Side MPa 1.5 1.5
Throttling Method Capillary Capillary
Defrosting Method / /
Fuse current A 3.15 3.15
Operation Temp oC 16~30 16~30
Ambient Temp (Cooling) oC 16~35 16~35
Ambient Temp (Heating) oC/ /
Sound Pressure Level (H/M/L) dB (A) 53/51/49 53/51/49
Sound Power Level (H/M/L) dB (A) 64/63/62 65/64/63
Dimension (WXHXD) mm 390X820X405 390X820X405
Dimension of Carton Box (LXWXH) mm 578X452X847 578X452X847
Dimension of Package (LXWXH) mm 581X455X862 581X455X862
Net Weight kg 35 36.5
Gross Weight kg 40 41.5
Refrigerant R290 R290
Refrigerant Charge kg 0.30 0.30


18 Technical Information
Service Manual
The above data is subject to change without notice. Please refer to the nameplate of the unit.
Compressor
Compressor Manufacturer/Trademark ZHUHAI LANDA COMPRESSOR
CO., LTD
ZHUHAI LANDA COMPRESSOR
CO., LTD
Compressor Model QXD-B222A030 QXD-B222A030
Compressor Oil 5GSD-TB /Equivalent 5GSD-TB /Equivalent
Compressor Type Rotary Rotary
L.R.A. A 26 26
Compressor RLA A 4.5 4.5
Compressor Power Input W 1000 1000
Overload Protector HPA-030 HPA-030
Evaporator
Fan Type Centrifugal Centrifugal
Diameter Length(DXL) mm  
Fan Motor Speed(H/M/L) rpm 1050/960/870 1050/960/870
Output of Fan Motor W 16 16
Fan Motor RLA A 0.3 0.3
Fan Motor Capacitor  3.5 3.5
Form Aluminum Fin-copper Tube Aluminum Fin-copper Tube
Pipe Diameter mm  
 mm 3-1.3 3-1.3
Coil Length (LXDXW) mm 442X38.1X228.6 442X38.1X228.6
Swing Motor Model / /
Output of Swing Motor W / /
Condenser
Fan Type Centrifugal Centrifugal
Fan Diameter mm  
Form Aluminum Fin-copper Tube Aluminum Fin-copper Tube
Pipe Diameter mm  
 mm 3-1.3,1-1.4 3-1.3,1-1.4
Coil Length (LXDXW) mm 572X22.8X304.8/468X11.4X266.7 592X34.2X304.8/475X11.4X266.7
Fan Motor Speed rpm 1040/850 1040/850
Output of Fan Motor W 50 50
Fan Motor RLA A 0.5 0.5
Fan Motor Capacitor  3.5 3.5
