Greenheck ESD-635D User manual

1
Installation Instructions
Part #474637
SAFETY WARNING:
Improper installation, adjustment, alteration, service or maintenance can cause property damage, injury
or death. Read the installation, operating, and maintenance instructions thoroughly before installing or
servicing this equipment.
This manual is the property of the owner, and is required for future maintenance.
Please leave it with the owner when the job is complete.
Installation, Operation, and Maintenance Instructions
ESD-635D
Flange/Sleeve Installation
Florida Product Approval No: FL10088
Miami-Dade NOA No.: 12-0830.07
Maximum Wind-load: 150 PSF

2
Maximum Size and Installation Information
Model ESD-635D is a Miami-Dade Qualified and Florida Product Approved louver and must be installed in accordance with the
installation instructions shown herein. Model ESD-635D is qualified for installation within concrete/masonry, steel stud, structural
steel or wood framed building conditions. Model ESD-635D is structurally calculated to withstand positive and negative wind-loads
up to 150 PSF. The maximum single section rough opening width is 72.50 in. The maximum single section rough opening height
is 144.50 in. While the maximum rough opening height is limited to 144.50 in., the rough opening width is limited to 1,000 in. as
multiple sections may be installed side by side in accordance with installation instructions.
Minimum Rough
Opening Size
12 in. W x 12 in. H
Maximum Single Section
Rough Opening Size
72.50 in. W x 144.50 in. H
Installation Instructions ESD-635D
Florida Product Approval No: FL10088
Miami-Dade NOA No.: 12-0830.07
Maximum Wind-load: 150 PSF
Flange/Sleeve Installation
Building Condition/Substrate Limitations
t"MMXPPETVCTUSBUFTIBMMCF(EFOTJUZPSCFUUFS
t"MMNFUBMTUVETVCTUSBUFTIPVMECFNJO(B':,4*
t"MMTUSVDUVSBMTUFFMTVCTUSBUFTIBMMCFNJOJOUIJDL':,4*
t"MMDPODSFUFTVCTUSBUFTIBMMCFNJO14*
t$PODSFUFNBTPOSZTIBMMCF"45.$5ZQF**14*HSPVUGJMMFE

3
Installation Instructions ESD-635D
Florida Product Approval No: FL10088
Miami-Dade NOA No.: 12-0830.07
Maximum Wind-load: 150 PSF
Flange/Sleeve Installation

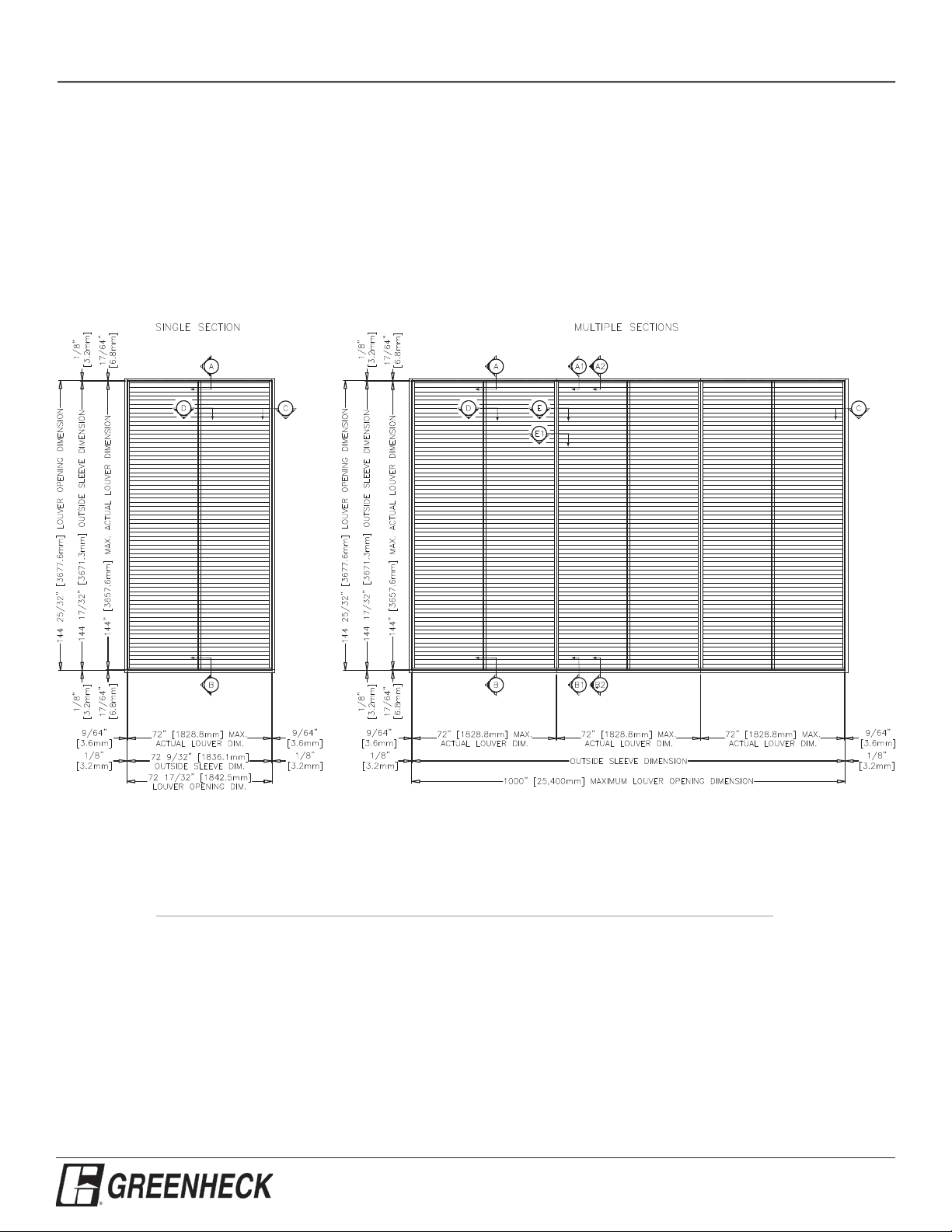

Single Section

4
Installation Instructions ESD-635D
Florida Product Approval No: FL10088
Miami-Dade NOA No.: 12-0830.07
Maximum Wind-load: 150 PSF
Flange/Sleeve Installation
Multiple Sections
Height ≤ 96 ½

5
Installation Instructions ESD-635D
Florida Product Approval No: FL10088
Miami-Dade NOA No.: 12-0830.07
Maximum Wind-load: 150 PSF
Flange/Sleeve Installation
Multiple Sections
Height > 96 ½ ≤ 144 ½

6
Structure Depth
t.JOTUSVDUVSFEFQUIJO
t.BYTUSVDUVSFEFQUIJOJOTMFFWF
t.BYTUSVDUVSFEFQUIJOJOTMFFWF
Installation Instructions ESD-635D
Florida Product Approval No: FL10088
Miami-Dade NOA No.: 12-0830.07
Maximum Wind-load: 150 PSF
Flange/Sleeve Installation
Single Section

7
Installation Instructions ESD-635D
Florida Product Approval No: FL10088
Miami-Dade NOA No.: 12-0830.07
Maximum Wind-load: 150 PSF
Flange/Sleeve Installation
Multiple Sections
Height ≤ 96 ½
Structure Depth
t.JOTUSVDUVSFEFQUIJO
t.BYTUSVDUVSFEFQUIJO

8
ESD-635D Flange/Sleeve Installation with Damper IOM
June 2011, Rev. 1
Copyright © 2011 Greenheck Fan Corporation
Greenheck Fan Corporation reserves the right
to make product changes without notice.
Installation Instructions ESD-635D
Florida Product Approval No: FL10088
Miami-Dade NOA No.: 12-0830.07
Maximum Wind-load: 150 PSF
Flange/Sleeve Installation
Multiple Sections
Height > 96 ½ ≤ 144 ½
Structure Depth
t.JOTUSVDUVSFEFQUIJO
t.BYTUSVDUVSFEFQUIJO
