INSTRUCTION MANUAL
99930749 REV 5 © 2011 Greenlee Textron Inc. 2/11
Español............................23
Français ..........................45
Deutsch...........................67
Italiano ............................89
Read and understand all of the instructions and
safety information in this manual before operating
or servicing this tool.
Register this product at www.greenlee.com
38568, 43177, and 43178
Long-Reach Chain Saws
Serial Codes AMM, AMN, AMP, FRM, FRP and FRR

Long-Reach Chain Saws
Greenlee / A Textron Company 4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070
2
Purpose
This manual is intended to familiarize all personnel with
the safe operation and maintenance procedures for the
following Greenlee Utility hydraulic tools:
38568 Serial Codes AMM and FRM
43177 Serial Codes AMN and FRP
43178 Serial Codes AMP and FRR
Keep this manual available to all personnel.
Replacement manuals are available upon request
at no charge at www.greenlee.com.
Other Publications
Tool Owners/Users
SAE Standard J1273 (Hose and Hose Assemblies):
Publication 99930323
Greenlee Utility Authorized Service Centers
Repair Manual: Publication 99912864
All specications are nominal and may change as design
improvements occur. Greenlee Textron Inc. shall not be liable for
damages resulting from misapplication or misuse of its products.
Super Spool is a trademark of Greenlee Textron Inc.
KEEP THIS MANUAL
Table of Contents
Description .................................................................... 2
Safety ............................................................................ 2
Purpose ......................................................................... 2
Other Publications......................................................... 2
Important Safety Information .....................................3–6
Identication.................................................................. 7
Specications................................................................ 8
Chain Saw Basics ....................................................9–11
Setting the Super Spool .............................................. 12
Hoses and Fittings ...................................................... 12
Hose Connections....................................................... 12
Typical Setup............................................................... 12
Operation................................................................13–14
Maintenance...........................................................15–19
Troubleshooting......................................................20–21
Illustrations and Parts Lists ................................111–117
Description
Long-reach chain saws are hydraulically powered
cutting tools intended for general tree trimming from the
ground or from an aerial device.
Greenlee Utility’s patented Super Spool™ design allows
the tool to be used with either open-center or closed-
center hydraulic systems. The dielectric properties of
the berglass pole reduce the chance of electric shock
when the saw is used near energized electrical lines.
Other features include an anti-kickback chain, a fully
covered sprocket guard, a hand-stop safety collar, a
trigger interlock and a trigger guard.
Super Spool is protected by U.S. Patent No. 4,548,229.
Safety
Safety is essential in the use and maintenance of
Greenlee Utility tools and equipment. This instruction
manual and any markings on the tool provide informa-
tion for avoiding hazards and unsafe practices related to
the use of this tool. Observe all of the safety information
provided.

Long-Reach Chain Saws
Greenlee / A Textron Company 4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070
3
IMPORTANT SAFETY INFORMATION
SAFETY
ALERT
SYMBOL
This symbol is used to call your attention to hazards
or unsafe practices which could result in an injury or
property damage. The signal word, dened below,
indicates the severity of the hazard. The message
after the signal word provides information for pre-
venting or avoiding the hazard.
Immediate hazards which, if not avoided, WILL result
in severe injury or death.
Hazards which, if not avoided, COULD result in
severe injury or death.
Hazards or unsafe practices which, if not avoided,
MAY result in injury or property damage.
Read and understand all of the
instructions and safety information
in this manual before operating or
servicing this tool.
Failure to observe this warning could
result in severe injury or death.

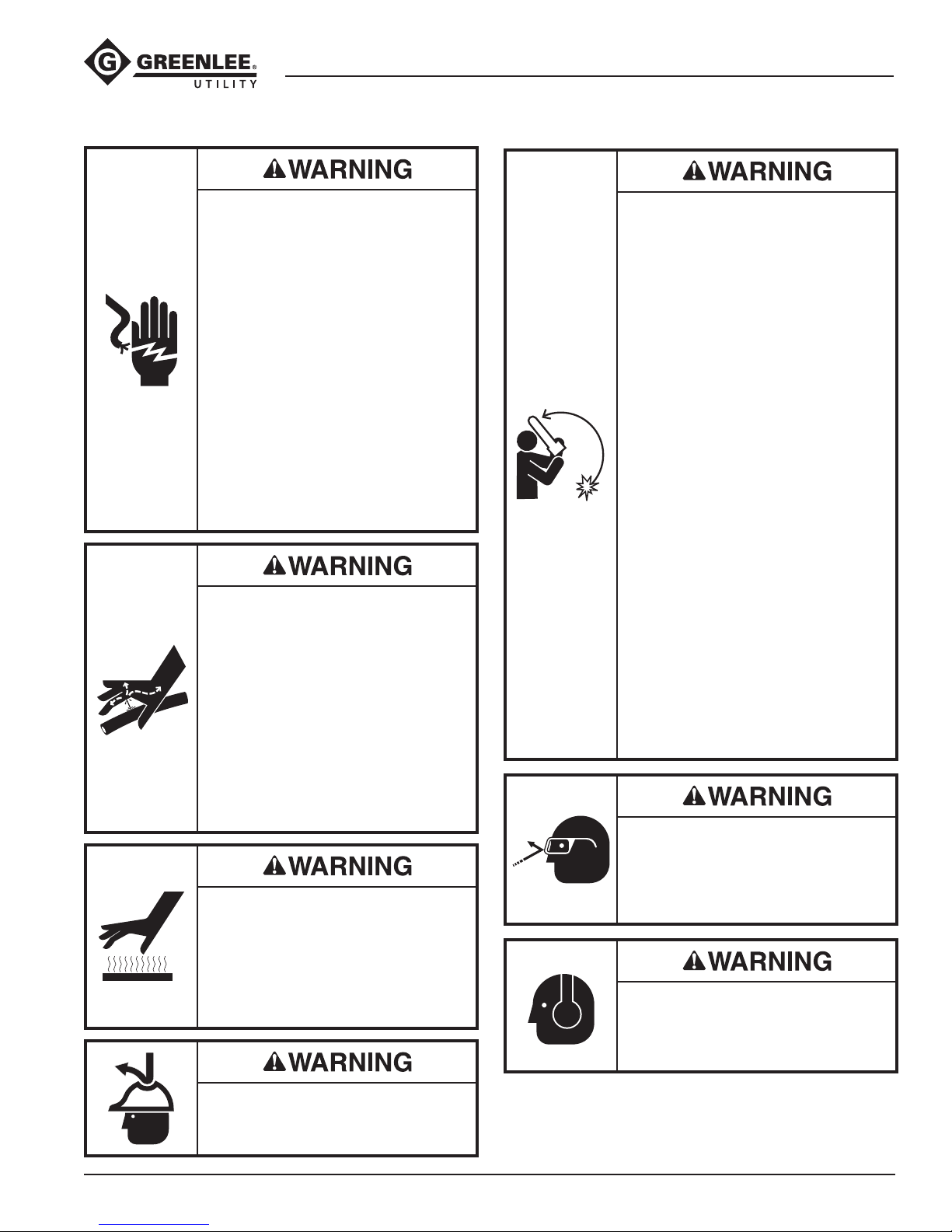

Electric shock hazard:
• This tool was tested to meet
OSHA 1910.269 (dry test) when
manufactured. It must be properly
cleaned and maintained to ensure
continued non-conductive prop-
erties. When using this unit near
energized electrical lines, use only
certied non-conductive hoses
and proper personal protective
equipment.
• Keep berglass extension clean
and dry when working around
energized electrical lines.
Accumulated oil or dirt reduces the
insulating properties of the tool.
• When using this tool near ener-
gized electrical lines, observe the
instructions provided in DIN EN
50110-1. The signicant sections
of this standard are provided in the
Operation section of this manual.
Failure to observe these warnings
could result in severe injury or death.
Skin injection hazard:
Oil under pressure easily punctures
skin causing serious injury, gan-
grene or death. If you are injured by
escaping oil, seek medical attention
immediately.
• Do not use hands to check for
leaks.
• Do not hold hose or couplers while
the hydraulic system is pressurized.
• Depressurize the hydraulic system
before servicing.

Long-Reach Chain Saws
Greenlee / A Textron Company 4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070
4
Before operating the saw, read and
understand the following explana-
tions in this manual:
• Pull-In
Pull-in can occur when the blade
at the bottom of the bar contacts
a foreign object, such as a nail,
or when the blade is pinched
in the cut.
The saw will be suddenly and
forcefully pulled away from the
operator.
• Push-back
Push-back can occur when the
blade at the top of the bar contacts
a foreign object, such as a nail, or
when the blade is pinched in the
cut.
The saw will be suddenly and
forcefully pushed back toward the
operator.

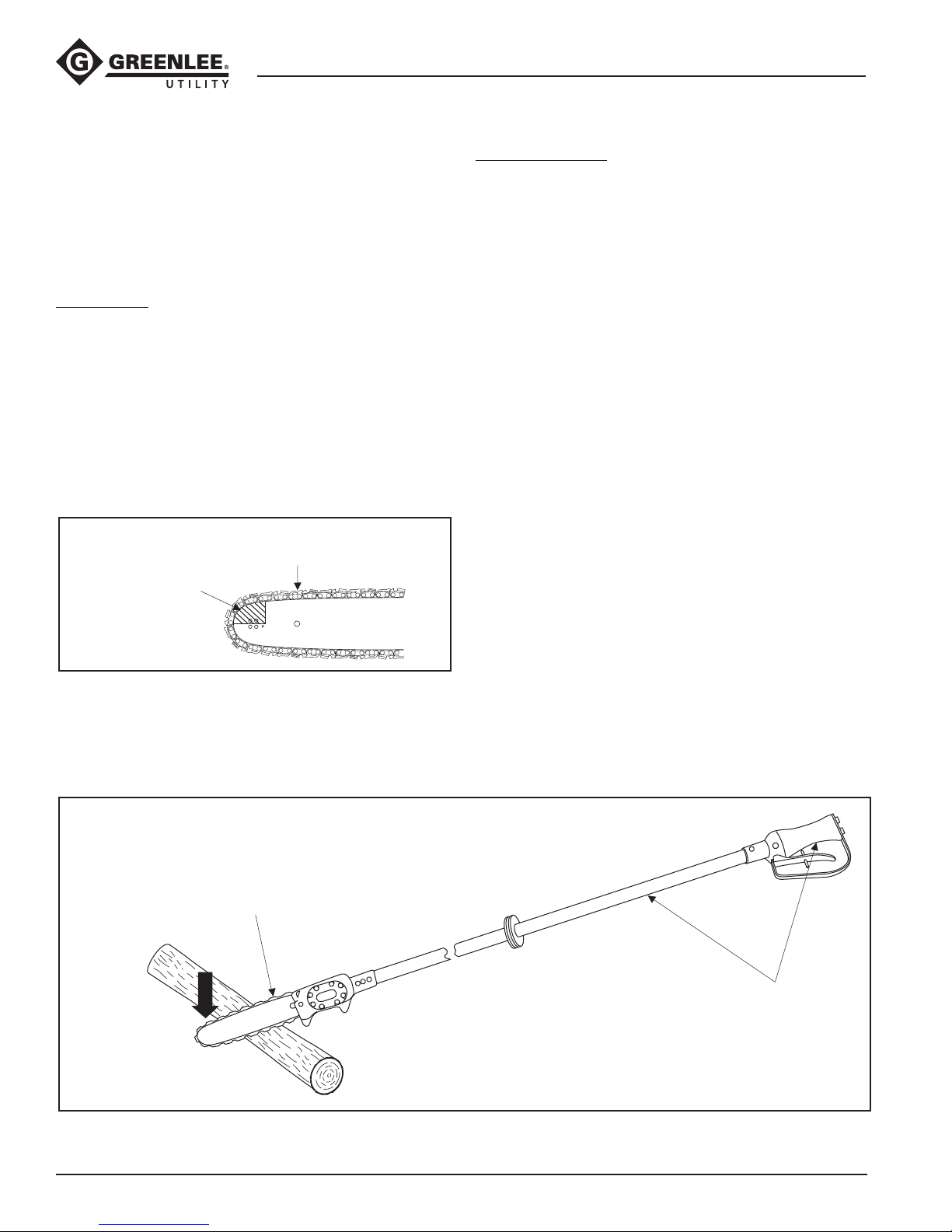

• Kickback
Kickback can occur when the
chain at the guide bar tip contacts
anything. The bar of the saw will
travel upward and back, toward the
operator.
Failure to observe this warning could
result in severe injury or death.
Wear a hard hat when using this tool.
Failure to observe this warning could
result in severe injury or death.
IMPORTANT SAFETY INFORMATION
Wear eye protection when operating
or servicing this tool.
Failure to wear eye protection could
result in serious eye injury from ying
debris or hydraulic oil.
Wear hearing protection when using
this tool.
Long-term exposure to high noise
levels could result in hearing loss.
Wear foot protection when using this
tool.
Failure to observe this warning could
result in serious injury.
Some types of timber can produce
hazardous dust when cut. Wear a
dust mask to prevent breathing
hazardous dust.
Failure to observe this warning could
result in temporary breathing difculty
or serious injury.
Wear protective gloves when using
this tool.
Failure to observe this warning could
result in serious injury.

Long-Reach Chain Saws
Greenlee / A Textron Company 4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070
5
• Do not change accessories, inspect, adjust or
clean the tool or sharpen the chain when it is
connected to a power source. Accidental startup
can result in serious injury.
• Keep the handles clean, dry and free of hydraulic
uid.
• Maintain a rm grip on tool, using both hands with
thumbs and ngers encircling the handles at all
times. Serious injury can result if an operator does
not control the tool.
• Do not lock the trigger in the Power-ON position.
Operator cannot stop tool when trigger is locked.
• Do not remove or modify the tool’s safety trigger.
Accidental startup can result in serious injury.
• Wear protective gloves when handling or adjusting
the chain. The chain can cut even when stationary.
Failure to observe these warnings could result in
severe injury or death.
Saw body, bar, blade and other
components will be hot during and
after use. Use care when handling the
saw. Hot surfaces can cause serious
burns.
Failure to observe this warning could
result in severe injury or death.
To transport the chain saw:
• Allow the chain to stop rotating.
• Wait for the chain to cool.
• Use an appropriate guide bar sheath or scabbard.
• Carry the saw with the guide bar toward the rear.
Failure to observe these warnings could result in
severe injury or death.
IMPORTANT SAFETY INFORMATION
Do not disconnect tool, hoses or ttings while the
power source is running or if the hydraulic uid is hot.
Hot hydraulic uid could cause serious burns.
Do not reverse hydraulic ow. Operation with hydrau-
lic ow reversed could cause tool malfunction.
Connect the pressure hose and tank hose to the
proper ports.
• Use this tool for trimming or pruning trees only.
Any other use can result in injury or property
damage.
• Inspect tool before use. Replace any worn,
damaged or missing parts. A damaged or improp-
erly assembled tool can malfunction, injuring nearby
personnel.
• Inspect hydraulic hoses and couplings every
operating day. Repair or replace if leakage, crack-
ing, wear or damage is evident. Damaged hoses
or couplings can fail resulting in injury or property
damage.
• Ensure that all bystanders and unnecessary
personnel are clear of the work area when operating
the tool. Nearby personnel can be injured by falling
debris.
Failure to observe these precautions may result in
injury or property damage.

Long-Reach Chain Saws
Greenlee / A Textron Company 4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070
6
IMPORTANT SAFETY INFORMATION
Hydraulic oil could cause skin irritation.
• Handle the tool and hoses with care to prevent
skin contact with hydraulic oil.
• In case of accidental skin contact with hydraulic
oil, wash the affected area immediately to remove
the oil.
Failure to observe these precautions may result in
injury.
Vibration hazard:
Apply just enough pressure to do the work. Applying
excess pressure to the tool can cause operator dis-
comfort or temporary numbness.
Failure to observe this precaution may result in injury.
• Check the operation of the automatic oiler
frequently. See Checking and Setting the Automatic
Chain Oiler in this manual.
• Check the chain frequently for proper tension and
sharpness. Tension and sharpen as necessary.
See the instructions under Saw Chain and Bar
Maintenance.
• Check the uid level of the power source reservoir
frequently. The automatic oiler uses hydraulic uid
to lubricate the bar and chain, and will cause the
uid level to drop.
Procedure for disconnecting hydraulic hoses, ttings
or components:
1. Move the ow lever on the hydraulic power
source to the OFF position.
2. Stop the power source.
3. Follow the sequence under Disconnecting Hoses
to prevent pressure buildup. In case some pres-
sure has built up, loosen hoses, ttings or com-
ponents slowly.
Emergency stop procedure:
1. Release the trigger.
2. Shut off the hydraulic power source.
Note: Keep decals clean and legible. Replace decals
when necessary.

Long-Reach Chain Saws
Greenlee / A Textron Company 4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070
7
Identification
1
14
13
12
11
2
3
889 mm (35")
4
5
6
7
8
9
10
Long-Reach Chain Saws
1. Saw Chain 8. Trigger
2. Automatic Oiler 9. Trigger Interlock Latch
3. Hydraulic Gear Motor 10. Trigger Guard or Trigger Strap
4. Serial Number 11. Extension
5. Handle 12. Hand Stop
6. Return Port 13. Saw Head
7. Pressure Port 14. Guide Bar

Long-Reach Chain Saws
Greenlee / A Textron Company 4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070
8
Specifications
Long-Reach Chain Saw
Type of Hydraulic System.............................Open-center
or closed-center
Hydraulic Ports
Pressure ...............................9/16–18 SAE O-ring Boss
Return.....................................3/4–16 SAE O-ring Boss
Cutting Capacity......................................... 330 mm (13")
Chain Speed @ 30 l/min (8 gpm)...................1280 m/min
(4200 ft/min)
Sound Power Level .............................................106 Lwa
Vibration ............................................................4.88 m/s2
Mass/Weight
38568 .................................................. 3.94 kg (8.75 lb)
43177 .................................................. 4.05 kg (9.00 lb)
43178 .................................................. 3.71 kg (8.25 lb)
Length
38568 ................................................. 1890 mm (74.5")
43177 ................................................. 2200 mm (86.5")
43178 ................................................. 1590 mm (62.5")
Width (at motor)....................................... 108 mm (4.25")
Depth of Body (at handle) ............................ 152 mm (6")
Saw Chain
When replacement is necessary, select a saw chain
that:
• meets applicable industrial safety code
specications
• is rated for 1280 m/min (4200 ft/min)
Failure to observe this warning could result in severe
injury or death.
Pitch ..................................................... 8.26 mm (0.325")
Gauge................................................... 1.47 mm (0.058")
Hydraulic Power Source
Do not exceed the following hydraulic power source
maximums:
• Hydraulic ow: 30.3 l/min (8 gpm)
• Pressure relief setting: 138 bar (2000 psi)
• Back pressure: 13.8 bar (200 psi)
Failure to observe this warning could result in severe
injury or death.
Type of Hydraulic System.............................Open-center
or closed-center
Flow
Minimum ..........................................18.9 l/min (5 gpm)
Recommended.................................22.7 l/min (6 gpm)
Maximum .........................................30.3 l/min (8 gpm)
Filtration............................................ 10 micron (nominal)
Pressure Relief Setting ........................138 bar (2000 psi)
Back Pressure (maximum)* ..................13.8 bar (200 psi)
* 13.8 bar (200 psi) is the maximum agreed standard back pressure
for the HTMA (Hydraulic Tool Manufacturers Association).
Greenlee Utility tool will operate satisfactorily at this standard.
1. Maximum hydraulic uid temperature must not
exceed 60 °C (140 °F). A sufcient oil cooling capac-
ity is needed to limit the hydraulic uid temperature.
2. Hydraulic ow must not exceed 30.3 l/min (8 gpm).
Install a ow meter in the return line to measure the
rate of hydraulic ow before using the tool.
3. Pressure relief valve setting must not exceed
138bar (2000 psi) at your tool’s maximum ow.
Locate the pressure relief valve in the supply circuit
to limit excessive hydraulic pressure to the tool.
Hydraulic Schematic
FILTER
(10 MICRON)
COOLER
RELIEF
VALVE
138 bar
(2000 psi)
CONTROL
VALVE FLOW METER
T
PTOOL
RESERVOIR
PUMP
POWER SOURCE
Recommended Hydraulic Fluids
Use any non-detergent, petroleum-based hydraulic
uid which meets the following specications or HTMA
specications.
S.U.S. @:
38 °C (100 °F)...............................................140 to 225
99 °C (210 °F)............................................ 40 minimum
Flash Point................................170 °C (340 °F) minimum
Pour Point..................................-34 °C (-30 °F) minimum

Long-Reach Chain Saws
Greenlee / A Textron Company 4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070
9
Chain Saw Basics
This section introduces some basic principles of chain
saw use: Hazard Prevention, Compression and
Tension.
HAZARD PREVENTION
The cutting action of this chain saw is performed by a
chain-type blade driven at high speed by a powerful
hydraulic motor. When used carefully and properly, the
chain saw is a highly effective cutting tool.
When used improperly, or when anything interferes with
the normal rotation of the blade, the operator could
very suddenly and very quickly lose control of the saw.
Such loss of control can result in harm to the operator.
The three terms that describe loss of control are pull-in,
push-back, and kickback.
Pull-In
Pull-in can occur when the blade at the bottom of the
bar is doing the cutting. If the blade is suddenly pinched
in the cut, or if it contacts a foreign object such as a
nail, the saw may be suddenly and forcefully pulled
away from the operator.
Pull-In
PULL
Push-Back
Push-back can occur when the blade at the top of the
bar is doing the cutting. If the blade is suddenly pinched
in the cut, or if it contacts a foreign object such as a
nail, the saw will be suddenly and forcefully pushed
back toward the operator.
Push-Back
PUSH
Kickback
Kickback is much more hazardous than pull-in or push-
back. When kickback happens, the entire saw may
rotate suddenly and forcefully. The bar of the saw may
quickly travel upward and back, toward the operator.
Kickback can occur when the blade at the guide bar
tip contacts anything while the chain is rotating. Some
causes for kickback are:
• using the guide bar tip for cutting.
• contacting a nail or other metal object when
cutting.
• accidental contact when cutting more than one
branch at a time.
Using Guide Bar Tip for Cutting
Contact with Metal Objects
Metal
Objects
Cutting More Than One Branch at a Time

Long-Reach Chain Saws
Greenlee / A Textron Company 4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070
10
Chain Saw Basics (cont’d)
Preventing Pull-In, Push-Back and Kickback
The chain/bar combination and shroud are intended to
prevent or reduce the likelihood and severity of kick-
back. Verify that these items are in good working order
(chain is sharp and properly tensioned, shroud is not
damaged, etc.) to get the maximum benet from these
features. If worn or damaged, replace these items with
Greenlee Utility replacement parts.
General Tips:
• Maintain the saw properly. Verify that the blade is
sharp and has been properly tensioned.
• Do not allow the guide bar tip to contact anything.
• Do not over-reach.
• Do not use the saw above shoulder height.
• Cut only one limb, branch, or log at a time.
• Be aware that small-diameter limbs or branches are
more likely to catch the blade, causing pull-in or
kickback.
Verify that the chain is sharp
and properly tensioned.
Do not allow the
guide bar tip to
contact anything.
Cutting Procedure:
• Hold the chain saw securely with both hands and
maintain a rm, secure grip.
• Bring the chain saw to full rpm before starting the cut.
Maintain full rpm until the cut is completely nished.
• Apply a moderate amount of downward force to the
saw.
• Cut straight through. Do not twist the saw during the
cut.
• Be alert for the limb to shift, which may pinch the saw
in the cut.
• Be alert for a limb or branch under tension to spring
back when the cut is complete and the tension is
released.
Cutting Procedure
Apply a moderate
amount of
downward force.
Bring chain to full rpm.
Maintain full rpm until
the cut is finished.
Hold saw securely
with both hands.
