Greenlee Fairmont HCS5130CB User manual

99937395 REV 3 © 2008 Greenlee Textron Inc. 5/08
SPECIFICATIONS AND PARTS
Read and understand all of the instructions
and safety information in this manual before
operating or servicing this tool.
Chain Saws
with Chain Brake
Serial Codes GDV, GDM, GDY, GDN, GDZ, GDP, GEA, GDL, GDW, GDR, GEB, GDT, and GED
HPS513CB (45826)
HCS5130CB (49768)
HCS5133CB (49774)
HCS5160CB (49769)
HCS5163CB (49775)
HCS5200CB (49770)
HCS5203CB (49776)
HCS8160CB (45653)
HCS8163CB (45654)
HCS8200CB (49771)
HCS8203CB (49777)
HCS8240CB (49772)
HCS8243CB (49778)

Chain Saws with Chain Brake
Greenlee / A Textron Company 24455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070
Illustration—Main
55
60
38
54
38
37
21
10
19
18
17
16
15
14
13
31
22
24
23
25
27
26
23
24 29
28
11
4
12
1
43
2
57
3
36
35
40
52
45
44
48
47 46
49
43
8
7
6
5
9
41
59
46 51
50
43
32 33
34
61
4
20
58
53
66
9
30

Chain Saws with Chain Brake
Greenlee / A Textron Company 34455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070
Chain Brake Assembly
80
79
70
82
81
78
77
69
64
66
79
727362
74
75
76
68
71
67
67
39
63
65
70

Chain Saws with Chain Brake
Greenlee / A Textron Company 44455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070
Parts List
UPC No.
Key 78-3310- Part No. Description Qty
UPC No.
Key 78-3310- Part No. Description Qty
1 49926 50499262 Head, saw..........................................................1
2 49757 50497570 Handle, lower, with decal ...................................1
3 44132 50441329 Screw, cap, 1/4–20 x 1.50",
button head socket ............................................1
4 43997 50439979 Nut, hex, 1/4–20 lock, stainless steel .................2
5 41814 50418141 Screw, cap, 5/16–18 x .375"
button head socket ............................................1
6 * 41371 50413712 O-ring, .437" x .625" x .093"–90.......................1
7 49415 50494155 Sleeve................................................................1
8 * 41534 50415342 O-ring, .750" x .875" x .062"–90.......................1
9 43622 50436228 Pin, roll, .156" x 1.00"........................................4
10 50196 90501969 Pin, roll, .156" x .500"....................................... 1
11 49408 50494082 Actuator, trigger .................................................1
12 54144 90541448 Spring, compression,
.248" x .300" x .690" ........................................1
13 * 41559 50415590 O-ring, .875" x 1.00" x .062"–70.......................1
14 54819 90548191 Ring, retaining, .875", external...........................1
15 * 41585 50415850 O-ring, .312" x .437" x .062"–70.......................1
16 41760 50417601 Spring, compression,
.675" x .845" x 1.25" ........................................1
17 40462 50409622 Washer, flat, .580" x .937" x .050",
stainless steel ....................................................1
18 49416 50494163 Spool .................................................................1
19 49409 50494090 Link ...................................................................1
20 49407 50494074 Trigger ...............................................................1
21 41616 50416162 Screw, cap, 1/4–20 x 1.00",
socket head .......................................................8
22 40412 50404124 Cap, motor (includes 2 of Item 24)......................1
23 41596 50415960 Pin, dowel, .250" x .500" ...................................2
24 41591 50415911 Bearing, needle, .439" x .625" x .500"...............4
25 * 41595 50415950 Gasket, 2.09" x 3.09" x .0015"..........................1
26 41630 50416302 Gear, 11-tooth....................................................2
27 40168 50401682 Shaft, idler .........................................................1
28 41593 50415930 Pin, drive, .123" x .209" w/ square head............1
29 * 41503 50415033 O-ring, .500" x .687" x .093"–80.......................1
30 49419 50494198 Bleed screw.......................................................1
40189 50401891 Bleed screw (HPS513CB) ...................................1
31 * 41331 50413313 O-ring, .375" x .500" x .062"–70.......................1
32 49417 50494171 Shaft, drive ........................................................1
33 41592 50415921 Key, Woodruff #213............................................1
34 41813 50418131 Key, Woodruff #2................................................1
35 41598 50415981 Bearing, ball.......................................................1
36 41482 50414821 Ring, retaining....................................................1
37 49404 50494040 Handle, front ......................................................1
38 41966 50419661 Screw, cap, 1/4–20 x .750",
button head........................................................3
39 49897 50498975 Shroud...............................................................1
40 49429 50454323 Plate, mount.......................................................1
41 49403 50494031 Rack, spike ........................................................1
43 54044 90540441 Screw, cap, 1/4–20 x .625",
button head......................................................10
44 49418 50494180 Spacer, drive shaft .............................................1
45 55102 90551028 Adapter, sprocket ...............................................1
46 55137 90551370 Standoff.............................................................2
47 55101 90551010 Rim sprocket, .325" pitch
(HPS513CB, HCS5XXXCB)...................................1
55103 90551036 Rim sprocket, 3/8" pitch
(HCS8XXXCB) .....................................................1
48 43309 50433091 Washer, flat, .530" x 1.50" x .050".....................1
49 41493 50414931 Nut, hex, 1/2–20, Lock.......................................1
50 55104 90551044 Stud, threaded, 5/16–18 x 1.00"........................2
51 55138 90551389 Nut, hex, 5/16–18, flange...................................2
52 49405 50494058 Cover .................................................................1
53 55099 90550994 Knob, knurled, 1/4–20 x 1.00" ...........................2
54 43370 50433709 Chain, 13" x .058" Ga., .325" pitch
(HPS513CB and HCS513XCB).............................1
48266 50482661 Chain, 16" x .058" Ga., .325" pitch
(HCS516XCB) .....................................................1
41960 50419600 Chain, 16" x .050" Ga., 3/8" pitch
(HCS816XCB) .....................................................1
55189 90551893 Chain, 20" x .058" Ga., .325" pitch
(HCS520XCB) .....................................................1
55191 90551915 Chain, 20" x .050" Ga., 3/8" pitch
(HCS820XCB) .....................................................1
55192 90551923 Chain, 24" x .050" Ga., 3/8" pitch
(HCS824XCB) .....................................................1
55 43369 50433695 Bar, guide, 13" x .058" Ga
(HPS513CB and HCS513XCB).............................1
55180 90551800 Bar, guide, 16" x .058" Ga (HCS516XCB)............1
55141 90551419 Bar, guide, 16" x .050" Ga (HCS816XCB)............1
55182 90551826 Bar, guide, 20" x .058" Ga (HCS520XCB)............1
55185 90551850 Bar, guide, 20" x .050" Ga (HCS820XCB)............1
55186 90551869 Bar, guide, 24" x .050" Ga (HCS824XCB)............1
59 49461 50494619 Dog, adjustment.................................................1
60 55139 90551397 Screw, #10–24 x 2.00", fillister head .................1
61 49414 50494147 Catcher, chain ....................................................1
62 49885 50498851 Rod....................................................................1
63 55303 90553039 Screw, cap, 1/4-20 x .25 button head ................2
64 49925 50499254 Bracket ..............................................................1
65 49886 50498860 Clamp, conduit...................................................2

Chain Saws with Chain Brake
Greenlee / A Textron Company 54455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070
Parts List (cont’d)
66 51574 90515749 Screw, cap, 1/4-20 x .38 button head ................3
67 49754 50497545 Washer, flat........................................................2
68 49883 50498835 Pin, bowden.......................................................1
69 12655 52001374 Nut, 1/4-20 hex jam...........................................1
70 49762 50497626 Cable, push-pull.................................................1
71 45425 50454250 Screw, .372 dia. x 1.25 socket head
shoulder.............................................................1
72 55136 90551362 Spring, compression ..........................................1
73 52646 90526465 Nut, 3/8-16 hex lock ..........................................1
74 49884 50498843 Toggle................................................................1
75 50573 90505735 Screw, cap, #8-32 x .75 socket head .................2
76 54296 90542967 Nut, #8-32 hex lock ...........................................2
77 49844 50498444 Spool .................................................................1
78 45439 50454390 Quad ring, spool.................................................1
79 45438 50454382 Quad ring, bore ..................................................1
80 12659 52001375 Ring, retaining....................................................1
81 49846 50498460 Lever .................................................................1
82 43701 50437011 Screw, cap, #10-32 x .38 button head................1
83 54105 90541057 Screw, cap, 1/4-20 x .88, button head................1
Decals
56* 49567 50495674 Decal, warning...................................................1
57* 49568 50495682 Decal, pressure, flow..........................................1
58 41547 50415471 Decal, Fairmont..................................................1
Repair Kit
* 40789 50407891 Packing Kit (includes all items
marked with an asterisk)....................................1
Accessories
These chain saws will accept any of the following combinations of bar, chain and
rim sprocket.
Description Part Number
Bar
Length
Bar and
Chain
Gauge
Chain and
Sprocket
Pitch
Bar Chain Sprocket
13" .058" .325" 54033695 50433709 90551010
16" .058" .325" 90551800 50482661 90551010
16" .050" 3/8" 90551419 50419600 90551036
20" .058" .325" 90551826 90551893 90551010
20" .050" 3/8" 90551850 90551915 90551036
24" .050" 3/8" 90551869 90551923 90551036
UPC No.
Key 78-3310- Part No. Description Qty

Chain Saws with Chain Brake
Greenlee / A Textron Company 64455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070
Other Publications
Tool Owners/Users
Operation Manual: Publication 99937387
SAE Standard J1273 (Hose and Hose Assemblies): Publication 99930323
Fairmont Authorized Service Centers
Service Manual: Publication 99937409
Purpose
This manual is intended to familiarize all personnel with the specifications
and parts for the following chain saws:
HPS513CB (45826) Serial Code GDV
HCS5130CB (49768) Serial Code GDM
HCS5133CB (49774) Serial Code GDY
HCS5160CB (49769) Serial Code GDN
HCS5163CB (49775) Serial Code GDZ
HCS5200CB (49770) Serial Code GDP
HCS5203CB (49776) Serial Code GEA
HCS8160CB (45653) Serial Code GDL
HCS8163CB (45654) Serial Code GDW
HCS8200CB (49771) Serial Code GDR
HCS8203CB (49777) Serial Code GEB
HCS8240CB (49772) Serial Code GDT
HCS8243CB (49778) Serial Code GED
Keep this manual available to all personnel.
Replacement manuals are available upon request at no charge at
www.greenlee.com.
KEEP THIS MANUAL
Specifications
Application Information
See Accessories in this manual.
Chain Saw
Type of Hydraulic System ......................................... Open-Center or Closed-Center
Hydraulic Ports
Pressure................................................................................9/16–18 SAE O-ring
Tank ........................................................................................3/4–16 SAE O-ring
Chain Speed
@ 15.1 l/min (4 gpm).......................................... 552 meters/minute (1814 fpm)
@ 30.3 l/min (8 gpm)........................................ 1075 meters/minute (3527 fpm)
Mass/Weight
HPS513CB...................................................................................... 4.2 kg (9.2 lb)
HCS5130CB.................................................................................... 4.2 kg (9.2 lb)
HCS5133CB.................................................................................... 4.2 kg (9.2 lb)
HCS5160CB.................................................................................... 4.4 kg (9.6 lb)
HCS5163CB.................................................................................... 4.4 kg (9.6 lb)
HCS5200CB.................................................................................. 4.8 kg (10.6 lb)
HCS5203CB.................................................................................. 4.8 kg (10.6 lb)
HCS8160CB.................................................................................. 4.6 kg (10.2 lb)
HCS8163CB.................................................................................. 4.6 kg (10.2 lb)
HCS8200CB.................................................................................. 5.0 kg (11.0 lb)
HCS8203CB.................................................................................. 5.0 kg (11.0 lb)
HCS8240CB.................................................................................. 5.3 kg (11.6 lb)
HCS8243CB.................................................................................. 5.3 kg (11.6 lb)
Length
HPS513CB................................................................................. 652 mm (25.68")
HCS513XCB, HCS516XCB, and HCS520XCB .............................. 730 mm (28.75")
HCS816XCB, HCS820XCB, and HCS824XCB .............................. 806 mm (31.75")
Width .................................................................................................. 254 mm (10")
Height ................................................................................................ 224 mm (8.5")

Chain Saws with Chain Brake
Greenlee / A Textron Company 74455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070

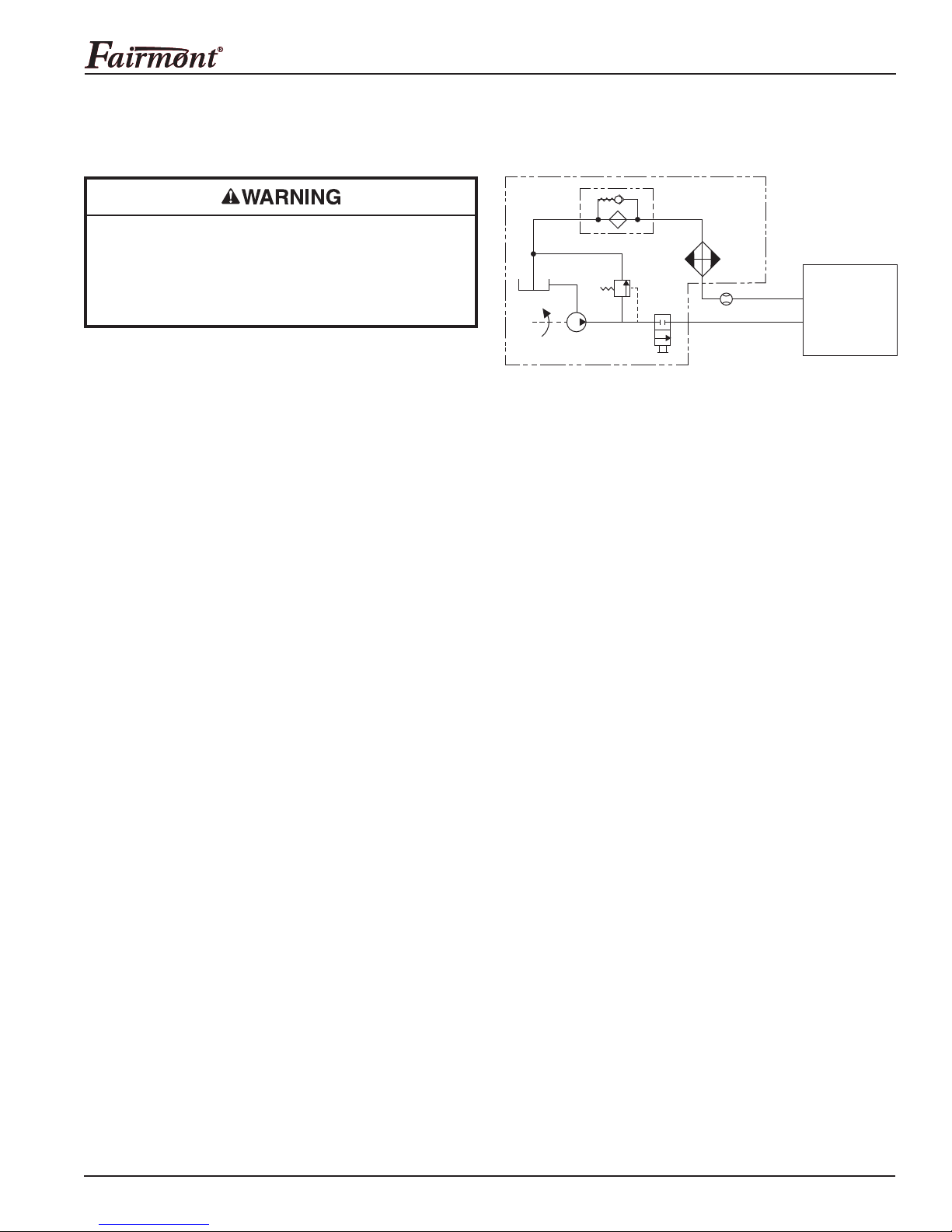

Hydraulic Schematic
FILTER
(10 MICRON)
COOLER
RELIEF
VALVE
138 bar
(2000 psi)
CONTROL
VALVE FLOW METER
T
PTOOL
RESERVOIR
PUMP
POWER SOURCE
Recommended Hydraulic Fluids
Use any non-detergent, petroleum-based hydraulic fluid which meets the following
specifications or HTMA specifications.
S.U.S. @:
38 °C (100 °F) ..................................................................................... 140 to 225
99 °C (210 °F) .................................................................................. 40 minimum
Flash Point........................................................................170 °C (340 °F) minimum
Pour Point ..........................................................................-34 °C (-30 °F) minimum
Specifications (cont’d)
Hydraulic Power Source
Do not exceed the following hydraulic power source maximums:
Hydraulic flow: 30.3 l/min (8 gpm)
Pressure relief setting: 138 bar (2000 psi)
Back pressure: 13.8 bar (200 psi)
Failure to observe this warning could result in severe injury or death.
•
•
•
Type of Hydraulic System .......................................... Open-center or closed-center
Flow
Minimum.................................................................................15.1 l/min (4 gpm)
Recommended........................................................................22.7 l/min (6 gpm)
Maximum ................................................................................30.3 l/min (8 gpm)
Filtration ................................................................................... 10 Micron (nominal)
Pressure Relief Setting................................................................ 138 bar (2000 psi)
Back Pressure (maximum)*.......................................................... 13.8 bar (200 psi)
* 13.8 bar (200 psi) is the maximum agreed standard back pressure for the HTMA
(Hydraulic Tool Manufacturers Association). Fairmont tool will operate satisfactorily
at this standard.
1. Maximum hydraulic fluid temperature must not exceed 60 °C (140 °F).
A sufficient oil cooling capacity is needed to limit the hydraulic fluid temperature.
2. Hydraulic flow must not exceed 30.3 l/min (8 gpm). Install a flow meter in the
return line to measure the rate of hydraulic flow before using the tool.
3. Pressure relief valve setting must not exceed 138 bar (2000 psi) at your tool’s
maximum flow. Locate the pressure relief valve in the supply circuit to limit
excessive hydraulic pressure to the tool.

USA 800-435-0786 Fax: [phone]
815-397-7070 Fax: [phone]
Canada 800-435-0786 Fax: [phone]
International [phone] Fax: [phone]
4455 Boeing Drive • Rockford, IL 61109-2988 • USA • 815-397-7070
An ISO 9001 Company • Greenlee Textron Inc. is a subsidiary of Textron Inc.
www.greenlee.com Printed in USA
