GREISINGER GNG 10 User manual

S15.0.01.6C-02
GREISINGER electronic GmbH
D - 93128 Regenstauf, Hans-Sachs-Straße 26
+49 (0) 9402 / 9383-0 +49 (0) 9402 / 9383-33 [email protected]
Wall Power Supply
Operating Manual GNG 10

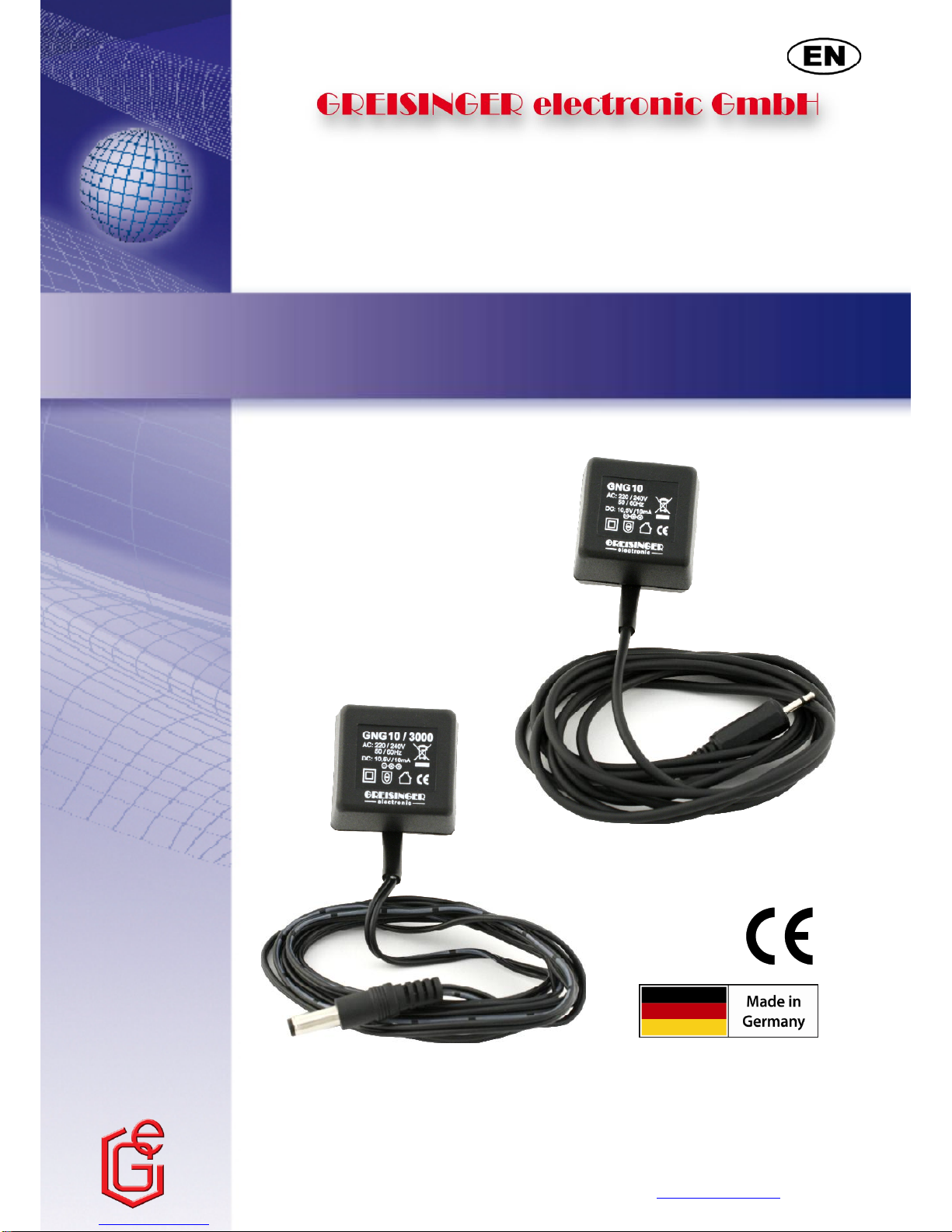

GNG 10 / 3000
WEEE-Reg.-Nr. DE93889386

S15.0.01.6C-02 Operating manual GNG 10 (/3000) page 2 of 4
_____________________________________________________ _____________________________________________________________________________
Index
1GENERAL ADVICE ................................................................................................................................ 2
2INTENDED USE...................................................................................................................................... 2
3SAFETY INSTRUCTIONS....................................................................................................................... 2
4OPERATION........................................................................................................................................... 3
5DISPOSAL.............................................................................................................................................. 3
6TECHNICAL DATA................................................................................................................................. 3
1 General Advice
Read through this document attentively and make yourself familiar to the operation of the device before you
use it. Keep this document in a ready-to-hand way in order to be able to look up in the case of doubt.
In case of damage or consequential damage caused by failure to observe the operating manual or safety
instructions or by improper handling the manufacturer accepts no liability.
The warranty/guarantee will then expire!
2 Intended Use
This device is designed to operate consumer loads with an operating voltage of 10.5V DC and a maximum
operating current of 10mA. The consumer load can be connected via a 2.5mm jack connector (GNG 10) or a
power supply plug (GNG 10/3000). The product is designed for connection to a standard mains socket with a
voltage of 220/240 V AC (50/60 Hz).
The safety instructions of these operating manual must be followed (see below). The device may be used
only under the conditions and for the uses for which it was designed. The device must be treated carefully
and used according to the technical data (do not throw, hit, etc.).
Unauthorized conversion and/or modification of the device are inadmissible because of safety reasons. Any
usage other than described above is not permitted and can damage the product and lead to associated risks
such as short-circuit, fire, electric shock, etc.
3 Safety Instructions
This symbol indicates important instructions that must be observed.
Non-compliance could result in death, bodily injury or property damage!
The trouble-free operation and reliability of the device cannot be guaranteed unless the standard safety
measures and special safety advises given in this manual will be adhered to when using it.
1. Trouble-free operation and reliability of the device can only be guaranteed if it is not subjected to any
other climatic conditions than those stated under “Technical Data”.
Transporting the device from a cold to a warm environment condensation may result in a failure of the
function or even destroy the device. Because of this make sure that the device temperature has adjusted
to the ambient temperature before trying a new start-up.
2. Whenever there may be a risk whatsoever involved in running it, the device has to be
switched off immediately and to be marked accordingly to avoid re-starting. Operator safety
may be a risk if:
- there is visible damage to the device
- the device is not working as specified
- the device has been stored under unsuitable conditions for a longer time
In case of doubt, please return device to manufacturer for repair or maintenance.
3. Do not use this product as safety or emergency stop device or in any other application
where failure of the product could result in personal injury or material damage.
Failure to comply with these instructions could result in death or serious injury and material
damage.
Bedienungsanleitung
Steckernetzteil

S15.0.01.6C-02 Operating manual GNG 10 (/3000) page 3 of 4
_____________________________________________________ _____________________________________________________________________________
4. Do not open the case while the device is connected to with the wall socket. Unplug the device if it is not
in use or for cleaning purposes. Use a dry cloth to clean the case.
5. Take care not to damage or destroy its insulation. Do not use the device if the insulation is damaged.
6. For repair or maintenance purposes, please send the device back to the manufacturer.
When used in conjunction with other devices, observe the operating instructions and safety notices of
connected devices.
4 Operation
1. Before you connect a consumer, make sure that its operating voltage is equal with the output voltage
of the power supply (10.5V DC) and the maximum operating current is not greater than 10mA.
If this is ignored the power supply or the connected consumer may be damaged.
2. Connect the power supply to a standard mains socket. (220/240V AC, 50/60Hz).
3. Connect the jack connector or the power supply plug to the consumer load and switch the consumer
on.
4. Unplug the power supply if it is not in use.
The surface of the casing will heat up intensely during prolonged operation at a rated
load. Danger of burns! Never operate the device when partially or fully covered. This will
avoid damages due to overheating.
5 Disposal
Dispense exhausted batteries at destined gathering places.
This device must not be disposed as “residual waste”. To dispose this device, please send it
directly to us (adequately stamped). We will dispose it appropriately and environmentally
friendly.
6 Technical Data
Operating voltage:
220/240 V AC, 50/60 Hz
Operating conditions:
-20 °C …+50 °C, 5 % …90 %RH (non-condensing)
Output voltage:
10.5 V DC
Output current:
max. 10 mA
Dimensions (WxHxD):
39 x 39 x 70 mm
Weight (with cable):
approx. 87,5 g
Connection GNG 10:
Jack connector (2.5 mm)
Polarity: + front end
–posterior part
Connection GNG 10/3000:
Power supply plug (outer diameter: 5.0 mm, inner diameter: 1.9 mm)
Polarity: + inner
–outer
