CDM8240
Technical Manual
Version：V1.3
Release：2009-6-24

Contents
1. General Description.................................................................................................... 1
2. Model............................................................................................................................ 1
3. Terms ........................................................................................................................... 1
4. Overview...................................................................................................................... 1
4.1 Presentation............................................................................................................ 1
4.2 Dimensions (mm).................................................................................................... 4
5. Functionalities............................................................................................................. 7
6. Features....................................................................................................................... 7
7. Technical Specifications ............................................................................................ 8
7.1 Electrical specifications........................................................................................... 8
7.2 Performance specifications..................................................................................... 9
CDM8240 Technical Manual Page i of i

1. General Description
CDM8240 dispenser is an advanced cash dispensing module, experiencing
years of research and development by GRGBanking, has possessed
completely independent intellectual property and reached international
advanced level. It consists of cassette and frame, reject tray, note feeder,
high-precise detection unit, note stacker unit, note transport and note
presenter. The cassette may be expanded up to four. The dispenser precisely
picks up required notes from the assigned cassette to the user, lets the
unqualified notes to the reject tray, and it also has the notes auto-retract
function if the customer forgets to take the money away. In a word, it has the
advantage of high-reliability, easy to operate and maintain.
2. Model
CDM8240
3. Terms
CDM----Cash Dispense Module
4. Overview
4.1 Presentation
CDM8240 Technical Manual Page 1 of 9

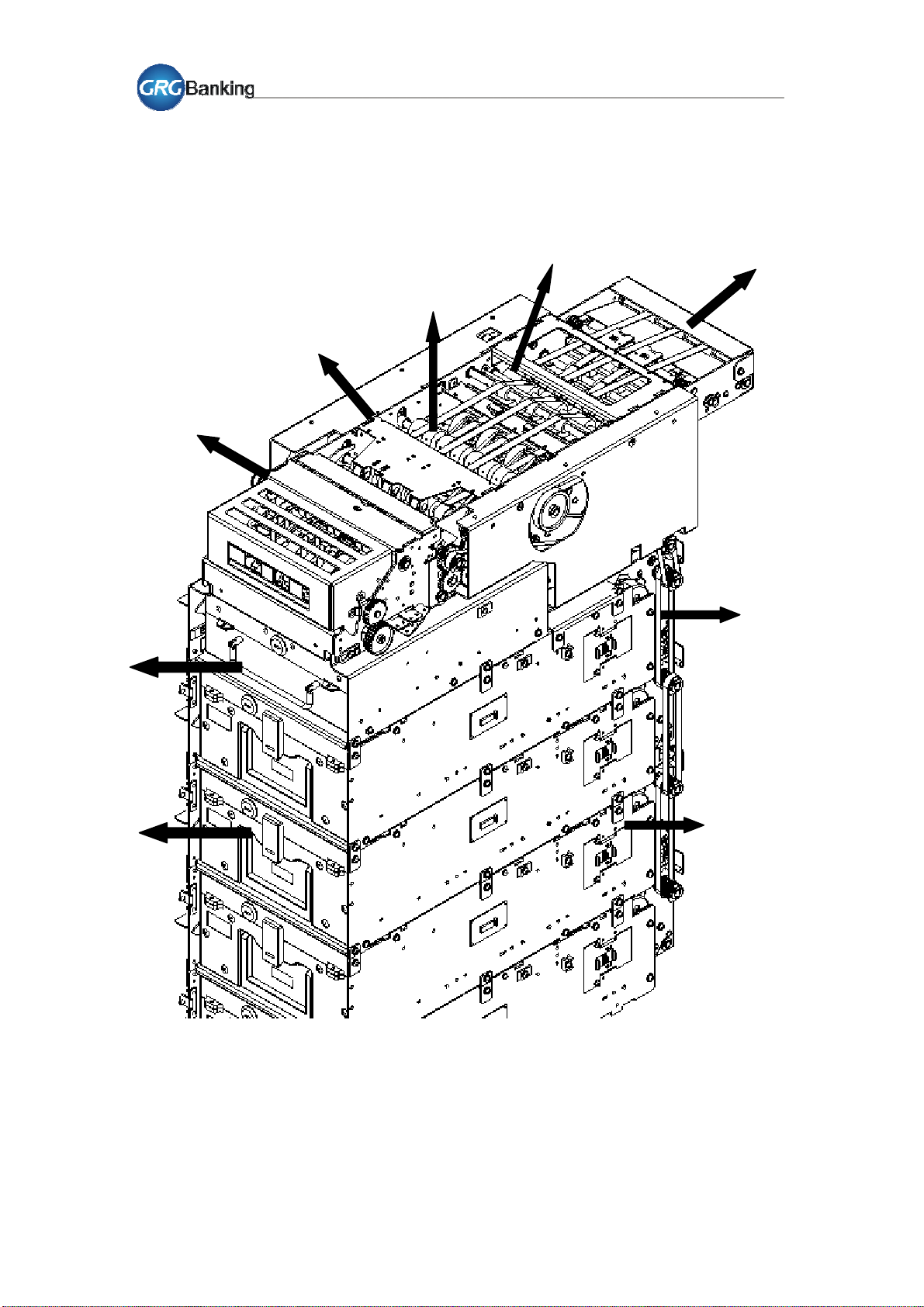

CDM8240 Rear service, standard throat
Single Note Diverter
Note Presenter
Bundle Note Diverter
Note Transport
Note Stacker
Note Feeder
Reject Vault
Cassette Frame
Note Cassette
CDM8240 Technical Manual Page 2 of 9

CDM8240 Front service, standard throat
Single Note Diverter
Note Transport
Bundle Note Diverter
Note Stacker
Note Presenter
Note Feeder
Reject Vault
Note Cassette Cassette Frame
CDM8240 Technical Manual Page 3 of 9

4.2 Dimensions (mm)
CDM8240 Front service, standard throat dimensions
546
Width: 286.6
Depth: 672
Height: 502
29
244.2 202.8
4916
Above is the two cassettes height, with the increase of every cassette, the
height shall be added by 142.5mm.
CDM8240 Technical Manual Page 4 of 9

CDM8240 Rear service, standard throat dimensions
202.8
244.2
29
Height: 502
65
Depth: 672
Width: 286.6
49
546
Above is the two cassettes height, with the increase of every cassette, the
height shall be added by 142.5mm.
CDM8240 Technical Manual Page 5 of 9

CDM8240 Rear service, long throat dimensions
Depth: 868
Height: 502
Width: 286.6
65
49
29
244.2 202.8
546
Above is the two cassettes height, with the increase of every cassette, the
height shall be added by 142.5mm.
CDM8240 Technical Manual Page 6 of 9

5. Functionalities
Friction dispensing, strongly adapts to all kinds of paper money.
Up to four cassettes, each contains 3000 notes.
7 notes/second high dispensing speed.
Maximum 60 notes per transaction.
Reliable and steady detect unit (double, folded and worn notes etc
detected).
Low level detection.
Has the note stacker area, pre-delivery and auto retract function.
Separate reject tray with mechanical lock.
Self Calibration function, automatically records the note information.
6. Features
Optional high-security cassette and separate reject tray with lock and
seal-leading.
Double transport path for the note diverter. Separate single reject and
bundle retract area.
Optional long throat for the presenter.
Easy operation for the front service to rear or rear service to front.
Log record and inquiry function, transaction log recorded for at least
three months.
Offline self-diagnostic function, convenient to debug.
Onsite replacement of wearing part, easy to maintain.
Modular design, easy to disassemble and assemble.
CDM8240 Technical Manual Page 7 of 9

7. Technical Specifications
7.1 Electrical specifications
Item Description
Input voltage AC 110V±10%; 220V±10%
Output voltage DC 24V, 200W
Power
Consumption Idle 30W; Operating 100W
Operating
temperature 00C~500C
Operating humidity 20%~90%RH（non-condensing）
Temperature change
rate 100C per hour
Environmental
conditions
Humidity change rate 10％per hour
Communication interface RS-232/ USB (optional)
CDM8240 standard throat: 42 Kg
(two cassettes weight, with the
increase of every cassette, the weight
shall be added by 11kg.)
Weight CDM8240 long throat: 44 Kg (two
cassettes weight, with the increase of
every cassette, the weight shall be
added by 11kg.)
CDM8240 standard throat:
284.6 (W) x 672 (D) x502 (H) mm
(two cassettes dimension, with the
increase of every cassette, the height
will be added by 142.5 )
Dimension CDM8240 long throat:
284.6 (W) x 868 (D) x502 (H) mm
(two cassettes dimension, with the
increase of every cassette, the height
will be added by 142.5 )
CDM8240 Technical Manual Page 8 of 9

7.2 Performance specifications
Item Description
Expandability Up to 4
Cassette capacity 3000 notes
Reject tray capacity 100(single area)+250(bundle area)
Note Cassette
Security Mechanical lock and lead sealing
Length 110mm ~172 mm
Width 55mm ~85 mm
Media ranges
Thickness 0.06mm ~0.18 mm
Dispensing system Friction
Dispensingmode Bundle
Dispensing speed 7 notes/second
Maximum notes per transaction 60 notes
Low level detection 50~250 notes (adjustable)
Rejectmode Single/Bundle
Maintenance Front/Rear
