Grifo PM User manual

Tipo Documento
Manuale PM –PMI –PIGMO - PIPMO
Anno
2016
Pagina
1 di 22
Nome File
Manuale PM –PMI –PIGMO - PIPMO
Revisione
0
WINE MAKING MACHINES
MANUAL
INSTRUCTIONS USE AND MANINTENANCE
MOTORIZED GRAPE CRUSHER
Art. PM/PMI/PIGMO/PIPMO

Tipo Documento
Manuale PM –PMI –PIGMO - PIPMO
Anno
2016
Pagina
2 di 22
Nome File
Manuale PM –PMI –PIGMO - PIPMO
Revisione
0
Dear Customer,
Thank you for choosing a GRIFO product which has always had a
name for reliability, sturdiness and functionality.
We are pleased to give you this manual so as to enable you to operate
the machine, in the safest and most efficient way.
We invite you to read this technical manual carefully and to show it to
anyone who will use the machine, as well as the person who installs it and
carries out maintenance work.
We are at your complete disposal for any further information you may
need and will consider any proposals in order to make this manual evermore
complete for the safety requirements for which it is intended.
Our best wishes and enjoy working with Grifo products!
GRIFO Macchine enologiche S.n.c.
Via Mantova, 1
26034 Piadena (CR), Italia
Tel. [phone]
Fax [phone]
e-mail: [email protected]
www. grifomarchetti.com
GRIFO
MACCHINE ENOLOGICHE S.n.c.
di Marchetti Giordano & C.
GB

Tipo Documento
Manuale PM –PMI –PIGMO - PIPMO
Anno
2016
Pagina
3 di 22
Nome File
Manuale PM –PMI –PIGMO - PIPMO
Revisione
0
Index
EC Declaration of Conformity.................................................................................................................4
1. INTRODUCTION................................................................................................................................5
1.1 Contents......................................................................................................................................... 5
1.2 Consegnes and conservation of the manual................................................................................... 5
1.3 Responsability ............................................................................................................................... 6
1.4 Manual update ............................................................................................................................... 6
1.5 Guarantee....................................................................................................................................... 7
2. MACHINE DETAILS..........................................................................................................................7
2.1 Machine description and functioning ............................................................................................ 7
2.2 Correct use................................................................................................................................... 10
2.3 Directives and standards.............................................................................................................. 10
2.4 Technical informations................................................................................................................ 10
3. SAFETY.............................................................................................................................................11
3.1 General information..................................................................................................................... 11
3.2 Risks and preventive measures.................................................................................................... 11
4. INSTALLATION...............................................................................................................................13
4.1 Preparation for installation .......................................................................................................... 13
4.2 Transport, unloading and installation.......................................................................................... 14
4.3 Positioning................................................................................................................................... 15
4.4 Electrical connections.................................................................................................................. 16
4.5 Lubrication................................................................................................................................... 17
5. USE....................................................................................................................................................17
5.1 Preliminary operations................................................................................................................. 17
5.2 Starting up.................................................................................................................................... 18
5.3 Instructions in case of blocking................................................................................................... 18
5.4 Taking out of service................................................................................................................... 19
6. MAINTANANCE..............................................................................................................................19
6.1 Maintenance, inspections and controls........................................................................................ 19
6.1.1 Lubrication and controls........................................................................................................... 20
6.1.2 Spare parts................................................................................................................................ 20
6.2 Demolition................................................................................................................................... 20
7. ATTACHMENTS (drawings and components)........................Errore. Il segnalibro non è definito.
Edition
2016
Revision
00
File name
Manuale PM - PMI - PIGMO - PIPMO
GB

Tipo Documento
Manuale PM –PMI –PIGMO - PIPMO
Anno
2016
Pagina
4 di 22
Nome File
Manuale PM –PMI –PIGMO - PIPMO
Revisione
0
EC Declaration of Conformity
(Directive 2006/42 CE, Annex II, A)
GRIFO MACCHINE ENOLOGICHE S.n.c.
di Marchetti Giordano & C.
Via Mantova, 1
26034 Piadena (CR)
Italia
DECLARES THAT
The machine MOTORIZED GRAPE CRUSHER
Model PM, PMI, PIGMO, PIPMO
conforms to Directives 2006/42/EC (Machines), 2006/95/EC (Low-voltage) and 2004/108/EEC
(Electromagnetic Compatibility);
conforms to the standards EN 953, EN 13850, EN 60204-1.
Name and address of the person authorised to compile the technical file:
Rosa Busi
Via Mantova, 1
26034 Piadena (CR)
Italia
Identity and signature of the person empowered to draw up the declaration on behalf of the
manufacturer
Rosa Busi
Place and date of the declaration
Piadena (CR), 02 January, 2016

Tipo Documento
Manuale PM –PMI –PIGMO - PIPMO
Anno
2016
Pagina
5 di 22
Nome File
Manuale PM –PMI –PIGMO - PIPMO
Revisione
0
1. INTRODUCTION
1.1 Contents
This manual contains a description of the technical characteristics and functioning of
the MOTORIZED GRAPE CRUSHER, Mod. PM, PMI, PIGMO, PIPMO, as well as
instructions of installation, use and maintenance.
This instruction manual uses the following symbols.
Pay maximum attention to the instructions marked by this symbol
keeping scrupulously to what is specified.
Indications and useful tips for manipulation, mounting and installation,
use and maintenance operations.
Operations or behaviour absolutely forbidden

Continue in the indicated, operating sequence
1.2 Consegnes and conservation of the manual
This publication refers to use, transport, installation and manteinance operator.
The manual must be kept by the manager in a suitable place in order for it to be
always available for consultation in the best state of conservation.
The manual constitutes an integral part of the machine and as such must
be conserved for all the life of the machine and passed on to any user or
successive owner
GB

Tipo Documento
Manuale PM –PMI –PIGMO - PIPMO
Anno
2016
Pagina
6 di 22
Nome File
Manuale PM –PMI –PIGMO - PIPMO
Revisione
0
1.3 Responsibility
The guarantee of the well-functioning and full conformity performance of the machine
to its foreseen service, is strictly dependent on the correct application of all the
instructions in this manual.
Before operating the machine it is obligatory to read what is specified
in the manual
In reference to the above indicated in this instruction manual, GRIFO Macchine
Enologiche S.n.c. declines every responsibility in the case of:
in observation of the instructions regarding installation, use and maintenance
printed in this manual;
inadequacy of the plant engineering and environmental conditions in which the
machine is used,
non authorized modifications to the machine
use by unauthorized or untrained personnel
The only configurations and destination of use allowed by the
manufacturer are those expressly stated in the manual.
1.4 Manual update
This manuali Is an integral part of the machine.
Any modifications, that are made to any successive machines, do not oblige the
manufacturer to carry out any intervention or adaptation to the machine already on
the market.
Any supplement to the manual that the manufacturer considers necessary to send to
the user should be kept together with the manual of which it will be integral part of.
GB

Tipo Documento
Manuale PM –PMI –PIGMO - PIPMO
Anno
2016
Pagina
7 di 22
Nome File
Manuale PM –PMI –PIGMO - PIPMO
Revisione
0

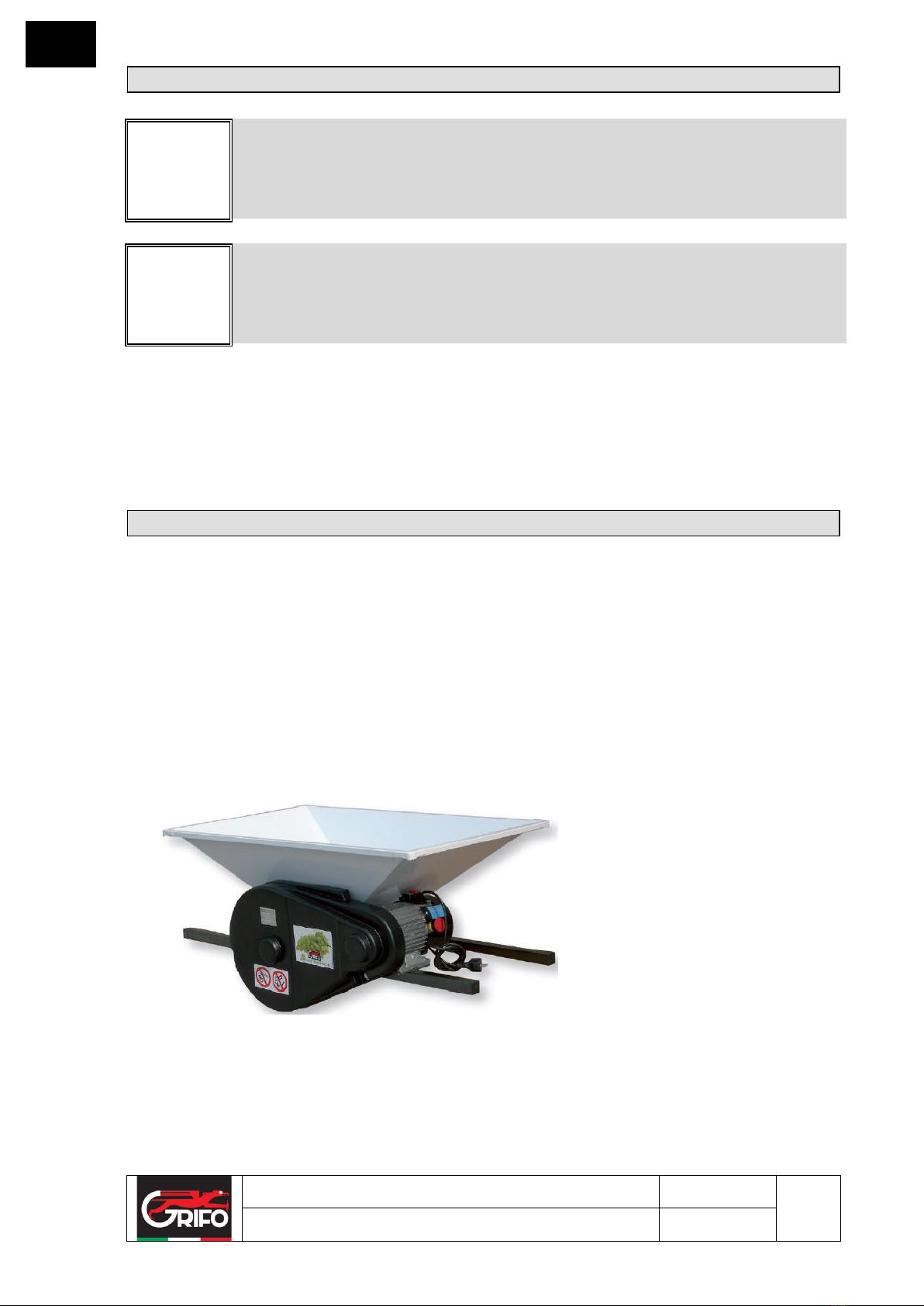

1.5 Guarantee
The guarantee of the machine covers the first twelve months of
operation. In case of non immediate use, the guarantee expires on
the eighteenth month from its delivery.
The guarantee does not cover transportation of the machine, which
is the purchaser’s responsibility, and the guarantee will be invalid if
machine use does not conform to what is indicated in this manual.
Conditions other than those specified may be defined in the contractual phase.
2. MACHINE DETAILS
2.1 Machine description and functioning
The MOTORIZED GRAPE CRUSHER, Models PM, PMI, PIGMO, PIPMO is a
machine for crushing grapes, designed and built for use in small and medium-sized
wine-making companies. The models which this manual refers to are different only
for the material used for their production, enamel painted steel or stainless steel; the
names in the manual of the models are as follows:
MOTORIZED GRAPE CRUSHER (PM),
GB

Tipo Documento
Manuale PM –PMI –PIGMO - PIPMO
Anno
2016
Pagina
8 di 22
Nome File
Manuale PM –PMI –PIGMO - PIPMO
Revisione
0
STAINLESS STEEL MOTORIZED GRAPE CRUSHER (PMI)
STAINLESS STEEL MOTORIZED FRUIT CRUSHER (PIGMO)
SMALL STAINLESS STEEL GRAPE CRUSHER (PIPMO)
GB

Tipo Documento
Manuale PM –PMI –PIGMO - PIPMO
Anno
2016
Pagina
9 di 22
Nome File
Manuale PM –PMI –PIGMO - PIPMO
Revisione
0
The machine consists of a loading hopper which contains the grapes to be crushed.
In the middle of the hopper there is an agitator which pushes the grapes towards two
rollers that crush them. The crushed grapes fall into the underlying container.

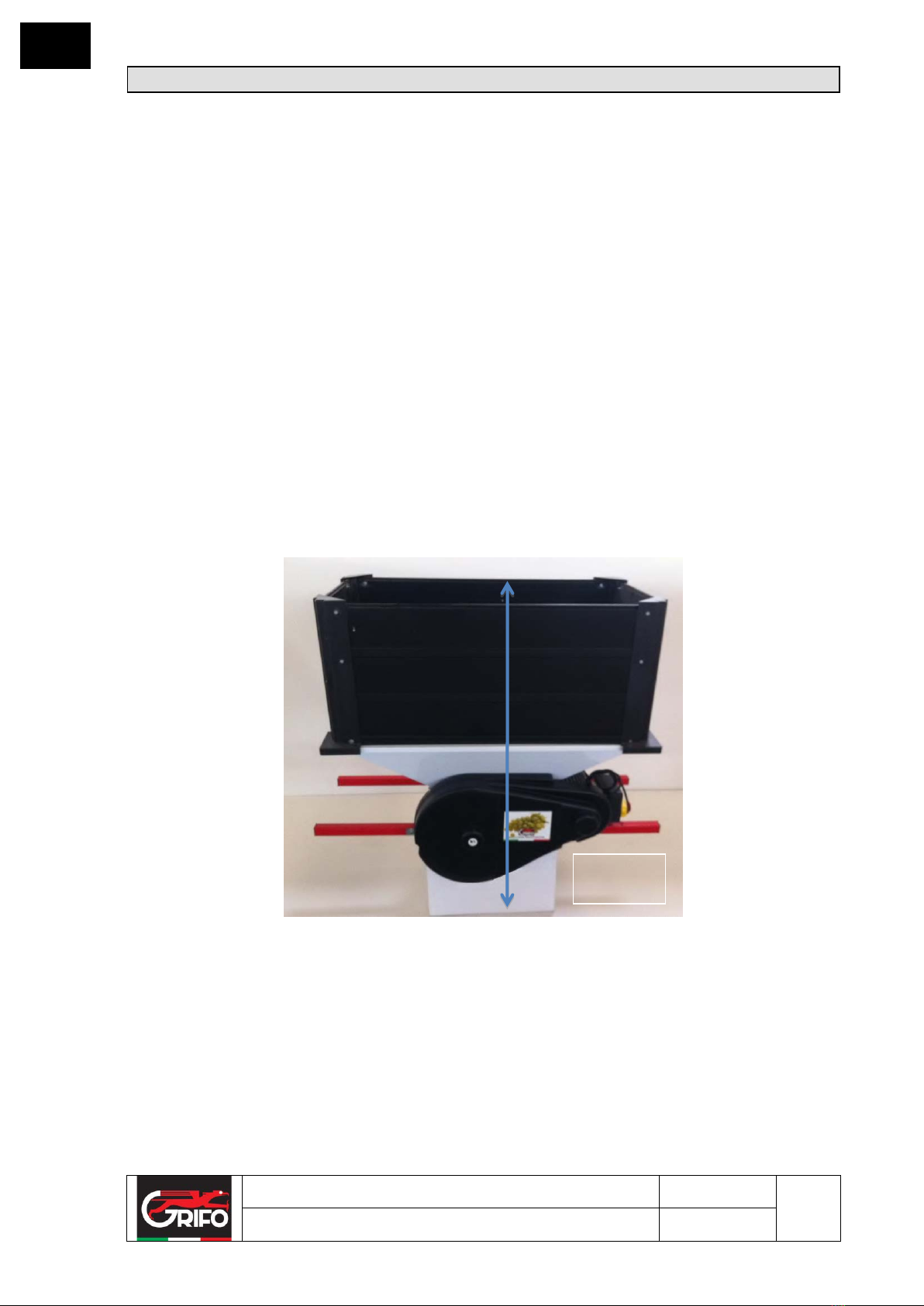

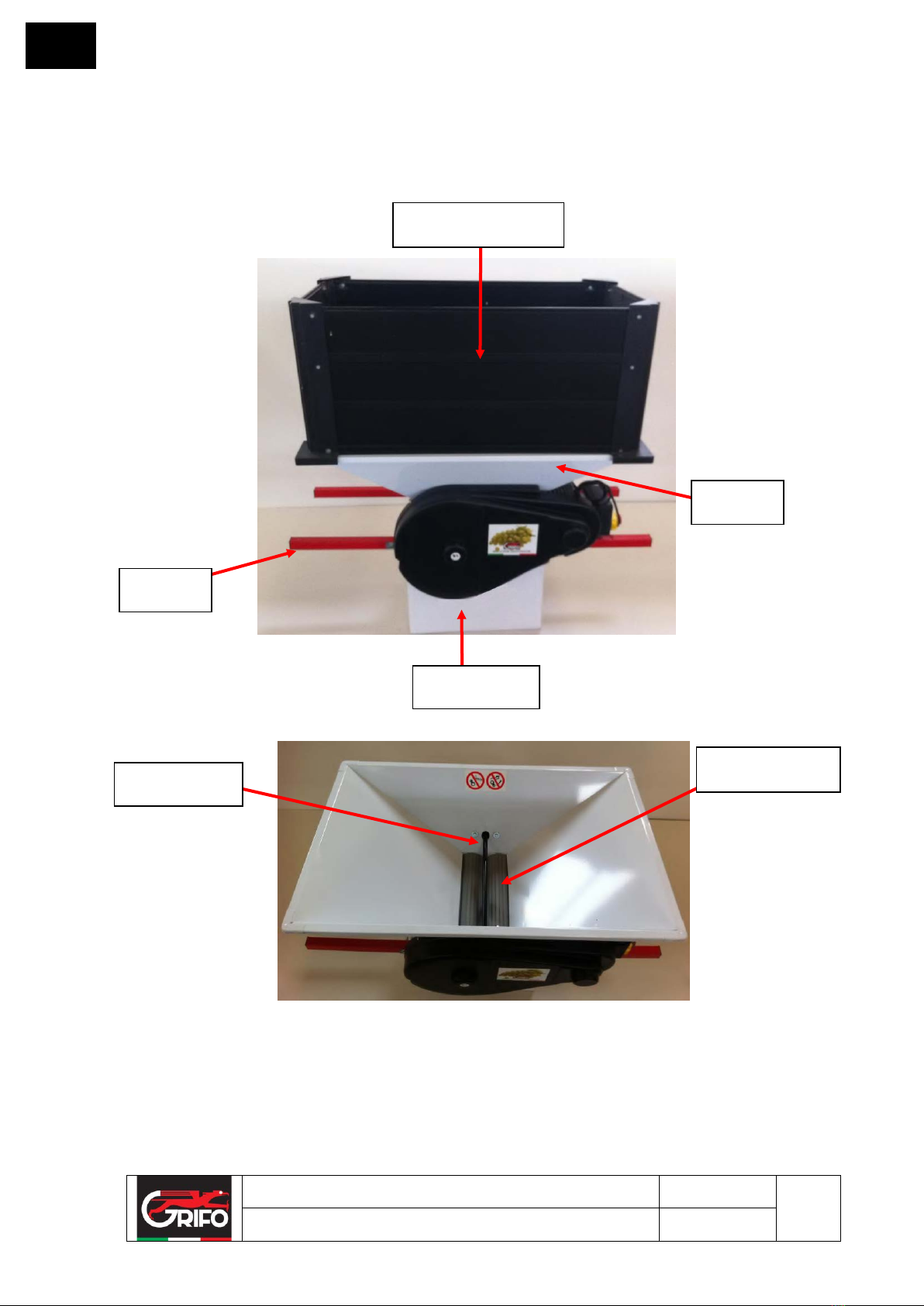

Fig. 1 Main parts of the GRAPE CRUSHER
Agitator
Crushing rollers
Loading
hopper
Sustaining
bars
Crushed grape
output
Loading guard
GB

Tipo Documento
Manuale PM –PMI –PIGMO - PIPMO
Anno
2016
Pagina
10 di 22
Nome File
Manuale PM –PMI –PIGMO - PIPMO
Revisione
0
On top of the hopper a protective box (supplied) must be placed in order to avoid
upper limbs coming into contact with the agitator and rollers
The machine must be positioned above a container which collects the crushed
grapes according to the instructions described in chapter 5.
2.2 Correct use
The machine is designed for grape processing. The operations of the machine are:
grape crushing by means of two rollers positioned inside the hopper
Any variations of the conditions of use of the machine both in terms
of use and materials processed must be considered as a new use of
the machine under the directive 98/37/CE and therefore relieves the
manufacturer of any responsibility.
2.3 Directives and standards
The machine is designed and manufactured according to European Directives
2006/42 CE (Machines), 2006/95/CE (Low voltage), 2004/108/CE (Electromagnetical
Compatibility) and according to standards EN 953, EN 13850, EN 60204-1.
2.4 Technical informations
The basic characteristics of the machine and those required by the environment for
correct functioning are reported in Table 1.
PM, PMI
PIGMO
PIPMO
Dimensions
950x600 mm
430X360 mm
950x600
Weight
37 kg
37 kg
37 kg
Motor power
1 hp
1 hp
1 hp
Voltage and frequency
230 V - 50 Hz
240 V - 50 Hz
240 V - 50 Hz
Operating temperature
5°C ÷ 45°C
5°C ÷ 45°C
5°C ÷ 45°C
Tab. 1 Technical data
GB

Tipo Documento
Manuale PM –PMI –PIGMO - PIPMO
Anno
2016
Pagina
11 di 22
Nome File
Manuale PM –PMI –PIGMO - PIPMO
Revisione
0
3. SAFETY
3.1 General information
Within the obligation of information and training of workers foreseen by current
legislation, the company employer, management and the authorized users operating
the machine must supply personnel who will carry out operations of installation, use
and maintenance all the necessary information in order to guarantee their safety
while using the machine.
In particular, they must request and control that
all workers assigned to the abovementioned operations must scrupulously
conform to the procedures in this manual and the general accident prevention
measures foreseen by current regulations.
no different operations must be carried out other than those specified by the
manufacturer.
no tampering or modifications to the machine must be made and the machine is
used esclusively in its original configuration.
3.2 Risks and preventive measures
The machine is designed to eliminate or reduce the risks for the people who will use
it. The preventive measures for a safe use of the machine are the following:
Machine falling
- Insure that the machine is stable in particular with reference to the
compatibility between the dimensions of the support rods and
those of the container above which the machine is place. (par. 4.3).
- Use safety boots with steel toe-caps.
GB

Tipo Documento
Manuale PM –PMI –PIGMO - PIPMO
Anno
2016
Pagina
12 di 22
Nome File
Manuale PM –PMI –PIGMO - PIPMO
Revisione
0

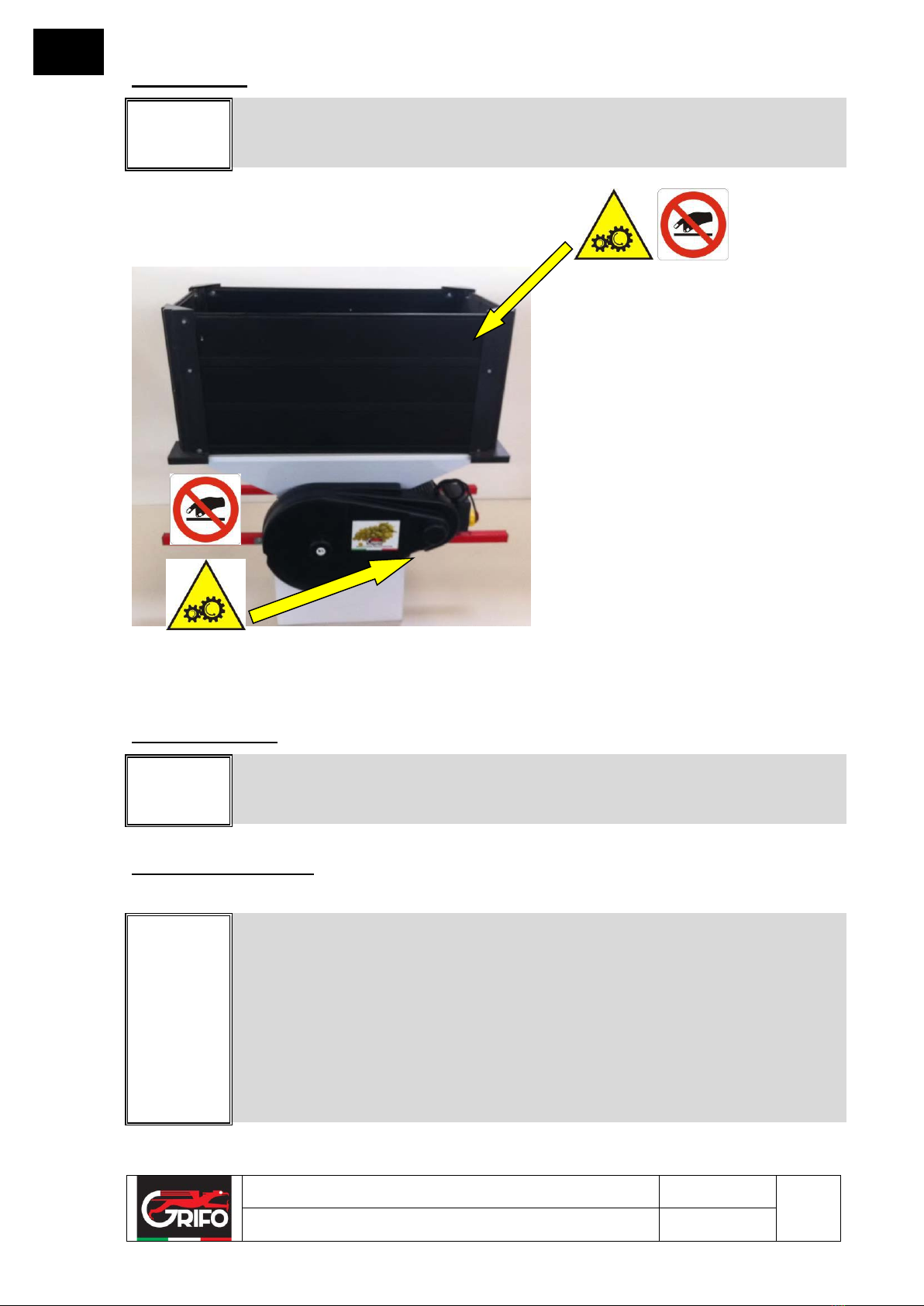

Moving parts
- Stop the machine in case of intervention on the moving parts.
- Do not remove the protective case.
Fig. 2 Hazardous moving parts
Machine moving
-- Move the machine with at least two people.
Electrical equipment
-- Regularly control the integrity of wires and make necessary
replacements.
-- Protect wires and engine from humidity.
-- Carry out any maintenance work with the machine turned off.
-- Authorize only skilled personnel to work on the electrical parts.
-- Control that the voltage is the same as that indicated on the machine
identification plate.
GB

Tipo Documento
Manuale PM –PMI –PIGMO - PIPMO
Anno
2016
Pagina
13 di 22
Nome File
Manuale PM –PMI –PIGMO - PIPMO
Revisione
0
The evaluation of the correct place of use of the machine is the user’s responsibility.
Some useful tips regarding this are the following;
Positioning
The machine must be placed so as not to obstruct the
movement of men or equipment, and in such a way as to
guarantee that all the points requiring the presence of an
operator are easily accessible
Environment
Environmental conditions (temperature, humidity, magnetic
fields, etc.) must be such as to guarantee the correct
functioning of the electrical components.
Noise
The noise level of this machine is inferior to 70 dBA. The
distribution of jobs of the operators must be such to insure
exposure to noise remains within the limits allowed by current
legislation.
Any tampering with parts, and in particular parts connected with the
safety of the machine, will relieve the manufacturer of any civil or
criminal liability in the case of accidents.
4. INSTALLATION
4.1 Preparation for installation
Before installing the machine it is necessary to control the suitability of the place
where it will be located. It being understood that such evaluation must consider the
specific conditions of the location, some important general controls are the following:
Check the overall dimensions of the machine, leaving a distance of at least 70
cm from any type of fixed obstacle (walls, columns, walkways) to allow the
operator to move without impediments. Check that the foreseen location of the
machine does not interfere with any other machinery.
Check the suitability of flooring in terms of stability, cleanliness and slope.
Insure constant, uniform lightning to avoid risks due to shaded areas.
GB

Tipo Documento
Manuale PM –PMI –PIGMO - PIPMO
Anno
2016
Pagina
14 di 22
Nome File
Manuale PM –PMI –PIGMO - PIPMO
Revisione
0
If the machine is positioned near to transit zones, you must place suitable
barriers around it for protection of accidental bumps with trolleys, trucks etc.
If it is located on intermediate floors, elevated floors or raised platforms, check
that the maximum carrying capacity is more than the overall weight of the
machine and any other accessories such as lifting equipment etc. always
considering an adequate safety factor.
4.2 Transport, unloading and installation
The machine is supplied already assembled into its operating configuration so the
risks due to movement concern the whole machine.
Transport must be by qualified transporters able to guarantee the correct movement
of the transported materials.
Grifo Macchine Enologiche does not accept any responsibility for
damages from transport. The goods are supplied ex-factory.
On receipt, control the integrity of the different parts of the machine and check that
the necessary parts for installation are not missing.
Check that the consignment corresponds to the order
specifications.
Complaints relative to the goods must be made in writing, to GRIFO Macchine
Enalogiche S.n.c. within 15 days from receipt of delivery.
Pay maximum attention when moving the machine, respecting what
is set out in current regulations and in any safety procedures.
Any moving of the machine must be done by two adults holding the four support
tubes at its extremes.
GB

Tipo Documento
Manuale PM –PMI –PIGMO - PIPMO
Anno
2016
Pagina
15 di 22
Nome File
Manuale PM –PMI –PIGMO - PIPMO
Revisione
0
4.3 Positioning
When positioning the machine, other than respecting the general conditions in
paragraphs 3.2 and 4.1, particular attention must be paid to the dimensional
compatibility between the support tubes and the container over which the machine is
placed.
The container must be placed in such a way that the grape stems, coming out of the
machine, fall outside of it. The containers used must have the same shape and
dimensions as to guarantee the stability of the machine.
When positioning the machine you must choose the height so as to guarantee
accessibility to the destemmer and rollers situated at the bottom of the hopper. With
regards to this, a protective case is provided to screw onto the hopper itself.
Bearing in mind that the case provided has a height of 450 mm, the top end of this
must be at a height not inferior to 1600 mm.
Fig. 3 Dimensional limits in the positioning
The user should also be careful to guarantee machine stability when positioning. For
this purpose, adjustable feet to fix to the support tubes are supplied in order for the
machine to remain secured to the container on which it is placed.
Minimo
1600 mm
GB

Tipo Documento
Manuale PM –PMI –PIGMO - PIPMO
Anno
2016
Pagina
16 di 22
Nome File
Manuale PM –PMI –PIGMO - PIPMO
Revisione
0
For your safety, put the protective case as shown.
4.4 Electrical connections
Connection to the mains is done by simply inserting the plug. The corresponding wall
plug must correspond to what is set in the safety regulations.
It is obligatory to connect the machine to an earthed wall plug.
The plant must be fitted with an emergency safety cutout switch.
The simplicity of the connection must not make you under evaluate the importance of
respecting general security measures for electricity. Therefore it is important to:
control that the mains voltage is the same as that indicated on the engine plate
before using check the integrity of the electric cable and in case of damage it
must be replaced
avoid leaving the cable exposed to collisions, passage of people or vehicles or
any other situation that could be a threat to its integrity
protect the cable, plug-wall socket connection and any other electric parts from
humidity
In case the use of an extension cable is necessary, it is advisable to
use an electric 1.5 mm cable for lengths of up to 20 m and a 2.5 mm
cable for over 20m.
GB

Tipo Documento
Manuale PM –PMI –PIGMO - PIPMO
Anno
2016
Pagina
17 di 22
Nome File
Manuale PM –PMI –PIGMO - PIPMO
Revisione
0
4.5 Lubrication
The machine does not need particular servicing. Before starting it up you should
check oil levels, as indicated in chapter 6.
GRIFO Macchine Enologiche S.n.c. decline all responsibility for
damages to people or things caused by failure to comply to the
installation instructions set out in this section.
5. USE
5.1 Preliminary operations
Before starting up the machine you must check that all moving parts have been
lubricated, then periodically you should control the state of lubrication and make any
necessary interventions. For the instructions of use see paragraph 6.1.1.
The following controls must be made before starting of every work session

Cleaning of the machine, taking care not to wet the engine.

Control the state of connections to the power mains.

Control that inside the machine there are no foreign bodies that could
impede its correct functioning.

Control the presence of all protective covers.

Check the correct functioning of the controls, in particular the emergency
stop.
In the case when preliminary controls do not have positive
results, you must action the emergency stop, unplug the machine
and warn the department manager.
GB

Tipo Documento
Manuale PM –PMI –PIGMO - PIPMO
Anno
2016
Pagina
18 di 22
Nome File
Manuale PM –PMI –PIGMO - PIPMO
Revisione
0

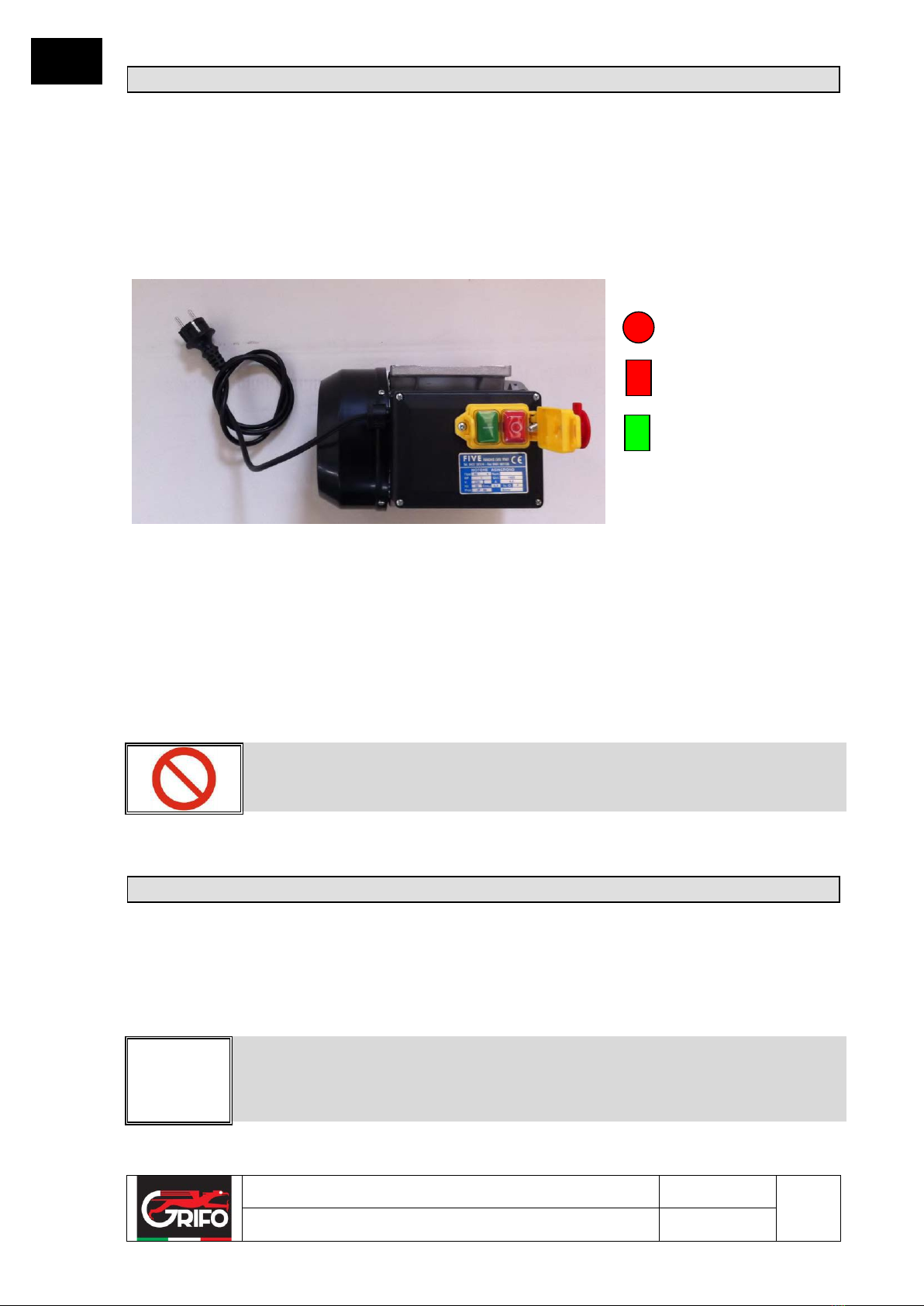

5.2 Starting up
Following the preliminary controls, you can turn on the machine by activating the start
button placed on the control board. After the engine is started, insert the bunches of
grapes into the hopper that, by means of the agitator, will be taken to the rollers
where the crushing takes place.
Fig. 4 Controls
After the engine is started, insert the bunches of grapes into the hopper that, by
means of the agitator, will be taken to the rollers where the crushing takes place.
Once crushed the product is ready for fermentation.
It is forbidden to put your hands near to the moving parts, in
particular the output shoot of the grape stems.
5.3 Instructions in case of blocking
If the machine is correctly used, the power of the electric motori is enough to prevent
any blocking. Anyway, in case of blocking it’s necessary to remove its cause.
Before doing any attempt to remove materials that could be the
cause of the blocking, you must disconnect the machine.
Use gloves.
Start
Stop
Emergency stop
GB

Tipo Documento
Manuale PM –PMI –PIGMO - PIPMO
Anno
2016
Pagina
19 di 22
Nome File
Manuale PM –PMI –PIGMO - PIPMO
Revisione
0
5.4 Taking out of service
To turn off the machine it is sufficient to activate the stop button.
In case of setting aside or taking out of service for a long time, it is necessary:
1. Disconnect the machine from the electricity power mains.
2. Cover it and possibly place it in a storage warehouse.
When the machine is started up after a period of being in storage,
you must follow carefully all the instructions in chapters 3, 4 and
5.
For restarting the machine you must proceed as indicated in paragraphs 5.1 and 5,2
6. MAINTANANCE
6.1 Maintenance, inspections and controls
With careful maintenance parts subject to wear have a longer life.
To guarantee a safe and efficient functioning of the machine maintenance should be
programmed and carried out thoroughly and punctually.
Any maintenance must be carried out by authorised personnel
when the machine is disconnected from the power mains.
In order to manage the machine in a correct, precise way, it is
advisable to register all maintenance work taking care to indicate the
date and type of work carried out.
A non-toxic, non-polluting detergent must be used for cleaning
operations.
The main operations of general maintenance work to be carried out are described as
follows.
The frequency of these depends on the conditions of use of the machine.
GB

Tipo Documento
Manuale PM –PMI –PIGMO - PIPMO
Anno
2016
Pagina
20 di 22
Nome File
Manuale PM –PMI –PIGMO - PIPMO
Revisione
0
6.1.1 Lubrication and controls
Before starting up the machine and in later on, periodically you must check the state
of lubrication of the movable parts of the machine (see par. 5.1)
OPERATION
FREQUENCY
A thorough cleaning of the hopper and rollers, paying attention not to wet
the engine
After every grape
crushing session
Oiling of all engine transmission parts
Monthly
Oiling of roller shafts through the holes situated on each support
Monthly
Oiling of agitator supports
Monthly
The elimination of oil must be done according to the current laws in the countries
where the machine is in use. During oiling operations care must be taken that the oil
does not dirty the elements that come into contact with the grapes and crushed
grapes. The position of the lubrication points has been studied to facilitate these
operations.
In any case it is forbidden to dissemble the engine. In case of
necessity, please contact GRIFO Macchine Enologiche S.n.c. or
the authorized dealer.
6.1.2 Spare parts
All spare parts are available from GRIFO Macchine Enologiche S.n.c. or from the
authorized dealer.
The use of unauthorized spare parts, different from those
supplied by GRIFO Macchine Enologiche or the authorized dealer
entail the forfeiture of the guarantee, as well as the Declaration of
Conformity of the machine.
6.2 Demolition
In the case the machine has to be demolished, it must be dismantled in uniform parts
and such parts must be separately disposed of according to current laws
GB
