WINE MAKING MACHINES
MANUAL
OF INSTALLATION, USE AND MAINTENANCE
SHELLER FOR POMEGRANTE BY
ELECTRIC MOTOR
Art. SM/SMI

Document
Manuale SM / SMI
Year
2019
Page
2 of 24
File name
Manuale SM / SMI
Revision
20.09.2019
GB
Dear Customer,
We thank you for choosing a GRIFO product, whose brand has
always been synonymous with functionality, robustness and reliability.
We are pleased to make this manual available to you, which is
designed to allow you to operate the machine in maximum safety and
productivity.
We invite you to read this technical publication very carefully and to
make it available to the personnel who will use the machine, as well as
to the person who will be in charge of its installation and maintenance.
We are at your disposal to provide you with any further information
you may require as well as to consider improvement proposals in order
to make this manual more and more responsive to the security needs
for which it has been prepared
With best wishes for a good job.
GRIFO Macchine enologiche S.n.c.
Via Mantova, 1
26034 Piadena Drizzona (CR), Italia
Tel. [phone]
Fax [phone]
e-mail: [email protected]
www. grifomarchetti.com

Tipo Documento
Manual SM - SMI
Anno
2019
Pagina
3 di 24
Nome File
Manual SM - SMI
Revisione
20.09.2019
GB
Index
EC Declaration of Conformity…………………………………………………………………..……4
1. INTRODUCTION…………………………………………………………………………………...5
1.1 Contents of the manual.................................................................................................5
1.2 Recipients and conservation of the manual...................................................................6
1.3 Responsability..............................................................................................................6
1.4 Manual update..............................................................................................................7
1.5 Guarantee.....................................................................................................................7
2. MACHINE DETAILS……………………………………………………………………………….7
2.1 Machine description and functioning.............................................................................7
2.2 Correct use.................................................................................................................11
2.3 Directives and standards ............................................................................................11
2.4 Technical informations................................................................................................11
3. SAFETY……………………………………………………………………………………………12
3.1 General informations ..................................................................................................12
3.2 Risks and preventive measures..................................................................................13
4. INSTALLATION…………………………………………………………………………………...15
4.1 Preparation for installation..........................................................................................15
4.2 Transport, unloading and installation ..........................................................................16
4.3 Positioning..................................................................................................................16
4.4 Electrical connections.................................................................................................18
4.5 Lubrication..................................................................................................................18
5. USE………………………………………………………………………………………………...19
5.1 Preliminary operations................................................................................................19
5.2 Starting up..................................................................................................................20
5.3 Instructions in case of blocking...................................................................................21
5.4 Taking out of service...................................................................................................21
6. MAINTENANCE…………………………………………………………………………………..22
6.1 Maintenance, inspections and controls.......................................................................22
6.1.1 Lubrication and controls...........................................................................................22
6.1.2 Machine cleaning.....................................................................................................23
6.1.3 Replacement parts...................................................................................................23
6.2 Demolition...................................................................................................................24

Tipo Documento
Manual SM - SMI
Anno
2019
Pagina
4 di 24
Nome File
Manual SM - SMI
Revisione
20.09.2019
GB
EC Declaration of Conformity
(Directive 2006/42 CE, Annex II, A)
GRIFO MACCHINE ENOLOGICHE S.n.c.
di Marchetti Giordano & C.
Via Mantova, 1
26034 Piadena (CR)
Italia
DECLARES THAT
The machine SHELLER FOR POMEGRANTE BY ELECTRIC MOTOR
model SM/SMI
conforms to Directives 2006/42/EC (Machines), 2006/95/EC (Low-voltage) and 2004/108/EEC
(Electromagnetic Compatibility) and EMC 2014/30/EC;
conforms to the standards EN 953, EN 13850, EN 60204-1.
Conforms food contact and enological use standard EC 1935 / 2004.
Name and address of the person authorized to compile the technical file:
Rosa Busi
Via Mantova, 1
26034 Piadena (CR)
Italia
Identity and signature of the person empowered to draw up the declaration on behalf of the manufacturer
Rosa Busi
Place and date of the declaration
Piadena (CR), 02.01.2019

Tipo Documento
Manual SM - SMI
Anno
2019
Pagina
5 di 24
Nome File
Manual SM - SMI
Revisione
20.09.2019
GB
1. INTRODUCTION
1.1 Contents of the manual
This manual contains the description of the technical and functional characteristics of
the SHELLER FOR POMEGRANTE, art. SM, SMI, and instructions for installation, use
and maintenance.
The manufacturer reserves all intellectual and editorial rights relating to the technical
publication, claiming all the properties, prohibiting the duplication and transfer to third
parties without written consent.
This instruction manual uses the following symbols.
Pay the utmost attention to the instructions accompanied by this symbol
as indicated.
Indications and useful tips for manipulation, mounting and installation, use
and maintenance operations.
Operations or behaviour absolutely forbidden

Continue in the indicated, operating sequence
Before starting to use the machine, it is mandatory to read the
instructions in the manual.

Tipo Documento
Manual SM - SMI
Anno
2019
Pagina
6 di 24
Nome File
Manual SM - SMI
Revisione
20.09.2019
GB
1.2 Recipients and conservation of the manual
The manual is intended for machine operators, such as persons in charge of
installing, operating, maintaining, cleaning and transporting the machine.
The manual must be kept with care, in a suitable place, so that it is always available
for consultation in the best state of preservation
The manual is part of the machine and must be kept for the entire life of
the machine and transmitted to any other user or subsequent owner.
1.3 Responsibility
The guarantee of proper operation of the machine at the intended service depends
on the correct application of all the instructions contained in the manual.
Before starting any operation, it is mandatory to read the instructions in
the manual.
With reference to what is described in this instruction manual, GRIFO Macchine
Enologiche S.n.c. declines every responsibility in the case of:
failure to comply with the installation, use and maintenance instructions in the
manual;
Inadequacy of the plant and environmental conditions in which the machine is
operating;
Unauthorized modifications to the machine;
tampering with guards and protection devices;
tampering with the control system;
use for purposes other than those indicated in the use and maintenance
manual;
use and maintenance of the machine by unskilled and unauthorized personnel;
use by children or persons with reduced physical, sensory or mental abilities;
use of non-original spare parts.
The only configurations and intended use allowed by the manufacturer
are those expressly indicated in the manual.

Tipo Documento
Manual SM - SMI
Anno
2019
Pagina
7 di 24
Nome File
Manual SM - SMI
Revisione
20.09.2019
GB
1.4 Manual update
This manual is an integral part of the machine DESTONER BY ELECTRIC MOTOR,
art. DENS, DENI
Any additions to the manual, which the manufacturer will send to users, must be kept
together with the manual and will be part of it.
1.5 Guarantee
The machine warranty covers the first 12 months from the first use. In the
case of non-immediate use, the warranty ends on the 18th month from
delivery.
The warranty does not cover the transport of the machine, which is the
responsibility of the purchaser, and ceases in the event of non-compliant
use.
Conditions other than those specified may be defined in the contractual phase.
2. MACHINE DETAILS
2.1Machine description and functioning
To meet the needs of the growing interest in pomegranate, we have proposed a new
machine on the market that makes the process of shelling the fruit completely
automatic.
The manufacturing process is very delicate and this machine is the best solution to
extract the juice. Designed and built with high quality materials and with attention to
every detail, it comes with a hopper and an enamelled steel case.
SHELLER FOR POMEGRANATE BY ELECTRIC MOTOR (SM)

Tipo Documento
Manual SM - SMI
Anno
2019
Pagina
8 di 24
Nome File
Manual SM - SMI
Revisione
20.09.2019
GB
S/STEEL SHEELER FOR POMEGRANATE BY ELECTRIC MOTOR (SMI)
Easy to use and practical in operation, insidethe hopper there isa screw which, thanks
to its movement, constantly drags the product inside the rollers which perform a first
crushing of the fruit and thanks to a powerful electric motor mounted on the machine,
the internal shaft with the stainless steel grid, with adapted holes, separates the hard
outer skin and the internal parts called “arils” from the precious grains. Mechanisms
and rollers are made of nylon, certified for food contact, such as gears that guarantee
robustness and long product life. The rollers can be adjusted a few millimeters.

Tipo Documento
Manual SM - SMI
Anno
2019
Pagina
9 di 24
Nome File
Manual SM - SMI
Revisione
20.09.2019
GB
Fig. 1 Fundamental elements of SHELLER FOR POMEGRANTE
Fig. 2 Detail of grid
Exit
peel
Exit juice
and grains
Support
tubes
Hopper of
load
Carter protection gear
Electric
motor

Tipo Documento
Manual SM - SMI
Anno
2019
Pagina
10 di 24
Nome File
Manual SM - SMI
Revisione
20.09.2019
GB

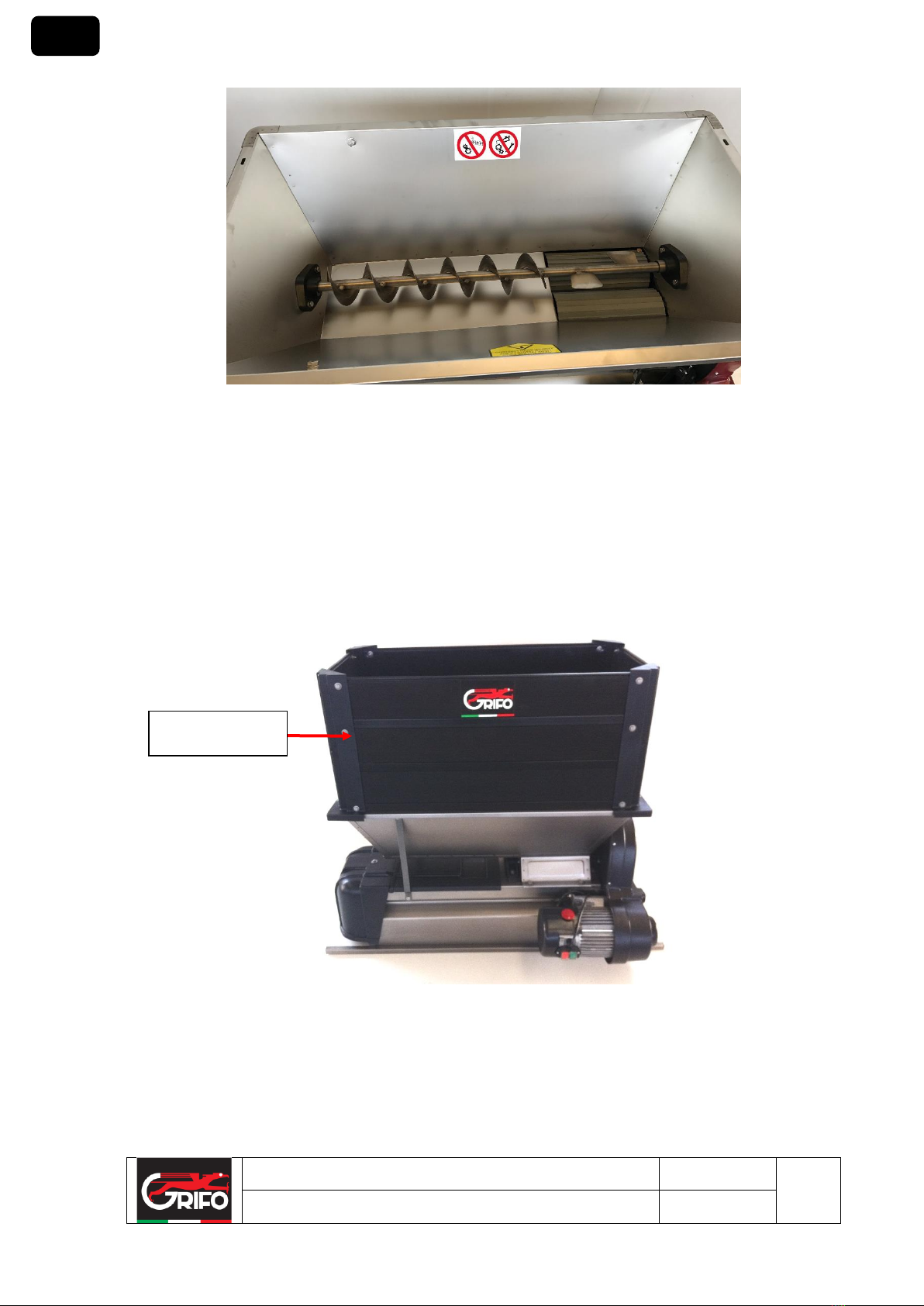

Fig. 3 Detail of hopper, auger and roller interior
Above the hopper must be mounted the protection box supplied (in assembly kit),
which prevents access of the upper limbs to the area of action of the auger and the
rollers.
The machine must be placed on a container for the collection of the pressing.
Fig. 4 Protection box
Load protection
box

Tipo Documento
Manual SM - SMI
Anno
2019
Pagina
11 di 24
Nome File
Manual SM - SMI
Revisione
20.09.2019
GB
2.2 Correct use
The SHEELER FOR POMEGRANTE art. SM, SMIis a machine for processing
pomegranate. The operations performed by the machine are:
Crushing: with the two rollers inserted inside the hopper;
Separation: peel grains and arils.
Any changes in the conditions of use of the machine, both in terms of
performed operations and of processed materials, must be considered as
a new commissioning pursuant to the Machinery Directive 2006/42 / EC
and relieve the manufacturer of any responsibility.
2.3 Directives and standards
The SHEELER FOR POMEGRANTE art. SM, SMI is designed and manufactured
according to European Directives 2006/42 CE (Machines), 2006/95/CE (Low voltage),
2004/108/CE (Electromagnetically Compatibility) and according to standards EN 953,
EN 13850, EN 60204-1.
2.4 Technical information
The characteristics of the machine and those required by the environment for correct
operation are shown below.
Max overall dimensions
Height 600 mm
Wight 600 mm
Lenght 1200 mm
Weight
57 kg
Power supply
230 V 50 Hz
Hopper dimensions
900x500 mm
Roller diameter
220 mm
Motor speed
1400 rpm
Roller speed
110 rpm
Speed of stemmer
550 rpm
Hourly production
500 kg
Operating temperature
5°C ÷ 45°C
Noise level
Inferiore a 70 dBA

Tipo Documento
Manual SM - SMI
Anno
2019
Pagina
12 di 24
Nome File
Manual SM - SMI
Revisione
20.09.2019
GB
Power supply
230 V 50 Hz monofase
Current consumption
5,5 A
Power
0, 75 kW
Degree of protection
IP 54
Tab. 2 Technical data of the SHELLER FOR POMEGRANATE
The plate on the machine shows the identification data of the manufacturer and of
the machine.
It is forbidden to remove the machine label.
3. SAFETY
3.1 General informations
The obligations of information and training of workers required by law, the employer,
the managers and the persons in charge of the company using the SHEELER FOR
POMEGRANTE art. SM, SMI will have to provide the personnel who will carry out the
installation, use and maintenance operations with all the information necessary to
guarantee their safe execution.
In particular, they must request and verify that:
all the workers in charge must comply with the procedures contained in the
manual and the general accident prevention measures required by the
regulations;
no operations other than those foreseen by the intended use defined by the
manufacturer are carried out;
no tampering or modifications are made to the machine and it is used
exclusively in the original configuration.

Tipo Documento
Manual SM - SMI
Anno
2019
Pagina
13 di 24
Nome File
Manual SM - SMI
Revisione
20.09.2019
GB
3.2 Risks and preventive measures
The SHEELER FOR POMEGRANTE art. SM, SMI it has been designed and built in
such a way as to eliminate or reduce as far as possible the risks for people destined
for use.
The preventive measures to ensure safe use of the machine are as follows.
Risk of machine falling
-Ensure the stability of the machine, compatibility between the length
of the support tubes and the size of the container where the machine
will be placed (par. 4.3).
-Use safety boots with steel toecaps.
Risk of contact with mobile organs
-Do not put your hands near the moving parts for any reason. If
necessary, first stop the machine (see the following figure).
-Do not remove the protection guards (transmission casing, stem guard,
upper casing).
Fig. 2 Location of moving organs

Tipo Documento
Manual SM - SMI
Anno
2019
Pagina
14 di 24
Nome File
Manual SM - SMI
Revisione
20.09.2019
GB
Risks in lifting the machine
-The weight of the machine requires it to be lifted by at least two people,
to avoid back injury.
Electrical risks
-Check that the mains voltage is the same as that indicated on the
machine plate.
-Periodically check the integrity of the cables and replace them if
necessary.
-Protect cables and electrical panels from humidity.
-Carry out maintenance operations with the machine disconnected.
-Authorize only personnel authorized to work on electrical components.
-When using multiple sockets or extensions, check that the power is
respected to avoid overloading and overheating.
-Avoid leaving exposed connection cables, especially in transit areas;
they can cause a stumbling block or be damaged.
-Keep your fingers away from power outlets. When inserting the plug,
keep your fingers on the insulating body of the socket, not touching
metal parts. Do not touch electrical components with wet hands.
-Do not tamper with equipment, sockets or plugs, or force the plug in if
it is difficult to get into the socket.
The verification of the place of use of the machine is the user's responsibility. The
following are some useful indications:

Tipo Documento
Manual SM - SMI
Anno
2019
Pagina
15 di 24
Nome File
Manual SM - SMI
Revisione
20.09.2019
GB
Positioning
The machine must be positioned so as not to constitute an
obstacle to the movement of men and equipment
Environment
The environmental conditions (temperature, humidity,
magnetic fields, etc.) must guarantee the correct operation of
the electrical components
Noise
The noise level of the machine is less than 70 dBA. The
distribution of tasks to operators must be such that exposure
to noise is within the limits allowed by law.
Any tampering with parts of the machine, and parts connected with
safety, relieves the manufacturer of any civil or criminal liability in the
event of accidents.
4. INSTALLATION
4.1 Preparation for installation
Before installing the machine it is necessary to assess the place where it is to be
positioned. The following are some important general rules:
Check the overall dimensions of the machine, leaving a distance of at least 70
cm from any type of fixed obstacle (walls, columns, walkways) to allow the
operator to move without impediments. Check that the foreseen location of the
machine does not interfere with any other machinery.
Check that the positioning of the machine does not involve interference with
other machines.
Check the flooring for stability, cleanliness and slope.
Ensure constant and uniform lighting to avoid risks due to shaded areas.
In the case of positioning the machine near transit areas, prepare suitable
barriers around it to protect it from accidental impacts.

Tipo Documento
Manual SM - SMI
Anno
2019
Pagina
16 di 24
Nome File
Manual SM - SMI
Revisione
20.09.2019
GB
If positioning is to be performed on mezzanines, upper floors or elevated areas,
check that the maximum capacity is greater than the total weight of the parts to
be supported and of any accessory weights such as lifting equipment, etc.
4.2 Transportation, unloading and installation
The machine is supplied already assembled, ready for use.
Transportation must be carried out by qualified transporters able to guarantee the
correct handling of the transported material.
The company GRIFO Macchine Enologiche S.n.c. assumes no
responsibility for transport damage. The goods are intended as delivered
ex-works.
Upon delivery, check the integrity of the various parts of the machine and that there
are no missing accessories essential for installation.
Check that the supply corresponds to the order specifications.
Complaints relating to the goods supplied must be sent, by e-mail, to the company
GRIFO Macchine Enologiche S.n.c. within 15 days of receipt of the goods.
The handling of the machine must be carried out by two adults, holding the four
support tubes at the end.
4.3 Positioning
When positioning the machine, in addition to complying with the general indications in
paragraphs 3.2 and 4.1, care must be taken to ensure that the support tubes are
compatible with the container on which the machine is placed. The container must be
placed so that the skins, coming out of the machine, fall outside it.
The containers used must have shape and dimensions able to guarantee the stability
of the machine. The distance between the support points must not be less than 850
mm (Fig. 3).

Tipo Documento
Manual SM - SMI
Anno
2019
Pagina
17 di 24
Nome File
Manual SM - SMI
Revisione
20.09.2019
GB
When positioning the machine, the height must be chosen so as to avoid contact with
the auger and the rollers placed on the bottom of the hopper. there is a protection
box to be fixed to the hopper with screws.
The box has a height of 450 mm, the upper end of the rise must have a height not
less than 1600 mm.
Fig. 3 Dimensional limits in positioning
The positioning of the protection box, supplied in assembly kit, on the
hopper is mandatory.
Minimo
850 mm
Minimo
1600 mm

Tipo Documento
Manual SM - SMI
Anno
2019
Pagina
18 di 24
Nome File
Manual SM - SMI
Revisione
20.09.2019
GB
4.4 Electrical connections
Connection to the mains requires the plug to be inserted. The socket must comply
with safety regulations.
It is mandatory to connect the machine to a grounded outlet. The
system must be fitted with a life-saving differential switch.
The simplicity of the connection must not underestimate the importance of
compliance with general security measures. It’s important:
control that the mains voltage is the same as that indicated on the engine plate
check the integrity of the electrical cable before use and replace it if it is
damaged;
avoid leaving the cable exposed to collisions, passage of people or vehicles or
any other situation that could be a threat to its integrity;
protect the cable, plug-wall socket connection and any other electric parts from
humidity.
In case the use of an extension cable is necessary, it is advisable to
use an electric 1.5 mm cable for lengths of up to 20 m and a 2.5 mm
cable for over 20m.
4.5 Lubrication
The machine does not need particular servicing. Before starting it up you should
check oil levels, as indicated in chapter 6.
GRIFO Macchine Enologiche S.n.c. decline all responsibility for damages
to people or things caused by failure to comply to the installation
instructions set out in this section.

Tipo Documento
Manual SM - SMI
Anno
2019
Pagina
19 di 24
Nome File
Manual SM - SMI
Revisione
20.09.2019
GB
5. USE
5.1 Preliminary operations
Before starting up, check that all the moving parts have been lubricated, then
periodically the lubrication status must be checked and, if necessary, intervene if
necessary. For the execution modalities, check paragraph 6.1.1.
The following controls must be made before starting of every work session

clean the machine, taking care not to wet the engine.

Control the state of connections to the power mains.

Check that there are no foreign bodies inside the machine that prevent
correct operation.

Control the presence of all protective covers.

Check the correct functioning of the controls, in particular the emergency
stop.
In case the preliminary checks are not successful, disconnect the
machine from the power supply and notify the department manager.

Tipo Documento
Manual SM - SMI
Anno
2019
Pagina
20 di 24
Nome File
Manual SM - SMI
Revisione
20.09.2019
GB
5.2 Starting up
Once the preliminary checks have been carried out, the machine can be switched on
by pressing the start button on the control panel.
Fig. 4 Machine controls
After starting the engine, insert the bunches of grapes into the hopper which, through
the auger, are taken to the rollers where the crushing takes place. Once pressed, the
bunch passes where there is the flapping tree that divides the grapes from the bunch
by performing the destemming. The stems come out at the back of the machine,
while the berry, passing through the holes in the grill, is ready for fermentation.
The dimensions of the stems' outlet are determined by safety requirements and
functional requirements, favoring the removal of the stalks. In the event of abnormal
accumulations that could obstruct the mouth, the machine must be stopped and the
obstructions removed.
It is forbidden to bring your hands close to moving parts, in particular
to the stems' exit mouth.
Start
Stop
Emergency stop
