Grifo SP3EL User manual

ELECTRIC TOMATO MACHINE
Art. SP3EL/SP3ELI/SP5EL/SP5ELI
2022 - ENGLISH
MANUAL OF USE,
INSTRUCTION AND MAINTENANCE

Tipo documento - SP3EL/SP3ELI/SP5EL/SP5ELI
Nome file - SP3EL/SP3ELI/SP5EL/SP5ELI
Anno 2022
Document
Manuale SP3EL –SP3ELI –SP5EL –SP5ELI
Year
2018
Page
2 of 24
File name
Manuale SP3EL –SP3ELI –SP5EL –SP5ELI
Revision
0
ING
Dear Customer,
We thank you for choosing a GRIFO product, whose brand has always
been synonymous with functionality, robustness and reliability.
We are pleased to make this manual available to you, which is
designed to allow you to operate the machine in maximum safety and
productivity.
We invite you to read this technical publication very carefully and to
make it available to the personnel who will use the machine, as well as to the
person who will be in charge of its installation and maintenance.
We are at your disposal to provide you with any further information you
may require as well as to consider improvement proposals in order to make
this manual more and more responsive to the security needs for which it has
been prepared
With best wishes for a good job.
GRIFO Macchine enologiche S.n.c.
Via Mantova, 1
26034 Piadena Drizzona (CR), Italia
Tel. [phone]
Fax [phone]
e-mail: [email protected]
www. grifomarchetti.com
GRIFO
MACCHINE ENOLOGICHE S.n.c.
di Marchetti Giordano & C.

Tipo documento - SP3EL/SP3ELI/SP5EL/SP5ELI
Nome file - SP3EL/SP3ELI/SP5EL/SP5ELI
Anno 2022
Document
Manuale SP3EL –SP3ELI –SP5EL –SP5ELI
Year
2018
Page
3 of 24
File name
Manuale SP3EL –SP3ELI –SP5EL –SP5ELI
Revision
0
ING
Summary
EC DECLARATION OF CONFORMITY......................................................................4
1. INTRODUCTION.....................................................................................................5
1.1 Contents .............................................................................................................5
1.2 Consigns and conservation of the manual .........................................................5
1.3 Responsibility .....................................................................................................6
1.4 Manual update....................................................................................................6
1.5 Warranty.............................................................................................................7
2. GENERAL INFORMATION ON THE MACHINE .....................................................8
2.1 Intended use.......................................................................................................8
2.2 Reference legislation..........................................................................................8
2.3 Technical information and machine identification ...............................................8
3. SAFETY AND ACCIDENT PREVENTION ............................................................10
3.1 General informations ........................................................................................10
3.2 Risks and prevention measures .......................................................................12
4. INSTALLATION.....................................................................................................13
4.1 Preparation for installation................................................................................13
4.2 Transportation, unloading and installation........................................................16
4.3 Installation and assembly .................................................................................17
5. USE.......................................................................................................................19
5.1 Preliminary operations......................................................................................19
5.2 Maintenance and repair....................................................................................21
5.3 Demolition and subdivision of materials ...........................................................21
5.4 Replacement parts ...........................................................................................22
5.5 Fault finding......................................................................................................23
5.6 Interchangeable equipment and accessories ...................................................24

Tipo documento - SP3EL/SP3ELI/SP5EL/SP5ELI
Nome file - SP3EL/SP3ELI/SP5EL/SP5ELI
Anno 2022
Document
Manuale SP3EL –SP3ELI –SP5EL –SP5ELI
Year
2018
Page
4 of 24
File name
Manuale SP3EL –SP3ELI –SP5EL –SP5ELI
Revision
0
ING
EC declaration of conformity
(Direttiva 2006/42 CE, Allegato II, lettera A)
As a manufacturer, the company
GRIFO MACCHINE ENOLOGICHE S.n.c.
di Marchetti Giordano & C.
Via Mantova, 1
26034 Piadena (CR)
Italia
DECLARES THAT
The machines ELECTRIC TOMATO MACHINE
Model SP3EL, SP3ELI, SP5EL, SP5ELI
It complies with the 2006/42 / EC (Machines) directive, as well as with the 2006/95 / EC Directives
(Basssa Tensione) and 2004/108 / CEE (Electromagnetic Compatibility);
It complies with the harmonized EN 953, EN 13850, EN 60204-1
It complies with food contact with the EC standard 1935/2004.
Name and address of the person authorized to set up the technical file of the machine:
Rosa Busi
Via Mantova, 1
26034 Piadena (CR)
Italia
Identification and signature of the person authorized to draw up the declaration on behalf of the
manufacturer:
Rosa Busi
Place and date of declaration:
Piadena (CR), 02.01.2018

Tipo documento - SP3EL/SP3ELI/SP5EL/SP5ELI
Nome file - SP3EL/SP3ELI/SP5EL/SP5ELI
Anno 2022
Document
Manuale SP3EL –SP3ELI –SP5EL –SP5ELI
Year
2018
Page
5 of 24
File name
Manuale SP3EL –SP3ELI –SP5EL –SP5ELI
Revision
0
ING
1. INTRODUCTION
1.1 Contents
This manual contains a description of the technical characteristics and functioning of
the ELECTRIC TOMATO MACHINE art. SP3EL, SP3ELI, SP5EL and SP5ELI, and
instructions for installation, use and maintenance.
The manufacturer reserves all intellectual and editorial rights relating to the technical
publication, claiming all the properties, prohibiting the duplication and transfer to third
parties without written consent.
This instruction manual uses the following symbols.
Pay the utmost attention to the instructions accompanied by this symbol
as indicated.
Indications and useful tips for manipulation, mounting and installation,
use and maintenance operations.
Operations or behaviour absolutely forbidden

Continue in the indicated, operating sequence
1.2 Consigns and conservation of the manual
The manual is intended for machine operators, such as persons in charge of
installing, operating, maintaining, cleaning and transporting the machine.
The manual must be kept with care, in a suitable place, so that it is always available
for consultation in the best state of preservation
The manual is part of the machine and must be kept for the entire life of
the machine and transmitted to any other user or subsequent owner.

Tipo documento - SP3EL/SP3ELI/SP5EL/SP5ELI
Nome file - SP3EL/SP3ELI/SP5EL/SP5ELI
Anno 2022
Document
Manuale SP3EL –SP3ELI –SP5EL –SP5ELI
Year
2018
Page
6 of 24
File name
Manuale SP3EL –SP3ELI –SP5EL –SP5ELI
Revision
0
ING
1.3 Responsibility
The guarantee of proper operation of the machine at the intended service depends
on the correct application of all the instructions contained in the manual.
Before operating the machine it is obligatory to read what is specified in
the manual
With reference to what is described in this instruction manual, GRIFO Macchine
Enologiche S.n.c. declines every responsibility in the case of:
not having observed the instructions for installation, use and maintenance in
the manual;
inadequacy of the installation and environmental conditions in which the
machine operates;
non authorized modifications to the machine;
use by unauthorized or untrained personnel.
The only configurations and intended use allowed by the manufacturer
are those indicated in the manual.
1.4 Manual update
The manual is an integral part of the ELECTRIC TOMATO MACHINE art. SP3EL,
SP3ELI, SP5EL and SP5ELI.
Any additions to the manual, which the manufacturer will send to users, must be kept
together with the manual and will be part of it.

Tipo documento - SP3EL/SP3ELI/SP5EL/SP5ELI
Nome file - SP3EL/SP3ELI/SP5EL/SP5ELI
Anno 2022
Document
Manuale SP3EL –SP3ELI –SP5EL –SP5ELI
Year
2018
Page
7 of 24
File name
Manuale SP3EL –SP3ELI –SP5EL –SP5ELI
Revision
0
ING
1.5 warranty
The warranty is valid for 24 months starting from the delivery date of the machine,
and gives the right to repair and replace the defective parts.
Any breakages or other anomalies must be communicated within 8 days of receipt of
the goods.
The purchaser will only have the right to request the repair or replacement of the
goods, with the exclusion of compensation for any damage.
The repair or replacement of defective materials will take place at the GRIFO snc
factory or at an authorized service center, where the returned materials must be
shipped carriage free.
GRIFO snc, or the authorized service center, will arrange to return them in the
assigned port.
To ensure smooth operation, GRIFO snc or the authorized service center can repair
or replace defective parts.
Defective parts can be replaced with new parts or returned in perfect working order.
The replaced parts become the property of GRIFO snc or the authorized service
center.
The warranty expires in the event that a fault is caused by improper use, external
causes or mechanical damage caused by accidents. Ends in case of adaptation,
modification or addition of material of other brands, not authorized by the company
GRIFO snc.
Repaired or replaced parts are covered only if the warranty is still valid.

Tipo documento - SP3EL/SP3ELI/SP5EL/SP5ELI
Nome file - SP3EL/SP3ELI/SP5EL/SP5ELI
Anno 2022
Document
Manuale SP3EL –SP3ELI –SP5EL –SP5ELI
Year
2018
Page
8 of 24
File name
Manuale SP3EL –SP3ELI –SP5EL –SP5ELI
Revision
0
ING
2. GENERAL INFORMATION ON THE MACHINE
2.1 Intended use
The GRIFO tomato squeezer is a machine for squeezing tomatoes by means of an
auger. It is intended for home use.
Any changes in the conditions of use of the machine, both in terms of
performed operations and of processed materials, must be considered as
a new commissioning pursuant to the Machinery Directive 2006/42 / EC
and relieve the manufacturer of any responsibility.
2.2 Reference legislation
The ELECTRIC TOMATO SAW, Mod. SP3EL, SP3ELI, SP5EL, SP5ELI has been
designed and built in compliance with the provisions of the European Directives
2006/42 CE (Machines), 2006/95 / CE (Low Voltage), 2004/108 / CE (
Electromagnetic compatibility) and in compliance with the EN 953, EN 13850, EN
60204-1 standards.
2.3 Technical information and machine identification

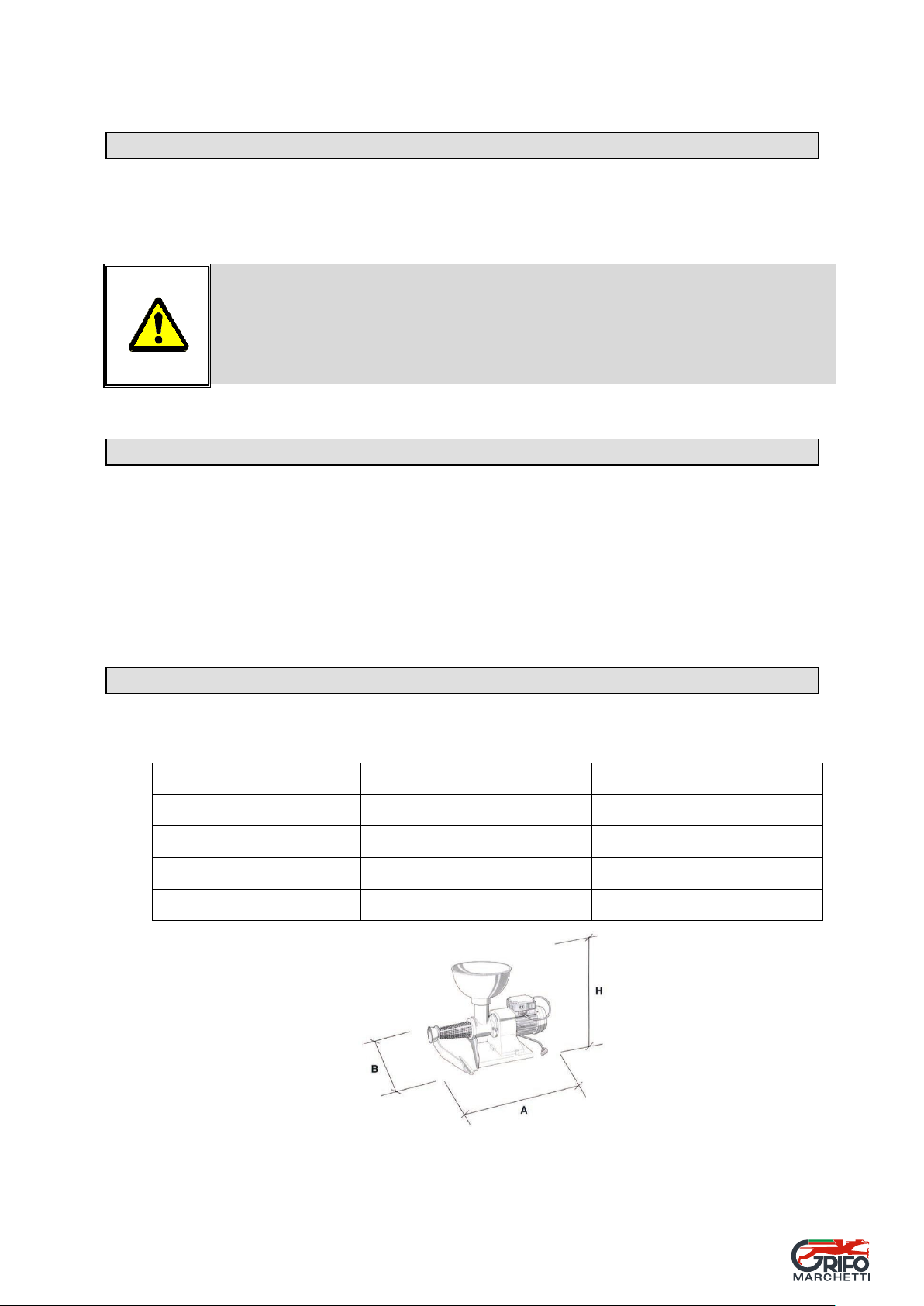

OVERALL DIMENSIONS OF THE MACHINES
Tomato machine Tomato machine
SP3EL - SP3ELI SP5EL - SP5ELI
A - Maximum length
56 cm 63 cm
B - Maximum width
27 cm 27 cm
C - Maximum height
30 cm 30 cm

Tipo documento - SP3EL/SP3ELI/SP5EL/SP5ELI
Nome file - SP3EL/SP3ELI/SP5EL/SP5ELI
Anno 2022
Document
Manuale SP3EL –SP3ELI –SP5EL –SP5ELI
Year
2018
Page
9 of 24
File name
Manuale SP3EL –SP3ELI –SP5EL –SP5ELI
Revision
0
ING
WEIGHTS
SP3EL - SP3ELI SP5EL - SP5ELI
Total weight of the machine
11,5 Kg 12,7 Kg
PERFORMANCES
Hourly production (raw toma
to) 80-150 Kg 150-300 Kg
Maximum rotation speed
115 giri/1I 115 giri/1I
ENERGY REQUIREMENTS
Electricity supply:
Voltage
230 V c.a. +/- 10%
Frequency
50 HZ
Total power absorbed
0,375 Kw
MAIN MOTOR
Supply voltage
230 V C.A. +/- 10%
Frequency
50 HZ
Power
0,375 Kw
Number of Poles
2
Speed
2800 rpm
Constructive form
B5
Degree of protection
IP 54
Insulation class
B
Plug
10 A
EMISSIONS
Noise produced by the machine in the workplace described in the manual:
Sound pressure level (A) = 79 dB (A).
Under special environmental conditions it may be higher than 79 dB A). In these
cases, hearing protection is necessary.

Tipo documento - SP3EL/SP3ELI/SP5EL/SP5ELI
Nome file - SP3EL/SP3ELI/SP5EL/SP5ELI
Anno 2022
Document
Manuale SP3EL –SP3ELI –SP5EL –SP5ELI
Year
2018
Page
10 of 24
File name
Manuale SP3EL –SP3ELI –SP5EL –SP5ELI
Revision
0
ING
CHARACTERISTICS OF THE WORKED PRODUCT
Tomatoes for puree, preserves, sauces and fruit for jam.
ALLOWED ENVIRONMENTAL CONDITIONS
Hygienic conditions suitable for squeezing the tomato.
Ambient temperature: from + 10 ° C to + 35 ° C
Humidity: do not use the tomato squeezer in environments with excessive
concentrations of steam.
Prohibited the use in environments at risk of fire and explosion
DESCRIPTION
The squeezer is made of 4 models:
The squeezer SP3EL
The squeezer SP3ELI
The squeezer SP5EL
The squeezer SP5ELI
3. SAFETY AND ACCIDENT PREVENTION
3.1 General informations
Do not leave the packaging elements (box, etc. ...) within the reach of children,
as they are potential sources of danger.
Before connecting the appliance, check that the data on the identification plate
are the same as those on the mains and that the socket used is suitable.
To use the tomato squeezer safely, the following rules must be followed:
-do not use the appliance barefoot
-do not leave the appliance exposed to atmospheric agents (rain, sun, etc. ..);
-unplug the appliance when not in use (do not leave the appliance
unnecessarily inserted);

Tipo documento - SP3EL/SP3ELI/SP5EL/SP5ELI
Nome file - SP3EL/SP3ELI/SP5EL/SP5ELI
Anno 2022
Document
Manuale SP3EL –SP3ELI –SP5EL –SP5ELI
Year
2018
Page
11 of 24
File name
Manuale SP3EL –SP3ELI –SP5EL –SP5ELI
Revision
0
ING
-never clean the electric parts of the squeezer with water or other liquids;
-do not unplug from the socket by pulling the power cord;
-do not place the tomato squeezer on the power supply cable, or on other
cables in the work area;
-do not lift the tomato squeezer by holding it by the cable;
-prevent the power cable from coming into contact with surfaces at high
temperatures, with oil, liquids or with sharp edges;
-do not move or transport the tomato squeezer when it is still connected to
the power supply.
Check that the electricity network has an earthling system that complies with the
standards in the country where the tomato squeezer is installed and used. If in
doubt, ask for a check of the system.

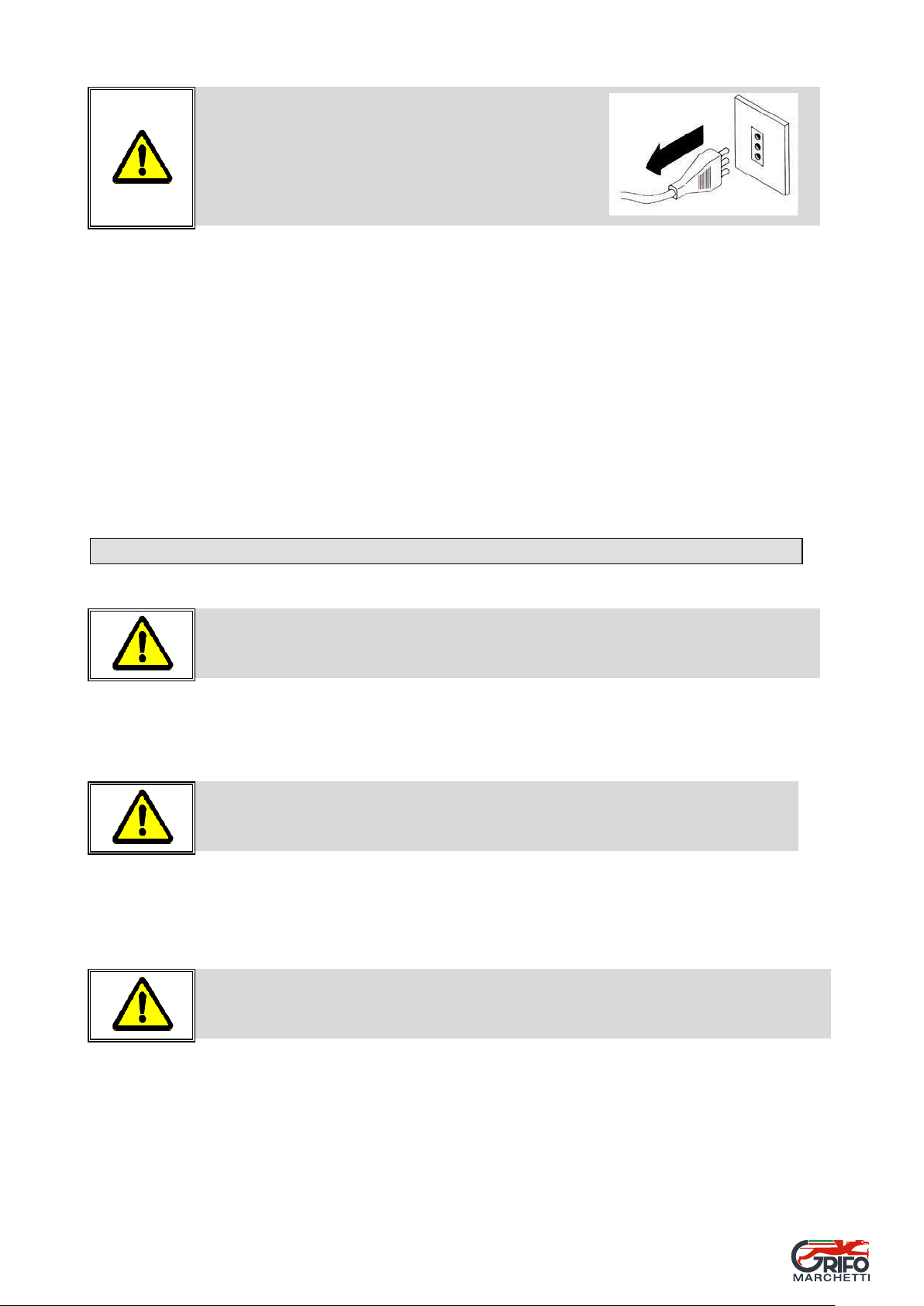

Place the switch in the "O" position and always remove the plug from the
socket before carrying out the assembly / disassembly operations,
replacement of parts, checks for checks and malfunctions, cleaning.
During operation of the tomato squeezer, do not allow children (or persons
unable to work) to approach the work area, touch the machine or the electric
cable. Do not leave the tomato squeezer capable of operating in unsafe
positions or with the plug inserted in the socket unattended.
Do not use clothing that can easily get caught. Attention in case of long hair,
which must be collected.
Do not use necklaces, bracelets, etc. ..., are often a source of accidents. The
use of glasses is recommended to prevent any hot tomato splashes from hitting
the eyes. For hygienic reasons the use of gloves is recommended.
If the cable is damaged, it must be replaced.
In outdoor environments, use only approved extension cords.
Before using the tomato squeezer, check the efficiency, the perfect condition of
the safety devices.
Check that the moving parts are not blocked, that they can work properly and
that there are no damaged parts.
Check that all the tomato squeezer components are correctly assembled.

Tipo documento - SP3EL/SP3ELI/SP5EL/SP5ELI
Nome file - SP3EL/SP3ELI/SP5EL/SP5ELI
Anno 2022
Document
Manuale SP3EL –SP3ELI –SP5EL –SP5ELI
Year
2018
Page
12 of 24
File name
Manuale SP3EL –SP3ELI –SP5EL –SP5ELI
Revision
0
ING
Damaged parts must be repaired or replaced by specialized personnel at
authorized service centers.
If the switch is damaged, it must be replaced by qualified personnel at
authorized service centers.
Never use the tomato squeezer if the switch is broken or defective and therefore
does not allow a safe stop or start-up of the machine.
Use only parts or spare parts listed herein or recommended by the
manufacturer. Using parts or spare parts other than those indicated in the
manual can create dangerous situations for people.
The tomato squeezer complies with safety standards. Repairs must be
carried out by specialized personnel at authorized service centers.
3.2 Risks and prevention measures
The ELECTRIC TOMATO MACHINE has been designed and built in such a way as
to eliminate or minimize the risks for people destined for use.
Risk of falling of the machine
Any tampering with parts of the machine, and in particular parts
connected with safety, relieves the manufacturer of any civil or criminal
liability in the event of accidents.

Tipo documento - SP3EL/SP3ELI/SP5EL/SP5ELI
Nome file - SP3EL/SP3ELI/SP5EL/SP5ELI
Anno 2022
Document
Manuale SP3EL –SP3ELI –SP5EL –SP5ELI
Year
2018
Page
13 of 24
File name
Manuale SP3EL –SP3ELI –SP5EL –SP5ELI
Revision
0
ING
4. INSTALLATION
4.1 Preparation for installation
UNPACKING
Inside the packaging, in addition to the manual (which contains the declaration of
conformity), one must find:
•pre-assembled tomato squeezer
•a funnel
•a tampon
•a slide

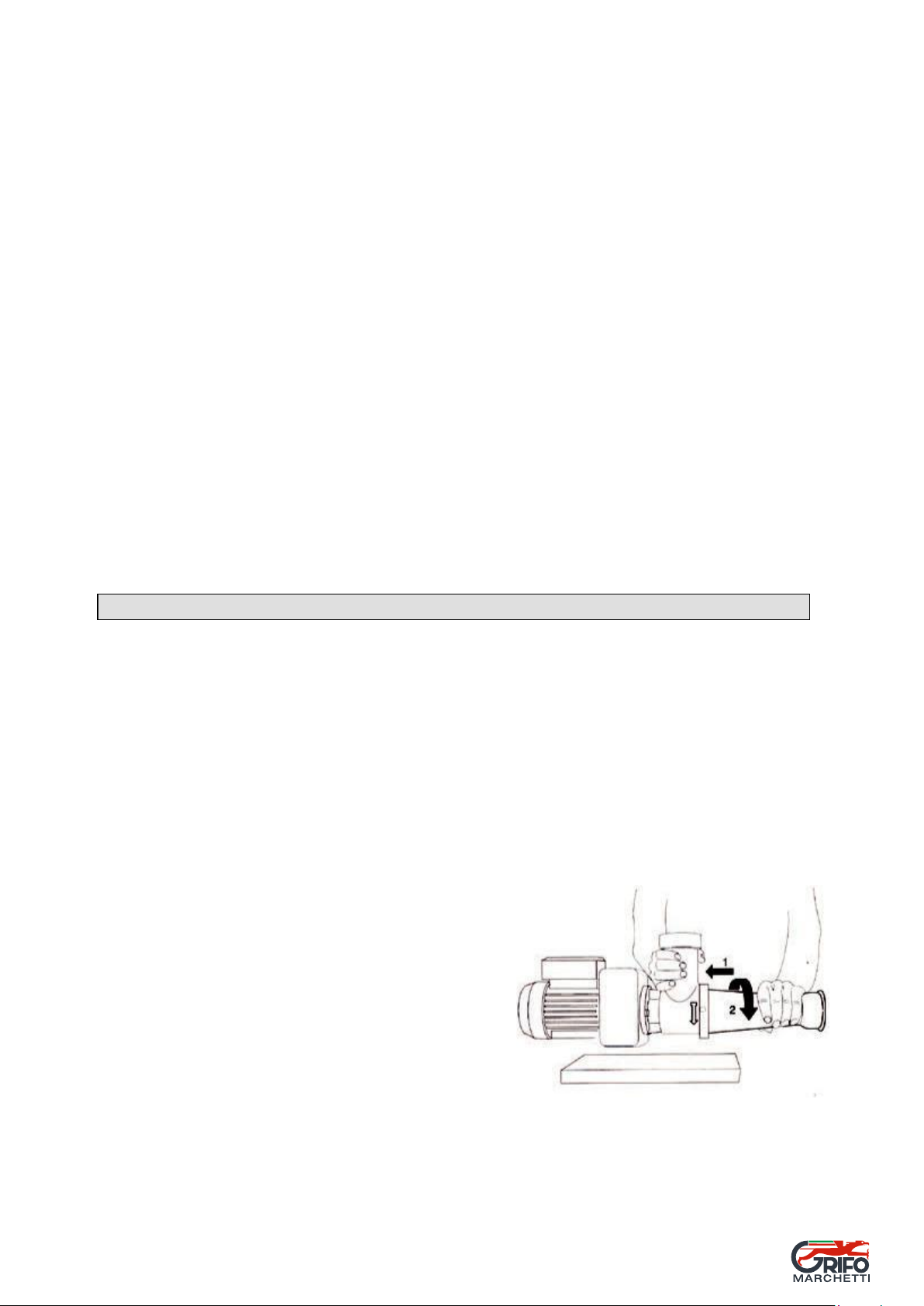

Remove the loose parts from the package, insert
one hand under the body and the other under
the electric motor and remove the tomato
squeezer from the packaging (Fig.5).
Do not lift the tomato squeezer by grasping it by the filter, it may come off
and fall down, cause damage, or damage the machine.
Check that the tomato squeezer has not been damaged. Check the on / off switch,
the electric cable and the plug very carefully. In the event of anomalies, do not use
the tomato squeezer and contact your dealer immediately.
Before installing the machine it is necessary to assess the place where it is to be
positioned. Some important precautions are the following:
Check the size of the machine, leaving a distance of at least 70 cm from any
type of fixed obstacle (walls, columns, walkways) to allow the operator to
move unimpeded.
Document
Manuale SP3EL –SP3ELI –SP5EL –SP5ELI
Year
2018
Page
14 of 24
File name
Manuale SP3EL –SP3ELI –SP5EL –SP5ELI
Revision
0
ING
Check that the positioning of the machine does not involve interference with
other machines.
Check the flooring in terms of stability, cleanliness and slope.
Ensure constant and uniform lighting to avoid risks due to shaded areas.
PRELIMINARY CLEANING
Some parts of the machine are protected with oils and protective materials for the
time spent in the warehouses, waiting for the sale. Before putting the machine into
service (first use), it is necessary to clean it thoroughly to remove the oils and
protective materials.
All cleaning operations must be carried out with the plug disconnected.

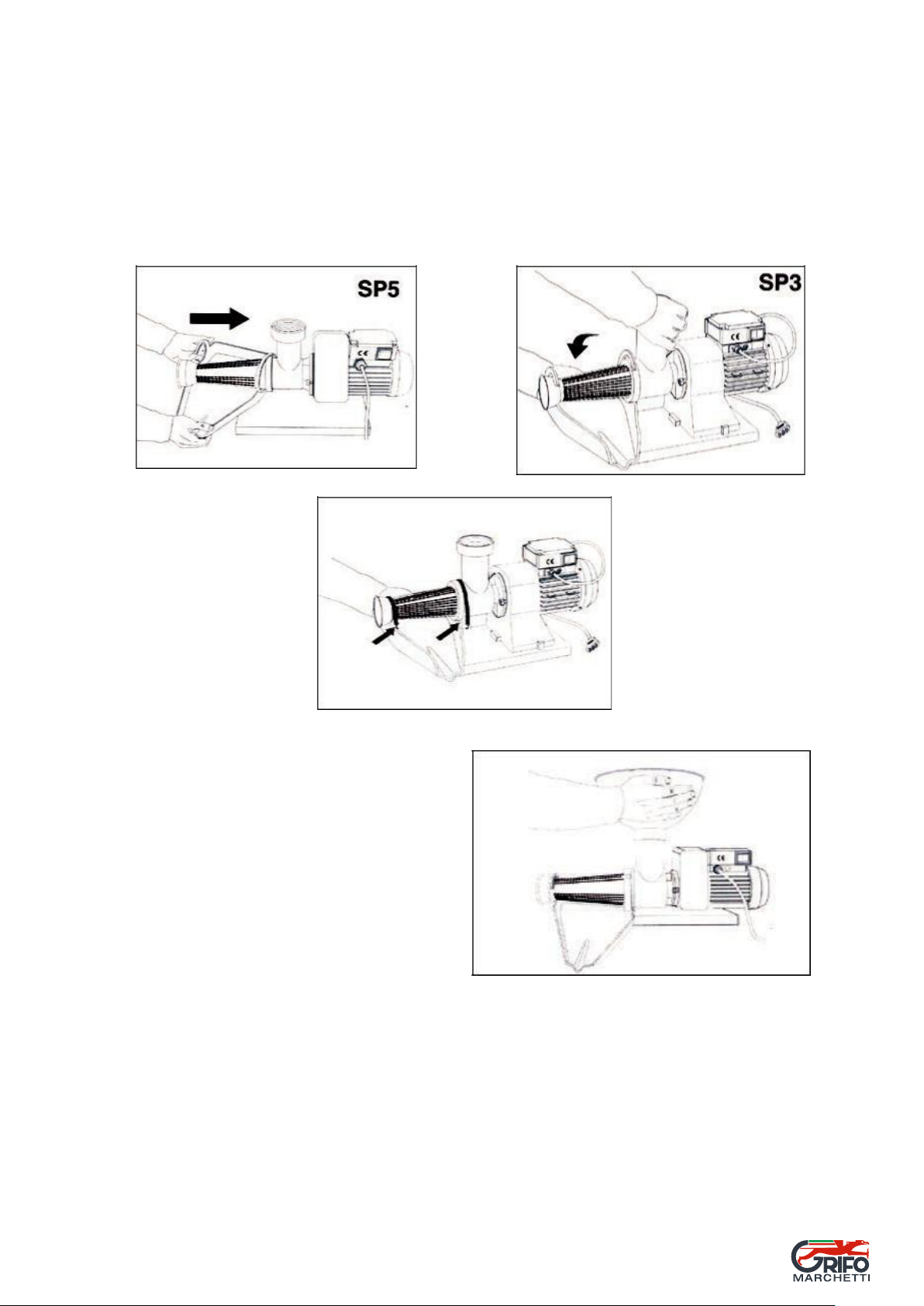

Remove the tomato squeezer as follows:
Hold the tomato squeezer with one hand,
holding it by the body. With the other hand turn
the filter in the opposite direction to that
indicated by the arrow in relief on the body (Fig.
6)
Remove the filter and the screw (Fig. 7)
Separate the filter from the continuous screw
(Fig.8)

Tipo documento - SP3EL/SP3ELI/SP5EL/SP5ELI
Nome file - SP3EL/SP3ELI/SP5EL/SP5ELI
Anno 2022
Document
Manuale SP3EL –SP3ELI –SP5EL –SP5ELI
Year
2018
Page
14 of 24
File name
Manuale SP3EL –SP3ELI –SP5EL –SP5ELI
Revision
0
ING
Check that the positioning of the machine does not involve interference with
other machines.
Check the flooring in terms of stability, cleanliness and slope.
Ensure constant and uniform lighting to avoid risks due to shaded areas.
PRELIMINARY CLEANING
Some parts of the machine are protected with oils and protective materials for the
time spent in the warehouses, waiting for the sale. Before putting the machine into
service (first use), it is necessary to clean it thoroughly to remove the oils and
protective materials.
All cleaning operations must be carried out with the plug disconnected.
Remove the tomato squeezer as follows:
Hold the tomato squeezer with one hand,
holding it by the body. With the other hand turn
the filter in the opposite direction to that
indicated by the arrow in relief on the body (Fig.
6)
Remove the filter and the screw (Fig. 7)
Separate the filter from the continuous screw
(Fig.8)
Document
Manuale SP3EL –SP3ELI –SP5EL –SP5ELI
Year
2018
Page
15 of 24
File name
Manuale SP3EL –SP3ELI –SP5EL –SP5ELI
Revision
0
ING

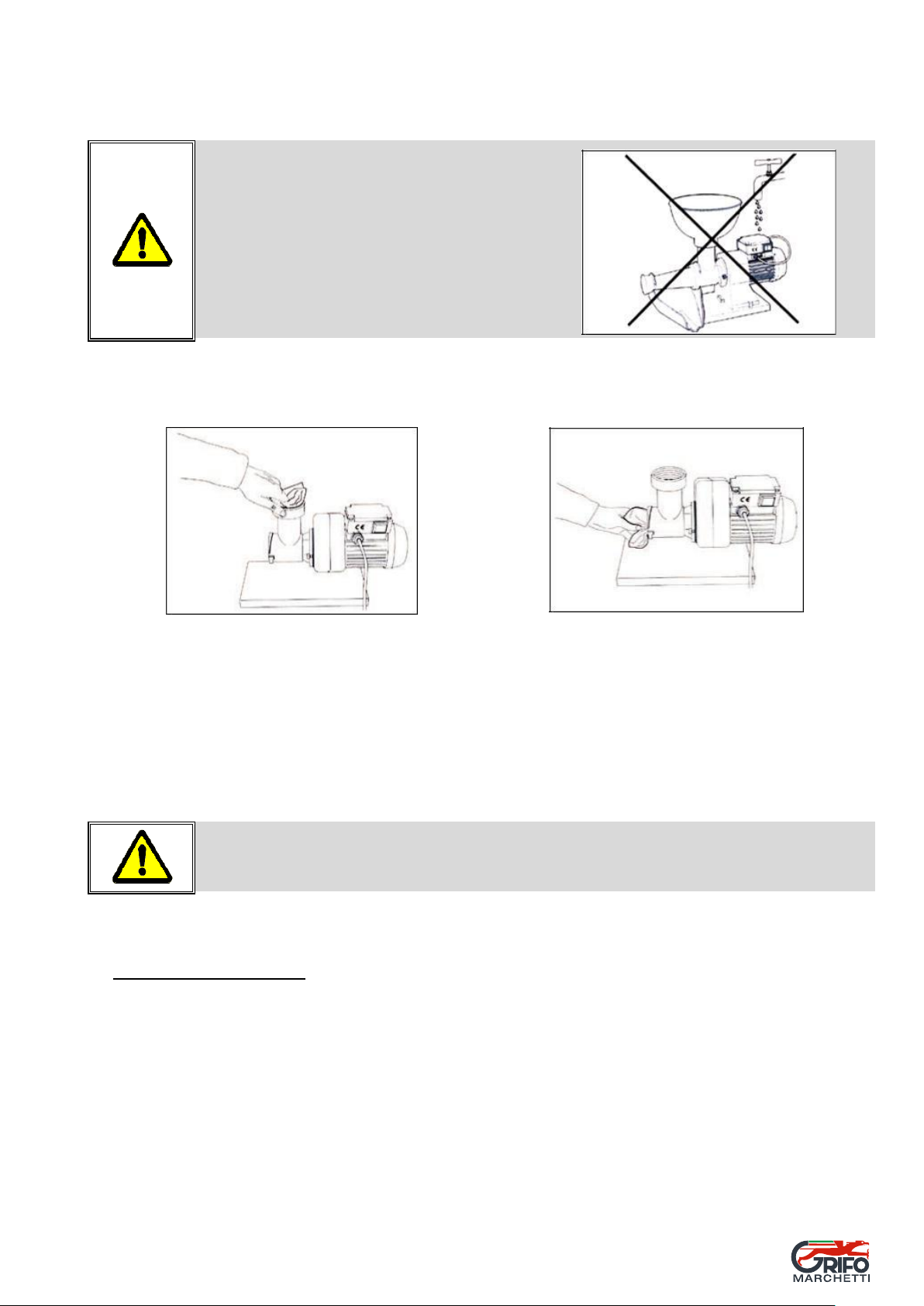

Use a normal liquid detergent for dishes and dishes.
Never wash the electric motor under
running water
Use a slightly wet sponge
Wash several times to completely remove the protective and
detergent
To clean the other accessories simply wash them repeatedly and rinse with
running water.
Do not use powdered products or metal pads to wash the continuous screw, they
could damage the coating that makes it suitable for food.
PERIODIC CLEANING
Before and after each use, it is necessary to proceed with a cleaning that removes
the residues of the work or the accumulated dirt.

Tipo documento - SP3EL/SP3ELI/SP5EL/SP5ELI
Nome file - SP3EL/SP3ELI/SP5EL/SP5ELI
Anno 2022
Document
Manuale SP3EL –SP3ELI –SP5EL –SP5ELI
Year
2018
Page
15 of 24
File name
Manuale SP3EL –SP3ELI –SP5EL –SP5ELI
Revision
0
ING
Use a normal liquid detergent for dishes and dishes.
Never wash the electric motor under
running water
Use a slightly wet sponge
Wash several times to completely remove the protective and
detergent
To clean the other accessories simply wash them repeatedly and rinse with
running water.
Do not use powdered products or metal pads to wash the continuous screw, they
could damage the coating that makes it suitable for food.
PERIODIC CLEANING
Before and after each use, it is necessary to proceed with a cleaning that removes
the residues of the work or the accumulated dirt.

Tipo documento - SP3EL/SP3ELI/SP5EL/SP5ELI
Nome file - SP3EL/SP3ELI/SP5EL/SP5ELI
Anno 2022
Document
Manuale SP3EL –SP3ELI –SP5EL –SP5ELI
Year
2018
Page
16 of 24
File name
Manuale SP3EL –SP3ELI –SP5EL –SP5ELI
Revision
0
ING
All cleaning operations must be carried out
with the plug disconnected
After cleaning, it is necessary to reassemble:
Pin,
Spring,
Continuous screw,
Filter (with rubber seal, only SP3EL and SPELI),
Funnel,
Slide,
in the same manner as described in the "Installation and assembly" section.
4.2 Transportation, unloading and installation
The company GRIFO Macchine Enologiche S.n.c. assumes no liability for
damage resulting from transport. The goods are supplied ex-works.
Once the machine is received, check the integrity of the different parts of the machine
and that there are no missing accessories essential for installation.
Verify that the supply matches the order specifications.
Complaints of the supplied goods must arrive, by e-mail, to the company GRIFO
Macchine Enologiche S.n.c. within 15 days of receipt of the goods.
Pay the utmost attention when moving the machine, respecting the
provisions of the safety regulations and procedures.

Tipo documento - SP3EL/SP3ELI/SP5EL/SP5ELI
Nome file - SP3EL/SP3ELI/SP5EL/SP5ELI
Anno 2022
Document
Manuale SP3EL –SP3ELI –SP5EL –SP5ELI
Year
2018
Page
17 of 24
File name
Manuale SP3EL –SP3ELI –SP5EL –SP5ELI
Revision
0
ING
The tomato squeezer and the accessories are contained in a cardboard packaging.
the packaging shows the symbols indicating the HIGH side (upper side to be
opened).
The packaging can be handled manually by an adult.
It is advisable to keep the packaging to place the machine after each use.
If you do not wish to preserve it, it can be disposed of as normal domestic waste, with
a separate collection that allows it to be reused.
In case of storage, no more than 3 packaged squeezers should be placed on top of
each other. In any case, do not place a greater weight on the packaging than
indicated on the packaging (Fig.4).
Do not expose it to the elements, it fears humidity.
The same warnings apply in the event of a long period of non-use: keep in a dry, safe
and inaccessible place for children.
4.3 Installation and assembly
Place the tomato squeezer on a table suitable to bear the weight.
Do not place the rear wall of the electric motor equipped with the cooling grid
on the wall. Leave at least 10cm to allow air to pass through.
The space around the squeezed tomato must be sufficient to operate
smoothly.
The work table must be kept clean and tidy.
Insert the continuous screw into the pin,
turn it slightly to allow the pin to slide into
the central seat of the screw;
Insert the filter on the continuous screw
(Fig.8);
Document
Manuale SP3EL –SP3ELI –SP5EL –SP5ELI
Year
2018
Page
18 of 24
File name
Manuale SP3EL –SP3ELI –SP5EL –SP5ELI
Revision
0
ING
The filter is equipped with two clutches to be inserted into the slots of the
body. Hold the tomato squeezer with one hand, with the other hand push and
turn the filter strongly in the direction indicated by the arrow in relief (Fig.12);
In this way the filter will be blocked to the body;
Assemble the chute by hooking it to the body and the filter (Fig.13, 14, 15)
Screw the upper funnel (Fig.17)
2019-ING
Document
Manuale SP3EL –SP3ELI –SP5EL –SP5ELI
Year
2018
Page
22 of 24
File name
Manuale SP3EL –SP3ELI –SP5EL –SP5ELI
Revision
0
5.4 Replacement parts
All spare parts can be purchased from GRIFO Macchine Enologiche S.n.c. or at an authorized
dealer.
Unauthorized use of spare parts other than those supplied by the Grifo
Macchine Enologica or by an authorized retailer entails the loss of the guarantee
and of the machine's Declaration of Conformity. Its use is not strongly
recommended.
The squeezer is composed of (Fig.3):
1. stand
2. crankcase
3. body
4. funnel (in plastic or stainless steel)
5. pestle
6. plastic bushes
7. pin
8. springs for tomato squeezers
9. propeller
10. filter (with rubber seal only SP3)
11. tray (in plastic or stainless steel)
12. electric motor (with gearbox)
13. ON / OFF switch
14. electrical power cord equipped with a plug
15. splashguard
I

Tipo documento - SP3EL/SP3ELI/SP5EL/SP5ELI
Nome file - SP3EL/SP3ELI/SP5EL/SP5ELI
Anno 2022
Document
Manuale SP3EL –SP3ELI –SP5EL –SP5ELI
Year
2018
Page
18 of 24
File name
Manuale SP3EL –SP3ELI –SP5EL –SP5ELI
Revision
0
ING
The filter is equipped with two clutches to be inserted into the slots of the
body. Hold the tomato squeezer with one hand, with the other hand push and
turn the filter strongly in the direction indicated by the arrow in relief (Fig.12);
In this way the filter will be blocked to the body;
Assemble the chute by hooking it to the body and the filter (Fig.13, 14, 15)
Screw the upper funnel (Fig.17)
Document
Manuale SP3EL –SP3ELI –SP5EL –SP5ELI
Year
2018
Page
19 of 24
File name
Manuale SP3EL –SP3ELI –SP5EL –SP5ELI
Revision
0
ING
-It is forbidden to use the tomato squeezer without the upper funnel
-Insert the fingers inside the funnel to push the tomatoes into the
machine
5. USE
5.1 Preliminary operations
INTENDED USE: GRIFO squeezers are a tomato squeezing machine by means of a
cochlea. It is intended for domestic use.
Do not make the tomato squeezer run empty. By turning dry in the filter, the
coating of the continuous screw could be damaged.
Fill the funnel with the tomatoes ready to be
squeezed (Fig.19).
Start the tomato squeezer by pressing the
power button in position "I" (Fig.20). The
rubber protection of the switch forces you to
press it fully.
Document
Manuale SP3EL –SP3ELI –SP5EL –SP5ELI
Year
2018
Page
23 of 24
File name
Manuale SP3EL –SP3ELI –SP5EL –SP5ELI
Revision
0
ING
5.5 Fault finding
PROBLEM
REMEDY
1. The machine does not work.
1a.
Verify that the switch is set to "O"
1b.
Check that the plug is correctly inserted into a
working outlet on the mains supply
1c.
Press the switch and set it to "I".
1d.
Check that the power cord is intergro and there are
no signs of wear
1 e
That the electric current is present in the supply
system
1 f
That the switch is not broken
2. There are oil seepage on
the continuous screw
2a.
Contact GRIFO snc or an authorized service center
to replace the gearbox seal
Note: The product contaminated with oil must be
discarded
I

Tipo documento - SP3EL/SP3ELI/SP5EL/SP5ELI
Nome file - SP3EL/SP3ELI/SP5EL/SP5ELI
Anno 2022
Document
Manuale SP3EL –SP3ELI –SP5EL –SP5ELI
Year
2018
Page
19 of 24
File name
Manuale SP3EL –SP3ELI –SP5EL –SP5ELI
Revision
0
ING
-It is forbidden to use the tomato squeezer without the upper funnel
-
Insert the fingers inside the funnel to push the tomatoes into the
machine
5. USE
5.1 Preliminary operations
INTENDED USE: GRIFO squeezers are a tomato squeezing machine by means of a
cochlea. It is intended for domestic use.
Do not make the tomato squeezer run empty. By turning dry in the filter, the
coating of the continuous screw could be damaged.
Fill the funnel with the tomatoes ready to be
squeezed (Fig.19).
Start the tomato squeezer by pressing the
power button in position "I" (Fig.20). The
rubber protection of the switch forces you to
press it fully.

Tipo documento - SP3EL/SP3ELI/SP5EL/SP5ELI
Nome file - SP3EL/SP3ELI/SP5EL/SP5ELI
Anno 2022
Document
Manuale SP3EL –SP3ELI –SP5EL –SP5ELI
Year
2018
Page
20 of 24
File name
Manuale SP3EL –SP3ELI –SP5EL –SP5ELI
Revision
0
ING
With the pad push the tomato into the mouth of the funnel. For this operation
only the use of the supplied buffer is allowed
-It is forbidden to use spoons or other tools instead of the tampon.
They could be dragged by the continuous screw.
-It is advisable to discard the first part
of tomato sauce (about a 200
gr), it may contain some detergent residue.
During operation the tomato purée leaves the filter, it is collected by the chute that
unloads it in a pot or another food container. From the end of the filter the waste
skins of the tomatoes come out.
The person in charge must operate from a position that allows him to immediately
activate the on / off switch.
Remember that the tomato puree must be stored in food containers, hermetically
sealed to prevent the formation of bacteria and / or molds that can cause serious
poisoning, in the most serious cases lead to death.
USES INCORRECT
All uses not considered in the manual are considered incorrect uses.
In particular, it is recalled that IT IS FORBIDDEN:
the use of the tomato squeezer by children or incompetent persons;
start the electric motor without the continuous screw, the filter and the upper
funnel being mounted;
carry out any adjustment, cleaning, installation, assembly and disassembly
operation, etc. with the plug inserted into the electrical socket;
use hands or tools other than the swab to press the tomato into the funnel;
use the tomato squeezer with products other than boiled tomatoes;
use the tomato squeezer in an industrial environment:
use the tomato squeezer in areas where there is a risk of explosion and / or
fire; use the electric motor unit to operate other interchangeable equipment
and accessories other than those provided for by GRIFO snc, according to the
instructions provided.
In case of fires due to incorrect use GRIFO snc declines all responsibility.
