Grindmaster Cecilware American Metal Ware PrecisionBrew Digital Shuttle... User manual

PB330 and PB430 PrecisionBrew™Digital Shuttle®Brewers
Operator Manual
Grindmaster-Cecilware
4003 Collins Lane, Louisville, KY 40245 USA
Phone: [phone] Toll Free: 800.695.4500
Fax: [phone]
Web: gmcw.com Email: [e-mail]
Safety Information..................2
Installation...............................3
Start up....................................4
Operation ................................5
Adjustments ............................5
Control Features......................6
Programming ..........................7
Cleaning.................................13
Maintenance .........................14
Special Control Functions .....14
Troubleshooting Guide.........16
Parts Diagram and List..........22
Wiring Diagram.....................29
Thermistor Chart...................39
Thank you for purchasing this quality brewer. For your safety and the safety of others, read all warnings and the
operator manual before installing or using the product. Properly instruct all operators. Keep training records. For
future reference, record serial number here:
Table of Contents
©2016 Grindmaster-Cecilware
Printed in USA
0516 Form # AM-346-04
Part # 390-00065
Grindmaster-Cecilware provides the
industry’s BEST warranty. Visit gmcw.com
for warranty terms and conditions.
Model PBIC-430
Model PB-330 Model PBVSA-330

GB Series Cecilware®2
For safe and proper operation, the appliance must be placed in a stable, vertical position.
To reduce risk of serious burns or scalding, do not place hand or other body parts under dispenser or container
while product is brewing.
Always unplug unit from power supply before servicing.
Hot liquid in brew basket could cause burns. Remove with care.
Warmers and surfaces are hot and can cause burns.
CAUTION
To reduce risk of electrical shock, do not remove side panels. No user-serviceable parts inside. Repair should be
done by authorized service personnel only.
The appliance is not intended for outdoor use.
Do not clean with pressurized water or use in an area where pressurized water may be used.
Cleaning and maintenance shall be made only by properly trained persons with supervision.
Do not remove shuttle, airpot, or basket while product is brewing.
This appliance is not intended for use by persons with reduced physical, sensory, or mental capabilities, or lack
of experience and knowledge, unless they have been given supervision or instruction concerning use of the
appliance by a person responsible for their safety.
Children should be supervised to ensure that they do not play with the appliance.
Do not alter or deform the power cord or plug in any way! Altering or deforming the plug may cause electrical
shock, damage unit, and will void warranty.
To reduce risk of explosion or fire, do not use near combustibles.
WARNING
Safety Information
2 American Metal Ware PB330 & PB430 Shuttle®Brewers
Important Safety Information
This is the safety alert symbol. It is used to alert you to potential personal injury hazards. Obey all safety messages
that follow this symbol to avoid possible injury or death.
For your safety and the safety of others, read all warnings and the operator manual before installing or using
the product.
DANGER: This term warns the user of imminent hazard that will result in serious injury or death.
WARNING: This term refers to a potential hazard or unsafe practice, which could result in serious injury or death.
CAUTION: This term refers to a potential hazard or unsafe practice, which could result in minor or moderate
injury.
NOTICE: This term refers to information that needs special attention or must be fully understood.
Use only on a circuit that is properly protected and capable of the rated load.
Electronically ground the chassis.
Follow national and local electrical codes.
Do not use extension cord.
This equipment must be installed in compliance with applicable Federal, State and/or Local plumbing codes
having jurisdiction. This product requires an approved backflow prevention water device, such as a double check
valve, to be installed between the machine and the water supply.
NOTICE

PB330 & PB430 Shuttle®Brewers American Metal Ware®3
Installation
Unpacking Instructions
Carefully unpack the machine and inspect immediately
for shipping damage. The packaging may contain un-
attached parts. Your machine was shipped in a carton
designed to give it maximum protection in normal
handling. It was thoroughly inspected before leaving
the factory. In case of damage, contact the shipper, not
Grindmaster-Cecilware.
NOTICE: The person installing this appliance is
responsible for ensuring that electric and water
connections meet the requirements of the national
electric code, national plumbing code, and any local
ordinances.
The electric and water hook-up locations are behind the
front panel. Remove the four screws fastening this
panel for access to these connections.
Mechanical Installation
NOTICE: This brewer should be installed by a
knowledgeable and experienced commercial
equipment installer.
1. Inspect unit to see if any damage occurred in
shipment.
2. Remove the brewer from the packing material and
attach its legs.
3. Position the brewer on a strong, stable table or
counter.
4. With bubble level, check to see that the brewer is
level on countertop. Check the level front to back
and side to side. Adjust the legs to the correct level.
Water Hook-up
NOTICE: This equipment must be installed in
compliance with applicable Federal, State and/or Local
plumbing codes having jurisdiction. This product
requires an approved backflow prevention water
device, such as a double check valve, to be installed
between the machine and the water supply. Incoming
pressure should be greater than 30 psi and not more
than 80 psi (207-552 KPA).
1. The water line may enter through holes on the rear
or the bottom of the brewer. Use the right hand
opening for water.
2. Use 3/8" copper or flexible water line to prevent
strain. Do not use low temperature plastic tubing.
The connection to the fill valve is 3/8" flare.
3. Prior to installing the brewer, flush out the water
line by running approximately 1 gal. (4L) of water
into a pail. This will ensure no sediment from a new
installation can get in the brewer.
4. Water line pressure must be from 30 to 80 psi (207-
552 KPA).
5. Hot (up to 160°F / 71°C) or cold water may be used.
Hot water offers faster recovery between brews.
6. Make sure brewer is unplugged. Connect the water
line to the brewer with the hose connector.
7. Install a shut-off valve near the brewer.
8. Installing a filtering system can improve the taste of
brewed coffee and extend the life of the brewer. If
your water has high calcium (lime), chlorine, or iron
content, this is especially important. The filter
should be the lime inhibiting type if cold water is
used. Contact your local water treatment
professional regarding the type of filter you should
use based on water quality and volume of water
used.
Electrical Hook-up and Start-up Procedure
NOTICE: This equipment must be installed in
compliance with applicable Federal, State and/or Local
electrical codes having jurisdiction. Do not use
extension cords. Make sure that the outlet the brewer
plugs into is grounded.
The brewer is designed to operate at the specified
voltage on the nameplate with a tolerance of ± 10% for
voltage deviation. It is very important that the power
line to the brewer be checked to make sure that the
voltage is within 10% of the brewer’s rated voltage.
Failure to provide adequate voltage, as defined above,
will cause problems with your brewer. If the power is
too low, the solenoid valves may or may not work or
longer recovery time will be experienced. The brewer
may be permanently damaged if the voltage is too
high.
1. The electric ratings for your brewer are printed on
its nameplate.
2. The brewer should be connected to its own circuit
with a fused disconnect switch or a circuit breaker
near the brewer.
Important: For CE units, means shall be provided to
ensure all pole disconnection from the supply. Such
means shall be one of the following: a supply cord
fitted with plug, or a switch that is directly connected
to the supply terminals and has a contact separation of
at least 1/8” (3mm) in each pole.
3. Attach the appropriately sized cord to the brewer
with a cord grip for the 1 1/2” (3.8 cm) electric input
opening. The cord may enter through the rear or
bottom on the left side of the brewer. Use an oil
resistant cord such as type SO, SOO, SAO, STOO,
SEO, SJO, SJOO, SJTO, SJTOO, SJEO, HSO, HSOO,
HSJO, or HSJOO. Alternatively, flexible conduit and
type THHN wires may be used. Use only copper
conductors.
WARNING: ELECTRIC SHOCK HAZARD!
Installation of this appliance should be performed by
qualified service personnel only. Improper installation
could result in electrocution.

4. Standard connection is 1 phase 3 wire. Connect the
two lines to L1 and L2 on the terminal block. If the
brewer is wired for three phase, a lug, L3, is
provided on the terminal block. Neutral line should
be connected to the N terminal. Alternately, if no
neutral is available, the brewer can be wired
accordingly by connecting L1 to position marked
“L1” and L2 to position marked “L2”. This will
require the installer to change the connection to
the transformer primary from the white wire (120V)
to the blue (208V) or orange (230, 240V)
connection. See below. NOTE: This “no neutral”
conversion is only applicable to units marked as
208V, 230V, or 240V. It is NOT applicable to units
marked 120/208V or 120/240V.
Note: The brewer utilizes a multiple tap primary
transformer to convert line voltage to 24 volts for use
by the controller and some operating controls. The
transformer has taps for 120V (white wire), 208V (blue
wire), and 240V (orange wire) line voltage. Be sure to
connect the white wire from the terminal block to the
proper tap for the supplied voltage.
See diagram below.
5. The body of the brewer must be grounded. A
ground lug is provided for this purpose.
Note: If supply cord is damaged, it must be replaced by
a special cord or assembly from the manufacturer, or its
service agent.
Note: This appliance is IP10 rated, and shall not be
cleaned with pressurized water.
4 American Metal Ware PB330 & PB430 Shuttle®Brewers
WARNING: ELECTROCUTION HAZARD!
Never use the ground conductor as a neutral. This
could cause electrocution.
Installation (continued)
ORANGE
YELLOW
TO
CONTROLLER
YELLOW
RED
WHITE FROM
TERMINAL BLOCK
*N-120V
*L2 -208V or 230V
FROM L1BLACK
120V
WHITE
208V
BLUE
240V
TRANSFORMER
1. Flip power supply to machine “ON” at the branch
supply disconnect and allow the water tank to fill.
The machine will make a subtle hissing sound while
filling.
Note: A watchdog circuit monitors the fill valve “ON”
time. If the “ON” time exceeds 6 minutes continuously,
the brewer will display message “ER1” and cease
operation. Normal initial fill time on some models
exceeds 6 minutes. Turn off power to brewer and turn
back on; this will reset the controller and allow brewer
to complete filling.
2. Once the brewer is full, it will take 15 to 35 minutes
to heat. The ready lights will turn on when up to
temperature.
3. Insert the brew basket(s) and place a Shuttle or
airpot under the basket(s). Brew at least one batch
from each side. Check the level in the container to
be sure the brew volume is correct. Remember that
when using coffee, the level will be lower. Do this
for all batch sizes. The water must be hot to check
the levels. If adjustments are needed, see the
Adjustments section of this manual.
Start up
CAUTION: HOT LIQUID HAZARD
Do not transport brewer without draining water tank
first.
230,240V

PB330 & PB430 Shuttle®Brewers American Metal Ware 5
1. Place an empty, warm Shuttle on the shelf, under
the brew head. Turn on the warmer if available.
2. If the Shuttle is not warm, allow the warmer to heat
the Shuttle. A short brew of only water will speed
this. A cold Shuttle will significantly lower the
temperature of the brewed coffee.
3. Remove the filter basket and line with a filter paper.
Paper size is 13 x 5” (33 x 12.7cm) for the smaller
basket, ABB1.5, and 14 x 6” (36 x 15cm) for the
larger, ABB2.0.
4. Place ground coffee in the filter basket. Follow
corporate recommendations for amount of coffee
and grind. A full Shuttle is 1.5 gallons (5.7L). A full
vacuum Shuttle is 1.6 (6.0L) gallons.
5. Slide the basket into the brewer making sure the
spout lines up with the top of the Shuttle.
6. If ready lights are lit, press correct batch size button.
7. Brew spray time is about 4 minutes for a full
Shuttle. After the brew, allow the coffee to drip for
1 to 2 minutes. Ready light will flash during the
entire brew spray and drip cycle. Brew basket will
be locked in place until drip cycle is finished.
8. Dump the grounds from the basket and rinse for
the next brew. Coffee is ready to serve.
9. The Shuttle may be placed on remote warming
stations. Use caution when moving a full Shuttle.
CAUTION: HOT LIQUID HAZARD
Water used for brewing coffee is very hot. Use
caution when brewing, pouring, or transporting
coffee. Accidental spills may result in severe burns.
CAUTION: HOT LIQUID HAZARD
Coffee basket contains very hot water until the drip
is completed. Early removal of a dripping basket could
result in burns.
Altitude Approximate Boiling Point Recommended Max. Temperature
(ft) (m) °F °C °F °C
00212 100 205 96.1
500 152 211.1 99.5 204 95.6
1000 305 210.2 99.0 203 95.0
1500 457 209.3 98.5 202 94.4
2000 610 208.4 98.0 201 93.9
2500 762 207.5 97.5 200 93.3
3000 914 206.6 97.0 199 92.8
3500 1067 205.7 96.5 199 92.8
4000 1219 204.8 96.0 198 92.2
4500 1372 203.9 95.5 197 91.7
5000 1524 203 95.0 196 91.1
5500 1676 202 94.4 195 90.6
6000 1829 201.1 93.9 194 90.0
6500 1981 200.2 93.4 193 89.4
7000 2134 199.3 92.9 192 88.9
7500 2286 198.3 92.4 191 88.3
Adjustments
All adjustments to machine are accessible through the front display(s). Refer to specifics below and the
Programming Routine section. All values are preset at the factory and may vary brewer to brewer.
Temperature Adjustment
Tank temperature can be adjusted from 170°F – 205°F (77°C – 96°C) through the front display. See Programming
section for procedure.
This brewer can be set for maximum water temperature of 205°F (96°C). The boiling point of water is lower as
altitude increases. The setpoint temperature of the brewer should be maintained below the boiling point at a
given elevation. Refer to the chart below for recommended maximum setpoint for given altitudes.
WARNING: ELECTRIC SHOCK HAZARD! Dangerous electric voltages are present near adjustable
components. All adjustments should be performed by qualified service personnel only.
Operation

6 American Metal Ware PB330 & PB430 Shuttle®Brewers
Adjustments (cont.)
Temperature Adjustment (continued)
Brew Volume “br”
Brew time can be set for each size visually. See Setting Brew Volume Procedure below.
Brew time can also be adjusted through the display. See Programming section.
Setting Brew Volume Visually
1. Remove brew basket and place container under brew head.
2. Press and hold desired brew button for 5 seconds. Display will read “Pro”.
3. Within 20 seconds, press and release desired brew button. Water will dispense from spray head and time will
count-up in display.
4. When volume is at desired amount, press and release brew button to stop flow. Time will flash in display.
5. Within 20 seconds, press and release desired brew button. Display will clear and brew time will be stored into
memory.
Note: During this routine, no pulsing or bypass will occur.
Note: If the On/Off button is pressed during procedure, time setting will default to previous time.
WARNING: ELECTRIC SHOCK HAZARD! Dangerous electric voltages are present near adjustable
components. All adjustments should be performed by qualified service personnel only.
Control Features
Pre-infusion: Controls the initial coffee grounds wetting and the first dwell time after the initial wetting. Pulse
brews are the series of pulses after the Pre-infusion process. All pulse ON and OFF times are the same.
Brew Countdown Timer: After the start of a brew the LED display will countdown the remaining time left in
the brew process. The countdown will include all OFF periods programmed in the Pre-infusion and the pulses. At
the end of the brew time, the display will scroll driP, while the brew basket drains itself. At the end of the drip
cycle, the display will scroll donE for 30 seconds then turn off.
Energy Savings Mode: If enabled, when the brewer is idle for three (3) hours this feature will allow the water
tank to lower its holding temperature to 120°F. The display will scroll SLEEPIng while in this mode. To exit energy
savings mode press any button and the unit will start reheating to brewing temperature.
Copy-to-Left: On twin brewers, this feature allows you to copy the brew parameters programmed on a particular
brew portion on the Right side to the Left side.

PB330 & PB430 Shuttle®Brewers American Metal Ware 7
On twin brewers, the right side, Large portion button (top green button) gives the user access to the global
programming parameters of the brewer, such as; Tank Temperature, Energy Savings Mode, Enable/Disable Low
Temp No Brew, ON/OFF, Drip Time and Bypass Ratio. After the global parameters are set, the individual portion
brew parameters can be set. All other portion sizes (left and right) only access individual brew parameters to that
particular portion. Also, on twin brewers, the last program step in programming individual brew parameters
allows the operator to copy those brew parameters to the left side if “YES” is selected. If “YES” is selected, the
brew parameters that were set for the right side for that particular portion are copied to the left side. If “NO” is
selected, then the left side must be programmed separately.
To enter program mode:
Press the UP and DOWN arrows simultaneously for 5 seconds. Once in program mode, the green LED for each
portion’s size will flash.
To program the following items, press the Large, Right side portion button. (refer to Table 1)
1) Temperature Scale: Choose °F or °C
2) Set Water Tank Temperature: Choose between 170°F - 205°F
3) EnErGy mOdE: Choose YES or no
4) Ltn (Low Temp No Brew): Choose YES or no
• If YES, the brewer will only allow a brew to begin if the water tank
temperature is within 5°F of set point.
• If NO, the brewer will brew at any temperature.
5) DriP time: Choose from 40% to 80% of brew time.
This is the amount of time the brewer takes to completely drain the
brew basket after the brew valve closes. The factory default is 50%, so
if the brewer is set for a 1.5 gallon brew, without pre-infusion and
pulses, the brew basket will remain locked for 2 minutes after the brew
valve closes.
If, with coffee, the brew basket drips for longer than 2 minutes,
increase the setting to 60%, which will be 2:24 of drip time. The setting
increases by 5% increments; 12 seconds each.
6) rto (Set Bypass Ratio): Choose Std or Grm
• Choose Std if you are using the standard sprayhead.
• Choose Grm if you are using the gourmet sprayhead.
Bypass ratio is the last global program parameter to be set. The following are the individual brew portion
parameters.
Each portion button can have individual brew sequences.
7) Br time (Brew time): Choose between 0:01 to 6:00 minutes.
This time setting controls the brew volume. The brewer brews at a rate
of 1.5 gallons in four minutes (48 ounces per minute / 0.8 ounces per
second). The Large portion button is factory set to brew 1.5 gallons or
4 minutes of brew time. Adjust the brew volume to desired level. One
second of brew time will change brew volume by 0.8 ounces.
8) PrE inFuSion: Choose OFF to 2:00 minutes.
This is the amount of pre-infusion desired with the batch of coffee. If
no pre-infusion is desired then set to OFF.
9) PrE inFuSion oFF: Choose 0.05 to 2:00 minutes.
This is the OFF time that allows the brew basket to drain the
Pre-infused volume of water.
10) PuLSE br: Choose OFF to 10
This will set the number of brew pulses desired. If none are desired,
then set to OFF.
11) PuLSE on (Pulse ON time): Choose 0:05 - 2:00 minutes
If pulses are set on step 10, then program the ON time for the pulses.
The same ON time is used on all pulses.
12) PuLSE oFF (Pulse OFF time): Choose 0:05 - 2:00 minutes
If pulses are set on step 10, then program the OFF time for the pulses.
The same OFF time is used on all pulses.
Programming

8 American Metal Ware PB330 & PB430 Shuttle®Brewers
13) By-PASS (Set bypass volume): Choose OFF to 25%
Set the amount of bypass desired during brew. If none is desired
then set to OFF, otherwise, set the % of brew volume to bypass.
14) CoPY-to-LEFt: Choose YES or no
If the same program parameters are desired on same portion size
on the left side, then choose YES and the parameters will
be copied.
The sequence of programming for the Medium portion is as follows: (refer to Table 2)
1) Br time (Brew time): Choose 0:01 - 6:00 minutes
2) PrE inFuSion: Choose OFF to 2:00 minutes
3) PrE inFuSion oFF: Choose 0:05 to 2:00 minutes
4) PuLSE br (Pulse Brewing): Choose OFF to 10
5) PuLSE on (Pulse ON time): Choose 0:05 - 2:00 minutes
6) PuLSE oFF (Pulse OFF time): Choose 0:05 - 2:00 minutes
7) By-PASS (Set bypass volume): Choose OFF - 25%
8) CoPY-to-LEFt: Choose YES or no
The sequence of programming for the Small portion is as follows: (refer to Table 3)
1) Br time (Brew time): Choose 0:01 - 6:00 minutes
2) PrE inFuSion: Choose OFF to 2:00 minutes
3) PrE inFuSion oFF: Choose 0:05 to 2:00 minutes
4) PuLSE br (Pulse Brewing): Choose OFF to 10
5) PuLSE on (Pulse ON time): Choose 0:05 - 2:00 minutes
6) PuLSE oFF (Pulse OFF time): Choose 0:05 - 2:00 minutes
7) CoPY-to-LEFt: Choose YES or no

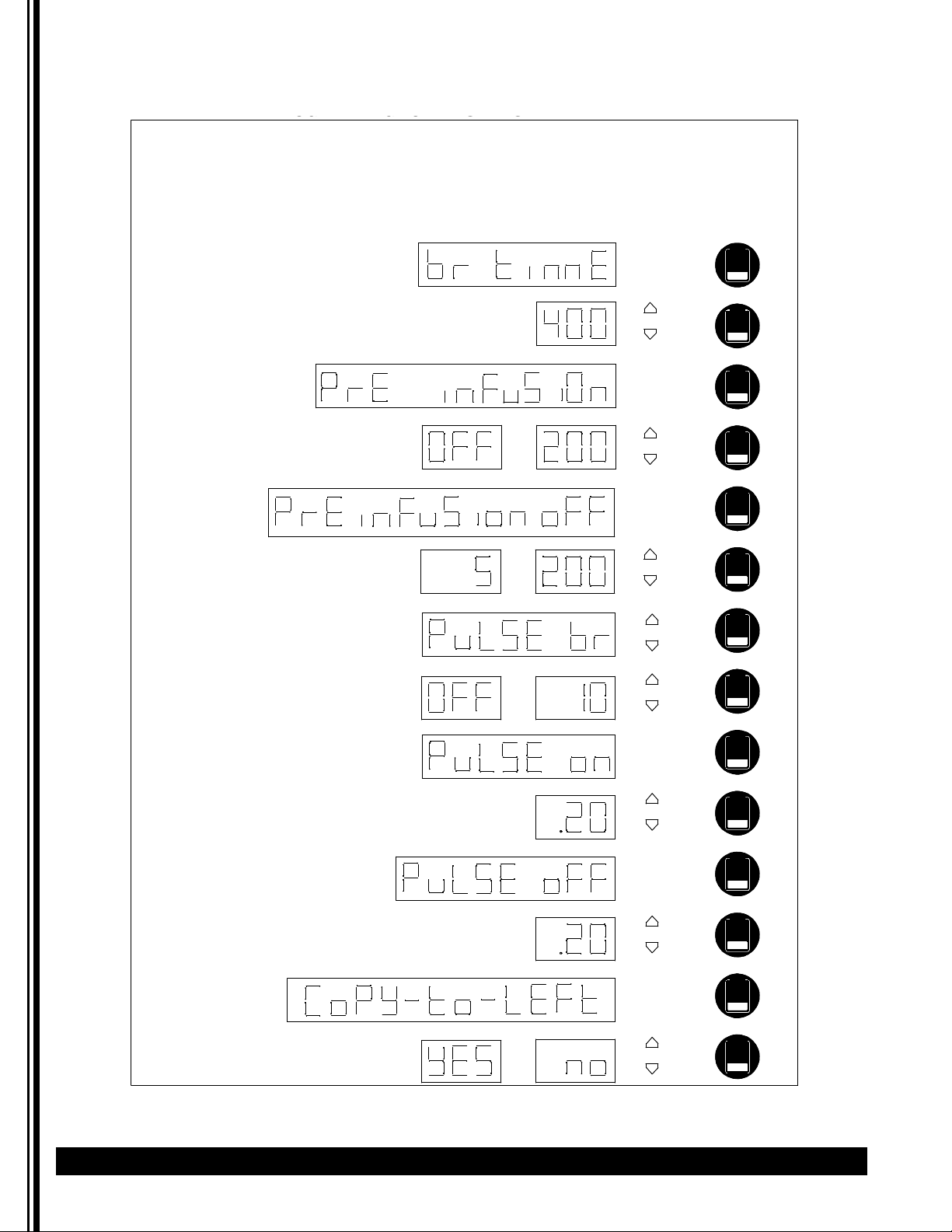

Table 1 Programming Sequence for Large Left Portion
Programming (continued)
PRESS-AND-HOLD UP & DOWN ARROWS FOR 5 SECONDS.
DISPLAY WILL READ AS FOLLOWS:
READING
OR
LOW-TEMP/
LOW-TEMP/NO-BREW
OR
DISPLAY
TEMP SCALE
TANK TEMP (170-202F) OR
OR
ENERGY MODE
ADVANCE
NO-BREW
ENERGY MODE
ADJUST
continued on next page

PB330 & PB430 Shuttle®Brewers American Metal Ware 9
continued on next page
Programming (continued)
Table 1 Programming Sequence for Large Left Portion (continued)

PRE INFUSION
ADJUST
TO
PULSE OFF TIME (0:05-2:00)
PULSE ON TIME (0:05-2:00)
# OF PULSES
READING
DISPLAY
A
PULSE ON
PULSE OFF
PULSE BREW
(OFF, 1 - 10)
(.05 TO 2.00)
PRE INFUSION OFF TIME TO

PRE INFUSION
PRE INFUSION TIME (OFF TO 2.00) TO
OR

TO
BREW TIME
BYPASS RATIO
BREW TIME (.01 TO 6.00)

DRIP TIME PERCENT OF BREW
DRIP TIME


10 American Metal Ware PB330 & PB430 Shuttle®Brewers
Table 2 Programming Sequence for Medium Portion
Programming (continued)
Table 1 Programming Sequence for Large Left Portion (continued)

PRE INFUSION
TO
PULSE OFF TIME (0:05-2:00)
PULSE ON TIME (0:05-2:00)
# OF PULSES
PULSE ON
PULSE OFF
PULSE BREW
(OFF, 1 - 10)
(.05 TO 2.00)
PRE INFUSION OFF TIME TO







DISPLAY WILL READ AS FOLLOWS:
TO
PRESS-AND-HOLD UP & DOWN ARROWS FOR 5 SECONDS.
ADJUST
TO
READING
DISPLAY
ADVANCE
BREW TIME
BREW TIME (.01 TO 6.00) 
PRE INFUSION

PRE INFUSION TIME (OFF TO 2.00)
PRE INFUSION

(.05 TO 2.00)
PRE INFUSION OFF TIME
continued on next page

PB330 & PB430 Shuttle®Brewers American Metal Ware 11
Programming (continued)
Table 2 Programming Sequence for Medium Portion (continued)








PULSE OFF TIME (0:05-2:00)
PULSE ON TIME (0:05-2:00)
(OFF, 1 - 10)
PULSE BREW
# OF PULSES TO
PULSE OFF
BY-PASS
OFF TO .25 PERCENT TO
PULSE ON



COPY TO LEFT
OR

12 American Metal Ware PB330 & PB430 Shuttle®Brewers
PRESS-AND-HOLD UP & DOWN ARROWS FOR 5 SECONDS.
DISPLAY WILL READ AS FOLLOWS:
ADVANCE
(OFF, 1 - 10)
ADJUST
READING
OG G O S S
(.05 TO 2.00)
DISPLAY
BREW TIME (.01 TO 6.00)
BREW TIME
PULSE OFF TIME (0:05-2:00)

PRE INFUSION

PRE INFUSION TIME (OFF TO 2.00)

TO
PRE INFUSION
PULSE ON TIME (0:05-2:00)

TO
COPY TO LEFT
OR
PULSE OFF
PULSE ON
PULSE BREW
# OF PULSES
PRE INFUSION OFF TIME
TO
Programming (continued)
Table 3 Programming Sequence for Small Portion

PB330 & PB430 Shuttle®Brewers American Metal Ware 13
Cleaning
NOTICE: All sanitizing agents in the food zone must
comply with 21 CFR 178.1010. Sanitize all food
dispensing units periodically. All parts to be sanitized
must be cleaned first. Cleaning and sanitizing
frequency must follow state and local health
department regulations.
After Each Brew:
1. Dispose of grounds and rinse brew basket.
2. Rinse Shuttles and Airpots with hot water and
empty completely.
3. Fill Shuttles and Airpots with hot water.
4. Open Shuttles and Airpots and empty contents
completely by opening the faucet.
Every Day:
1. Wash brew basket with warm soapy water. The
wire basket is removable to aid cleaning.
2. Remove spray head(s) located above brew
basket(s), using gloves or a heavy towel. Wash off
coffee oils and clean any plugged holes.
3. Clean Shuttles with warm soapy water and a
brush or towel.
4. Clean airpots with warm soapy water and bottle
brush. Be careful, glass interior breaks easily. Use
only a soft cloth and warm soapy water or
stainless steel polish on the outside to avoid
scratches.
5. Wipe exterior of brewer with a damp cloth. Do
not use abrasives which will scratch surface.
6. If Shuttles are to be left on the warmer all night,
fill with water to avoid coffee oil burn-in.
Weekly or Bi-Weekly, Depending on Use:
1. Fill Shuttles with one gallon, 2/3 full, of hot water.
2. Pour the recommended concentration of urn
cleaner into the Shuttle liners (Excessive amounts
of cleaner will attack the stainless steel).
3. Scrub the liner interior with a plastic bristle brush.
4. Remove the knurled nut at the top of the gauge
glass and clean the glass with a small bottle brush.
5. Pour out the contents of the Shuttle.
6. Remove the handle assembly of the Shuttle faucet
by unscrewing the plastic bonnet nut.
7. Gently wash the faucet seat cup with a soft cloth
and warm soapy water.
8. Wash the faucet shank with a bottle brush.
9. Soak airpot pick-up tube assembly in hot soapy
water. Urn cleaner may be used for stronger
cleaning.
10. Clean the warmer and bottom of Shuttle surfaces.
These surfaces must be clean for proper heat
transfer.
11. Polish the exterior of the brewer with stainless
steel cleaner. Use the appropriate cleaner for
brass, copper, or vinyl if these optional finishes are
provided.
Cleaning and Sanitizing Vacuum Shuttle and
stand
1. Cleaning and sanitizing lid assembly:
a) Remove lid from unit, fully submerse it in
cleaning solution. Using a clean cloth, wipe the
unit thoroughly.
b) Using supplied brush, clean mixing tube
thoroughly.
c) Rinse with clean water.
d) Submerse in sanitizing solution for 5 minutes
then air dry completely.
2. Cleaning and sanitizing body assembly:
a) Remove unit from the base. (Only when using
VS-S with VS-1.5)
b) Completely fill the unit with cleaning solution.
Using a clean cloth, wipe the unit thoroughly.
c) Rinse unit thoroughly with fresh water.
d) Remove faucet, shank, and sight gauge from
unit and place in cleaning solution.
e) Open lid on the bottom of the unit and
remove silicone tube (Tank to Faucet Tube) and
place in cleaning solution for cleaning.
f) Reassemble unit.
g) Fully fill unit with sanitizing solution for 5
minutes and drain through fully opened faucet.
h) Wipe outside of the unit with a clean cloth
moistened with sanitizing solution.
i) Place unit on rack upside down to thoroughly
air-dry.
3. Cleaning Stand Assembly and tray:
a) Remove tray and tray top and place in
cleaning solution. Using a clean cloth, clean tray
and tray top thoroughly.
b) Wipe outside of the stand with a clean cloth
moistened with sanitizing solution.
c) Place parts on rack to thoroughly air-dry.
4. Cleaning the Faucet assembly and silicone tube:
a) Using supplied brush, clean silicone tube, sight
gauge tube, and shank assembly.
b) Rinse parts and place in sanitizing solution for
5 minutes, remove, and air dry.
c) Remove top from faucet and use brush to
clean inside, rinse, and place in sanitizing solution
for 5 minutes.
d) Remove and air dry.
5. When all pieces are completely dry reassemble for
use.
CAUTION: BURN HAZARD
Hot liquids and surfaces are present in this
equipment. To avoid burns, use caution when
cleaning. Rinse hot parts with cold water before
cleaning. Use gloves or a heavy cloth when removing
hot parts from brewer.

14 American Metal Ware PB330 & PB430 Shuttle®Brewers
Maintenance
To Drain the Water Tank
NOTICE: Always empty the tank before shipping.
NOTE: Brewer may contain over 5 gallons (19L) of hot
water.
1. Prepare a heat resistant container to drain tank
water into.
2. Disconnect power to brewer.
3. Remove the front access panel.
4. Pinch or clamp the silicone hose connected to fill
valve.
5. Disconnect hose from outlet barb on fill valve.
6. Place hose over drain and release clamp.
7. Allow the tank to drain completely.
NOTE: It may be necessary to pinch the hose and stop
the water before container is full. Carefully reinstall
hose over fill valve outlet, then empty container. Repeat
steps 4-7 completely to drain tank.
Remove Brew Valve
1. Disconnect electric power to machine.
2. Remove top cover and remove wires and small tube
from valve.
3. Tilt inlet of valve down and pull sideways out of
spray tee.
4. Clamp silicone tubing and disconnect valve from
tubing.
To Remove the Heater
1. Disconnect power and remove top cover of brewer.
2. Disconnect wire leads to heater.
3. Remove tank cover by loosening retaining nuts.
Cover is lifted up with heater attached. Heater is
then removed.
4. Replace heater with sealing washers in same
configuration. When tightening nuts, hold element
so it does not twist.
5. Replace tank cover, ensuring O-ring seal is good.
6. Replace heater wires. Be sure all electrical
connections are secure.
7. Replace top cover of brewer and connect power
cord to outlet.
Special Control Functions
User Lockout
User Lockout is achieved via the position of the LOCK
jumper on the board header. Locate the header on the
board (shown next column) and place the jumper in the
desired position. In the Locked position all menus in this
document are locked out, and the unit will only allow
brewing functions. There are two versions of the
header, 10 pin and 2 pin. Both configurations are shown
next column.
System Restore Function
This function will restore a Precision Brew®unit to its
original factory settings. To activate system restore,
power on the unit while holding in the DOWN button
on the keypad (use the keypad that controls the RIGHT
side for a double unit).
Continue holding the DOWN button and the display
will scroll “rEStorE” to indicate that a system restore is
about to happen. If the DOWN button is released at this
point, the restore is cancelled. If the button hold is
continued, the display will scroll “donE” to show
completion of a system restore.
Upon a successful restore, the original factory settings
will override all changes. The brew counters are not
affected.
Factory Specific Features
The following sections describe features that are not
intended to be used by the end user. These features,
instead, are intended to help American Metal Ware set
up and test the machine.
Factory/Field Test Menu
This menu is intended to check product functionality
both at the end of the factory line and in the field. The
control must be completely OFF (both sides) to enter
field test. This mode is entered by pressing and holding
the UP key and the LARGE BREW key on the keypad
(use the keypad that controls the RIGHT side for a
double unit) for 6 seconds. Once the menu is entered,
the unit will start with an LED test that lights all LEDs
and segments on the display.
Proceeding through the field test is done by pressing
the ON/OFF key (RIGHT side if a double unit). Each time
this button is pressed, the test will advance to the next
step. For the output test, use the UP and DOWN keys to
select the desired output.
Refer to the table on the following page for operation.
Field Test Mode exits after stepping through all modes
only- there is not a timeout.

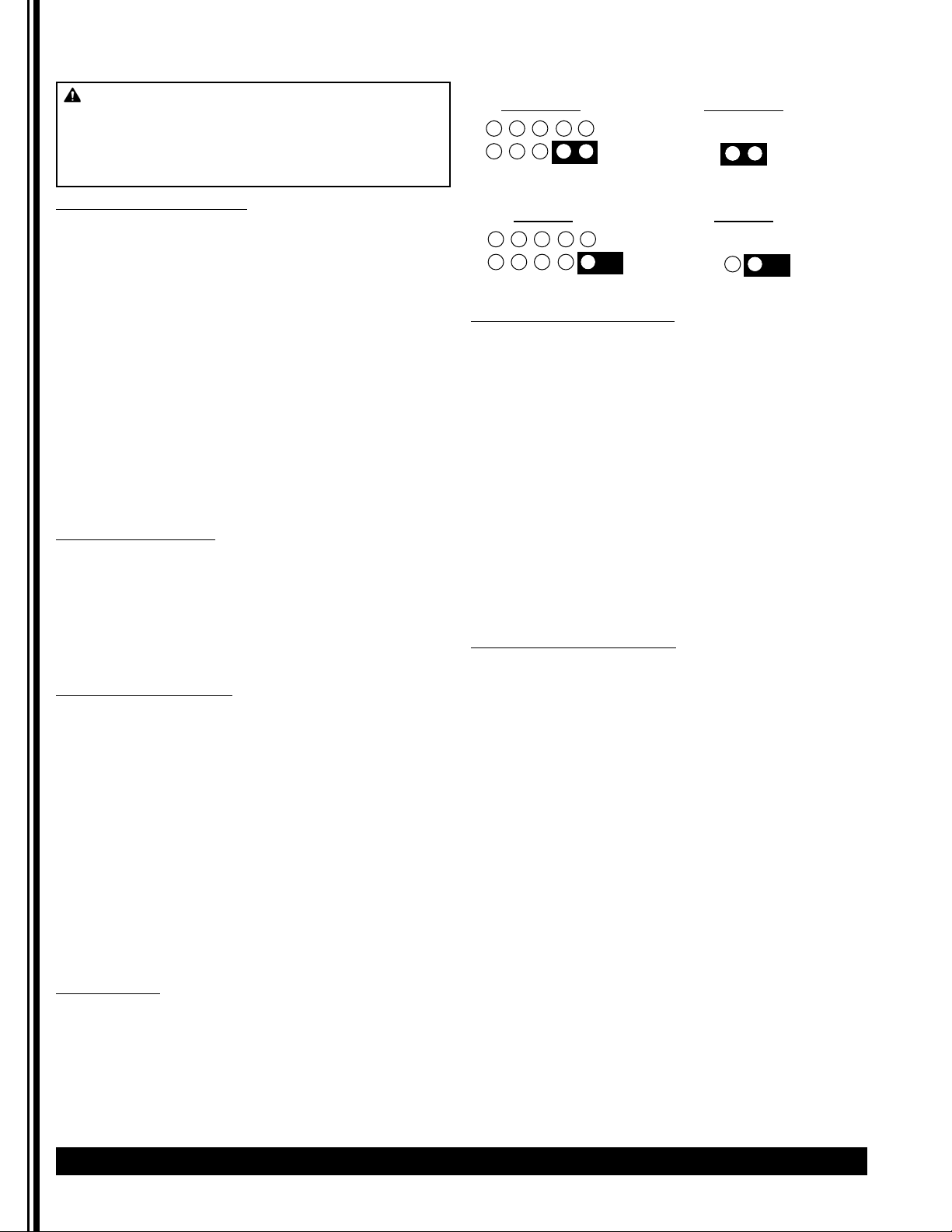

10 Pin Version
LOCK
UNLOCKED
LOCK
LOCKED
LOCK
2 Pin Version
UNLOCKED
LOCK
LOCKED
CAUTION: BURN HAZARD
Water in tank is very hot. Draining of tank should be
performed by a qualified service technician. Use
caution when draining tank. Accidental spills may
result in severe burns.

PB330 & PB430 Shuttle®Brewers American Metal Ware 15
Step Function Operation Description
1LED Test All LEDs ON Verify that all LEDs turn on.
2Firmware Version Display firmware version Shows the software version of the control.
3Date Code Not used Not used
4EEPROM Version Not used Not used
5Non Resetable Unit
Counter
Scroll non-resetable unit counter Shows the total number of brews made by
the brewer (both sides if a double unit)
6Display Water
Temperature
Show averaged A/D (analog/ digital) reading
of temperature
Shows the current temperature in °F of the
thermister.
7Display Water Level 1 Show averaged A/D reading of water level 1 If > 500 water level is full,
If < 500 water level is not full.
8Display Water Level 2 Show averaged A/D reading of water level 2 If > 500 water is at the heater level,
If < 500 water level not at the heater level.
9Show Input Display scrolls “InPut”Input Test Mode
10 Input Test Press each key and the display will show a
number related to that key
Right Side
On/Off - 1 (advances test)
Up - 5
Down - 3
Large Brew - 4
Medium Brew - 2
Small Brew - 0
Basket Switch - 17
Left Side
On/Off - 9
Up - 13
Down - 11
Large Brew - 12
Medium Brew - 10
Small Brew - 8
Basket Switch - 16
11 Show Output Display scrolls “outPut”Output Test Mode
12 Output Test Turns on each relay separately. Displays
“O##“ where:
## = 2 digit output number
IMPORTANT: Each output will be turned
ON when its number is on the display
REGARDLESS of temperature or fill
level. Be CAREFUL not to overfill the
tank and keep electric items out of the
way of the brew channel.
Scroll through relay outputs with the UP
and DOWN keys.
Outputs are as follows:
O01 - Fill Valve
O02 - Right Bypass Valve
O03 - Left Bypass Valve
O04 - Right Brew Valve
O05 - Left Brew Valve
O06 - not used
O07 - Tank Heater
O08 - Right Basket Lock
O09 - Left Basket Lock
O10 - not used
Special Control Functions (continued)

16 American Metal Ware PB330 & PB430 Shuttle®Brewers
Troubleshooting Guide
The following pages are provided to help determine the cause of problems with operation of the brewers and to
indicate the appropriate solution for the problems. For each problem, the possible causes should be checked in
the order shown until the exact nature of the problem is determined.
The following procedures must be performed by a qualified service technician. Disconnect power to
machine before servicing.
Before you call for help, please read the following:
WARNING: To reduce the risk of electrical shock, unplug the power cord before repairing or replacing
any internal components of the unit. Before any attempt to replace a component, be sure to check all electrical
connections for proper contact. Only a qualified service technician should perform electrical and mechanical
adjustments or repairs.
Filling Problems
PROBLEM POSSIBLE CAUSE SERVICE CHECK SOLUTION
Overfilling water • Fill valve not •Water entering tank •Disassemble valve and clean
tank when power sealing properly. continuously, usually out debris. Valve may need
is off. slowly. to be replaced.
Overfilling water • High electrode •Disconnect electrode •Remove electrode assembly
tank only when coated with lime or wire at quick connect and clean the probes. If
power is on. faulty. (brown wire). Connect problem is not corrected,
a wire from the quick replace electrode assembly.
connect to the cabinet
body. If filling stops,
this is the error cause.
•Connection from •Check to ensure •Make connection to tank
control board to tank connection (red wire) secure.
body faulty. is secure.
•Control board is faulty. •Connection from •Replace control board.
control board to
metal enclosure does
not stop filling.
Error Messages
PROBLEM POSSIBLE CAUSE SERVICE CHECK SOLUTION
ER1 • Fill valve on for over •Check system for •Correct any leaks and reset
6 min. (This occurs water leaks. controller.
during initial fill on •Check incoming water psi. •Increase water flow or
some units – see pressure and reset controller.
Initial Start-up.)
ER2 • Thermistor failure or •Ensure that connector •Secure connections and reset
loose connections in is securely attached to controller. If error reoccurs,
thermistor circuit. controller and that replace thermistor.
thermistor is securely
connected.
ER3 • Thermistor is reading •Check tank •Replace thermistor.
out of range. temperature.
ER4 • No heat is detected. •See Heating Problems • See Heating Problems

PB330 & PB430 Shuttle®Brewers American Metal Ware 17
Troubleshooting Guide (continued)
WARNING: To reduce the risk of electrical shock, unplug the power cord before repairing or replacing
any internal components of the unit. Before any attempt to replace a component, be sure to check all electrical
connections for proper contact. Only a qualified service technician should perform electrical and mechanical
adjustments or repairs.
Filling Problems (continued)
PROBLEM POSSIBLE CAUSE SERVICE CHECK SOLUTION
Tank does not • No electrical power to •Check for proper •Establish electrical power
refill. equipment. voltage at terminal to unit.
block. Check circuit
breaker on supply
circuit.
•No water supplied to •Disconnect water •Establish water supply
equipment. supply line and ensure to unit.
that water is provided
to unit. Check to see
that any and all valves
in water line are open.
•No power to control •Check for proper •If there is not 120V across
board. voltage across primary, proceed to step
transformer primary entitled “No power to
terminals by control board and
disconnecting terminals. transformer not powered.”
See wiring diagram for If there is proper voltage
more information. across primary, proceed to
step entitled “No power
to control board and
transformer powered”.
•No power to control •Ensure there is proper •Secure connections and
board and transformer voltage across terminal reset circuit breaker on
not powered. block. Check wiring equipment.
diagram for more
information.
•No power to control •Disconnect quick •If there is not 24 Vac
board and transformer connect on between the blue and yellow
powered. secondary side of wires, replace transformer.
transformer between If proper voltage exists,
yellow and blue wires. secure connection between
Check for 24 Vac 3 pin connector and control
between blue and board.
yellow wires.
•Fill valve or control •Check to ensure proper •If 6 pin connector is securely
board is faulty. connection between attached to control board
6 pin connector and and all connections are
control board. Check secure and there is 24 Vac
for proper connections across fill valve terminals,
at fill valve terminals. replace fill valve.
Drain 1 gal. (3.8L) of
water from hot water
faucet. Check for 24 Vac
across fill valve
terminals.

18 American Metal Ware PB330 & PB430 Shuttle®Brewers
Troubleshooting Guide (continued)
WARNING: To reduce the risk of electrical shock, unplug the power cord before repairing or replacing
any internal components of the unit. Before any attempt to replace a component, be sure to check all electrical
connections for proper contact. Only a qualified service technician should perform electrical and mechanical
adjustments or repairs.
Heating Problems
PROBLEM POSSIBLE CAUSE SERVICE CHECK SOLUTION
Tank does not • No electrical power to •Check for proper •Establish electrical power
heat. equipment. voltage at terminal to unit.
block. Check circuit
breaker on supply
circuit.
•No power to control •Check for proper •If there is not proper
board. voltage across voltage across primary,
transformer primary proceed to step entitled “No
terminals by power to control board
disconnecting and transformer not
terminals. See wiring powered”. If there is proper
diagram for more voltage across primary,
information. proceed to step entitled “No
power to control board
and transformer
powered”.
•Low (long) electrode •Disconnect electrode •Remove electrode assembly
coated with lime or wire at quick connect and clean the probes. If
faulty. (purple wire). Connect problem is not corrected,
a wire from the quick replace electrode assembly.
connect to the cabinet
body. If heating begins,
this is the error cause.
•Connection from •Check to ensure •Make connection to
control board to tank connection (green wire) tank secure.
body faulty. is secure.
•Connections from •Check to ensure •Make connections to
control board to heater connections (gray and relay secure.
relay faulty. blue wires) are secure.
•Line voltage •Check to ensure •Make connections to
connections to heater connections (black and relay secure.
relay faulty. brown wires) are
secure.
•Connections to •Check to ensure •Make connections secure.
remainder of heater connections from relay
circuit faulty. to thermal cut-out and
from thermal cut-out
to contactor and from
contactor to proper
terminal of terminal
block are secure. See
wiring diagram for
more infomation.

PB330 & PB430 Shuttle®Brewers American Metal Ware 19
Troubleshooting Guide (continued)
WARNING: To reduce the risk of electrical shock, unplug the power cord before repairing or replacing
any internal components of the unit. Before any attempt to replace a component, be sure to check all electrical
connections for proper contact. Only a qualified service technician should perform electrical and mechanical
adjustments or repairs.
Heating Problems (continued)
PROBLEM POSSIBLE CAUSE SERVICE CHECK SOLUTION
Tank does not • Heater relay faulty. •Ensure that coil on •If the relay coil is energized
heat. heater relay is and there is an open circuit
energized by ensuring across the connection tabs,
that there is 24 VDC replace relay.
between the gray and
blue wires attached to
the relay. Remove the
black and brown
wires from the relay
and check for an open
circuit across the
connection tabs (COM
and NO) to which the
wires were attached.
•Thermal cut-out •Check for open circuit •Replace thermal
tripped or faulty. on thermal cut-out. cut-out.
(NOTE: Tripping of
thermal cut-out can
indicate presence of
another problem
with the unit. Unit
should be
monitored.)
•Contactor faulty. •Ensure that coil on •If the contactor coil is
contactor is energized energized and there is an
by ensuring that there open circuit across any of
is proper voltage the contactor poles, replace
between the brown contactor.
and white wires
attached to the relay.
Check each side of the
contactor (Line and
Load) at each pole for
continuity.
•Heater faulty. •Check resistance •If resistance is much less
across element(s) than 8 Ohms or much more
with power conductors than 15 Ohms, replace
disconnected. heater(s).

20 American Metal Ware PB330 & PB430 Shuttle®Brewers
Troubleshooting Guide (continued)
WARNING: To reduce the risk of electrical shock, unplug the power cord before repairing or replacing
any internal components of the unit. Before any attempt to replace a component, be sure to check all electrical
connections for proper contact. Only a qualified service technician should perform electrical and mechanical
adjustments or repairs.
Heating Problems (continued)
PROBLEM POSSIBLE CAUSE SERVICE CHECK SOLUTION
Tank does not • Control board is faulty. •Check to ensure proper •If 5-pin connector is securely
heat. connection between attached to control board
connector 5-pin and and all connections are
control board. Check secure and functioning
for proper connections except there is not 120 Vac
in all heater control across contactor coil
circuitry. Check for terminals, replace control
proper connections board.
between N terminal of
contactor coil and
terminal block.
Brewing Problems
PROBLEM POSSIBLE CAUSE SERVICE CHECK SOLUTION
Brew volume too • Portion selected on •Review timer settings •Adjust timer to desired value
large or too small. touchpad not correct. versus portion size. or select different portion
size.
•Timer not set properly. •Compare timer setting •Adjust timer to desired value.
to either factory setting
or initial user setting to
determine if it has
been changed.
•Sprayhead clogged. •Visually check for •Clean all holes.
clogging of holes in
brewhead.
•Brew valves clogged •Visually inspect brew •Clean lime from valve. Seat,
with lime deposits. valve at hose cup, or entire valve may
connections. need replacement.
•Water supply pressure •Check to see that fill •Supply water at adequate
or flow rate not valve cycles on and pressure and flow rate.
adequate. off frequently during
brew cycle when all
brew heads are used
simultaneously. Check
to ensure that water
supply line is 3/8” and
pressure is between
30 and 80 psi (207 and
552 KPA).
Brew volume • Water supply pressure •Check water pressure •Plumb water supply so that
erratic. fluctuates. with and without other water pressure is not
appliances operating. significantly affected by
other appliances.
Note: Small variations from batch to batch are normal.
