Grizzly Tools G0513X2 User manual

Page 1
Grizzly Bandsaw SOP
This Bandsaw runs on 220V (208V really because, 3 phase power).
Set blade guide rollers to appropriate height for the piece you are
cutting.
The rollers should be close to your piece.
Keep hands and fingers away from blade, use push sticks and/or T-
square pusher.
Be very careful while resawing and use a push stick.
The off button has to be twisted to reset itself.
Please read the next 14 pages of this guide to gain an understanding of
the operation of the Bandsaw itself.
The full manual is available online and a paper copy is here in the shop.

Page 2
-4- G0513 Series Bandsaws
Basic Controls
Refer to Figures 1–4 and the following descrip-
tions to become familiar with the basic controls
and components of your bandsaw. Knowledge of
these controls and terminology will help you better
understand this manual.
Control Panel
The 2-button power switch on Models G0513,
G0513P, and G0513X2 is located on the column
for easy access (see Figure 1). The power button
can be disabled with a padlock to prevent unau-
thorized startup of the bandsaw (refer to Page 42
for additional details).
Figure 1. 2-Button power switch.
Figure 2. Control panel with a switch disabling
lock.
Power Switch
Key
On Button
Off Button
The Models G0513X2B, G0513X2BF, and
G0513X2F feature a power switch that can be
disabled with a key to prevent unauthorized start-
ing of the machine (see Figure 2). To disable
the switch, turn the key to "0" and remove it. To
enable the switch, insert the key and turn it to "1."
Front Controls
A. Blade Tension Scale: Allows for easy moni-
toring of blade tension in arbitrary numbers
1–8.
B. Blade Tension Handwheel: Tensions blade
in gradual increments.
C. Blade Tracking Window: Allows you to
monitor blade tracking on the wheel without
opening the wheel cover.
D. Fence and Miter Gauge: Supports workpiece
for controlled straight or angled cuts.
Figure 3. Front controls
(G0513X2BF shown).
A
C
B
D
E
E. Foot Brake (Models G0513X2BF &
G0513X2F): Quickly stops bandsaw blade
and motor.
Motor Brake
The Models G0513X2B and G0513X2BF have a
motor brake that activates and quickly stops the
blade when the OFF button is used, or the foot
pedal is pressed on the Model G0513X2BF.

Page 3
G0513 Series Bandsaws -5-
Rear Controls
F. Wheel Cover Lock Knobs: Secure the
wheel covers.
G. Quick-Release Blade Tension Lever:
Adjusts blade tension for quick blade chang-
es.
H. Blade Tracking Knob and Lock Lever:
Moves and locks upper wheel tilt for blade
tracking.
I. Table Tilt Controls: Adjusts table tilt and
locks the table in place.
J. Magnetic Switch: Provides thermal overload
protection for the motor.
K. Lower Wheel Adjustment Hub: Used when
adjusting coplanarity of the wheels.
L. Guide Post Handwheel and Lock Knob:
Quickly moves the upper guide post to the
desired height; locks setting.
Figure 4. Rear controls
(G0513X2B shown).
G
H
F
I
J
K
F
L
To reduce your risk of
serious injury, read this
entire manual BEFORE
using machine.

Page 4
G0513 Series Bandsaws -9-
WEARING PROPER APPAREL. Do not wear
clothing, apparel or jewelry that can become
entangled in moving parts. Always tie back or
cover long hair. Wear non-slip footwear to reduce
risk of slipping and losing control or accidentally
contacting cutting tool or moving parts.
HAZARDOUS DUST. Dust created by machinery
operations may cause cancer, birth defects, or
long-term respiratory damage. Be aware of dust
hazards associated with each workpiece mate-
rial. Always wear a NIOSH-approved respirator to
reduce your risk.
HEARING PROTECTION. Always wear hear-
ing protection when operating or observing loud
machinery. Extended exposure to this noise
without hearing protection can cause permanent
hearing loss.
REMOVE ADJUSTING TOOLS. Tools left on
machinery can become dangerous projectiles
upon startup. Never leave chuck keys, wrenches,
or any other tools on machine. Always verify
removal before starting!
USE CORRECT TOOL FOR THE JOB. Only use
this tool for its intended purpose—do not force
it or an attachment to do a job for which it was
not designed. Never make unapproved modifica-
tions—modifying tool or using it differently than
intended may result in malfunction or mechanical
failure that can lead to personal injury or death!
AWKWARD POSITIONS. Keep proper footing
and balance at all times when operating machine.
Do not overreach! Avoid awkward hand positions
that make workpiece control difficult or increase
the risk of accidental injury.
CHILDREN & BYSTANDERS. Keep children and
bystanders at a safe distance from the work area.
Stop using machine if they become a distraction.
GUARDS & COVERS. Guards and covers reduce
accidental contact with moving parts or flying
debris. Make sure they are properly installed,
undamaged, and working correctly BEFORE
operating machine.
FORCING MACHINERY. Do not force machine.
It will do the job safer and better at the rate for
which it was designed.
NEVER STAND ON MACHINE. Serious injury
may occur if machine is tipped or if the cutting
tool is unintentionally contacted.
STABLE MACHINE. Unexpected movement dur-
ing operation greatly increases risk of injury or
loss of control. Before starting, verify machine is
stable and mobile base (if used) is locked.
USE RECOMMENDED ACCESSORIES. Consult
this owner’s manual or the manufacturer for rec-
ommended accessories. Using improper acces-
sories will increase the risk of serious injury.
UNATTENDED OPERATION. To reduce the
risk of accidental injury, turn machine OFF and
ensure all moving parts completely stop before
walking away. Never leave machine running
while unattended.
MAINTAIN WITH CARE. Follow all maintenance
instructions and lubrication schedules to keep
machine in good working condition. A machine
that is improperly maintained could malfunction,
leading to serious personal injury or death.
DAMAGED PARTS. Regularly inspect machine
for damaged, loose, or mis-adjusted parts—or
any condition that could affect safe operation.
Immediately repair/replace BEFORE operating
machine. For your own safety, DO NOT operate
machine with damaged parts!
MAINTAIN POWER CORDS. When disconnect-
ing cord-connected machines from power, grab
and pull the plug—NOT the cord. Pulling the cord
may damage the wires inside. Do not handle
cord/plug with wet hands. Avoid cord damage by
keeping it away from heated surfaces, high traffic
areas, harsh chemicals, and wet/damp locations.
EXPERIENCING DIFFICULTIES. If at any time
you experience difficulties performing the intend-
ed operation, stop using the machine! Contact our
Technical Support at [phone].

Page 5
-10- G0513 Series Bandsaws
Additional Safety for Bandsaws
Serious cuts, amputation, or death can occur from contact with the moving saw blade during
operation or if blade breakage occurs. To reduce this risk, anyone operating this machine
MUST completely heed the hazards and warnings below.
GUARDS/COVERS. Blade guards and covers
protect operator from the moving bandsaw blade.
The wheel covers protect operator from getting
entangled with rotating wheels or other moving
parts. ONLY operate this bandsaw with blade
guard in proper position and wheel covers com-
pletely closed.
BLADE REPLACEMENT. To avoid mishaps that
could result in operator injury, make sure blade
teeth face down toward table and blade is prop-
erly tensioned and tracked before operating.
UPPER BLADE GUIDE SUPPORT. To reduce
exposure of operator to blade and provide maxi-
mum blade support while cutting, keep upper
blade guides adjusted to just clear workpiece.
CUTTING TECHNIQUES. To avoid blade getting
pulled off wheels or accidentally breaking and
striking operator, always turn bandsaw OFF and
wait for blade to come to a complete stop before
backing workpiece out of blade. DO NOT back
workpiece away from blade while bandsaw is run-
ning. DO NOT force or twist blade while cutting,
especially when sawing small curves. This could
result in blade damage or breakage.
WORKPIECE SUPPORT. To maintain maximum
control and reduce risk of blade contact/break-
age, always ensure adequate support of long/
large workpieces. Always keep workpiece flat and
firm against table/fence when cutting to avoid loss
of control. If necessary, use a jig or other work-
holding device.
WORKPIECE MATERIAL. This machine is
intended for cutting natural and man-made wood
products, and laminate covered wood products.
This machine is NOT designed to cut metal,
glass, stone, tile, etc.
HAND PLACEMENT. Placing hands or fingers
in line with blade during operation may result in
serious injury if hands slip or workpiece moves
unexpectedly. Do not position fingers or hands in
line with blade, and never reach under table while
blade is moving.
SMALL/NARROW WORKPIECES. If hands slip
during a cut while holding small workpieces
with fingers, serious personal injury could occur.
Always support/feed small or narrow workpieces
with push sticks, push blocks, jig, vise, or some
type of clamping fixture.
BLADE SPEED. Cutting workpiece before blade
is at full speed could cause blade to grab work-
piece and pull hands into blade. Allow blade to
reach full speed before starting cut. DO NOT start
machine with workpiece contacting blade.
FEED RATE. To avoid risk of workpiece slipping
and causing operator injury, always feed stock
evenly and smoothly.
BLADE CONDITION. Dull blades require more
effort to perform cut, increasing risk of accidents.
Do not operate with dirty, dull, cracked or badly
worn blades. Inspect blades for cracks and miss-
ing teeth before each use. Always maintain proper
blade tension and tracking while operating.
CLEARING JAMS AND CUTOFFS. Always stop
bandsaw and disconnect power before clearing
scrap pieces that get stuck between blade and
table insert. Use brush or push stick, not hands,
to clean chips/cutoff scraps from table.
BLADE CONTROL. To avoid risk of injury due to
blade contact, always allow blade to stop on its
own. DO NOT try to stop or slow blade with your
hand or the workpiece.

Page 6
Test Run
Once the assembly is complete, test run your machine to make sure it runs properly and
is ready for regular operation.
The test run consists of verifying the following: 1) The motor powers up and runs
correctly, and 2) the safety disabling mechanism works correctly.
If, during the test run, you cannot easily locate the source of an unusual noise or
vibration, stop using the machine immediately, then review Troubleshooting on Page
61.
If you still cannot remedy a problem, contact our Tech Support at [phone] for
assistance.
To test run the machine:
1.Make sure that you have successfully com- pleted the Initial Blade Tracking
procedure on Page 28 before continuing.
2.Make sure you have read the safety instruc- tions at the beginning of the manual
and that the machine is setup properly.
3.Make sure all tools and objects used during setup are cleared away from the
machine.
4.Connect the machine to the power source.
5.Test the operation of the machine to verify !
that it starts and operates correctly. !
G0513, G0513P, G0513ANV, & G0513X2 Only !
a. Verify that the machine is operating correctly by pressing the power button.
— "When operating correctly, the machine runs smoothly with little or no vibration
or rubbing noises. !
— "Investigate and correct strange or unusual noises or vibrations before operating
the machine further. Always disconnect the machine from power when investigating
or correcting potential problems.

Page 7
-32- G0513 Series Bandsaws
G0513X2B, G0513X2F, & G0513X2BF Only
a. Insert the key into the power switch (see
Figure 41), then turn it to the "1".
Figure 41. G0513X2B and G0513X2BF control
panel.
Power Switch
ON Button
OFF Button
b. Verify that the machine is operating cor-
rectly by pressing the ON button.
— When operating correctly, the
machine runs smoothly with little or
no vibration or rubbing noises.
— Investigate and correct strange or
unusual noises or vibrations before
operating the machine further. Always
disconnect the machine from power
when investigating or correcting
potential problems.
c. Press the OFF button to stop the
bandsaw.
d. WITHOUT resetting the OFF button, press
the ON button. The machine should not
start.
— If the machine does start (with the
OFF button pushed in), immediately
disconnect the machine from power.
The OFF button safety feature is not
working correctly. This safety feature
must work properly before proceed-
ing with regular operations. Call Tech
Support for help.
e. Push the OFF button in, then twist it
clockwise so it pops out. When the OFF
button pops out, the switch is reset and
ready for operation (see Figure 42).
OFF Button
Figure 42. Resetting the OFF button.
f. Turn the key in the power switch to "0".
g. Tr y to turn the machine ON. The bandsaw
should not start.
— If the bandsaw starts, immediately
disconnect the machine from power.
The switch disabling feature is not
working correctly. This safety feature
must work properly before proceed-
ing with regular operations. Call Tech
Support for help.
6. Test the operation of the foot brake:
G0513X2BF & G0513X2F Only
a. Start the bandsaw, then press the foot
brake. The motor should shut off and the
blade should come to a rapid stop.
— If the motor does not stop or the
blade does not come to a rapid stop,
immediately disconnect the machine
from power. The foot brake feature
is not working correctly. This safety
feature must work properly before
proceeding with regular operations.
Call Tech Support for help.
Congratulations! The test run is complete and you
are ready to proceed with the following adjust-
ments before putting the bandsaw into full opera-
tion.

Page 8
G0513 Series Bandsaws -33-
Tensioning Blade
A properly tensioned blade is essential for mak-
ing accurate cuts, maximizing the life of the
blade, and making other bandsaw adjustments.
However, it will not compensate for cutting prob-
lems caused by too rapid of a feed rate, hardness
variations between workpieces, and improper
blade selection.
Improper blade tension is unsafe, produces
inaccurate and inconsistent results, and
introduces unnecessary wear on bandsaw
components. Over-tensioning the blade
increases the chance of the blade breaking
or wheel misalignment. Under-tensioned
blades wander excessively while cutting
and will not track properly during opera-
tion.
Tensioning the blade according to the blade
tension scale before the Test Run section
gave an approximate tension for completing
the bandsaw setup. The following proce-
dures tension the blade for operation.
Blade tensioning method is a matter of preference.
The flutter method and the deflection method are
described below. Either method safely tensions
the blade. Experience and personal preference
will help you decide which method your prefer.
Optimal cutting results for any workpiece results
from a combination of correct blade selection,
proper blade tension, and a light and even feed
rate.
Flutter Method
1. DISCONNECT BANDSAW FROM POWER!
2. Make sure the blade is properly center track-
ing as instructed in the Initial Blade Tracking
on Page 28.
3. Raise the guide post all the way, and move
the upper and lower blade guides away from
the blade.

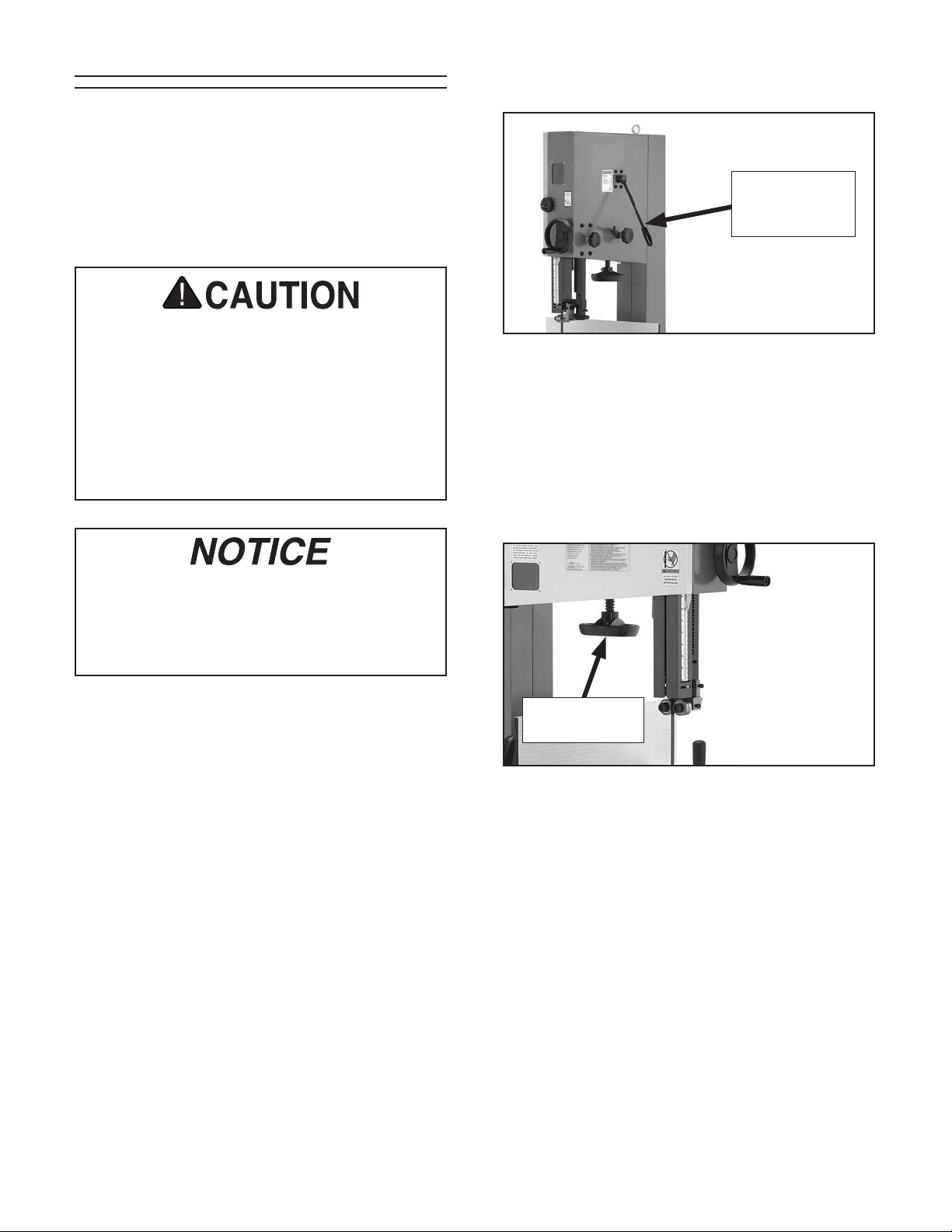

4. Engage the blade tension quick-release lever
to apply tension to the blade (see Figure 43).
7. Slowly increase the tension until the blade
stops fluttering, then turn the blade tension
adjustment knob an additional 1⁄8to 1⁄4of a
turn.
8. Turn the bandsaw OFF and disconnect it
from power.
9. Note what the tension gauge reads. Use that
as a guide for tensioning that specific blade
in the future.
10. Re-adjust blade guides as described in
Adjusting Blade Guides beginning on Page
36 for your model bandsaw.
Figure 44. Blade tension handwheel.
Blade Tension
Handwheel
5. Connect the bandsaw to power, and turn the
bandsaw ON.
6. Using the blade tension handwheel
(Figure 44), slowly decrease blade tension
until the blade starts to flutter.
Figure 43. Blade tension quick-release lever
(G0513X2 shown).
Blade Tension
Quick-release
Lever

Page 9
-34- G0513 Series Bandsaws
Deflection Method
The deflection method is more subjective than the
flutter method. Each blade deflects differently and
every user must determine what "moderate pres-
sure" means. The following are general guide-
lines for tensioning the blade with the deflection
method.
To tension the bandsaw blade:
1. DISCONNECT BANDSAW FROM POWER!
2. Make sure the blade is properly tracking as
instructed in the Initial Blade Tracking sec-
tion on Page 28.
3. Raise the guide post all the way, and move
the upper and lower blade guides away from
the blade.
4. Engage the blade tension quick-release lever
to apply tension to the blade. Whenever changing a blade or adjusting
tension and tracking, the upper and lower
blade support bearings and blade guides
must be properly adjusted before perform-
ing cutting operations.
5. Using moderate pressure, push the center of
the blade sideways.
—If the blade deflects approximately 1⁄4", it is
properly tensioned. Proceed to Step 6.
—If the blade deflects less than 1⁄4" it is
over-tensioned. Turn the blade tensioning
handwheel counterclockwise two full turns
and repeat this step.
—If the blade deflects more than 1⁄4", the
blade is under-tensioned. Apply tension to
the blade a small amount and repeat this
step until the blade is properly tensioned.
6. Re-adjust the blade guides as described in
Adjusting Blade Guides beginning on Page
36 for your model bandsaw.

Page 10
G0513 Series Bandsaws -35-
Adjusting Blade
Support Bearings
Before adjusting the blade support bear-
ings, make sure the blade is tracking prop-
erly (Page 28) and that it is correctly ten-
sioned (Page 33).
Support bearings stop excessive backward deflec-
tion of the blade from the advancing workpiece.
The proper adjustment of the support bearings
is an important part of making accurate cuts and
prevents damage to the blade teeth from contact
with the blade guides.

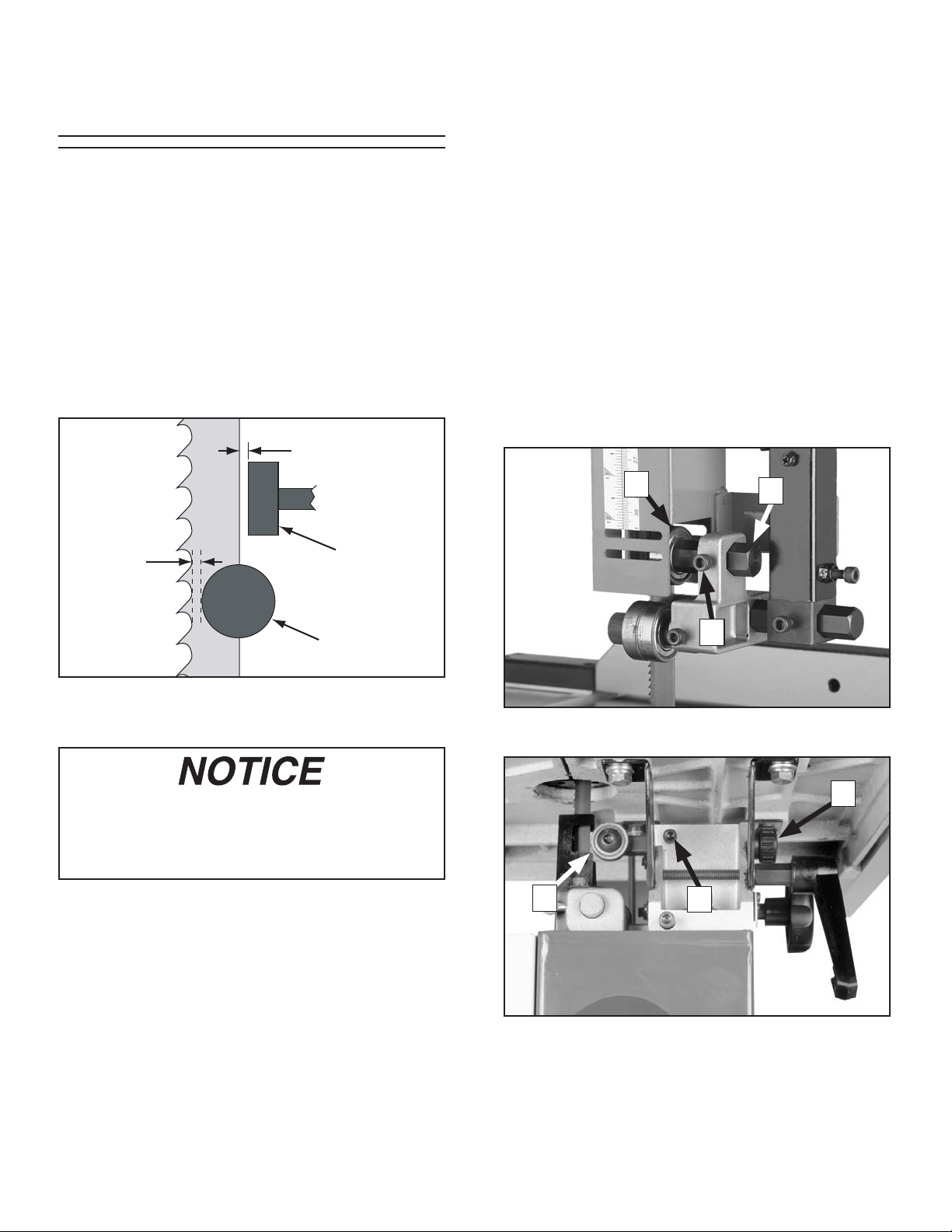

It is important that the distance of the support
bearing behind the blade is the same as the dis-
tance of the blade guides behind the teeth gullets,
which is typically about 0.016" (see Figure 45).
%#%&+
<Ve
%#%&+
<Ve
Hjeedgi
7ZVg^c\
7aVYZ
<j^YZ
Figure 45. Distance settings of upper support
bearings and blade guides.
Tools Needed Qty
Hex Wrench 5mm.............................................. 1
Feeler Gauge 0.016".................................1 Each
Crisp Dollar Bill (Optional) ................................. 1
Tip:You can use a crisp dollar bill in place of the
feeler gauge for the following procedures. The
thickness of the bill when folded in half twice is
approximately 0.016".
Refer to Figures 46–47 and the following descrip-
tions to become familiar with the controls to adjust
the support bearings. Then, adjust the surface of
the support bearings approximately 0.016" behind
the blade.
Note: The support bearing controls are similar for
all models.
Figure 46. Upper support bearing controls.
A
C
B
Figure 47. Lower support bearing controls.
C
D
A

Page 11
-36- G0513 Series Bandsaws
Before adjusting the blade guides, make
sure the blade is tracking properly (Page 28)
and that it is correctly tensioned (Page 33).
A. Support Bearing. Stops excessive back-
ward blade deflection from the pressure of
the advancing workpiece.
Note: The flat surface of the upper support
bearing faces the blade. The round edge of
the lower support bearing faces the blade.
B. Upper Support Bearing Shaft. Mounts the
support bearing behind the blade. When the
support bearing shaft cap screw is loose,
move this shaft by hand to adjust the upper
support bearing approximately 0.016" behind
the blade, then re-tighten the shaft cap screw
to secure the setting.
C. Support Bearing Shaft Cap Screw. When
loose, allows distance adjustment of the sup-
port bearing behind the blade.
D. Lower Support Bearing Adjustment Knob.
When the support bearing shaft cap screw is
loose, moves the support bearing toward or
away from the blade. Use this knob to adjust
the lower support bearing approximately
0.016" behind the blade, then re-tighten the
shaft cap screw to secure the setting.
Adjusting Blade
Guides
The blade guides provide side-to-side support
to keep the blade straight while cutting. These
guides are adjustable in two ways—forward-and-
back and side-to-side.
To keep the blade straight while cutting, the blade
guides must be as close to the sides of the blade
without exerting any clamping pressure. This dis-
tance is typically about 0.004".
To prevent damage to the blade teeth as the blade
deflects back while cutting, the guides must be
behind the teeth gullets the same amount as the
support bearing is behind the blade, which is typi-
cally about 0.016" (see Figure 45 on the previous
page for an illustration of this relationship).
Note: Models G0513, G0513P, and G0513ANV
use carbide discs as guides, while the remaining
models use ball bearings.
Important: Although the function and the distance
adjustment of the blade guides is the same for all
the G0513 Series Models, the guide controls are
not all the same. Use the set of instructions on
the following pages that is correct for your model
of bandsaw.

Page 12
G0513 Series Bandsaws -37-
Adjusting Blade Guides (G0513,
G0513P, & G0513ANV)
Tools Needed Qty
Hex Wrench 5mm.............................................. 1
Feeler Gauge 0.004" ................................1 Each
Crisp Dollar Bill (Optional) ................................. 1
Fine Ruler.......................................................... 1
Tip:You can use a crisp dollar bill in place of the
feeler gauge. The thickness of the bill is approxi-
mately 0.004" .

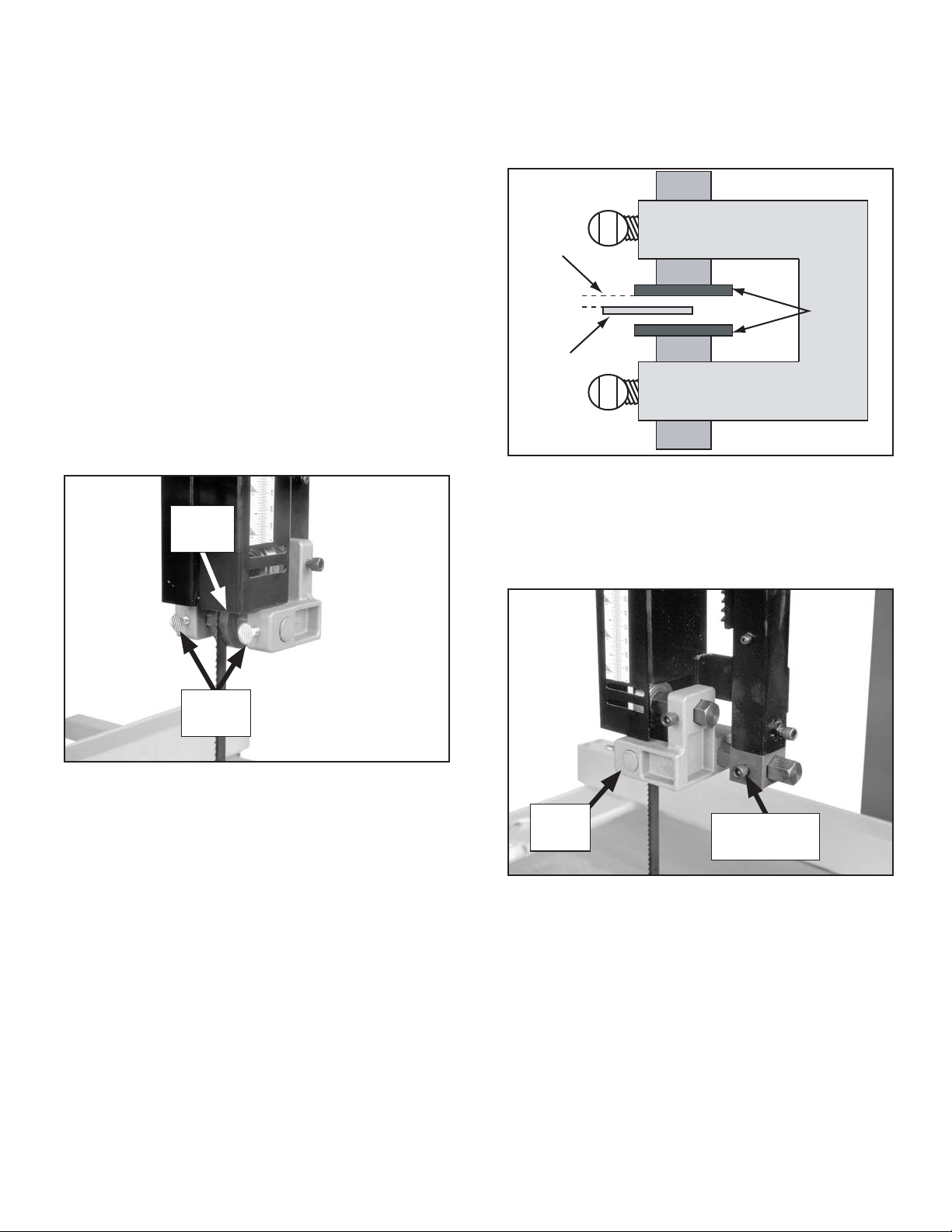

To adjust the upper blade guides:
1. DISCONNECT BANDSAW FROM POWER!
2. Loosen the thumb screws shown in Figure 48.
7aVYZ
<j^YZ
Iddi]
<jaaZi
7aVYZ
%#%&+
<Ve
Hjeedgi
7ZVg^c\
7aVYZ
%#%&+
<Ve
%#%&+
<Ve
Hjeedgi
7ZVg^c\
7aVYZ
<j^YZh
%#%%)
<Ve
7aVYZ
Figure 49. Correct gap between guide guides
and blade.
3. By hand, adjust the distance of the guides
approximately 0.004" from the sides of the
blades (see Figure 49), then re-tighten the
thumb screws to secure the setting.
Figure 48. Upper blade guides side-to-side con-
trols.
Blade
Guides
Thumb
Screws
Figure 50. Back of upper blade guides.
Guide Block
Cap Screw
Guide
Block
4. Loosen the guide block cap screw shown in
Figure 50.

Page 13
-38- G0513 Series Bandsaws
7aVYZ
<j^YZ
Iddi]
<jaaZi
7aVYZ
%#%&+
<Ve
Hjeedgi
7ZVg^c\
7aVYZ
%#%&+
<Ve
%#%&+
<Ve
Hjeedgi
7ZVg^c\
7aVYZ
<j^YZh
%#%%)
<Ve
7aVYZ
Figure 51. Correct guide alignment behind the
teeth gullets.
5. By hand, slide the guide block to position the
blade guides approximately 0.016" behind
the teeth gullets (see Figure 51), then re-
tighten the guide block cap screw to secure
the setting.
The lower blade guides are adjusted in the same
manner as the upper blade guides. However,
some controls are different. Refer to Figure 52 to
become familiar with these controls.
Figure 52. Lower blade guide controls.
Thumb
Screw
Guide
Block Guide Block
Cap Screw
Make sure that the blade teeth will not con-
tact the guides when the blade is against the
rear support bearing during the cut or the
blade teeth will be damaged.
Adjusting Blade Guide Bearings
(G0513X2, G0513X2B, G0513X2BF, &
G0513X2F)
Tools Needed Qty
Hex Wrench 5mm.............................................. 1
Feeler Gauge 0.004", 0.016" ....................1 Each
Crisp Dollar Bill (Optional) ................................. 1
Tip:You can use a crisp dollar bill in place of the
feeler gauge. The thickness of the bill is approxi-
mately 0.004", and when folded in half twice is
approximately 0.016".
Note: The upper and lower guide bearings are
adjusted in the same manner.
To adjust the upper and lower blade guide
bearings:
1. DISCONNECT BANDSAW FROM POWER!
2. Familiarize yourself with the blade guide con-
trols shown in Figure 53.
Figure 53. Blade guide controls.
Knurled
Knob
Blade Guide
Bearings
Bearing Rotation
Cap Screw
Lateral Rod
Cap Screw
Make sure that the blade teeth will not con-
tact the guide bearings when the blade is
against the rear support bearing during the
cut or the blade teeth will be damaged.

Page 14
G0513 Series Bandsaws -53-
Crosscutting
Crosscutting is the process of cutting across the
grain of wood. For plywood and other processed
wood, crosscutting simply means cutting across
the width of the material.
To make a 90˚ crosscut:
1. Mark the workpiece on the edge where you
want to begin the cut.
2. Adjust the blade guide assembly to no more
than 1" above the workpiece and the miter
gauge to 90°.
3. Move the fence out of the way. Place the
workpiece evenly against the miter gauge.
4. Hold the workpiece against the miter gauge
and line up the mark with the blade.
5. After all safety precautions have been met,
turn the bandsaw ON. Slowly feed the
workpiece into the blade and continue the
cut until the blade is all the way through the
workpiece. Figure 77 shows a typical cross-
cutting operation.

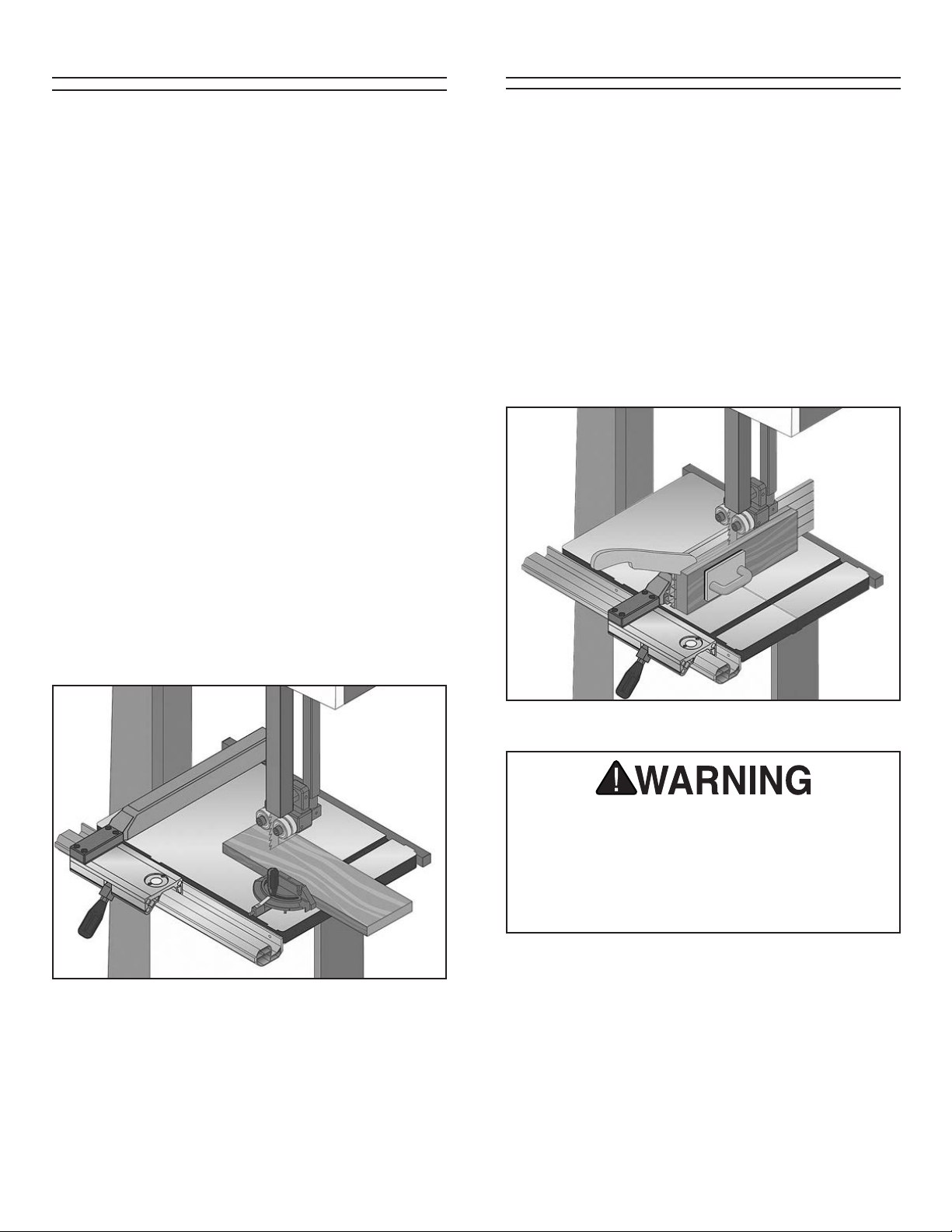

Figure 77. Example of crosscutting.
Resawing (see Figure 78 for an example) is the
process of cutting a board into two or more thinner
boards. The maximum board width that can be
resawn is limited by the maximum cutting height
of the bandsaw.
Blade selection is one of the most important con-
siderations when resawing. Generally, the wider
blade, the better. In most applications, a hook or
a skip tooth style blade with fewer teeth-per-inch
(from 2 to 4) is desirable because they offer larger
gullet capacities for clearing sawdust, decrease
blade heat, and reduce strain on the motor.
Resawing
When resawing thin pieces, a wandering
blade (blade lead) can tear through the sur-
face of the workpiece, exposing your hands
to the blade teeth. Always use push blocks
when resawing and keep your hands clear
of the blade.
Figure 78. Example of resawing.

Page 15
-54- G0513 Series Bandsaws
To resaw a workpiece:
1. Verify that the bandsaw is setup properly and
that the table is perpendicular to the blade.
2. Use the widest blade your bandsaw will
accept.
Note: The blade must also be sharp and
clean.
3. Install the resaw fence, set it to the desired
width of cut, and lock it in place.
Note: When resawing thin workpieces, set up
the resaw fence in the alternate position, as
shown in Figure 79,and make sure to use a
push stick.
4. Support the ends of the board if necessary.
5. Turn the bandsaw ON.
6. Using push paddles and a push stick, keep
pressure against the fence and table, and
slowly feed the workpiece into the moving
blade until the blade is completely through
the workpiece.
The fence scale will NOT be accurate when
using the resaw fence.
Cutting Curves
When cutting curves, simultaneously feed and
turn the stock carefully so that the blade follows
the layout line without twisting. If a curve is so
abrupt that it is necessary to repeatedly back up
and cut a new kerf, use either a narrower blade
or a blade with more TPI (teeth per inch), or make
more relief cuts.
Always make short cuts first, then proceed to
the longer cuts. Relief cuts will also reduce the
chance that the blade will be pinched or twisted.
Relief cuts are cuts made through the waste
portion of the workpiece and are stopped at the
layout line. As you cut along the layout line, waste
wood is released from the workpiece, alleviating
any pressure on the back of the blade. Relief cuts
also make backing the workpiece out easier, if
needed.
NOTICE
The list below displays blade widths and
the corresponding minimum radii for those
blade widths.
Width Radius
1⁄8".................................... 1⁄8"
3⁄16"................................... 3⁄8"
1⁄4''.................................... 5⁄8''
3⁄8''.................................... 11⁄4''
1⁄2''.................................... 21⁄2''
5⁄8''.................................... 33⁄4''
3⁄4''.................................... 51⁄2''
Figure 79. Resaw fence installed in the alternate
position.
