Grizzly G8694 User manual

WWW.GRIZZLY.COM
AIR COMPRESSORS
MODEL G8694 2HP / G8695 2.5HP / G8889 2HP
INSTRUCTION MANUAL
COPYRIGHT © 1999 BY GRIZZLY INDUSTRIAL, INC.
1821 VALENCIA ST., BELLINGHAM, WA 98226
WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE
OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.
NOVEMBER, 1999 PRINTED IN CHINA
G8694 G8695
G8889

-1-
Table Of Contents PAGE
SAFETY SAFETY RULES FOR POWER TOOLS ..........................................................2-3
ADDITIONAL SAFETY INSTRUCTIONS FOR AIR COMPRESSORS................4
CIRCUIT REQUIREMENTS
110V OPERATION ..............................................................................................5
GROUNDING ......................................................................................................5
EXTENSION CORDS ..........................................................................................5
SETTING UP AND OPERATING
COMMENTARY....................................................................................................6
UNPACKING ........................................................................................................7
SITE CONSIDERATIONS ....................................................................................7
PREPARING FOR USE ......................................................................................8
STARTING ..........................................................................................................9
PRESSURE REGULATOR ..................................................................................9
CONNECTING TOOLS ......................................................................................10
AIR CONTROL VALVE ......................................................................................10
MAINTENANCE
EACH USE ........................................................................................................11
AFTER FIRST 50 HOURS ................................................................................12
WEEKLY ............................................................................................................12
EVERY 300 HOURS ..........................................................................................12
TROUBLESHOOTING ......................................................................................................13
PARTS BREAKDOWN AND PARTS LISTS................................................................14-15
WARRANTY AND RETURNS ..........................................................................................16

-2- G8694/G8695/G8889 Air Compressors
Safety Instructions For Power Tools
SAFETY
5. KEEP CHILDREN AND VISITORS
AWAY. All children and visitors should be
kept a safe distance from work area.
6. MAKE WORK SHOP CHILD PROOF with
padlocks, master switches, or by removing
starter keys.
7. DON’T FORCE TOOL. It will do the job
better and safer at the rate for which it was
designed.
8. USE RIGHT TOOL. Don’t force tool or
attachment to do a job for which it was not
designed.
1. KEEP GUARDS IN PLACE and in working
order.
2. REMOVE ADJUSTING KEYS AND
WRENCHES. Form habit of checking to
see that keys and adjusting wrenches are
removed from tool before turning on.
3. KEEP WORK AREA CLEAN. Cluttered
areas and benches invite accidents.
4. DON’T USE IN DANGEROUS ENVIRON-
MENT. Don’t use power tools in damp or
wet locations, or where any flammable or
noxious fumes may exist. Keep work area
well lighted.
For Your Own Safety Read Instruction
Manual Before Operating This Equipment
Indicates an imminently hazardous situation which, if not
avoided, WILL result in death or serious injury.
Indicates a potentially hazardous situation which, if not
avoided, COULD result in death or serious injury.
Indicates a potentially hazardous situation which, if not
avoided, MAY result in minor or moderate injury. It may also
be used to alert against unsafe practices.
This symbol is used to alert the user to useful information
about proper operation of the equipment.
The purpose of safety symbols is to attract your attention to possible hazardous conditions.
This manual uses a series of symbols and signal words which are intended to convey the level
of importance of the safety messages. The progression of symbols is described below.
Remember that safety messages by themselves do not eliminate danger and are not a substi-
tute for proper accident prevention measures.
NOTICE

G8694/G8695/G8889 Air Compressors -3-
9. USE PROPER EXTENSION CORD. Make
sure your extension cord is in good condi-
tion. Conductor size should be in accor-
dance with the chart below. The amperage
rating should be listed on the motor or tool
nameplate. An undersized cord will cause a
drop in line voltage resulting in loss of
power and overheating. Your extension
cord must also contain a ground wire and
plug pin. Always repair or replace exten-
sion cords if they become damaged.
Minimum Gauge for Extension Cords
10. WEAR PROPER APPAREL. Do not wear
loose clothing, gloves, neckties, rings,
bracelets, or other jewelry which may get
caught in moving parts. Non-slip footwear
is recommended. Wear protective hair cov-
ering to contain long hair.
11. ALWAYS USE SAFETY GLASSES. Also
use face or dust mask if cutting operation is
dusty. Everyday eyeglasses only have
impact resistant lenses, they are NOT safe-
ty glasses.
12. SECURE WORK. Use clamps or a vise to
hold work when practical. It’s safer than
using your hand and frees both hands to
operate tool.
LENGTH
AMP RATING 25ft 50ft 100ft
0-6 18 16 16
7-10 18 16 14
11-12 16 14 12
13-16 14 12 12
17-20 12 12 8
21-30 10 10 No
Safety Instructions For Power Tools
13. DON’T OVERREACH. Keep proper foot-
ing and balance at all times.
14. MAINTAIN TOOLS WITH CARE. Keep
tools sharp and clean for best and safest
performance. Follow instructions for lubri-
cating and changing accessories.
15. DISCONNECT TOOLS before servicing
and changing accessories, such as blades,
bits, cutters, and the like.
16. REDUCE THE RISK OF UNINTENTION-
AL STARTING. Make sure switch is in off
position before plugging in.
17. USE RECOMMENDED ACCESSORIES.
Consult the owner’s manual for recom-
mended accessories. The use of improper
accessories may cause risk of injury.
18. CHECK DAMAGED PARTS. Before fur-
ther use of the tool, a guard or other part
that is damaged should be carefully
checked to determine that it will operate
properly and perform its intended function.
Check for alignment of moving parts, bind-
ing of moving parts, breakage of parts,
mounting, and any other conditions that
may affect its operation. A guard or other
part that is damaged should be properly
repaired or replaced.
19. NEVER LEAVE TOOL RUNNING UNAT-
TENDED. TURN POWER OFF. Don’t
leave tool until it comes to a complete stop.

-4- G8694/G8695/G8889 Air Compressors
Additional Safety Instructions For Air
Compressors
1. Operate the compressor in a well-ventilated
area free of acids, vapor, explosive gases
and flammable or unstable materials.
2. Use compressor only with air, never use
with any other type of gas.
3. Never aim the air nozzle directly at yourself
or others. The air stream can be quite force-
ful and can damage skin.
4. Do not pull on rubber hoses to move the
compressor.
5. Do not use compressed air for filling breath-
ing or diving apparatus. Compressed air
from this compressor cannot be used for
pharmaceutical, food or health require-
ments without further treatment.
6. Never transport the compressor under pres-
sure. Always make sure the pressure in the
storage tanks has been released before
loading or moving the air compressor.
7. Never attempt to adjust the pressure safety
valve on the air tanks. This is preset to 150
PSI.
Operating this equipment has the potential
to propel debris into the air which can
cause eye injury. Always wear safety glass-
es or goggles when operating equipment.
Everyday glasses or reading glasses only
have impact resistant lenses, they are not
safety glasses. Be certain the safety glass-
es you wear meet the appropriate stan-
dards of the American National Standards
Institute (ANSI).
Like all power tools, there is danger asso-
ciated with the operation of air compres-
sors. Accidents are frequently caused by
lack of familiarity or failure to pay attention.
Use this equipment with respect and cau-
tion to lessen the possibility of operator
injury. If normal safety precautions are
overlooked or ignored, serious personal
injury may occur.
No list of safety guidelines can be com-
plete. Every shop environment is different.
Always consider safety first, as it applies to
your individual working conditions. Use
this and other machinery with caution and
respect. Failure to do so could result in
serious personal injury, damage to equip-
ment or poor work results.

G8694/G8695/G8889 Air Compressors -5-
110V Operation
CIRCUIT REQUIREMENTS
If you find it necessary to use an extension cord
with your compressor, make sure the cord is
rated Hard Service (grade S) or better. Refer to
the chart in the standard safety instructions to
determine the minimum gauge for the extension
cord. The extension cord must also contain a
ground wire and plug pin. Always repair or
replace extension cords when they become worn
or damaged.
Extension Cords
Grounding
This equipment must be grounded. Verify
that any existing electrical outlet and circuit
you intend to plug into is actually ground-
ed. If it is not, it will be necessary to run a
separate 12 A.W.G. copper grounding wire
from the outlet to a known ground. Under
no circumstances should the grounding pin
from any three-pronged plug be removed.
Serious injury may occur.
In the event of an electrical short, grounding
reduces the risk of electric shock by providing a
path of least resistance to disperse electric cur-
rent. These machines are equipped with power
cords having an equipment-grounding conductor.
See Figure 1. The outlet must be properly
installed and grounded in accordance with all
local codes and ordinances.
These air compressors are wired for 110/120V,
single phase operation only. The chart below
shows the maximum amperage draw and recom-
mended fusing level for each of the machines.
Figure 1. Grounded plug configuration.
G8694
G8695
G8889
2.0
2.5
2.0
12
17
12
15
20
15
Model Amperage
HP Max Fuse
It is generally best to operate a compressor on a
dedicated circuit, i.e. a circuit where there are no
other electrical appliances plugged in. The fuse
requirements above assume the use of a circuit
breaker or a slow-blow fuse. If an unusual load
does not exist and the compressor still breaks the
circuit, contact a qualified electrician or our ser-
vice department.

-6- G8694/G8695/G8889 Air Compressors
SETTING UP AND OPERATING
We are proud to offer the Grizzly Models
G8694/G8695/G8889 Air Compressors. These
compressors are part of the growing Grizzly fam-
ily of heavy-duty machinery for the home work-
shop. When used according to the guidelines set
forth in this manual, you can expect years of trou-
ble-free, enjoyable operation and proof of
Grizzly’s commitment to customer satisfaction.
The G8694 is a 2.0 HP unit with a 7 gallon tank
capacity and delivers 3.0 CFM@90 PSI. The
G8695 is a 2.5 HP unit and has an 11 gallon tank
capacity and delivers 3.5 CFM@90 PSI. The
G8889 is an upright style portable 2.0 HP with a
4 gallon tank providing 4.2 CFM@90 PSI. All
three of these units include integral wheels allow-
ing easy movement of the compressor to wher-
ever air power is needed.
We are also pleased to provide this manual with
your new air compressor. It was written to guide
you through assembly, review safety considera-
tions, and cover general operating procedures. It
represents our effort to produce the best docu-
mentation possible. If you have any comments
regarding this manual, please write to us at the
address below:
Grizzly Industrial, Inc.
C/O Technical Documentation
P.O. Box 2069
Bellingham, WA 98227-2069
Most importantly, we stand behind our machines.
If you have any service questions or parts
requests, please call or write us at the location
listed below.
Grizzly Industrial, Inc.
1203 Lycoming Mall Circle
Muncy, PA 17756
Phone: [phone]
Fax: [phone]
E-Mail: [email protected]
Web Site: http://www.grizzly.com
The specifications, drawings, and photographs
illustrated in this manual represent the Models
G8694/G8695/G8889 as supplied when the man-
ual was prepared. However, owing to Grizzly’s
policy of continuous improvement, changes may
be made at any time with no obligation on the
part of Grizzly. Whenever possible, though, we
send manual updates to all owners of a particular
tool or machine. Should you receive one, we urge
you to insert the new information with the old and
keep it for reference.
To operate this, or any power tool, safely
and efficiently, it is essential to become as
familiar with its characteristics as possible.
The time you invest before you begin to use
your air compressor will be time well spent.
DO NOT operate this machine until you are
completely familiar with the contents of this
manual. Make sure you read and under-
stand all of the safety procedures. If you do
not understand something, DO NOT operate
the machine.
Commentary

G8694/G8695/G8889 Air Compressors -7-
Unpacking
This air compressor is shipped from the manu-
facturer in a carefully packed carton. If you dis-
cover the machine is damaged after you’ve
signed for delivery, and the truck and driver are
gone, you will need to file a freight claim with the
carrier. Save the containers and all packing mate-
rials for possible inspection by the carrier or its
agent. Without the packing materials, filing a
freight claim can be difficult. If you need assis-
tance determining whether you need to file a
freight claim, or with the procedure to file one,
please contact our Customer Service.
Site Considerations
When determining where to set up the compres-
sor in the shop, or when taking the air compres-
sor to a job site, the most important consideration
is access to an adequate and properly fused
power supply. Refer to Section 2: Circuit
Requirements for the needs for your particular
compressor.
Also make sure the compressor is not operating
in an environment where there are any explosive,
flammable or caustic fumes or gases. A clear and
well-ventilated area is best for its safe operation.
Place the compressor on a solid and level sur-
face. Make sure that the hoses you attach to sup-
ply your pneumatic device will be unrestricted in
movement and not subject to being run over by
vehicles or punctured by any other sharp objects
in the area.
And since air compressors are often used for a
sustained period of time, sometimes in restricted
areas, it is also best to wear ear protection to
avoid the long-term exposure to the sound of the
electric motor and piston.
NOTICE
These compressors should always be run
in the positions shown on the cover of this
manual. Never continue to operate the
machine if it has fallen over on its side. The
compressor will not receive adequate oil
flow in these positions, and continued
operation can lead to early failure of the
compressor.

-8- G8694/G8695/G8889 Air Compressors
Preparing For Use
Before using your Grizzly Air Compressor, follow
these steps before the first use:
1. Remove all packing materials and any pro-
tective plastic plugs from the cylinder head
or oil plug.
2. Be sure the air filter is attached to the side
of the cylinder head.
3. Check the oil level in the motor crankcase.
For the G8694 and G8889 the oil is
checked by removing the filler cap and
checking to make sure the oil level is
between the two marks on the end of the
dipstick. For the G8695 the oil can be
checked using the clear plastic sight gauge.
The oil level should be close to the center
of the gauge. See Figure 2.
Operating this equipment has the potential
to propel debris into the air which can
cause eye injury. Always wear safety glass-
es or goggles when operating equipment.
Everyday glasses or reading glasses only
have impact resistant lenses, they are not
safety glasses. Be certain the safety glass-
es you wear meet the appropriate stan-
dards of the American National Standards
Institute (ANSI).
Operating this equipment has the potential
for hearing damage to occur, especially if
operated for a long period of time. Use
ANSI (American National Standards
Institute) approved ear muff or ear plugs
when using this equipment. Always wear
proper hearing protection, cotton balls or
tissue paper in the ear canal do not provide
adequate noise reduction.

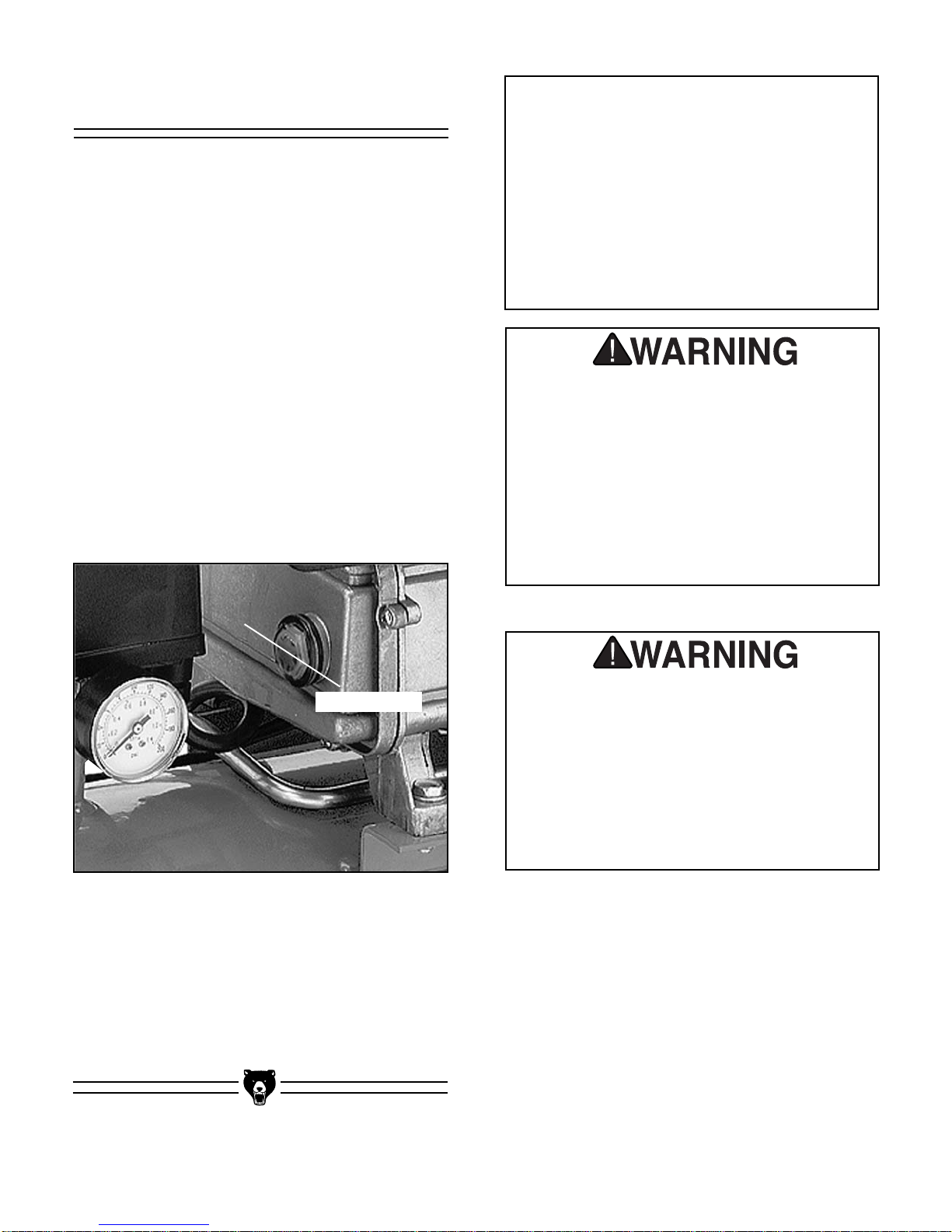

Fig 2. G8695 oil level indicator.
4. Make sure drain valve(s) on the air tanks is
closed.
5. Make sure the power switch is in the OFF
position, fully pushed in. Connect the power
cord(s) to a properly protected power
source.
NOTICE
The machine should never be run without a
full oil reservoir. The oil provides lubrica-
tion to the cylinder rings which deliver the
compressed air. Severe damage to the
internal parts can occur if there is not ade-
quate oil flow. Check the oil level frequent-
ly, and change the oil on a regular sched-
ule.
Proper Oil Level

-9-
The pressure gauge will indicate the amount of
pressure that will be delivered from the tank. To
adjust the delivery pressure, remove the black
On/Off switch cover by removing the screw which
is in the recess on the top of the cover. Pull the
black cover up and set it aside. Turn the pressure
adjustment screw (See Figure 4) clockwise to
decrease pressure and counterclockwise to
increase pressure. Replace the cover when the
adjustment is complete.
Pressure Regulator
Make sure the compressor switch is in the OFF
position (the red button on top of the control box
should be in the fully depressed position, see
Figure 3) before connecting to the power supply.
Close the drain cock on the tank. Pull the switch
to the ON position.
Starting

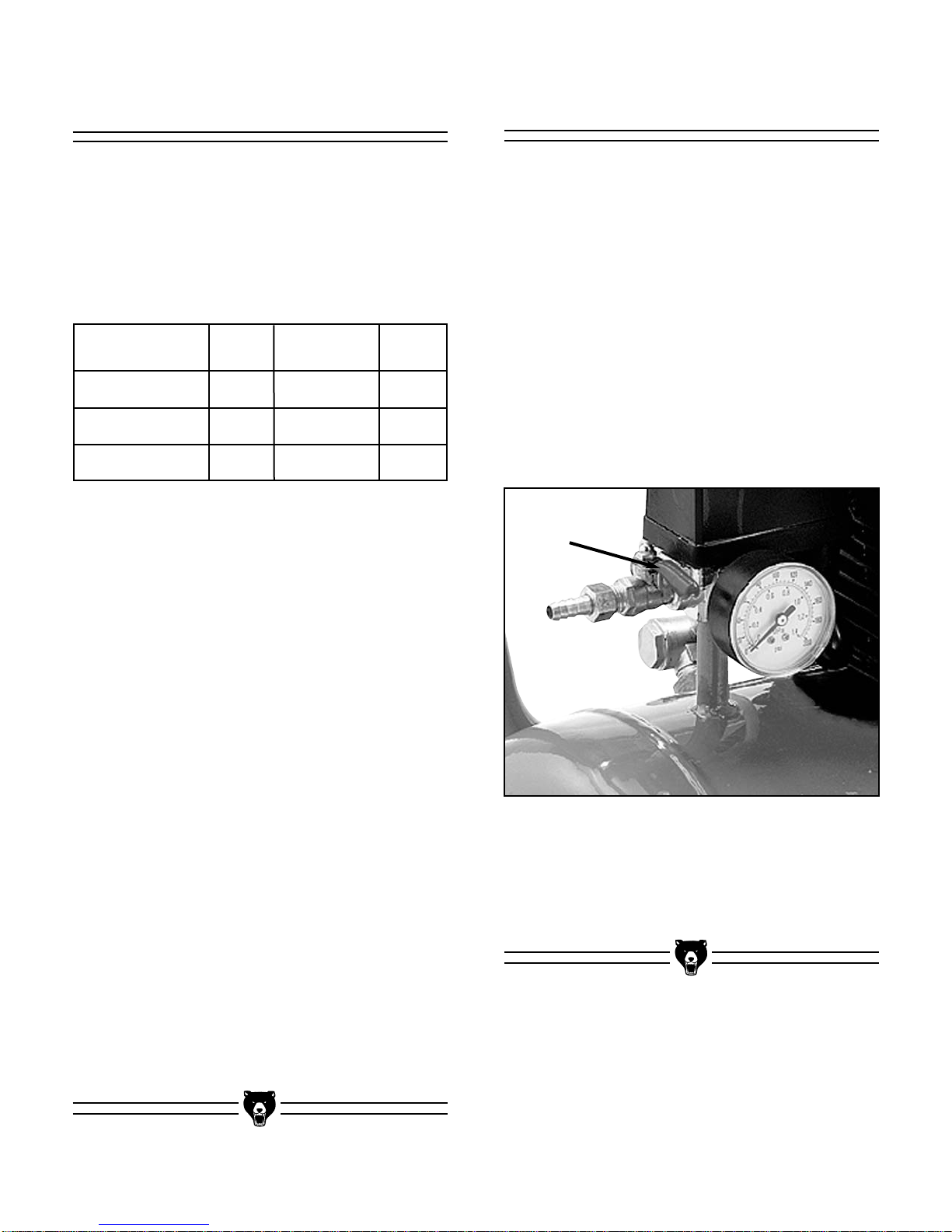

Fig 3. Start switch and gauges.
Check the pressure gauge to see that the tank
pressure gets up to approximately 110-115 PSI.
On/Off
Switch
Output
Gauge
Figure 4. Pressure regulator.
Always wear safety glasses and use
extreme caution when working around
compressed air. The force of the air stream
can cause small bits of debris to become
airborne and cause potential injury to the
eyes or other parts of the body. Never let
the full force of the air stream come in
direct contact with the skin as it can cause
abrasions or bruising.

-10- G8694/G8695/G8889 Air Compressors
Fig 5. Air control lever in closed position.
Make sure the compressor model you use has
sufficient cubic feet per minute (CFM) output for
the air tool you plan to connect. Most air tools will
have an air requirement stated in terms of a spe-
cific CFM at a specific pressure (PSI). Consult the
chart below to determine the output of your com-
pressor model.
Connecting Tools Air Control Valve
G8294
G8295
G8889
2.0
2.5
2.0
3.0
3.5
4.2
7 gal
11 gal
4 gal
Model HP CFM
@ 90 PSI Tank
Cap.
The compressor should put out a higher CFM
than the tool requires. If connecting multiple tools
which will be used simultaneously, then the CFM
for each tool should be added together and com-
pared to the compressor output value.
Consideration should also be given to the type of
usage. A nailer or staple gun uses air in short
bursts and it is easier for the compressor to main-
tain pressure. A paint sprayer or grinder tends to
use a more continuous stream of air as these
tools are run for longer time periods. It is always
better to oversize a compressor to allow for vari-
ation in the type of usage and the number of tools
to be powered. Air tools being operated with
insufficient air volume will not perform their func-
tion satisfactorily.
Connect the tool using a good quality air line with
an adequate length to reach from the compressor
to the point of use. Quick-connect couplers are a
good option for fast and sure connection of tools
and air hoses. Make certain the air hose will not
be placed in a position where it can become con-
stricted or cut by a sharp object. Having a hose
run over by heavy vehicles may not cause an
immediate leak, but it will shorten the life of the
hose.
The air control valve lever is located just next to
the On/Off switch near the air outlet fitting. When
the lever is turned so it is in line with the fitting,
the valve is OPEN. When it is at a 90˚ position
relative to the fitting, the valve is CLOSED. (See
Figure 5).
The air outlet supplied is a brass barb fitting
over which an air hose can be slipped. This
will be suitable for low pressure uses. If you
will be operating at higher pressure, or run-
ning air tools, you should replace this fitting
with a quick connect coupler which you can
find at your local hardware store.
Air Control Valve
Lever
There is also a pressure release valve which can
be used when decompression of the storage tank
is needed quickly and efficiently. Pull the metal
ring to release the pressure.

3. Clean off cylinder head cooling fins of any
dirt which might hamper air flow.
4. Check for worn or damaged cords and
plugs.
5. Check for any other condition that could
hamper the safe operation of this machine.
G8694/G8695/G8889 Air Compressors -11-
MAINTENANCE
Regular periodic maintenance on your Air
Compressor will ensure its optimum perfor-
mance. Make a habit of inspecting your compres-
sor each time you use it. Check the following
items:
1. Check oil level.
2. Drain tanks of any condensation by open-
ing the drain cocks on the bottom of both
tanks. See Figure 6. Depending upon the
amount of use and the weather conditions,
a certain amount of condensed water may
be released. For longevity of the compres-
sor seals and the air tools you connect, it is
best to keep the tanks free of water. The
tanks are best drained if the drain cocks are
opened when the system is pressurized.
Once water has stopped coming out, you
can close the drain cocks.
Each Use

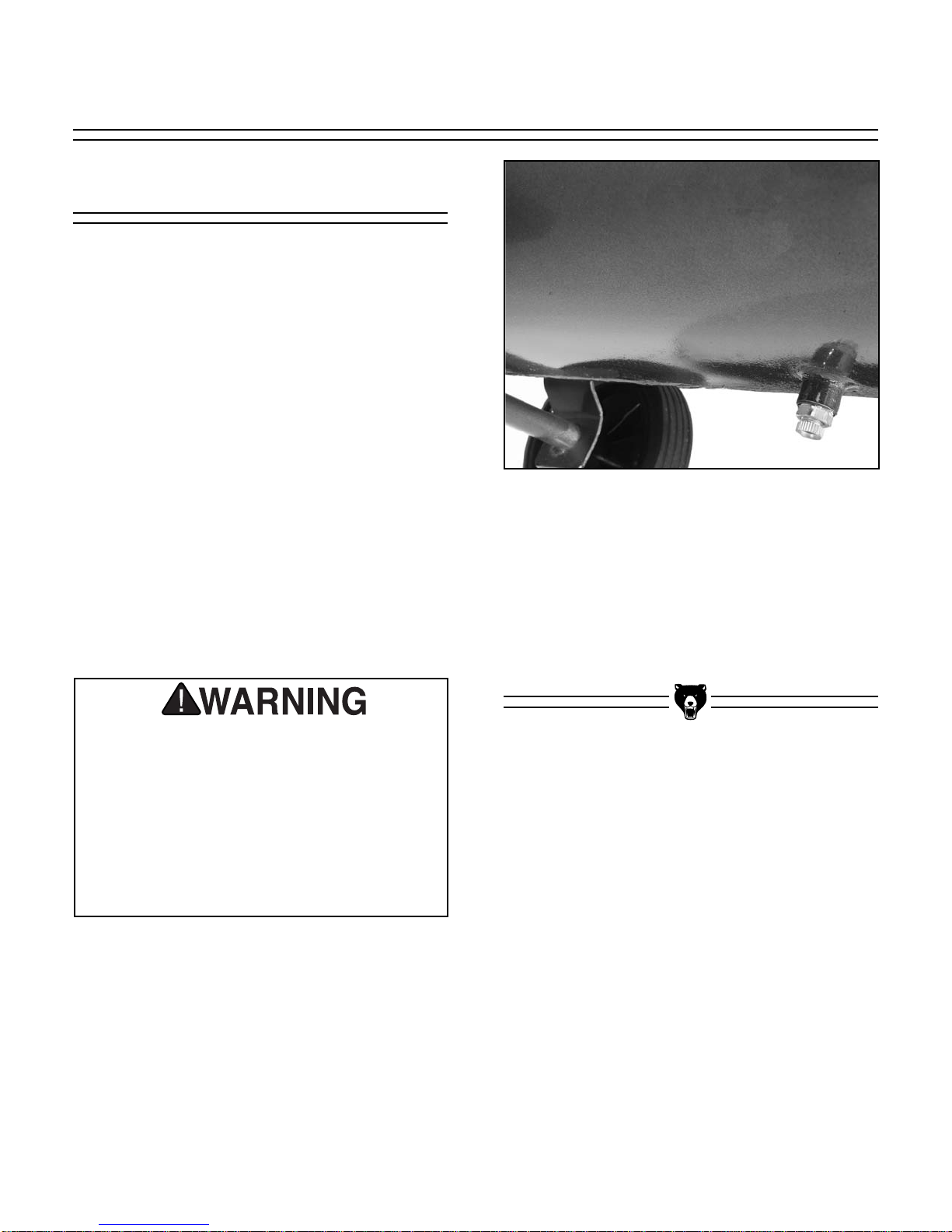

Fig 6. Typical location of drain cocks.
Always wear safety glasses and use
extreme caution when working around
compressed air. The force of the air stream
can cause small bits of debris to become
airborne and cause potential injury to the
eyes or other parts of the body. Never let
the full force of the air stream come in
direct contact with the skin as it can cause
abrasions or bruising.

The Model G8694/G8695/G8889 Air
Compressors are specifically designed for air
tool operation. DO NOT MODIFY AND/OR
USE THIS MACHINE FOR ANY OTHER PUR-
POSE. Modifications or improper use of this
tool will void the warranty. If you are con-
fused about any aspect of this machine, DO
NOT use it until you have answered all your
questions. Serious personal injury may
occur.
Like all power tools, there is danger asso-
ciated with operating this equipment.
Accidents are frequently caused by lack of
familiarity or failure to pay attention. Use
this tool with respect and caution to lessen
the possibility of operator injury. If normal
safety precautions are overlooked or
ignored, serious personal injury may
occur.
-12- G8694/G8695/G8889 Air Compressors
Weekly
Every 300 Hours
If the compressor is used on a regular daily basis,
perform the following checks each week:
1. Rinse the air filter foam element in water.
2. Check for loose bolts or fittings.
After every 300 hours or 3 months of regular
operation, perform the following maintenance
items:
1. Change compressor motor oil.
2. Rinse the air filter foam element in water.
3. Check for air leaks and correct as needed.
4. Clean cylinder head fins for proper cooling.
5. Check for loose bolts or fittings.
After First 50 Hours
After the first 50 working hours, or 30 days,
whichever comes first, replace the oil in the
motor with compressor oil (use ISO 100 or SAE
30W viscosity, non-detergent type).
Also after this initial operation period, check to
make sure that all the fittings are tight. Remove
the air filter foam element and rinse it out in
water. Allow it to dry and reinstall.
Blow out any accumulated dirt between the cylin-
der cooling fins.

G8694/G8695/G8889 Air Compressors -13-
SYMPTOM
Pump Motor Will Not
Start
Pump Motor Starts; But
Fuses Blow or Circuit
Breakers Trip
Low Pressure At The
Tool
Low Pressure At The
Tanks
Compressor Knocking
Air Leaks From Pressure
Switch
Air Is Dirty Or Has
Excessive Moisture
Motor Runs Hot
Pressure Relief Valve
Stays Open And Motor
Won’t Stop Running
POSSIBLE CAUSE
1. Low voltage.
2. Open circuit in motor, switch or
cord.
3. Tank already pressurized.
4. Thermal overload switch.
1. Short circuit in line cord or plug.
2. Short circuit in motor or loose
connections.
3. Incorrect fuses or circuit break-
ers in power line.
1. Air leaks in flexible hoses.
2. Pressure gauge bad
3. Pressure regulator bad.
1. Air leaks in tanks or delivery
pipes.
2. Drain cock open
3. Safety valve releasing below
125 PSI.
4. Air filter clogged.
5. Gaskets leaking
6. Worn rings.
1. Improper oil level.
2. Air filter clogged.
3. Piston assembly loose.
1. Faulty check valve.
2. Faulty pressure switch.
1. Tanks not drained.
2. Delivery pipes are dirty.
1. Cooling Fins Dirty.
2. Air filter clogged.
1. Faulty pressure switch, unit is
trying to overpressure the tank
2. Faulty pressure relief valve.
CORRECTIVE ACTION
1. Check power line for proper voltage.
2. Inspect all lead connections on motor, switch and
cord for loose or open connections.
3. Motor will not start if tank pressure is too high.
4. Thermal overload switch has tripped, wait for motor
to cool, then reset switch by pressing red button.
1. Inspect cord or plug for damaged insulation and
shorted wires.
2. Inspect all connections on motor for loose or shorted
terminals or worn insulation.
3. Install correct fuses or circuit breakers.
1. Check air hoses and all connections for leaks.
2. Check pressure in line with known good gauge.
3. Adjust pressure regulator, if no improvement inspect
regulator for leaks or replacement.
1. Check air tanks, pipes and all connections for leaks.
2. Close drain cock.
3. Replace safety valve.
4. Inspect and clean air filter.
5. Check gaskets on cylinder head assembly, repair or
replace as needed.
6. Inspect and replace pump piston rings.
1. Check oil level and add oil.
2. Inspect and clean air filter.
3. Inspect and repair piston and connecting rod.
1. Clean dirt or debris from rubber membrane of check
valve after removing top nut.
2Repair or replace pressure switch.
1. Open drain cocks on both tanks and make certain all
condensation water is drained out.
2. Remove delivery pipes, clean out and replace.
1. Clean cylinder head fins and also remove any accu-
mulated dirt or grease from motor area.
2. Inspect and clean air filter.
1. Turn compressor off, unplug from power supply,
drain tank. DO NOT USE until switch is repaired or
replaced.
2. Relief valve is relieving pressure too early, test pres-
sure relief and repair or replace,
TROUBLESHOOTING

-14- G8694/G8695/G8889 Air Compressors
001 P8694001 Bolt M6 x 155mm
002 P8694002 Spring Washer 6 mm
003 P8694003 Washer 6mm
004 P8694004 Rear Cover
005 P8694005 Corrugated Washer
006 P8694006 Bearing 180203
007 P8694007 Stator
008 P8694008 Rotor
009 P8694009 Crankcase
010 P8694010 Bearing 108205
011 P8694011 Shaft
012 P8694012 Cap Screw M8 x 30 mm
013 P8694013 Crank
014 P8694014 Rubber Gasket
015 P8694015 Front Cover
016 P8694016 Washer 5 mm
017 P8694017 Spring Washer 5 mm
018 P8694018 Screw M6 x 20 mm
019 P8694019 Oil Leveler Washer
020 P8694020 Oil Leveler
021 P8694021 Breather pipe washer
022 P8694022 Breather pipe
023 P8694023 Stud M8 x 15 mm
023A P8694023A Stud M8 x 20 mm
024 P8694024 Spring Washer 8 mm
025 P8694025 Connecting Rod
026 P8694026 Nut M8
027 P8694027 Piston
028 P8694028 Piston Pin Retaining Clip
029 P8694029 Piston Pin
030 P8694030 Oil Scraper Ring
031 P8694031 Piston Ring
032 P8694032 Piston Ring
033 P8694033 Cylinder Gasket
034 P8694034 Cylinder
035 P8694035 Valve Gasket
036 P8694036 Valve Plate
037 P8694037 Check Valve
038 P8694038 Valve Inner Gasket
039 P8694039 Valve Plate
040 P8694040 Cylinder Head Gasket
041 P8694041 Cylinder Head
042 P8694042 Right Angle Connector
043 P8694043 Hex Bolt M6 x 50
044 P8694044 Air Filter
045 P8694045 Washer 4 mm
046 P8694046 Wing Nut M4
047 P8694047 Nut M6
048 P8694048 Capacitor
049 P8694049 Fan Cover
050 P8694050 Big Washer 5 mm
051 P8694051 Screw M5 x 12 mm
052 P8694052 Screw M4 x 12 mm
053 P8694053 Spring Washer 4 mm
054 P8694054 Screw M4 x 8 mm
055 P8694055 Washer 12 mm
056 P8694056 Fan
057 P8694057 Spring Washer 12 mm
058 P8694058 Nut M12 x 1.5 mm
101 P8694101 Pressure Regulator
102 P8694102 Regulator Control Knob
103 P8694102 Outlet Valve
104 P8694104 Output Pressure Gauge
105 P8694105 Tank Pressure Gauge
106 P8694106 One-Way Check Valve
107 P8694107 Discharge Pipe
108 P8694108 Drain Cock
109 P8694109 Wheel
110 P8694110 Wheel Hub
111 P8694111 Pressure Tank
112 P8694112 Handle Grip
113 P8694113 Handle
114 P8694114 Safety Relief Valve
115 P8694115 Rubber Pad
116 P8694116 Power Cord
Ref. # Part # Description Ref. # Part # Description
PARTS LIST G8694/G8695 AIR COMPRESSOR

G8694/G8695/G8889 Air Compressors -15-

-16- G8694/G8695/G8889 Air Compressors
Grizzly Industrial, Inc. warrants every product it sells for a period of 1 year to the original purchaser from
the date of purchase. This warranty does not apply to defects due directly or indirectly to misuse, abuse,
negligence, accidents, repairs or alterations or lack of maintenance. This is Grizzly’s sole written warranty
and any and all warranties that may be implied by law, including any merchantability or fitness, for any par-
ticular purpose, are hereby limited to the duration of this written warranty. We do not warrant or represent
that the merchandise complies with the provisions of any law or acts unless the manufacturer so warrants.
In no event shall Grizzly’s liability under this warranty exceed the purchase price paid for the product and
any legal actions brought against Grizzly shall be tried in the State of Washington, County of Whatcom.
We shall in no event be liable for death, injuries to persons or property or for incidental, contingent, spe-
cial, or consequential damages arising from the use of our products.
To take advantage of this warranty, contact us by mail or phone and give us all the details. We will then
issue you a “Return Number’’, which must be clearly posted on the outside as well as the inside of the car-
ton. We will not accept any item back without this number. Proof of purchase must accompany the mer-
chandise.
The manufacturers reserve the right to change specifications at any time because they constantly strive to
achieve better quality equipment. We make every effort to ensure that our products meet high quality and
durability standards and we hope you never need to use this warranty.
Please feel free to write or call us if you have any questions about the machine or the manual.
Thank you again for your business and continued support. We hope to serve you again soon.
WARRANTY AND RETURNS
