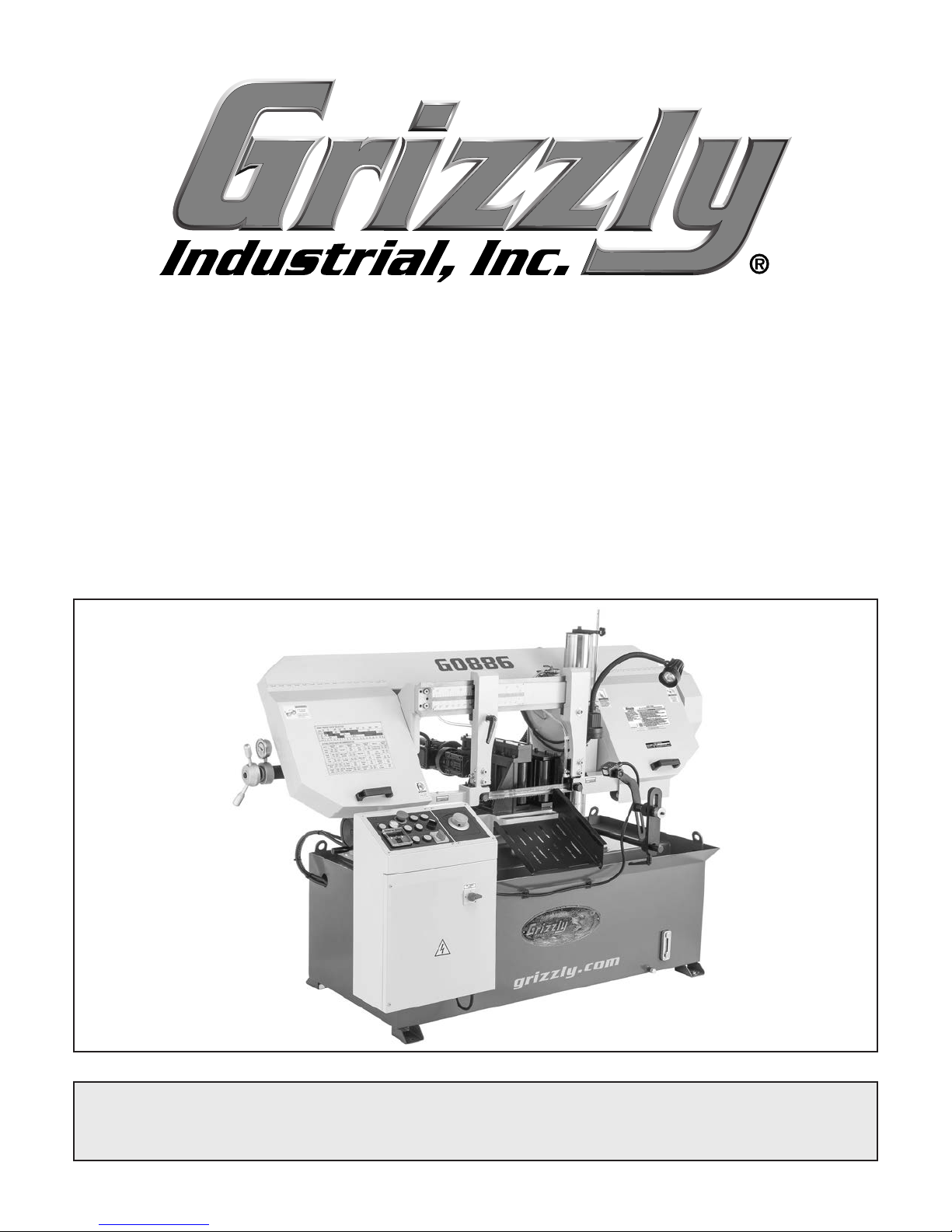

Grizzly G0886 User manual

COPYRIGHT © APRIL, 2019 BY GRIZZLY INDUSTRIAL, INC.
WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE
OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.
#ES20255 PRINTED IN TAIWAN V1.04.19
MODEL G0886
12" X 14" 3 HP AUTO
METAL-CUTTING BANDSAW
OWNER'S MANUAL
(For models manufactured since 01/19)

This manual provides critical safety instructions on the proper setup,
operation, maintenance, and service of this machine/tool. Save this
document, refer to it often, and use it to instruct other operators.
Failure to read, understand and follow the instructions in this manual
may result in fire or serious personal injury—including amputation,
electrocution, or death.
The owner of this machine/tool is solely responsible for its safe use.
This responsibility includes but is not limited to proper installation in
a safe environment, personnel training and usage authorization,
proper inspection and maintenance, manual availability and compre-
hension, application of safety devices, cutting/sanding/grinding tool
integrity, and the usage of personal protective equipment.
The manufacturer will not be held liable for injury or property damage
from negligence, improper training, machine modifications or misuse.
Some dust created by power sanding, sawing, grinding, drilling, and
other construction activities contains chemicals known to the State
of California to cause cancer, birth defects or other reproductive
harm. Some examples of these chemicals are:
• Lead from lead-based paints.
• Crystalline silica from bricks, cement and other masonry products.
• Arsenic and chromium from chemically-treated lumber.
Your risk from these exposures varies, depending on how often you
do this type of work. To reduce your exposure to these chemicals:
Work in a well ventilated area, and work with approved safety equip-
ment, such as those dust masks that are specially designed to filter
out microscopic particles.

Table of Contents
INTRODUCTION............................................... 2
Contact Info.................................................... 2
Manual Accuracy ........................................... 2
Identification ................................................... 3
Controls & Components ................................. 4
Machine Data Sheet ...................................... 6
SECTION 1: SAFETY....................................... 8
Safety Instructions for Machinery .................. 8
Additional Safety for Horizontal Metal
Bandsaws .................................................... 10
SECTION 2: POWER SUPPLY ...................... 11
SECTION 3: SETUP ....................................... 13
Needed for Setup ......................................... 13
Unpacking .................................................... 14
Inventory ...................................................... 14
Hardware Recognition Chart ....................... 15
Cleanup ........................................................ 16
Site Considerations ...................................... 17
Lifting & Placing ........................................... 18
Anchoring to Floor ....................................... 19
Assembly ..................................................... 20
Lubricating Machine ..................................... 21
Test Run ...................................................... 21
Recommended Adjustments ........................ 24
Disabling & Locking Switch.......................... 24
SECTION 4: OPERATIONS ........................... 25
Operation Overview ..................................... 25
Blade Selection ............................................ 26
Changing Blades.......................................... 28
Tensioning Blade ......................................... 30
Blade Breakage ........................................... 31
Blade Care & Break-In ................................. 31
Changing Blade Speed ................................ 32
Blade Speed Chart ...................................... 33
Chip Inspection Chart .................................. 34
Using Vise .................................................... 35
Blade Guides ............................................... 35
Setting Headstock Height ............................ 36
Setting Blade Feed Rate.............................. 36
Feed System ................................................ 37
Proximity Sensor .......................................... 37
Coolant ......................................................... 39
Using Coolant System ................................. 39
Operation Tips ............................................. 40
Workpiece Inspection................................... 40
SECTION 5: ACCESSORIES ......................... 41
SECTION 6: MAINTENANCE......................... 42
Schedule ...................................................... 42
Cleaning & Protecting .................................. 42
Lubrication ................................................... 43
Hydraulic System ......................................... 46
Coolant System............................................ 48
Inspecting V-Belt .......................................... 49
Machine Storage .......................................... 50
SECTION 7: SERVICE ................................... 51
Troubleshooting ........................................... 51
Adjusting Lower Limit Stop Bolt ................... 54
Adjusting Blade Tracking ............................. 54
Adjusting Blade Brush ................................. 55
Adjusting Blade Guides ............................... 56
Squaring Blade to Table .............................. 58
SECTION 8: WIRING...................................... 59
Wiring Safety Instructions ............................ 59
Electrical Schematics ................................... 60
Electrical Photos .......................................... 63
SECTION 9: PARTS....................................... 65
Base ............................................................. 65
Headstock .................................................... 67
Gearbox ....................................................... 70
Feed System ................................................ 71
Electrical ...................................................... 73
Labels & Cosmetics ..................................... 75
WARRANTY & RETURNS ............................. 77

-2- Model G0886 (Mfd. Since 01/19)
We stand behind our machines! If you have ques-
tions or need help, contact us with the information
below. Before contacting, make sure you get the
serial number
and manufacture date from the
machine ID label. This will help us help you faster.
Grizzly Technical Support
1815 W. Battlefield
Springfield, MO 65807
Phone: [phone]
Email: [email protected]
We want your feedback on this manual. What did
you like about it? Where could it be improved?
Please take a few minutes to give us feedback.
Grizzly Documentation Manager
P.O. Box 2069
Bellingham, WA 98227-2069
Email: [email protected]
Contact Info
We are proud to provide a high-quality owner’s
manual with your new machine!
We
made every effort to be exact with the
instruc-
tions, specifications, drawings, and photographs
in this manual. Sometimes we make mistakes, but
our policy of continuous improvement also means
that
sometimes the machine
you receive is
slightly different than shown in the manual
.
If you find this to be the case, and the difference
between the manual and machine leaves you
confused or unsure about something
,
check our
website for an updated version. W
e post
current
manuals and
manual updates for free
on our web-
site at
www.grizzly.com.
Alternatively, you can call our Technical Support
for help. Before calling, make sure you write down
the
Manufacture Date and Serial Number
from
the machine ID label (see below). This information
is required for us to provide proper tech support,
and it helps us determine if updated documenta-
tion is available for your machine.
Manufacture Date
Serial Number
Manual Accuracy
INTRODUCTION

Model G0886 (Mfd. Since 01/19) -3-
Identification
To reduce your risk of
serious injury, read this
entire manual BEFORE
using machine.
Become familiar with the names and locations of the controls and features shown below to better understand
the instructions in this manual.
Front View
Rear View
Control
Panel
Fixed Vise
Jaw
Movable
Vise Jaw
Vise
Handwheel
Blade Tension
Handwheel
Blade Guide
Scale
Proximity
Sensor
Worklamp
Wheel Cover
(1 of 2)
Infeed
Roller
Headstock
Pulley Cover
Coolant ValvesBlade Guide Arm
Adjustment Handle
Cutoff Chute
Headstock
Height Stop
Coolant Pump
Access Panel
Lower Limit
Stop Bolt
Hydraulic Pump
Access Panel

-4- Model G0886 (Mfd. Since 01/19)
Controls &
Components
To reduce your risk of
serious injury, read this
entire manual BEFORE
using machine.
Refer to the following figures and descriptions to
become familiar with the basic controls and com-
ponents of this machine. Understanding these
items and how they work will help you understand
the rest of the manual and minimize your risk of
injury when operating this machine.
Control Panel

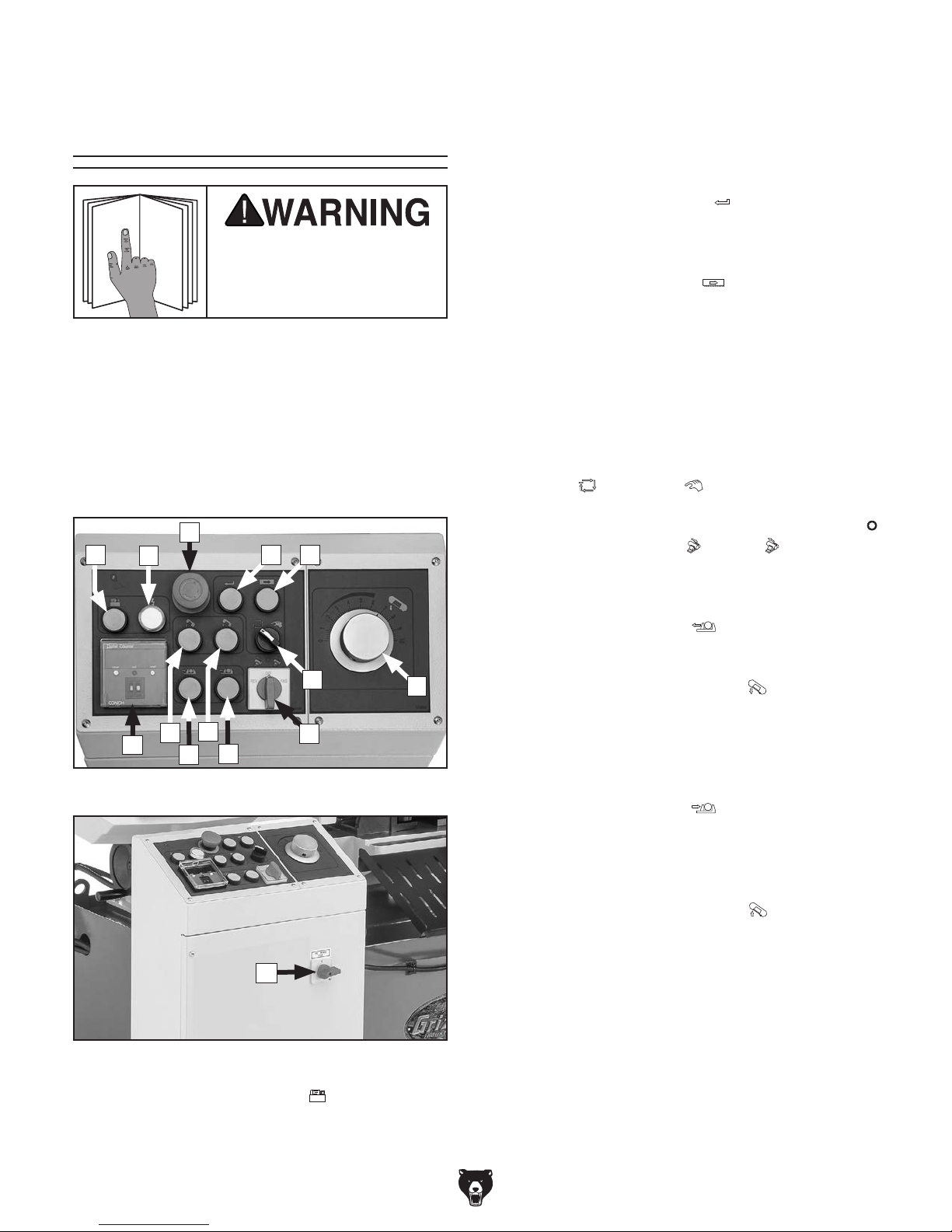

Figure 1. Model G0886 control panel.
I
C
D
BE
F
G
H
J
L
K
M
A
A. Hydraulic Pump Button : Turns hydrau-
lic pump ON. Must be pressed for other
bandsaw controls to function.
B. Power Lamp: Illuminates when master power
switch is turned ON.
C. Emergency Stop Button: Stops all machine
functions. Twist clockwise to reset.
D. Feed System Button : Turns feed motor
ON when machine is in Manual operation
mode.
E. Blade Start Button : Turns main motor
ON and starts saw blade. For button to work,
hydraulic pump button (A) must be pressed,
headstock must be raised, and vise close
button (K) must be pressed.
F. Blade Feed Rate Dial: Controls rate at which
blade feeds into workpiece.
G. Operation Mode Switch: Selects between
Auto or Manual operation mode.
H. Feed Roller Switch: Turns feed motor OFF
and ON when FWD or REV are selected.
FWD must be selected for Auto operation
mode.
I. Vise Open Button : Hydraulically opens
vise to release workpiece after cut(s).
J. Lower Headstock Button : Hydraulically
lowers headstock at rate determined by blade
feed rate dial (F). Continues lowering blade
until lower limit switch is activated or button
is released.
K. Vise Close Button : Hydraulically closes
vise to lock workpiece during cut(s). Button
must be pressed for blade start button (E) to
function.
L. Raise Headstock Button : Hydraulically
raises headstock. Continues raising blade
until upper limit switch is activated or button
is released.
M. Digital Counter: Sets number of consecutive
cuts machine will perform. The number of
completed cuts is displayed. Push RESET to
clear display and reset counter.
N. Master Power ON/OFF Switch: Turns
incoming power ON and OFF.
Figure 2. Master power switch location.
N

Model G0886 (Mfd. Since 01/19) -5-
O. Blade Tension Handwheel w/Gauge:
Increases or decreases blade tension. Gauge
ensures accurate tensioning of blade.
P. Blade Guide Scale: Displays position of left
blade guide arm relative to workpiece.
Q. Blade Guide Arms: Hold blade guides that
support bandsaw blade. Left arm is adjust-
able; right arm is fixed. Place left arm as
close to workpiece as possible during cutting
to prevent blade from twisting.
R. Coolant Valves: Control flow of coolant
through blade guides and onto blade.
S. Headstock Height Stop: Adjustable rod and
bracket that controls upper travel of head-
stock by triggering a limit switch.
Headstock
Figure 3. Headstock controls and components.
Vise Table
T. Fixed Vise Jaw: Helps hold workpiece dur-
ing cutting operations. Has rollers that help
feed material into cutting position.
Figure 4. Vise table controls and components.
U. Movable Vise Jaw: Holds workpiece during
cutting operations. Jaw is positioned manu-
ally and locked hydraulically. Has motorized
rollers that feed material into cutting position.
V. Vise Handwheel: Adjusts position of mov-
able vise jaw relative to fixed vise jaw.
O
P
Q
R
S
Proximity Sensor
Figure 5. Proximity sensor components.
W. Proximity Sensor Head: Detects the pres-
ence (within 1⁄4") of metal materials. In combi-
nation with proximity sensor bracket and bar,
functions as a work stop during automated
and repetitive cutting operations.
X. Proximity Sensor Bracket and Bar:
Supports and positions the proximity sensor
head.
Y. Proximity Sensor Adjustment Knob:
Moves proximity sensor bracket and head
laterally in fine increments for precision cut-
ting operations.
W
X
Y
V
U
T
Q

-6- Model G0886 (Mfd. Since 01/19)
The information contained herein is deemed accurate as of 4/18/2019 and represents our most recent product specifications.
Due to our ongoing improvement efforts, this information may not accurately describe items previously purchased. PAGE 1 OF 3
Model G0886
MACHINE DATA
SHEET
Customer Service #: [phone] · To Order Call: [phone] · Fax #: [phone]
MODEL G0886 12" X 14" 3 HP 3‐PHASE AUTO METAL‐
CUTTING BANDSAW
Product Dimensions:
Weight............................................................................................................................................................ 1630 lbs.
Width (side-to-side) x Depth (front-to-back) x Height........................................................................... 83 x 43 x 55 in.
Footprint (Length x Width)............................................................................................................................ 56 x 28 in.
Shipping Dimensions:
Type.......................................................................................................................................................... Wood Crate
Content........................................................................................................................................................... Machine
Weight............................................................................................................................................................ 1800 lbs.
Length x Width x Height....................................................................................................................... 85 x 48 x 62 in.
Must Ship Upright................................................................................................................................................... Yes
Electrical:
Power Requirement................................................................................................................... 220V, 3-Phase, 60 Hz
Full-Load Current Rating................................................................................................................................... 13.32A
Minimum Circuit Size.............................................................................................................................................. 20A
Connection Type....................................................................................................................................... Cord & Plug
Power Cord Included.............................................................................................................................................. Yes
Power Cord Length............................................................................................................................................... 12 ft.
Power Cord Gauge......................................................................................................................................... 12 AWG
Plug Included........................................................................................................................................................... No
Recommended Plug Type................................................................................................................................. L15-20
Switch Type.............................................................................................................. Control Panel w/Magnetic Switch
Motors:
Main
Horsepower................................................................................................................................................ 3 HP
Phase.................................................................................................................................................... 3-Phase
Amps.............................................................................................................................................................. 8A
Speed................................................................................................................................................ 1735 RPM
Type........................................................................................................................................... TEFC Induction
Power Transfer ........................................................................................................................................ V-Belt
Bearings........................................................................................................ Sealed & Permanently Lubricated
Feed
Horsepower............................................................................................................................................. 1/8 HP
Phase.................................................................................................................................................... 3-Phase
Amps......................................................................................................................................................... 1.46A
Speed................................................................................................................................................ 1620 RPM
Type........................................................................................................................................... TEFC Induction
Power Transfer .......................................................................................................................................... Gear
Bearings........................................................................................................ Sealed & Permanently Lubricated
Machine Data Sheet

Model G0886 (Mfd. Since 01/19) -7-
The information contained herein is deemed accurate as of 4/18/2019 and represents our most recent product specifications.
Due to our ongoing improvement efforts, this information may not accurately describe items previously purchased. PAGE 2 OF 3
Model G0886
Hydraulic Pump
Horsepower................................................................................................................................................ 1 HP
Phase.................................................................................................................................................... 3-Phase
Amps........................................................................................................................................................... 3.6A
Speed................................................................................................................................................ 1420 RPM
Type........................................................................................................................................... TEFC Induction
Power Transfer ......................................................................................................................................... Direct
Bearings........................................................................................................ Sealed & Permanently Lubricated
Coolant Pump
Horsepower............................................................................................................................................. 1/8 HP
Phase.................................................................................................................................................... 3-Phase
Amps......................................................................................................................................................... 0.26A
Speed................................................................................................................................................ 3600 RPM
Type........................................................................................................................................... TEFC Induction
Power Transfer ......................................................................................................................................... Direct
Bearings........................................................................................................ Sealed & Permanently Lubricated
Main Specifications:
Operation Info
Blade Speeds................................................................................................................. 92, 161, 236, 338 FPM
Std. Blade Length.............................................................................................................................. 155-1/2 in.
Blade Length Range.......................................................................................................... 155-1/4 - 155-3/4 in.
Cutting Capacities
Vise Jaw Depth.......................................................................................................................................... 14 in.
Vise Jaw Height................................................................................................................................. 6-11/16 in.
Max. Capacity Rectangular Height at 90 Deg................................................................................. 11-13/16 in.
Max. Capacity Rectangular Width at 90 Deg............................................................................................. 14 in.
Max. Capacity Round at 90 Deg...................................................................................................... 11-13/16 in.
Construction
Table.................................................................................................................................................... Cast Iron
Upper Wheel........................................................................................................................................ Cast Iron
Lower Wheel........................................................................................................................................ Cast Iron
Body........................................................................................................................................................... Steel
Stand.......................................................................................................................................................... Steel
Paint Type/Finish...................................................................................................................................... Epoxy
Other
Wheel Size.......................................................................................................................................... 15-3/4 in.
Blade Guides Upper..................................................................................................................... Carbide Steel
Blade Guides Lower.............................................................................................. Carbide Steel, Ball Bearings
Coolant Capacity.................................................................................................................................... 6.5 gal.
Hydraulic Capacity..................................................................................................................................... 16 qt.
Other Specifications:
Country of Origin .............................................................................................................................................. Taiwan
Warranty ........................................................................................................................................................... 1 Year
Approximate Assembly & Setup Time ........................................................................................................ 1-1/2 Hour
Serial Number Location ................................................................................................................... Machine ID Label
ISO 9001 Factory .................................................................................................................................................. Yes
Certified by a Nationally Recognized Testing Laboratory (NRTL) .......................................................................... No

-8- Model G0886 (Mfd. Since 01/19)
ELECTRICAL EQUIPMENT INJURY RISKS.
You can be shocked, burned, or killed by touching
live electrical components or improperly grounded
machinery. To reduce this risk, only allow qualified
service personnel to do electrical installation or
repair work, and always disconnect power before
accessing or exposing electrical equipment.
DISCONNECT POWER FIRST.
Always discon-
nect machine from power supply BEFORE mak-
ing adjustments, changing tooling, or servicing
machine. This prevents an injury risk from unin-
tended startup or contact with live electrical com-
ponents.
EYE PROTECTION. Always wear ANSI-approved
safety glasses or a face shield when operating or
observing machinery to reduce the risk of eye
injury or blindness from flying particles. Everyday
eyeglasses are NOT approved safety glasses.
OWNER’S MANUAL. Read and understand this
owner’s manual BEFORE using machine.
TRAINED OPERATORS ONLY. Untrained oper-
ators have a higher risk of being hurt or killed.
Only allow trained/supervised people to use this
machine. When machine is not being used, dis-
connect power, remove switch keys, or lock-out
machine to prevent unauthorized use—especially
around children. Make your workshop kid proof!
DANGEROUS ENVIRONMENTS. Do not use
machinery in areas that are wet, cluttered, or have
poor lighting. Operating machinery in these areas
greatly increases the risk of accidents and injury.
MENTAL ALERTNESS REQUIRED. Full mental
alertness is required for safe operation of machin-
ery. Never operate under the influence of drugs or
alcohol, when tired, or when distracted.
For Your Own Safety, Read Instruction
Manual Before Operating This Machine
The purpose of safety symbols is to attract your attention to possible hazardous conditions.
This manual uses a series of symbols and signal words intended to convey the level of impor-
tance of the safety messages. The progression of symbols is described below. Remember that
safety messages by themselves do not eliminate danger and are not a substitute for proper
accident prevention measures. Always use common sense and good judgment.
Indicates a potentially hazardous situation which, if not avoided,
MAY result in minor or moderate injury. It may also be used to alert
against unsafe practices.
Indicates a potentially hazardous situation which, if not avoided,
COULD result in death or serious injury.
Indicates an imminently hazardous situation which, if not avoided,
WILL result in death or serious injury.
Alerts the user to useful information about proper operation of the
machine to avoid machine damage.
NOTICE
Safety Instructions for Machinery
SECTION 1: SAFETY

Model G0886 (Mfd. Since 01/19) -9-
WEARING PROPER APPAREL. Do not wear
clothing, apparel or jewelry that can become
entangled in moving parts. Always tie back or
cover long hair. Wear non-slip footwear to reduce
risk of slipping and losing control or accidentally
contacting cutting tool or moving parts.
HAZARDOUS DUST. Dust created by machinery
operations may cause cancer, birth defects, or
long-term respiratory damage. Be aware of dust
hazards associated with each workpiece mate-
rial. Always wear a NIOSH-approved respirator to
reduce your risk.
HEARING PROTECTION. Always wear hear-
ing protection when operating or observing loud
machinery. Extended exposure to this noise
without hearing protection can cause permanent
hearing loss.
REMOVE ADJUSTING TOOLS. Tools left on
machinery can become dangerous projectiles
upon startup. Never leave chuck keys, wrenches,
or any other tools on machine. Always verify
removal before starting!
USE CORRECT TOOL FOR THE JOB. Only use
this tool for its intended purpose—do not force
it or an attachment to do a job for which it was
not designed. Never make unapproved modifica-
tions—modifying tool or using it differently than
intended may result in malfunction or mechanical
failure that can lead to personal injury or death!
AWKWARD POSITIONS. Keep proper footing
and balance at all times when operating machine.
Do not overreach! Avoid awkward hand positions
that make workpiece control difficult or increase
the risk of accidental injury.
CHILDREN & BYSTANDERS. Keep children and
bystanders at a safe distance from the work area.
Stop using machine if they become a distraction.
GUARDS & COVERS. Guards and covers reduce
accidental contact with moving parts or flying
debris. Make sure they are properly installed,
undamaged, and working correctly BEFORE
operating machine.
FORCING MACHINERY. Do not force machine.
It will do the job safer and better at the rate for
which it was designed.
NEVER STAND ON MACHINE. Serious injury
may occur if machine is tipped or if the cutting
tool is unintentionally contacted.
STABLE MACHINE. Unexpected movement dur-
ing operation greatly increases risk of injury or
loss of control. Before starting, verify machine is
stable and mobile base (if used) is locked.
USE RECOMMENDED ACCESSORIES. Consult
this owner’s manual or the manufacturer for rec-
ommended accessories. Using improper acces-
sories will increase the risk of serious injury.
UNATTENDED OPERATION. To reduce the
risk of accidental injury, turn machine OFF and
ensure all moving parts completely stop before
walking away. Never leave machine running
while unattended.
MAINTAIN WITH CARE. Follow all maintenance
instructions and lubrication schedules to keep
machine in good working condition. A machine
that is improperly maintained could malfunction,
leading to serious personal injury or death.
DAMAGED PARTS. Regularly inspect machine
for damaged, loose, or mis-adjusted parts—or
any condition that could affect safe operation.
Immediately repair/replace BEFORE operating
machine. For your own safety, DO NOT operate
machine with damaged parts!
MAINTAIN POWER CORDS. When disconnect-
ing cord-connected machines from power, grab
and pull the plug—NOT the cord. Pulling the cord
may damage the wires inside. Do not handle
cord/plug with wet hands. Avoid cord damage by
keeping it away from heated surfaces, high traffic
areas, harsh chemicals, and wet/damp locations.
EXPERIENCING DIFFICULTIES. If at any time
you experience difficulties performing the intend-
ed operation, stop using the machine! Contact our
Technical Support at [phone].

-10- Model G0886 (Mfd. Since 01/19)
Additional Safety for
Horizontal Metal Bandsaws
Serious injury or death can occur from getting fingers, hair, or clothing entangled in rotating or
moving parts or making direct contact with the moving blade. To minimize risk of injury, anyone
operating this machine MUST completely heed hazards and warnings below.
UNSTABLE WORKPIECES. Avoid cutting work-
pieces that cannot be properly supported or
clamped in a vise or jig, because they can unex-
pectedly move while cutting and draw the opera-
tor’s hands into the blade causing serious per-
sonal injury. Examples are chains, cables, round
or oblong-shaped workpieces, and those with
internal or built-in moving or rotating parts, etc.
FIRE HAZARD. Use EXTREME CAUTION if cut-
ting magnesium. Using the wrong cutting fluid
could lead to chip fire and possible explosion.
CUTTING FLUID SAFETY. Cutting fluids are
poisonous. Always follow manufacturer’s cutting-
fluid safety instructions. Pay particular attention
to contact, contamination, inhalation, storage and
disposal warnings. Spilled cutting fluid invites slip-
ping hazards.
HOT SURFACES. Contact with hot surfaces from
machine components, ejections of hot chips,
swarf, and the workpiece itself can cause burns.
BLADE CONDITION. Do not operate with dull,
cracked, or badly worn blade. Inspect blades for
cracks and missing teeth before each use.
HAND PLACEMENT. Never position hands or fin-
gers in line with the cut or under bandsaw head-
stock while lowering or operating. Hands could be
cut or crushed.
ENTANGLEMENT HAZARDS. Do not operate
this saw without blade guard in place. Loose
clothing, jewelry, long hair and work gloves can be
drawn into working parts.
BLADE REPLACEMENT. When replacing
blades, disconnect the machine from power, wear
gloves to protect hands and safety glasses to
protect eyes.
WORKPIECE HANDLING. Always properly sup-
port workpiece with table, vise, or some type of
support fixture. Always secure workpiece in vise
before cutting. Never hold the workpiece with your
hands during a cut.
No list of safety guidelines can be com-
plete. Every shop environment is different.
Always consider safety first, as it applies
to your individual working conditions. Use
this and other machinery with caution and
respect. Failure to do so could result in
serious personal injury, damage to equip-
ment, or poor work results.
Like all machinery there is potential danger
when operating this machine. Accidents
are frequently caused by lack of familiarity
or failure to pay attention. Use this machine
with respect and caution to decrease the
risk of operator injury. If normal safety pre-
cautions are overlooked or ignored, seri-
ous personal injury may occur.

Model G0886 (Mfd. Since 01/19) -11-
SECTION 2: POWER SUPPLY
Availability
Before installing the machine, consider the avail-
ability and proximity of the required power supply
circuit. If an existing circuit does not meet the
requirements for this machine, a new circuit must
be installed. To minimize the risk of electrocution,
fire, or equipment damage, installation work and
electrical wiring must be done by an electrician or
qualified service personnel in accordance with all
applicable codes and standards.
Electrocution, fire, shock,
or equipment damage
may occur if machine is
not properly grounded
and connected to power
supply.
Full-Load Current Rating
The full-load current rating is the amperage a
machine draws at 100% of the rated output power.
On machines with multiple motors, this is the
amperage drawn by the largest motor or sum of all
motors and electrical devices that might operate
at one time during normal operations.
Full-Load Current Rating at 220V ..13.32 Amps
The full-load current is not the maximum amount
of amps that the machine will draw. If the machine
is overloaded, it will draw additional amps beyond
the full-load rating.
If the machine is overloaded for a sufficient length
of time, damage, overheating, or fire may result—
especially if connected to an undersized circuit.
To reduce the risk of these hazards, avoid over-
loading the machine during operation and make
sure it is connected to a power supply circuit that
meets the specified circuit requirements.
For your own safety and protection of
property, consult an electrician if you are
unsure about wiring practices or electrical
codes in your area.
Note: Circuit requirements in this manual apply to
a dedicated circuit—where only one machine will
be running on the circuit at a time. If machine will
be connected to a shared circuit where multiple
machines may be running at the same time, con-
sult an electrician or qualified service personnel to
ensure circuit is properly sized for safe operation.
Circuit Requirements for 220V
This machine is prewired to operate on a power
supply circuit that has a verified ground and meets
the following requirements:
Nominal Voltage ......... 208V, 220V, 230V, 240V
Cycle ..........................................................60 Hz
Phase .................................................... 3-Phase
Power Supply Circuit ......................... 20 Amps
Plug/Receptacle ......................... NEMA L15 -20
Cord ........“S”-Type, 4-Wire, 12AWG, 300 VAC
A power supply circuit includes all electrical
equipment between the breaker box or fuse panel
in the building and the machine. The power sup-
ply circuit used for this machine must be sized to
safely handle the full-load current drawn from the
machine for an extended period of time. (If this
machine is connected to a circuit protected by
fuses, use a time delay fuse marked D.)
Power Supply

-12- Model G0886 (Mfd. Since 01/19)
Extension Cords
We do not recommend using an extension cord
with this machine.
If you must use an extension
cord, only use it if absolutely necessary and only
on a temporary basis.
Extension cords cause voltage drop, which can
damage electrical components and shorten motor
life. Voltage drop increases as the extension cord
size gets longer and the gauge size gets smaller
(higher gauge numbers indicate smaller sizes).
Any extension cord used with this machine must
be in good condition and contain a ground wire
and matching plug/receptacle. Additionally, it must
meet the following size requirements:
Minimum Gauge Size ...........................12 AWG
Maximum Length (Shorter is Better).......50 ft.
Figure 6. Typical L15-20 plug and receptacle.
Grounding Prong
is Hooked
Current Carrying Prongs
GROUNDED
L15-20 RECEPTACLE
L15-20
PLUG
Improper connection of the equipment-grounding
wire can result in a risk of electric shock. The
wire with green insulation (with or without yellow
stripes) is the equipment-grounding wire. If repair
or replacement of the power cord or plug is nec-
essary, do not connect the equipment-grounding
wire to a live (current carrying) terminal.
Check with a qualified electrician or service per-
sonnel if you do not understand these grounding
requirements, or if you are in doubt about whether
the tool is properly grounded. If you ever notice
that a cord or plug is damaged or worn, discon-
nect it from power, and immediately replace it with
a new one.
Serious injury could occur if you connect
machine to power before completing setup
process. DO NOT connect to power until
instructed later in this manual.
Grounding Instructions
This machine MUST be grounded. In the event
of certain malfunctions or breakdowns, grounding
reduces the risk of electric shock by providing a
path of least resistance for electric current.
The power cord and plug specified under “Circuit
Requirements for 220V”
on the previous page
has an equipment-grounding wire and a ground-
ing prong. The plug must only be inserted into
a matching receptacle (outlet) that is properly
installed and grounded in accordance with all
local codes and ordinances (see figure below).
No adapter should be used with plug. If
plug does not fit available receptacle, or if
machine must be reconnected for use on a
different type of circuit, reconnection must
be performed by an electrician or qualified
service personnel, and it must comply with
all local codes and ordinances.
Serious injury could occur if you connect
machine to power before completing setup
process. DO NOT connect to power until
instructed later in this manual.

Model G0886 (Mfd. Since 01/19) -13-
SECTION 3: SETUP
Needed for Setup
This machine presents
serious injury hazards
to untrained users. Read
through this entire manu-
al to become familiar with
the controls and opera-
tions before starting the
machine!
Wear safety glasses during
the entire setup process!
The following are needed to complete the setup
process:
• For Lifting and Moving:
— Two additional people
— A forklift or other power lifting equipment
rated for at least 2250 lbs.
— Four lifting straps rated for at least
2250 lbs. each
— Four heavy-duty lifting hooks or shackles
rated for at least 2250 lbs.
• For Power Connection:
— A power source that meets minimum
circuit requirements for machine (review
Power Supply on Page 11 for details)
— An electrician or qualified service person-
nel to ensure a safe and code-compliant
connection to power source
• For Assembly:
— Safety glasses for each person
— Leather gloves for each person
— Disposable Shop Rags
— Cleaner/degreaser (see Page 16)
— Quality metal protectant/lubricant
— Hammer & Pry Bar
— Open-End or Socket Wrench 14mm
— Hex Wrench 5mm
— Piece of metal stock
This is an extremely heavy machine! Serious
personal injury or death may occur if safe
lifting and moving methods are not fol-
lowed. To be safe, you will need assistance
and power lifting equipment when moving
shipping crate and removing machine from
crate. Seek assistance from a professional
rigger if you are unsure about your abili-
ties or maximum load ratings of your lifting
equipment.

-14- Model G0886 (Mfd. Since 01/19)
This machine was carefully packaged for safe
transport. When unpacking, separate all enclosed
items from packaging materials and inspect them
for shipping damage.
If items are damaged
,
please
call us immediately at [phone].
IMPORTANT:
Save all packaging materials until
you are completely satisfied with the machine and
have resolved any issues between Grizzly or the
shipping agent. You MUST have the original pack-
aging to file a freight claim. It is also extremely
helpful if you need to return your machine later.
Unpacking
The following is a list of items shipped with your
machine. Before beginning setup, lay these items
out and inventory them.
If any non-proprietary parts are missing (e.g. a
nut or a washer), we will gladly replace them; or
for the sake of expediency, replacements can be
obtained at your local hardware store.
Box Inventory (Figure 7) Qty
A. Drip Tray ..................................................... 1
B. Cutoff Chute ............................................... 1
C. Proximity Sensor Bracket Assembly .......... 1
D. Proximity Sensor Bar .................................. 1
E. Lock Handle (Proximity Sensor) ................. 1
F. Knob Bolt (Proximity Sensor) ..................... 1
NOTICE
If you cannot find an item on this list, care-
fully check around/inside the machine and
packaging materials. Often, these items get
lost in packaging materials while unpack-
ing or they are pre-installed at the factory.
Figure 7. Box inventory.
AB
C
D
E
F
Inventory

Model G0886 (Mfd. Since 01/19) -15-
Hardware Recognition Chart
USE THIS CHART TO MATCH UP
HARDWARE DURING THE INVENTORY
AND ASSEMBLY PROCESS.
5mm
5mm
Flat
Head
Cap
Screw

-16- Model G0886 (Mfd. Since 01/19)
Cleanup
T23692—Orange Power Degreaser
A great product for removing the waxy ship-
ping grease from the non-painted parts of the
machine during clean up.
The unpainted surfaces of your machine are
coated with a heavy-duty rust preventative that
prevents corrosion during shipment and storage.
This rust preventative works extremely well, but it
will take a little time to clean.
Be patient and do a thorough job cleaning your
machine. The time you spend doing this now will
give you a better appreciation for the proper care
of your machine's unpainted surfaces.
There are many ways to remove this rust preven-
tative, but the following steps work well in a wide
variety of situations. Always follow the manufac-
turer’s instructions with any cleaning product you
use and make sure you work in a well-ventilated
area to minimize exposure to toxic fumes.
Before cleaning, gather the following:
• Disposable rags
• Cleaner/degreaser (WD•40 works well)
• Safety glasses & disposable gloves
• Plastic paint scraper (optional)
Basic steps for removing rust preventative:
1.
Put on safety glasses.
2.
Coat the rust preventative with a liberal
amount of cleaner/degreaser, then let it soak
for 5–10 minutes.
3.
Wipe off the surfaces. If your cleaner/degreas-
er is effective, the rust preventative will wipe
off easily. If you have a plastic paint scraper,
scrape off as much as you can first, then wipe
off the rest with the rag.
4.
Repeat Steps 2–3 as necessary until clean,
then coat all unpainted surfaces with a quality
metal protectant to prevent rust.
Gasoline and petroleum
products have low flash
points and can explode
or cause fire if used to
clean machinery. Avoid
using these products
to clean machinery.
Many cleaning solvents
are toxic if inhaled. Only
work in a well-ventilated
area.
NOTICE
Avoid harsh solvents like acetone or brake
parts cleaner that may damage painted sur-
faces. Always test on a small, inconspicu-
ous location first.
Cleanup
Figure 8. T23692 Orange Power Degreaser.

Model G0886 (Mfd. Since 01/19) -17-
Site Considerations
Figure 9. Minimum working clearances.
Keep Area
Unobstructed
Keep Area
Unobstructed
Min. 30"
for Maintenance
Wall
= Electrical Connection
83"
43"
Weight Load
Refer to the
Machine Data Sheet for the weight
of your machine. Make sure that the surface upon
which the machine is placed will bear the weight
of the machine, additional equipment that may be
installed on the machine, and the heaviest work-
piece that will be used. Additionally, consider the
weight of the operator and any dynamic loading
that may occur when operating the machine.
Space Allocation
Consider the largest size of workpiece that will
be processed through this machine and provide
enough space around the machine for adequate
operator material handling or the installation of
auxiliary equipment. With permanent installations,
leave enough space around the machine to open
or remove doors/covers as required by the main-
tenance and service described in this manual.
See below for required space allocation.
Physical Environment
The physical environment where the machine is
operated is important for safe operation and lon-
gevity of machine components. For best results,
operate this machine in a dry environment that is
free from excessive moisture, hazardous chemi-
cals, airborne abrasives, or extreme conditions.
Extreme conditions for this type of machinery are
generally those where the ambient temperature
range exceeds 41°–104°F; the relative humidity
range exceeds 20%–95% (non-condensing); or
the environment is subject to vibration, shocks,
or bumps.
Electrical Installation
Place this machine near an existing power source.
Make sure all power cords are protected from
traffic, material handling, moisture, chemicals, or
other hazards. Make sure to leave enough space
around machine to disconnect power supply or
apply a lockout/tagout device, if required.
Lighting
Lighting around the machine must be adequate
enough that operations can be performed safely.
Shadows, glare, or strobe effects that may distract
or impede the operator must be eliminated.
Children or untrained people
may be seriously injured by
this machine. Only install in an
access restricted location.

-18- Model G0886 (Mfd. Since 01/19)
Lifting & Placing
DO NOT attempt to lift or move machine without
using proper lifting equipment (such as a forklift)
and assistance from other people. Each piece of
lifting equipment must be rated for at least 2250
lbs. to support dynamic loads that may be applied
while lifting.
Review the Power Supply section beginning on
Page 11, then prepare a permanent location for
the machine.
IMPORTANT: Make sure prepared location is
clean, flat, and reasonably level.
This is an extremely heavy machine! Serious
personal injury or death may occur if safe
lifting and moving methods are not fol-
lowed. To be safe, you will need assistance
and power lifting equipment when moving
shipping crate and removing machine from
crate. Seek assistance from a professional
rigger if you are unsure about your abili-
ties or maximum load ratings of your lifting
equipment.
To lift and place machine:
1. Move machine over its prepared location
while still inside shipping crate.
2. Remove top and sides of shipping crate, then
place small items aside in safe location.
Note: Do not destroy shipping crate and
packaging until after Test Run.
3. Remove (4) lag screws and flat wash-
ers that secure machine to shipping pallet
(see Figure 10).
Figure 10. Machine secured to shipping pallet.
Lag Screw and Flat
Washer (1 of 4)
Machine Foot
(1 of 4)
