Grizzly T33300 User manual

MODEL T33300
TRACK SAW
OWNER'S MANUAL
(For models manufactured since 04/22)
COPYRIGHT © APRIL, 2022 BY GRIZZLY INDUSTRIAL, INC.
WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE
OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.
#KS22324 PRINTED IN CHINA V1.04.22
***Keep for Future Reference***

This manual provides critical safety instructions on the proper setup,
operation, maintenance, and service of this machine/tool. Save this
document, refer to it often, and use it to instruct other operators.
Failure to read, understand and follow the instructions in this manual
may result in fire or serious personal injury—including amputation,
electrocution, or death.
The owner of this machine/tool is solely responsible for its safe use.
This responsibility includes but is not limited to proper installation in
a safe environment, personnel training and usage authorization,
proper inspection and maintenance, manual availability and compre-
hension, application of safety devices, cutting/sanding/grinding tool
integrity, and the usage of personal protective equipment.
The manufacturer will not be held liable for injury or property damage
from negligence, improper training, machine modifications or misuse.
Some dust created by power sanding, sawing, grinding, drilling, and
other construction activities contains chemicals known to the State
of California to cause cancer, birth defects or other reproductive
harm. Some examples of these chemicals are:
• Lead from lead-based paints.
• Crystalline silica from bricks, cement and other masonry products.
• Arsenic and chromium from chemically-treated lumber.
Your risk from these exposures varies, depending on how often you
do this type of work. To reduce your exposure to these chemicals:
Work in a well ventilated area, and work with approved safety equip-
ment, such as those dust masks that are specially designed to filter
out microscopic particles.

INTRODUCTION............................................................................................................................... 2
Contact Info ................................................................................................................................ 2
Manual Accuracy ........................................................................................................................ 2
Identification ............................................................................................................................... 3
Glossary Of Terms ..................................................................................................................... 5
Machine Data Sheet ................................................................................................................... 6
SECTION 1: SAFETY....................................................................................................................... 8
Safety Instructions for Power Tools ........................................................................................... 8
Additional Safety for Circular Saws .......................................................................................... 10
Understanding Kickback........................................................................................................... 11
Preventing Kickback ................................................................................................................. 11
SECTION 2: POWER SUPPLY ...................................................................................................... 12
SECTION 3: SETUP ....................................................................................................................... 14
Unpacking ................................................................................................................................ 14
Needed for Setup ..................................................................................................................... 14
Inventory ................................................................................................................................... 14
Dust Collection ......................................................................................................................... 15
Test Run ................................................................................................................................... 15
SECTION 4: OPERATIONS ........................................................................................................... 16
Operation Overview.................................................................................................................. 16
Using Saw ................................................................................................................................ 17
Blade Selection ........................................................................................................................ 17
Changing Blades ...................................................................................................................... 17
Riving Knife Adjustment ........................................................................................................... 18
Setting Cutting Depth ............................................................................................................... 19
Setting Cutting Angle ............................................................................................................... 20
Making Straight Cuts ................................................................................................................ 20
Making Plunge Cuts ................................................................................................................. 21
Using Guide Rail ...................................................................................................................... 23
Adding Guide Rails .................................................................................................................. 23
Using Adjustable Stops ............................................................................................................ 24
Using Stabilizer ........................................................................................................................ 24
SECTION 5: ACCESSORIES......................................................................................................... 25
SECTION 6: MAINTENANCE......................................................................................................... 26
Schedule .................................................................................................................................. 26
Cleaning & Protecting .............................................................................................................. 26
Lubrication ................................................................................................................................ 26
SECTION 7: SERVICE ................................................................................................................... 27
Troubleshooting ........................................................................................................................ 27
Adjusting Zero-Stop Set Screw ................................................................................................ 28
Replacing Motor Brushes ......................................................................................................... 28
SECTION 8: PARTS....................................................................................................................... 30
Main .......................................................................................................................................... 30
WARRANTY ................................................................................................................................... 33
Table of Contents

No list of safety guidelines can be complete.
Every shop environment is different. Always
consider safety first, as it applies to your
individual working conditions. Use this and
other machinery with caution and respect.
Failure to do so could result in serious per-
sonal injury, damage to equipment, or poor
work results.
Like all machinery there is potential danger
when operating this tool. Accidents are
frequently caused by lack of familiarity or
failure to pay attention. Use this tool with
respect and caution to decrease the risk of
operator injury. If normal safety precautions
are overlooked or ignored, serious personal
injury may occur.
We stand behind our machines! If you have ques-
tions or need help, contact us with the information
below. Before contacting, make sure you get the
serial number
and manufacture date
from the
machine ID label. This will help us help you faster.
Grizzly Technical Support
1815 W. Battlefield
Springfield, MO 65807
Phone: [phone]
Email: [email protected]
We want your feedback on this manual. What did
you like about it? Where could it be improved?
Please take a few minutes to give us feedback.
Grizzly Documentation Manager
P.O. Box 2069
Bellingham, WA 98227-2069
Email: [email protected]
We are proud to provide a high-quality owner’s
manual with your new machine!
We
made every effort to be exact with the
instruc-
tions, specifications, drawings, and photographs
in this manual. Sometimes we make mistakes, but
our policy of continuous improvement also means
that
sometimes the machine
you receive is
slightly different than shown in the manual
.
If you find this to be the case, and the difference
between the manual and machine leaves you
confused or unsure about something
,
check our
website for an updated version. W
e post
current
manuals and
manual updates for free
on our web-
site at
www.grizzly.com.
Alternatively, you can call our Technical Support
for help. Before calling, make sure you write
down the
manufacture date and
serial number
from the machine ID label (see below). This
information is required for us to provide proper
tech support, and it helps us determine if updated
documentation is available for your machine.
Manufacture Date
Serial Number
-2- Model T33300 (Mfd. Since 04/22)
INTRODUCTION
Manual AccuracyContact Info

Model T33300 (Mfd. Since 04/22) -3-
Identification

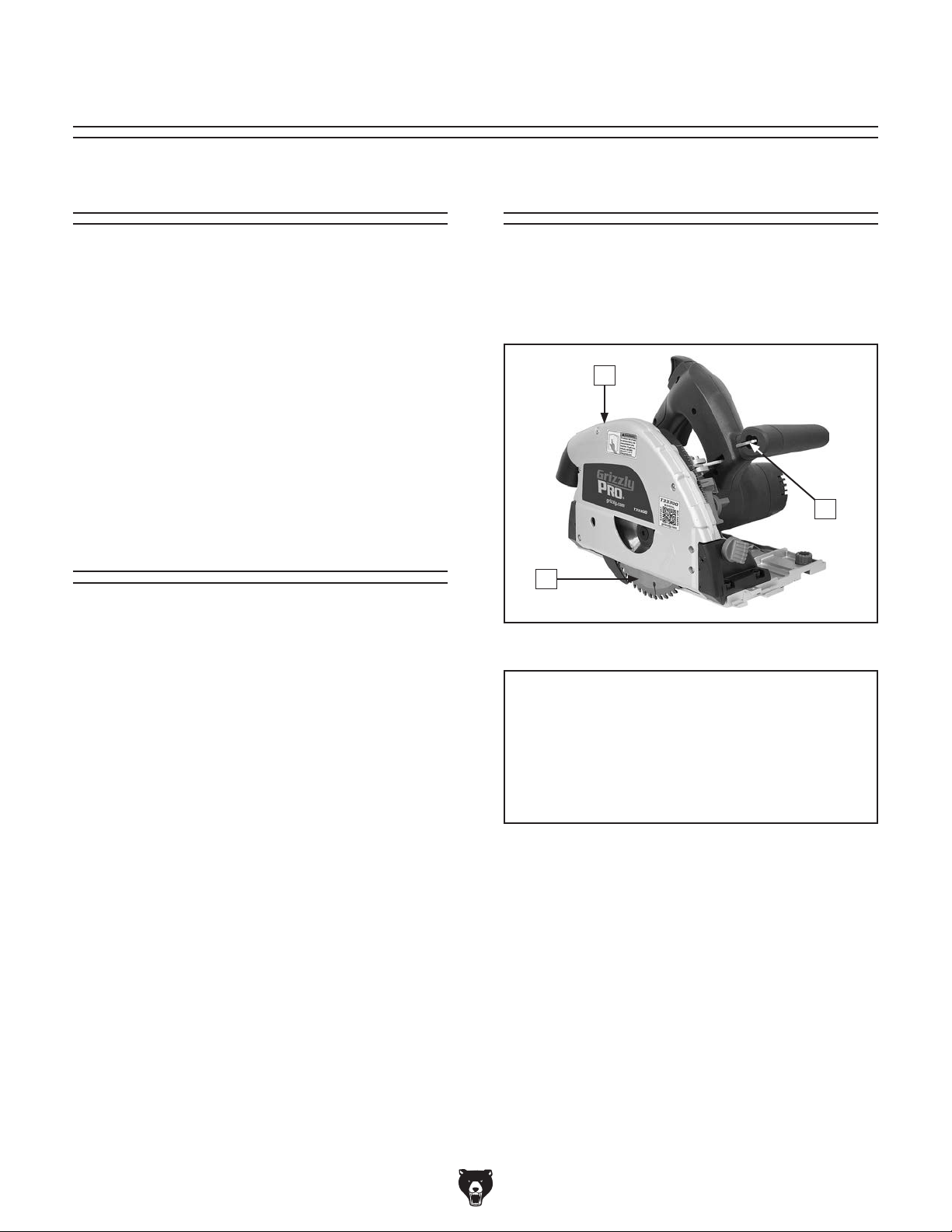

A. Secondary Handle: Lowers saw blade into
workpiece once plunge release and ON/OFF
trigger have been pulled.
B. ON/OFF Trigger: Starts/stops saw blade
rotation and motor.
C. Plunge Release: Pivots saw blade down to
plunge into workpiece.
D. Primary Handle: Held when plunging and
advancing position on workpiece/guide rail.
E. Rail Adjustment Knob (1 of 2): Adjusts play
in how saw slides along guide rail.
F. Zero-Stop Set Screw: Sets zero-stop point
for calibrating bevel gauge.
G. Bevel Gauge & Lock Knob (1 of 2): Sets
angle (up to 45°) at which saw blade will cut
into workpiece, and locks it into place.
H. Depth Stop & Lock Knob: Sets maximum
depth saw blade will enter workpiece.
Become familiar with the names and locations of the controls and features shown below to better under-
stand the instructions in this manual.
A
B
H
E
F
C
D
G

-4- Model T33300 (Mfd. Since 04/22)
I. Dust Port: Attaches to dust collection system
or shop vacuum (not included).
J. Blade Lock: Prevents blade from rotating
when changing blades.
K. Base Plate: Attaches to accessory guide rail,
or is placed directly on workpiece if rail is not
used.
L. Cutting Indicator Arrow (1 of 3): Indicates
maximum blade reach for front, rear, and
center points of blade.
M. Saw Blade: Included 48-tooth carbide-tipped
blade has 160mm diameter, 20mm arbor,
and is 2.2mm thick.
N. Spring-Loaded Riving Knife: Lowers into
kerf behind blade to reduce risk of kick-
back from binding or pinching. Also provides
limited protection against accidental blade
contact if kickback occurs. Spring-loaded
operation enables riving knife to work during
plunge cuts.
O. Arbor Bolt: Holds saw blade in place on
20mm arbor. Removed when changing
blades.
I
J
K
LM
O
N

Model T33300 (Mfd. Since 04/22) -5-
The following is a list of common definitions, terms and phrases used throughout this manual as they relate
to this track saw and woodworking in general. Become familiar with these terms for assembling, adjusting
or operating this tool. Your safety is VERY important to us at Grizzly!
Arbor: Metal shaft extending from the drive
mechanism, to which saw blade is mounted.
The blade is held in place on the arbor using a
special arbor bolt and arbor washer.
Bevel Edge Cut: Tilting the saw blade to an
angle between 0° and 45° to cut a beveled
edge onto a workpiece.
Blade Guard: Metal or plastic safety device that
encases the saw blade. Its function is to pre-
vent the operator from coming into contact with
the saw blade.
Kerf: The resulting cut or gap in the workpiece
after the saw blade passes through during a
cutting operation.
Kickback: An event in which the tool is propelled
back towards the operator at a high rate of
speed.
Parallel: Being an equal distance apart at every
point along two given lines or planes. I.e. the
rip fence face is parallel to the face of the saw
blade.
Perpendicular: Lines or planes that intersect
and form right angles. I.e. the blade is perpen-
dicular to the table surface.
Plunge Cut: A sawing operation in which the
cut is started above the workpiece; the blade
engages the workpiece by "plunging" down at
the beginning of the cut, and advances once
the blade cuts through the workpiece.
Rip Cut: Cutting operation in which the rip fence
is used to cut with the grain, or across the wid-
est width of the workpiece.
Riving Knife: Metal plate located behind the
blade. It maintains the kerf opening in the wood
when performing a cutting operation.
Straightedge: A tool used to check the flatness,
parallelism, or consistency of a surface(s).
Through Cut: A sawing operation in which the
workpiece is completely sawn through.
Glossary Of Terms

Page 1 of 2Model T33300
MODEL T33300
TRACK SAW
Customer Service #: [phone] · To Order Call: [phone] · Fax #: [phone]
Product Dimensions:
Weight ............................................................................................................................................................................. 11 lbs.
Width (side-to-side) x Depth (front-to-back) x Height ............................................................................. 12-1/2 x 9 x 10-1/2 in.
Footprint (Length x Width) ..........................................................................................................................................12 x 7 in.
Shipping Dimensions:
Type ................................................................................................................................................................... Cardboard Box
Content .......................................................................................................................................................................... Machine
Weight .............................................................................................................................................................................. 16 lbs.
Length x Width x Height .....................................................................................................................................13 x 11 x 10 in.
Electrical:
Power Requirement ........................................................................................................................ 120V, Single-Phase, 60 Hz
Full-Load Current Rating ........................................................................................................................................................ 9A
Minimum Circuit Size ........................................................................................................................................................... 15A
Connection Type ..................................................................................................................................................... Cord & Plug
Power Cord Included ............................................................................................................................................................Yes
Power Cord Length ............................................................................................................................................................72 in.
Power Cord Gauge ....................................................................................................................................................... 18 AWG
Plug Included ........................................................................................................................................................................Yes
Included Plug Type ..............................................................................................................................................................1-15
Switch Type ............................................................................................................................................Trigger w/Safety Latch
Motor:
Main
Horsepower ........................................................................................................................................................ 1-1/2 HP
Phase .......................................................................................................................................................... Single-Phase
Amps ............................................................................................................................................................................ 9A
Speed ...............................................................................................................................................................5500 RPM
Type ....................................................................................................................................................................Universal
Power Transfer ........................................................................................................................................................ Direct
Bearings ................................................................................................................... Shielded & Permanently Lubricated
-6- Model T33300 (Mfd. Since 04/22)

Model T33300Page 2 of 2
Main Specifications:
Blade Specifications
Blade Diameter ..................................................................................................................................... 160mm (6-1/4 in.)
Blade Tilt .............................................................................................................................................................. 0° - 45°
Arbor Size .................................................................................................................................................. 20mm (3/4 in.)
Arbor Speed .....................................................................................................................................................5500 RPM
Blade Rim Speed .............................................................................................................................................9070 FPM
Cutting Capacities
Maximum Depth of Cut at 90° (without guide rail) .............................................................................................2-5/32 in.
Maximum Depth of Cut at 45° (without guide rail) ...............................................................................................1-5/8 in.
Maximum Depth of Cut at 90° (with guide rail) ................................................................................................1-31/32 in.
Maximum Depth of Cut at 45° (with guide rail) ..................................................................................................1-7/16 in.
Construction
Body ....................................................................................................................................................................... Plastic
Hand Grips ............................................................................................................................................................ Rubber
Guide Rail ..........................................................................................................................................................Aluminum
Other
Number of Dust Ports ......................................................................................................................................................1
Dust Port Size ......................................................................................................................................................1-1/2 in.
Other Specifications:
Country Of Origin .............................................................................................................................................................. China
Warranty ........................................................................................................................................................................... 1 Year
Approximate Assembly & Setup Time ...................................................................................................................... 10 Minutes
Serial Number Location ................................................................................................................................................ ID Label
Features:
Anti-Kickback Design w/Spring-Loaded Riving Knife
Low-Profile Blade Guard for Cuts as Close as 5/8" from Wall
1-1/2" Dust Port for Dust Collection
Precision Depth Control Scale from 0" - 2-1/2" (1/32" Increments)
48-Tooth Carbide Tip Blade Included
Usable With or Without Track
Optional Accessories:
T24872 55" Guide Rail
T25094 Accessories Pack (Includes Rail Connector, (2) F-Clamps, Adjustable Stop, and Stabilizer)
T25331 48-Tooth Replacement Blade
Model T33300 (Mfd. Since 04/22) -7-

DISCONNECT POWER FIRST. Always disconnect
tool from power supply BEFORE making adjust-
ments, changing tooling, or servicing machine. This
prevents an injury risk from unintended startup or
contact with live electrical components.
EYE PROTECTION. Always wear ANSI-approved
safety glasses or a face shield when operating or
observing machinery to reduce the risk of eye
injury or blindness from flying particles. Everyday
eyeglasses are not approved safety glasses.

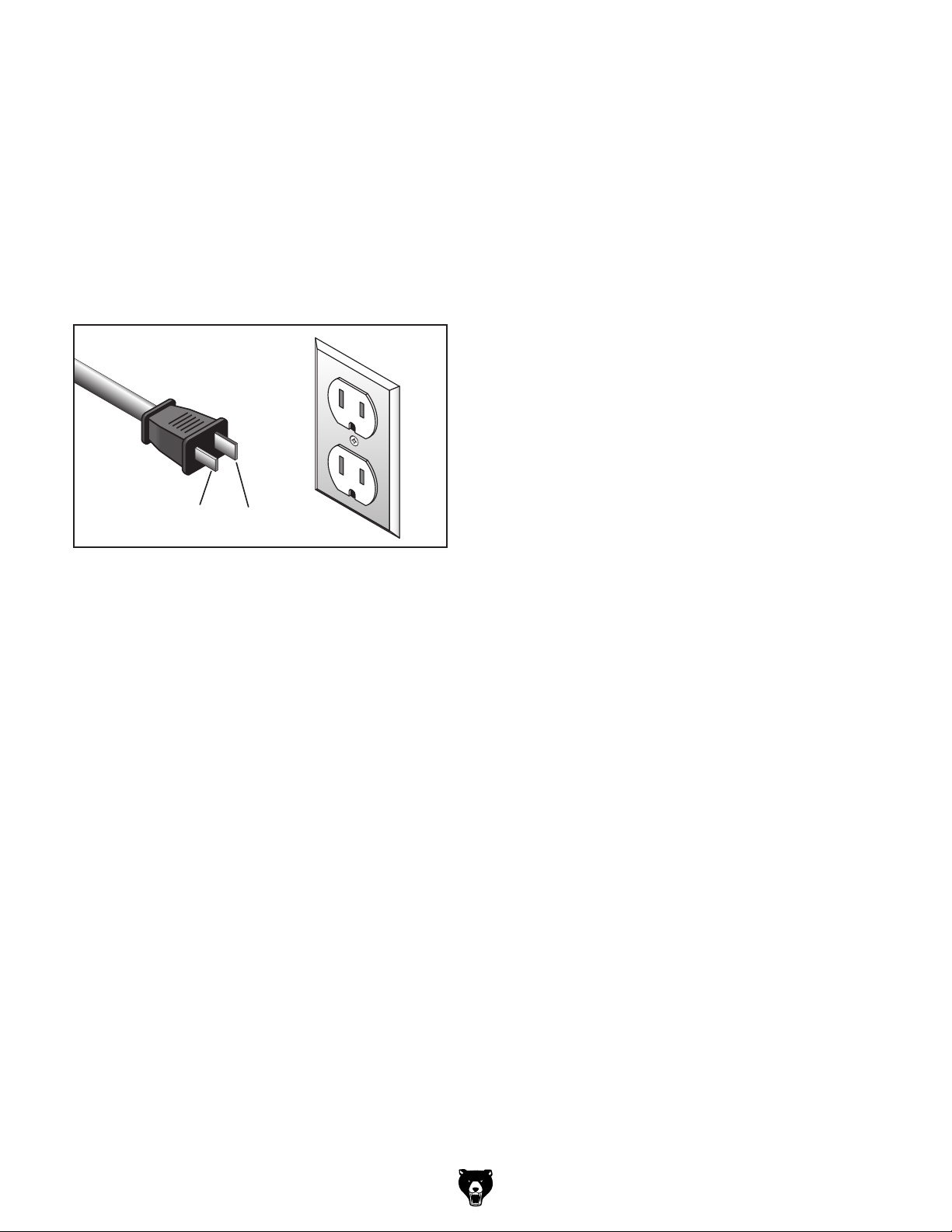

ELECTRICAL SAFETY. Tool plug must match
outlet. Double-insulated tools have a polarized
plug (one blade is wider than the other), which
must be plugged into a polarized outlet. Never
modify plug. Do not use adapter for grounded
tools. Use a ground fault circuit interrupter if
operation is unavoidable in damp locations. Avoid
touching grounded surfaces when operating tool.
OWNER’S MANUAL. Read and understand this
owner’s manual BEFORE using machine.
TRAINED OPERATORS ONLY. Untrained oper-
ators have a higher risk of being hurt or killed.
Only allow trained/supervised people to use this
power tool. When tool is not being used, discon-
nect power, and store in out-of-reach location
to prevent unauthorized use—especially around
children. Make workshop kid proof!
DANGEROUS ENVIRONMENTS. Do not use
tools in areas that are wet, cluttered, or have poor
lighting. Operating tools in these areas greatly
increases risk of accidents and injury.
MENTAL ALERTNESS REQUIRED. Full mental
alertness is required for safe operation of power
tools. Never operate under the influence of drugs
or alcohol, when tired, or when distracted.
For Your Own Safety, Read Instruction
Manual Before Operating this Power Tool
The purpose of safety symbols is to attract your attention to possible hazardous conditions.
This manual uses a series of symbols and signal words intended to convey the level of impor-
tance of the safety messages. The progression of symbols is described below. Remember that
safety messages by themselves do not eliminate danger and are not a substitute for proper
accident prevention measures. Always use common sense and good judgment.
Indicates a potentially hazardous situation which, if not avoided,
MAY result in minor or moderate injury. It may also be used to alert
against unsafe practices.
Indicates a potentially hazardous situation which, if not avoided,
COULD result in death or serious injury.
Indicates an imminently hazardous situation which, if not avoided,
WILL result in death or serious injury.
This symbol is used to alert the user to useful information about
proper operation of the machine.
NOTICE
-8- Model T33300 (Mfd. Since 04/22)
SECTION 1: SAFETY
Safety Instructions for Power Tools
