GRK Global R31House Operation instructions

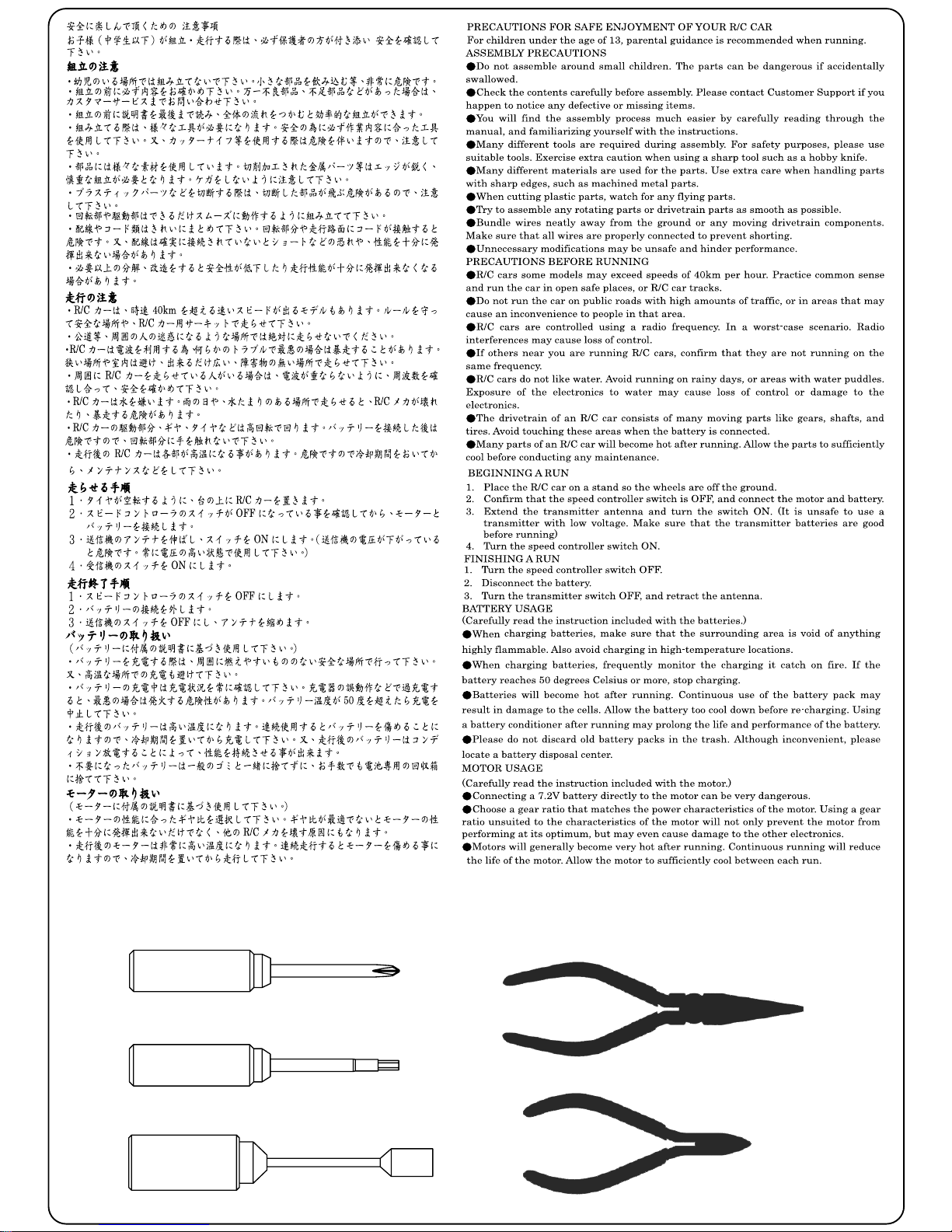

Screwdriver small
Hex wrench 1.5&2.0mm
Socket driver 7.0mm
Assemble tools (Not include )
Long nose piller
Side cutter

Diff grease
Diff grease
Black greaseBlack grease
Front
Rear
Assembly 2 Set

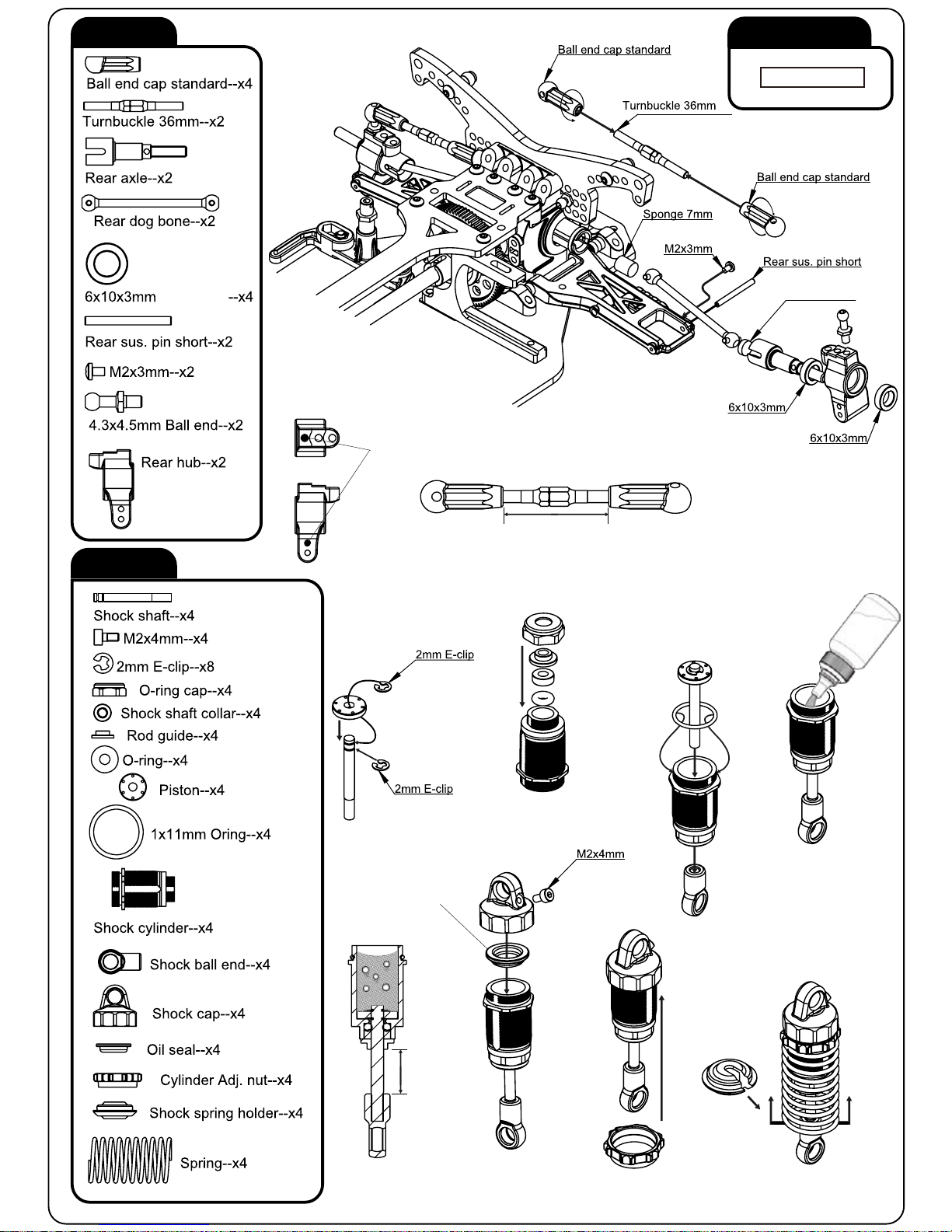

B.Bearing
B.Bearing
B.Bearing
BAG A
BAG B
P. 1

Make 2

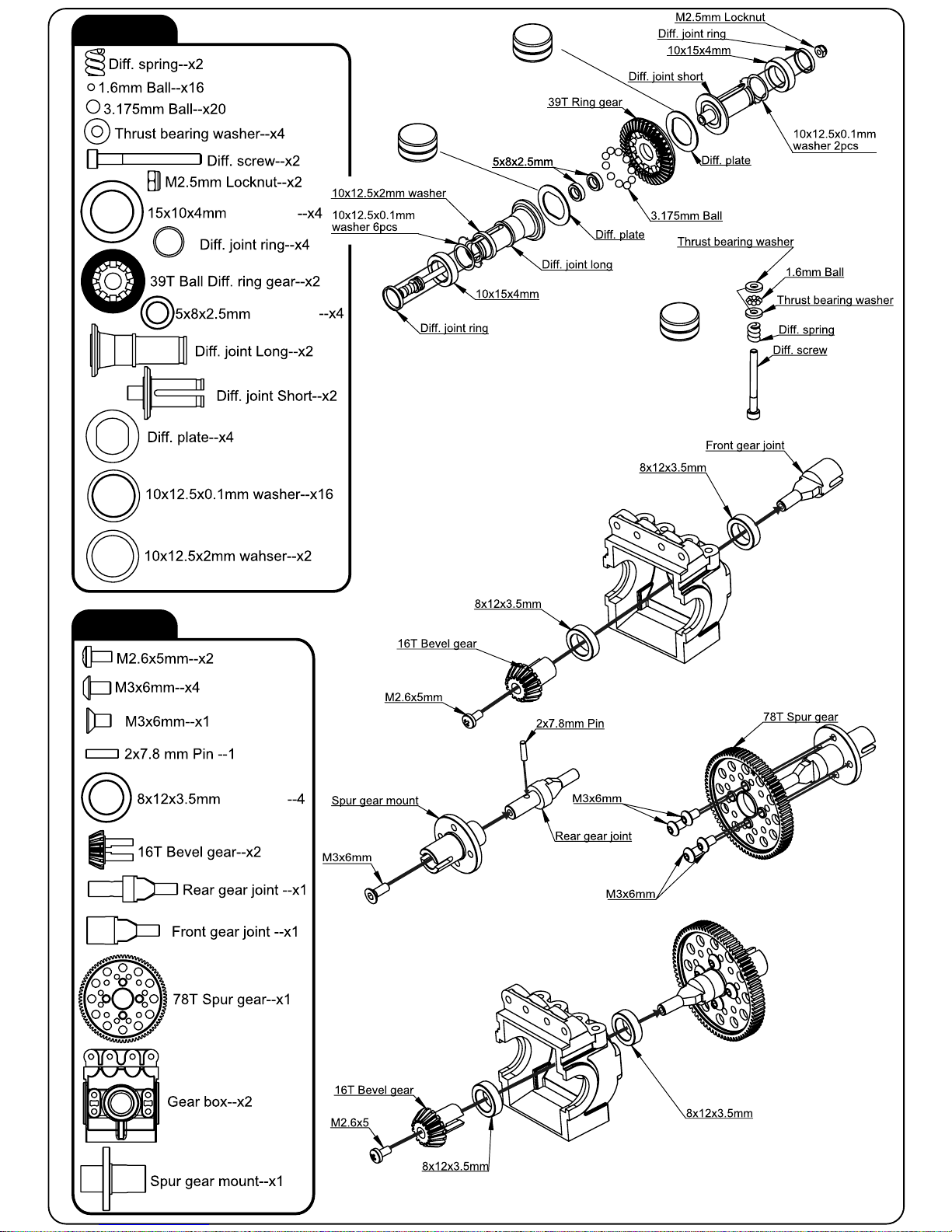

Front Diff.
This side.
Rear Diff.
This side.
.
BAG C BAG SPONGE
BAG D
P. 2

M3x12mm
M3x12mm
M3x12mm
M3x12mm
M3x12mm M3x12mm
M3x12mm
M3x12mm
M3x12mm
M3x12mm
BAG E
BAG F
P. 3

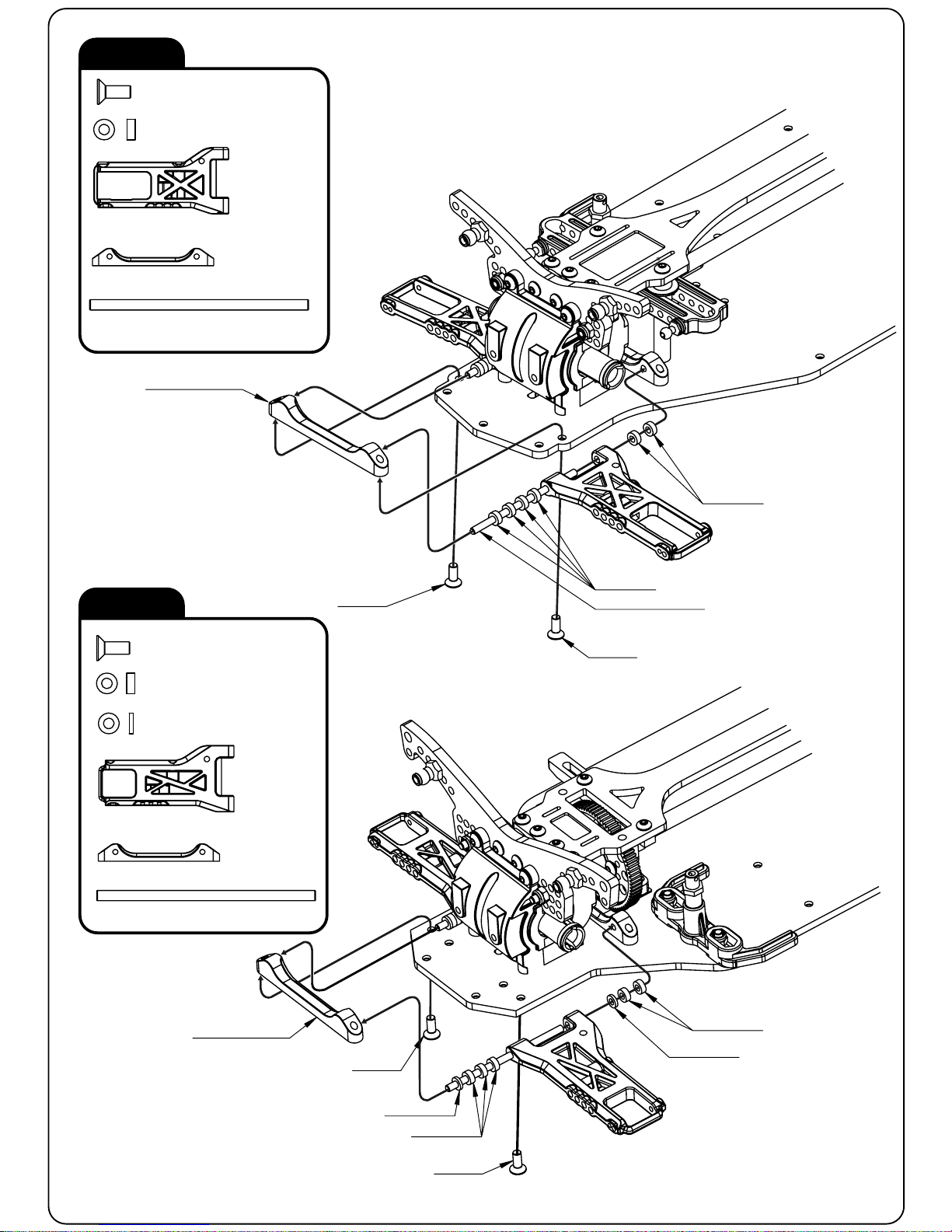

Std.position
Std.position

M3x8mm
M3x8mm
Suspension mount
2.5x5x2mm2.5x5x2mm2.5x5x2mm2.5x5x2mm
2.5x5x2mm2.5x5x2mm
Suspension pin Long
Suspension mount--x1
M3x8mm--2
Front lower arm--x2
2.5x5x2mm washer--x12
Suspension mount
M3x8mm
M3x8mm
M2.5x5x1mm
M2.5x5x1mm
M2.5x5x2mmM2.5x5x2mmM2.5x5x2mm
M2.5x5x2mmM2.5x5x2mm
M3x8mm--x1
M3x8mm--x2
2.5x5x2mm washer--x10
2.5x5x1mm washer--x4
Rear lower arm--x2
Suspension pin Long--x2
Suspension pin Long--x2
BAG G
BAG H
P. 4

M3x10mm--x4
2x20.9mm pin--x2
M2x3mm--x2
4.3x4.5mm--x2
L Collar--x2
S Collar--x2
C Hub L&R
Steering block--2
6x10x3mm
B.Bearing--x4
4.3x4mm--x2
6x10x3mm
6x10x3mm
Front upper linkage Assm.--make 2
Ball end cap standard Ball end cap standard
Steering linkage Assm.--make 2
Ball end cap short Ball end cap short
Front CVD Assm.--make 2
Front axle
Front dog bone
Cross joint pin
Cross joint
M3x2.5mm
Black grease
Ball end cap standard--x4
Ball end cap short--x4
Turnbuckle 36mm--x2
Turnbuckle 20mm--x2
Cross joint--x2
Cross joint pin--x2
Front unival shaft--x2
Front axle--x2
M3x2.5mm set screw--x2
Upper arm assm.
Steering linkage assm.
4.3x4.5mm
M3x10mm
Collar L
Collar S
M2x3mm
4.3x4mm
M3x10mm
2x20.9mm Pin
BAG I
BAG J
P. 5

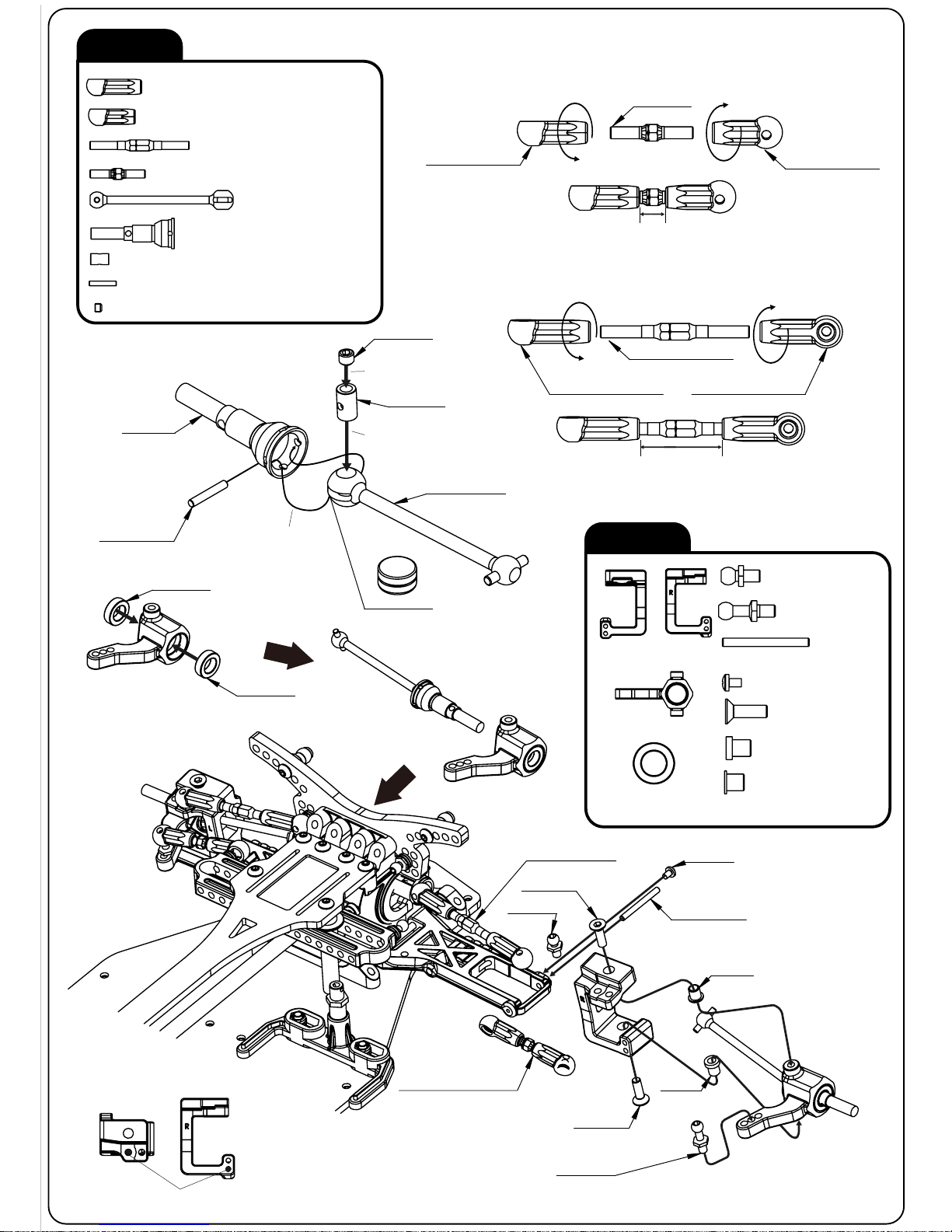

Step.3
Step.2
Step.1
Std. position
Turnbuckle 20mm
Turnbuckle 36mm
4mｍ
15mｍ

Rear upper arm
Assembly--4 set
Sponge 2mm
BAG K
BAG L
P. 6
Std. position
# 400
F：12.5mm
R：13.5mm
25.5mｍ
B.Bearing
Customer choice for
with or without
the bladder.
BAG SPONGE

Servo horn--x
1
Servo saver--x1
Servo saver spring S--x2
4.3x6mm--x1
M3 nut--x1
M3x12mm
M3x12mm
M3x12mm--x4
Shock lower ball--x4
M3 nut
Servo horn
Spring SSpring S
Servo saver
23T KO. SANWA
24T Hi TECH
25T FUTABA
4.3x6mm
P. 7
BAG M
BAG N
Std. position
Std. position
Don’t over tighten.
Don’t over tighten.

M3x8mm
M3x8mmM3x8mm
M3x6mmM3x6mm
M3x15mm
M3x15mm
Body clip
Body clip
Body post sleeve--x2
Body post support--x2
Body post--x2
E clip--2
Front lower bumper--x1
Front upper bumper--x1
Sponge bumper--x1
Ball end cap standard Ball end cap standard
Turnbuckle 30mm
Ball end cap standard--x2
Turnbuckle 30mm--x1
M3x12mm--x1
Servo saver cap--x1
M3x8mm--x4
3x6x0.5mm washer--x4
Servo mount--x2
M3x8mm--x2
M3x6mm--x2
M3x8mm--x3
R clip--x2
M3x15mm--x2
M3x12mm
Servo saver cap
M3x8mm
M3x8mm
3x6x0.5mm3x6x0.5mm
P. 8
BAG O
BAG P
10.4mｍ

M3x10mm
M3x8mm
M3x8mm
Rear Diffuser--x1
Body post--x2
Rear body post mount--x2
M3x10mm--x2
M3x8mm--x2
M3x8mm
M3x8mm
M3x8mmM3x8mm
M3x8mm--x4
Body post support--x2
Body clip--x4
Body clip
Body clip
Motor mount
adapter--x1
BAG Q
BAG R
P. 9

Wheel hub
2x9.8mm PIN
Wheel
M4 Lock nut
Wheel--x4
2x9.8mm Pin--x4
M4 Lock nut--x4
Wheel hub--x4
R clip--x2
Battery plate--x1
P.10
BAG S
BAG T
