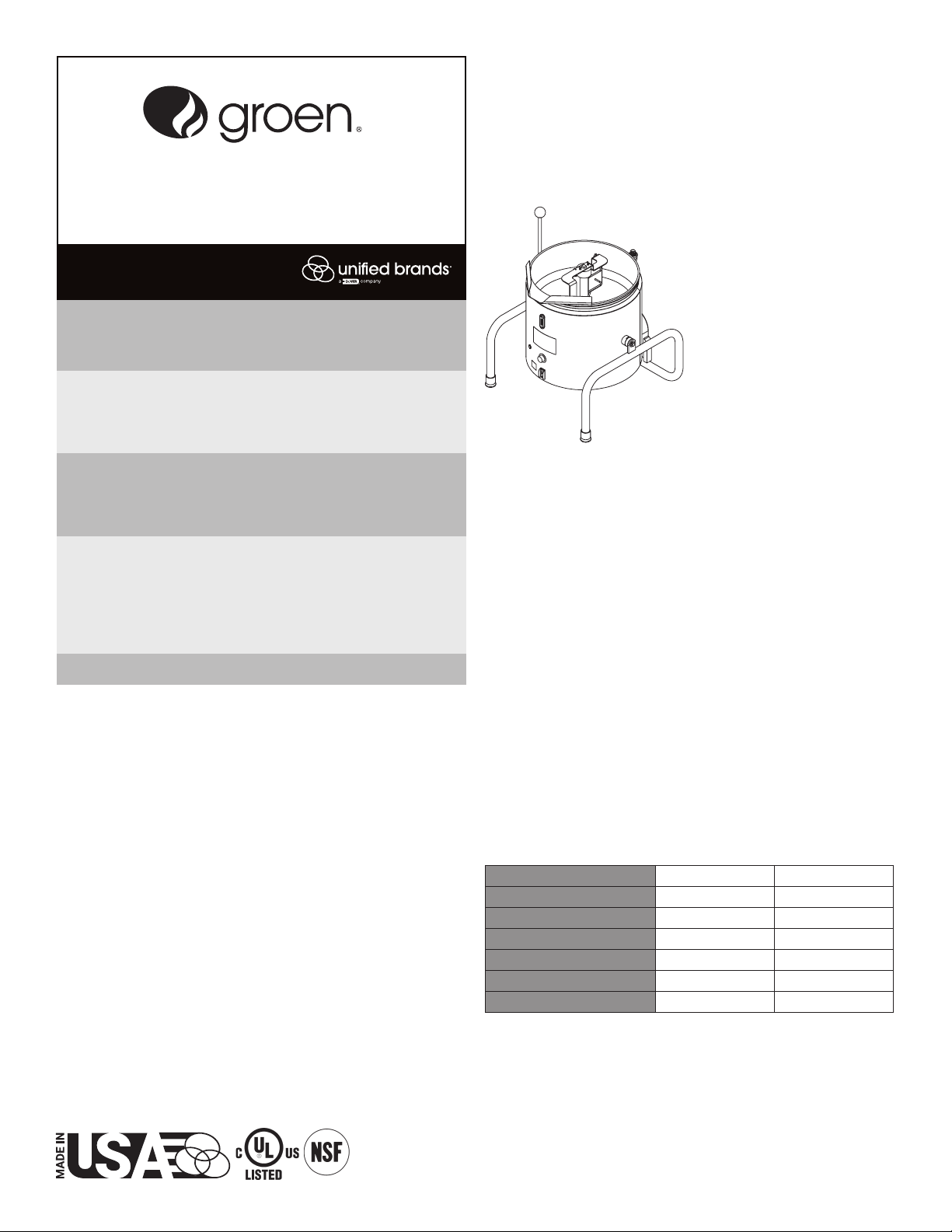

Groen GFK-20-110V User manual

OPERATOR MANUAL
IMPORTANT INFORMATION, KEEP FOR OPERATOR
THIS MANUAL MUST BE RETAINED FOR FUTURE REFERENCE. READ,
UNDERSTAND AND FOLLOW THE INSTRUCTIONS AND WARNINGS
CONTAINED IN THIS MANUAL.
FOR YOUR SAFETY Instructions to be followed in the event user smells
gas. This information shall be obtained by consulting your local gas
supplier. As a minimum, turn off the gas and call your gas company and
your authorized service agent. Evacuate all personnel from the area.
WARNING Improper installation, adjustment, alteration, service or
maintenance can cause property damage, injury or death. Read the
installation, operating and maintenance instructions thoroughly before
installing or servicing this equipment.
NOTIFY CARRIER OF DAMAGE AT ONCE It is the responsibility of the
consignee to inspect the container upon receipt of same and to determine
the possibility of any damage, including concealed damage. Unified
Brands suggests that if you are suspicious of damage to make a notation
on the delivery receipt. It will be the responsibility of the consignee to file
a claim with the carrier. We recommend that you do so at once.
Manufacture Service/Questions 888-994-7636.
PART NUMBER 178054, REV. A (02/21)
This manual provides information for:
JACKETED FUDGE KETTLE
MODELS GFK-20-110V, GFK-20-220V
· Self Contained
· Table Top Mounted
· Electrically Heated
· Tilting
· Tilt Lock Option (left hand only)
· Power Agitator
EQUIPMENT DESCRIPTION
The Groen GFK-20 cooker/mixer consists of a water-jacketed kettle with a
motor-driven mixer. The 20 quart tilting kettle is equipped with electronically
controlled electric heaters for the jacket.
The kettle of models GFK-20-110V and GFK-20-220V is constructed of stainless
steel welded into one piece. The body has a reinforced rim and a butterfly-
shaped pouring lip. It is fitted with an integral water jacket. The kettle exterior
has a bright semi-deluxe finish. The kettle’s pouring height allows filling pans up
to 4 inches high on a table top.
The kettle’s internal electric heaters provide uniform heat in three stages, with
jacket temperature control over the range of 140ºF to 180ºF (60ºC to 80ºC).
In addition to the three-stage adjustable thermostat for operating control, the
unit has a high limit thermostat, as a safety feature, plus an indicator lamp and
water gauge glass, which is used to monitor kettle operation.
The Agitator fits over the agitator post inside the kettle. Mixing is controlled with
a power switch. The switch doubles as a circuit breaker for motor protection.
The agitator continuously sweeps the side and bottom of the kettle.
Electric power for the kettle and mixer is supplied through a plug-in power cord,
which is furnished with the unit.
GFK-20-110V: 6’ - 12 AWG cord and 20 amp, 3-wire straight blade plug
GFK-20-220V: 6’ - 12 AWG cord and 15 amp, NEMA L6-15 plug
Standard unit operation requires connection to a single phase, 110/115 VAC, 60
Hz, 20A separate, dedicated branch circuit for the 110VAC model and a single
phase, 220VAC 50Hz 15A separate, dedicated branch circuit for the 220VAC
model.
Capacity 20 quarts 18.8 liters
Diameter 18.25 inches 47 cm
Depth 8 inches 20 cm
Space Required Side to Side 26 inches 66 cm
Space Required Vertical 36 inches 92 cm
Space Required Front to Back 32 inches 82 cm
Back Tilt Clearance 6 inches 16 cm
REFERENCES
KLENZADE SALES CENTER ECOLAB, Inc.
370 Wabasha
St. Paul, Minnesota 55102
800/352-5326 or 612/293-2233
NFPA/70 The National Electrical Code
NATIONAL FIRE PROTECTION ASSOCIATION
60 Battery March Park
Quincy, Massachusetts 02269
2016 Gees Mill Road, Suite 200, Conyers, GA 30013
888-994-7636, fax [phone]
unifiedbrands.net
NSF INTERNATIONAL
798 N. Dixboro Rd.
P.O. Box 130140
Ann Arbor, Michigan 48113-0140
UNDERWRITERS LABORATORIES, INC.
333 Pfingsten Road
Northbrook, Illinois 60062
ZEP MANUFACTURING CO.
1310-T Seaboard Industrial Blvd.
Atlanta, Georgia 30318
The information in this document is Confidential and shall not be disclosed to any third party without the express written
consent of Unified Brands. Information contained in this document is known to be current and accurate at the time of printing/
creation. Unified Brands recommends referencing our product line websites, unifiedbrands.net, for the most updated product
information and specifications. © 2021 Unified Brands. All Rights Reserved. Unified Brands is a wholly-owned subsidiary
of Dover Corporation.

2 OM-CFK-20
IMPORTANT - READ FIRST - IMPORTANT
CAUTION: BE SURE OPERATORS READ, UNDERSTAND AND FOLLOW THE OPERATING
INSTRUCTIONS, CAUTIONS, AND SAFETY INSTRUCTIONS IN THIS MANUAL.
WARNING: THIS UNIT IS INTENDED FOR USE IN THE COMMERCIAL HEATING, COOKING,
AND HOLDING OF WATER AND FOOD PRODUCTS, PER THE INSTRUCTIONS
CONTAINED IN THIS MANUAL. ANY OTHER USE COULD RESULT IN
SERIOUS PERSONAL INJURY OR DAMAGE TO EQUIPMENT AND WILL VOID
WARRANTY.
WARNING: KETTLE MUST BE INSTALLED BY PERSONNEL QUALIFIED TO WORK WITH
ELECTRICITY. IMPROPER INSTALLATION CAN RESULT IN INJURY TO
PERSONNEL AND/OR DAMAGE TO EQUIPMENT.
WARNING: AVOID ALL DIRECT CONTACT WITH HOT EQUIPMENT SURFACES. DIRECT
SKIN CONTACT COULD RESULT IN SEVERE BURNS.
WARNING: AVOID ALL DIRECT CONTACT WITH HOT FOOD OR WATER IN THE KETTLE.
DIRECT CONTACT COULD RESULT IN SEVERE BURNS.
CAUTION: DO NOT OVER FILL THE KETTLE WHEN COOKING, HOLDING OR CLEANING.
KEEP LIQUIDS A MINIMUM OF 4-5” (10-15 CM) BELOW THE KETTLE BODY
RIM TO ALLOW CLEARANCE FOR STIRRING, BOILING AND SAFE PRODUCT
TRANSFER.
WARNING: TAKE SPECIAL CARE TO AVOID CONTACT WITH HOT KETTLE BODY OR HOT
PRODUCT WHEN ADDING INGREDIENTS, STIRRING OR TRANSFERRING
PRODUCT TO ANOTHER CONTAINER.
WARNING: WHEN TILTING KETTLE FOR PRODUCT TRANSFER: 1) WEAR PROTECTIVE
OVEN MITT AND PROTECTIVE APRON. 2) USE CONTAINER DEEP ENOUGH
TO CONTAIN AND MINIMIZE SPLASHING. 3) PLACE CONTAINER ON STABLE,
FLAT SURFACE, AS CLOSE TO KETTLE AS POSSIBLE. 4) DO NOT STAND IN
POUR PATH OF HOT CONTENTS. 5) POUR SLOWLY, MAINTAIN CONTROL
OF KETTLE BODY HANDLE AT ALL TIMES, AND RETURN KETTLE BODY TO
INSPECTION & UNPACKING
CAUTION: SHIPPING STRAPS ARE UNDER TENSION AND CAN SNAP BACK WHEN CUT.
TAKE CARE TO AVOID PERSONAL INJURY OR DAMAGE TO THE UNIT BY
STAPLES LEFT IN THE WALLS OF THE CARTON.
CAUTION: THIS UNIT IS VERY HEAVY. INSTALLER SHOULD OBTAIN HELP AS NEEDED
TO LIFT THIS WEIGHT SAFELY
The unit will arrive in a heavy shipping carton and will be bolted and/or banded to
a skid. Immediately upon receipt, inspect the carton carefully for exterior damage.
Carefully cut any polyester straps around the carton and detach the sides of the
box from the skid. Pull the carton up off the unit. Thoroughly inspect the unit for
concealed damage. Report any shipping damage or incorrect shipments to the
delivery agent.
Write down the model number, serial number, and installation date, and retain this
information for future reference. Space for these entries is provided at the top of
the Service Log at the back of this manual. Keep this manual on file and available
for operators to use.
When installation is to begin, carefully cut any straps which holds the unit on the
skid. Lift the unit straight up off the skid. Examine packing materials to be sure
loose parts are not discarded with the materials.
INSTALLATION
WARNING: INSTALLATION OF THE KETTLE MUST BE DONE BY A CERTIFIED
ELECTRICIAN OR AUTHORIZED REPRESENTATIVE QUALIFIED TO WORK
WITH ELECTRICITY. IMPROPER INSTALLATION CAN RESULT IN INJURY TO
PERSONNEL AN/OR DAMAGE TO EQUIPMENT.
CAUTION: ELECTRICALLY GROUND THE UNIT AT THE TERMINAL PROVIDED. FAILURE
TO GROUND THE UNIT COULD RESULT IN ELECTROCUTION AND DEATH. DO
NOT FORCE THE PLUG OR ALTER IT TO OVERRIDE GROUNDING FEATURES.
The Groen cooker/mixer is provided with complete internal wiring. It is ready for
immediate connection. The completed unit was operated at the factory to check
the controls, mixer and jacket heater.
Any mechanical or electrical changes must be approved by Groen’s Food Service
Engineering Department.
1. Set the kettle in place and level it.
2. Provide electrical power as specified on the electrical information plate
attached to the equipment. Observe local codes and/or The National Electrical
Code in accordance with ANSI/NFPA 70 - (current edition).
3. Confirm that the jacket water level is at the middle of the sight glass. If the
level is low, use the following procedure for adding water:
a. If you are replacing water lost by evaporation, use distilled water. To
replace treated water that ran out of the jacket, prepare more treated
water as described in Water Treatment, Page 10.
b. Remove the plug from the elbow.
c. Add water or treated water through the elbow, until the water level rises to
the middle of the sight glass. Note that added water must raise the level in
the whole jacket, so a substantial amount of water will be needed to make
a small change in the level.
d. Replace the plug in the elbow. Follow instructions under “Jacket Filling
and Water Treatment” in the “Maintenance” section of this manual.
ELECTRICAL SPECIFICATIONS
Frequency 60 Hz 50 Hz
Voltage 110/115VAC 220VAC
Power, KW 1.9 1.9
Draw, AMP 16.5 8.3
Power, HP 1/4 1/4
Full-load current, AMP 1.6 0.9
Start Capacity 40 40
Service Power suggested 20 AMP, 1 PH 15 AMP, 1 PH
UPRIGHT POSITION AFTER CONTAINER IS FILLED OR TRANSFER IS COMPLETE.
6) DO NOT OVER FILL CONTAINER. AVOID DIRECT SKIN CONTACT WITH HOT
CONTAINER AND ITS CONTENTS.
CAUTION: KEEP FLOORS IN FRONT OF KETTLE WORK AREA CLEAN AND DRY. IF SPILLS
OCCUR, CLEAN IMMEDIATELY, TO AVOID SLIPS OR FALLS.
WARNING: TO AVOID INJURY, READ AND FOLLOW ALL PRECAUTIONS STATED ON THE
LABEL OF THE WATER TREATMENT COMPOUND.
WARNING: BEFORE REPLACING ANY PARTS, DISCONNECT THE UNIT FROM THE ELECTRIC
POWER SUPPLY.
WARNING: KEEP WATER AND SOLUTIONS OUT OF CONTROLS AND ELECTRICAL
EQUIPMENT. NEVER SPRAY OR HOSE THE SUPPORT HOUSING OR ELECTRICAL
CONNECTIONS. NEVER USE A HIGH PRESSURE HOSE TO CLEAN KETTLE
SURFACES.
CAUTION: MOST CLEANERS ARE HARMFUL TO THE SKIN, EYES, MUCOUS MEMBRANES
AND CLOTHING. PRECAUTIONS SHOULD BE TAKEN. WEAR RUBBER GLOVES,
GOGGLES OR FACE SHIELD AND PROTECTIVE CLOTHING. CAREFULLY READ
THE WARNINGS AND FOLLOW THE DIRECTIONS ON THE LABEL OF THE
CLEANER TO BE USED.
CAUTION: USE OF ANY REPLACEMENT PARTS OTHER THAN THOSE SUPPLIED BY
AUTHORIZED DISTRIBUTORS CAN CAUSE OPERATOR INJURY AND DAMAGE
TO THE EQUIPMENT, AND WILL VOID ALL WARRANTIES.
IMPORTANT : SERVICE PERFORMED BY OTHER THAN FACTORY AUTHORIZED PERSONNEL
WILL VOID WARRANTIES.
WARNING: DO NOT HEAT AN EMPTY KETTLE. EXCESSIVE STEAM PRESSURE COULD
DEVELOP.

3 OM-CFK-20
OPERATION
CAUTION: DO NOT OPERATE THE KETTLE WHEN THE WATER LEVEL IN THE JACKET IS
LOW. YOU MAY BURN OUT THE HEATING ELEMENTS.
The operator controls the cooker/mixer with the:
CONTROLS
1. Temperature control dial. The dial turns electric power for the heaters on or
off and sets the operating temperature of the kettle, with a maximum jacket
temperature of 180ºF. (Maximum temperature of a product heated by the
kettle is less than 180º, due to heat loss out the top of the kettle.)
2. Mixer power switch, a switch that turns electric power for the motor drive on
and off.
TO OPERATE THE KETTLE (HEATING)
1. Every day make sure that the jacket water level is at the middle of the sight
glass. If the level is low, see “Jacket Filling” in the “Maintenance & Cleaning”
section of this manual.
2. Plug in the power cord. If necessary, turn on the power at the circuit breaker
or fuse box.
3. Turn the temperature control dial to the desired setting. The red indicator light
indicates that the kettle is heating. Cycling of the light on and off indicates
that the kettle is being held at the set temperature. Once in each cycle the
temperature controller will make a clicking sound as it cycles on and off. This
is normal.
4. To shut down the kettle, turn the temperature control dial to “OFF.”
5. For prolonged shut-down or before cleaning the outside of the unit, unplug the
unit.
TO OPERATE THE MIXER
1. Place the agitator on the shaft.
2. Press the power switch to the “ON” position.
3. To shut down the mixer, press the power switch to “OFF.”
4. For prolonged shut-down or when the outside of the unit is to be cleaned,
unplug the unit.

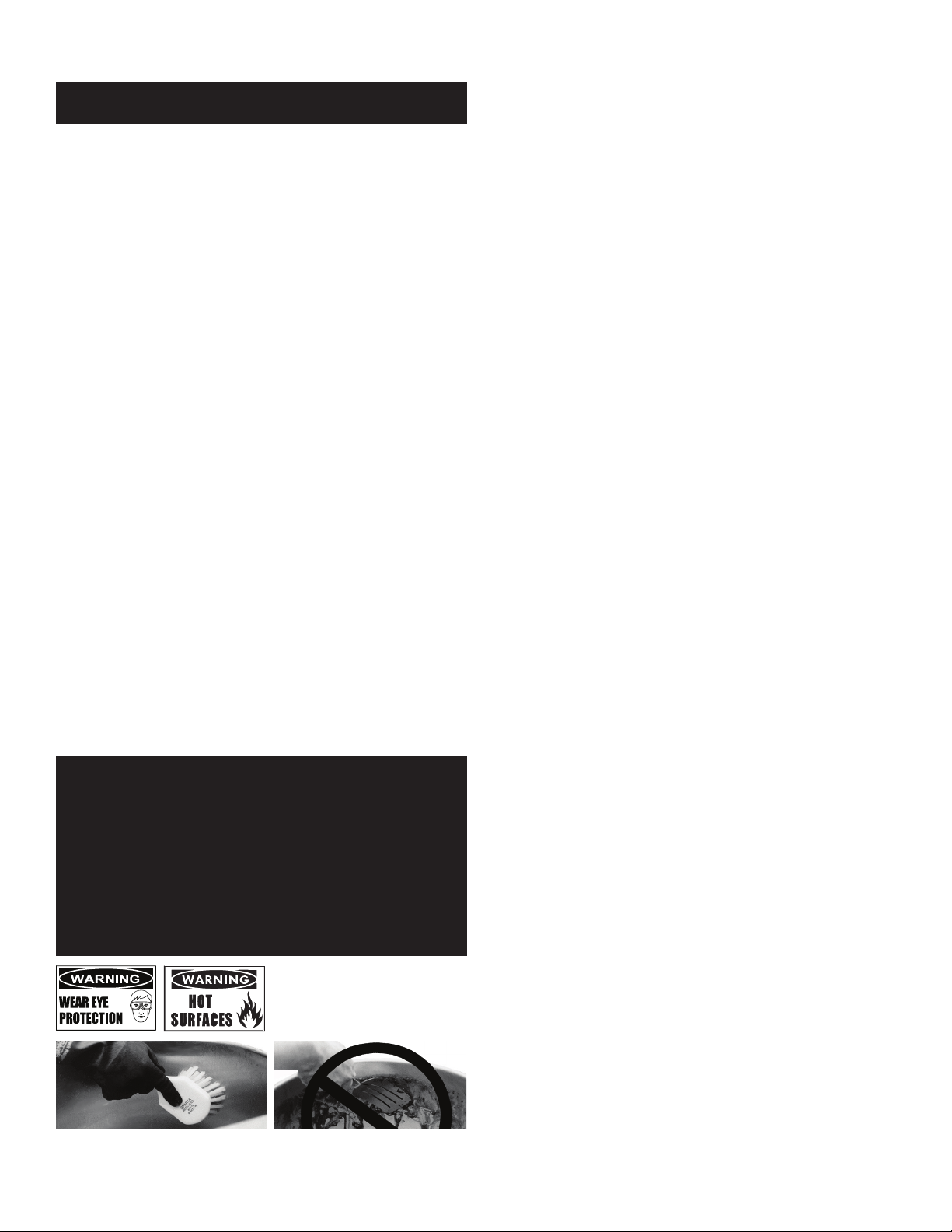

CLEANING
WARNING: KEEP WATER AND SOLUTIONS OUT OF CONTROLS AND ELECTRICAL
EQUIPMENT. DO NOT USE A HIGH PRESSURE HOSE TO CLEAN THE CONTROL
CONSOLE, ELECTRICAL CONNECTIONS, ETC.
WARNING: AVOID ANY DIRECT CONTACT WITH HOT SURFACES. DIRECT SKIN CONTACT
COULD RESULT IN BURNS.
CAUTION: MOST CLEANERS ARE HARMFUL TO THE SKIN, EYES, MUCOUS
MEMBRANES AND CLOTHING. PRECAUTIONS SHOULD BE TAKEN TO WEAR
RUBBER GLOVES, GOGGLES OR FACE SHIELD AND PROTECTIVE CLOTHING.
CAREFULLY READ THE WARNINGS AND FOLLOW LABEL DIRECTIONS.
NOTICE: NEVER LEAVE A CHLORINE SANITIZER IN CONTACT WITH STAINLESS STEEL
SURFACES LONGER THAN 30 MINUTES. LONGER CONTACT CAN CAUSE
STAINING AND CORROSION.
Use a brush, sponge, cloth, plastic or rubber scraper, or plastic wool to clean. Don’t use metal
implements or steel wool when cleaning.
SUGGESTED CLEANING SUPPLIES
1. Cleaner, such as Klenzade HC-10 or HC-32 from ECOLAB, Inc.
2. Kettle brushes in good condition.
3. Sanitizer such as Klenzade XY-12.
4. Film remover such as Klenzade LC-30.
PRECAUTIONS
Before cleaning, shut off the kettle by turning the thermostat dial to “OFF” and
unplug the unit or shut off its electric power at a remote switch, such as the circuit
breaker.
PROCEDURE
1. Clean food contact surfaces as soon as possible after use, preferably while the
kettle is still warm. If the unit is in continuous use, clean and sanitize inside
and outside at least once every 12 hours.
2. Scrape and flush out food residues. Be careful not to scratch the kettle with
metal implements.
3. Prepare a solution of the detergent/cleaning compound as instructed by the
supplier. Clean the unit thoroughly. A cloth moistened with cleaning solution
can be used to clean controls and electrical conduits.
4. Rinse the agitator parts and the inside of the kettle thoroughly with hot water
to remove every trace of detergent. Drain them completely and allow them to
AIR dry or wipe them dry. (The agitator may be cleaned in a dishwasher).
5. As part of the daily cleaning program, clean soiled external and internal
surfaces. Remember to check the sides and back of the unit.
6. To remove stuck materials, use a brush, sponge, cloth, plastic or rubber
scraper, or plastic wool with the cleaning solution. To reduce effort required in
washing, let the detergent solution sit in the kettle and soak into the residue.
Do NOT use abrasive materials or metal tools that might scratch the surface.
Scratches make the surface harder to clean and provide places for bacteria
to grow. Do NOT use steel wool, which may leave particles in the surface and
cause eventual corrosion and pitting.
7. The outside of the unit may be polished with a stainless steel cleaner such as
“Zepper” from Zep Manufacturing Co.
8. When equipment needs to be sanitized, use a solution equivalent to one that
supplies 200 parts per million available chlorine. Obtain advice on sanitizing
agents from your supplier of sanitizing products. Following the supplier’s
instructions, apply the agent after the unit has been cleaned and drained.
Rinse off the sanitizer thoroughly.
9. It is recommended that the equipment be sanitized just before use.
10. If there is difficulty removing mineral deposits or a film left by hard water
or food residues, clean the kettle thoroughly and use a deliming agent, like
Groen Delimer/Descaler (Part Number 114800) or Lime-Away® from Ecolab,
in accordance with the manufacturer’s directions. Rinse and drain the unit
before further use.
11. If cleaning problems persist, contact your cleaning product representative for
assistance. The supplier has a trained technical staff with laboratory facilities
to serve you.

4 OM-CFK-20
ELECTRICAL
Probe Resistance 500 Ohms ± one percent in a stirred ice bath
No-Load Running Current 110/115 Volts 1.8 Amperes
220 Volts 1.0 Amperes
Full-Load Running Current 110/115 Volts 2.5 Amperes
220 Volts 1.3 Amperes
Motor Speed
60 Hz 1500 RPM at full load
50 Hz 1250 RPM at full load
Agitator Speed (No-Load) 60 Hz 50 RPM
50 Hz 50 RPM
Motor Start/Circuit Breaker
Trip Current
110/115 Volts 1.75 Amperes
220 Volts 1.35 Amperes
Over-Temperature Switch
Opening Temp 195ºF ± 6ºF
Heater Power 110/115 Volts
& 220 Volts 1850 Watts
MAINTENANCE
WARNING: SHUT OFF THE ELECTRIC POWER TO THE UNIT BEFORE YOU OPEN THE
BOTTOM COVER.
WARNING: TO AVOID INJURY, READ AND FOLLOW ALL PRECAUTIONS STATED ON THE
LABEL OF THE WATER TREATMENT COMPOUND.
WARNING: BEFORE REPLACING ANY PARTS, DISCONNECT THE UNIT FROM THE
ELECTRIC POWER SUPPLY.
NOTICE: Contact an authorized representative when repairs are required.
PERIODIC MAINTENANCE
A Maintenance & Service Log is provided at the back of this manual. Each time
there is maintenance performed on your Groen kettle, enter the date the work
was done, what was done, and who did it. Keep this manual on file and available
for operators to use. Periodic inspection will minimize equipment down time and
increase the efficiency of operation. The following points should be checked often:
1. The jacket water level should be at the middle of the gauge glass when the
kettle is at room temperature. If the level is low, see “Jacket Filling”.
2. The inside of all housings should be kept clean and dry.
3. Electrical wiring should be kept securely connected and in good condition.
4. The fill plug on the elbow at the back of the kettle should have vent holes in it.
These holes must be kept free of debris for proper venting. Plugging the holes
could cause pressure to build!
JACKET FILLING AND WATER TREATMENT
The jacket must be kept filled with the proper amount of treated water. From time
to time, you will need to restore the jacket water to the proper level, because its
water slowly evaporates. You may also need to replace treated water, if the jacket
is drained for any reason. The procedure for adding water follows:
1. If you are replacing water lost by evaporation, use distilled water. If you are
replacing treated water that ran out of the jacket, prepare more treated water
as directed below.
2. Remove the plug from the elbow on the back of the kettle body. Note the
venting holes in the image above.
3. Add water or treated water through the elbow, until the water level rises to the
middle of the sight glass. Since the water you are adding must raise the level
in the whole jacket, a substantial amount of water is needed to make a small
change in the level.
4. Replace the plug in the elbow.
WATER TREATMENT PROCEDURE
Obtain water treatment compound and a pH test kit from your supplier, or directly
from your Groen Parts Distributor.
1. Place exactly one gallon of water in the mixing container. Distilled water is
recommended.
2. Hang a strip of pH test paper on the rim of the container. Allow about one inch
of the strip below the surface of the water.
3. Measure the water treatment compound you will be using. (One way to do this
is to add the compound to the water from a measuring cup.)
4. Stir the water continuously, while you slowly add water treatment compound,
until the water reaches a pH between 10.5 and 11.5. Judge the pH by
frequently comparing the color of the test strip with the color chart provided in
the pH test kit. Color blind people mixing the treated water solution must use
an electroanalytical instrument to measure pH or have a person who is not
color blind check the test strip color level.
5. Record the exact amounts of water and treatment compound used. These
amounts may be used again, if the same sources of water and compound are
used to refill the jacket in the future. However, it is advisable to check the pH
every time treated water is prepared.
COMPONENT REPLACEMENT
Internal wiring is marked as shown on the circuit schematic drawings. Be sure that
new components are wired in the same manner as those being replaced.
REPLACEMENT PARTS
To order parts, contact your Authorized Service Agent. Supply the model
designation, serial number, part description, part number, quantity, and when
applicable, voltage and phase.
CONTACT US
If you have questions pertaining to the content in this manual, contact Unified
Brands at 888-994-7636.

5 OM-CFK-20
TROUBLESHOOTING
This unit is designed to operate smoothly and efficiently if properly maintained.
However, the following is a list of checks to make in the event of a problem. Wir-
ing diagrams are found at the end of this manual. When in doubt, turn unit off
and call for service at 888-994-7636. USE OF ANY REPLACEMENT PARTS OTHER
THAN THOSE SUPPLIED BY THE MANUFACTURER OR AN AUTHORIZED DISTRIBU-
TOR CAN CAUSE INJURY TO THE OPERATOR AND DAMAGE TO THE EQUIPMENT
AND WILL VOID ALL WARRANTIES.
SYMPTOM PROCE-
DURE
PROCEDURE
Kettle will not
heat, and heating
indicator will not
come on.
User
a. That unit is firmly plugged into outlet.
b. That branch circuit is on. Check fuse or
circuit breaker for the outlet.
Authorized
Service Rep
Only
c. Probe may be open. Continuity should
measure 540 to 600 at room temperature.
d. The over-temperature switch may be faulty
or open. The switch should open at ± 195ºF.
e. Defective temperature controller.
f. Loose wire.
Kettle will not
heat, but heating
indicator comes on.
User a. Check for proper water level. Fill as
necessary (See filling instructions).
Authorized
Service Rep
Only
b. Heating element may be open. Check for
continuity.
c. Loose wire.
Kettle exceeds set
temperature.
User
a. Temperature control setting.
b. Check for proper water level. Fill as
necessary (See filling instructions).
Authorized
Service Rep
Only
c. Probe not fully inserted into water jacket.
d. Probe type incorrect for controller (see
NOTE below).
e. Defective temperature controller.
Kettle does not get
hot enough.
User
a. Temperature control setting.
b. Check for proper water level. Fill as
necessary (See filling instructions).
Authorized
Service Rep
Only
c. Probe type incorrect for controller (see
NOTE below).
d. Check probe resistance.
e. Defective temperature controller.
Kettle heats but
motor will not run.
User
a. Fudge may be too thick. Lift agitator off
the top of the shaft and restart the motor. If
the shaft turns, the fudge is too thick. Add
water until the motor will turn.
Authorized
Service Rep
Only
b. Loose wire.
Motor will not run;
kettle does not heat.
User
a. Check that plug is firmly plugged into wall
outlet.
b. Check that branch circuit is on. Check
fuse or circuit breaker for the outlet. Other
equipment on the same circuit may cause
an overload.
Authorized
Service Rep
Only
c. Loose wire.
Motor circuit
breaker trips
frequently.
User
a. Fudge may be too thick. Lift agitator off
the top of the shaft and restart the motor. If
the shaft turns, the fudge is too thick. Add
water until the motor will turn.
Authorized
Service Rep
Only
b. Drive shaft bushing binding. Remove agitator.
Put two drops mineral oil on top of the shaft
on the inside of the white plastic bushing.
When you turn on the motor the bushing
should not rotate. If it does, replace it.
c. Start capacitor not wired correctly. Check
wiring diagram.
Kettle makes
grinding noise.
(Some amount of
noise is normal for
this kettle and does
not necessarily
indicate a problem)
Authorized
Service Rep
Only
a. Drive shaft coupling may be loose or
slipping.
b. Gear motor not properly secured, mounting
bolts loose.
c. Drive shaft bushing is binding.
WARRANTY
Congratulations on the purchase of your new Unified Brands equipment. We hope you
enjoy many years of reliable service in connection with the same. Please review all of
the important safety and operational information contained in the Operator’s Manual
for this equipment before it is placed in service. If you have any questions related to
equipment set up, operations, or service, please call 888-994-7636.
In addition, please review the sales terms and conditions set forth below.
*****IMPORTANT NOTICE*****
WARRANTIES, LIMITATIONS ON WARRANTIES, AND LIMITATION OF REMEDIES
The following Warranties, Limitation on Warranties, and Limitation of Remedies are
included in the terms of sale for this product. Please read this entire warranty and all
warranty modifications, disclaimers, and limitations of remedies set forth herein before
accepting or using this equipment or product. Customer acknowledges and accepts
the provisions of this notice by Customer’s acceptance and use of the product. If these
provisions are not acceptable and agreed to by Customer, then please return this
product in its unused condition to Unified Brands or a Unified Brands authorized dealer.
UNIFIED BRANDS warrants this product against defects in material and workmanship
under normal use and services for which this product was designed. This warranty
runs only to the original end user and is in lieu of any other liability for defects.
THE WARRANTIES EXPRESSED IN THESE TERMS AND CONDITIONS ARE IN PLACE
OF ANY AND ALL OTHER EXPRESS WARRANTIES (UNLESS SEPARATELY STATED IN
PRINTED MATERIAL PREPARED BY US DESCRIBING OUR EQUIPMENT) AND EXCLUDE
ALL IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, ANY WARRANTY OF
MERCHANTABILITY OR FITNESS FOR ANY PARTICULAR PURPOSE; NOR ARE THERE
ANY OTHER WARRANTIES, EXPRESS OR IMPLIED, BY OPERATION OF LAW OR
OTHERWISE. In no event shall UNIFIED BRANDS be liable for damages or delay or
for any consequential, special or contingent damages arising out of any breach of
our warranty, whether or not we have knowledge of specific needs or our employees
or agents have given any specific assurances. Anyone claiming that there has been
a breach of warranty by UNIFIED BRANDS must give us written notice within THIRTY
(30) days after discovery of the relevant defect or the right to assert such claim will
have been waived conclusively and provided further that any such claim must also be
asserted within the general warranty period for such equipment and/or parts.
UNIFIED BRANDS will not be liable for any expense incurred without our prior written
authorization for alterations made outside of our factory or for repairs which are
not performed by UNIFIED BRANDS authorized service departments using UNIFIED
BRANDS factory parts. Nor shall we be responsible for the performance of equipment
as to which any repairs, revisions or alterations have been made by others.
THE EXCLUSIVE REMEDY OF THE USER OR BUYER AND THE EXCLUSIVE LIABILITY OF
UNIFIED BRANDS OR ANY SELLER OF UNIFIED BRANDS PRODUCTS, FOR ANY AND ALL
CLAIMS, LOSSES, INJURIES, OR DAMAGES (INCLUDING CLAIMS BASED ON BREACH
OF WARRANTY, CONTRACT, NEGLIGENCE, TORT, STRICT LIABILITY, OR OTHERWISE)
RESULTING FROM OR ARISING OUT OF THE USE OF HANDLING OF THIS PRODUCT,
SHALL BE THE RETURN OF THE PURCHASE PRICE OR AN AMOUNT NOT TO EXCEED
THE ORIGINAL PURCHASE PRICE OF THE PRODUCT OR, AT THE ELECTION OF UNIFIED
BRANDS OR THE SELLER, THE REPLACEMENT OF THE PRODUCT.
https://unifiedbrands.net/
Groen-Warranty-Information

6 OM-CFK-20

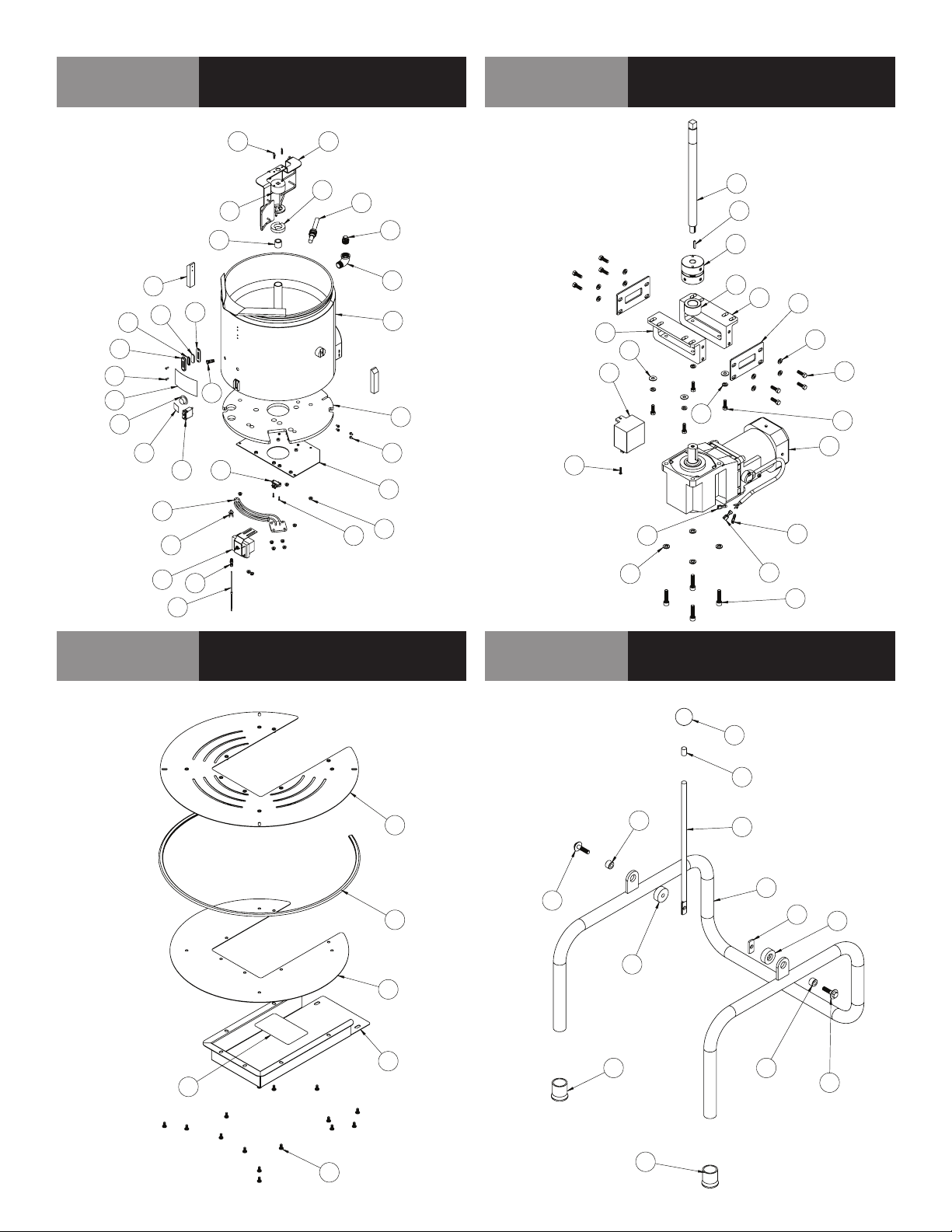

Parts List
BODY ASSEMBLY
52
3
4
6
29
8
7
9
1
15
14
13
12 11
16
30
31
17
18
10
27
28
26
20
25
19
23
24
22
21
Parts List
DRIVE ASSEMBLY
35
34
40
39
38
41
36
44
42
42
43
37
45
46
47
48
47
33
43
36
Parts List
BOTTOM COVER
ASSEMBLY
49
50
51
52
53
54
Parts List
NON LOCKING BASE
ASSEMBLY
57
58
56
55
60
59
61
63
62 61
59
60
63

7 OM-CFK-20
Key Qty Description Part #
Parts List
PARTS LIST FOR
110 VAC KETTLE
Key Qty Description Part #
1 1 KETTLE BODY AND TRUNNION, GFK-20 DIRECT DRIVE 176221
2 1 AGITATOR WELDMENT, KETTLE 176877
3 1 GUIDE AGITATOR Z072016
4 1 RING SUPPORT AGITATOR Z072015
5 2 SCREW THUMB 1/4"-20 Z002080
6 1 BEARING AGITATOR Z072049
7 1 ELBOW 90 DEG STREET 3/4 NPT BRASS CHROME Z010668
8 1 PIPE PLUG 3/4 NPT SQUARE W/4 VENT Z074528
9 2 STOP, KETTLE, DIRECT DRIVE 176249
10 4 SCREW, WASHER HEAD CAP, SLOTTED Z069773
11 1 GASKET WATER LEVEL, COVER GFK-20 Z072025
12 1 GLASS GFK-20, WATER LEVEL COVER Z072027
13 1 GASKET GLASS WATER, LEVEL COVER GFK-20 Z072026
14 1 COVER, GLASS WATER Z072028
15 2 SCREW ROUND HEAD Z012970
16 1 PILOT LAMP 115V RED INDUSTRIAL Z002986
17 1 KNOB GFK-20 Z073413
18 1 CIRCUIT BREAKER Z074513
19 1 ELEMENT, 1850W 115V Z072039
20 1 TERMINAL BLOCK, 2 POS, 6 POLE Z056746
21 1 CONNECTOR-MALE-REWORK Z070175
22 1 PROBE TEMPERATURE () Z086410
23 1 THERMOSTAT, KETTLE Z074529
24 1 TEMPERATURE CONTROLLER Z077889
25 2 MACHINE SCREW, ROUND HEAD, 6-32 X 5/8" Z056745
26 10 NUT- HEXSERRATEDZINC 1/4-20 NT1101
27 1 INSULATION SPACER, MOTOR AND GEAR BOX, KETTLE 177185
28 1 PLATE ASSEMBLY, MOTOR Z072010
29 1 CORD & PLUG ASSEMBLY 6' 149179
30 1 WARNING LABEL, PINCH POINT 176385
31 1 LABEL, COMBO OVEN CAUTION Z072139
32 1 HARNESS, WIRE, KETTLE DIRECT DRIVE (NOT SHOWN) 176260
33 1 GEARMOTOR 110 VAC 176207
34 1 COUPLING, KETTLE, DIRECT DRIVE 176211
35 1 SHAFT AGITATOR, KETTLE 177171
36 2 GEARMOTOR MOUNTING BRACKET 176094
37 2 GEARMOTOR MOUNT REINFORCING PLATE 176136
38 1 START CAPACITOR, 110/115 VAC 176485
39 1 COUPLING SPACER 177170
40 1 KEY, AGITATOR SHAFT, KETTLE 177177
41 1 MACHINE SCREW, ROUND HEAD, 6-32 X 5/8" 56745
42 12 SCREW HEX HEAD CAP 1/4"-20 X 3/4" L. 5609
43 12 LOCK WASHER- 1/4" SS NT1216
44 4 FLAT WASHER- 1/4 " SS NT1219
45 4 SOCKET HEAD CAP SCREW, 5/16-18 X 1-1/4", 18-8
SS
176212
46 4 WASHER LOCK 5/16" 5656
47 2 CONNECTOR, QC RCPT 18-22AWG 0.187 176381
48 1 CONNECTOR, QC RCPT 18-22AWG 0.250 176380
49 1 BOTTOM COVER VENTED ASSEMBLY, KETTLE 176179
50 1 BOTTOM COVER EDGE TRIM, KETTLE 176335
51 1 BOTTOM COVER SPLASH GUARD, KETTLE 176334
52 1 MOTOR COVER, KETTLE 177180
53 1 LABEL, WIRING DIAGRAM, KETTLE DIRECT DRIVE 176262
54 16 SCREW 10-32X.38 P PH SS MS H15327
55 1 FRAME WELDMENT, KETTLE 176222
56 1 HANDLE TILTING GFK-20 Z072021
57 1 KNOB, RED BALL HANDLE Z012691
58 1 RING TOLERANCE 1/2" Z012692
59 2 PLAIN CYLINDRICAL BEARING CFC Z072050
60 2 BOLT WASHER TRUNNION MOUNTING Z088093
61 2 WASHER FRAME GFK-20 Z072053
62 1 SPACER FRAME GFK-20 Z072052
63 2 TIP CRUTCH 1 1/4" OD 177191

8 OM-CFK-20
Parts List
PARTS LIST FOR
220 VAC KETTLE
Key Qty Description Part #Key Qty Description Part #
1 1 KETTLE BODY AND TRUNNION, GFK-20 DIRECT DRIVE 176221
2 1 AGITATOR WELDMENT, KETTLE 176877
3 1 GUIDE AGITATOR Z072016
4 1 RING SUPPORT AGITATOR Z072015
5 2 SCREW THUMB 1/4"-20 Z002080
6 1 BEARING AGITATOR Z072049
7 1 ELBOW 90 DEG STREET 3/4 NPT BRASS CHROME Z010668
8 1 PIPE PLUG 3/4 NPT SQUARE W/4 VENT Z074528
9 2 STOP, KETTLE, DIRECT DRIVE 176249
10 4 SCREW, WASHER HEAD CAP, SLOTTED Z069773
11 1 GASKET WATER LEVEL, COVER GFK-20 Z072025
12 1 GLASS GFK-20, WATER LEVEL COVER Z072027
13 1 GASKET GLASS WATER, LEVEL COVER GFK-20 Z072026
14 1 COVER, GLASS WATER Z072028
15 2 SCREW ROUND HEAD Z012970
16 1 PILOT LAMP 250V RED Z016028
17 1 KNOB GFK-20 Z073413
18 1 CIRCUIT BREAKER Z077883
19 1 ELEMENT, 1850W 240V Z077882
20 1 TERMINAL BLOCK, 2 POS, 6 POLE Z056746
21 1 CONNECTOR-MALE-REWORK Z070175
22 1 PROBE TEMPERATURE () Z086410
23 1 THERMOSTAT, KETTLE Z074529
24 1 TEMPERATURE CONTROLLER Z077889
25 2 MACHINE SCREW, ROUND HEAD, 6-32 X 5/8" Z056745
26 10 NUT- HEXSERRATEDZINC 1/4-20 NT1101
27 1 INSULATION SPACER, MOTOR AND GEAR BOX, KETTLE 177185
28 1 PLATE ASSEMBLY, MOTOR Z072010
29 1 CORD & PLUG ASSEMBLY 6' 160228
30 1 WARNING LABEL, PINCH POINT 176385
31 1 LABEL, COMBO OVEN CAUTION Z072139
32 1 HARNESS, WIRE, KETTLE DIRECT DRIVE (NOT SHOWN) 176260
33 1 GEARMOTOR 220 VAC 176208
34 1 COUPLING, KETTLE, DIRECT DRIVE 176211
35 1 SHAFT AGITATOR, KETTLE 177171
36 2 GEARMOTOR MOUNTING BRACKET 176094
37 2 GEARMOTOR MOUNT REINFORCING PLATE 176136
38 1 START CAPACITOR, 220 VAC 176486
39 1 COUPLING SPACER 177170
40 1 KEY, AGITATOR SHAFT, KETTLE 177177
41 1 MACHINE SCREW, ROUND HEAD, 6-32 X 5/8" 56745
42 12 SCREW HEX HEAD CAP 1/4"-20 X 3/4" L. 5609
43 12 LOCK WASHER- 1/4" SS NT1216
44 4 FLAT WASHER- 1/4 " SS NT1219
45 4 SOCKET HEAD CAP SCREW, 5/16-18 X 1-1/4", 18-8
SS
176212
46 4 WASHER LOCK 5/16" 5656
47 2 CONNECTOR, QC RCPT 18-22AWG 0.187 176381
48 1 CONNECTOR, QC RCPT 18-22AWG 0.250 176380
49 1 BOTTOM COVER VENTED ASSEMBLY, KETTLE 176179
50 1 BOTTOM COVER EDGE TRIM, KETTLE 176335
51 1 BOTTOM COVER SPLASH GUARD, KETTLE 176334
52 1 MOTOR COVER, KETTLE 177180
53 1 LABEL, WIRING DIAGRAM, KETTLE DIRECT DRIVE 176262
54 16 SCREW 10-32X.38 P PH SS MS H15327
55 1 FRAME WELDMENT, KETTLE 176222
56 1 HANDLE TILTING GFK-20 Z072021
57 1 KNOB, RED BALL HANDLE Z012691
58 1 RING TOLERANCE 1/2" Z012692
59 2 PLAIN CYLINDRICAL BEARING CFC Z072050
60 2 BOLT WASHER TRUNNION MOUNTING Z088093
61 2 WASHER FRAME GFK-20 Z072053
62 1 SPACER FRAME GFK-20 Z072052
63 2 TIP CRUTCH 1 1/4" OD 177191

9 OM-CFK-20
Parts List
LOCKING BASE ASSEMBLY
1
2
3
4
58
6
7
9
13
12
1110
12
13
Key Qty Description Part #
1 1 TILT LOCK KETTLE BASE
FRAME ASSEMBLY
177721
2 1 HANDLE WELDMENT, TILT
LOCK KETTLE
177733
3 1 TILT LOCK TRUNNION,
KETTLE
175950
4 1 RETRACTABLE SPRING
PLUNGER KNOB
177725
5 1 RETRACTABLE SPRING
PLUNGER
177724
6 1 RING TOLERANCE 1/2" Z012692
7 1 KNOB, RED BALL HANDLE Z012691
8 1 SET SCREW, 10-32 X 1/4"
LONG, SS, WITH LOCITE
PATCH
177726
9 2 TIP CRUTCH 1 1/4" OD 177191
10 1 SPACER FRAME GFK-20 Z072052
11 1 WASHER FRAME GFK-20 Z072053
12 2 PLAIN CYLINDRICAL BEAR-
ING CFC
Z072050
13 2 BOLT WASHER TRUNNION
MOUNTING
Z088093

10 OM-CFK-20
Wiring Diagram
CALL FACTORY FOR
REPLACEMENT PARTS:
888-994-7636

11 OM-CFK-20
Service Log
Model No: Purchased From:
Serial No: Location:
Date Purchased: Date Installed:
Purchase Order No: For Service Call:
Date Maintenance Performed Performed By
