TURFMULTICUTTER
MODELTMC2
OPERATORSMANUAL
GROUNDSMANINDUSTRIESLTD
30BALLYBRAKESROAD
BALLYMONEY
CO.ANTRIM
BT536LG
TEL:02827667049FAX:02827666855
Email:bwarke@groundsmanindustries.co.uk
Leading the field with technology
www.groundsmanindustries.com

Page1
SERIALNUMBER DELIVERYDATE
Itisessentialtoquotethemachinemodelandserialnumberwhenmakingserviceenquiries
ororderingsparepartstoavoidanydelay.
TheserialnumberofyourGroundsmanPedestrianOperatedTurfMultiCutterislocatedon
thefrontrightsidebodypanelifviewedfromtherearofthemachine.
Thismachinewassuppliedby:
Dealeraddress:
IfyourequireanyfurtheradviceorassistanceyoucancontactGroundsmanIndustriesdi
rectlyon:TEL:02827667049FAX:02827666855
Email:bwarke@groundsmanindustries.co.uk

Page2
INDEX
CONTENTS PAGE
SERIALNUMBER 1
INDEX 2
SAFETYFIRST 3
WARRANTY 4
TECHNICALINFORMATION 5
OPERATORLEVERSANDCONTROLS 6&7
BASICSETUP&OPERATINGINSTRUCTIONS 8,9&10
RUNNINGMAINTENANCE 11,12&13

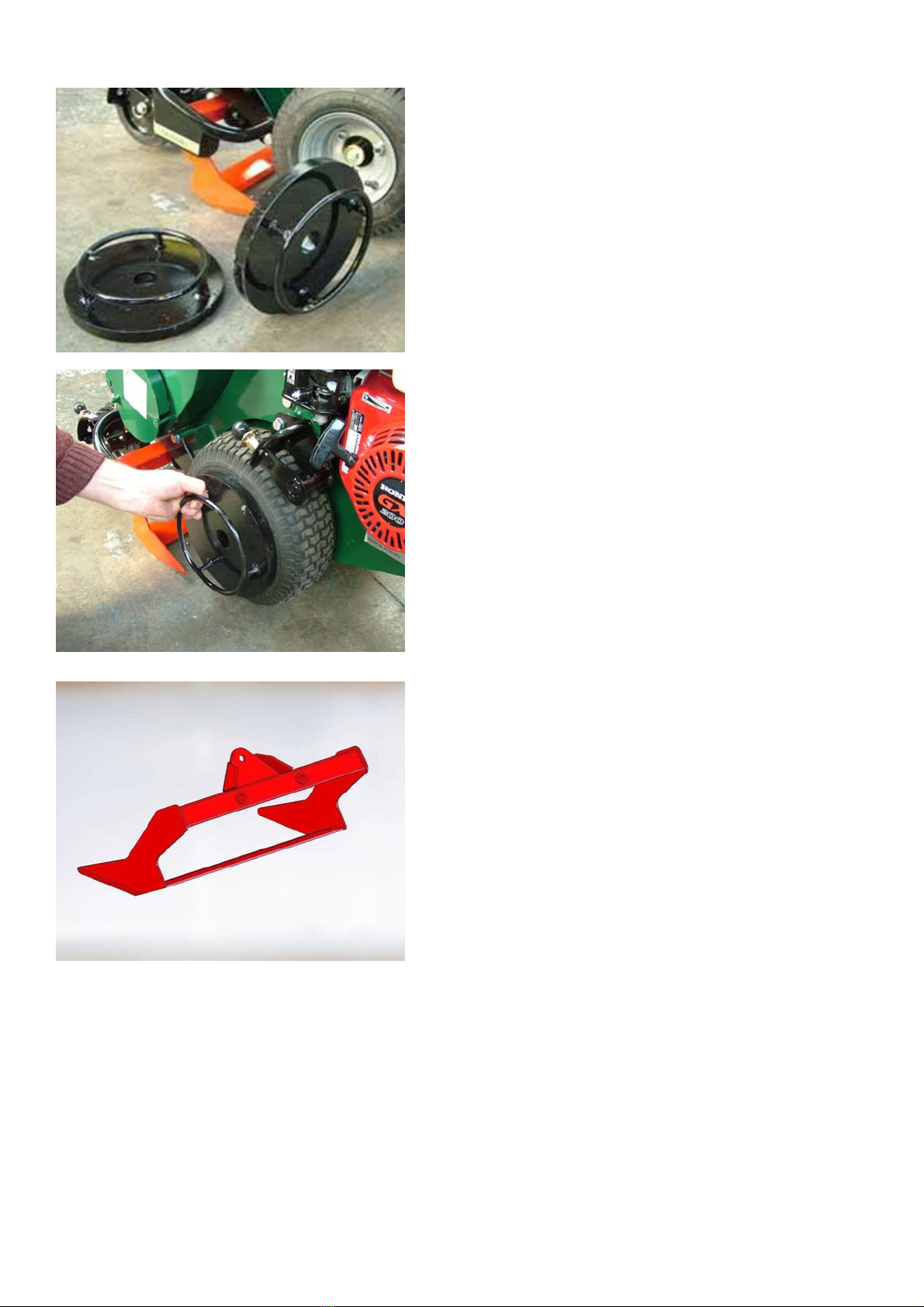

AVAILABLEACCESSORIES 14
NOTES 15

Page3
SAFETYFIRST
1. Allguardsmustbeinplace.
Alwaysensurethatallguardsareinposition,properlyfittedandmaintained.Donotattempttooperatethe
machinebeforemakingthischeckeachtimethemachineisused.
2. Bewareofbystanders.
Operatorsshouldbeawarethatitispossiblethatdebriscanexitfromthesidesofthemachine,sothisarea
isbestkeptclear.
3. Alwaysoperatesafely.
Neverremoveanyguardsorworkattheanypartofthemechanismwhiletheengineisrunning.Whentilt
ingthemachineuptorestonthechassisnosetogainaccesstothecutterblade,alwaysselectastableand
levelsurface.Beawarethatinthisforwardtiltedposition,petrolcanleakthroughthefillercapifthetank
isfull.Takecarenottoallowpetrolspillageorcausetoignite.
4.Neveroperatethemachinewithanypartsmissing.
Checkthemachineperiodicallyforlooseordamagedparts.AlwaysusegenuineGroundsmanIndustries
replacementparts.Failurescausedbytheuseofspuriousreplacementpartswillnotbecoveredbythefac
torywarranty,norwillanyliabilitybeacceptedfordamagesorinjurythusincurred.
5. Modifications.
No liability will be accepted in respect of machines modifiedwithout specific written permission from
GroundsmanIndustries.
6.Observethemanual.
Noliabilitywillbeacceptedwhereinjuryordamageiscausedbyusingthemachineinamannerotherthan
detailedinthismanual.
Alwaysdisengagebladedrivebeforetransportingthemachine
Do not start this machine or carry out any maintenance until you have read and understand the
safetyandoperatinginstructionscontainedinthismanual.

Page4
WARRANTY
Examinationofthegoodshasbeenmadebyoronbehalfofthepurchaserandnowarrantycondition,de
scriptionor representation onthepartofthe manufacturer isgiven oristo beimplied orhas been given
fromanythingsaidorwritteninthenegotiationsbetweenthepartiesortheirrepresentativebeyondthose
mentionedbelow.Anystatutoryorotherwarrantcondition,descriptionorrepresentationexpressedorim
pliedastothegoodsisherebyexpresslyexcluded.
Inlieu,thereofthemanufacturerundertakestomakegoodbyrepairorreplacementatitsoptionfreeofall
chargeduringnormalworkinghours.Anydefectsinthegoodsarisinginthemanufacturer’sopinionfrom
faultydesign,materialsorworkmanshipwhichshallbecomeapparentwithinaperiodof24monthsinthe
caseofmachines,and12monthsinthecaseofsparesfromthedateofreceiptofthegoods.Atthetermi
nationofwhichperiod,allliabilityonthemanufacturer’spartceases.Providedalwaysandtheabovewar
rantyissubjecttothefollowingconditions:
A. Themanufacturer’sliabilityextentsonlytotherepairorreplacementanditacceptsnoliabilityforany
consequential or other loss, damage or injury resulting directly or indirectly from any defect in the
goods.
B. Themanufacturerswarrantydoesnotextenttofailures,defectsordamageattributabletowearandtear,
improperadjustments,neglect,andalterationofspecificationoraccident.
C. Alldefectivepartsmustbereturnedtothedealerimmediatelytogetherwithfullparticularsofthede
fects,themachinenumber,thehoursworkedandthedatemachinewassupplied.
D. Themanufacturerswarrantydoesnotextendtoproprietaryorothercomponentsnotofitsmanufacture,
butitwillasfaraspossiblepasstothepurchaseranybenefitsofanyguaranteegiventothemanufac
turerinrespectofsuchcomponents.
E. In the event of the rejection by the manufacturerof any claim, the partor parts returned will be de
stroyedunlessspecificinstructionstothecontraryweregivenwhenpartorpartswerereturned.
F. Noclaimwillbeconsideredifotherthangenuinepartsmanufacturedbythemanufactureroritsorder
andlistedinitscatalogueareused.
G. This warranty should only be construed as strictly limited in its application and is valid only in the
countryofpurchase.Ifthegoodsshallchangehandsduringtheperiodofthiswarranty,thiswarranty
willceasetohaveeffect.
H. Themanufactureracceptsnoresponsibilityfordamagebyfireoraccidentofanykindtoanygoodsre
turnedunderthetermsofthiswarranty.Themanufacturerdoesnotacceptresponsibilityforanyacci
dentoccurringtosuchgoodswhilstonthepremises.
I. Thiswarrantyshallceasetohaveeffectifthepurchaserremoves,defacesoraltersthemanufacturer’s
numberplate(serialnumber)oranyothernumbersormarksaffixedtoanyGroundsmanIndustriesLtd
product.
J. Inrespecttomachinessoldwhichhavebeenusedsincethedateofmanufactureforcommercial,con
tract, hire, rental or demonstrator purposes, the warranty on this product is limited in duration to 12
monthsfromthedateofpurchase.

Page5
TECHNICALSPECIFICATIONS
ModelTMC2
BLADES
ThreeBoltTriPadMounting
SodCutting Width 30cm(12”)
35cm(14”)
40cm(16”)
45cm(18”)
OVERALLDIMENSIONS
SafetyBarsFittedand
OperatorHandlesFolded
OutofWork
WEIGHT(BladeFitted)
Engine: 6.5HPHondaGX200
DriveSystem: EnclosedCentrifugalClutch&BeltDrive
BladeMechanism: CentralConnectingRodandEccentricDriveShaft.
SealedBearingsthroughout.
GroundDrive:OilFilledWormGearbox
WHEELS
Front: StudMounting13x5.00x6PneumaticBlockPatternTyres
Rear: 20cm(8”)JockeyWheels
Allcalculationsarebasedonstandardoperatingenginespeedof3600RPM
Height 81cm(32”)
Width 56cm(22”)AtHandles
53cm(21”)AtSafetyGuard
Length 110cm(43”)
160cm(63”)
123Kg(270lbs)
Depth
Adjustable
(Maximum)
Forward
Speed
BladeSpeed HAVLevels
(HandleBar
Vibration)
TURFCUTTING
6cm(2½”)
44mtrs/min
(48yds)
1093oscillations/min
18cutspermetre
(16.6peryard)
@3,600rpm
enginespeed
6.68(m/s
2
)
Maximum
OperatingTime
1.12Hours

Page6
OPERATORSHANDLESFOLDED
‘A’OPERATORSHANDLES
‘B’OPERATORSHANDLESCLAMPBAR
MACHINESETINWORKPOSITION
‘A’INWORKANDTRANSPORTLEVER
‘B’CUTTINGDEPTHSETLEVER
MACHINESETINTRANSPORTPOSITION
‘A’INWORKANDTRANSPORTLEVER
‘B’CUTTINGDEPTHSETLEVER
GROUNDDRIVELEVERINNEUTRAL
‘C’GROUNDDRIVEENGAGEMENTLEVER
OPERATORSHANDLEUNFOLDED
‘A’THROTTLELEVER
OPERATORLEVERSANDCONTROLS
B
A B
A
B A
B
C
A

HONDAPETROLENGINE
‘A’ONOFFSWITCH
‘B’CHOKELEVER
‘C’FUELONOFFLEVER
‘D’PULLSTARTERHANDLE
BLADECLUTCHPULLYGUARD
‘A’FLAPCOVERHANDLEKNOB
‘B’BLADECLUTCHTOGGLE
Page7
OPERATORLEVERSANDCONTROLS
A
B
A
B
C
D

GROUNDDRIVE
Ground wheel drive can be engaged or dis
engagedbypullingthestemlockplungertowards
the depth of cut lever knob ’C’ and moving the
lever forward to engage ground drive or
backwardstodisengage.WhentheGroundDrive
Clutch Lever is in the rearward neutral position
thefront wheels are free to turn for wheeling or
manoeuvringthemachine.Thegrounddriveisset
independentlyofthecutterdrive.
Page8
BASICSETTINGUPANDOPERATINGINSTRUCTIONS
OPERATORSHANDLES
Theoperatorshandles’A’canbefoldedforstor
age or carriage. To unfold slacken handle clamp
lever ’B’andpivotthehandlesup and back.Set
the operators handles at a height which is com
fortable to operate the machine. Retighten the
clampleverfirmly.
DEPTHOFCUT
Setthetransportlever‘A’forwardtothecutting
positionasshownto lowerthe machine into cut.
Toadjustthedepthofcut,alterthepositionofthe
rear jockey wheels by pulling the stemlock
plunger towards the depth of cut lever knob ’B’
and moving the lever forward or backwards to
selectthedesiredcuttingdepthfrom1to6cmon
thescale.
NOTE
Tilt the machine forward to clear the jockey
wheels from the ground when adjusting the
transportorcuttingdepthlevers.
TRANSPORTATIONANDCUTTING
Therearjockeywheelscanbesetforoutofwork
transportation or in work cutting by pulling the
stemlock plunger towards the transport lever
knob ’A’ and moving the lever backwards for
transportation or forwards for cutting as shown.
For transportation, the depth of cut lever ’B’
shouldbeadjusteddownwardstodepthscaleset
ting one to attain maximum blade ground clear
ance.
A
B
A
B
A
B
C

Page9
ENGAGEANDDISENGAGECUTTERDRIVE
Turntheengineoffbeforeopeningthesafetyflapto
accessthebladedrivetoggle.Openthesafetyflapby
gripping the handle stem ‘A’ located to the rearward
rim of the flap, lift it up to hinge the safety flap for
wardtoexposethebladedriveengagementtoggle‘B’.
Beware that the engagement toggle is attached to
the pulley and spins at speed when the engine is
runningwiththrottle.
DO NOT OPEN THE CLUTCH SAFETY FLAP
WITHTHEENGINERUNNING.
Toengageordisengagethecutterdriveflipthe
red engagement toggle‘B’ fromoneside totheother
asshown. When thetoggleis being setto engage the
blade clutch from the disengaged position the toggle
will become loose, this is normal. Ensure that the
safety flap is closed beforestarting the engine.Pull
thethrottle levergently to enablethebladeclutchpin
toengagedrivebeforeincreasingthepower.
TRANSPORTINGANDMANOEUVRING
Pulling up on thethrottle lever ’A’ will increase the
enginespeedandengagethemaindriveclutch.Ifthe
grounddriveleverandbladedrivetogglearesetinthe
disengaged(neutral)position,nodrivewillbetrans
mittedtothegroundwheelorthecutterbladeandthe
machine can be wheeled freely by the operator. En
gage the ground drive for forward transportation un
der power. The cutter blade drive should remain dis
engagedfortransportingandmanoeuvring.
THEENGINE
The TMC2 Turf Cutter is fitted standard with a
Honda GX200 6.5 HP Engine. Unleaded or low
leaded fuel is preferred to minimize combustion
chamber deposits. Before starting for the first time
check that the engine has been filled to the correct
level with engine oil (see running maintenance sec
tion of this manual. )To start the engine, switch the
ignitionswitch‘A’on.Checkthatthefuellever‘C’is
turnedonandiftheengineiscold,turnonthechoke
lever ‘B’. Pull the starter cord handle ‘D’ and when
theenginestarts,easethechokeleveroff.
BEFORESTARTINGANDOPERATINGTHEEN
GINE, FAMILIARISE YOURSELF WITH THE
HONDA ENGINE MANUAL SUPPLIED WITH
THISOPERATORSMANUAL
BASICSETTINGUPANDOPERATINGINSTRUCTIONS
B
A
D
A
B
C
A

CHANGINGTHEBLADES
BEFORE COMMENCING TO CHANGE THE
CUTTERBLADESWITCHTHEENGINEOFF.
Undothecutterblademountingbolts:
Tiltthemachineforwardtorestthechassisnoseonthe
ground. Using the tee wrench provided remove the
three nuts and heavy washers ’A’ to release the blade
fromthemountingpad.
Removethecutterblade
Allowtheblademountingboltstoslipforwardintothe
mounting pad to enable the blade to slide downwards
forremoval.
Refittingthecutterblade:
Whenrefittingthebladeensurethatthetwolongbolts
are inserted in the bottom mounting holes on the
mounting pad and the shorter bolt is in thetop centre
hole. Ensure that the heavy washers are refitted and
tightentheblademountingnutsfirmly.
NOTE
SeeBladesandAccessoriesonpage14.
OPERATINGTHEMACHINEINWORK
Follow the instructions to set the cutter depth and en
gage the blade cutter drive. Ensure that the ground
wheeldriveisalsoengaged.Starttheengineandgrasp
ing the throttle lever pull upward to engage the main
drive. Apply a gentle downward pressure totheopera
torshandlestoenterthecutterbladeinthegroundthen
relaxthehandlesandallowthemachinetodothework.
Toexitthecut,tiltthemachineforwardwhilethedrive
isstillengageduntilthecutterbladeclearstheground.
BASICSETTINGUPANDOPERATINGINSTRUCTIONS
A
Page10

ENGINE
Please refer to the Honda owners manual for in
structionsregardingmaintenance.
EngineOil
The Groundsman Model TMC2 is fitted with a GX200
Honda 6.5 HP petrol engine. When filling or checking
theoil level, theengineshouldbe level. Lowerthema
chine to in work position, unscrew the oil plug ‘A’ and
dipsticklocatedatthefrontoftheengine.FillwithSAE
10 W 30 or equivalent until the oil is level with the
threads onthe filler hole. When the oil plug is removed
the oil should be visible on the dip stick. Check the en
gineoildaily.Replaceevery80hrsor6months.
AirFilter
Check the air filter is clean. Undo the thumbscrew lo
catedonthetopoftheair filtercover‘A’locatedontop
oftheenginetoexposethefilter.Undothesecondthumb
screwto removethe filter. Removethe filter outer foam
’B’ and wash clean with petrol and squeeze in a few
drops of oil. The paper element must be replaced when
dirtyorclogged.Checkevery50workinghoursdepend
ingonoperatingconditions.
MAINDRIVEBELT
Removingthecover:
Checkthemaindrivebelt ‘A’every100 workinghours.
Undo the two retaining bolts to remove the main drive
beltcover.Ifworn,splitorcrackedthebelt mustbere
placed.
Replacingandtensioningthebelt:
Slackenthefourenginebasemountingbolts‘B’andturn
thebelttensioningbolt‘C’anticlockwisetoslidetheen
ginebacktoloosenthebeltforremoval.Toretensionthe
beltturnthebelttensioningbolt‘C’clockwise.
Thecorrectbelttension:
Placingyour fingersontopofthebelthalfwaybetween
the pulleys and pressing downward, tension the belt to
achieve15mmdeflection.Ensurethattheengineissquare
and the clutch pulley face is properly aligned with the
belt.
Tightentheenginebasemountboltsfirmly.
RUNNINGMAINTENANCE
A
B
A
A
B
C
15mm
Page11

BLADEDRIVEBELT
Removingthecover:
Check the blade drive belt ‘A’ every 300 working hours.
Undo the three retaining bolts to remove the blade drive
belt cover. If worn, split or crackedthebelt must be re
placed.
Replacingandtensioningthebelt:
Slacken the nut behind the belt tensioning roller ‘B’ and
slidethetensioningrollerdowntheslottoloosenthebelt
for removal. To retension the belt push the tensioning
roller upthe slot firmly against the belt and retighten the
belttensioningrollerlockingnutfirmly.Replacethecover
tightentheretainingbolts.
GROUNDDRIVEGEARBOX
Checkingandtoppinguptheoillevel:
Checkthegrounddrivegearboxoillevelevery300work
ing hours or if there is any sign of oil leakage under the
machine. On a level surface, tilt the machine forward to
rest on the front chassis nose. With an extension socket
wrench,removeoilplug‘A’andusingacontainerwitha
filler tubetop up the gearbox oil level with EP 90 Gear
Oiluntil theoil is levelwiththe lip ofthegearbox filler
hole.replacetheoilplugandtightenfirmly.
JOCKEYWHEELSANDOPERATINGLEVERS
Oilingthejockeywheels:
The jockey wheels should be oiled every 20 working
hours.Rotatethejockeywheelstobringthewheelhuboil
hole‘A’ to thetop. Using an oil can, pump two or three
strokesofoilintothewheelhubofbothwheels.
OPERATINGLEVERS
Oilingthestemplungers:
Thethreestemlockplungers’A’forthetwojockeywheel
levers and the ground drive operating lever which is lo
catedbehindtheengineshouldbeoiledevery20working
hoursor3weeks.Turntheleversupapplyalittleoiltothe
topofthestemplungerlipandallow ittosoakdownthe
stem.
TYRES
Checkforwearandtyrepressure:
Check the tyre pressure every 20 Hours or 3 weeks and
maintainat18PSI,Overinflatedtyreswilleffecttraction.
Under inflated tyres will effect the handling and stability
ofthemachine.Tocheckandtopupthepressureremove
thevalvecap ‘A’, ensurethatthecapisrefittedsecurely
whencompleted.Themaintaintractionefficiency,replace
thetyres when any part of the block pattern turf tread is
less than one millimetre. If wheel weights are fitted they
must be removed to gain access to the tyre valve. The
wheelcanberemovedtorepairorreplacethetyrebyun
doing the three stud mounting bolts ‘B’. Ensure they are
securelyretightened.
Page12
RUNNINGMAINTENANCE
A
A
B
A
A

CUTTERBLADE
Checkforwearandtightenthemountingbolts:
Itisimportantnottoallowthecutterbladetobecome
loose
The three blade mounting bolts ’A’ should be checked
and tightened five working hours after initial fitting and
every30workinghoursthereafter.Onalevelsurface,tilt
themachineforwardtorestonthefrontchassisnoseand
use the tee wrench supplied to tighten the bolts.. If the
cuttingedgeonthecutterbladecrossknifeorsideknives
is rounded and dull, the blade should be removed for
sharpening. This should be done by a service workshop.
Thecuttingbevelshouldbegroundontheupper faceof
the blade cross knife and on the outermost faces of the
side knives. If the blade cross knife is wornto less than
2/3 its original width it will not enter the ground effi
cientlyandmustbereplaced.
RUNNINGMAINTENANCE
A
Page13
MAINTENANCESUMMARY
Frequency Operation Type/Quantity
Tyres 20hrs CheckPressure/Condition 18psi
Levers 20hrs Oil EP90
JockeyWheels 20hrs Oil EP90
Blade 30hrs TightenorReplace BladePartNoTMCSB**
AirFilter 50hrs CleanorReplace SeeHondaManual
EngineOil 80hrs TopUp SAE10W30
MainBelt 100hrs AdjustorReplace BeltPartNoBPC113
BladeDriveBelt 300hrs AdjustorReplace BeltPartNoBPC140
GearOil 300hrs TopUp EP90

BLADESANDACCESSORIES
SPECIALISTBLADES
Specialistbladesareavailableorcanbemanufacturedtosuityourrequirementsincludingmoledrain
ing,decompactingtrenchingandnarrowmultistripsodcuttingforsodwalling(revetting)etc.
ContactGroundsmanIndustriesTechnicalDepartment.
PRODUCTCATALOGUE
SeethefullrangeofGroundsmanProductsandAccessoriesCatalogueavailablefreeofcharge.
Phone: (+44)02827667049 Fax: (+44)02827666855
Email:bwarke@groundsmanindustries.co.uk Website:www.groundsmanindustries.com
Page14
WHEELWEIGHTS
Awheelweightskitisavailableforadditionaltraction
when operating in very hard compacted conditions.
Thekitconsistsoftwodiscweightsandtwomounting
stub axles. The stub axles are attached by the wheel
hub retainer bolt and incorporate a lynchpin quick
mounting method of attaching and removing the
wheel weights. The weights are fitted directly to the
wheelsthereforenoextraweightisfeltbytheoperator
however, when manually lifting the machine the
wheelweightsshouldberemoved.
Fittingthewheelweights:
Removethewheelhubretainerboltsandfitthewheel
weightsstubaxles.Usingthehandlesprovidedonthe
wheelweights,alignthecentreholewiththestubaxle
andslideonthewheelweightuntilitrestsagainstthe
tyre. Secure the weight by inserting the lynchpin
throughtheholeprovidedinthestubaxle.
ArangeofbladesareavailablefortheTMC2TurfCutter
PartNumber
12”(30cm) SodBlade TMCSB12
14”(35cm)SodBladeTMCSB14
16”(40cm)SodBladeTMCSB16
18”(45cm)SodBladeTMCSB18
3”(75mm)MoleDrainBladeTMCMD3

www.groundsmanindustries.com
info@groundsmanindustries.com
Internet 8
'
UK : 028 2766 7049
Int : +44(0) 28 2766 7049
Telephone
6
UK : 028 2766 6855
Int : +44(0) 28 2766 6855
Fax
See our
Online Catalogue
at www.groundsmanindustries.com
Ireland & Scotland
Groundsman Industries
Phone +44(0) 28 2766 7049
www.groundsmanindustries.com
England & Wales
Synergy Products Ltd
Phone +44(0) 1380 828 337
www.synergyproducts.co.uk
Uk & Ireland Distributor’s
Other Country's
30 Ballybrakes Road
Ballymoney
Co. Antrim
Northern Ireland
United Kingdom
BT53 6LG
Address +
Notes
Germany, Austria
& Switzerland
UNIKOM GmbH
Telefon +49 (7457) 91070
FAX +49 (7457) ‐91072
www.unikom.eu
France MACDIS
Phone: +33 (3255) 58447
Fax: +33 (3250) 49515
www.macdis.fr
Spain ATICA Maquinaria S.L
Telf. +34.936.805.491
Fax.+34.936.805.487
www.aticamaq.com
Table of contents
Other Groundsman Lawn And Garden Equipment manuals
Popular Lawn And Garden Equipment manuals by other brands

P3 International
P3 International LED Bug Trap P7880 brochure

AGROFROST
AGROFROST FrostGuard Basic B20 Operating & maintenance instructions

Palmako
Palmako AD32-0403 installation manual

Woodstar
Woodstar LS40P Original instruction manual

Oase
Oase IceFree Thermo 200 operating instructions

Ryobi
Ryobi RLT3640P Original instructions

New England Arbors
New England Arbors 7.5 x 7.5 Cardiff Pergola Assembly guide

AgroMax
AgroMax INFINITY 8 Assembly instructions

FRAME IT ALL
FRAME IT ALL RAISED GARDEN BED quick start guide

Simplicity
Simplicity 938 owner's manual

Toolland
Toolland TV 76601 instruction manual

Bush Hog
Bush Hog TOUGH PG-600 Specifications
